Today we're going to make Particle Logo Text in Adobe After Effects. If you missed my first tutorial you can check it out here.
You can follow the simple steps here

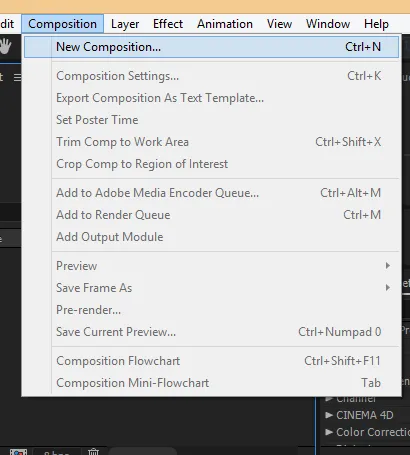

1st create a new composition just click Composition > New composition on the menu bar.

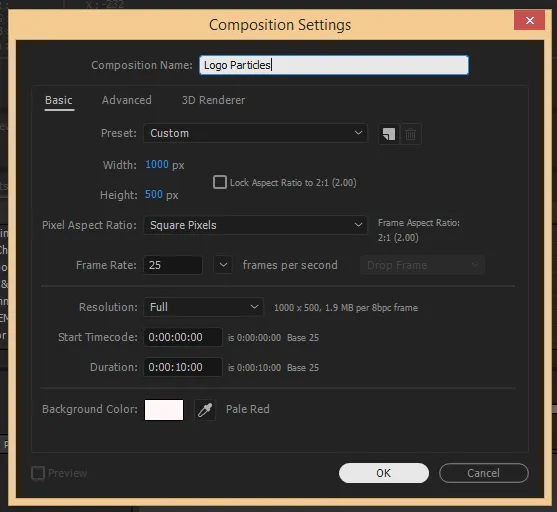

Set the settings of your new composition like this, you can name it any name you want. as for me i named it Logo Particles

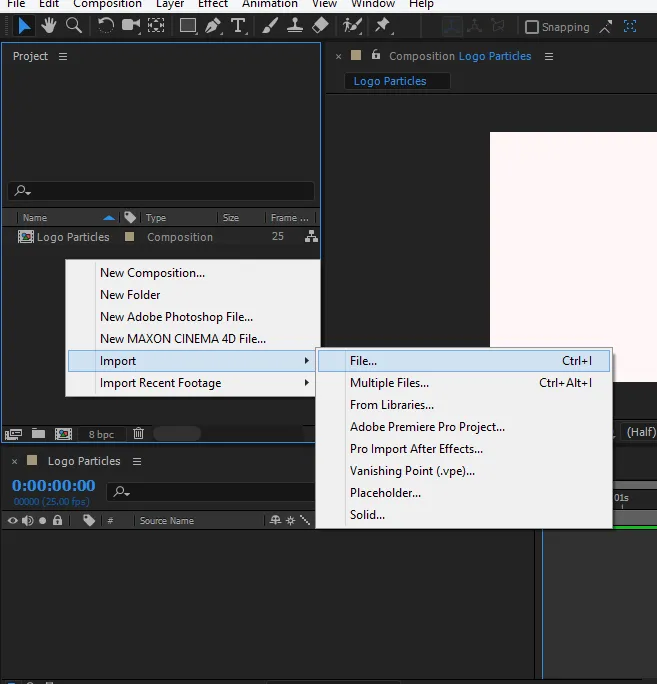

Now we are going to import our logo file on our project panel.

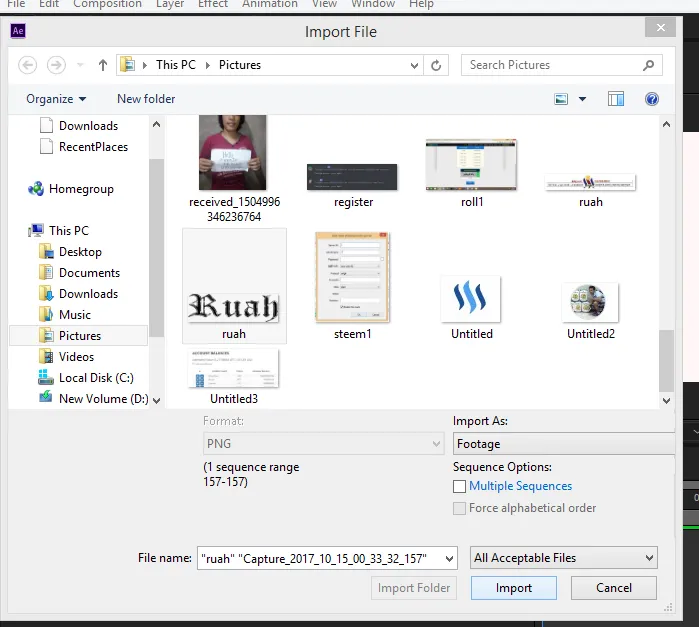

Select the files you want to import then click Import.
Drag the Logo and drop it down at the bottom panel of our after effects project select the logo and press "S" on your keyboard to show the scale option change it to 45,45
Drag your 2nd logo if you have one and do the same change on its scale until you are satisfied with the outcome.

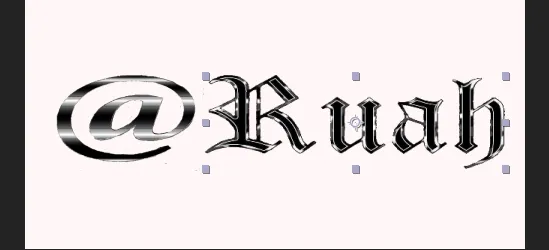

Arrange your logo at the center of our project's composition panel.
Select all the logo.

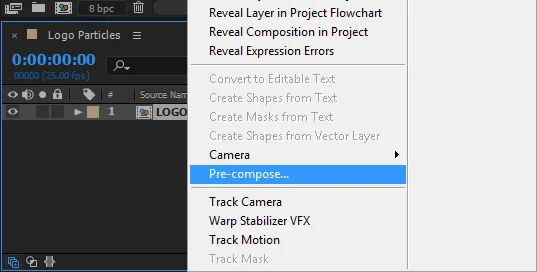

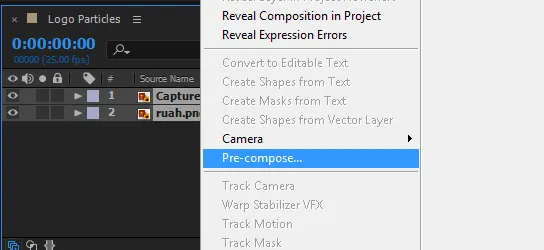

Right-click then click pre-composed

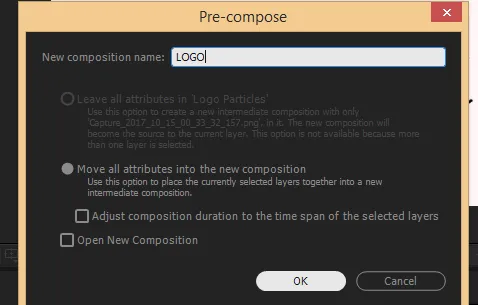

Follow this setting for your pre-composed project then click ok.
Pre-compose it again.

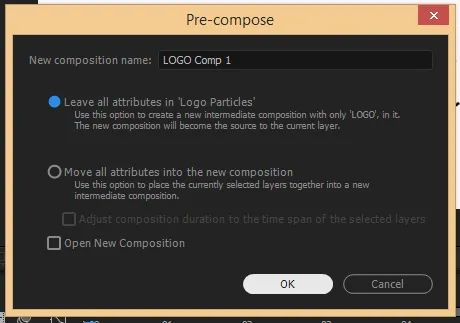

Click "leave all attributes' in 'Logo Particles'" then click ok.

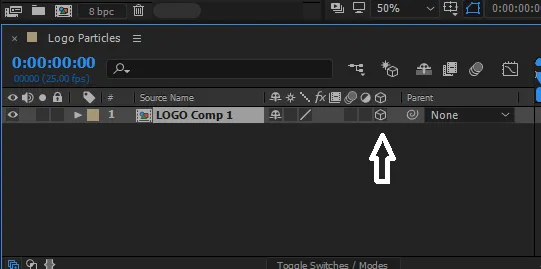

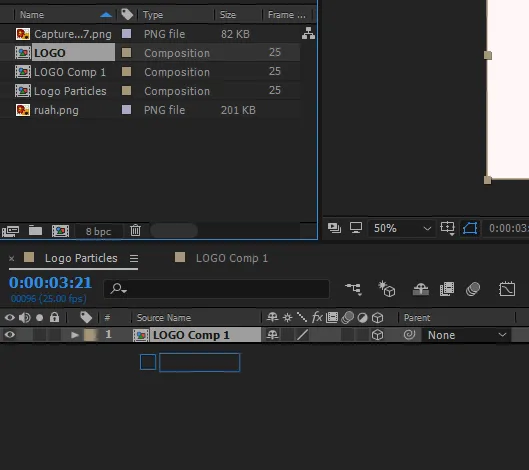

Click the 3D Layers then double click 'LOGO Comp 1'
Click the rectangle shape on the tool bar.

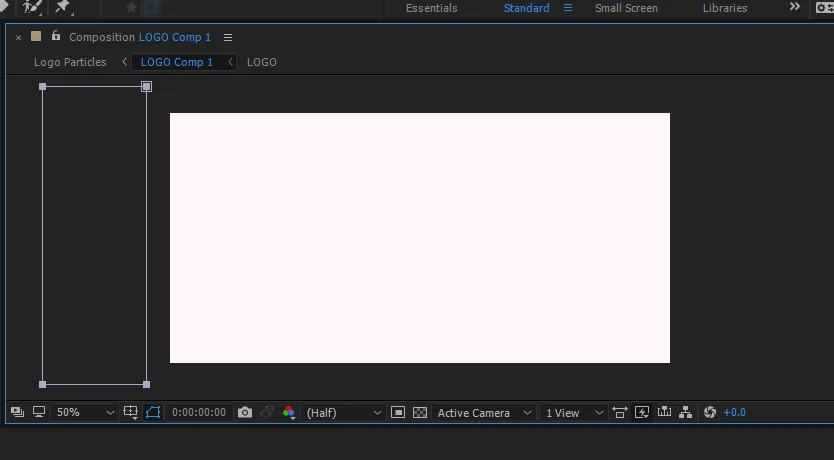

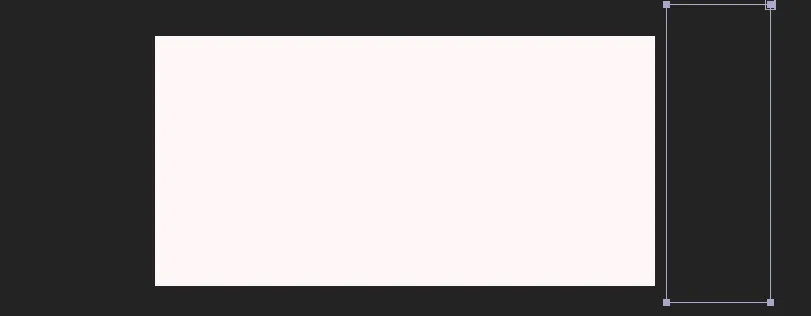

Draw a rectangular shape outside our project.

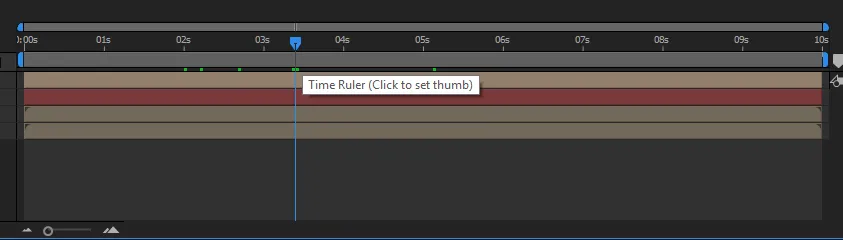

Go to time ruler and set it to 6 seconds

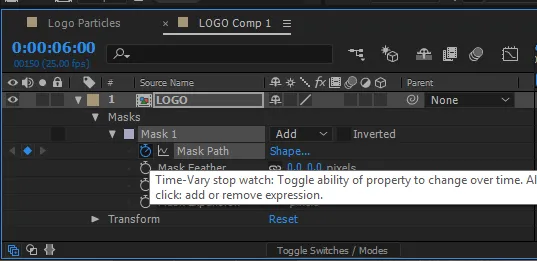

Enable the Time-Vary of Mask Path by clicking it.
Go back to time ruler and set it to 2 seconds

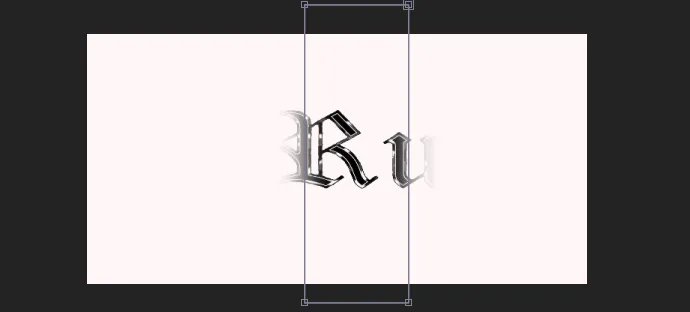

On the Composition panel change the position of the rectangle, just follow the image shown below.
Go back to time ruler and change the settings to 4 seconds
Make sure you have the same output as the image below
Click Logo Particles

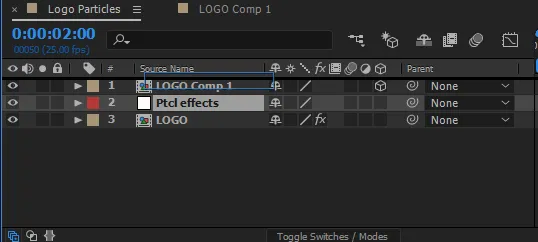

Drag the LOGO Composition at the bottom of LOGO comp 1
Make sure you've selected 'LOGO' as active then follow the next step.

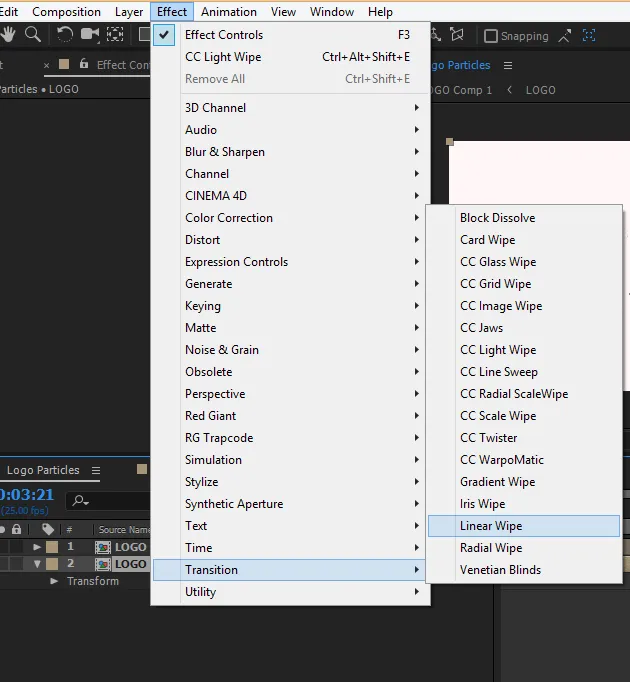

On the menu bar Click Effect> Transition> Linear Wipe.

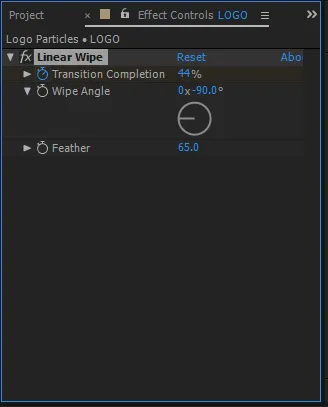

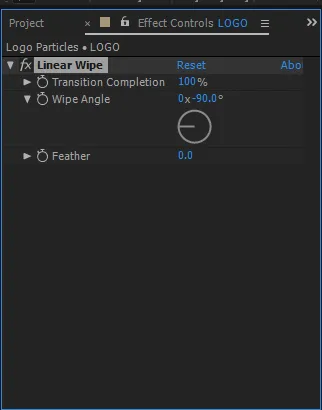

Set Transition Completion to 100% and Wipe Angle to 0x,-90.

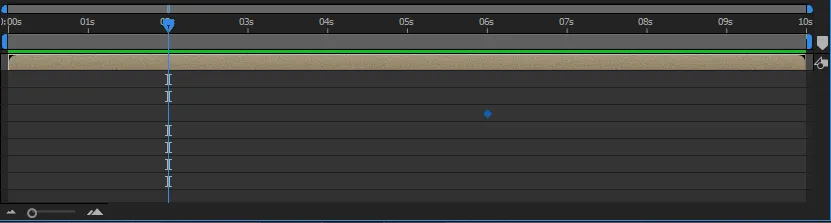

Go to Time ruler and follow the settings below.
Click the clock like icon of Transition Completion and set the Feather to 65.

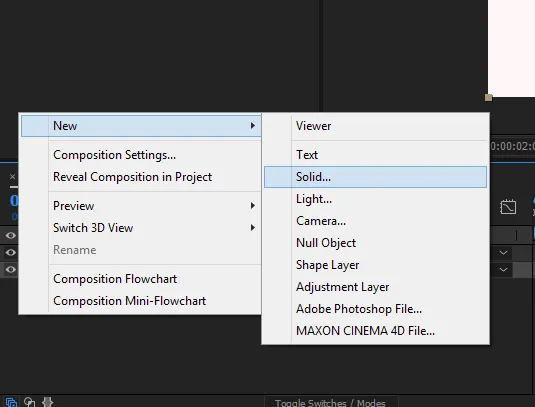

Right-click on the composition panel and make a new solid

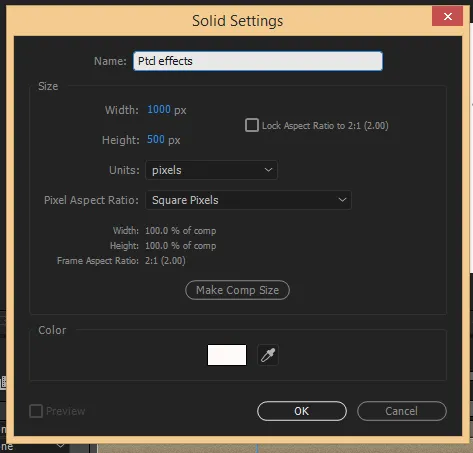

I named my new solid as Ptcl effects. Follow the settings bellow and click ok.

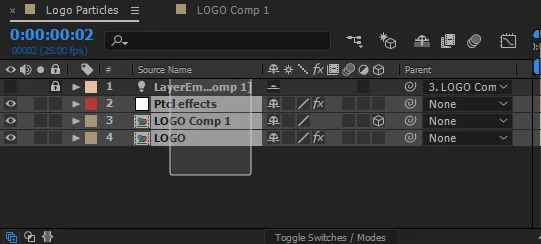

Make sure our new solid is in the top.

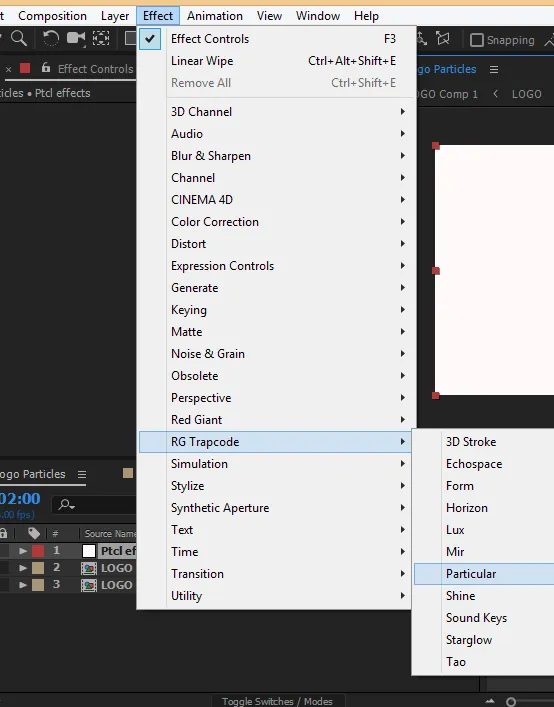

Now go to menu bar and click effect> RG trapcode> Particular.

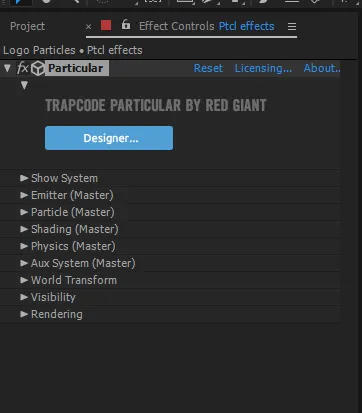

Go to the particular options

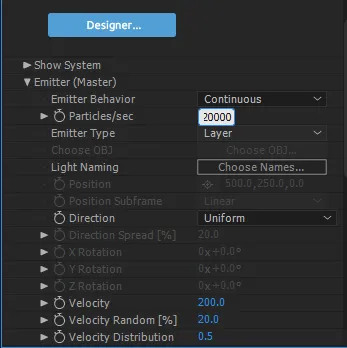

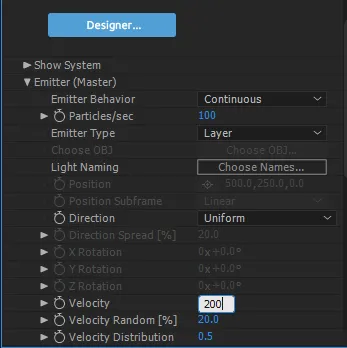

Click Emitter (Master) then follow this Settings:

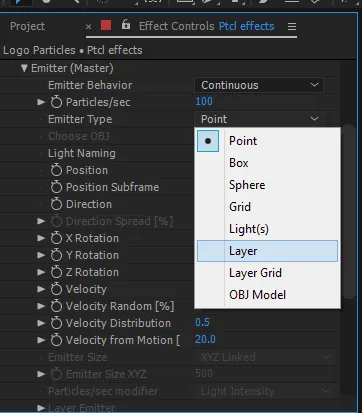

Set Emitter Type to "Layer"

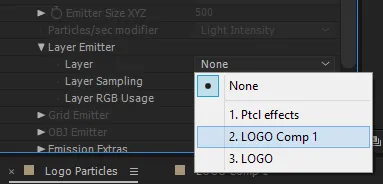

Go to Layer Emitter > Layer, change the layer type from none to LOGO comp1

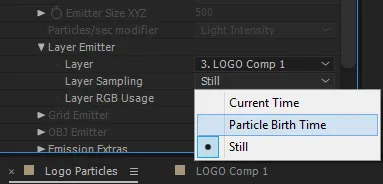

Change the Layer Sampling from still to Particle Birth Time

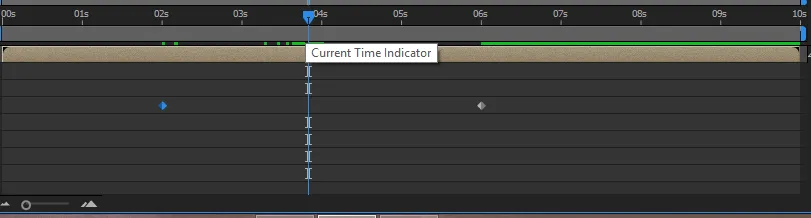

** Go to Time Ruler and change it to 3.5 seconds**
Back to Emitter (Master) change the Velocity to 200
Change the Particles/sec to 20,000

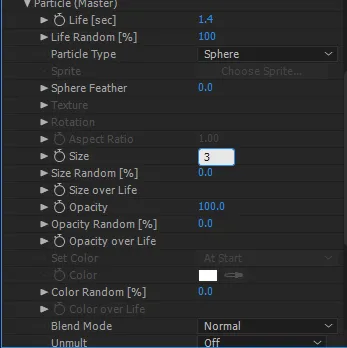

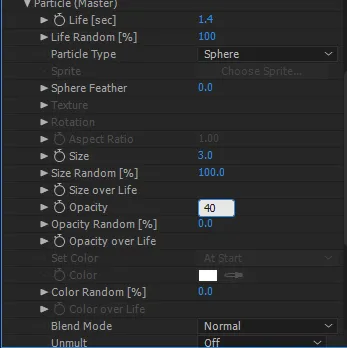

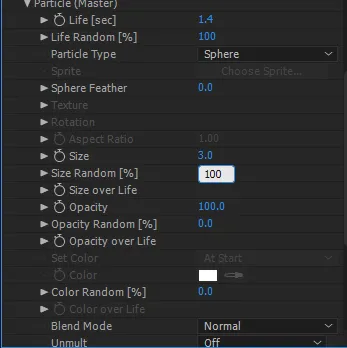

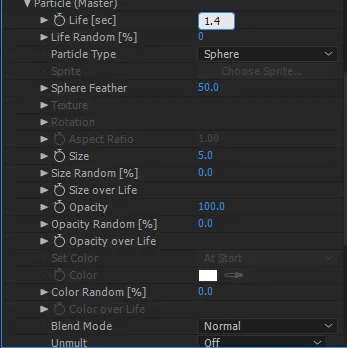

On Particle (Master) settings change the Life[sec] of our particles to 1.4

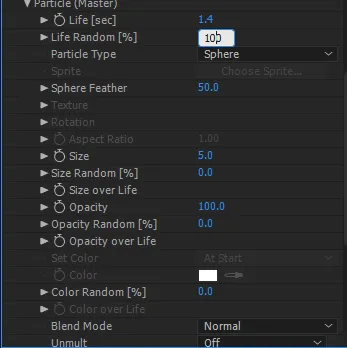

Change the Life Random to 100%
Change the Sphere Feather to 0
Change the size to 3
Change the size random to 100
Change the Opacity to 40

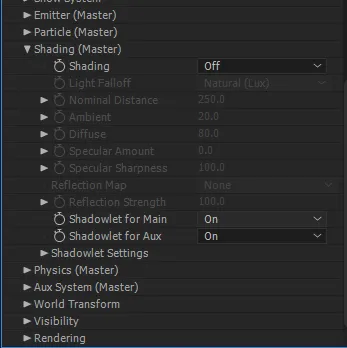

On the Shading (Master) settings on both of Shadwlet for Main and Shadowlet for Aux settings.

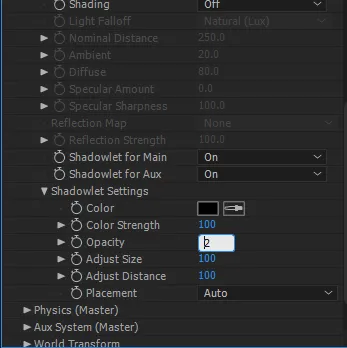

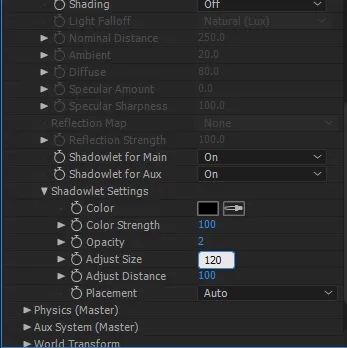

On Shadowlet Settings Change the Opacity to 2
Change the Adjust Size to 120.

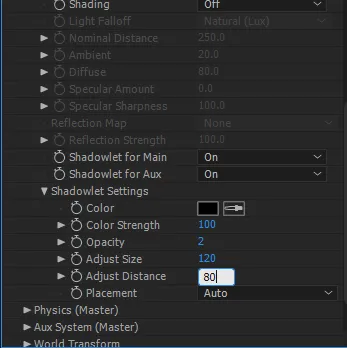

Change Adjust Distance to 80.

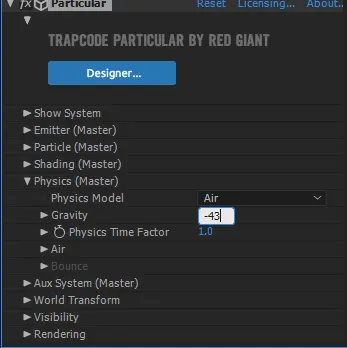

Go to Physics (Master) and change the Gravity to -43

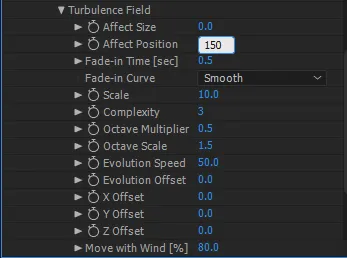

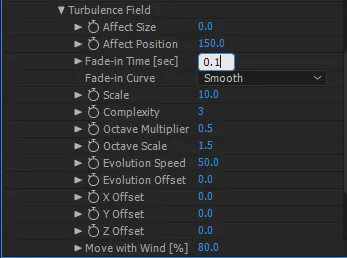

Now Go to Turbulence Field and change the Affect Position to 150.
Change the Fade-in Time[sec] to 0.1
Go to our Project tile then select them all, right-click and pre-composed name it Final

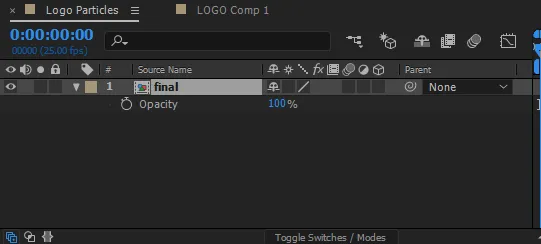

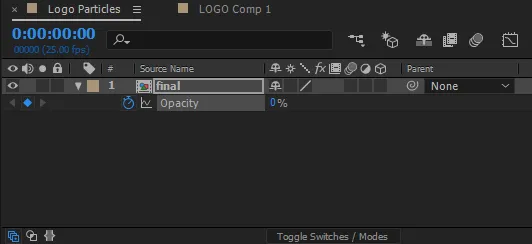

Click the Final named Composition and press T on your keyboard to show Opacity settings.
Click the Time like icon on Opacity settings and change it to 0

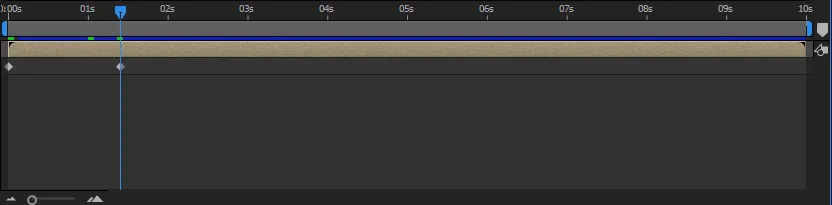

Go to Time Ruler and set it to 1.5 seconds.

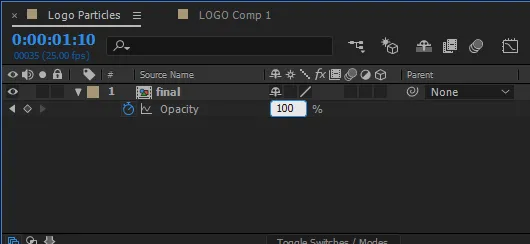

Go back to Opacity settings of our Final Composition and change it to 100.
1st create a new composition just click Composition > New composition on the menu bar.
Set the settings of your new composition like this, you can name it any name you want. as for me i named it Logo Particles
Now we are going to import our logo file on our project panel.
Select the files you want to import then click Import.
Drag the Logo and drop it down at the bottom panel of our after effects project select the logo and press "S" on your keyboard to show the scale option change it to 45,45
Drag your 2nd logo if you have one and do the same change on its scale until you are satisfied with the outcome.
Arrange your logo at the center of our project's composition panel.
Select all the logo.
Right-click then click pre-composed
Follow this setting for your pre-composed project then click ok.
Pre-compose it again.
Click "leave all attributes' in 'Logo Particles'" then click ok.
Click the 3D Layers then double click 'LOGO Comp 1'
Click the rectangle shape on the tool bar.
Draw a rectangular shape outside our project.
Go to time ruler and set it to 6 seconds
Enable the Time-Vary of Mask Path by clicking it.
Go back to time ruler and set it to 2 seconds
On the Composition panel change the position of the rectangle, just follow the image shown below.
Go back to time ruler and change the settings to 4 seconds
Make sure you have the same output as the image below
Click Logo Particles
Drag the LOGO Composition at the bottom of LOGO comp 1
Make sure you've selected 'LOGO' as active then follow the next step.
On the menu bar Click Effect> Transition> Linear Wipe.
Set Transition Completion to 100% and Wipe Angle to 0x,-90.
Go to Time ruler and follow the settings below.
Click the clock like icon of Transition Completion and set the Feather to 65.
Right-click on the composition panel and make a new solid
I named my new solid as Ptcl effects. Follow the settings bellow and click ok.
Make sure our new solid is in the top.
Now go to menu bar and click effect> RG trapcode> Particular.
Go to the particular options
Click Emitter (Master) then follow this Settings:
Set Emitter Type to "Layer"
Go to Layer Emitter > Layer, change the layer type from none to LOGO comp1
Change the Layer Sampling from still to Particle Birth Time
** Go to Time Ruler and change it to 3.5 seconds**
Back to Emitter (Master) change the Velocity to 200
Change the Particles/sec to 20,000
On Particle (Master) settings change the Life[sec] of our particles to 1.4
Change the Life Random to 100%
Change the Sphere Feather to 0
Change the size to 3
Change the size random to 100
Change the Opacity to 40
On the Shading (Master) settings on both of Shadwlet for Main and Shadowlet for Aux settings.
On Shadowlet Settings Change the Opacity to 2
Change the Adjust Size to 120.
Change Adjust Distance to 80.
Go to Physics (Master) and change the Gravity to -43
Now Go to Turbulence Field and change the Affect Position to 150.
Change the Fade-in Time[sec] to 0.1
Go to our Project tile then select them all, right-click and pre-composed name it Final
Click the Final named Composition and press T on your keyboard to show Opacity settings.
Click the Time like icon on Opacity settings and change it to 0
Go to Time Ruler and set it to 1.5 seconds.
Go back to Opacity settings of our Final Composition and change it to 100.

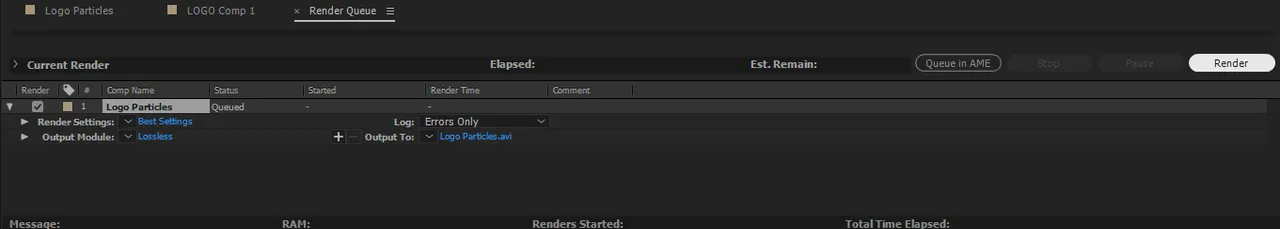

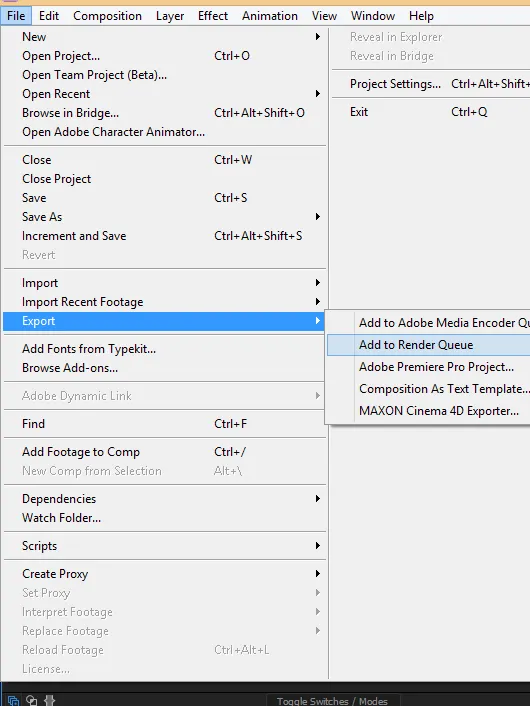

Final Step Click File> Import > Render to queue on the menu bar.
Click Render on the right side. Then wait for it to finish. Congrats! We are now done with our Logo Particles. You can now go and take a look at the folder which you've set as your destination folder.
