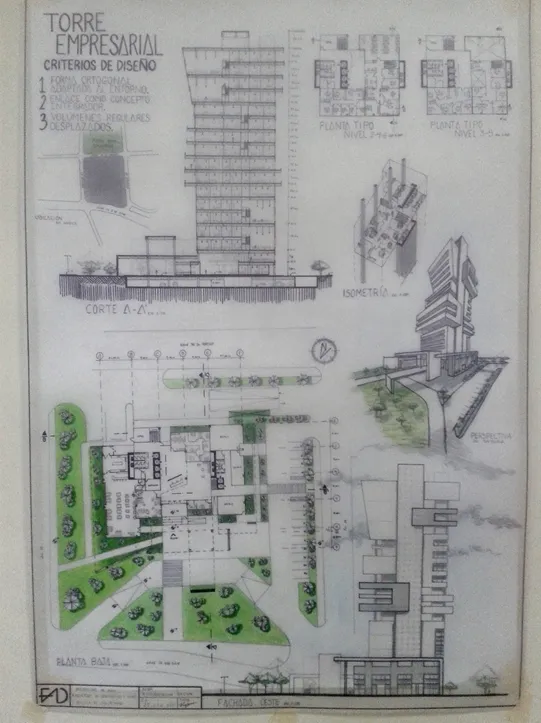

Hello my people, a huge greeting I send today, what is promised debt, today I will explain the planimetry of my latest architecture project which was elaborated and presented by hand, I hope you like this design.

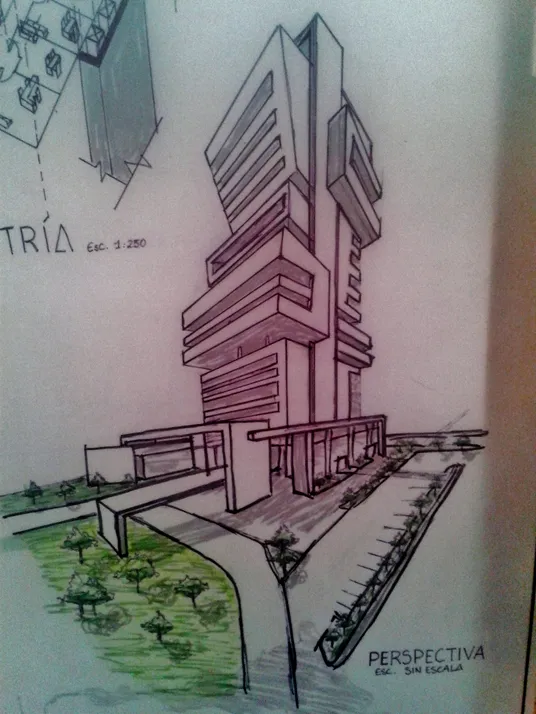

This perspective was carried out with 2 points of escape by hand by @roybrown

Let's start at the beginning.

Already some have seen the model of the project, other insurance, however will explain in a more detail this design of architecture.

Location: Maracaibo City, Zulia state in Venezuela country, South America continent.

Google Maps

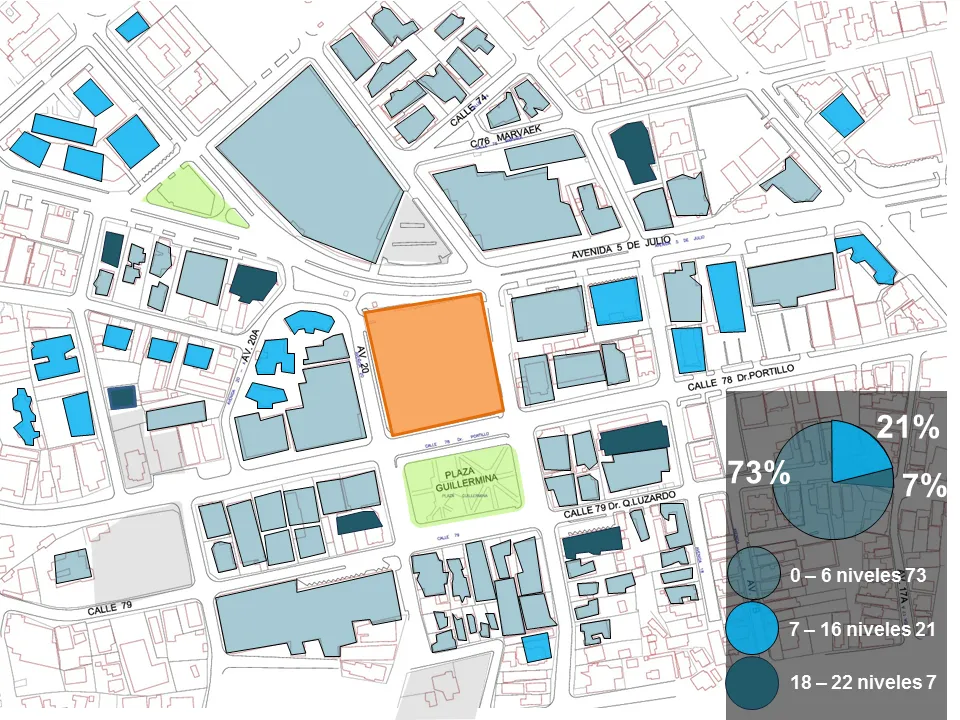

Alturas de Edificaciones.png

The selected plot is located between Av. 19-av. 20 and Av. 5 de Julio and Calle 78 Dr. Portillo de Maracaibo.

The grains that adjoin the selected plot can be seen that it is mostly horizontal, presenting a 72% between buildings from 0 to 6 levels. This was one of the guidelines that led to the conceptual creation of the design proposal.

Architectural plans.

This tower has 17 levels in total where 1 level of parking is located in basement, 2 commercial levels and 14 levels of offices.

Plant set.

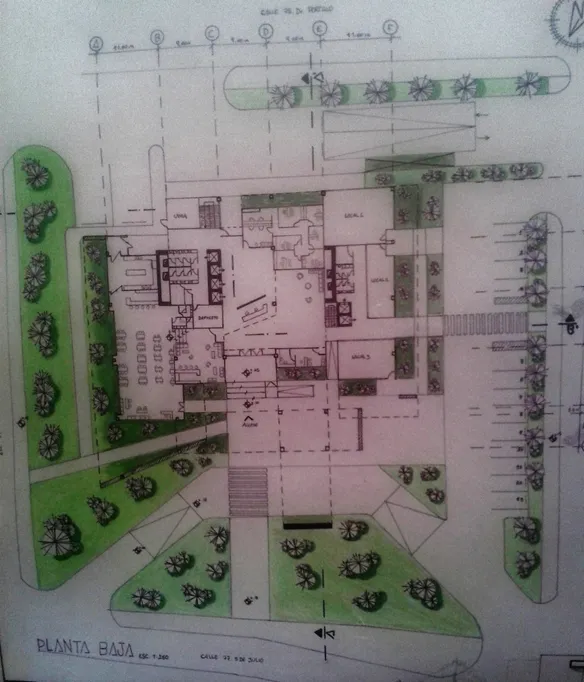

Plant set or ground floor, here you can see as the building of plant in the plot, generating a spatial quality between the pedestrian and the built.

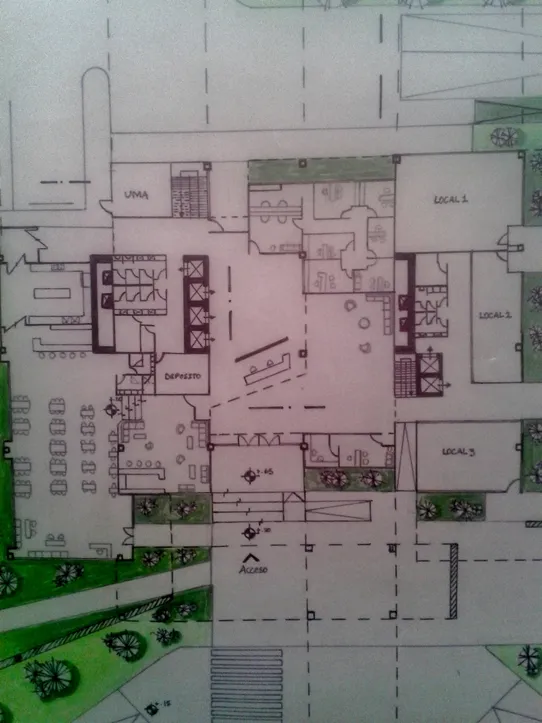

Zooming to the ground floor is appreciated that is mostly commercial use.

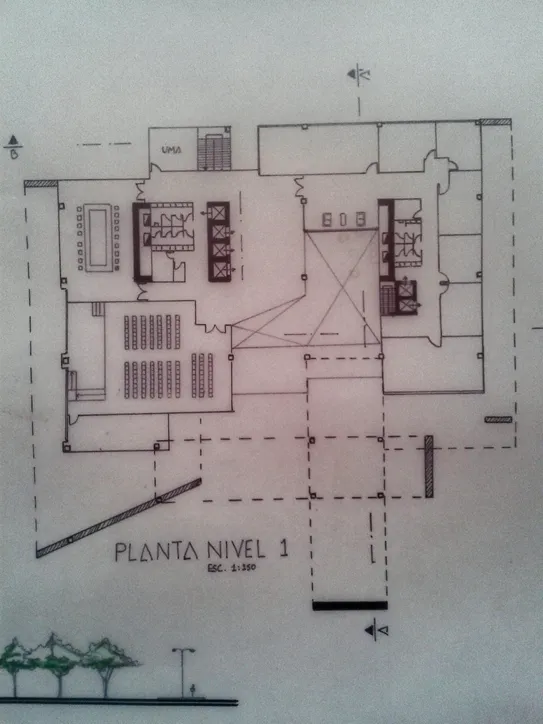

Level 1

At this level you will find the auditorium, conference room and commercial premises.

Plants types

These are levels of the tower which its use is purely office, with some differences from each other according to the importance and hierarchy of the investor who acquires it.

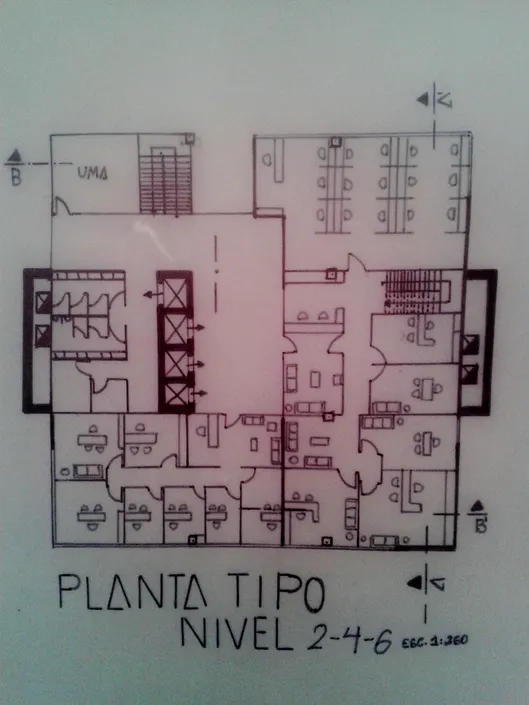

Level 2, 4 and 6

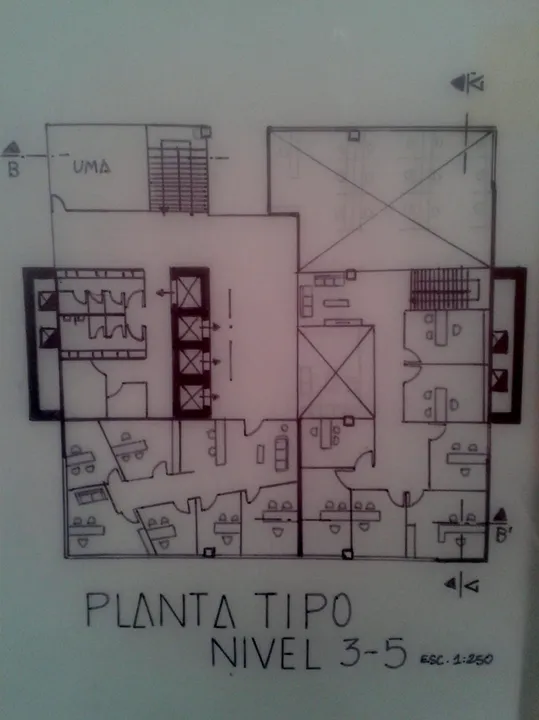

Level 3 and 5

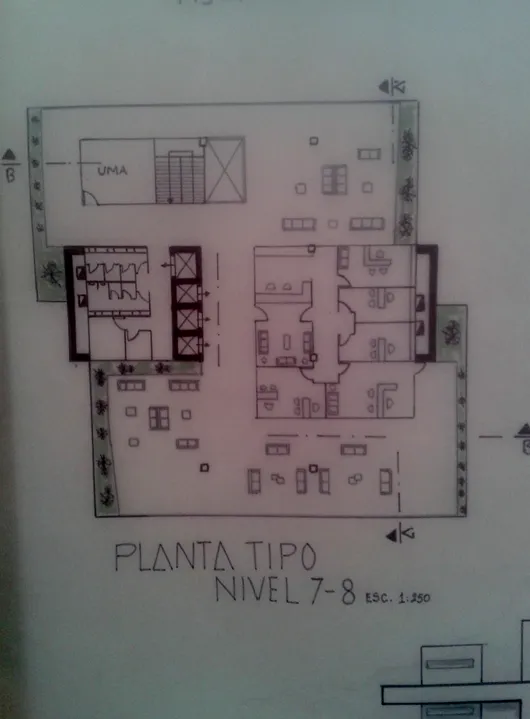

Level 7 and 8

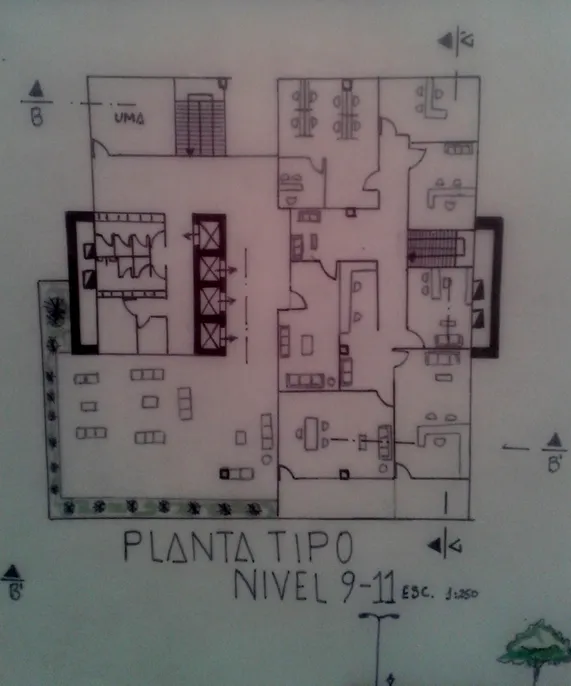

Level 9 and 11

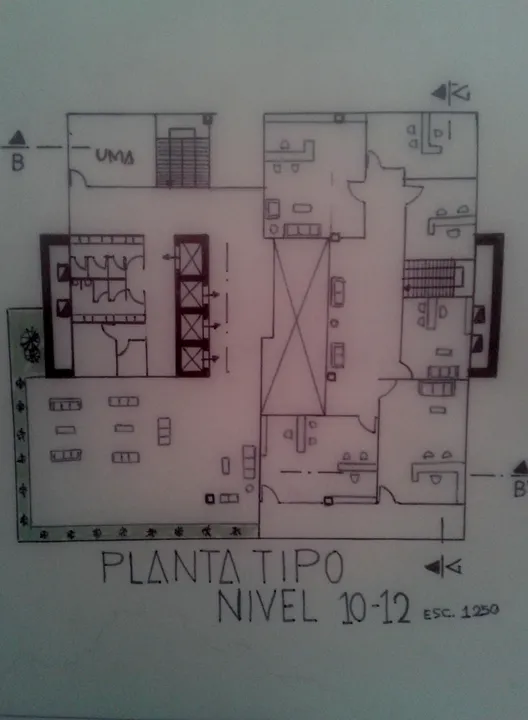

Level 10 and 12

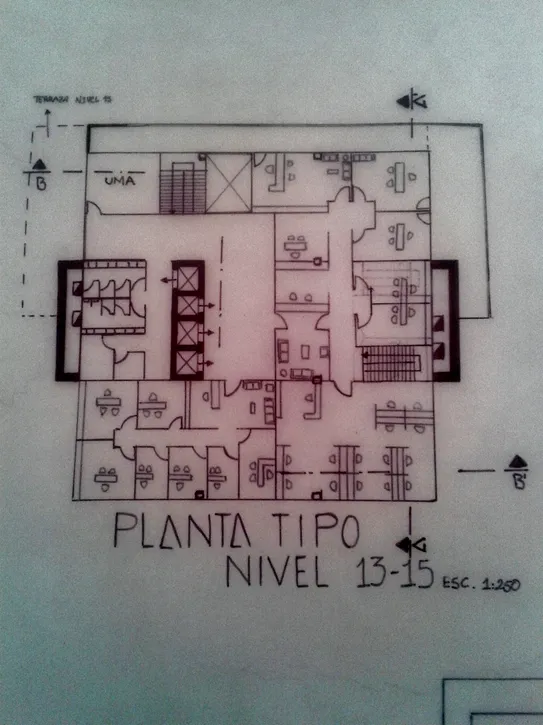

Level 13 and 15

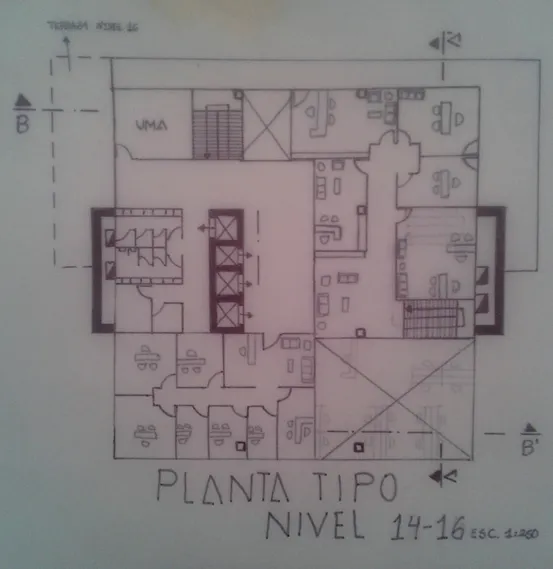

Level 14 and 16

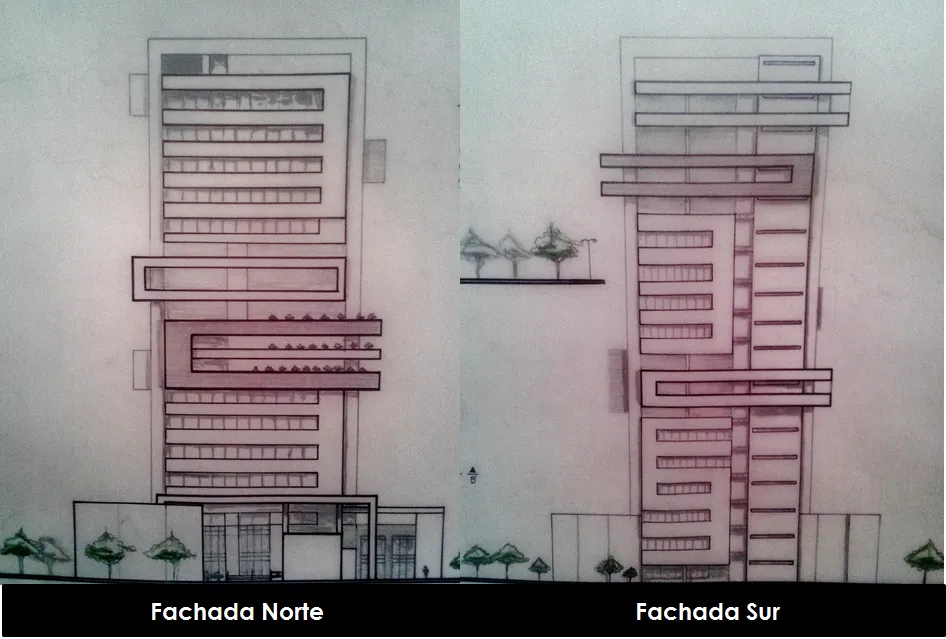

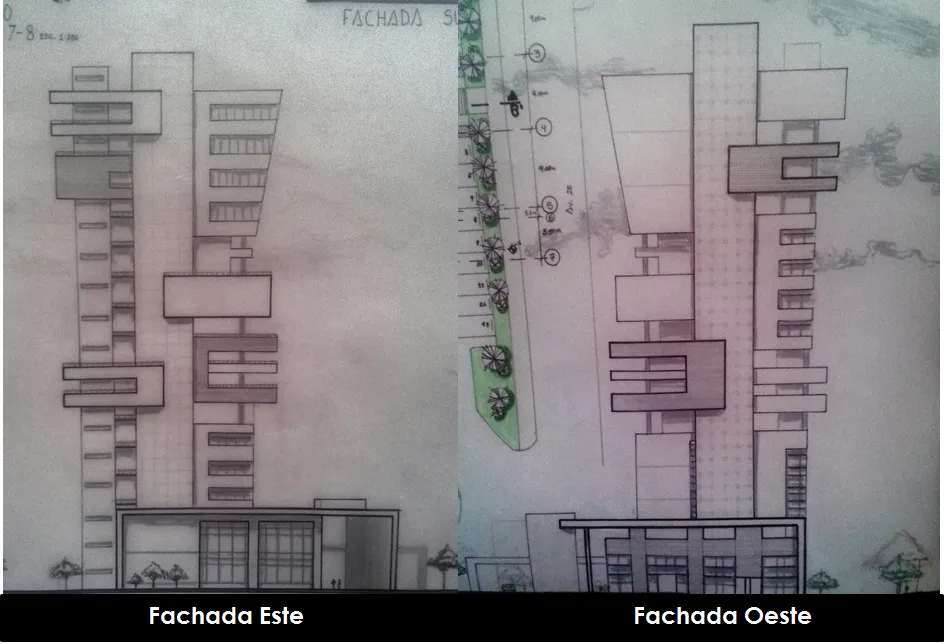

Facades

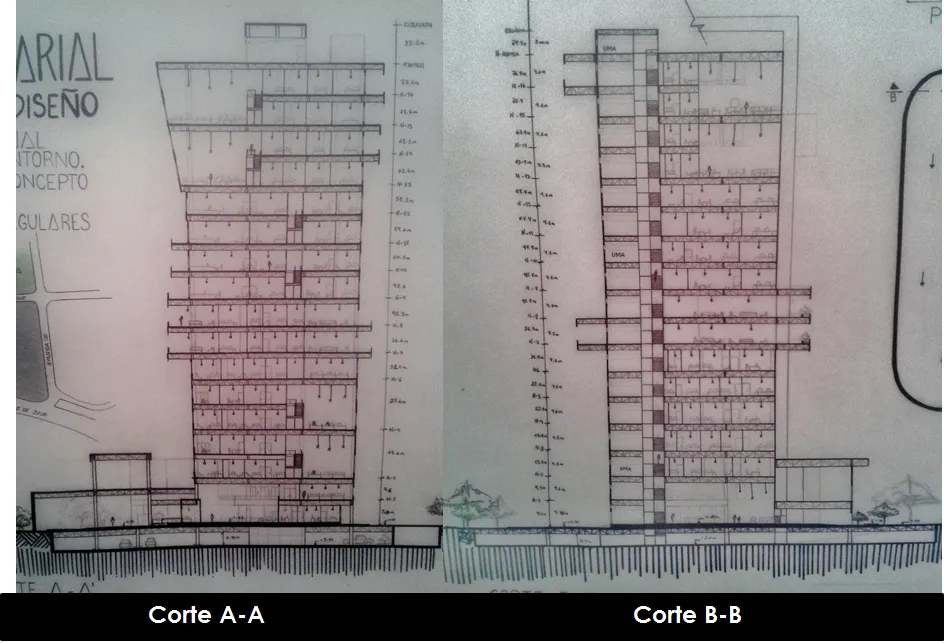

Sections

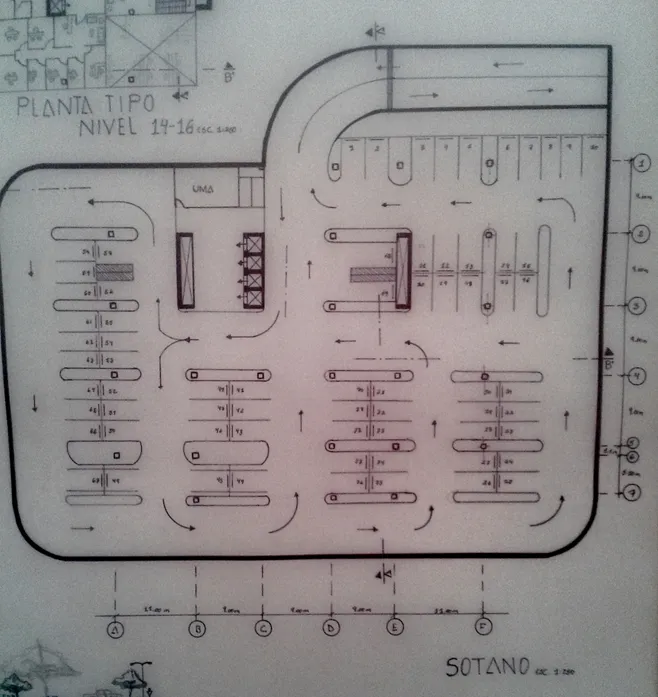

Basement level

The constructive system is archways, steel columns and trusses, however the use of supporting walls helped to eliminate some columns that were no longer necessary. The axes of each column are separated every 9 meters to achieve proper circulation of the vehicles in basement level.

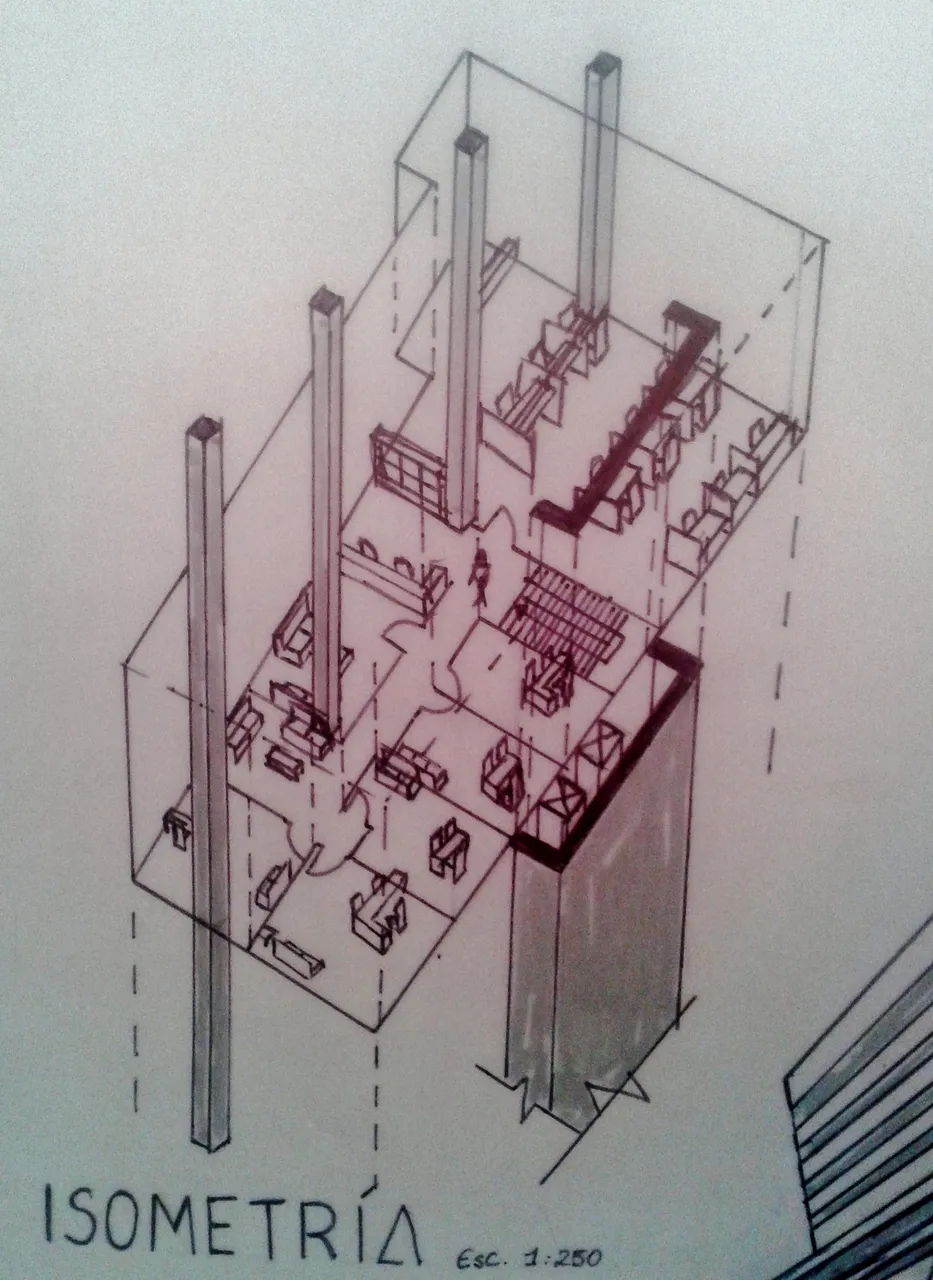

This is an internal view of an office, wanting to rescue part of the constructive system, you can see part of the columns t the supporting wall that runs vertically throughout the building.

This is the second post in a series of two. This project is part of my university architecture training in the subject architectural project 1, I hope you like it.

If you want to see my other publication Click here

A huge greeting and a big hug.
