MOAC Technical Column “The Microchain Creation Process”

Requirements:
The microchain agreement contract must have already been created

Parameters

The agreement to be used
The number of SCS nodes on the microchain [min,max], select the nodes up to the thousandth
Refresh time of microchain
Use Microchain logic code Funccode

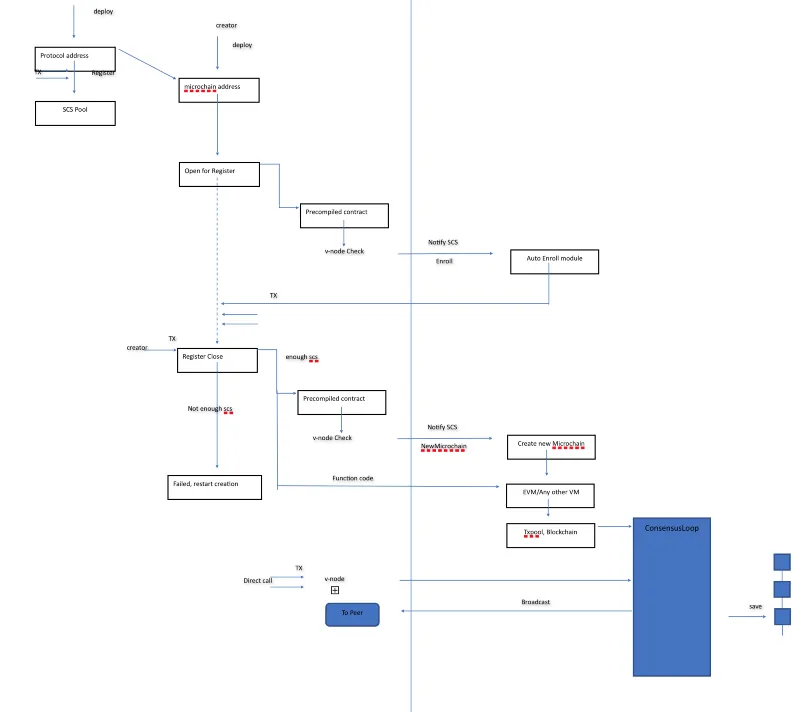

Process:

Funccode is setup by the deployer by deploying a global microchain contract.
The DAPP deployer calls RegisterOpen to allow the SCS to register. The V-node code is called in the meantime; if any SCS connection is found and satisfies the requirement, a message will be pushed to the SCS.
The SCS node initiates a RegisterAsSCS call for the microchain contract to confirm joining that particular microchain.
The DAPP deployer calls RegisterClose to close the registration, and the V-node determines if the conditions was satisfied during the execution. If they were indeed satisfied, the v-node will push a newSubchanmsg to SCS, and a series of initializing operations will be triggered at the SCS side, after which microchain setup is completed.

If the conditions weren’t satisfied, the DAPP deployer will restart this process.
