This is my pride. A 1964 Dodge A100 Display van. This half ton is the first year of production, has 95,000 miles, and has been a southern California vehicle it's entire life, and I am it's 3rd owner. I have done a lot of non cosmetic work, including a complete wiring harness.
Take a look here for my last update.
When last I left you, I had made the fitting adjustments and painted the radiator housing and side and rear doghouse panels. Over the last week, they got 2 more coats of Rustoleum Gloss Black.

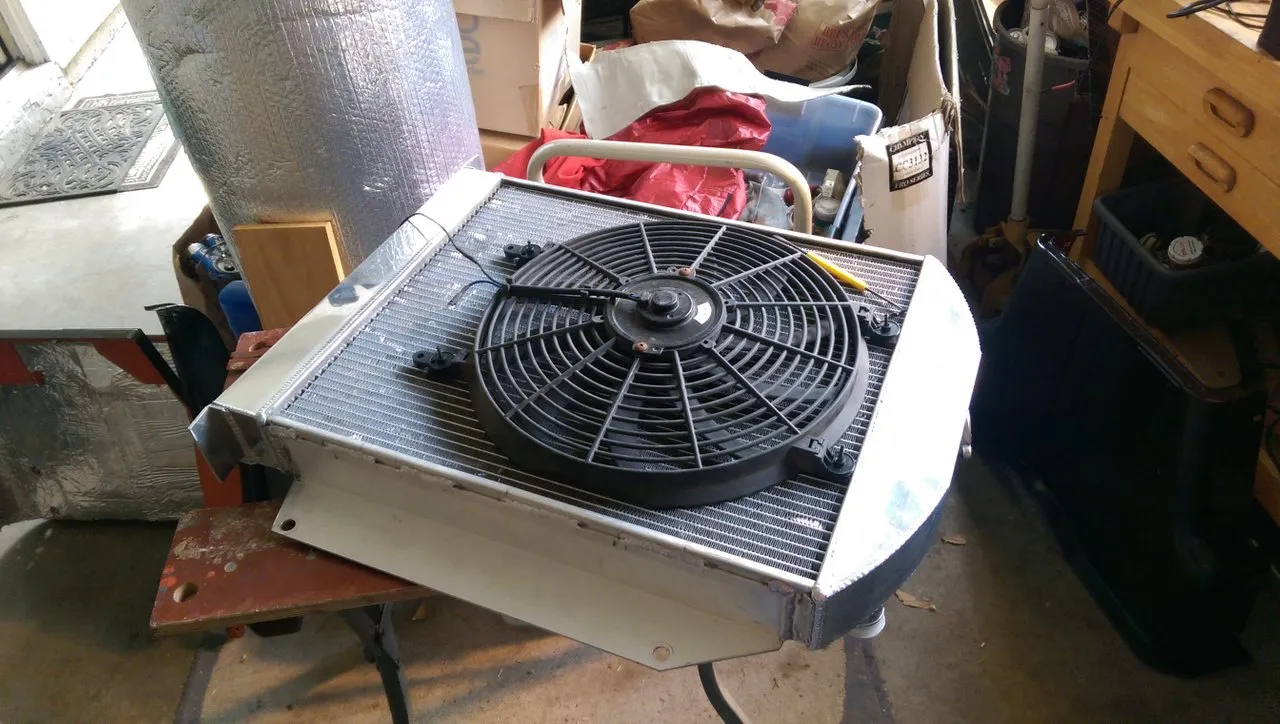

I fitted the auxiliary fan to the front of the radiator, and added insulation to the radiator housing.

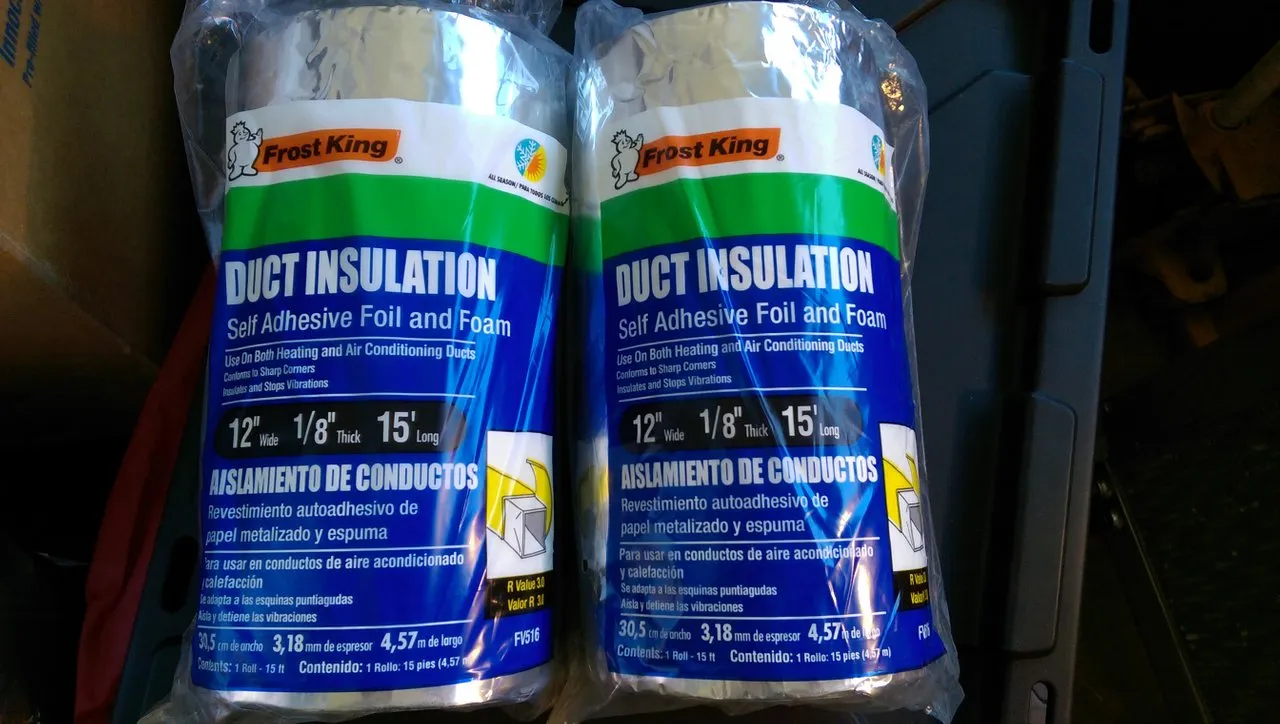

The Insulation I am using is a self-sticking Poly Urethane foam with a thick Aluminum foil backing used in heater ducting applications
It's cheap and works fairly well. I may add more later, in the form of batting.

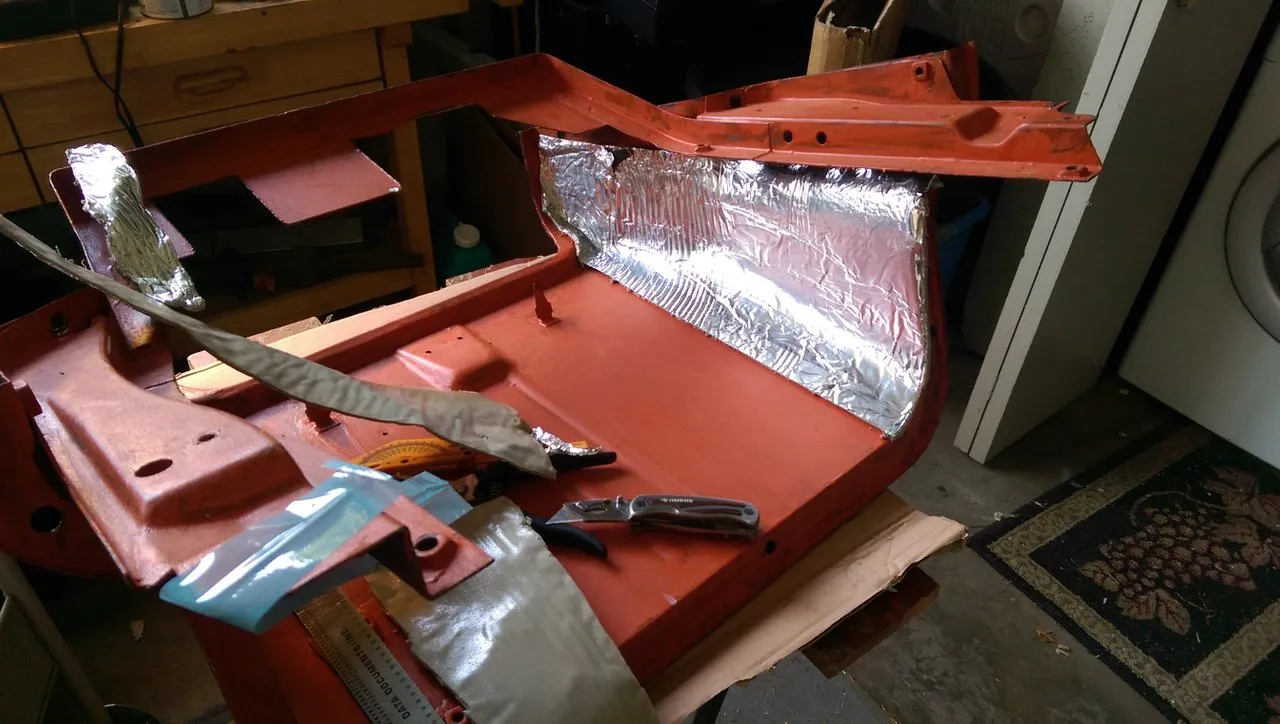

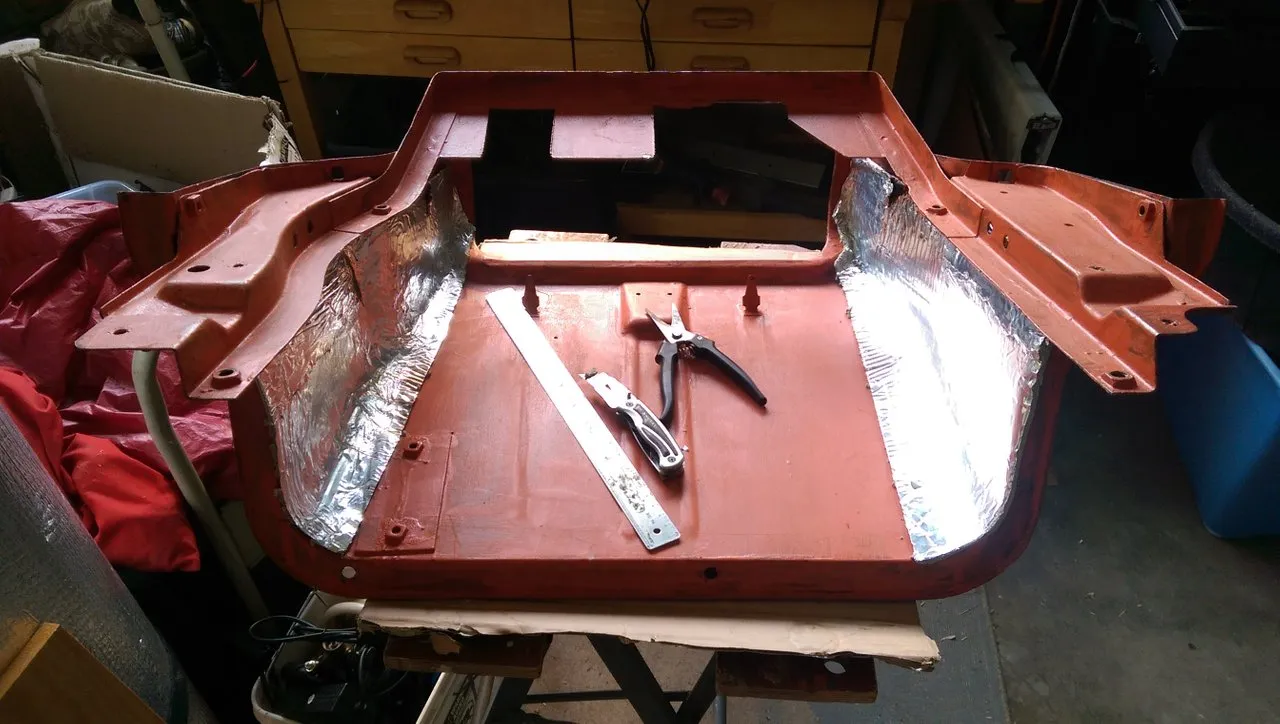

The installation is straight forward, have a clean, dry, and rough surface, and tuck and form the insulation to the metal panels, rubbing firmly to get the glue to stick. Take your time, do it right. Trim with shears and a razor knife.

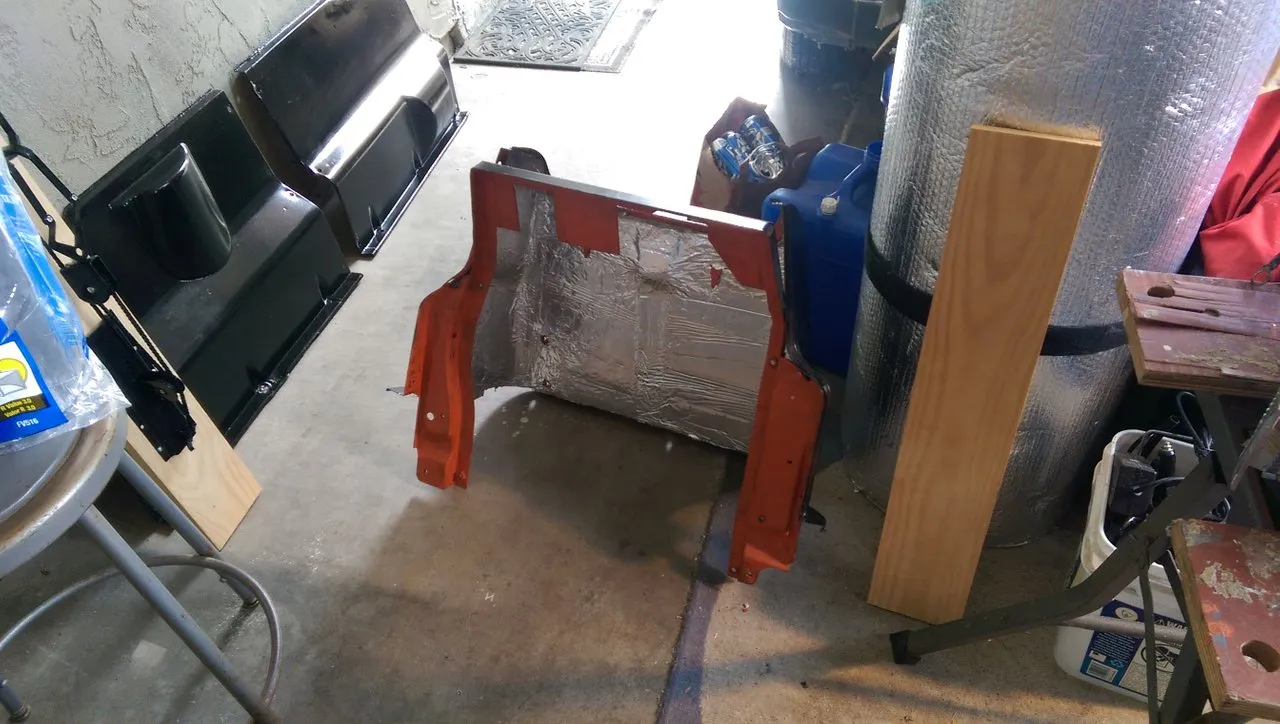

As you can see, The thick foil looks very nice and will be easy to maintain.

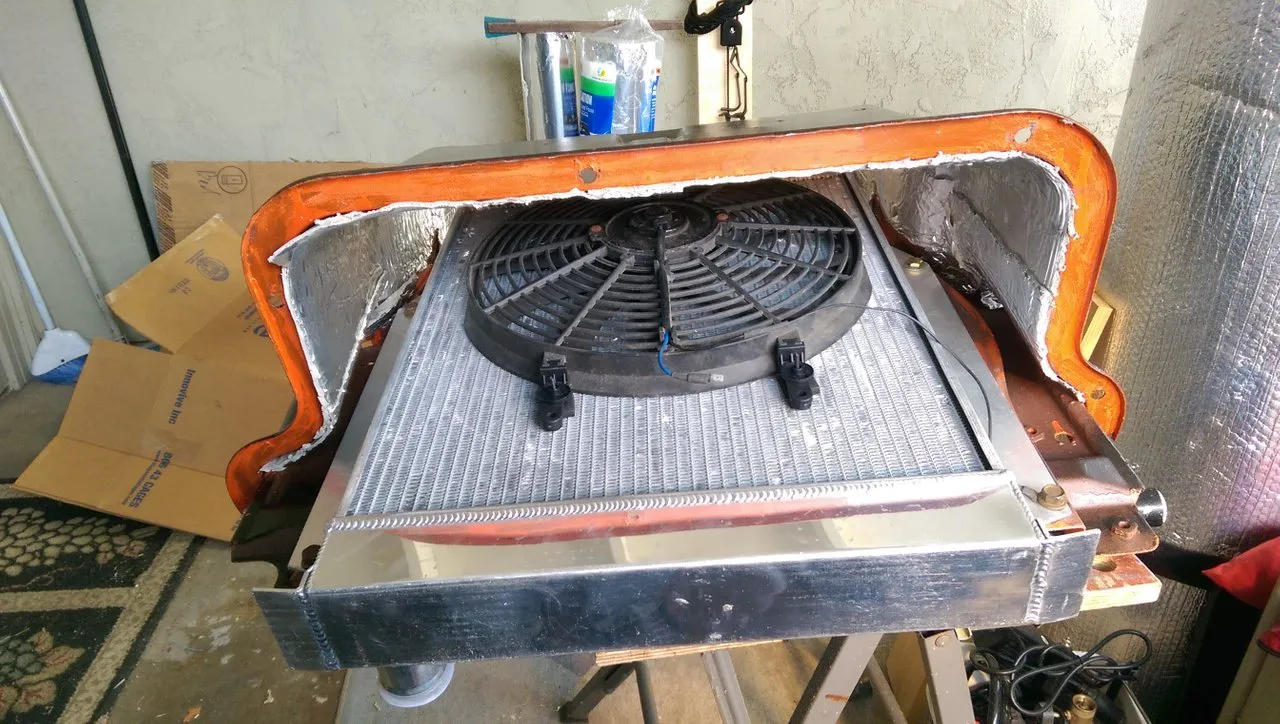

Here is the housing with insulation fully installed, and the radiator and fan assembly bolted down and ready to go in

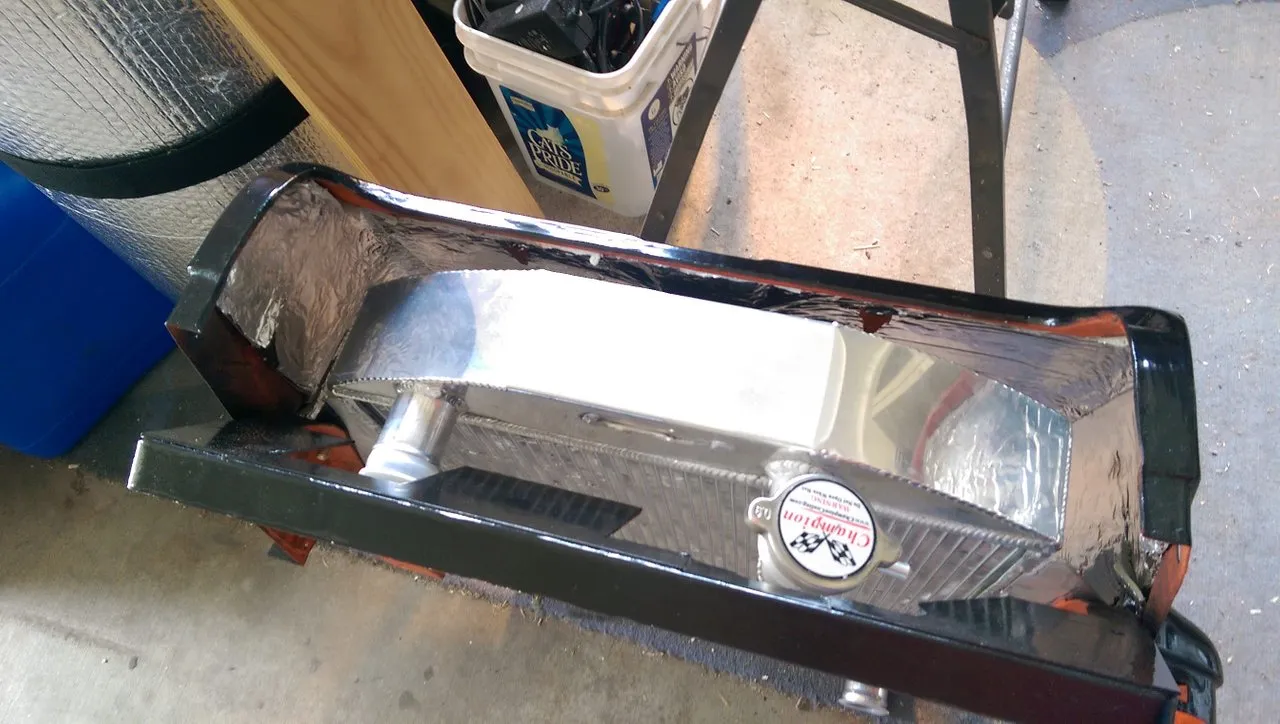

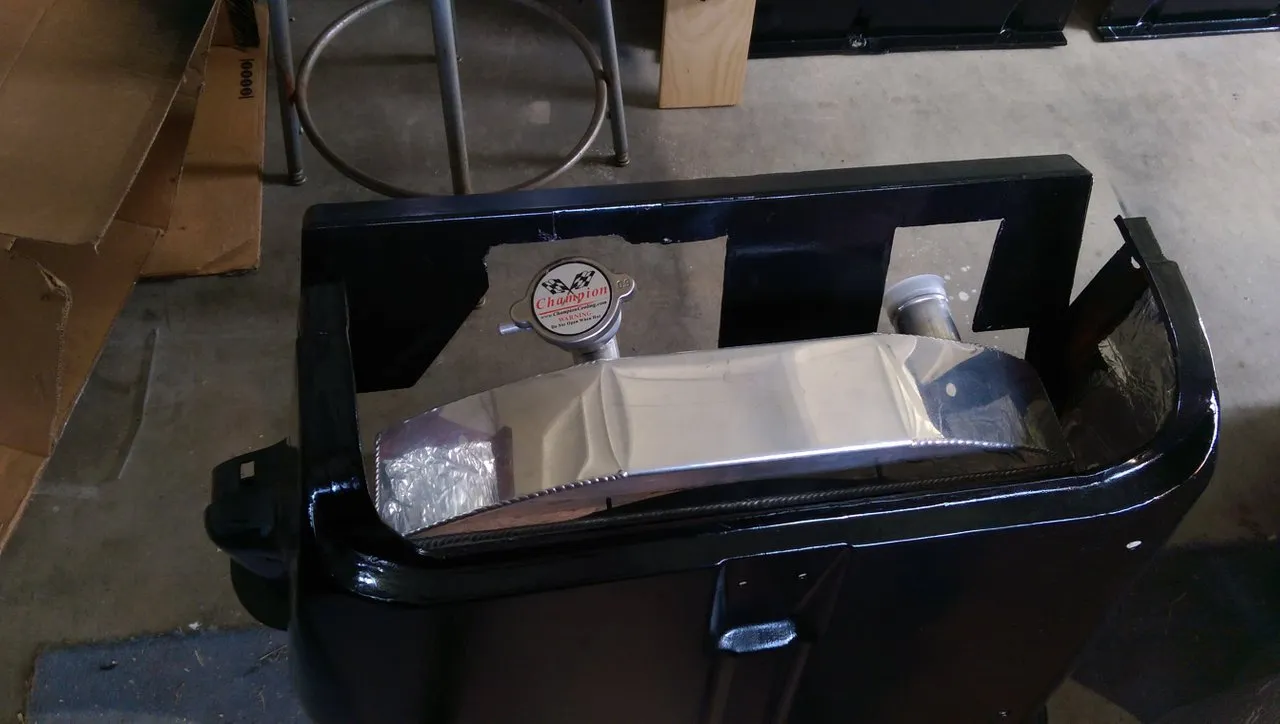

And here are 2 top views showing how little of the interior housing is visible. I still need to create teo fairings for the top. I will use Crome dipped Diamondplate around the hose and filler, and a plastic material in front of the radiator

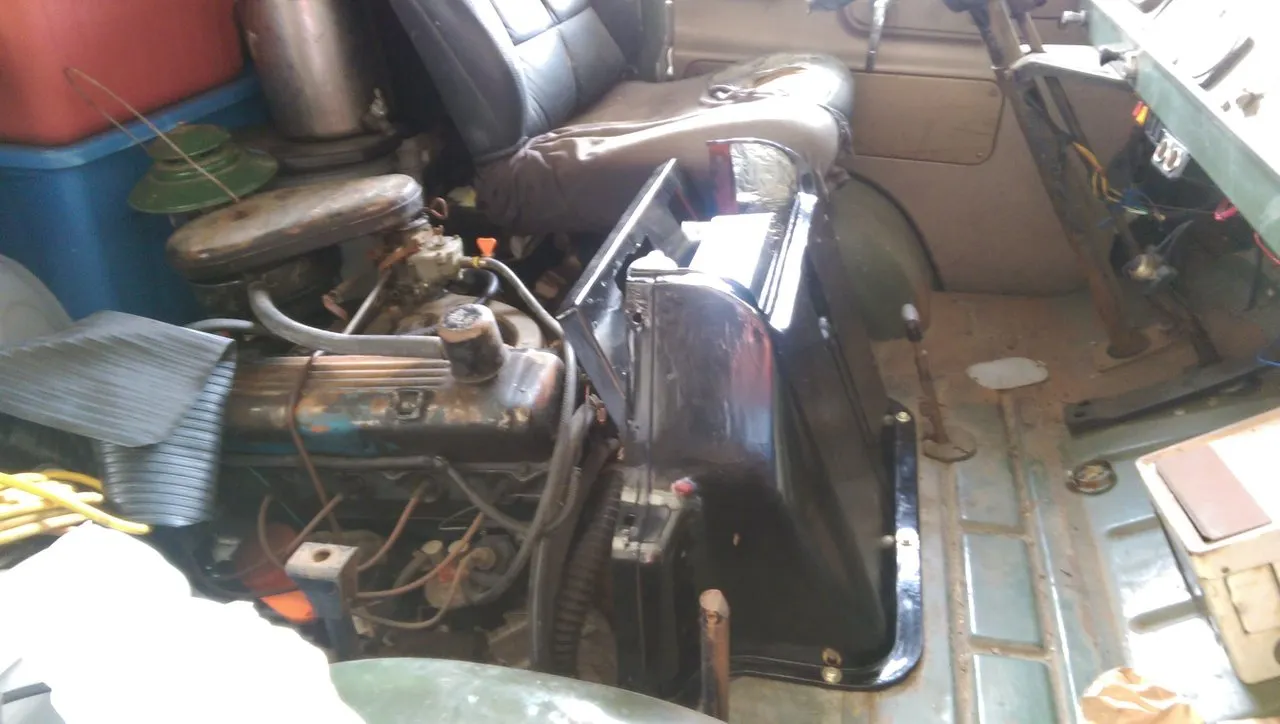

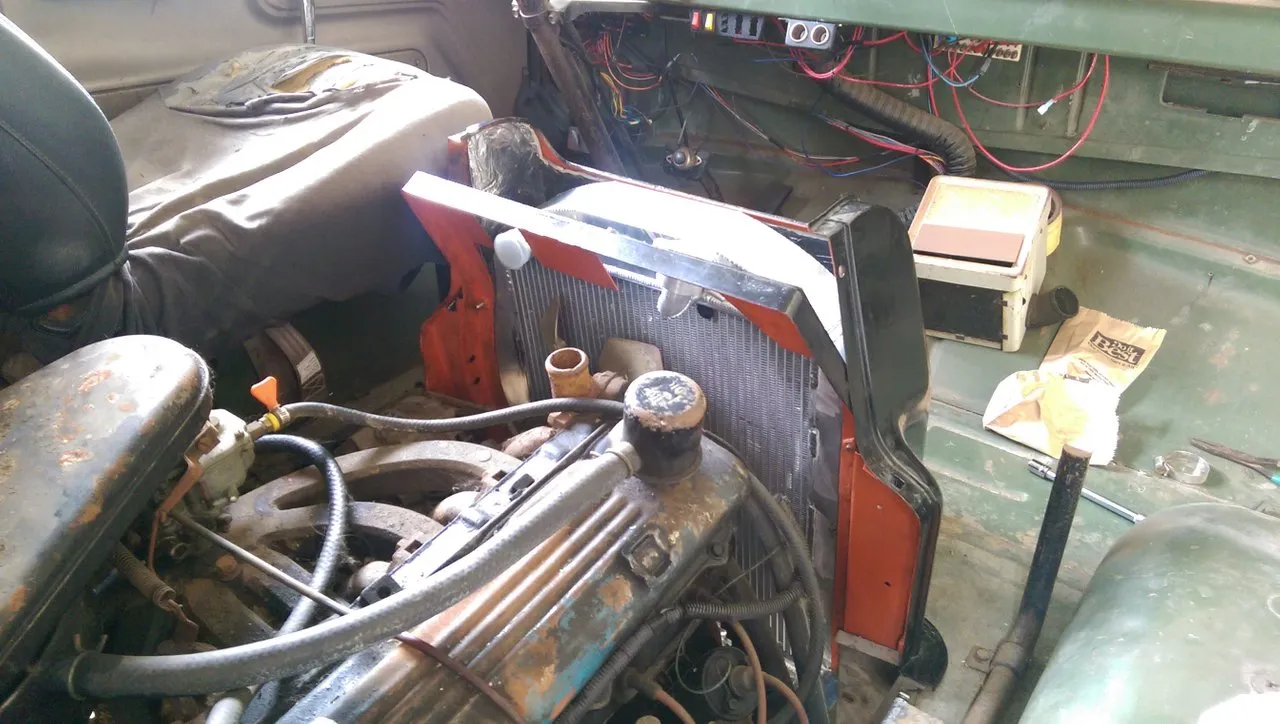

And here we have two views of the radiator and housing fully bolted in
At this point, I just need to source a top hose that fits, hook up a wire, and the cooling system is complete. There is still a lot of cleanup underneath, involving more tin to be installed, and I will next insulate the rest of the doghouse and get it installed tomorrow.
This nearly completes a 3 year odyssey to get a radiator in this van, ands I will be very happy some time next week, when I take it for a drive.
