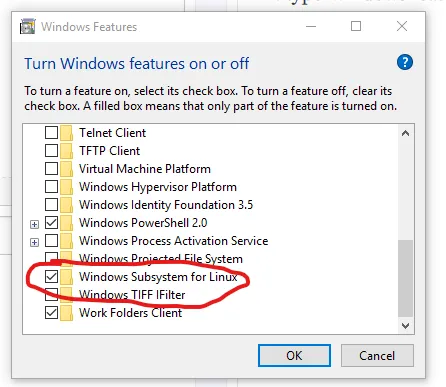

Turn on WSL feature in windows features
- type 'windows features' in windows start.
- Now reboot the system.

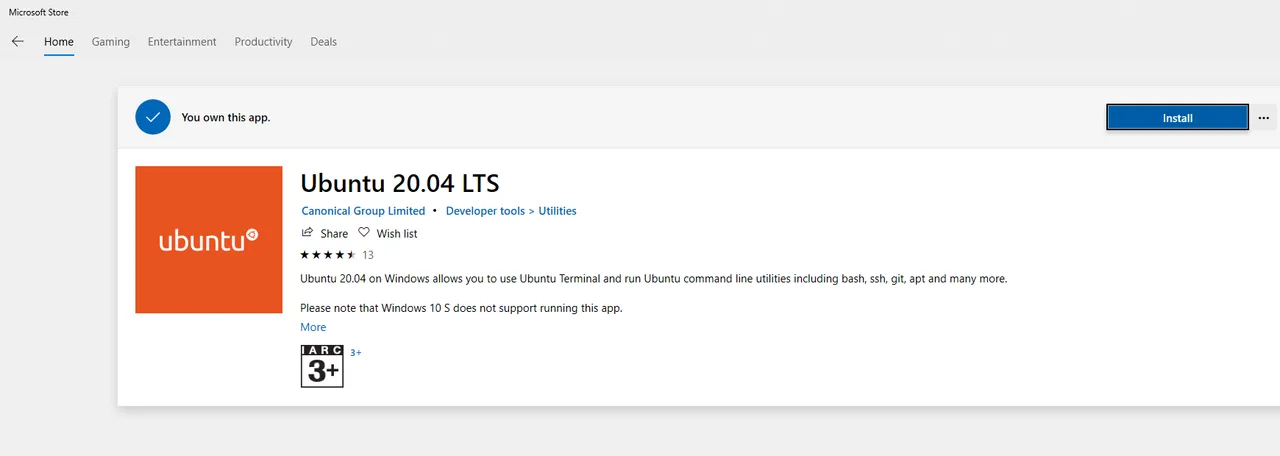

- Download Ubuntu wsl from 'Microsoft store' in ur PC
Necessary softwares
sudo apt-get install git make autoconf g++ flex bison # try gcc in place of g++ if fail
sudo apt-get install libfl2 # Ubuntu only (ignore if gives error)
sudo apt-get install libfl-dev
Installing SystemC in your Linux environment
- Download SystemC. https://www.accellera.org/images/downloads/standards/systemc/systemc-2.3.3.zip
- Extract at a convinient location and follow the instruction found inside from the file 'INSTALL'

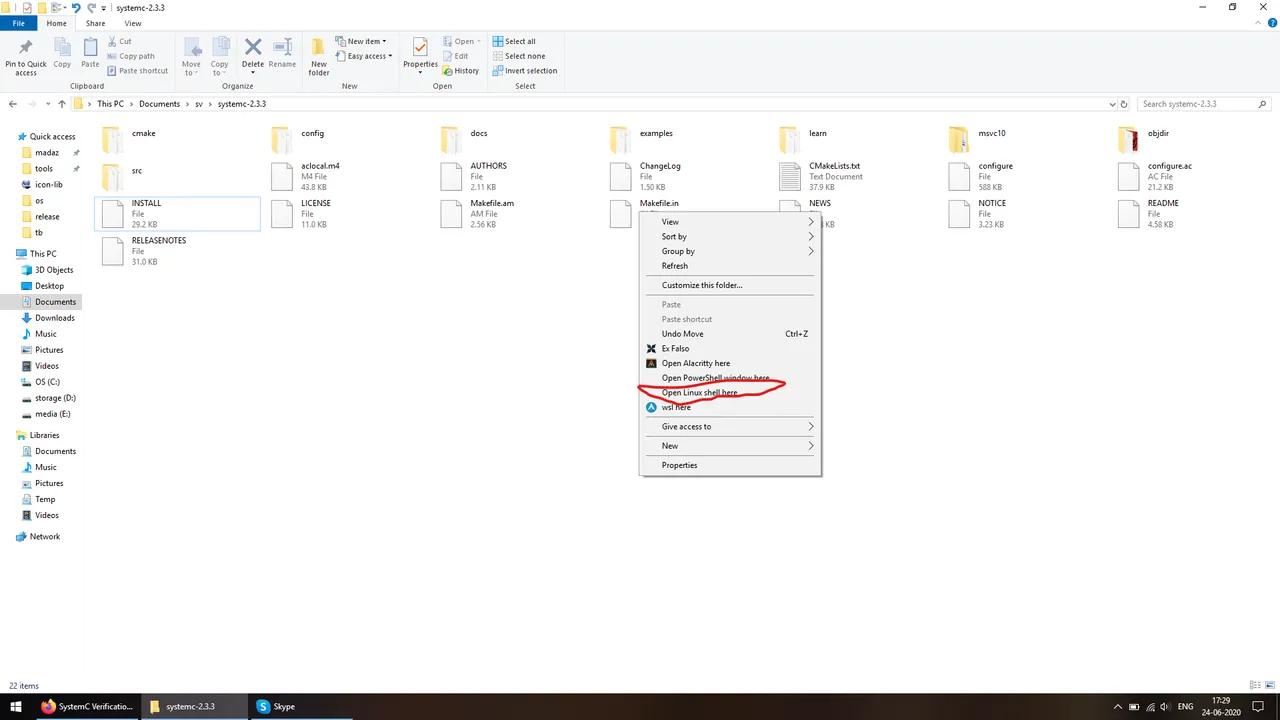

- open linux shell from this folder by SHIFT+'right mouse click'
4.or convert ur systemc path to wsl path. for ex:
if ur path is C:\Users\user\Documents\sv\systemc-2.3.3
then do
cd /mnt/c/Users/user/Documents/sv/systemc-2.3.3
- Follow 'basic systemc installation' instructions numbered 1,2,3.
- In 4 & 5 & 6 , do
export CXX=g++
../configure
make
make check # check for errors & debug accordingly
make install
Finished installing SystemC
Now edit bashrc file to permanantly add Systemc to environment
vi ~/.bashrc
in it, add at the end
export SYSTEMC_HOME=/your/path/to/systemc-2.3.2
export SYSTEMC_INCLUDE=$SYSTEMC_HOME/include
export SYSTEMC_LIBDIR=$SYSTEMC_HOME/lib-linux64
export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:/your/path/to/systemc-2.3.2/lib-linux64
Installing Verilator in your Linux environment
- open https://www.veripool.org/projects/verilator/wiki/Installing
- now follow the instructions numbered:
- 3.2 with 3.2.1 and 3.2.2
- 3.3 and 3.4
- 3.5.1
- 3.7, and 3.8
- don't do 3.9
Notes
Better have a separate folder for sysC and verilator, because we might need install additional libraries later on like SCV. Its convinient to have them in one location
Take care of the environment variables in linux before installing sysC and verilator
