Question
A point is chosen randomly in a square. 4 lines are drawn to connect this point with the 4 vertices of this square, such that 4 triangles are formed. Find the probability that all interior angles of the 4 triangles are less than 120°. Give your answer correct to the nearest 3 decimal places.
Answer: 0.213
Strictly speaking 0.21255 (not corrected to the nearest 3 decimal places) and 21.255 (missing % sign) are both incorrect answers, yet after consideration I decided to adopt a lenient approach and accept these answers as well.
Mathematical approach

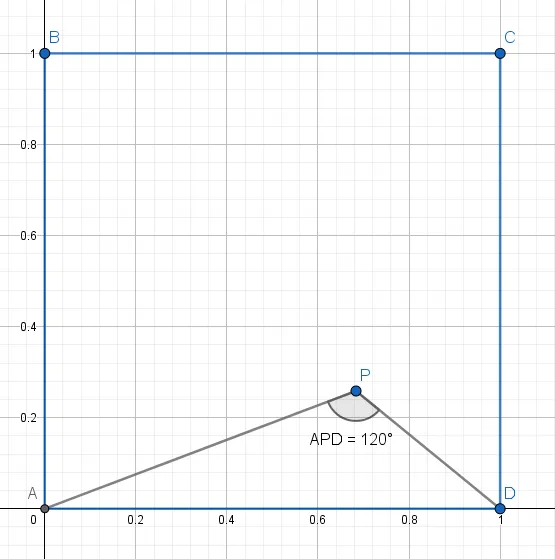

Let’s assume the length of the square to be 1. The square is labelled as ABCD while the random point is called P as shown above.

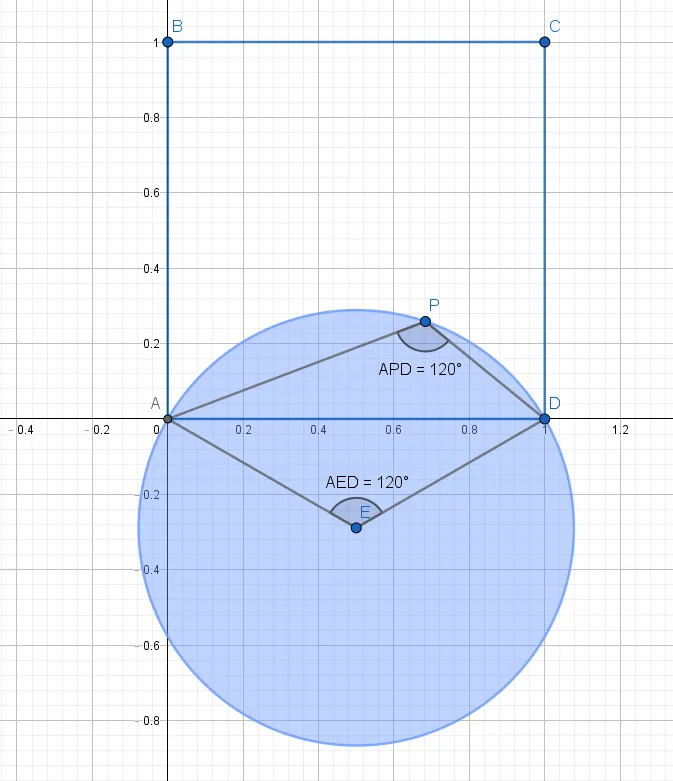

Consider the locus formed by P such that ∠APD = 120°. This should be a circle because of converse of angles in the same segment. E is the center and ∠AED = 120° (angles at the centre is twice the angle at the circumference). If the random point falls in the shaded region, an interior angle will be larger than 120°, which violates the required criteria.

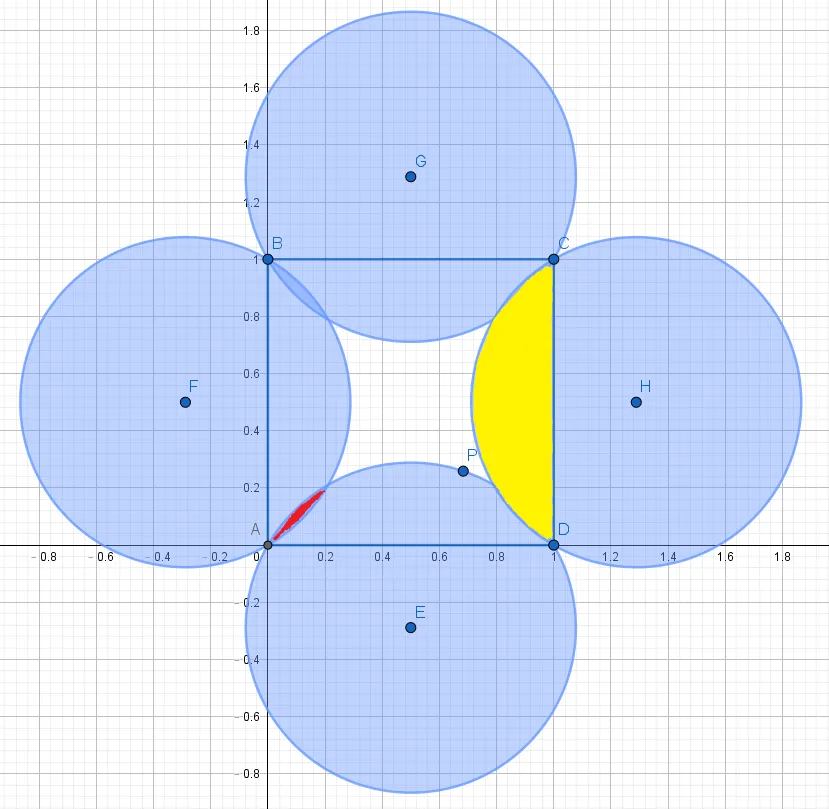

Combining the criteria produced from the 3 other sides of the square, we should be able to see that the required probability is the area of the center unshaded region divided by that of the whole square. Denote the area of the red and yellow shaded area as shown above as R and Y respectively. Then the required probability = 1 - 4Y + 4R.
Programming approach
We may carry out simulations for a large number of times and take the empirical probability as our answer. Note that we will never be able to obtain the exact answer in this approach, but this approach would work here since we were asked to give our answer correct to the nearest 3 decimal places only.
Psuedocode:
count = 0
Loop for 10,000,000 times
x = random(0 to 1)
y = random(0 to 1)
Use cosine theorem to check all 4 internal angles
If all angles < 120 then count++
End loop
Output count / 10,000,000
If time is allowed, the number of loops can be set to an even higher value so as to ensure accuracy.
Winners
Among 30 participants, there are 15 people who got the correct answers. Thank you for your participation!
@kona @philipheihei @guyverckw @leedslemon @armandocat @tvb @tensaix2j @wlcpu @galotta @livinguktaiwan @kangnajiang @geass @challk @mooninwater @superbing @kevingau @shieha @speeding @justyy @ghasemkiani @marziehshahabi @susankiani @ariak @megii @vincentyip @dkmathstats @akshaybornare @chasmic-cosm @rfece143 @dailyfortune
SBD payout of the the question post = 37.299 SBD
Besides, @steemstem has generously sponsored 7.5 SP, 5 SP and 2.5 SP for the first, second and third prizes!

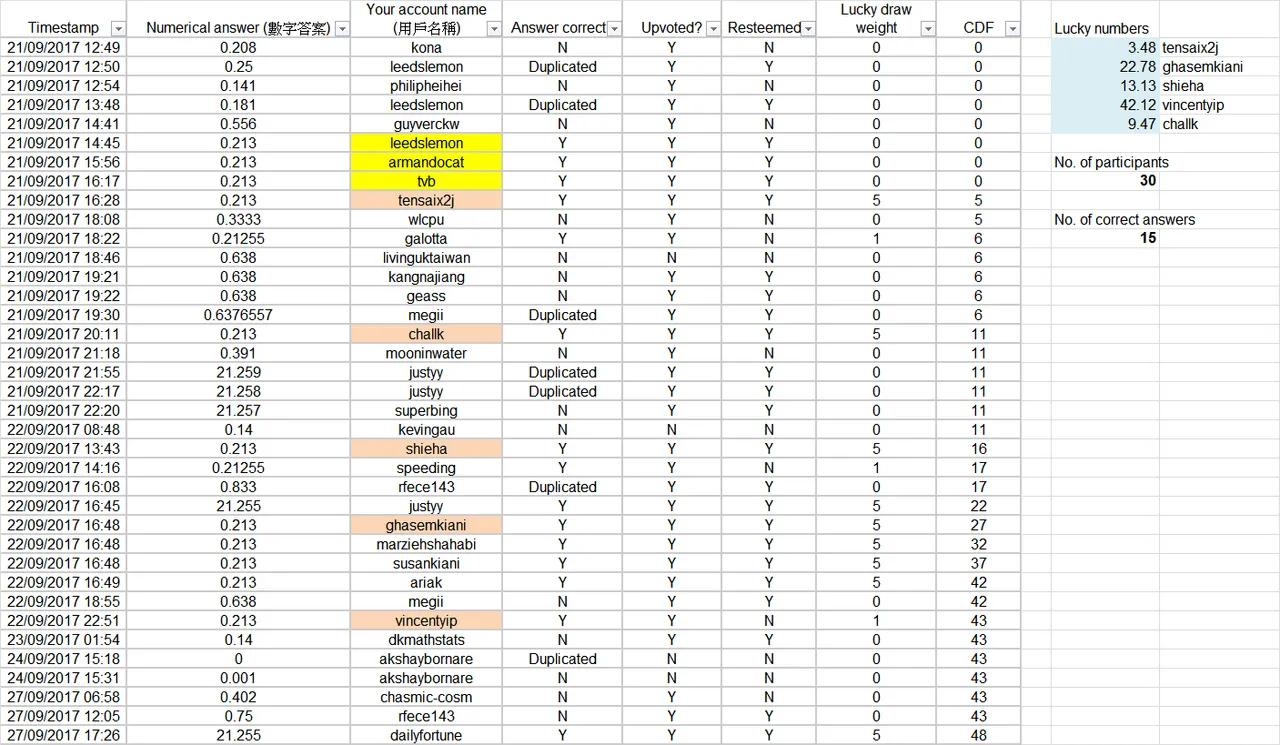

The winners and prizes are tabulated below:
| Winner | Prize | SBD |
|---|---|---|
| @leedslemon | First prize | 37.299 / 8 = 4.662 SBD + 7.5 SP |
| @armandocat | Second prize | 37.299 / 8 = 4.662 SBD + 5 SP |
| @tvb | Third prize | 37.299 / 8 = 4.662 SBD + 2.5 SP |
| @tensaix2j | Consolation prize | 37.299 / 8 = 4.662 SBD |
| @ghasemkiani | Consolation prize | 37.299 / 8 = 4.662 SBD |
| @shieha | Consolation prize | 37.299 / 8 = 4.662 SBD |
| @vincentyip | Consolation prize | 37.299 / 8 = 4.662 SBD |
| @challk | Consolation prize | 37.299 / 8 = 4.662 SBD |
Congratulations to the winners!
