1960s, navigational DBMS
The introduction of the term database coincided with the availability of direct-access storage (disks and drums) from the mid-1960s onwards. The term represented a contrast with the tape-based systems of the past, allowing shared interactive use rather than daily batch processing. The Oxford English Dictionary cites[11] a 1962 report by the System Development Corporation of California as the first to use the term "data-base" in a specific technical sense.
As computers grew in speed and capability, a number of general-purpose database systems emerged; by the mid-1960s a number of such systems had come into commercial use. Interest in a standard began to grow, and Charles Bachman, author of one such product, the Integrated Data Store (IDS), founded the "Database Task Group" within CODASYL, the group responsible for the creation and standardization of COBOL. In 1971, the Database Task Group delivered their standard, which generally became known as the "CODASYL approach", and soon a number of commercial products based on this approach entered the market.

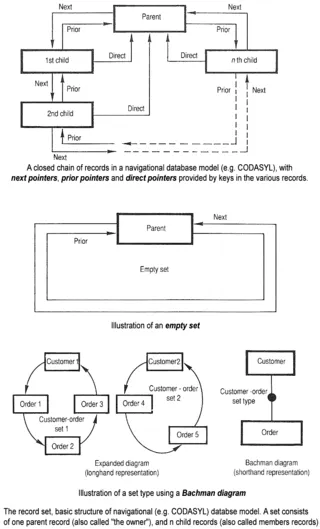

The CODASYL approach relied on the "manual" navigation of a linked data set which was formed into a large network. Applications could find records by one of three methods:
Use of a primary key (known as a CALC key, typically implemented by hashing)
Navigating relationships (called sets) from one record to another
Scanning all the records in a sequential order
Later systems added B-trees to provide alternate access paths. Many CODASYL databases also added a very straightforward query language. However, in the final tally, CODASYL was very complex and required significant training and effort to produce useful applications.
IBM also had their own DBMS in 1966, known as Information Management System (IMS). IMS was a development of software written for the Apollo program on the System/360. IMS was generally similar in concept to CODASYL, but used a strict hierarchy for its model of data navigation instead of CODASYL's network model. Both concepts later became known as navigational databases due to the way data was accessed, and Bachman's 1973 Turing Award presentation was The Programmer as Navigator. IMS is classified[by whom?] as a hierarchical database. IDMS and Cincom Systems' TOTAL database are classified as network databases. IMS remains in use as of 2014.
1970s, relational DBMS
Edgar Codd worked at IBM in San Jose, California, in one of their offshoot offices that was primarily involved in the development of hard disk systems. He was unhappy with the navigational model of the CODASYL approach, notably the lack of a "search" facility. In 1970, he wrote a number of papers that outlined a new approach to database construction that eventually culminated in the groundbreaking A Relational Model of Data for Large Shared Data Banks.[13]
In this paper, he described a new system for storing and working with large databases. Instead of records being stored in some sort of linked list of free-form records as in CODASYL, Codd's idea was to use a "table" of fixed-length records, with each table used for a different type of entity. A linked-list system would be very inefficient when storing "sparse" databases where some of the data for any one record could be left empty. The relational model solved this by splitting the data into a series of normalized tables (or relations), with optional elements being moved out of the main table to where they would take up room only if needed. Data may be freely inserted, deleted and edited in these tables, with the DBMS doing whatever maintenance needed to present a table view to the application/user.

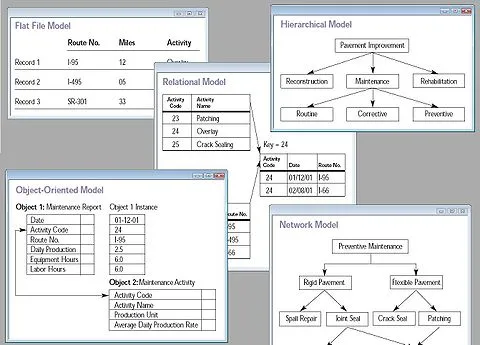

A database model is a type of data model that determines the logical structure of a database and fundamentally determines in which manner data can be stored, organized, and manipulated. The most popular example of a database model is the relational model (or the SQL approximation of relational), which uses a table-based format.
Common logical data models for databases include:
Navigational databases
Hierarchical database model
Network model
Graph database
Relational model
Entity–relationship model
Enhanced entity–relationship model
Object model
Document model
Entity–attribute–value model
Star schema
An object-relational database combines the two related structures.
Physical data models include:
Inverted index
Flat file
Other models include:
Associative model
Multidimensional model
Array model
Multivalue model
Specialized models are optimized for particular types of data:
XML database
Semantic model
Content store
Event store
Time series model
