It is with pleasure that we announce that the MFMP has been invited to openly test a claimed working New Fire reactor technology

No restrictions on our access.
When confirmed, claimant will make technology open.
This will make this the first fully described / open working New Fire technology in this epoch.

In brief

The "ECCO" reactor currently uses 8 alumina tube reactors driven independently to allow scaling of output power from around 1kW to over 8kW

• Current fuel: Ultrasonic processing of powders in light water for about 200 hours is then finished by pyrolysis
• 3 Ultrasonic transducers @ 19.46kHz & 1.5kW each for a total of 4.5kW
• Current fuel: Ti, TiH2, Ni, Al, LiOH, C, K2CO3
• Core reactor is standard extruded alumina cylinder
• Reactors in second steel sheath
• Starting status: Initial vacuum in cell
• Through fuel discharge provided by thoriated tungsten welding electrodes
• Fuel held in place by Nickel foil formed into a plug in to which the needle point of the electrodes passes
• Pure nickel foil made by plating from Nickel Sulphate onto steel using hydrogen plasma and ultrasonically de-laminating it
• Fuel not tightly packed, 22mm active zone in Al2O3 tube with 1.6g of fuel occupying <1/3 available space
• 1 MHz non-symmetrical waveform (fast rise, slow fall) pulsed DC discharge provided by MOSFETs through fuel
• 2000 - 2400V discharge potential set to prevent spark
• Approximately 100W applied in non-spark discharge
• Ultrasonic vibration at same 1MHz applied to fuelled zone in tube in order to fluidise the fuel components
• Between 15-30W used for the ultrasonic fluidisation
• Peak input power is approximately 1kW
• Core temperature (external of ceramic) 1100ºC using S-type thermocouple
• Tested for 3 months in accumulated on time, only 2-3% output variation during that time
• Heat exchanger enables transfer of heat to water which is heated to 101ºC
• Instantly stops reaction when turned off
• Water heated to boiling inside 5 mins of turn on
• Claimant used his, his partners and his teams expertise alongside publicly available discussions on the New Fire
• Reactor was arrived at by informed trial and error without specific theory consideration
• Many areas identified for improvement and now from a theoretical basis
• Good fuel testing platform
• Makes a lot of cups of tea

How it was discovered

Suhas introduces himself and describes how he came to look for the New Fire

Technical discussions on SoundCloud

Part one
Part two
Part three
Part four

Fuel Processing

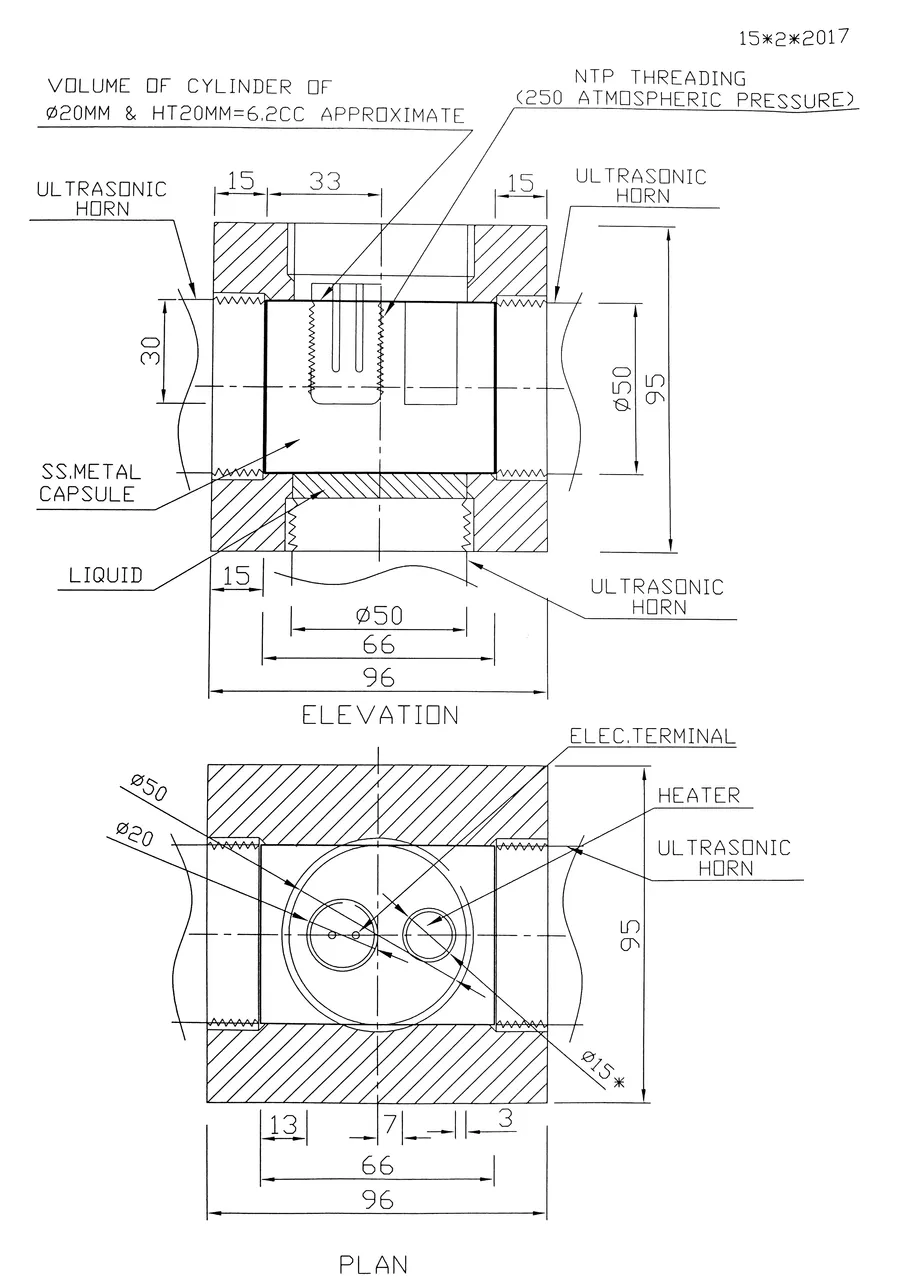

Fuel is processed in a chamber with the following design

3 resonant ultrasonic horns are attached to the above block with the following parameters: 19.4kHz & 1.5kW each for a total of 4.5kW. The X/Y arrangement of the high energy ultrasonics reduces the fuel components in a light water solution over 10s of hours from off the shelf powder sizes of 80-100um to 1-3um. At the same time the fuel components are cleaned. In addition, there will be cavitation resulting in potential charge cluster effects and nano bubble formation.

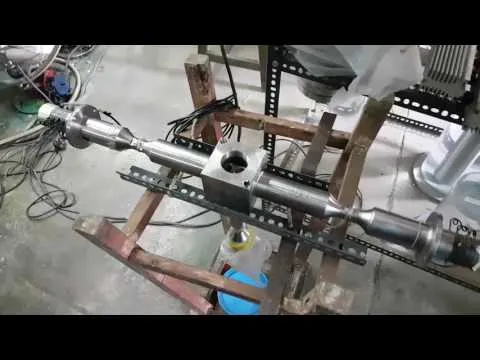

Overview of fuel processor

Uncapped fuel processor in operation

Fuel composition, processing time, reactor core form and fuelling

The reactor in operation

5 mins to get to operating temperature from 28ºC line water temperature

COP 8

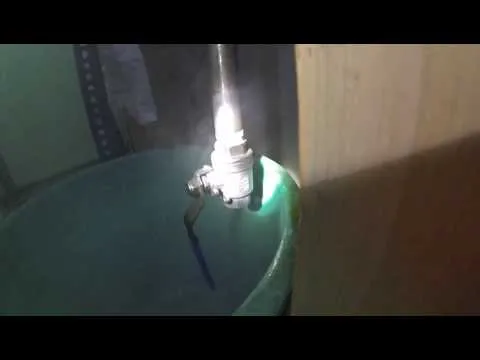

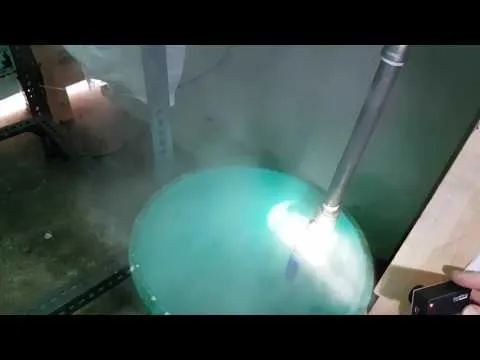

Close-up on steam

Water droplets are apparently due to partial condensation in metal pipe exposed to 35ºC air - to be verified by lagging pipe

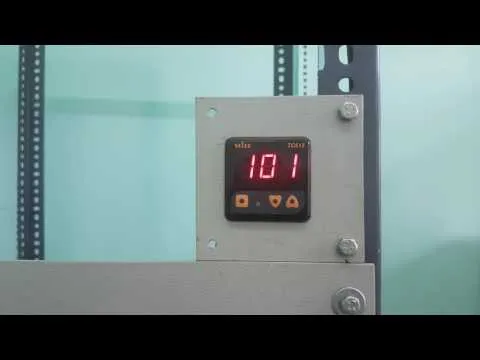

101ºC - Steam quality

Summary discussion

Next steps

We need to get a team and equipment to India as soon as possible to verify this technology and document it fully. MFMP team members have expressed that they could put time aside to do this, but it will take more than just time and shipping of equipment. We must be completely independent testers, with no strings attached and also ensure that the Indian is not compromised by those wanting to 'help'. This is a critical moment in the Martin Fleischmann Memorial Project's history. Your support has helped get us here - this may well be the home straight.

The work of all the citizen researchers out there have helped the Indian make this technology embodiment and you can see how frank he is about that in discussions. You can all pat yourself on the back for being a part of lighting the New Fire together.

What we need to do to ensure independent evaluation

• Raise money for duplicate production
• Raise money for testing team to participate in verification
• Ideally secure an SEM/EDX to do fuel / ash analysis without having to wait on or rely on the data from, third parties.
