¡Hola amigos de Hive! Después de haber explorado a fondo las leyes fundamentales de Ohm, Kirchhoff y Watt, ha llegado el momento de poner en práctica todo lo aprendido. A partir de ahora, resolveremos ejercicios reales que aplican estas leyes, lo cual no solo reforzará los conceptos que hemos discutido en el blog, sino que también les brindará una valiosa oportunidad de practicar. A continuación, les presento un circuito junto con la consigna del ejercicio: Con los datos proporcionados en el siguiente circuito, hallen las caídas de tensión en cada componente y las corrientes que circulan a través de ellos.
A simple vista, podemos aplicar varios conceptos que hemos aprendido en las últimas publicaciones. Por ejemplo:
- El circuito contiene dos resistencias (R1 y R2) y una fuente de tensión (V).
- Los componentes del circuito están conectados en serie.
- Debido a esta configuración en serie, la corriente que circula por todos los componentes es la misma.
Siguiendo estos puntos, podemos afirmar que:
Ahora, podemos reemplazar los valores en las fórmulas que hemos deducido según el circuito dado y establecer las ecuaciones necesarias para encontrar nuestras incógnitas, aplicando las leyes que hemos estudiado hasta ahora (la primera y segunda ley de Kirchhoff, y la ley de Ohm).
De esta manera, podemos apreciar la utilidad práctica de estas leyes y aprender cómo aplicarlas. Más adelante, resolveremos circuitos más complejos y con más componentes para observar su comportamiento en conjunto, poniendo en práctica todo lo que hemos aprendido hasta ahora. Les recomiendo que practiquen estos ejercicios y compartan sus dudas y resultados en los comentarios para seguir aprendiendo juntos. ¡Estoy ansioso por ver sus avances!
[ENG]

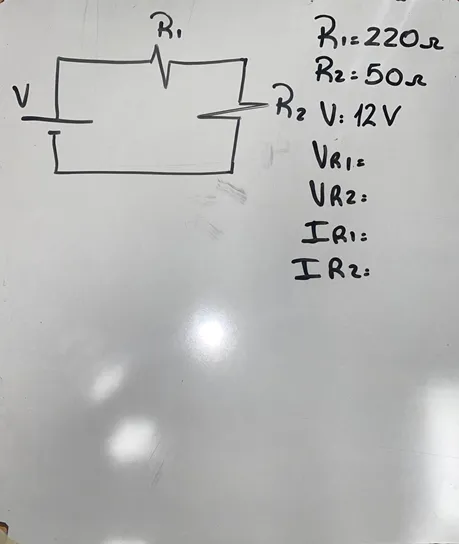

Hello Hive friends! After having thoroughly explored the fundamental laws of Ohm, Kirchhoff and Watt, it is time to put everything you have learned into practice. From now on, we will solve real exercises that apply these laws, which will not only reinforce the concepts we have discussed in the blog, but will also give you a valuable opportunity to practice. Below, I present a circuit along with the exercise instructions: Using the data provided in the following circuit, find the voltage drops across each component and the currents flowing through them.
At first glance, we can apply several concepts that we have learned in the last posts. For example:
- The circuit contains two resistors (R1 and R2) and a voltage source (V).
- The circuit components are connected in series.

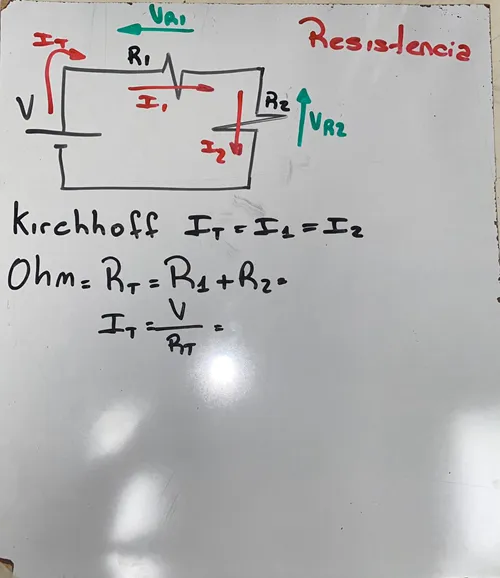

- Due to this series configuration, the current flowing through all components is the same. Following these points, we can affirm that:

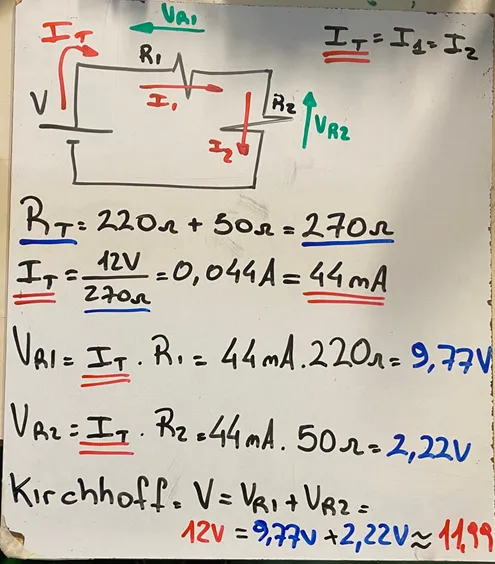

Now, we can replace the values
in the formulas that we have deduced according to the given circuit and establish the necessary equations to find our unknowns, applying the laws that we have studied so far (Kirchhoff's first and second laws, and Ohm's law).
In this way, we can appreciate the practical usefulness of these laws and learn how to apply them. Later, we will solve more complex circuits with more components to observe their behavior as a whole, putting into practice everything we have learned so far. I recommend that you practice these exercises and share your doubts and results in the comments to continue learning together. I can't wait to see your progress!

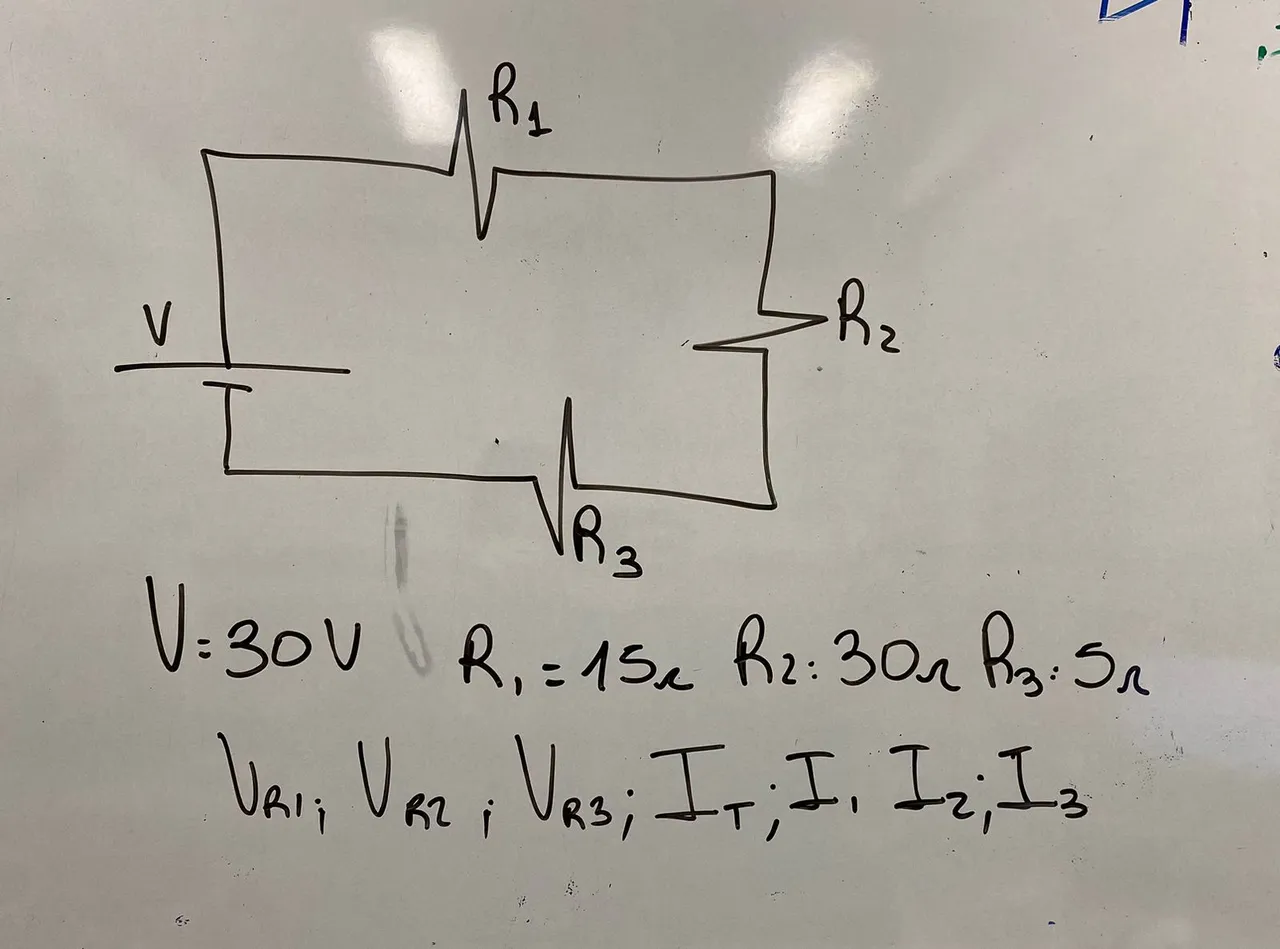

! [Click to reveal Click para revelar] It: 600mA Vr1: 9V Vr2: 18V Vr3: 3V
