Serpente R2 Microchip SAMD21 Board Features a Male USB Type-C Port

Development boards with a USB Type-C port for power and programming are becoming more common, most in most cases with a female USB-C port.

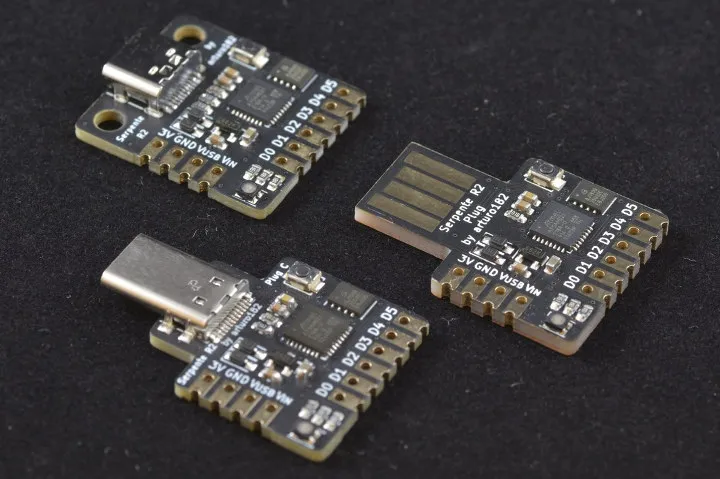

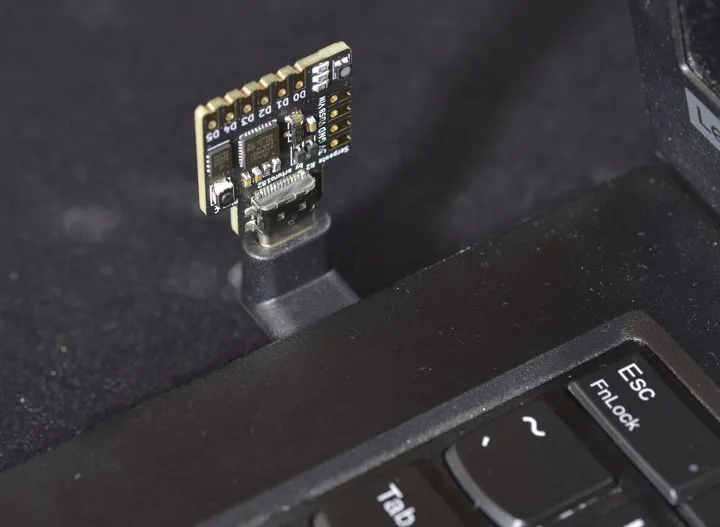

Designed by arturo182, Serpente R2 CircuitPython prototyping board based on Microchip SAMD21 Arm Cortex-M0+ microcontroller offers three USB power & programming option with USB type-A male, USB type-C female, or USB type-C male, with the latter option allowing you to plug into directly into your host computer.

Click to Enlarge

Serpente R2 board specifications:

• MCU - Microchip ATSAMD21E18A 32-bit Cortex-M0+ running at 48MHz, with 256KB flash, and 32KB RAM

The full article can be found @ https://www.cnx-software.com/2019/12/18/serpente-r2-microchip-samd21-board-features-a-male-usb-type-c-port/
