A2 Plus Workbench is a powerful tool for creating and editing 3D models in FreeCAD. It allows you to easily add constraints and dimensions to your objects, and to modify them parametrically. You can also use it to create assemblies of multiple parts, and to export them as STEP files for further processing. FreeCAD A2 Plus Workbench is compatible with FreeCAD 0.19 and above, and it can be installed from the Addon Manager or from GitHub.
FreeCAD A2Plus Benefits -:
FreeCAD is a powerful and open-source 3D CAD software that can be used for various design and engineering projects. One of the advantages of FreeCAD is that it supports a wide range of file formats, including STEP, IGES, STL, SVG, DXF, OBJ, IFC, DAE and many others. This allows users to import and export models from different applications and platforms.
However, sometimes users may encounter difficulties when working with assemblies of multiple parts in FreeCAD. For example, they may have problems with updating the position and orientation of the parts, or with maintaining the constraints and relations between them. This is where the A2Plus addon comes in handy.

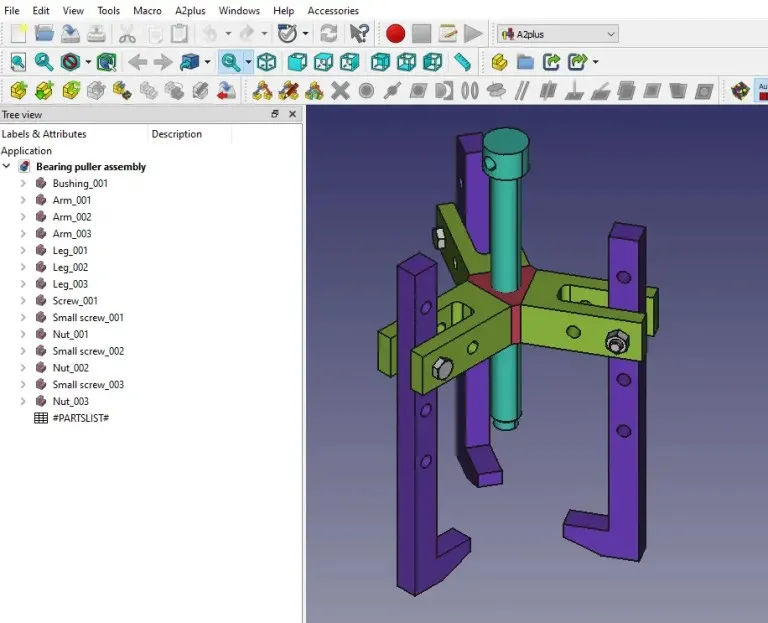

A2Plus is an addon for FreeCAD that extends its functionality for assembly modeling. It allows users to create and edit assemblies of parts with ease and flexibility. With A2Plus, users can:
– Add parts from external files or from the current document to an assembly.
– Move and rotate parts using the mouse or precise values.
– Apply constraints such as coincident, parallel, perpendicular, tangent, distance, angle and more to the parts.
– Edit the properties and parameters of the parts and constraints.
– Update the assembly automatically or manually when changes are made to the parts or constraints.
– Export the assembly as a single file or as a collection of files.
A2Plus is a useful tool for anyone who wants to create complex and realistic assemblies in FreeCAD. It can help users to save time and effort, as well as to improve the quality and accuracy of their designs. A2Plus is compatible with FreeCAD version 0.19 or higher, and it can be installed from the Addon Manager or from GitHub.
