Hello Friends Welcome to new FreeCAD Tutorial in this Tutorial we will learn How to Model Socket Bearing in FreeCAD.

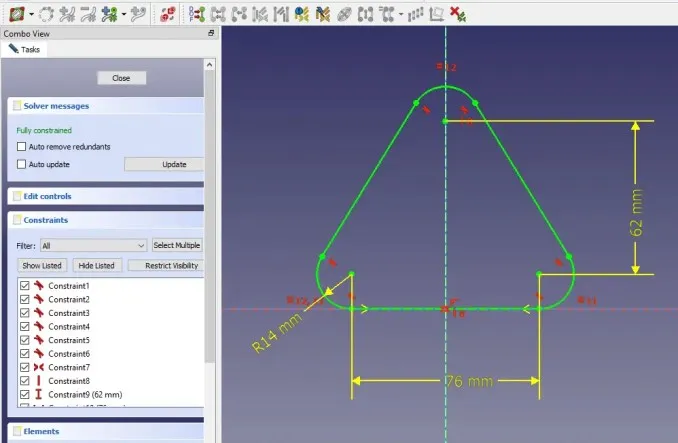

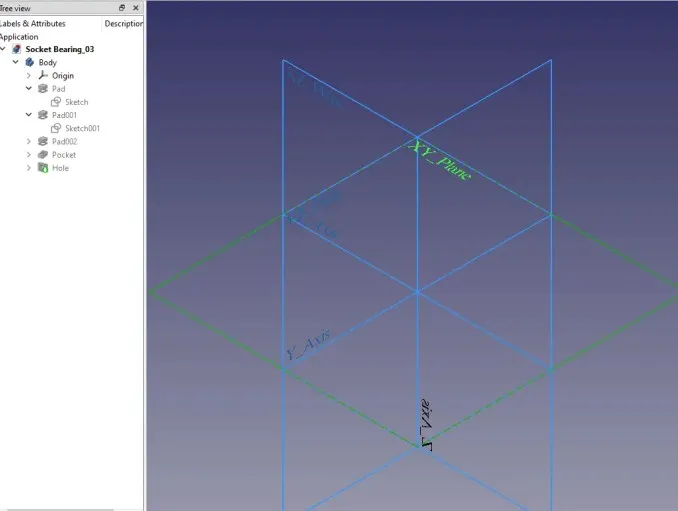

First Select XY Plane and Create your Base Sketch which is Shown as below.

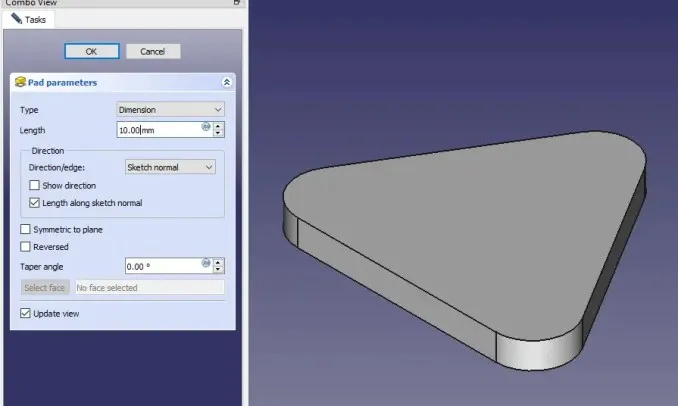

Once you created the fully constrained sketch exit from the sketch and extrude it as shown in below image.

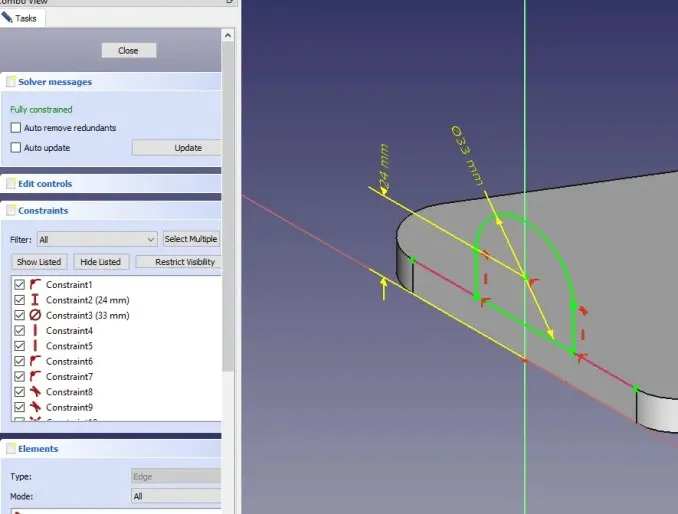

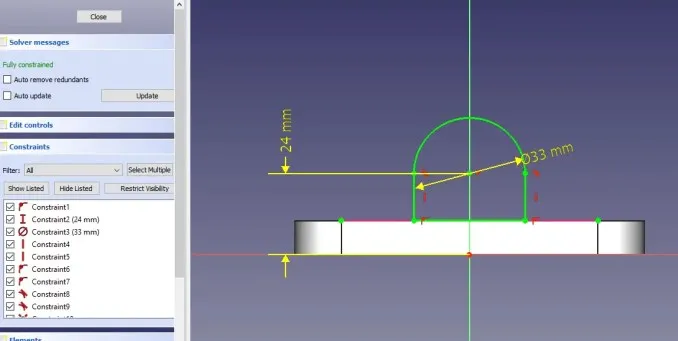

Now select the front face and create the sketch as shown in the image.

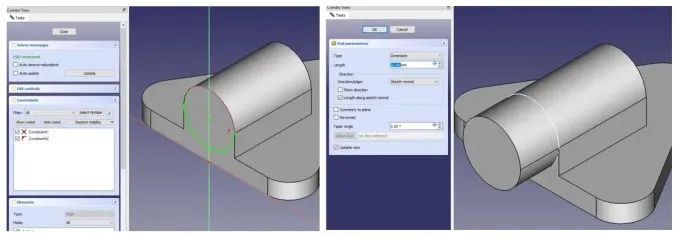

As Sketch is Fully Constrained exit from the sketch and extrude it to 50mm. As shown in the image.

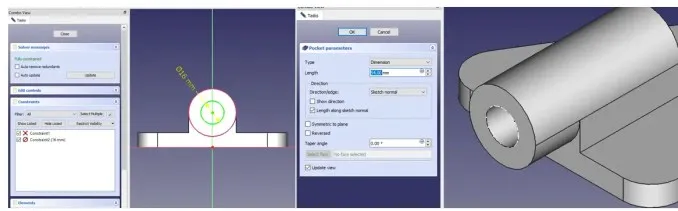

Now create a Circle on face and extrude it to length of 22mm. As shown in image.
Now on face create a circle of Diameter 16 and make through cut in my case I have selected distance.

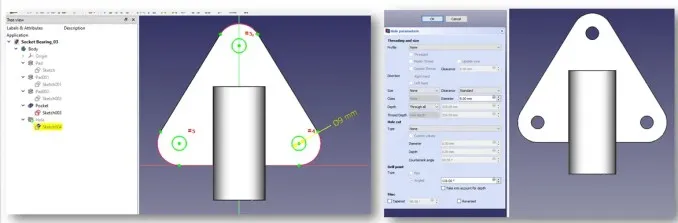

Now Select top face and project outer edge arc and create 3 circle of Diameter 9 and make 3 Hole as shown in below image.

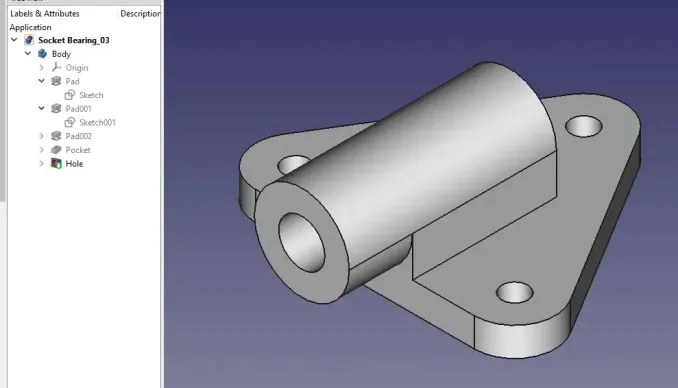

In this Tutorial I have explained How to Model Socket Bearing in FreeCAD. This Tutorial is designed for beginner user to understand part design Workbench in FreeCAD and basic modeling approach in FreeCAD. below is the link of source file that any user can download and refer my model in case of any doubt.
