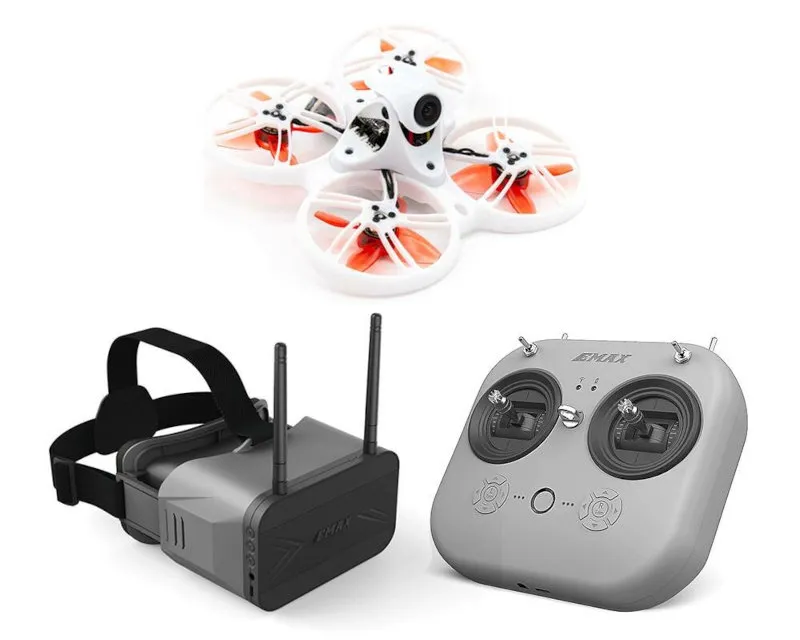

If you have an EMax Tinyhawk 3 and have been trying to set it up with another radio controller, you might find the following information helpful. The stick channel mappings (TAER1234) is on the alternate stick mappings to the Betaflight standard (AETR1234), so maybe it's better to remap the drone to standard in Betaflight Configurator.
Alternatively, if you're trying to bind another D8 quad with the Tinyhawk 3's radio controller, it's useful to know the channel mapping.
Radio protocol is FrSky's D8
The channel list is:
| D8 Channel | Controller | Function | Affordance |
|---|---|---|---|
| CH1 | Throttle | Motor | -100% to 100% gimbal |
| CH2 | Roll | Airelon | -100% to 100% gimbal |
| CH3 | Pitch | Elevation | -100% to 100% gimbal |
| CH4 | Yaw | Rudder | -100% to 100% gimbal |
| CH5 | AUX1 | Arm | 2 position switch |
| CH6 | AUX2 | Mode select: Angle, Horizon, Air/Acro | 3 position switch |
| CH7 | AUX3 | Turtle mode | 2 position switch |
| CH8 | AUX4 | Beeper | 2 position switch |
I discovered these while setting up my Radiomaster TX16S Mark II Max. My brother now has my E8 Radio for use with his flight sims, and maybe, one day, he'll try out my drones.
Until next time.
