Hi guys!
Today I will continue making the mechanism for articulation between knee and bottom leg. So here are updates on Project Devil Gundam!
Today I will continue making the mechanism for articulation between knee and bottom leg. So here are updates on Project Devil Gundam!
Copy Paste Prep Work

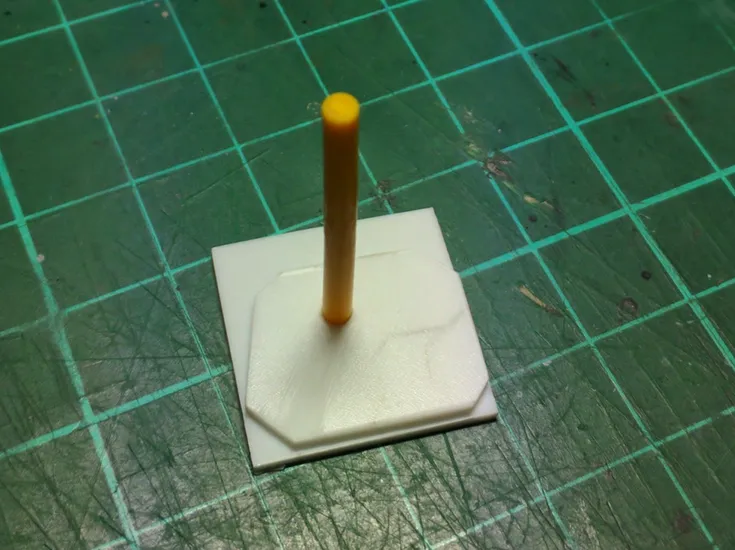

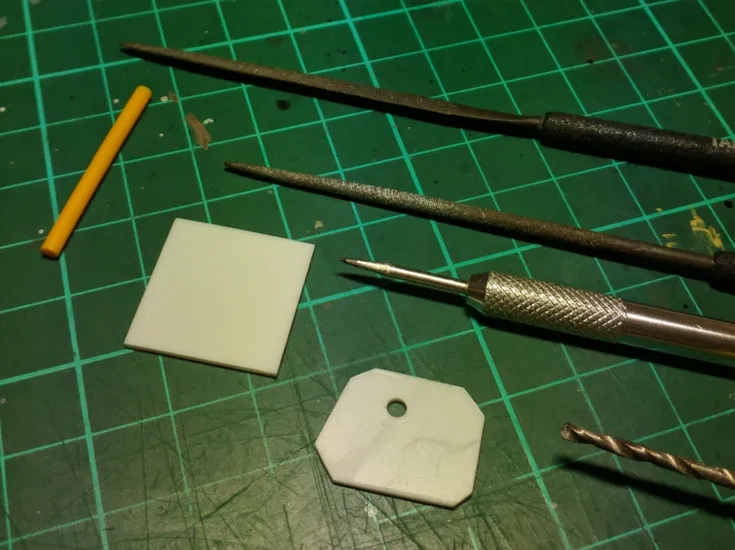

I will use the runer to align the hole which will affect the whole mechanism later. After I drill the hole and adjust it will the circular diamond file I will retrace the outline of the pla plate to the new one.
Copy Paste Continue

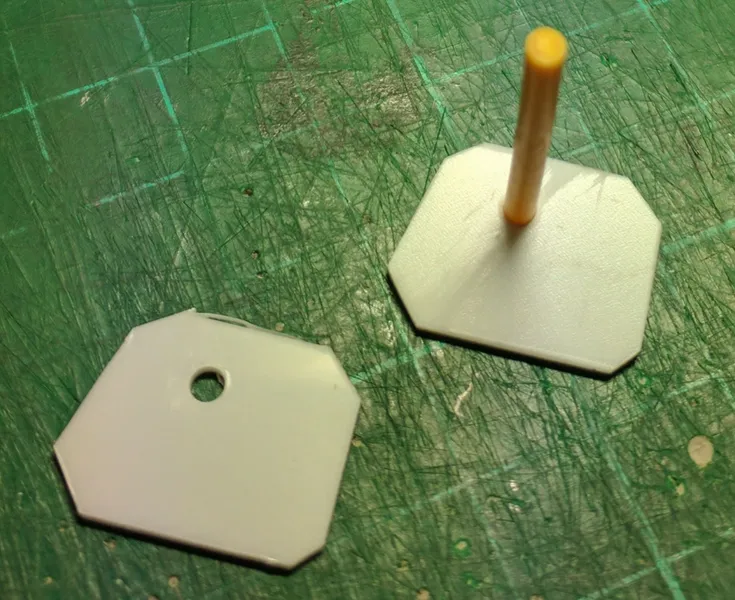

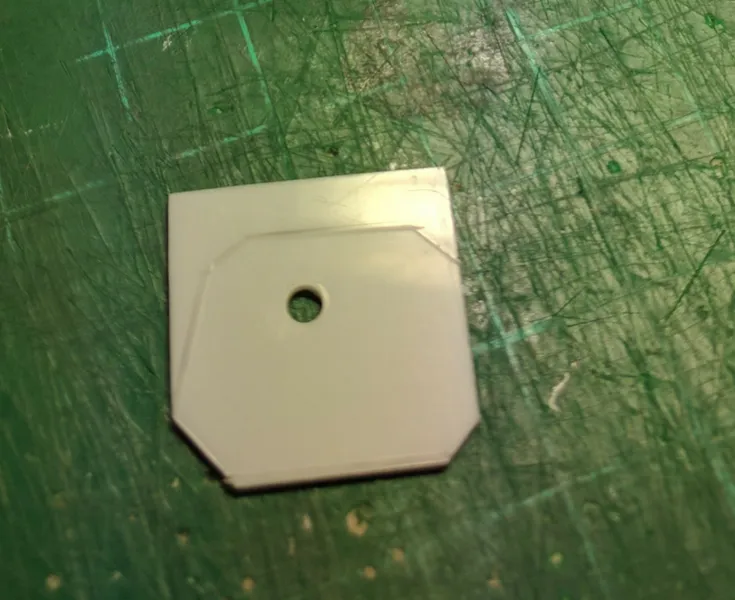

Then using hobby knife and file I trim off the excess while making sure I follow the guide I made previously. Since I am using a 1mm pla plates for this one cutting it off in one go is quite hard (unless I use a new blade). So I took the long way around.
Test Fit

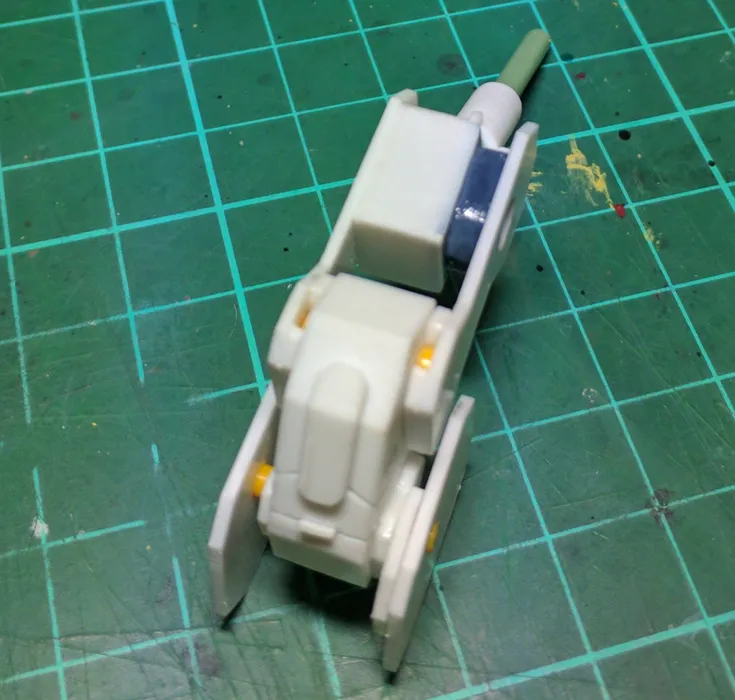

Now before copy pasting the c-joint I will test fit the newly cut pla plate to see if they align properly.
Since they look good to me, I will proceed with the c-joint. Also, I will make another set for the other knee.
And so this is my updates for today on this Devil Gundam x Neue Ziel Project.
Keep on building! Keep on steeming! Have a nice day!
Since they look good to me, I will proceed with the c-joint. Also, I will make another set for the other knee.
And so this is my updates for today on this Devil Gundam x Neue Ziel Project.
Keep on building! Keep on steeming! Have a nice day!
