This time I returned to serve a beat motor used by mothers who did not understand at all about motorbikes, because this motorbike was first brought to the workshop with complaints of problems with the fuel pump and injectors.
The problem was when I repaired this motorbike, because when I brought it to the repair shop, this motorbike was completely dead. So I can't try or check for any other damage first.
So when I arrived, I fixed the damage part first. Which caused this motorbike to die completely but not with electricity, electricity was safe and there was no damage at all.

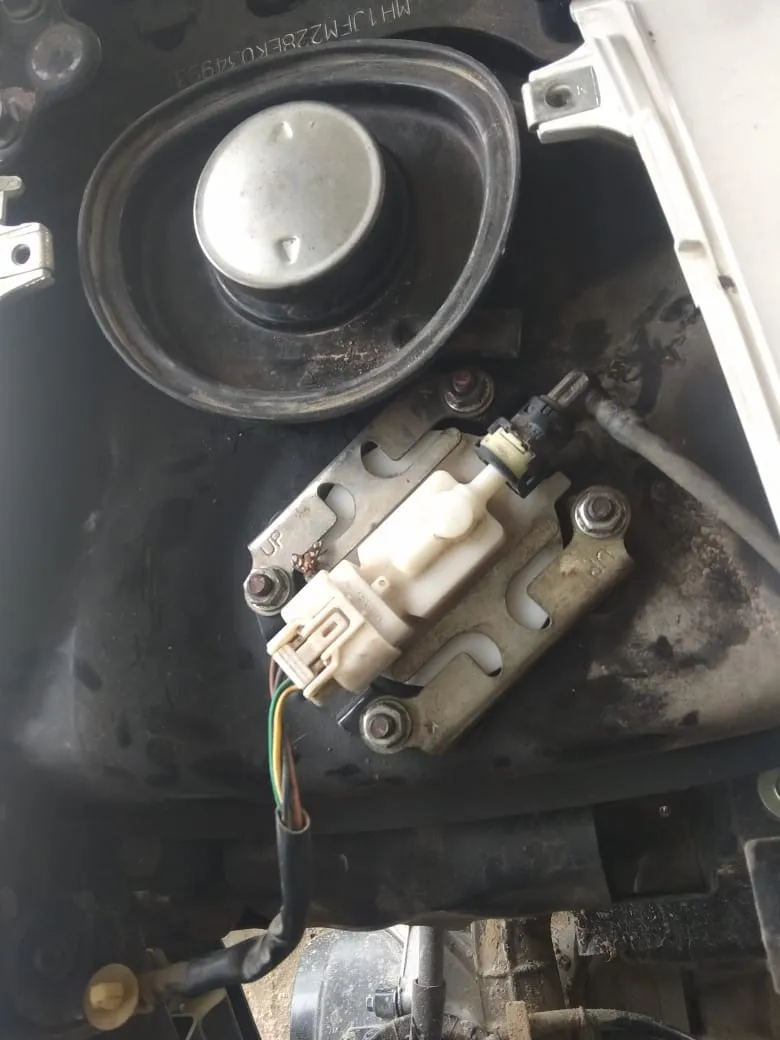

This is a photo of the fuel pump and injector that I have fixed and the engine is running normally, no more damage here.
In the fuel pump set, the problem is in the filter and the rubber between the fuel pump. But these two parts cannot be serviced or reused because the filter section has a lot of dirt that clogs it, so that when the dynamo pumps oil at the speed it should be, it gets blocked because of the dirt in the filter.
If the seal is certain after opening it cannot be reused because when opened the seal made of rubber will expand or float, the only way is to replace it with a new one.

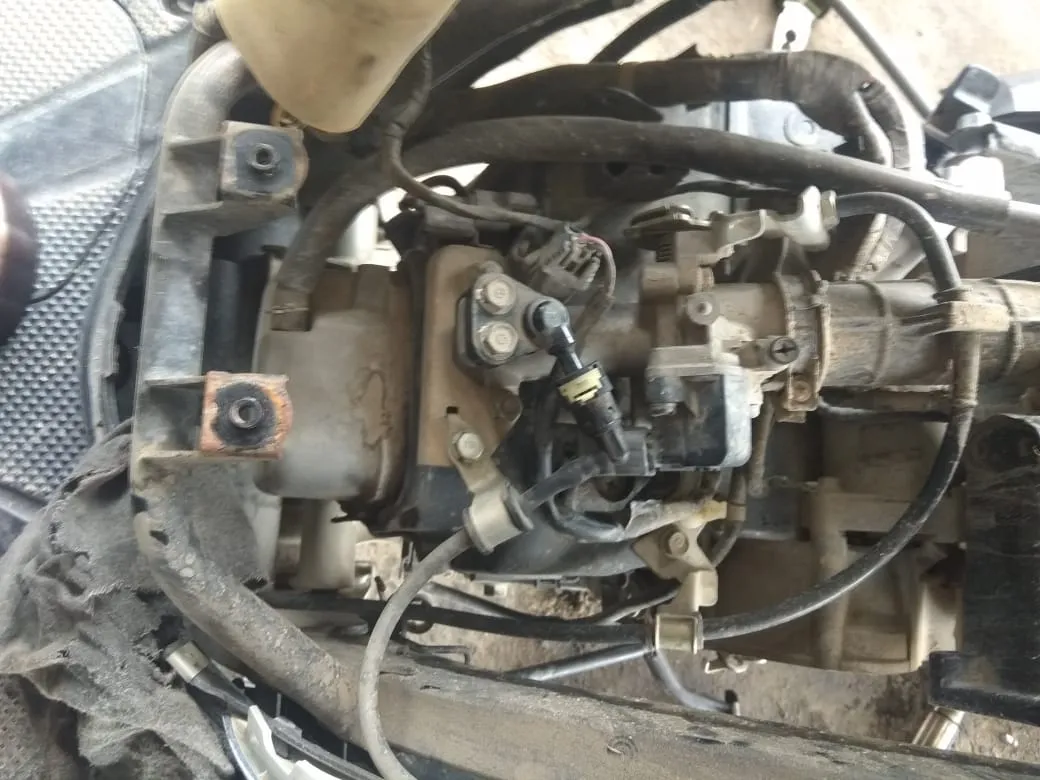

It turned out that the problem that caused the motor to not start had nothing to do with the injector or throttle body, because after I checked its performance there were no signs of damage, because I've replaced the filter and seal parts, I think it's very irresponsible if the throttle body part I didn't service and clean all the parts on the throttle body,
Until the throttle body is completely clean of dirt or solid black crust.

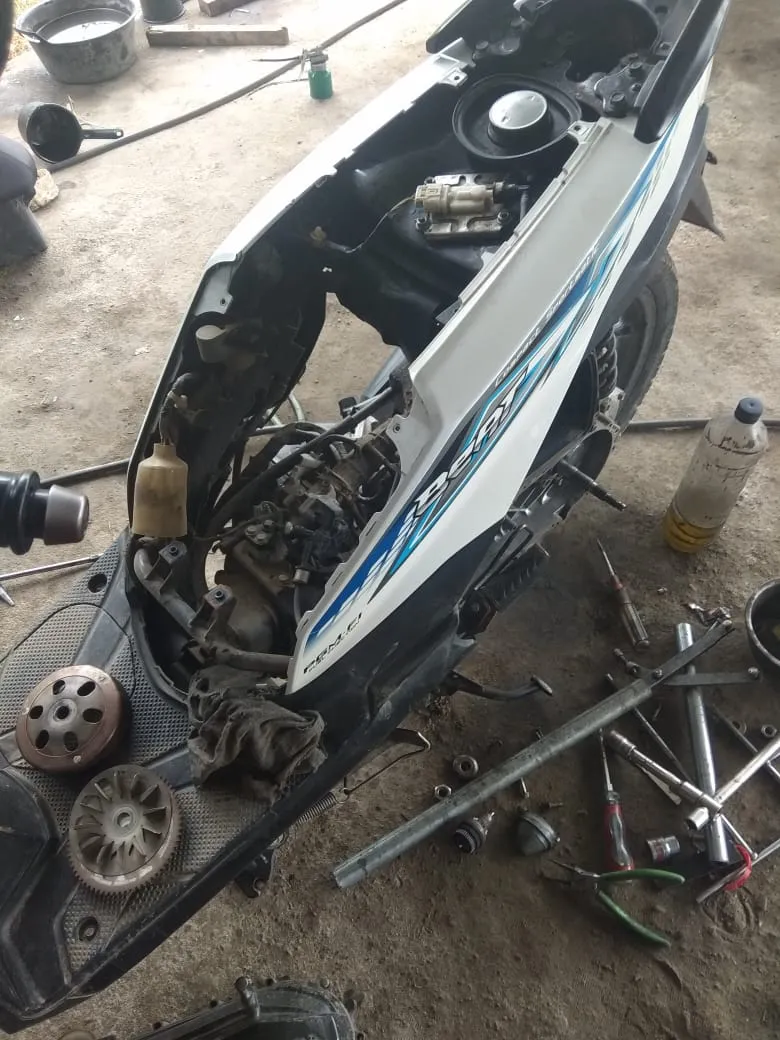

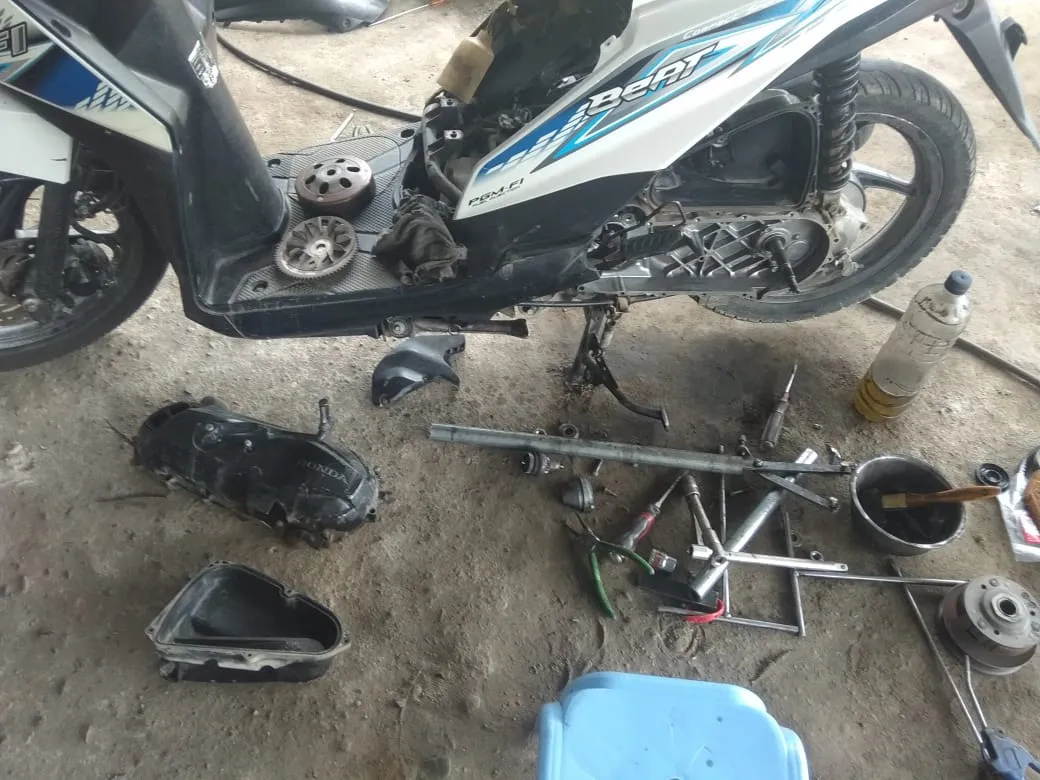

After the throttle body was finished and the engine was running perfectly, I tried to take this bike and after that I found some other damage in the CVT.
After I asked the owner and explained one by one about the damage to the CVT, he immediately gave orders to repair all the damage.

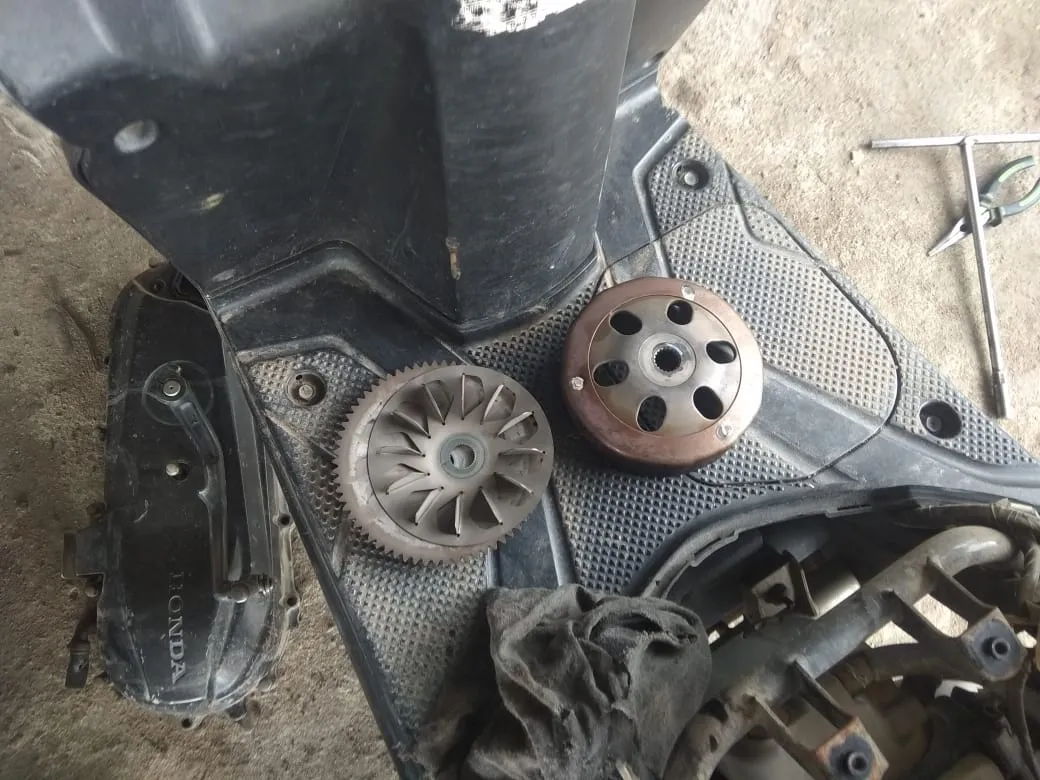

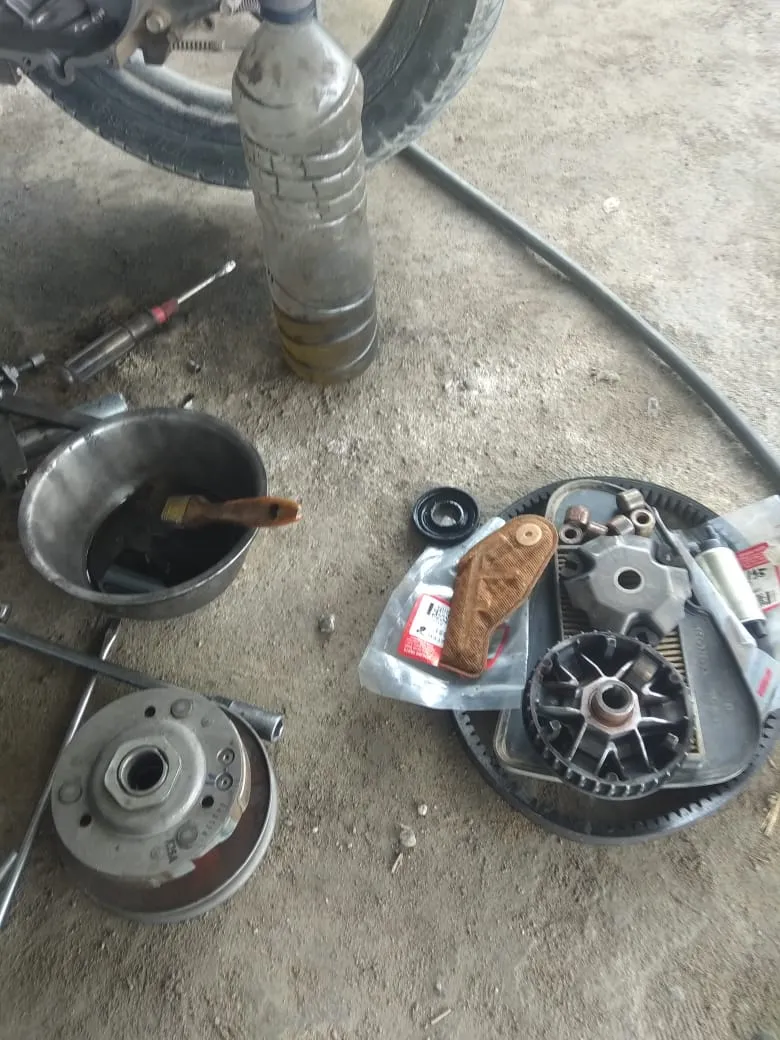

The damage is quite a lot starting from the sprocket set, roller housing, roller and vbelt, the service fee required for this motorbike is around two hundred thousand rupiah.
