Saludos mis estimados lectores, les comento está reseña de mi trabajo para todos ustedes amigos, les estoy dando las herramientas necesarias para diagnosticar posibles fallas en sus vehículos y así tener un poco de conocimiento al momento de tener una avería y conocer un poco más de lo que es el funcionamiento.
Hoy le hablaré de la transmisión automática 4L65, cómo se suele llamar está y con este nombre o código es podemos comprar sus refacciones o repuestos con toda certeza de que son para este tipo de transmisión algo costosa por el tipo de vehículos que las trajeron como fue la Tahoe y Silverado .
Se le hizo un análisis al vehículo y por el ruido que presentaba y se determinó que que tenía una falla mecánica al interior de la misma ya que esté tipo partes por lo general no presentan ruidos al momento de dañarse su fallas más comunes son la pérdida de fuerza al momento de requerir potencia o tracción al vehículo.
Se procede a desmontar la transmisión logrando así desacoplar el bloque del motor desvistiendo todos sus accesorios como son motor de arranque, líneas de flujo de aceite soportes y los tornillos de la turbina .
Ya teniendo todo los componentes en la mesa de trabajo, se comenzó a destapar y sacar todas sus partes están compuestas por un cuerpo de válvulas y tres embrague o tambores de velocidad que pertenece a cada una de las velocidades que tiene la misma .
Se encontró que tenía un retenedor partido en uno de los embragues y de esta avería el ruido que presentaba y debido a esto también sufrió el restó de las partes de la misma por las partículas de limaduras que se fueron agregando al sistema de fluido por esta rotura de este retenedor.
Ya teniendo el causal de esta avería se procede a limpiar todas las partes y colocar los sellos, gomas, discos de pasta y de hierro nuevos también se colocó el el tambor de embrague y el retenedor dañado de esta manera se colocó el banner kid este es un juego donde vienen todos lo necesario para la reparación de estás transmisión.
Una vez montada y calibrado todos los repuestos nuevos y necesarios se procede a probar la misma y así poder montar y acoplar con el bloque de motor y seguir vistiendo todos los accesorios que fueron retirado para poder sacar está ya montada se le aplicó su aceite con las especificaciones del fabricante de esta manera probarlo ya teniendo está en perfecto funcionamiento se entrega a su propietario.
Este tipo de fallas no son comunes, esta falla que se encontraba en este embrague proviene de una reparación con anterioridad al parecer no quedó bien en su puesto y con el tiempo logró salirse y de esta manera se desarmo toda esta parte del embrague logrando así dañar toda la transmisión.
Me alegra que me hayan acompañado hasta este punto de mi texto y que de esta manera podamos compartir con todos ustedes las vivencias de mi trabajo y de mi vida ya que la misma es la que nos dejan los trabajos y todos los días que pasamos y vivos en este hermoso país como lo es mi amada Venezuela, y en especial mi querido pueblo, valga el momento de expresarles que es un placer escribirles.
Greetings my dear readers, I comment this review of my work for all of you friends, I am giving you the necessary tools to diagnose possible faults in their vehicles and thus have a little knowledge at the time of having a breakdown and know a little more of what is the operation.

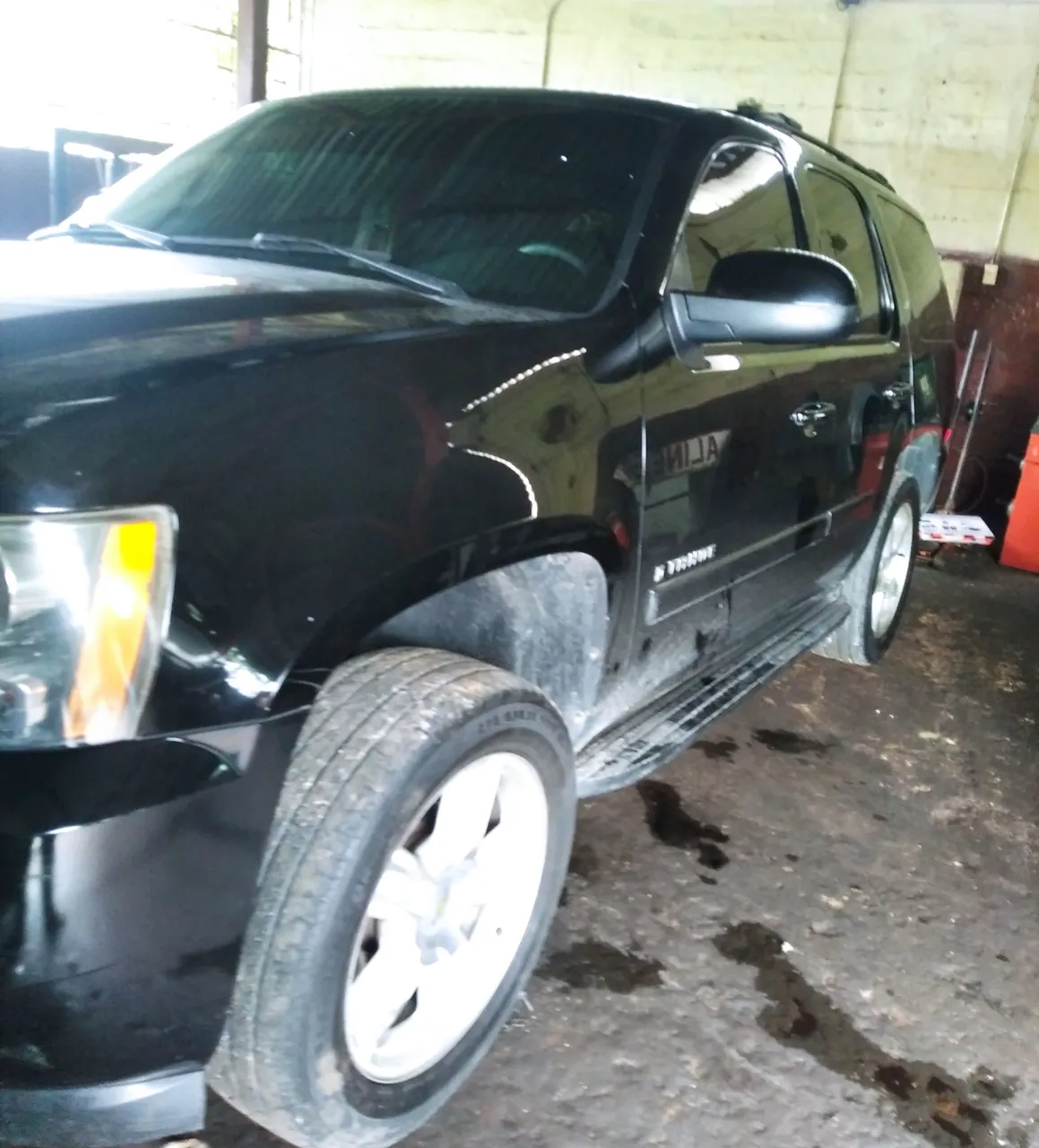

Today I will talk about the automatic transmission 4L65, as it is usually called this and with this name or code is we can buy their parts or spare parts with all certainty that are for this type of transmission something expensive for the type of vehicles that brought them as was the Tahoe and Silverado.
An analysis was made to the vehicle and by the noise that it presented and it was determined that it had a mechanical failure to the interior of the same one since this type parts usually do not present noises at the moment of being damaged its most common failures are the loss of force at the moment of requiring power or traction to the vehicle.

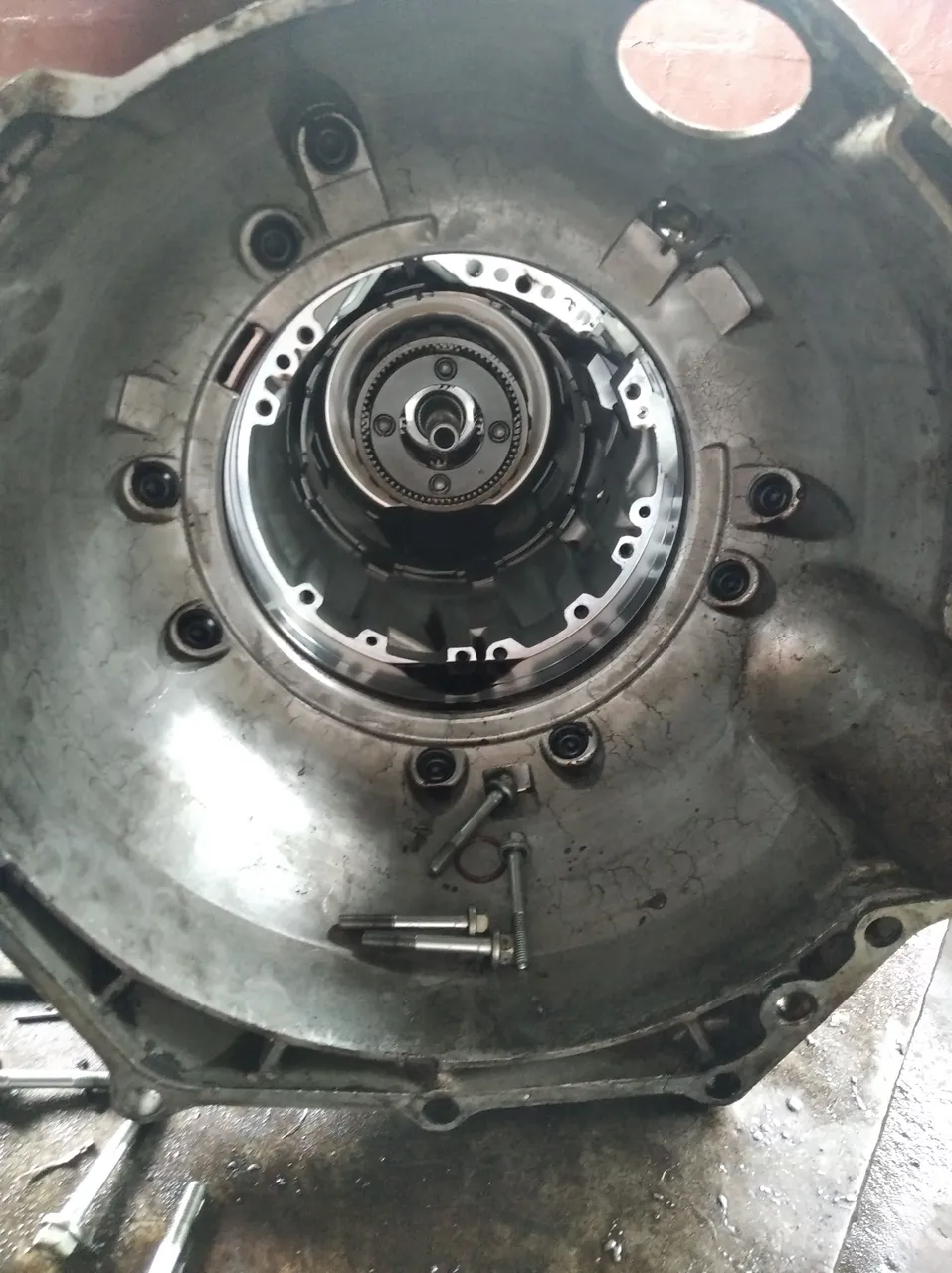

We proceed to disassemble the transmission, thus uncoupling the engine block and undressing all its accessories such as starter motor, oil flow lines, supports and turbine screws.

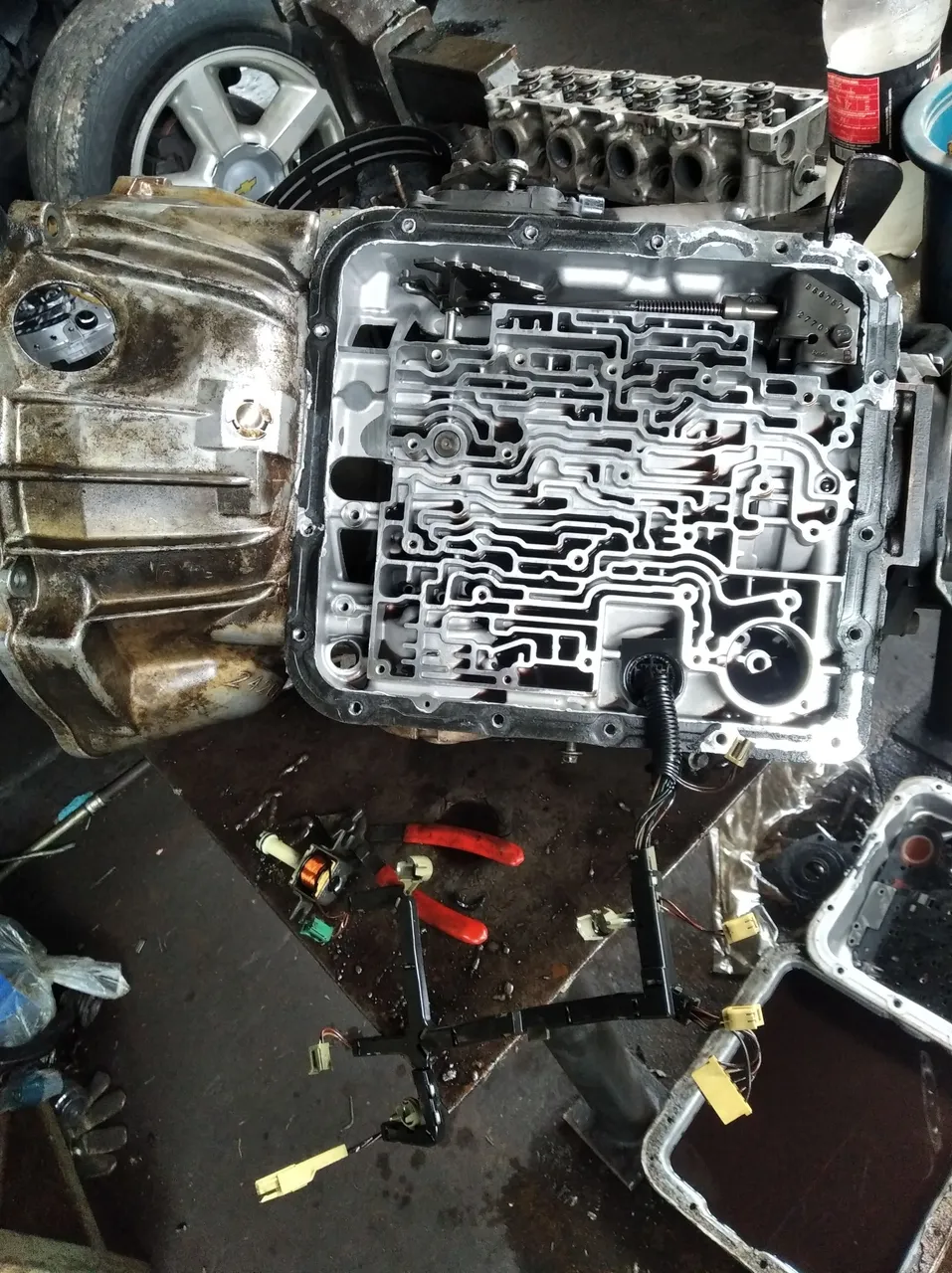

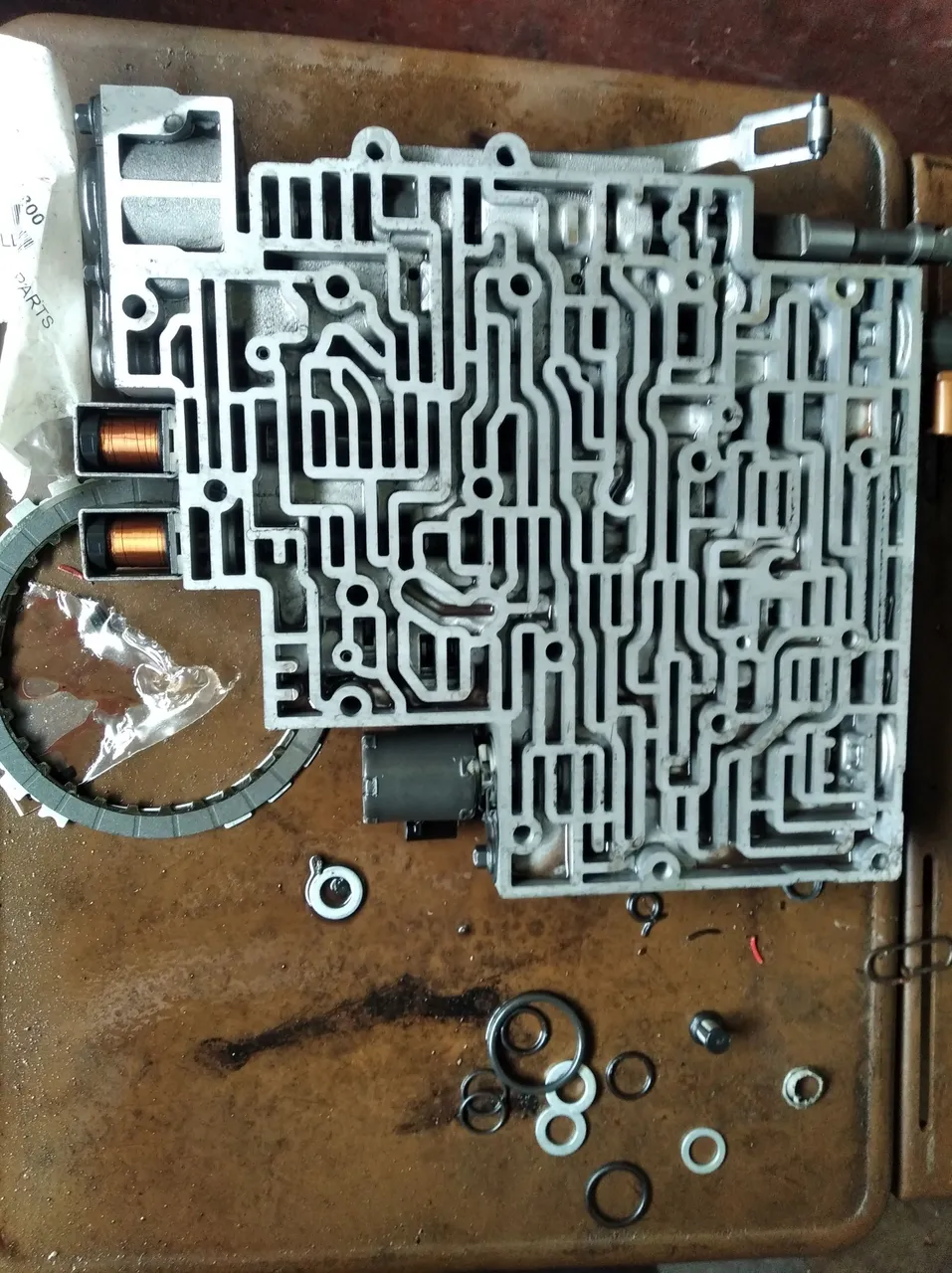

Already having all the components on the work table, we began to uncover and remove all its parts, which are composed of a valve body and three clutches or speed drums that belong to each of the speeds that the transmission has.

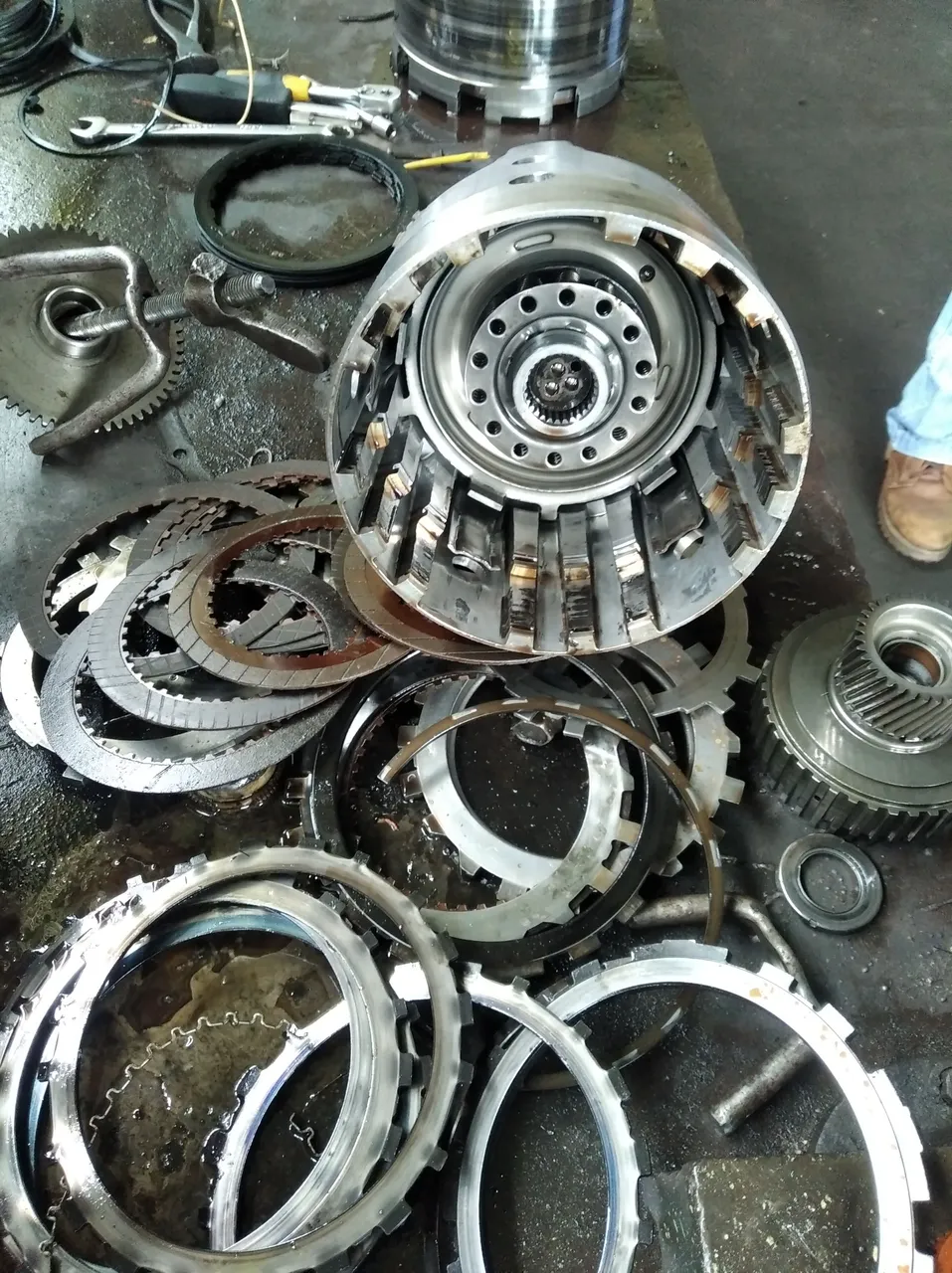

It was found that it had a broken retainer in one of the clutches and because of this breakdown the noise that it presented and because of this also suffered the rest of the parts of the same by the particles of filings that were added to the fluid system by this breakage of this retainer.
Already having the cause of this failure we proceeded to clean all the parts and place the seals, rubbers, discs of paste and new iron also placed the clutch drum and the damaged retainer in this way was placed the banner kid this is a set where they come all the necessary for the repair of you are transmission.
Once assembled and calibrated all the new and necessary spare parts we proceeded to test the same and thus to be able to assemble and couple with the engine block and continue dressing all the accessories that were removed to be able to remove it is already assembled we applied its oil with the manufacturer's specifications in this way to test it and having it is in perfect operation is delivered to its owner.
This type of failures are not common, this fault that was found in this clutch comes from a previous repair apparently was not well in place and eventually managed to get out and thus disassembled all this part of the clutch thus damaging the entire transmission.
I am glad that you have accompanied me to this point of my text and that in this way we can share with all of you the experiences of my work and my life since it is the same that leave us the work and every day we spend and live in this beautiful country as it is my beloved Venezuela, and especially my dear people, worth the time to tell you that it is a pleasure to write to you.
