Hola hivers, feliz sábado bienvenidos de nuevo a mi blog.
Hello hivers, happy Saturday welcome back to my blog.

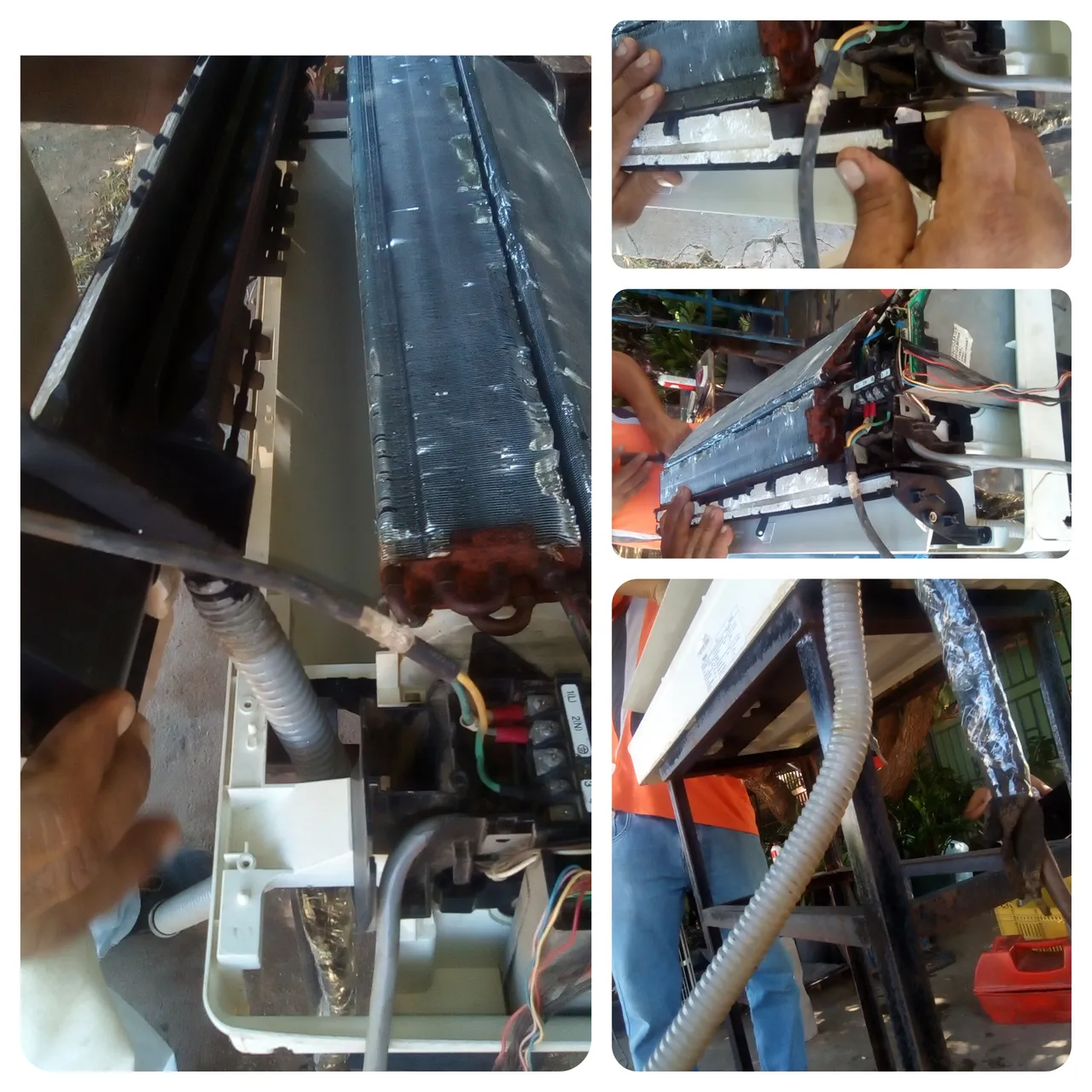

Hoy les mostraré cómo reemplazar la manguera de drenaje y el cable de señal de la consola de un aire acondicionado split.
Today I will show you how to replace the drain hose and console signal wire on air conditioner a split.
Debido a que se hacen esos reemplazos, el reemplazo de la manguera de drenaje se realiza por estar obstruido y tostado.
Because those replacements are made, the one for the drain hose is made for being clogged and toasty.
El cable de señal se reemplaza ya que está desgastado y derretido.
The signal cable is replaced as it is worn and melted.

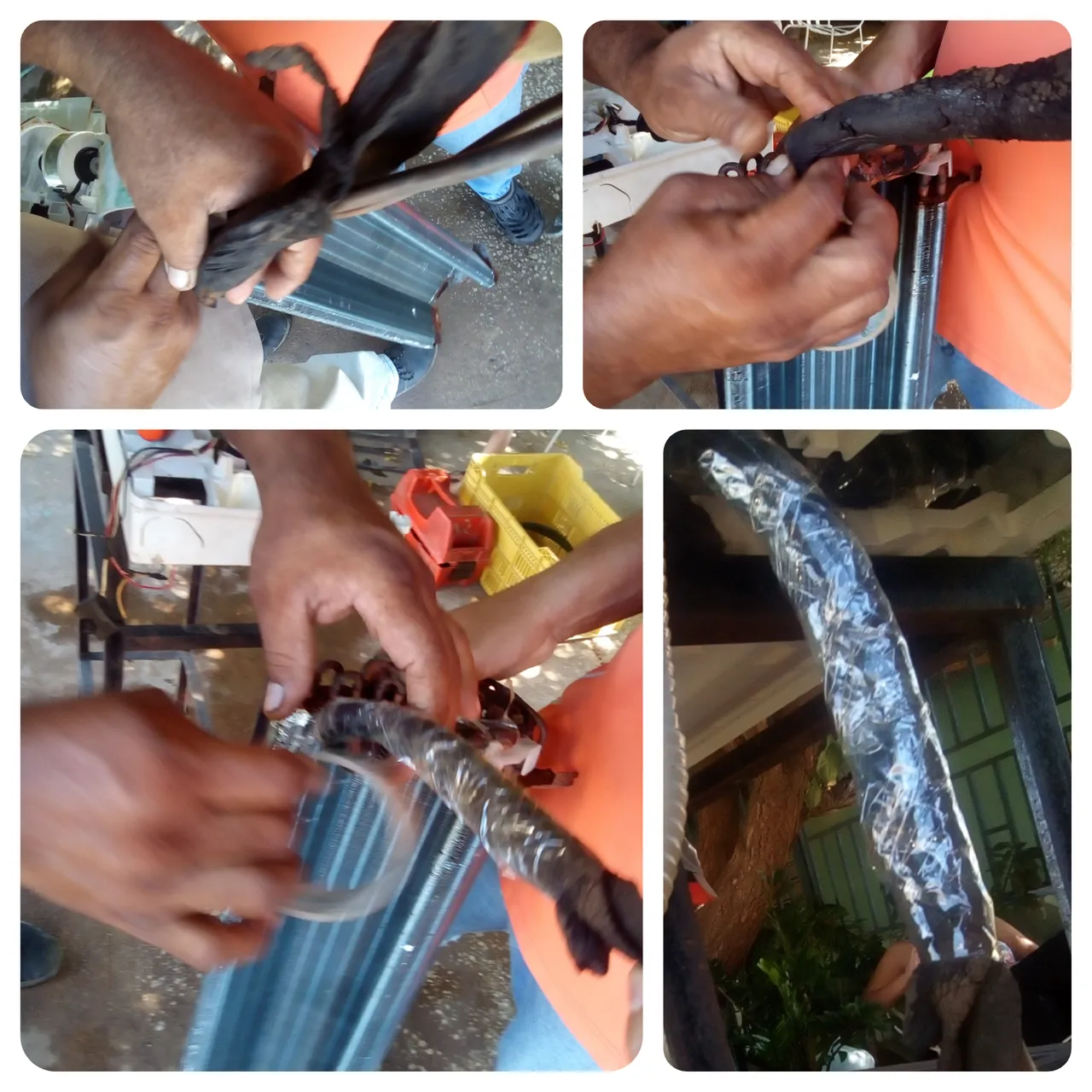

Aproveche para reforzar las tuberías de la consola, colócando gomaespuma cúbriendola con cinta adhesiva de embalar.
Take the opportunity to reinforce the pipes of the console, placing foam rubber covering it with duct tape.
Aquí les explico un poco lo que hice y les dejo imágenes de ello.
Here I explain a little what I did and I leave images of it.

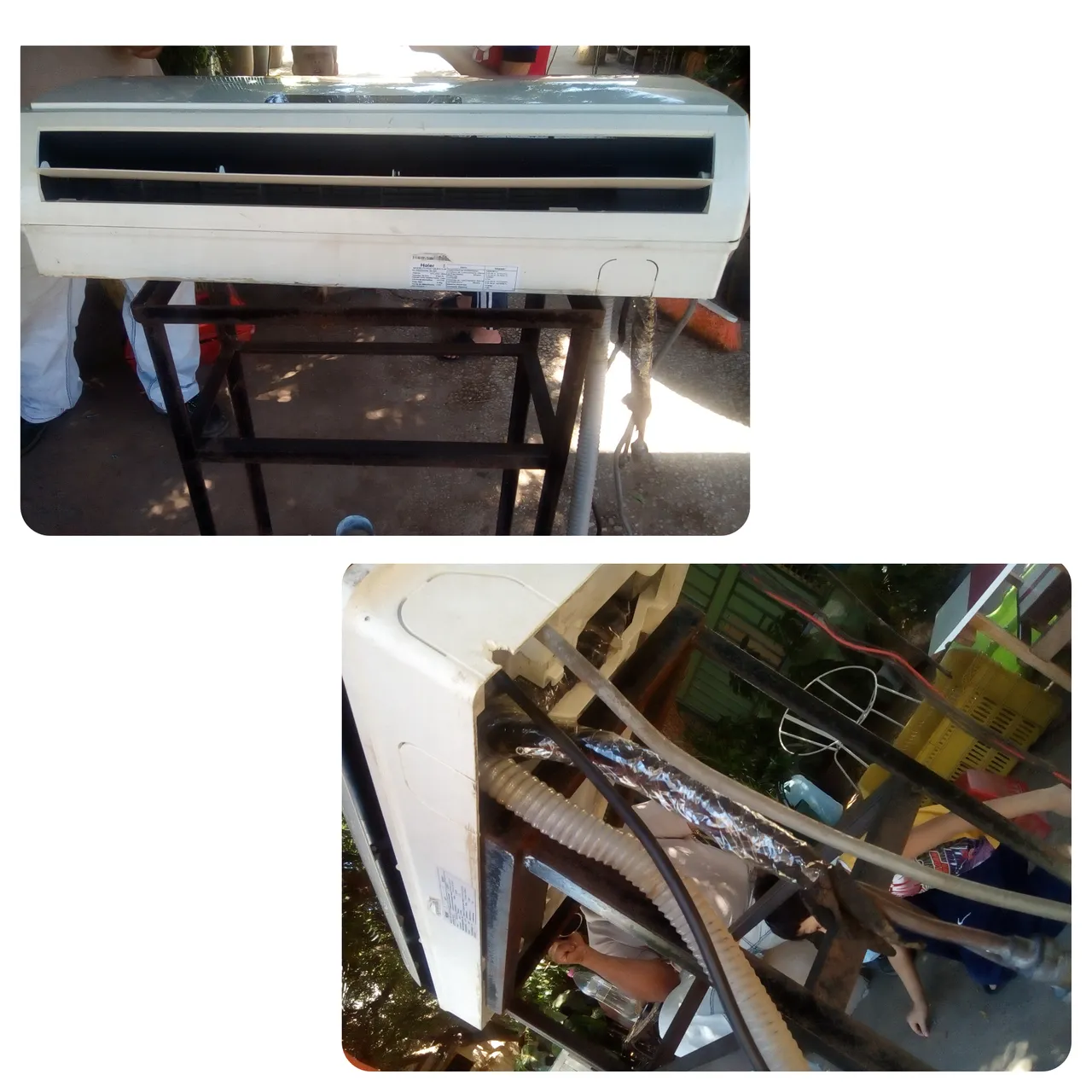

Para poder realizar estos reemplazos debemos desmontar la consola.
In order to make these replacements we must disassemble the console.
Para adaptar la nueva manguera de desagüe, calentamos agua en una olla pequeña, cuando ya el agua está muy caliente introducimos la manguera para que el plástico se ablande y podamos trabajar mejor.
To adapt the new drain hose, we heat water in a small pot, when the water is already very hot we introduce the hose so that the plastic softens and we can work better.

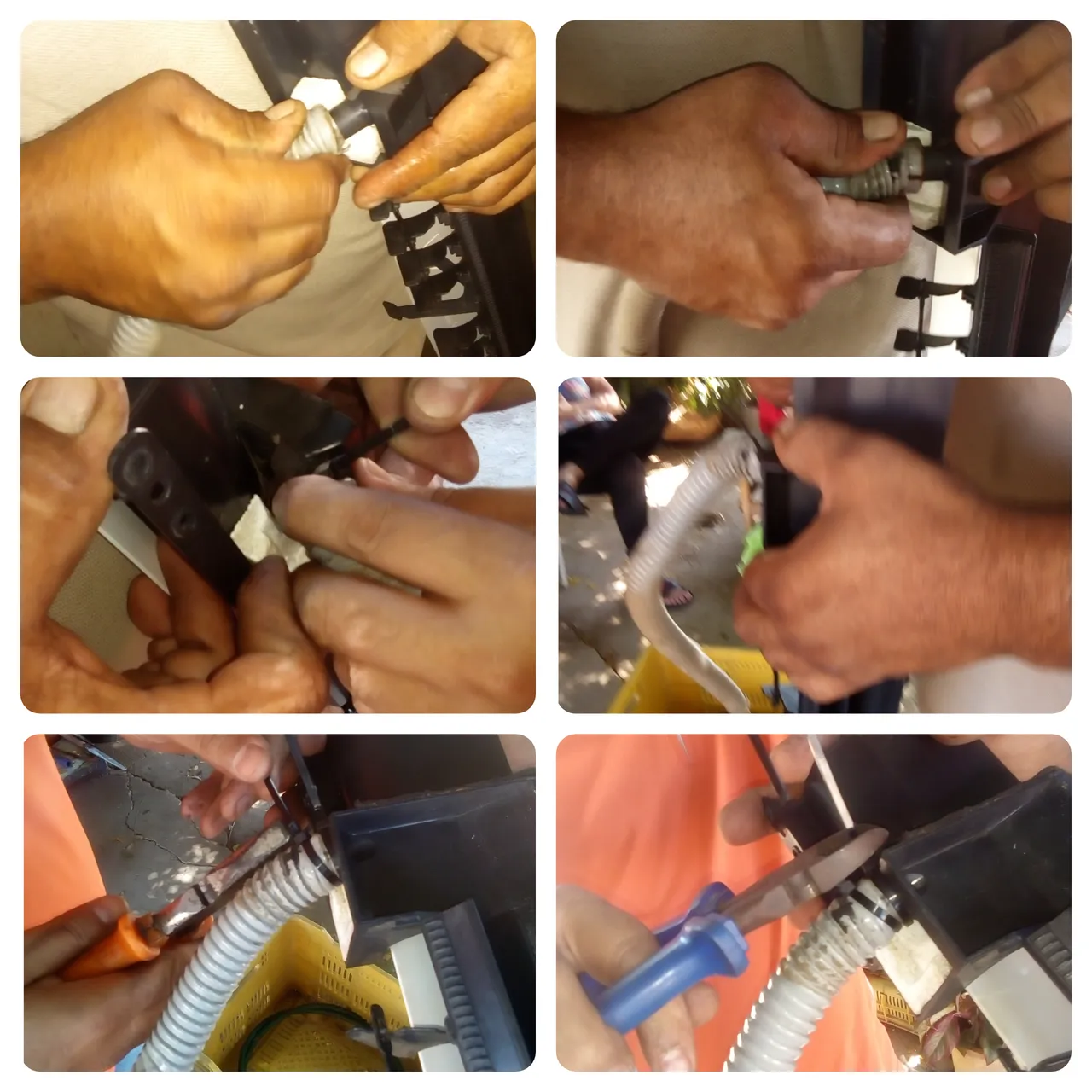

Luego enganchamos la manguera a la consola y la ajustamos mejor con un tirrap y cortamos el sobrante con el alicate y volvemos a poner la pieza en su lugar.
Then we hook the hose to the console and adjust it better with a zip tie and cut the excess with the pliers and put the piece back in place.
Para sustituir el cable de señal pelamos los cables con ayuda de una navaja y un alicate, luego unimos el cable con los cables de los terminales y lo tapamos con teipe negra para poder unirlos a la consola.
To replace the signal cable we strip the cables with the help of a knife and pliers, then we join the cable with the terminal cables and cover it with black tape to be able to join them to the console.

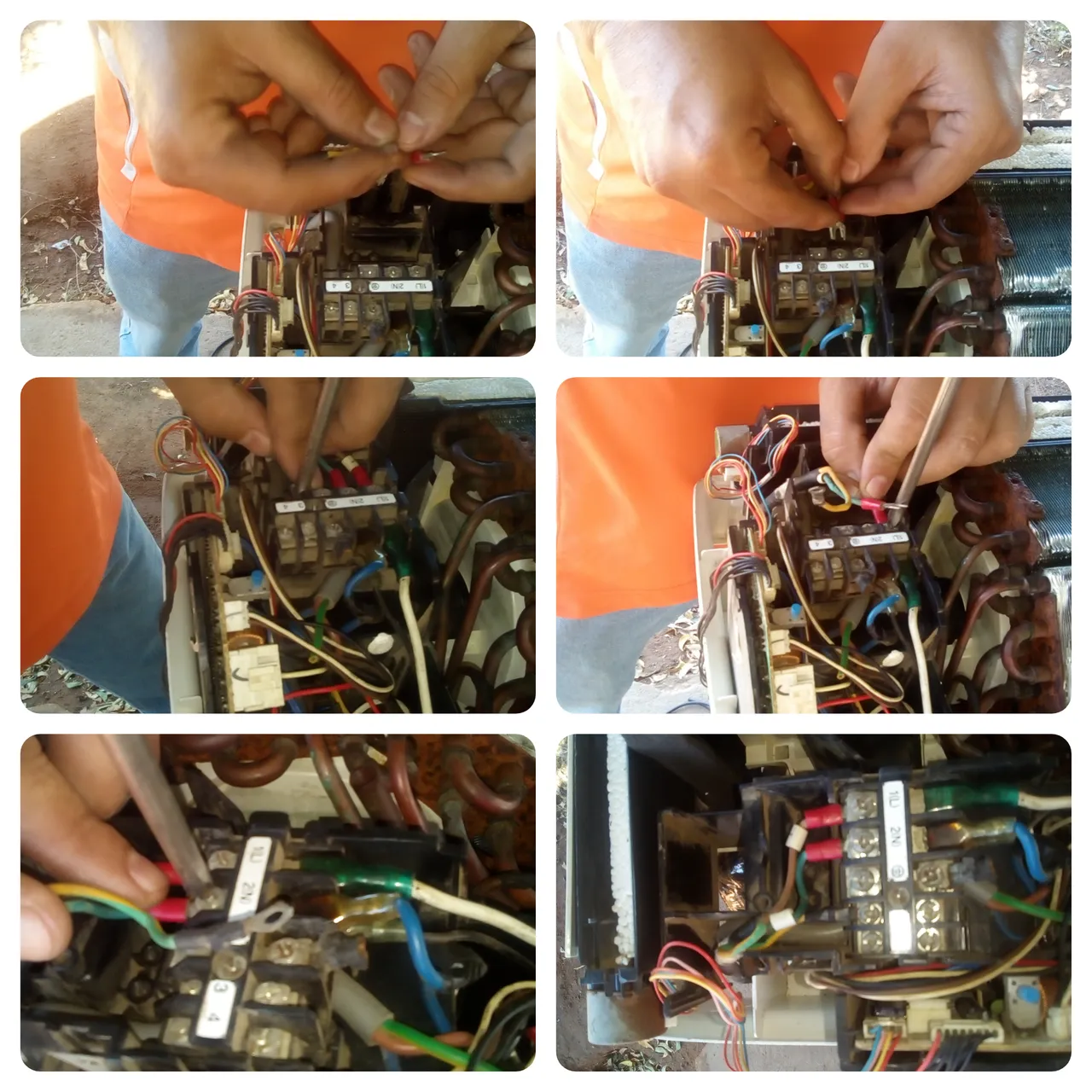

Luego colocamos los terminales en el panel de control y los atornillamos con la ayuda de un destornillador y listo.
Then we put the terminals on the control panel and screw them with the help of a screwdriver and that's it.
Es todo por hoy. Espero que este Tutorial pueda ayudarles en algo.
Is all for today. I hope this Tutorial can help you in something.
