Cordial saludo estimados compañeros de Hive y de la comunidad @home.solutions. En la publicación anterior aquí en la comunidad les mostre el proceso de vaciado de mesones en mi cocina, de todas formas aqui te dejo el post por si gustas pasarte y familiarizarte un poco con este trabajo que vengo haciendo, ya que tiene mucha relación debido a que finalmente instale el lavaplatos en dicho mesón Vaciado en concreto de divisiones horizontales para mesón de mi cocina (ESP-ENG). Todavía faltan pequeños detalles como por ejemplo colocar cerámica y sellar una pequeña abertura al frente del lavaplatos, pero ya esta instalado y funcionando a la perfeccion, asi que adios lavaplatos improvisado.
Cordial greetings dear fellow Hive and @home.solutions community. In the previous publication here in the community I showed you the process of emptying the countertops in my kitchen, anyway here I leave the post in case you want to come and familiarize yourself a little with this work I've been doing, as it has much to do because I finally installed the dishwasher in the countertop Vaciado en concreto de divisiones horizontales para mesón de mi cocina (ESP-ENG). There are still small details to be done, such as placing ceramic tiles and sealing a small opening in front of the dishwasher, but it is already installed and working perfectly, so goodbye improvised dishwasher.

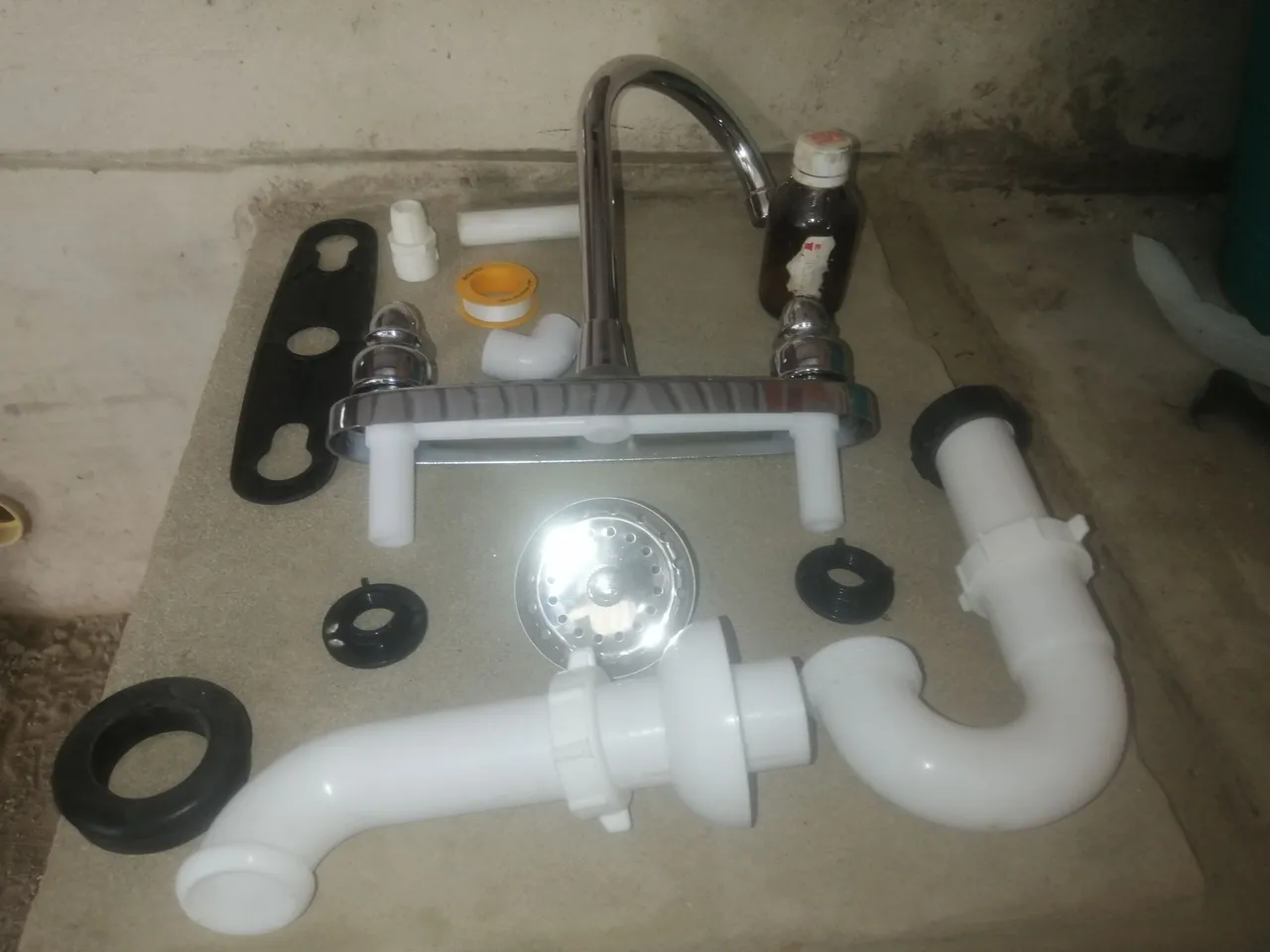

Lo primero fue organizar todos los componentes del lavaplatos, ya que me gusta tener to a la mano a la hora de realizar algo. Aquí podemos ver con claridad cada uno de ellos en la siguiente imagen.
The first thing to do was to organize all the components of the dishwasher, since I like to have everything at hand when doing something. Here we can clearly see each of them in the following image.

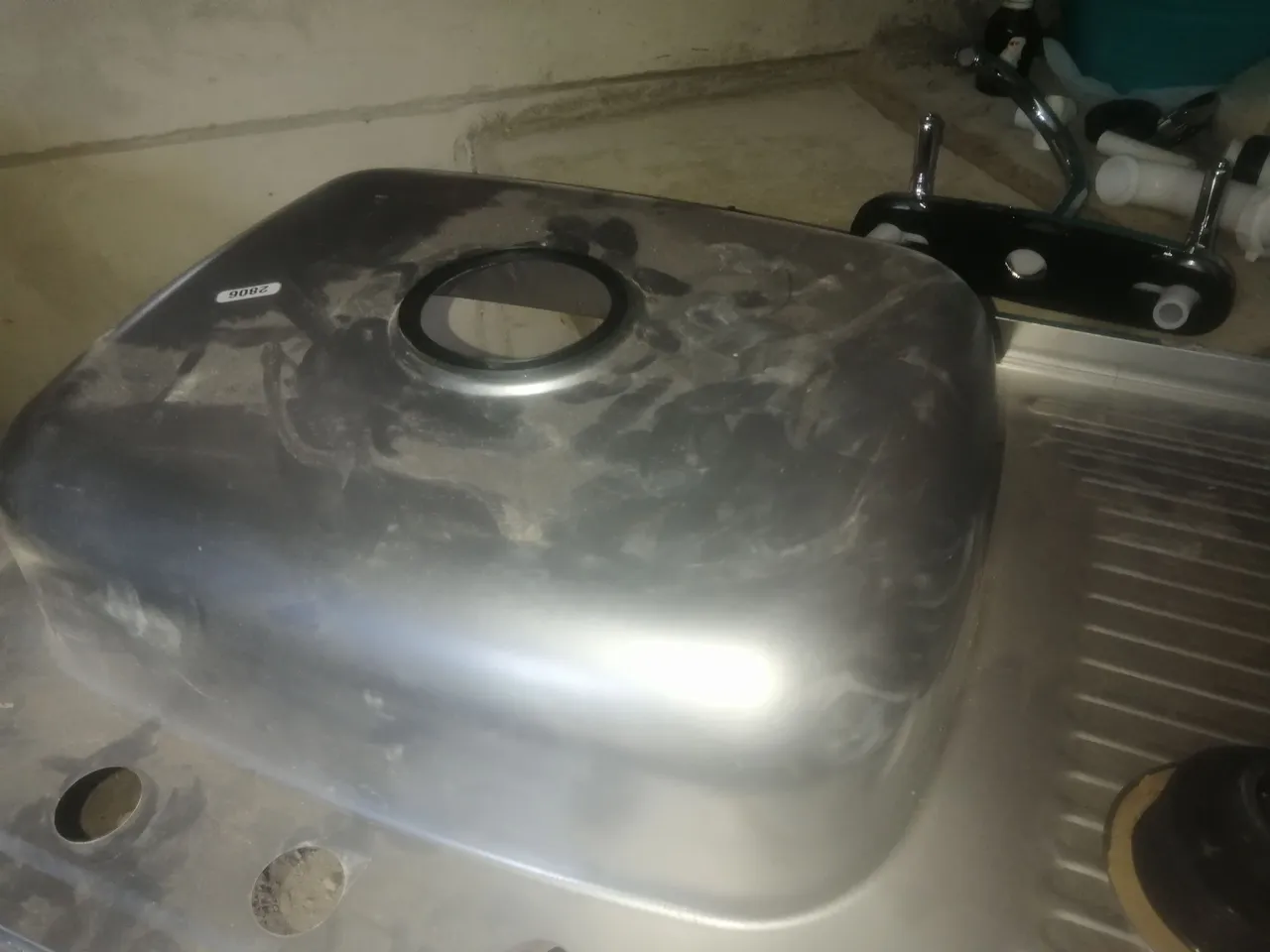

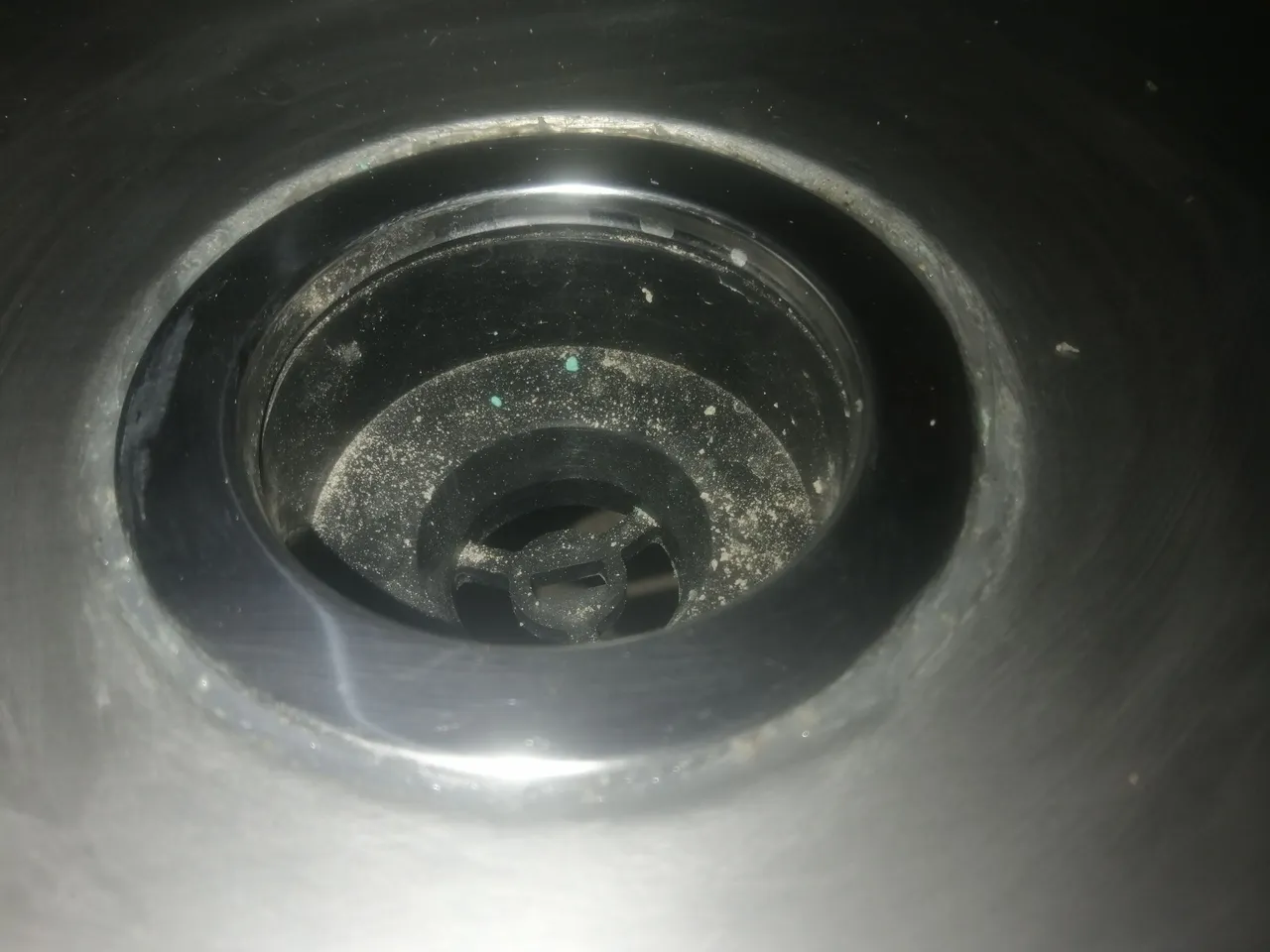

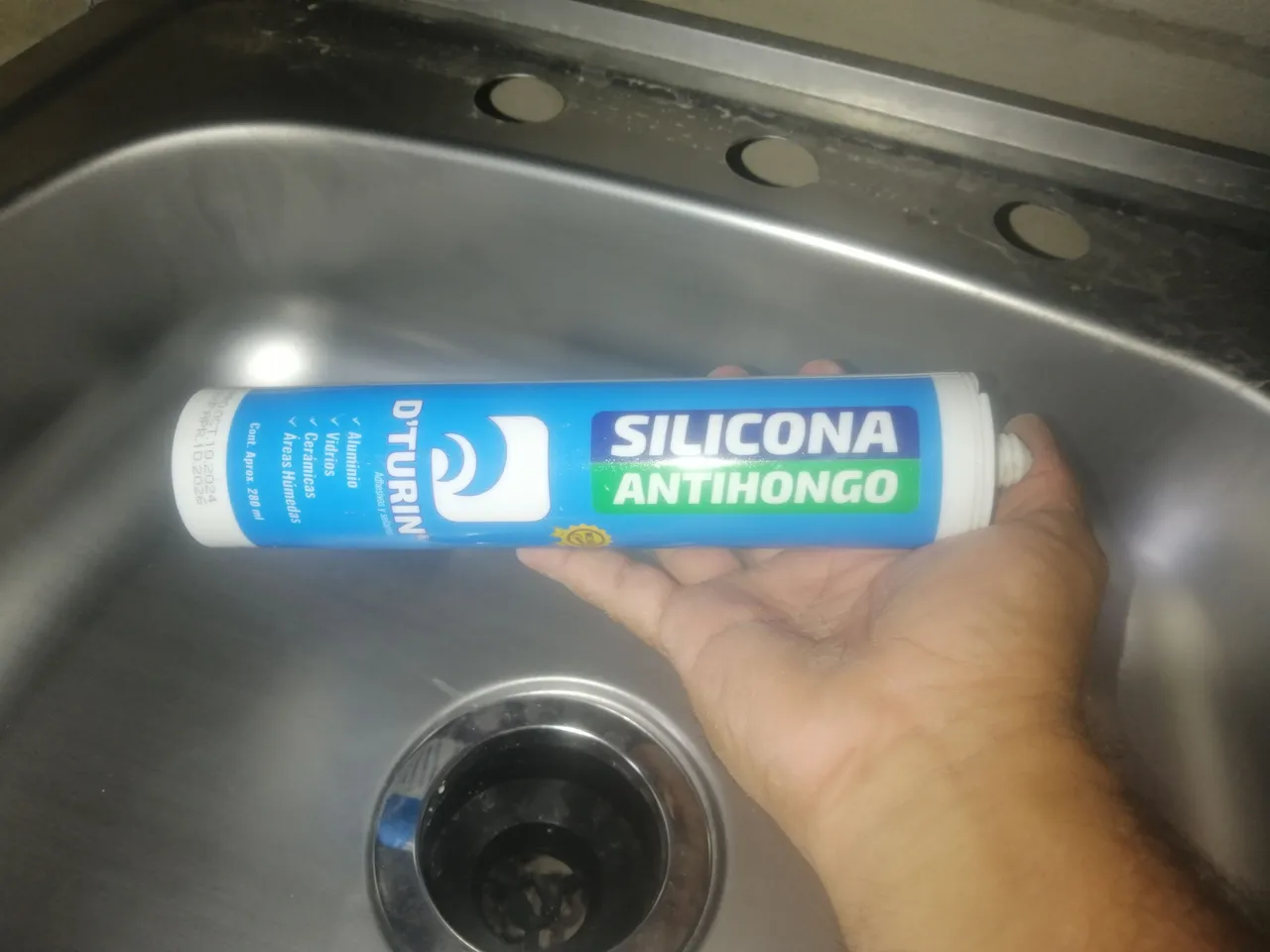

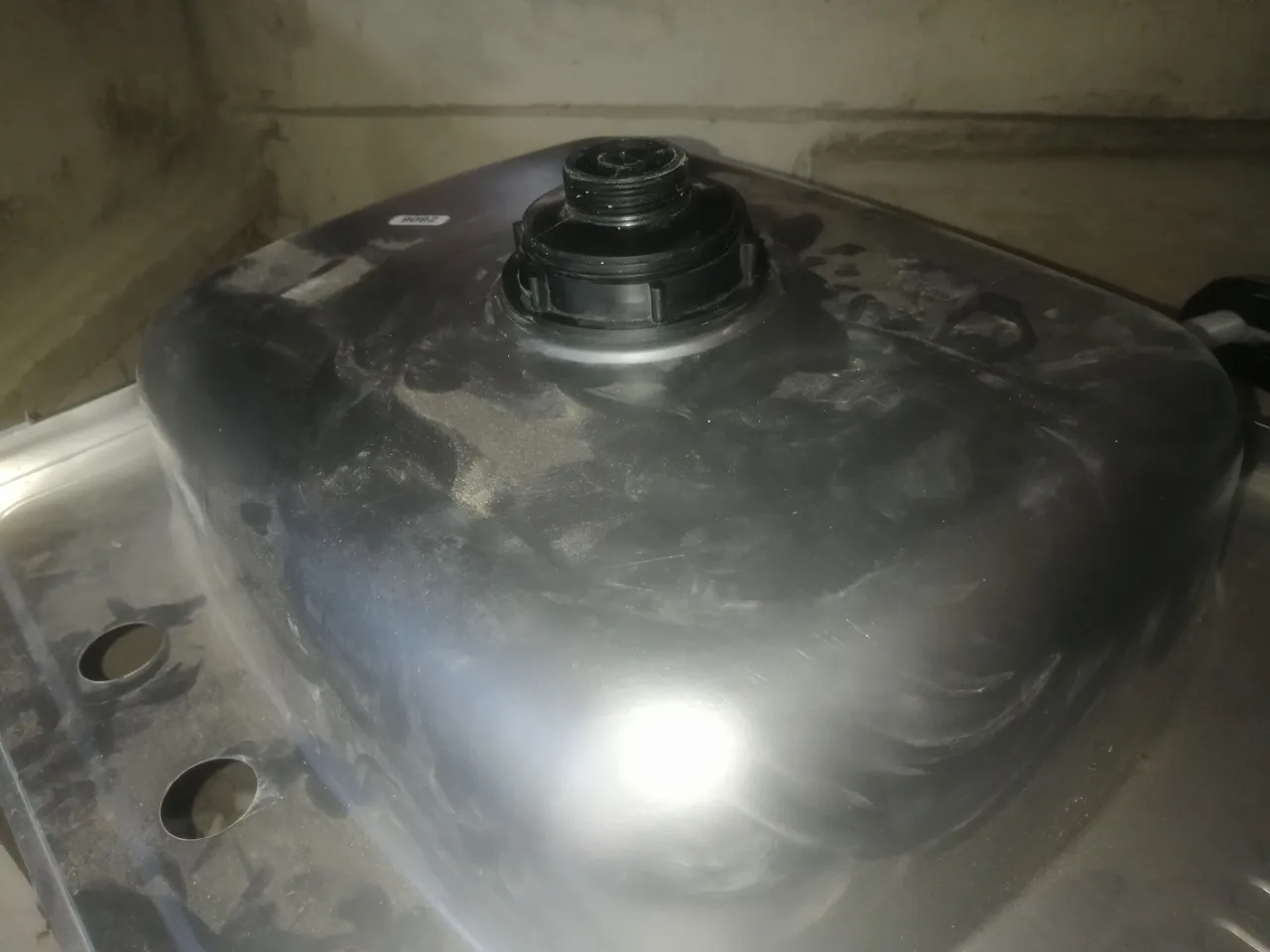

Después de tener todo a la mano comencé por armar los componentes del desagüe del lavaplatos, para lo cual utilice un silicon especial para este tipo de materiales y asi evitamos futuros problemas.
After having everything at hand, I started by assembling the components of the dishwasher drain, for which I used a special silicone for this type of material to avoid future problems.

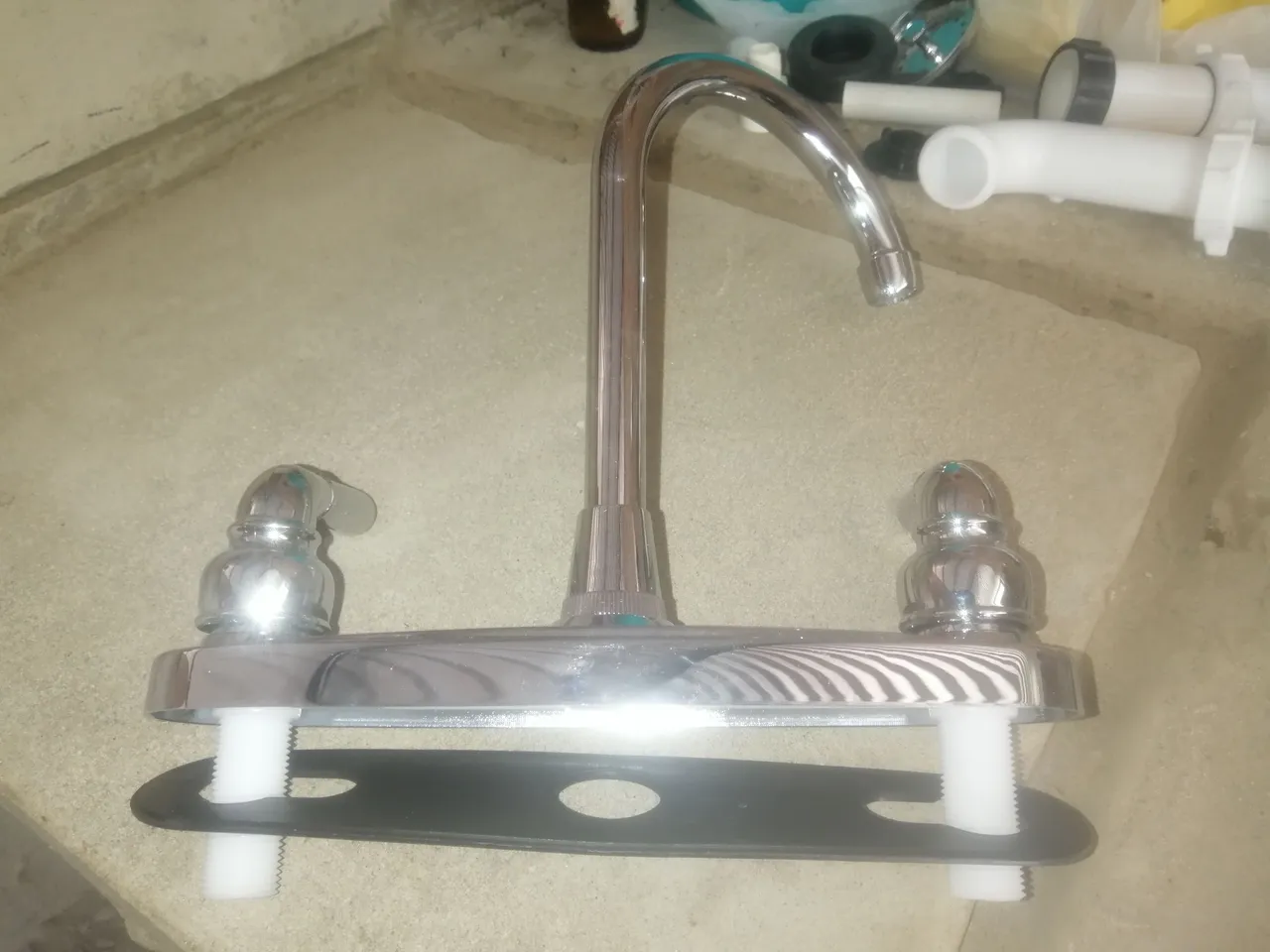

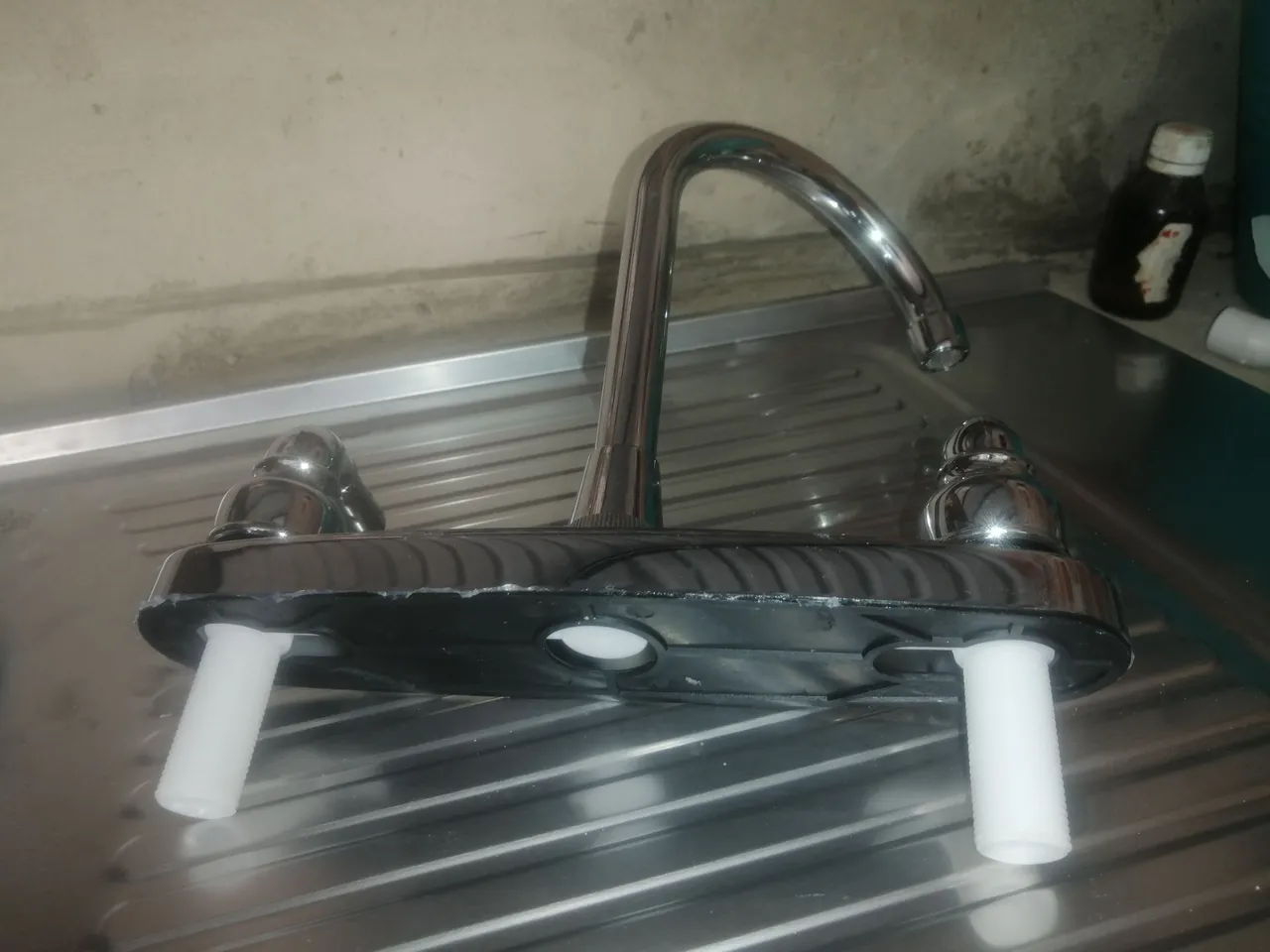

Luego procedí a armar el grifo también colocando su porción de silicon ya que comúnmente el grifo mantiene humedad y el trae un empaque o sello plástico que fácilmente con el tiempo puede sufrir desgaste asi que es mejor asegurar.
Then I proceeded to assemble the faucet also placing its portion of silicone because commonly the faucet keeps moisture and it has a plastic gasket or seal that can easily suffer wear over time so it is better to insure.

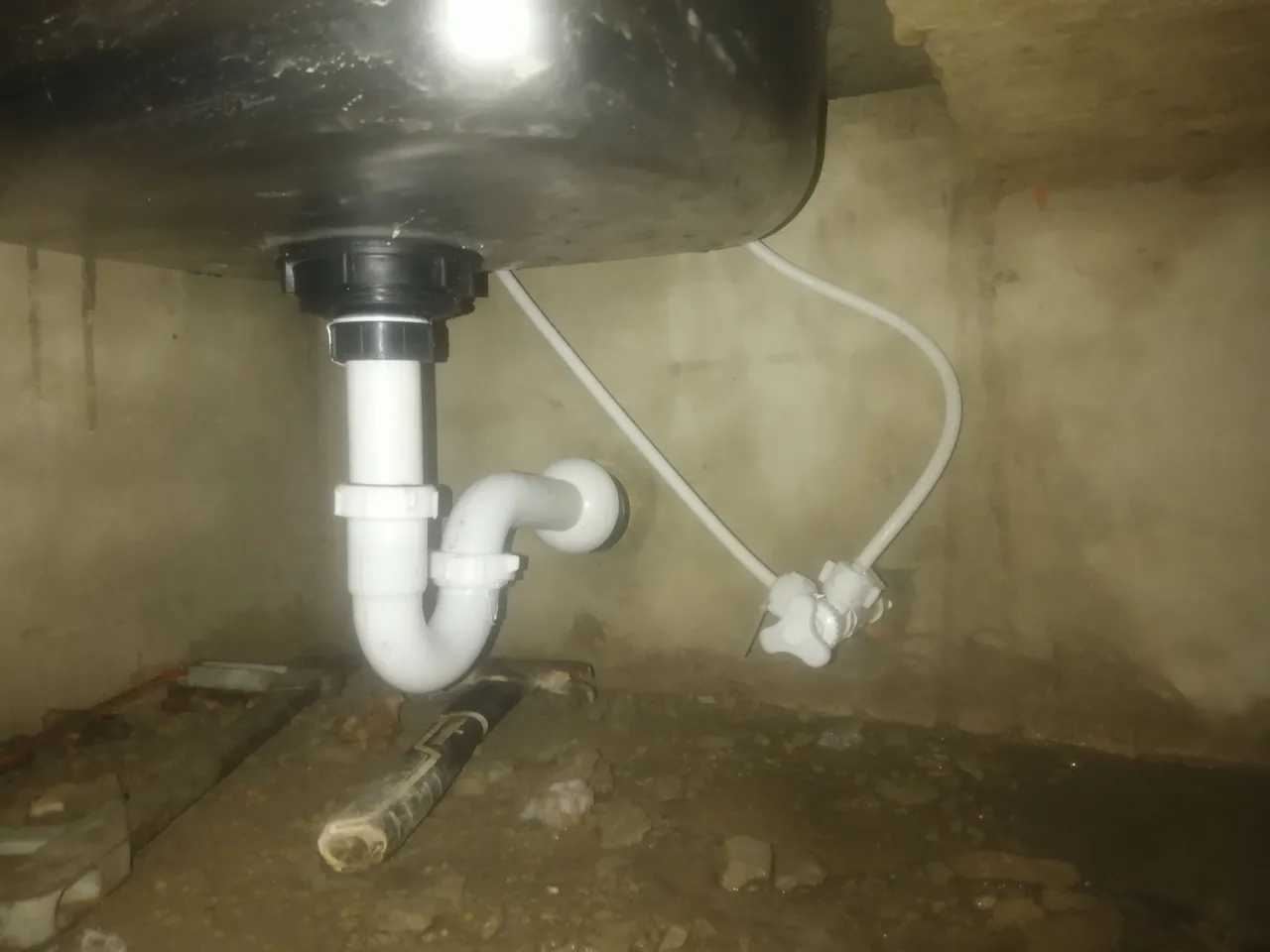

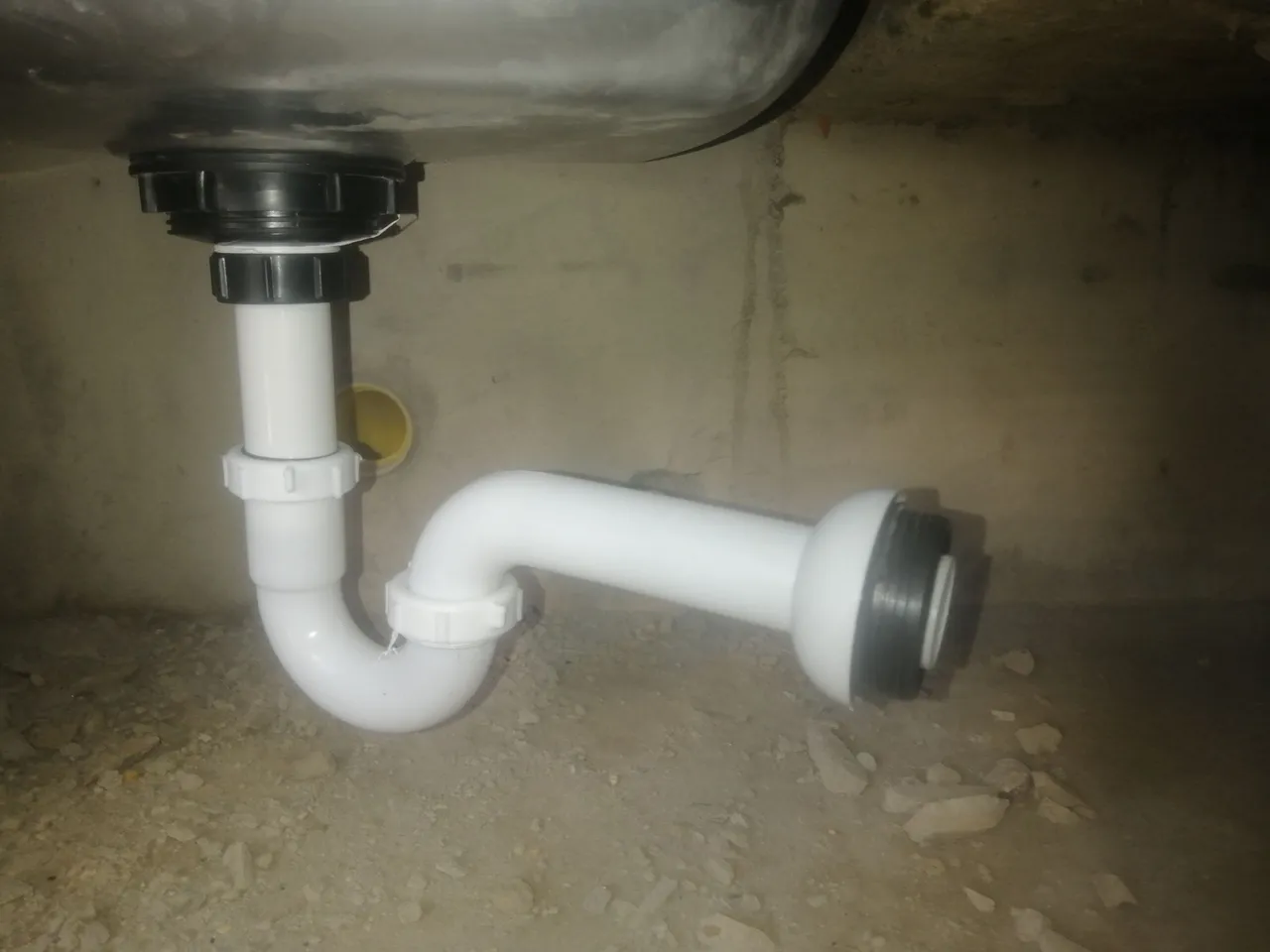

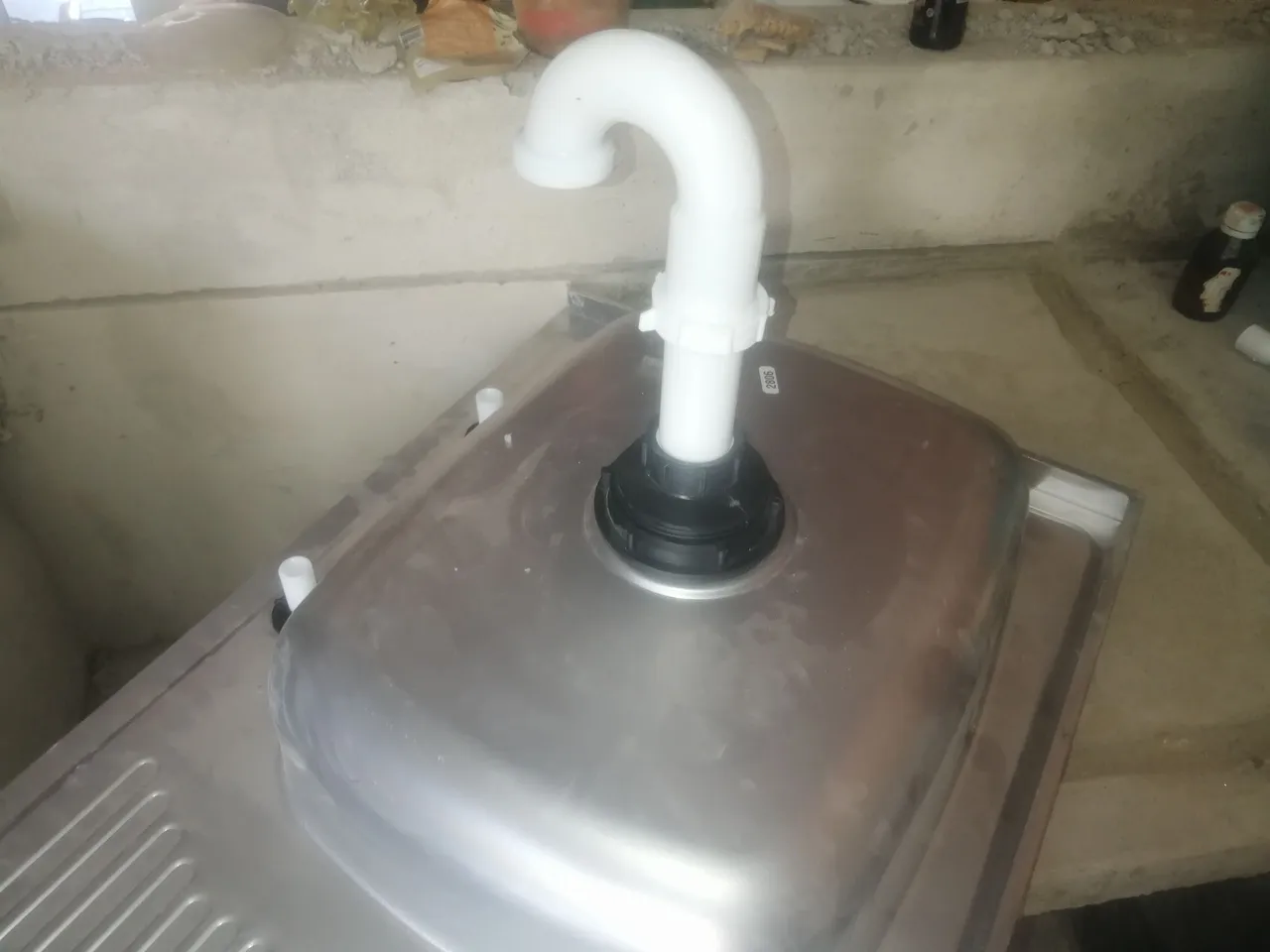

Una vez terminado con esto comencé a colocar teflón a todas las partes que funcionan o encajan mediante sistema de rosca, el teflón es muy importante a la hora de realizar trabajos que tengan que ver con agua, ya que esta por cualquier mínima abertura se filtra. Después haber asegurado todo con teflon procedí a armar la parte del sifón de forma cuidadosa y precisa.
Once finished with this I began to place Teflon to all the parts that work or fit by means of thread system, the Teflon is very important at the time of making works that have to do with water, since this by any minimum opening leaks. After securing everything with Teflon, I proceeded to assemble the siphon part carefully and precisely.
Ya por ultimo me centre en la instalación de la recepción de aguas blancas, para ellos se unen dos mangueras delgadas que vienen con los componentes del lavaplatos a las dos entradas del grifo, colocar las dos no es obligatorio pero yo quería que funcionaran las dos manijas del grifo.
Finally I focused on the installation of the white water reception, for them two thin hoses that come with the dishwasher components are attached to the two faucet inlets, placing both is not mandatory but I wanted the two faucet handles to work.

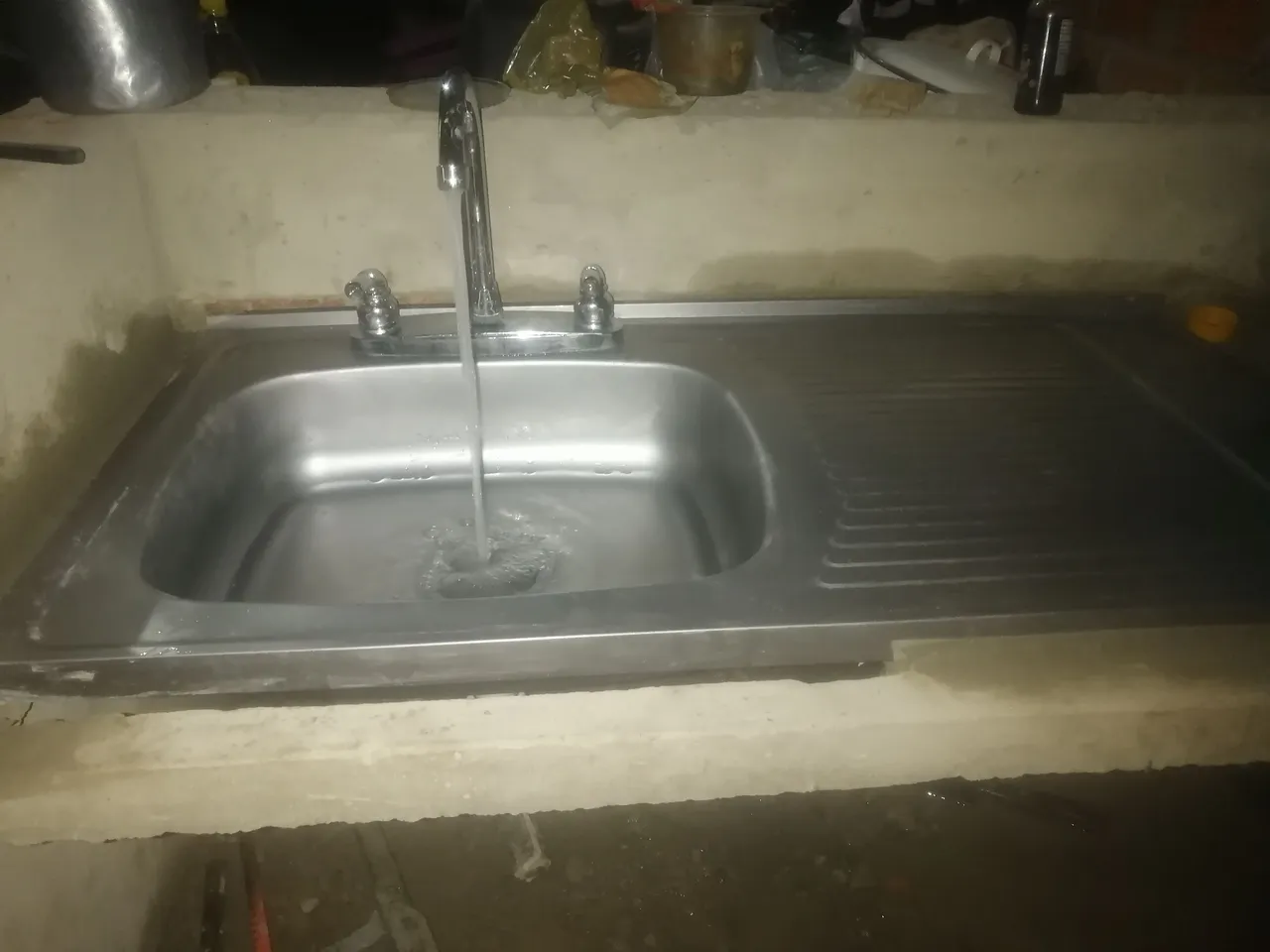

Realice algunas pruebas hidrostáticas para verificar que no hay filtración de agua por alguno de los componentes, vi que todo estaba marchando bien y ahora si señores, aqui esta mi lavaplatos ya instalado y funcionando correctamente.
I performed some hydrostatic tests to verify that there is no water leakage from any of the components, I saw that everything was going well and now yes gentlemen, here is my dishwasher already installed and working properly.
Como se puede apreciar en la imagen y como lo mencione al principio en la parte de enfrente del lavaplatos hay una pequeña abertura entre el y el mesón pero no perjudica el funcionamiento, solo me quedo una pequeña abertura que simplemente toca taparla con una poco de concreto y listo. Así que queridos amigos los invito a mi casa a comer y que laven los platos, ojo solo para que vean que el lavaplatos si funciona...
As you can see in the picture and as I mentioned at the beginning in front of the dishwasher there is a small opening between it and the counter but does not impair the operation, I only have a small opening that simply touches cover it with a little concrete and ready. So dear friends, I invite you to my house to eat and wash the dishes, just to show you that the dishwasher does work...
Thanks for your attention, see you in a future post.
