Hello Hivers, Developers and all others,
in this post I want to show how to upload images to BackBlaze in order to use it for automatic Hive reports.
Content:
- The Problem
- Register at BackBlaze
- Check Access
- Upload A File
- Get Authorization_Token
- Get File-Upload Server URL
- File Upload
- Conclusion
Table of contents generated with markdown-toc
The Problem
If you write a blogpost in Hive and want to insert an image, you usually use a frontend like PeakD, Ecency or something else, that does some background work for you.
But if you i.e. want to generate automatic reports via the HIVE API (like I explained here) and use some images in there, then you get to the point, where you have to type:
And there we have the problem: We need a place to put our images and then to get the URL of it.
The HIVE-API only stores text, but no files nor images.
Register at BackBlaze
Peakd uses the file hoster "BackBlaze", so I also want to use it.
The first thing I did was to register there:
https://www.backblaze.com/b2/sign-up.html

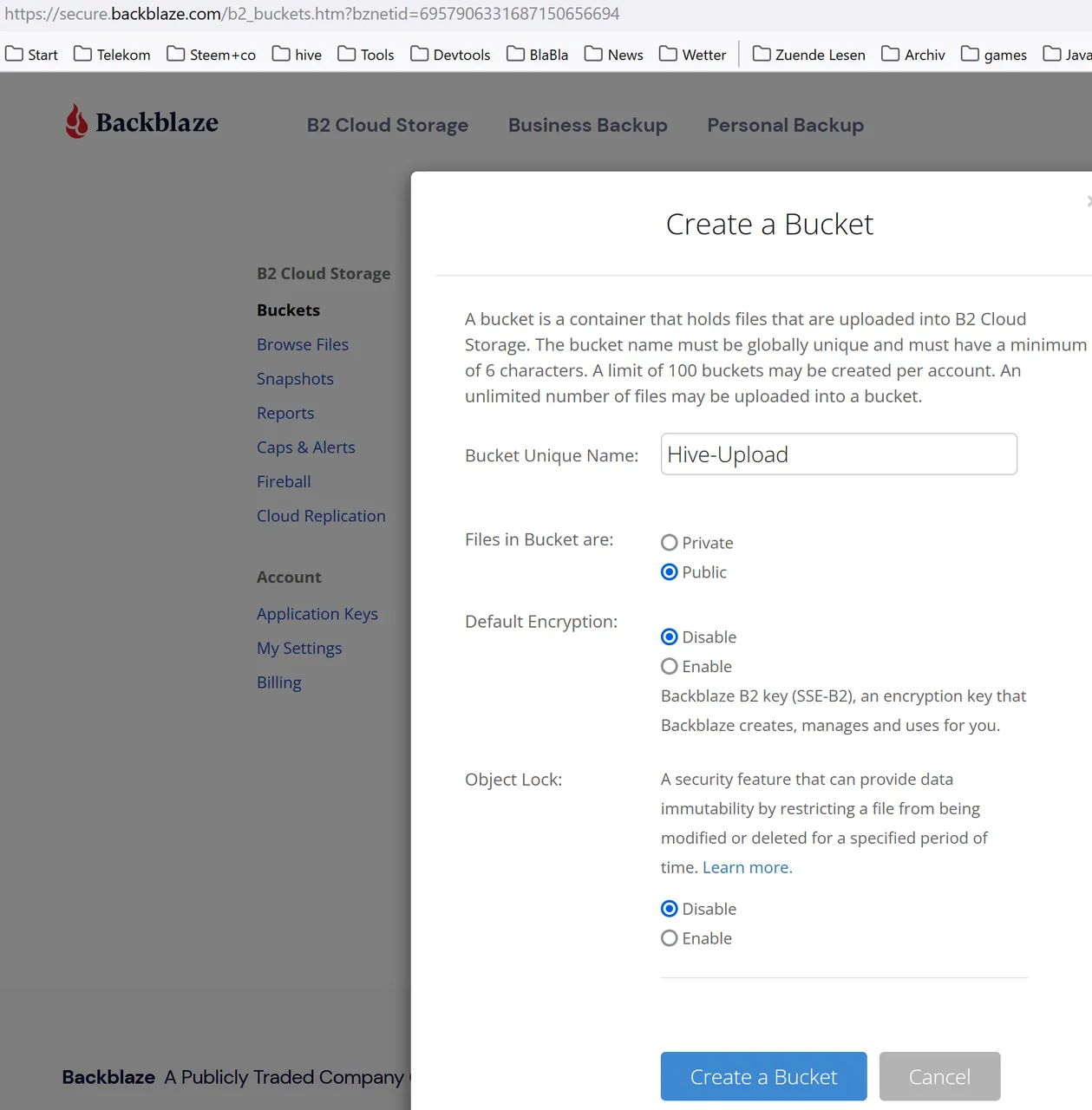

After that I created a bucket to get a place where to upload the images:

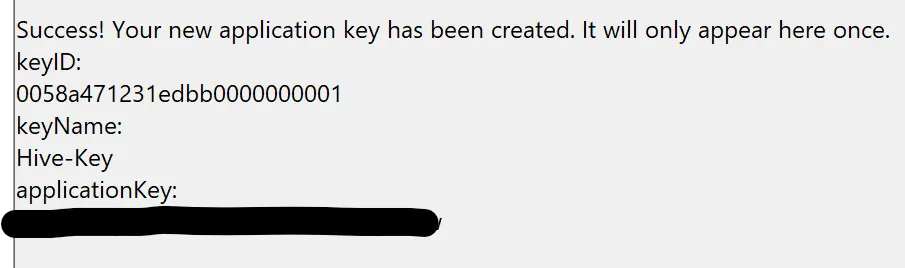

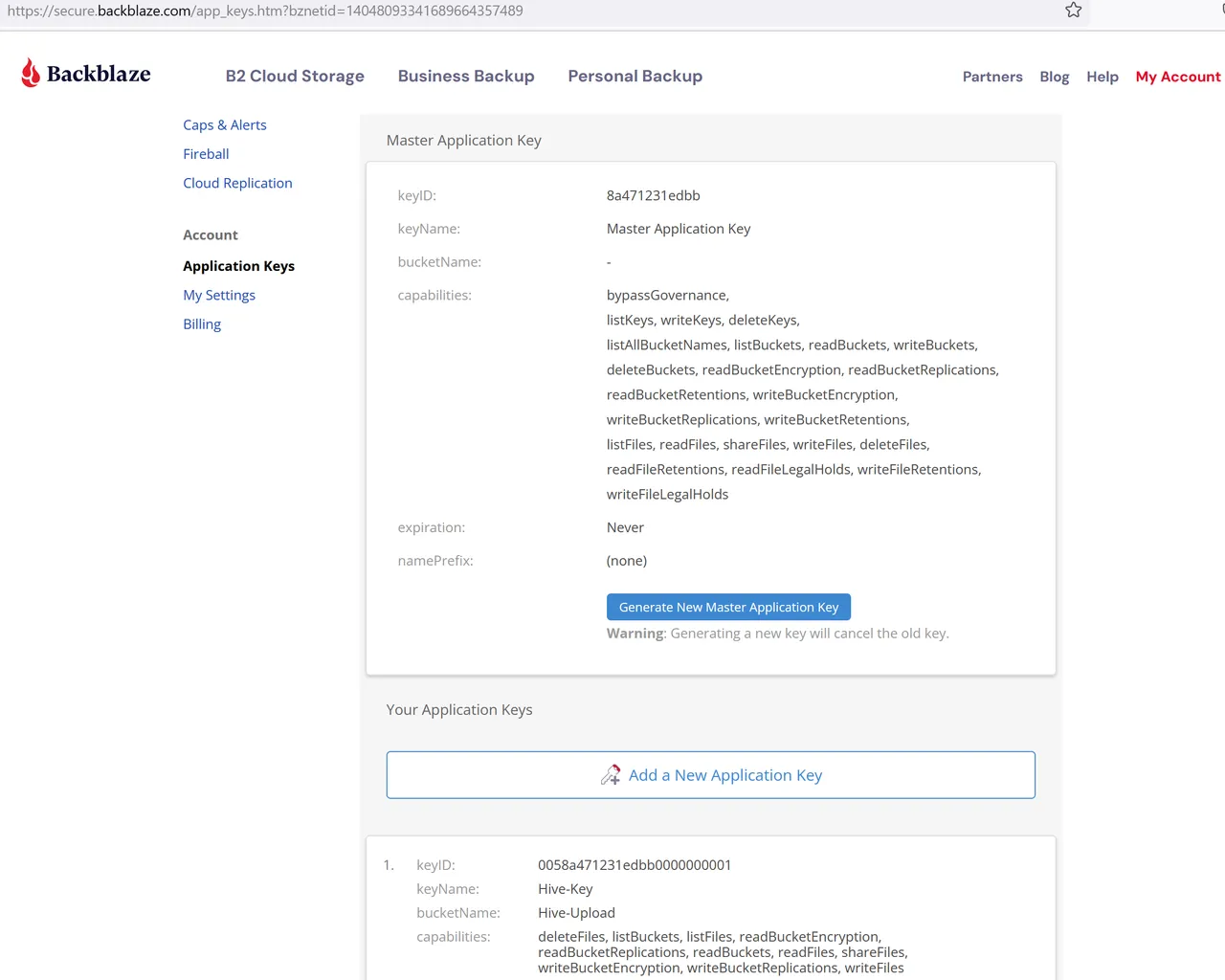

With this, I get application keys:
It is important to note on a seperate space:
- applikation Master Key
- applikation Key-ID
- application private key
Check Access
GUI
Now we can access the Backblace Server via GUI (Webclient):

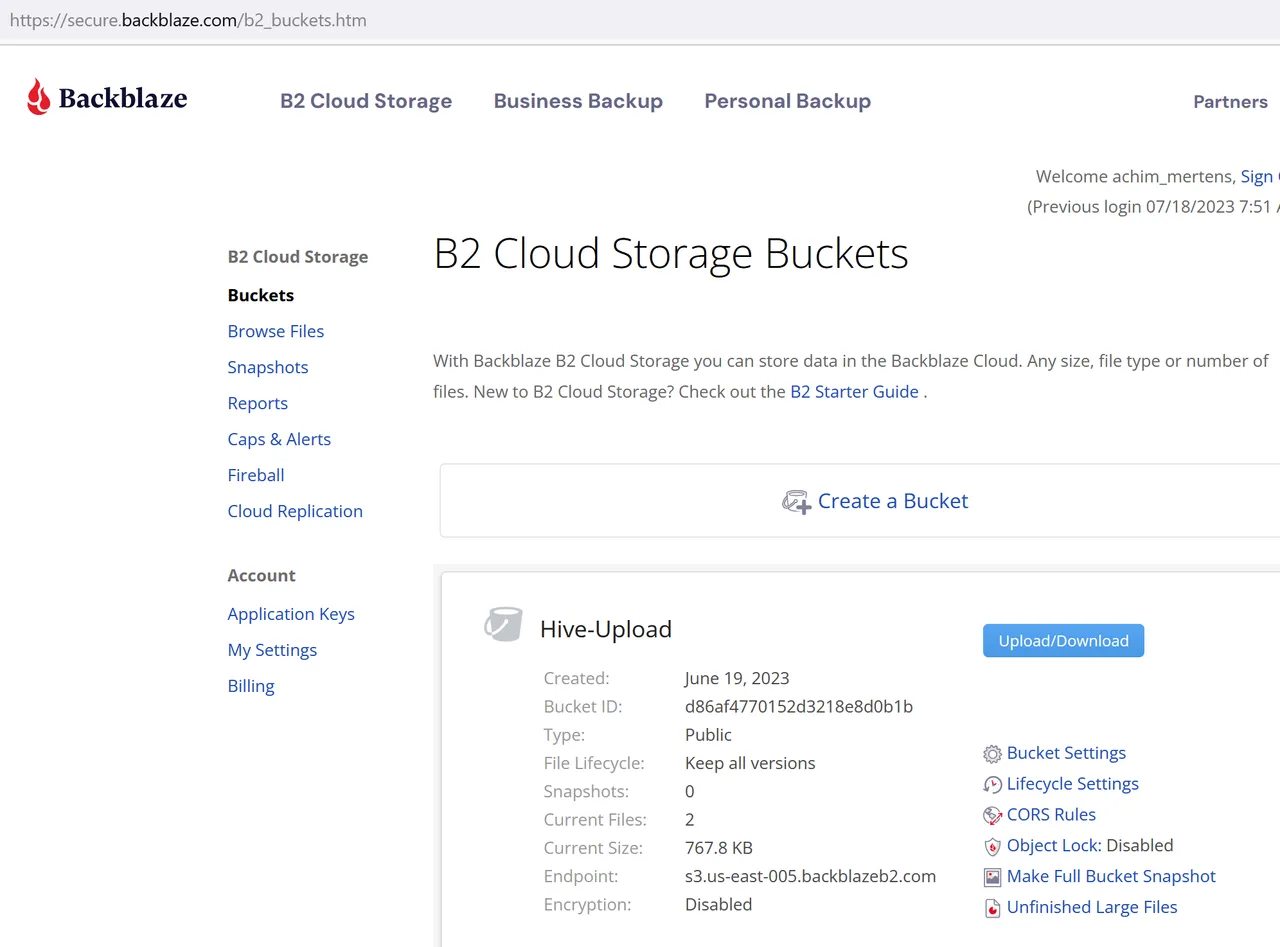

When I open my personal bucket list, I can see, what I have created:
https://secure.backblaze.com/b2_buckets.htm

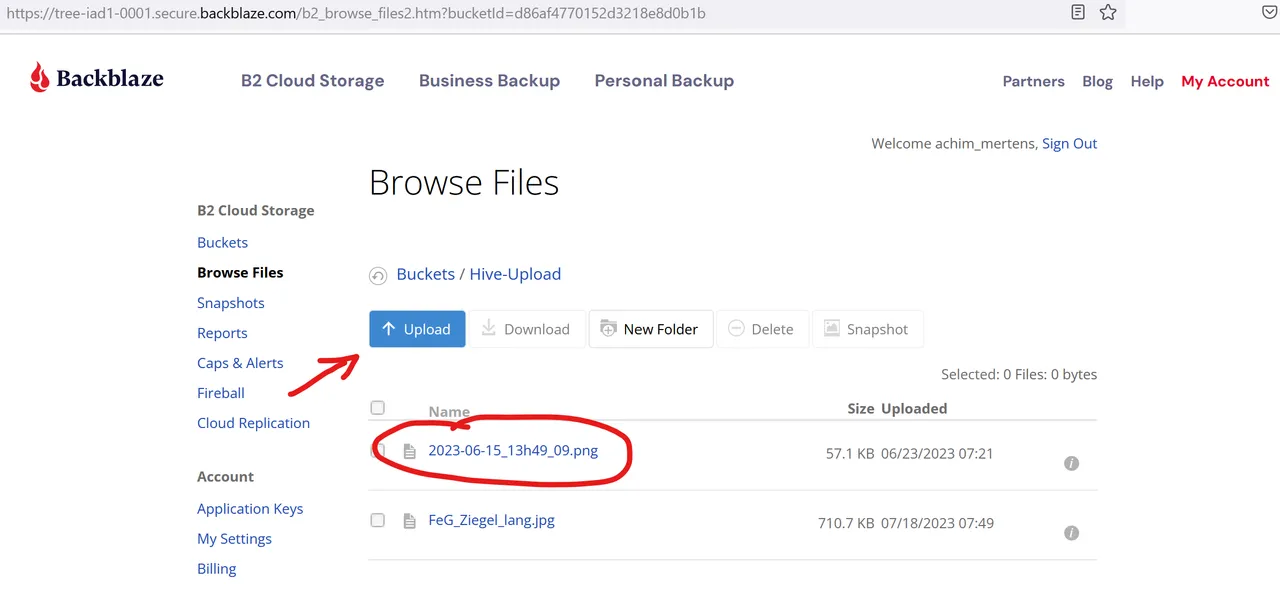

After clicking on "Upload/Download", I can see my "Hive-Upload" folder. For a test I have uploaded the file 2023-06-15_13h49_09.png:
API
To see my file via API / curl commands we need to do the following:
Get Authorization_Token
There is a list of API commands we can execute: https://www.backblaze.com/apidocs
But the most commands only work with an authorization_Token that is valid for 24 h. So the first thing to do is to get this token.
For this, we need the bucket/application KeyID and the corresponding private key, which we noted in the step before.
We put it together like this:
KEY_ID:APPLIKATION_ID
Example:
0058a471231edbb0000000001:K005**************P48w
Then we bring it to a base64 encoder like https://www.base64encode.org/
And get a result like this:
MDA1OGE0NzEyMzFlZGJ**************1R0NacGMxVlphb0dhZEVIRzllbVN2aWdQNDh3
Then we put the word "Basic" in front of it and the result is our Authentication_Token (not to exchange with the Authorization_token):
"BasicMDA1OGE0NzEyMzFlZG*****************VN2aWdQNDh3"
With this Authentication_Token we ask for authorization:

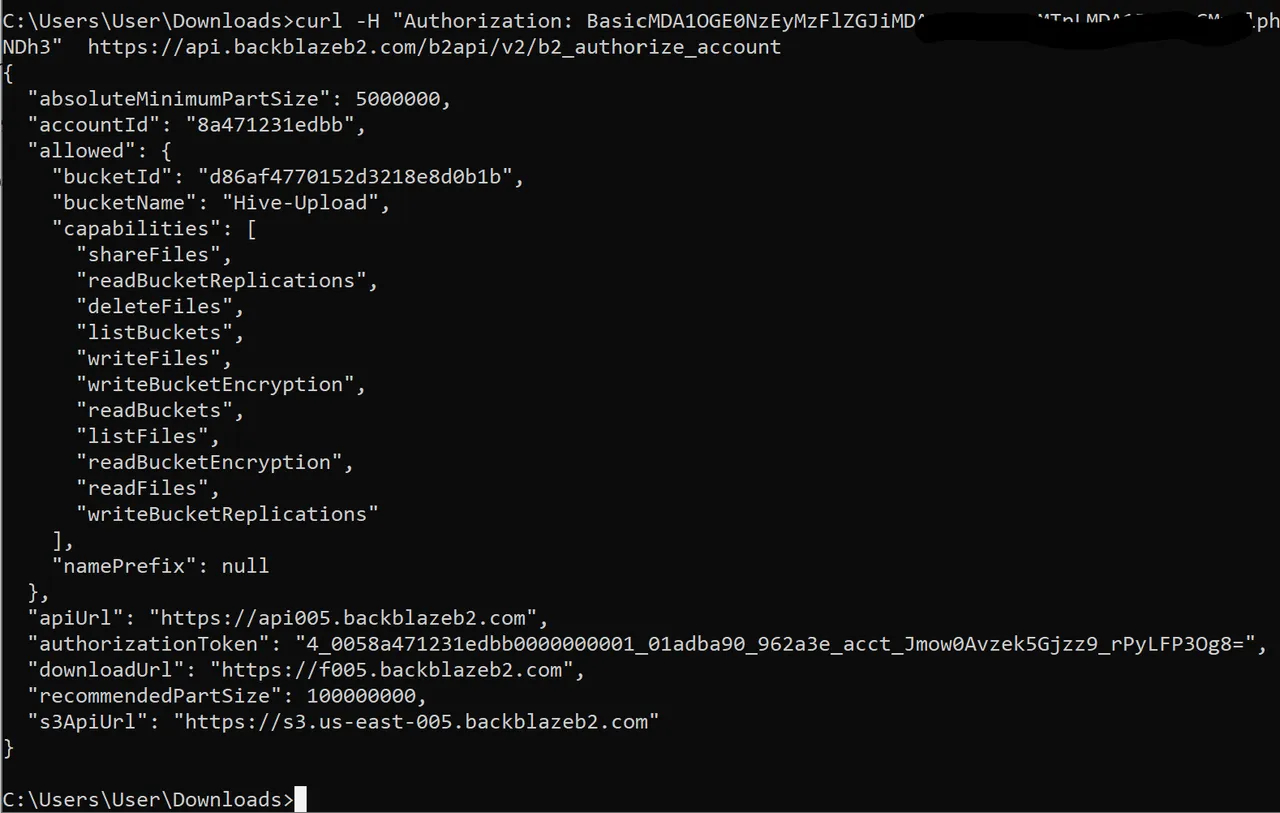

curl -H "Authorization: BasicMDA1OGE0NzEyMzFlZG**************VN2aWdQNDh3" https://api.backblazeb2.com/b2api/v2/b2_authorize_account
In this example, the resulting authorizationToken is:
"4_0058a471231edbb0000000001_01adba90_962a3e_acct_Jmow0Avzek5Gjzz9_rPyLFP3Og8="
Get File List
Now we want to see, if our uploaded file exists on the BackBlaze-Server.
Therefore we use the API-command b2-list-file-names
(Details see: https://www.backblaze.com/apidocs/b2-list-file-names)
For this command we need the API-URL. This we got with the command from above for the authorizationToken and it is: "https://api005.backblazeb2.com"
At the end of this URL we concatenate the API command "b2api/v2/b2_list_file_names".
The first (and only) header parameter is our authorizationToken.
The data, that we send (as this API request is a POST request) is our bucketId, and if we want, the number of maximal results.
So the complete command looks like this:

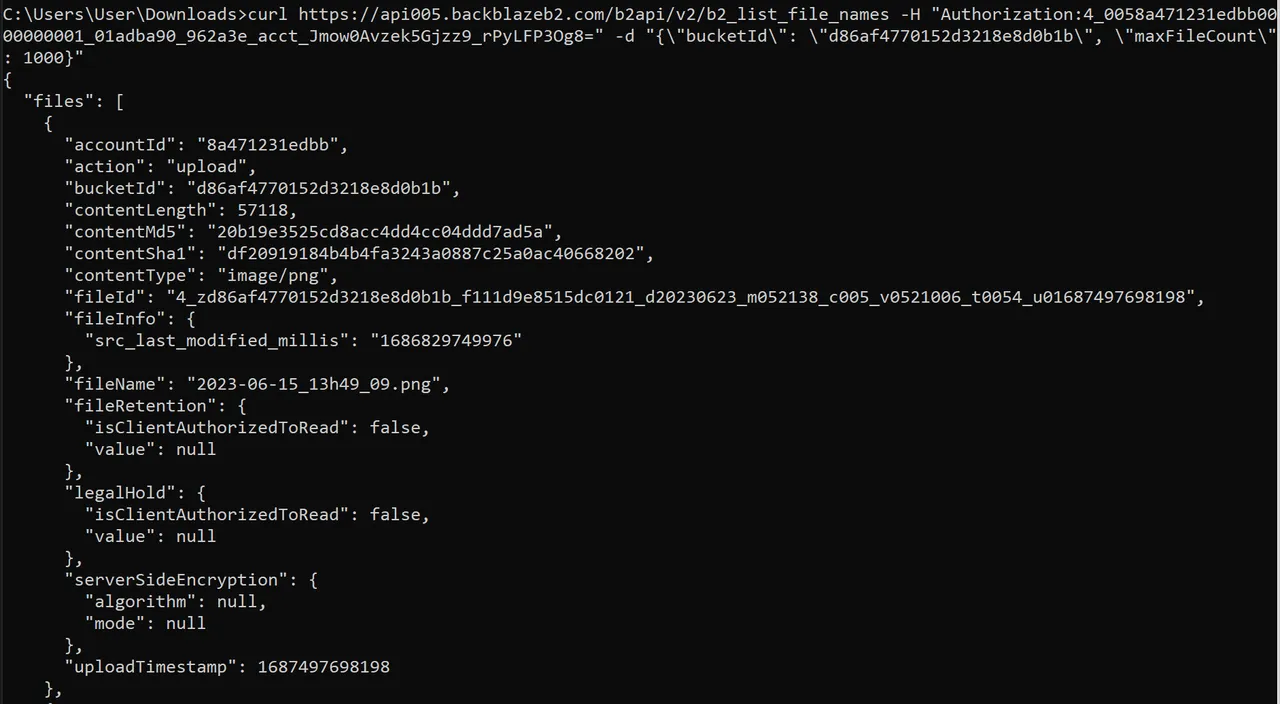

curl https://api005.backblazeb2.com/b2api/v2/b2_list_file_names -H "Authorization:4_0058a471231edbb0000000001_01adba90_962a3e_acct_Jmow0Avzek5Gjzz9_rPyLFP3Og8=" -d "{\"bucketId\": \"d86af4770152d3218e8d0b1b\", \"maxFileCount\": 1000}"
In the result, we can see our file:
"fileName": "2023-06-15_13h49_09.png"
So, it works and we can start doing what we are here for:
Upload A File
Here I have listed the steps we need to do, to upload a file and to get the URL of it:
Get Authorization_Token
See above.
Get File-Upload Server URL
The files are distributed among different servers on BackBlaze. Therefore we need a location, where we have to put the file. We get it with the "b2api/v3/b2_get_upload_url" command.
Now we fill some variables, to make it more readable and handy:
set ACCOUNT_AUTH_TOKEN=4_0058a471231edbb0000000001_01adb976_94a2ab_acct_3dwqC00fVGFwiJ-S1uoc2usx2uQ=
set BUCKET_ID=d86af4770152d3218e8d0b1b
set API_URL=https://api005.backblazeb2.com
The command is:

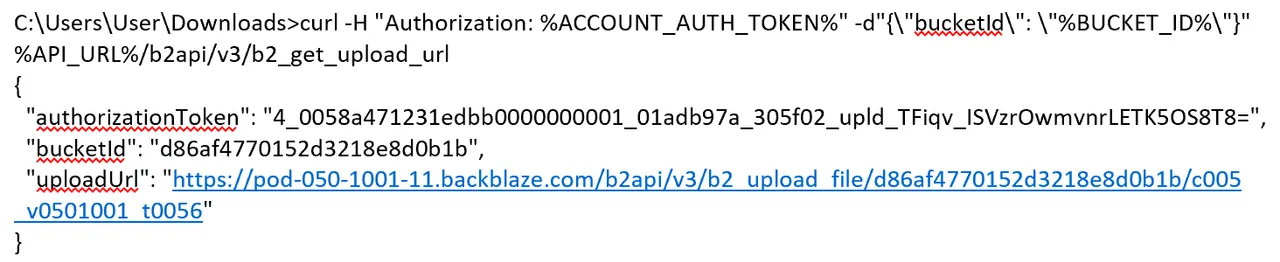

curl -H "Authorization: %ACCOUNT_AUTH_TOKEN%" -d"{"bucketId": "%BUCKET_ID%"}" %API_URL%/b2api/v3/b2_get_upload_url
The result is:
File Upload
Now we fill in the following parameters:
set MIME_TYPE=b2/x-auto
set SHA1_OF_FILE=84ba101ecaf319a7fb82dd624d2bbe7f1fc5a539
set UPLOAD_URL=https://pod-050-1001-11.backblaze.com/b2api/v3/b2_upload_file/d86af4770152d3218e8d0b1b/c005_v0501001_t0056
set UPLOAD_AUTHORIZATION_TOKEN=4_0058a471231edbb0000000001_01adb97a_305f02_upld_TFiqv_ISVzrOwmvnrLETK5OS8T8=
set FILE_TO_UPLOAD=FeG_Ziegel_lang.jpg
The UPLOAD-URL is taken from the result above.
The FILE_TO_UPLOAD is our local image, that we want to upload.

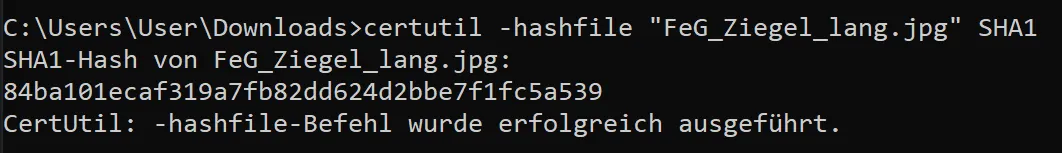

To get the SHA1_OF_FILE, we execute the following command in the local folder of our image:
certutil -hashfile "FeG_Ziegel_lang.jpg" SHA1

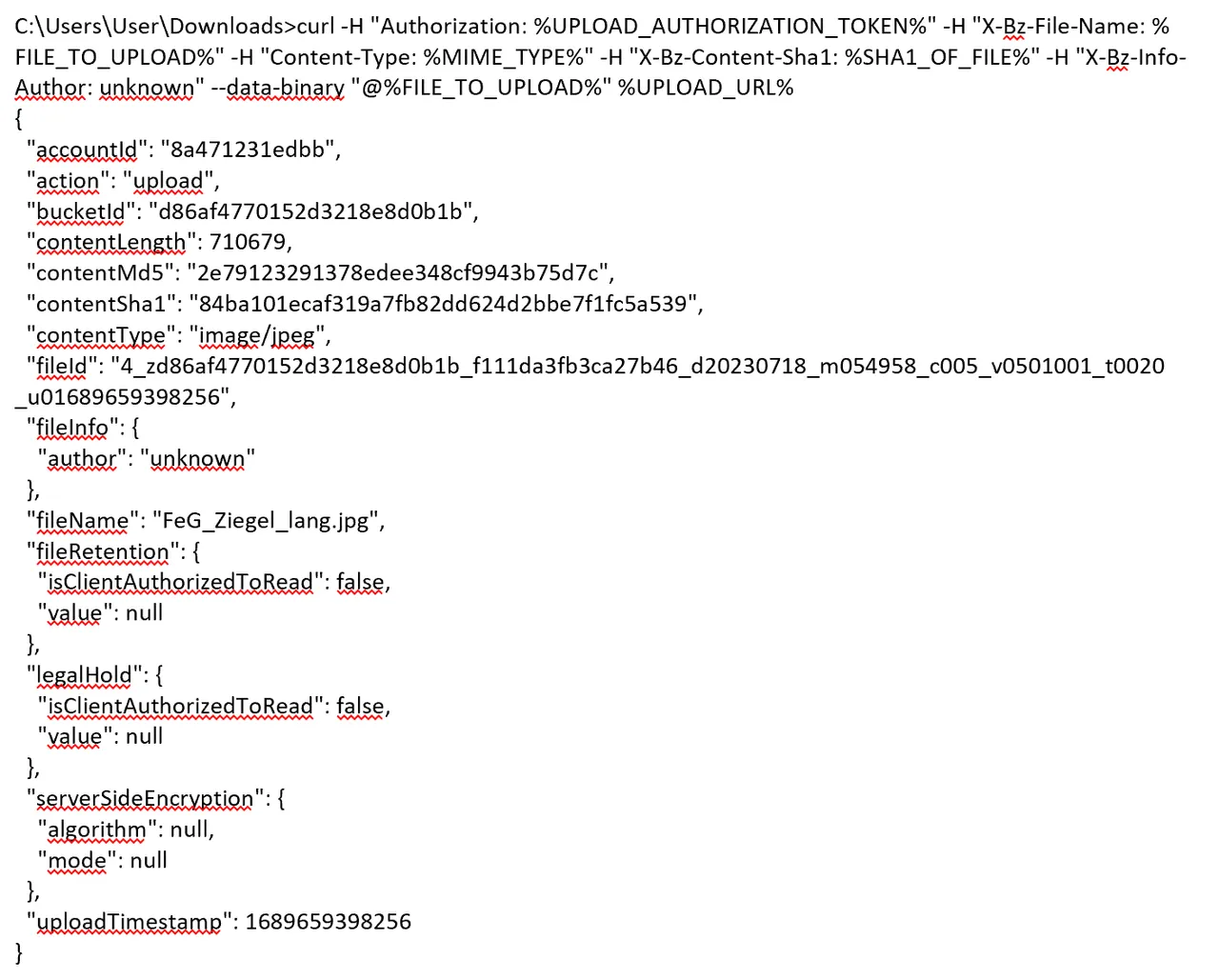

The command to upload the file is:
curl -H "Authorization: %UPLOAD_AUTHORIZATION_TOKEN%" -H "X-Bz-File-Name: %FILE_TO_UPLOAD%" -H "Content-Type: %MIME_TYPE%" -H "X-Bz-Content-Sha1: %SHA1_OF_FILE%" -H "X-Bz-Info-Author: unknown" --data-binary "@%FILE_TO_UPLOAD%" %UPLOAD_URL%
So, this was successful and we can derive the File-URL by concatenating the fileserver-URL "https://f005.backblazeb2.com" and the resulting fileId "4_zd86af4770152d3218e8d0b1b_f111da3fb3ca27b46_d20230718_m054958_c005_v0501001_t0020_u01689659398256"
So here we have the final resulting file URL, that we can use for HIVE uploads:
Yes, and if you want to see my uploaded picture, here it is (it was just an example, that I found in my download folder ;-)):
Conclusion
Now we have a tool, that we can use to generate automatic reports to the hive API.
Regards, Achim
