Although it is just a minor milestone, it took quite a bit of time and refactoring to get it right, because I don't want hive-engine to be the only layer-2 that aiohivebot supports up to the sidechain level. In fact, the project so far went from 28 hours of total work spent on the project to 41, just to get things working the way that I have trust in the fact that I'm not going to have to do major refactoring if I'm going to add other side chains to the mix (even if my knowledge about other L2s is almost zero).
The aiohivebot code ( available on github and pypi ) now supports both setting event handlers on hive-engine blockchain events, and querying the hive-engine public-API nodes with JSON-RPC requests.
hive-engine support off by default
Because eventhough aiohivebot balances API load between nodes. we still don't want everybodies bot ot layer-2 backend using aiohivebot to add to the load of the hive-engine public API nodes, hive-engine support is off by default.
The refactored design allows you to turn on layer-2 blockchain monitoring for all required L2s, what at this moment in time is just Hive-Engine.
from aiohivebot import BaseBot
class MyBot(BaseBot):
"""Example of an aiohivebot python bot without real utility"""
def __init__(self):
super().__init__(enable_layer2=["engine"])
async def engine_l2_node_status(
self,
node_uri,
error_percentage,
latency,
ok_rate,
error_rate,
block_rate):
print(
"STATUS:",node_uri,
"error percentage =", int(100*error_percentage)/100,
"latency= ", int(100*latency)/100,
"ok=", int(100*ok_rate)/100,
"req/min, errors=", int(100*error_rate)/100,
"req/min, blocks=", int(100*block_rate)/100,
"blocks/min" )
Notice the enable_layer2 line? That line tells aiohivebot to, next to the HIVE public API nodes also start a client collection for the hive-engine public API nodes.
In this code example we define one callback method, engine_l2_node_status. This callback method is equivalent to the node_status method for HIVE public API nodes. It gets called roughly every 15 minutes for each of the konow HIVE-engine API nodes and reports some basic node health stats.
In normal operations you won't need these stats and auihivebot will take care of not using flaky or high latency nodes under the hood.

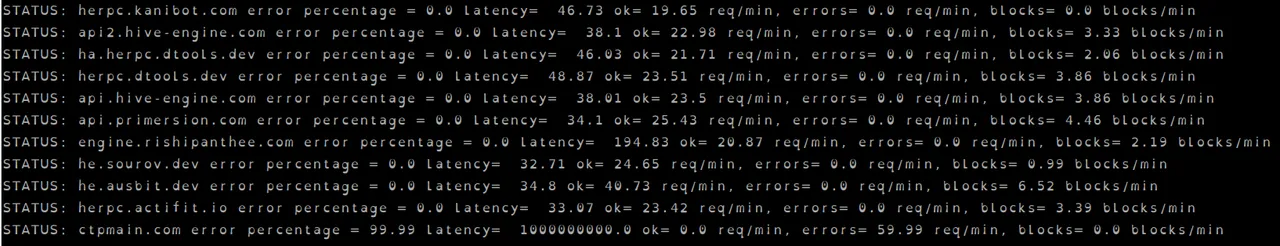

But lets for fun look at the output of running this code for 20 minutes
We see all but one HIVE-engine API nodes is working flawlesly. Only ctpmain.com seems to be down. Completely down. The engine.rishipanthee.com node , at 195 msec seemed to have a somewhat higher request latency than the other nodes that were all between 33 msec and 49 msec. Looking at the blocks per minute we see that aiohivebot does its job of balancing the load of block queries between the nodes. Not perfectly, but good enough.
Hive-engine events without the side-chain
Depending on your needs it might be possible that you don't actually need HIVE-engine API nodes.
Afterall, much of the stuff happens on the main chain using custom_json operations.
Or you might in some cases want both. HIVE-engine nodes for completeness and for querying the tables, and HIVE API node events for the slightly lower latency.
The below code uses just the HIVE public API nodes. It prints whenever someone wants to buy SWAP.BTC on the hive-engine market based on custom_json events.
class MyBot(BaseBot):
"""Example of an aiohivebot python bot without real utility"""
def __init__(self):
super().__init__()
async def engine_market_buy(self, required_auths, required_posting_auths, body):
if body["symbol"] == "SWAP.BTC":
sender = (required_posting_auths + required_auths)[0]
quantity = body["quantity"]
price = body["price"]
print(sender,"wants to buy", quantity, "at a price of", price)
And with the side chain.
The same functionality can be implemented using the HIVE-engine public API nodes.
class MyBot(BaseBot):
"""Example of an aiohivebot python bot without real utility"""
def __init__(self):
super().__init__(enable_layer2=["engine"])
async def engine_l2_market_buy(self, sender, body):
if body["symbol"] == "SWAP.BTC":
quantity = body["quantity"]
price = body["price"]
print(sender,"wants to buy", quantity, "at a price of", price)
Notice the extra _l2 in the method names. We use this to distinguish between processing layer two nfo from custom_json events comming from the main chain, and processing L2 blockchain events.
JSON-RPC queries on hive-engine
Now lets look at what we can do with the actual Hive-engine API. We will create a handler for Hive-engine blocks that doesn't actually handle any of the block data, but instead queries the metrics table of the market contract for the lowest ask and highers bid in the SWAP.BTC market.
class MyBot(BaseBot):
"""Example of an aiohivebot python bot without real utility"""
def __init__(self):
super().__init__(enable_layer2=["engine"])
self.count = 0
self.old_bid = 0.0
self.new_bid = 0.0
self.old_ask = float('inf')
self.new_ask = float('inf')
async def engine_l2_block(self):
self.old_ask = self.new_ask
self.old_bid = self.new_bid
info = await self.l2.engine.contracts.market.metrics.findOne(symbol="SWAP.BTC")
self.new_ask = float(info['lowestAsk'])
self.new_bid = float(info["highestBid"])
See how the query is structured? We invoke the findOne method specifying the symbol that we are interested in. Note that market and metrics are part of the designation of the findOne method, making the API a bit more friendly than if we had to build a complex argument list for findOne.
In the code above we continiously keep track of teh lowest ask and highest bid.
Puting things together
Now lets put things together and make a little useless bot that prints some market action info.
class MyBot(BaseBot):
"""Example of an aiohivebot python bot without real utility"""
def __init__(self):
super().__init__(enable_layer2=["engine"])
self.count = 0
self.old_bid = 0.0
self.new_bid = 0.0
self.old_ask = float('inf')
self.new_ask = float('inf')
async def engine_l2_block(self):
self.old_ask = self.new_ask
self.old_bid = self.new_bid
info = await self.l2.engine.contracts.market.metrics.findOne(symbol="SWAP.BTC")
self.new_ask = float(info['lowestAsk'])
self.new_bid = float(info["highestBid"])
async def engine_market_buy(self,
required_auths,
required_posting_auths,
body,
blockno,
timestamp):
"""Hive Engine custom json action for market buy"""
if body["symbol"] == "SWAP.BTC" and self.old_ask > 0.0:
bid = float(body["price"])
quantity = float(body["quantity"])
relbid1 = int(10000*(self.old_ask - bid) / self.old_ask)/100
relbid2 = int(10000*(self.new_ask - bid) / self.new_ask)/100
if relbid2 >= 0.0:
print(timestamp, "BUY", (required_posting_auths + required_auths)[0],
quantity, "at", bid, relbid2, "(", relbid1, ") % below lowest ask")
else:
print(timestamp, "BUY", (required_posting_auths + required_auths)[0],
quantity, "at", bid, -relbid2, "(", -relbid1, ") % ABOVE lowest ask")
async def engine_market_sell(self,
required_auths,
required_posting_auths,
body,
timestamp):
"""Hive Engine custom json action for market sell"""
if body["symbol"] == "SWAP.BTC" and self.old_bid >0.0:
ask = float(body["price"])
quantity = float(body["quantity"])
relask1 = int(10000*(self.old_bid - ask) / self.old_bid)/100
relask2 = int(10000*(self.new_bid - ask) / self.new_bid)/100
if relask2 >= 0.0:
print(timestamp, "SELL", (required_posting_auths + required_auths)[0],
quantity, "at", ask, relask2,"(", relask1, ") % above highest bid")
else:
print(timestamp, "SELL", (required_posting_auths + required_auths)[0],
quantity, "at", ask, -relask2,"(", -relask1, ") % BELOW highest bid")
In this bot script we query the HIVE-engine public API nodes at every new block so we can update the latest values for bid and ask. We choose to then follow the HIVE custom_json events as source for new bids and asks being submitted to hive-engine, that we compare to the numvers we have available.

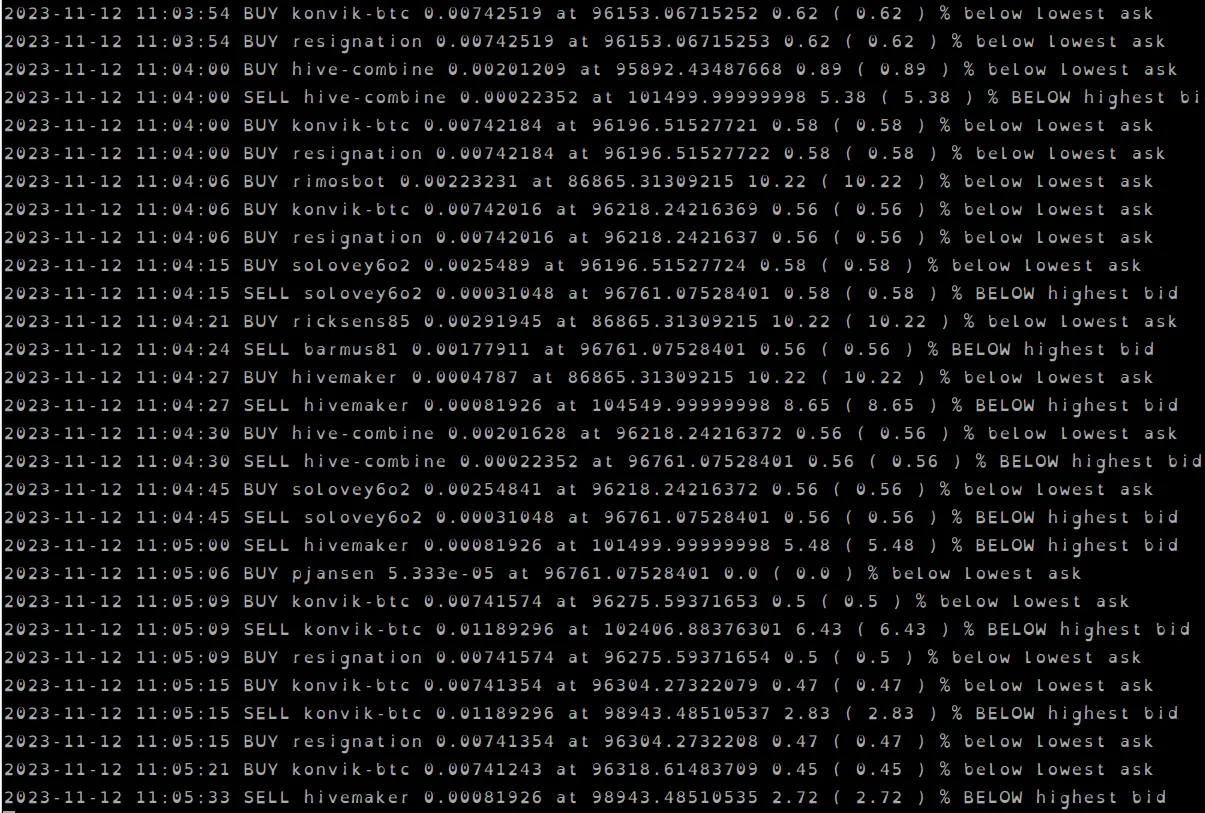

Let's have q quick ook at some of the output.
What's next?
While I would like to integrate support for other layer 2 side chains, I'm currently lacking good leads as where to start. I have very little insights into the API infrastructure of these other side-chains, and puting substantial hours into looking at the code of project like the @spknetwork to see if and how I could or should integrate support seems like too much of a time sink right now. I've put them close to the bottom of my priority list. I'm very much open to pull requests though. If you are interested in adding a L2 support, have a look at the code in the l2 dir, it is very doable to add another L2 to the library if you have some insights into the API landscape of that L2 (I currently don't myself).
The first big milesone on the roadmap right now are signed operations.
Right now my todo list for aiohivebot looks as follows:
- Add signed operations support
- Port the Hive Archeology bot to aiohivebot
- Add an example (plus personal use) frontend to the Hive Archeology bot
- Make a new Hive Archeology docker image
- Integrate coinZdense and coinZdense piggyback mode
- Explore and add support for other decentralized L2
- Look at supporting image hoster signed uploads
- Focus exclusively on coinZdense features and base maintenance and bug fixes.
