Here I will show how I use Node-RED running on a Raspberry Pi computer to get some temperatures from a MySQL database running on another Linux computer and display them on a webpage. The following image is of the Node-RED flow I created and the following images will be of the nodes that make up the flow.

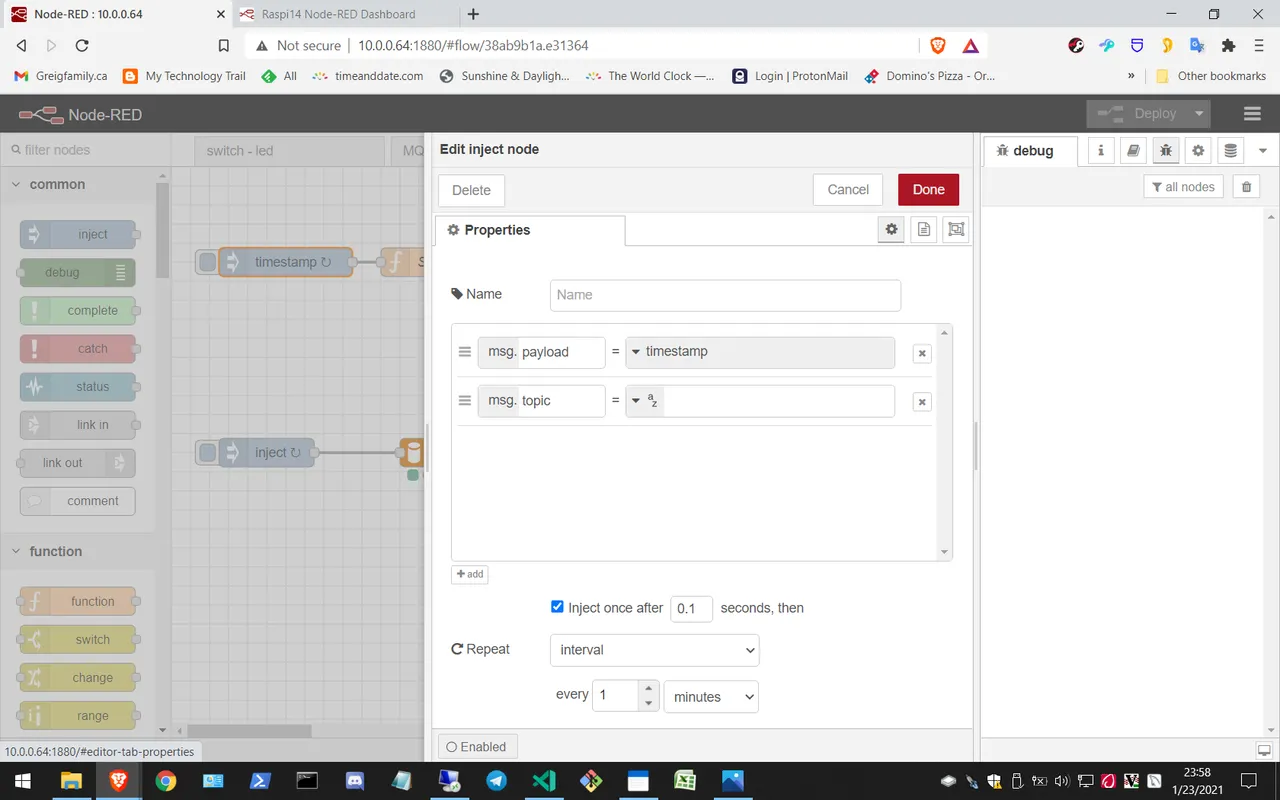

I will start with the timestamp inject node, this node signals the next node to run once every minute:

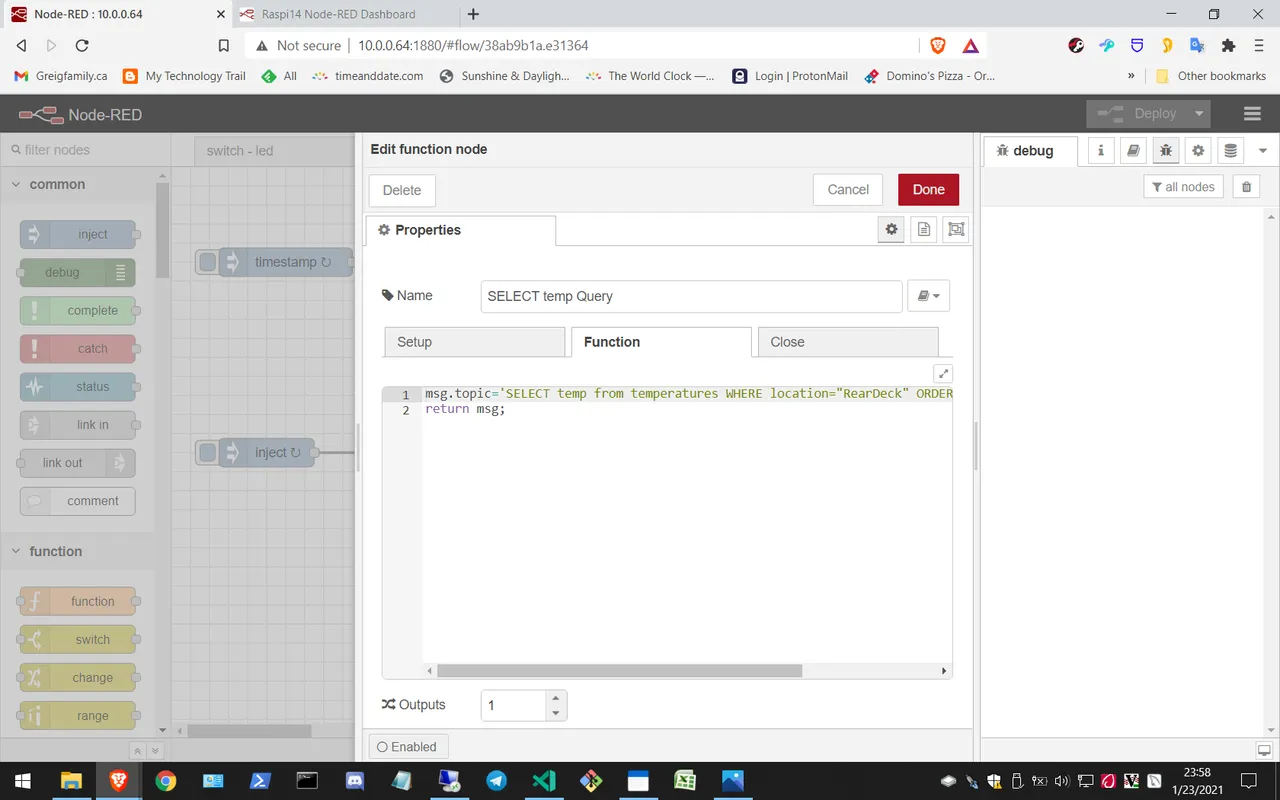

The next node is a function node to setup a SQL query to pass to a database node:
The database node contains the database connection and runs the SQL query passed to it:

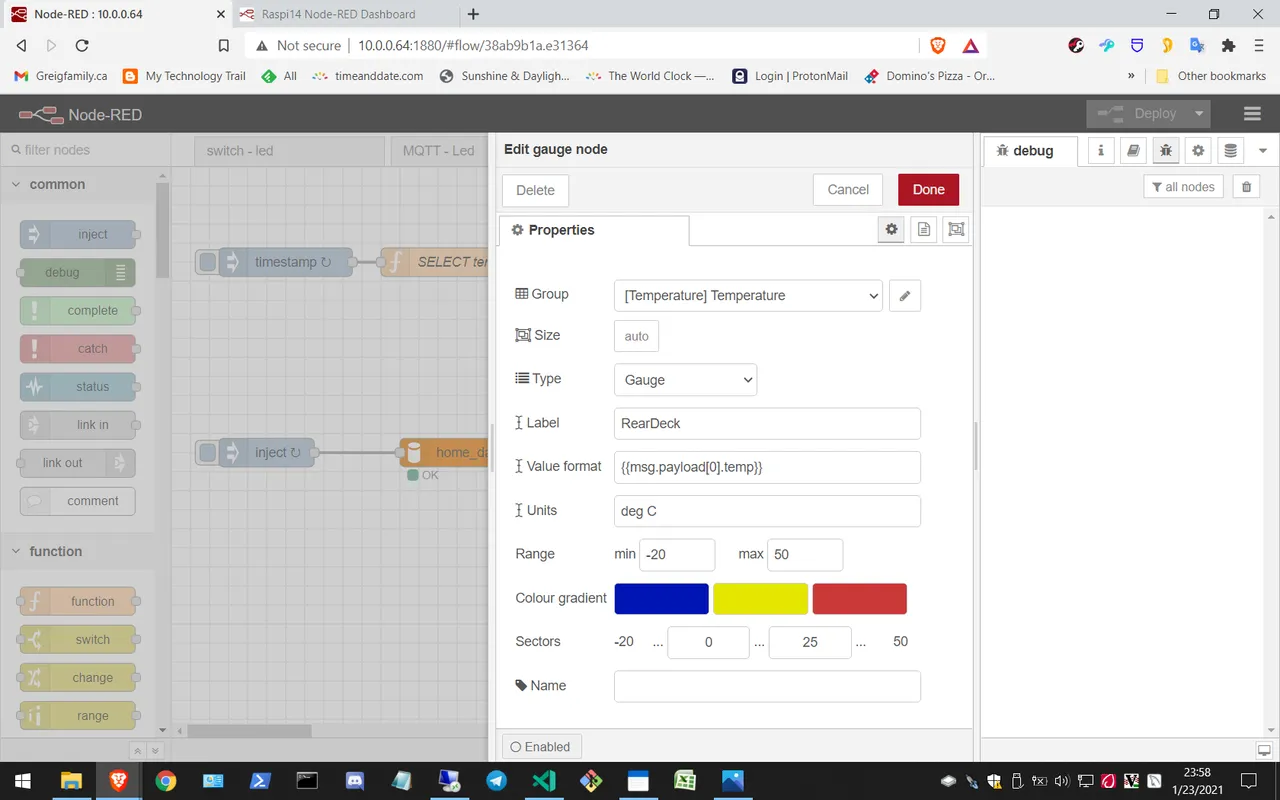

The output of the database query then is passed to a gauge node as well as a debug node. The gauge node displays the temperature on the UI webpage:

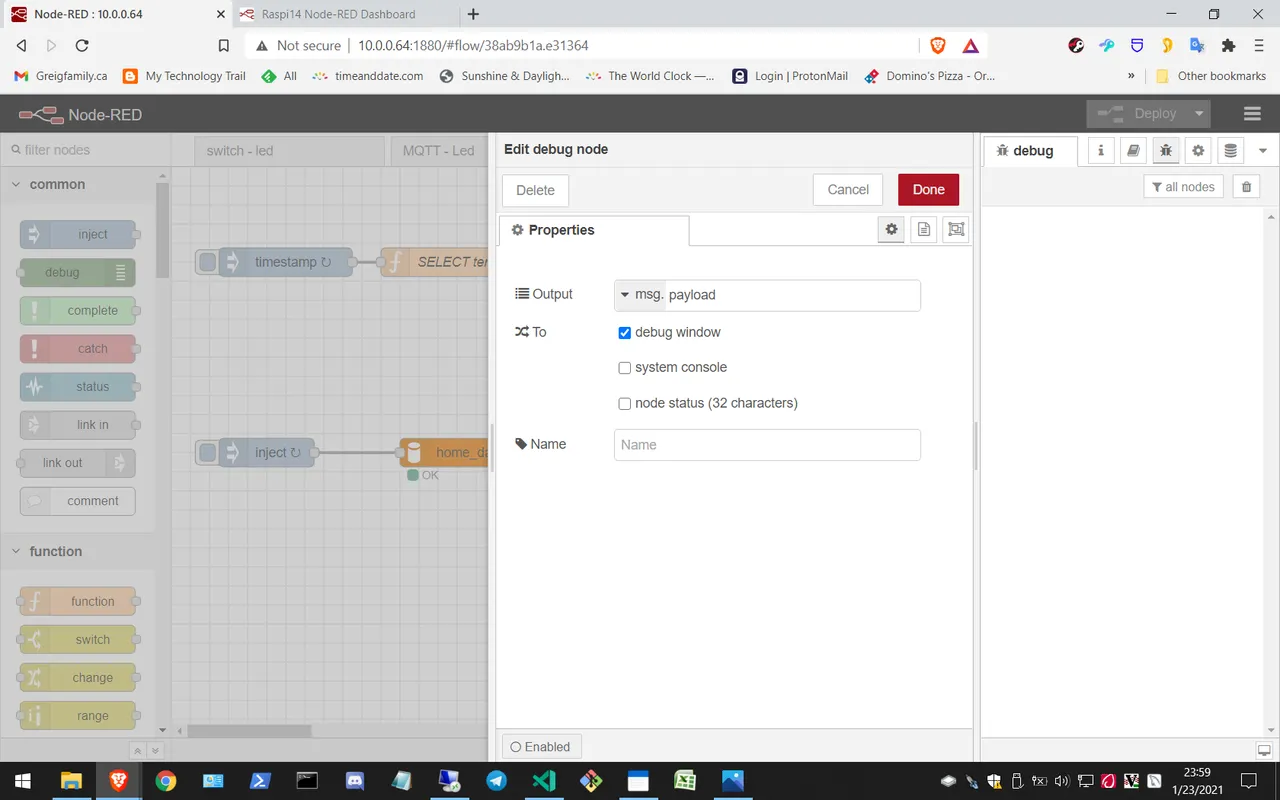

The debug node is used to make sure that the output of the database query is returning valid data:

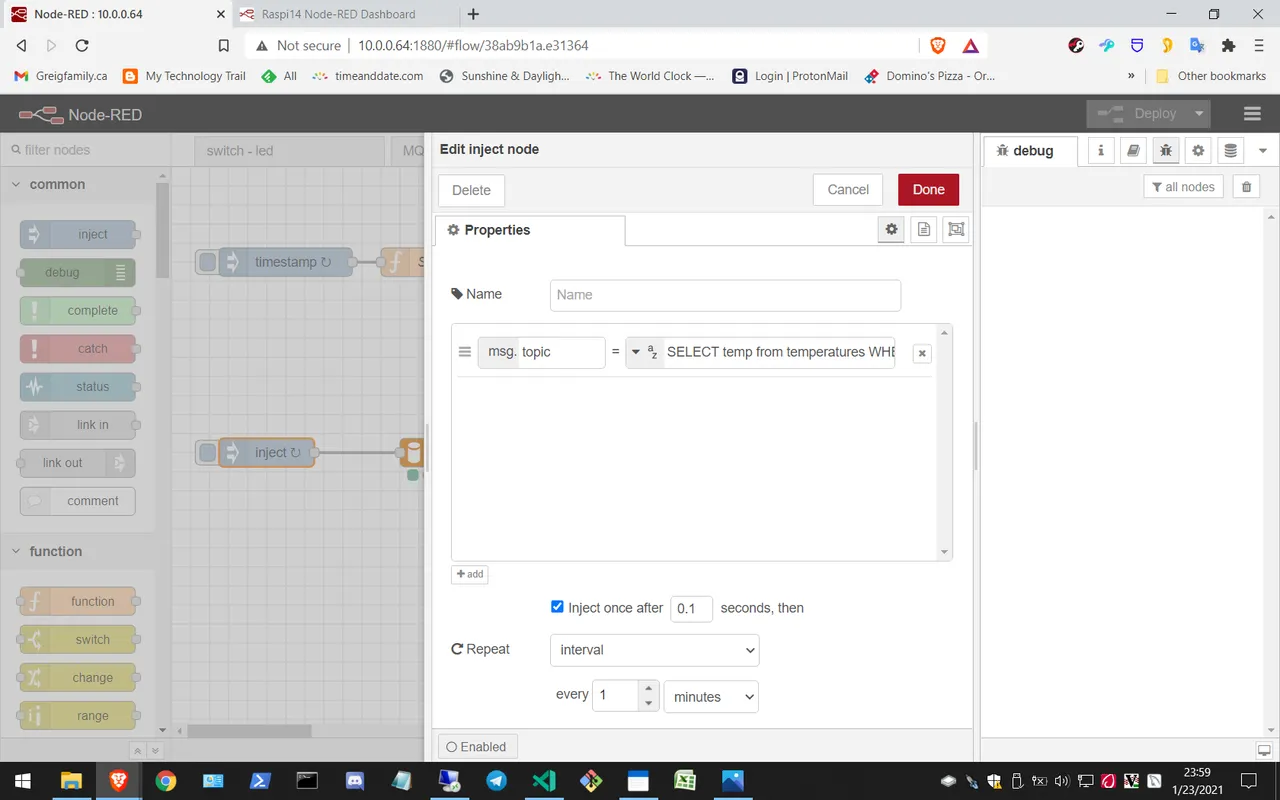

After watching some YouTube videos and reading some blog posts I discovered that I could directly inject a SQL query from the inject node for the second gauge part of the flow.
And lastly the second gauge node:

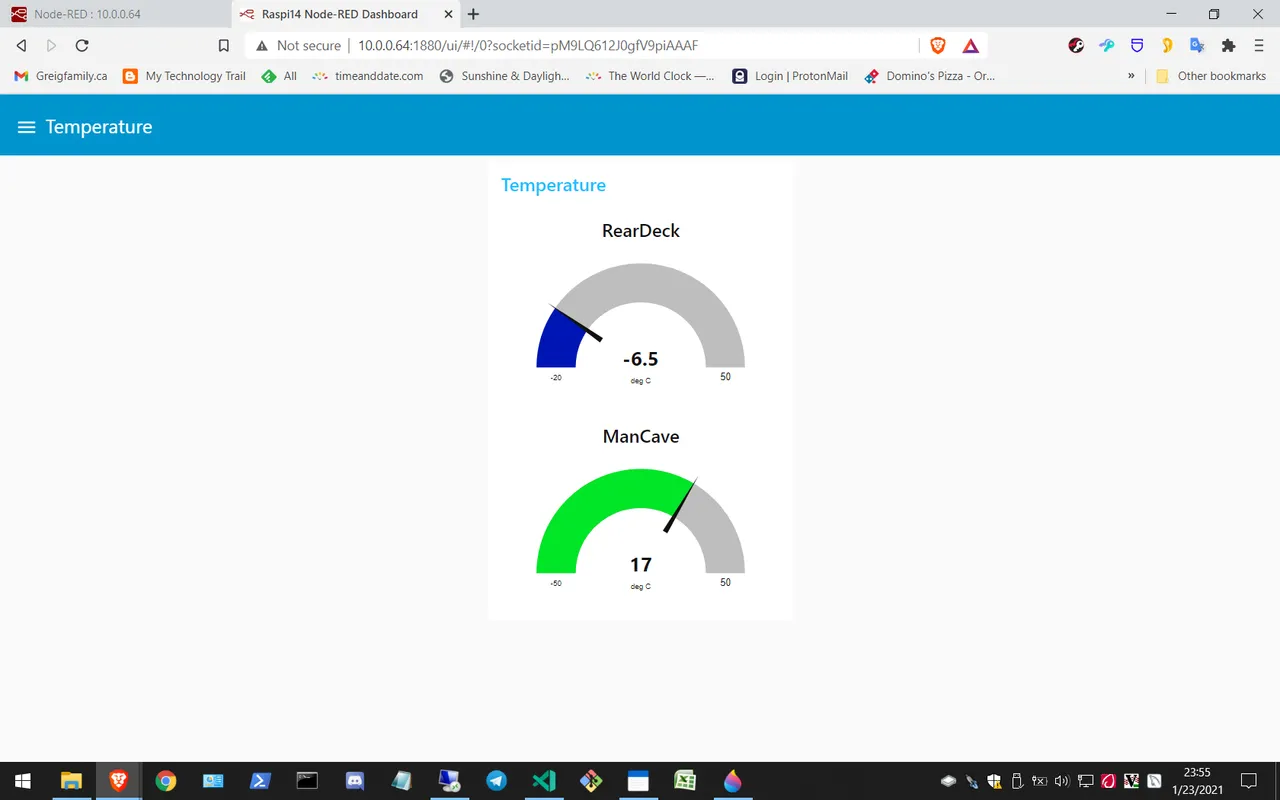

The following is a screen capture of the Node-RED UI page with the two gauges:
Please feel free to ask any questions in the comments below. I am still learning how to document the things I am learning.
