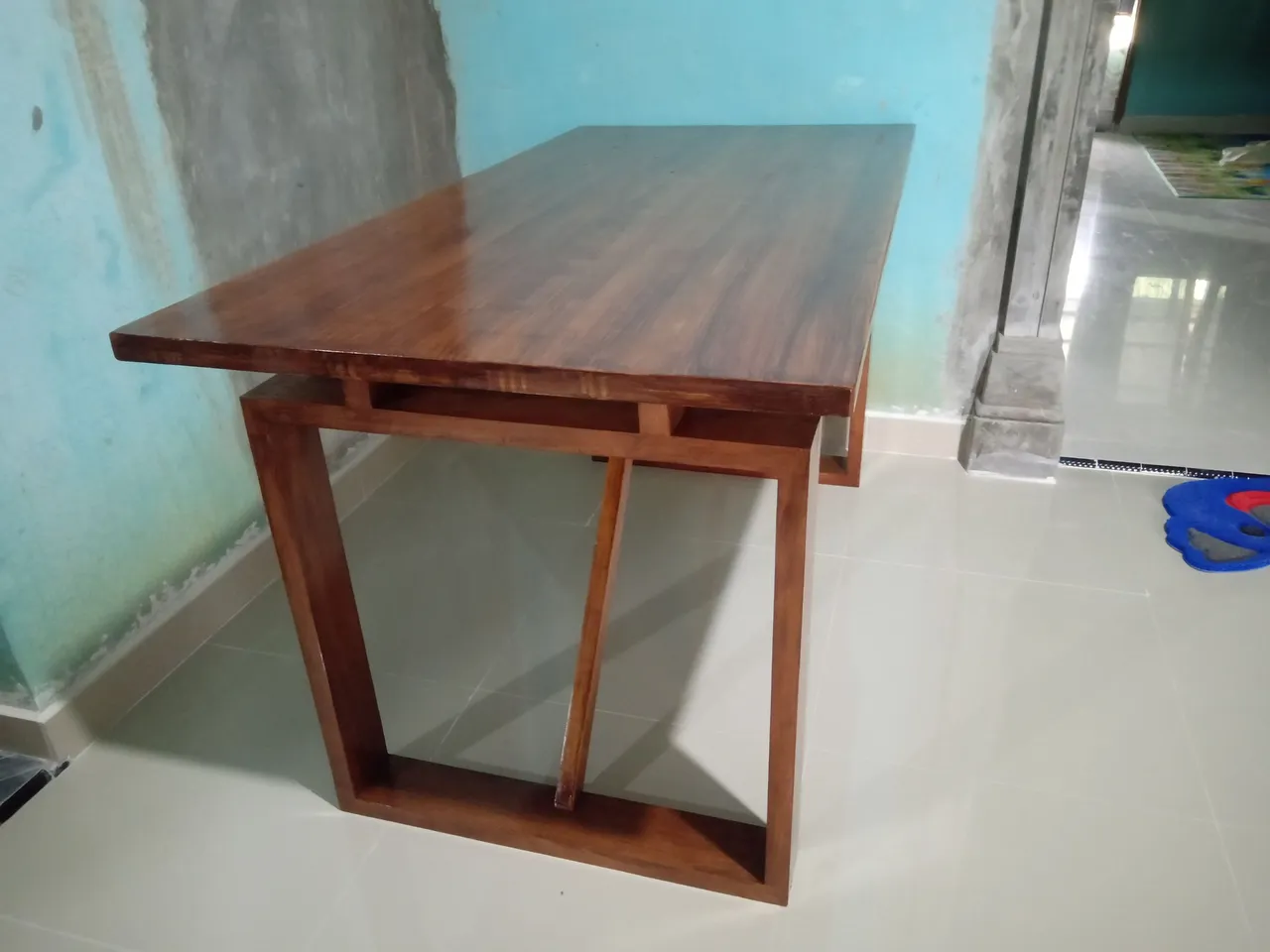

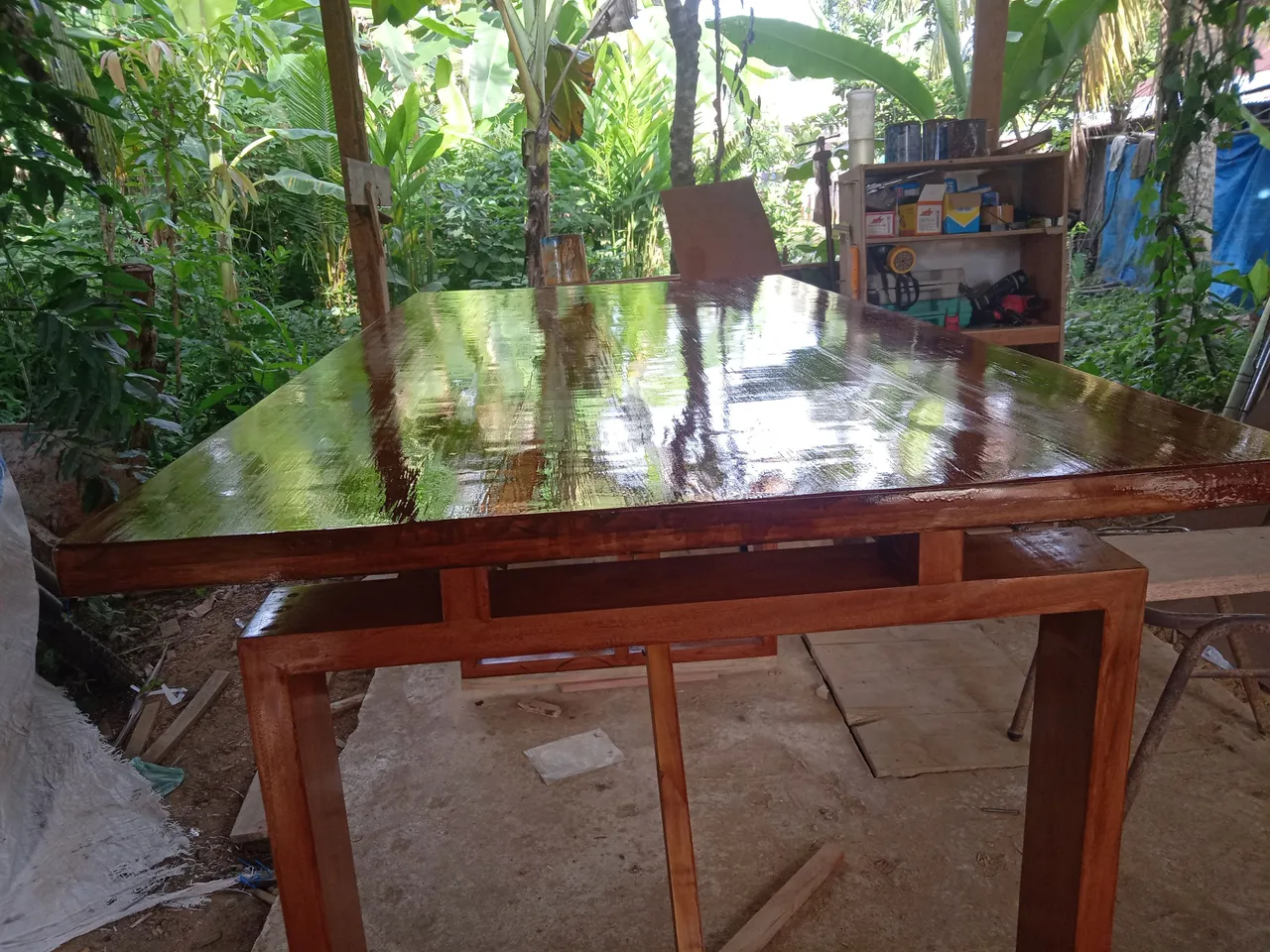

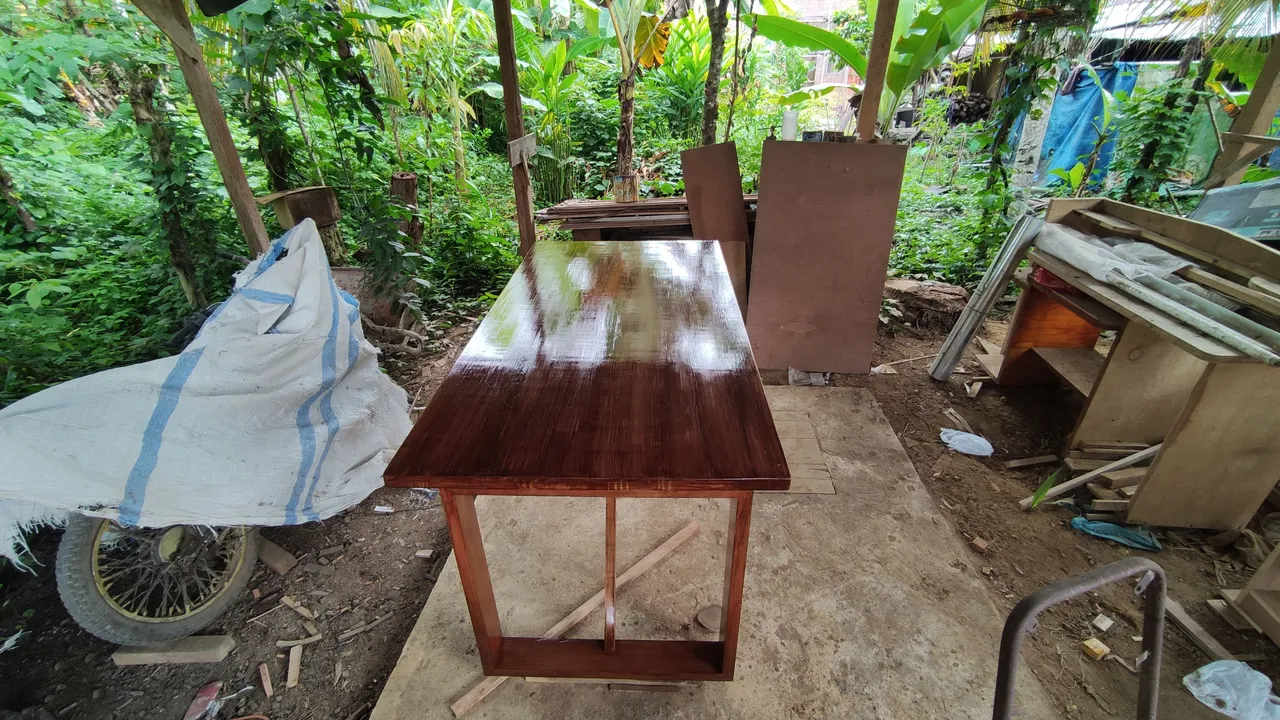

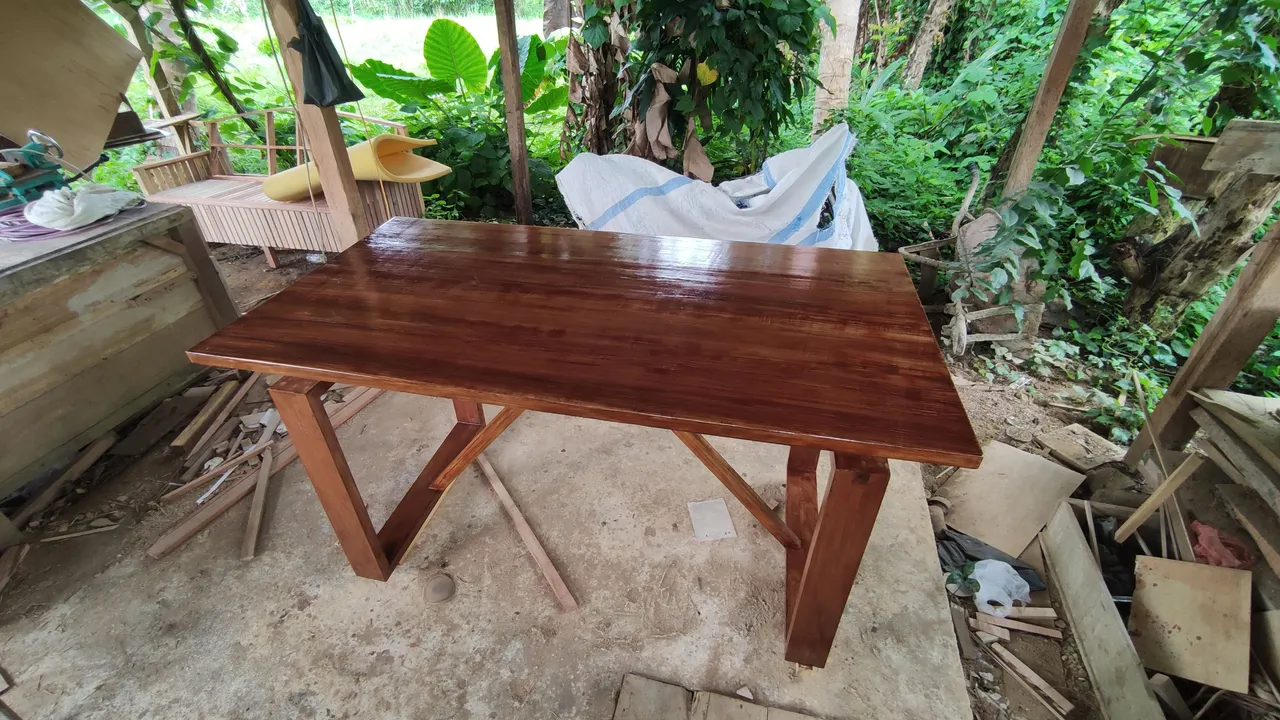

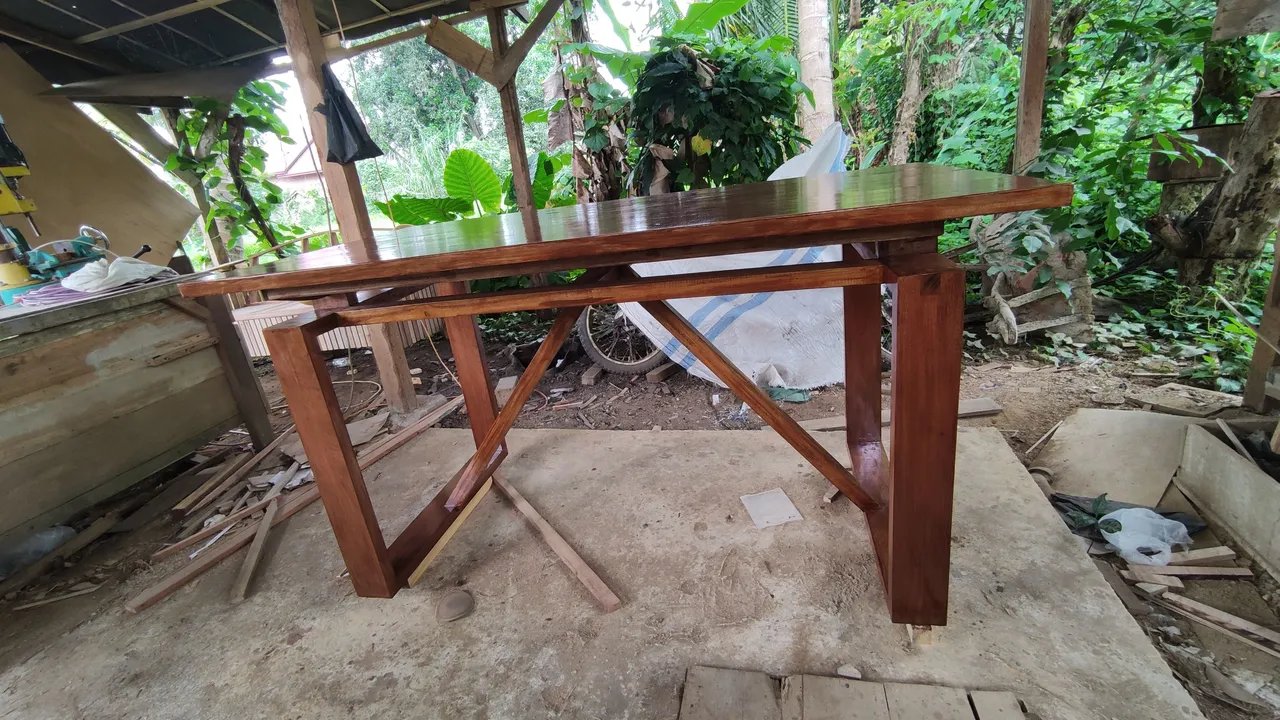

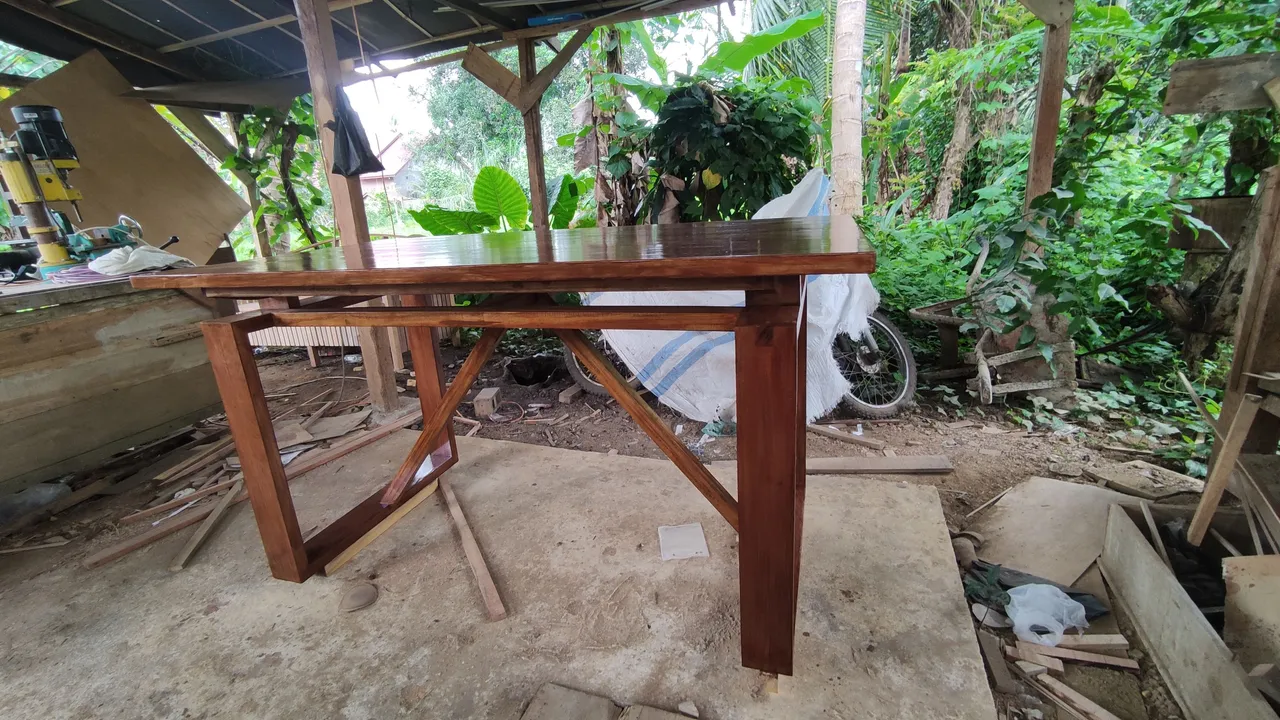

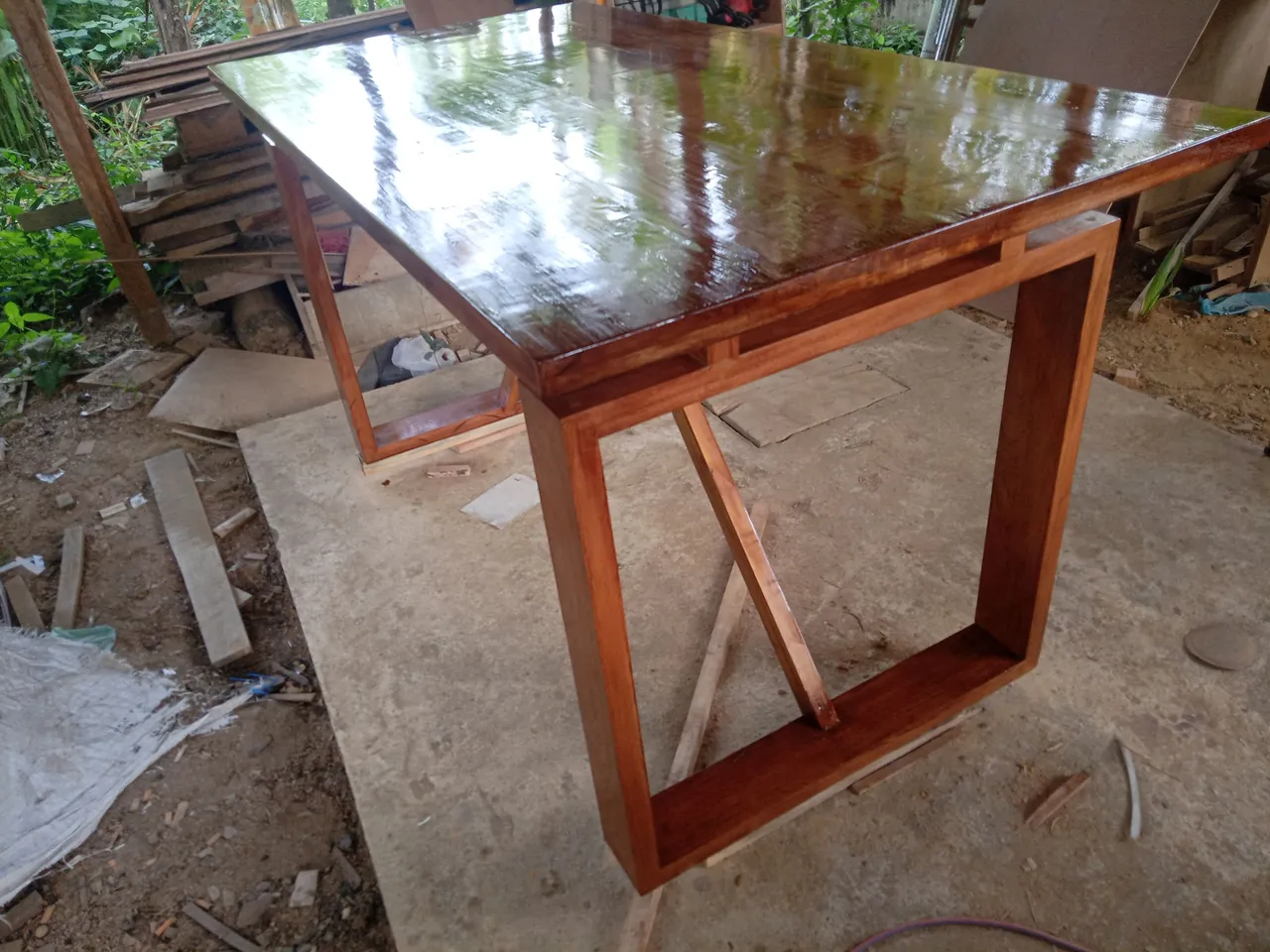

Below are some photos of a minimalist dining table that I designed and made myself, this was an order from my customer a few days ago but he didn't ask for a chair because he already had it, this table as an addition to the interior of his house.
I designed this table with a simple model with a table size of 80 cm x 160 cm and a height of 75 cm. This size was his own request because this table will only be used by four people because he only has two children.

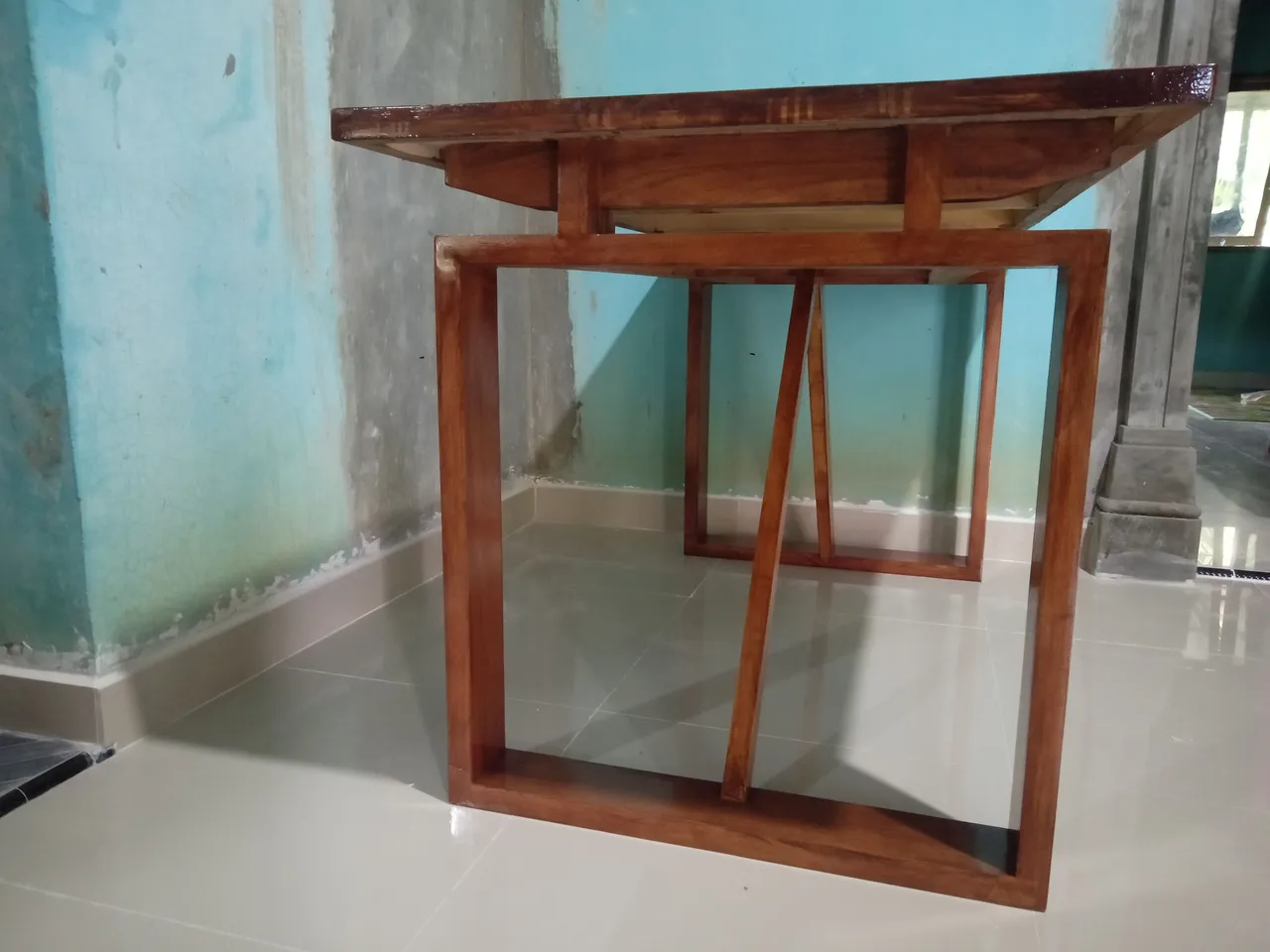

I designed the legs of this table in the form of a left and right square and this is my first time making a table like this model because previously my customers brought their own designs and there was no one like this, and for this table the customer asked me to design it because That's why I made a design like this and also I think this model is interesting and also a challenge for me to try new things.
Then how do I do it?
So I will explain how the process is done and I will try to explain in as much detail as possible so that you can understand it and can also be additional knowledge for you.

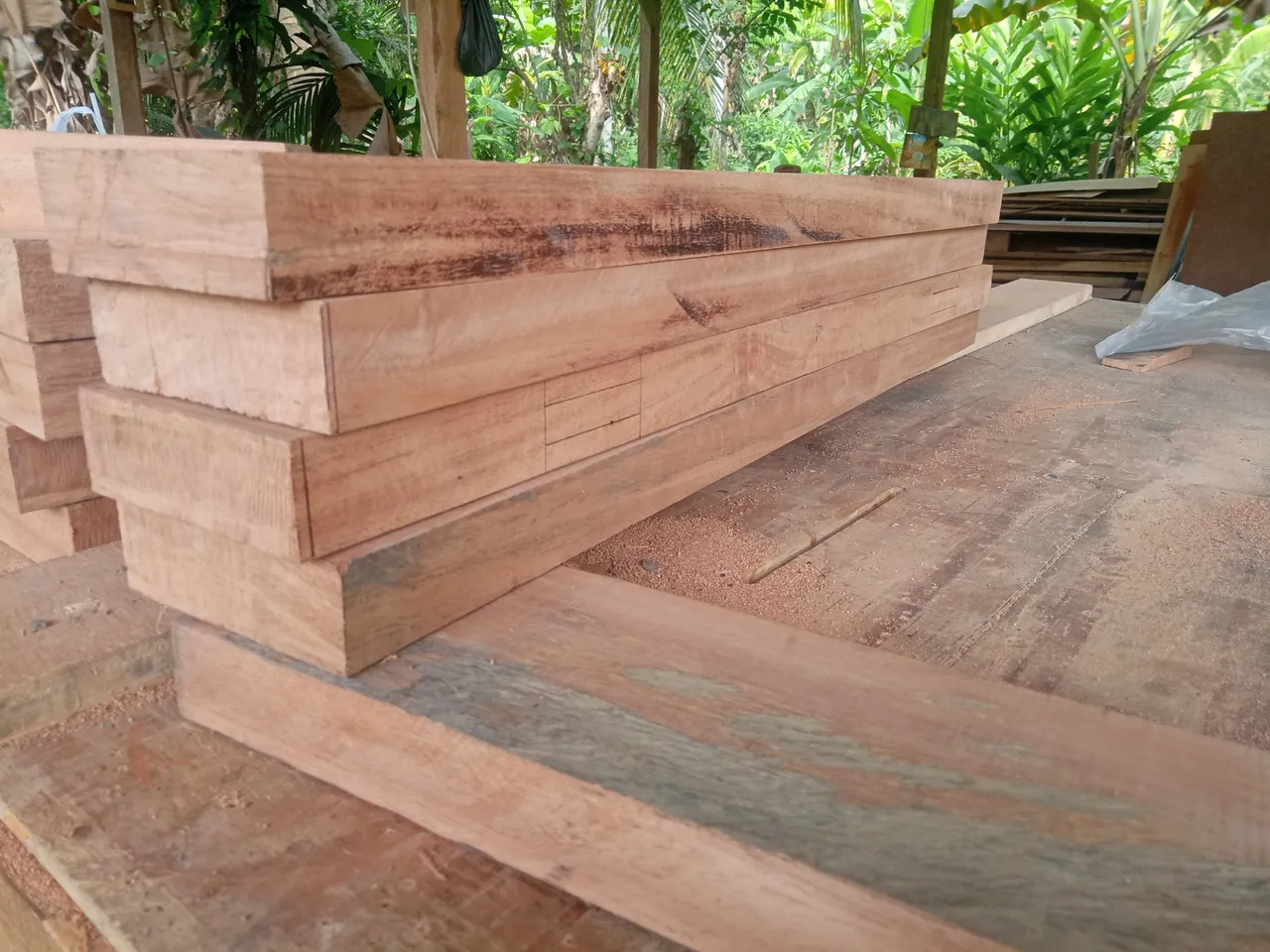

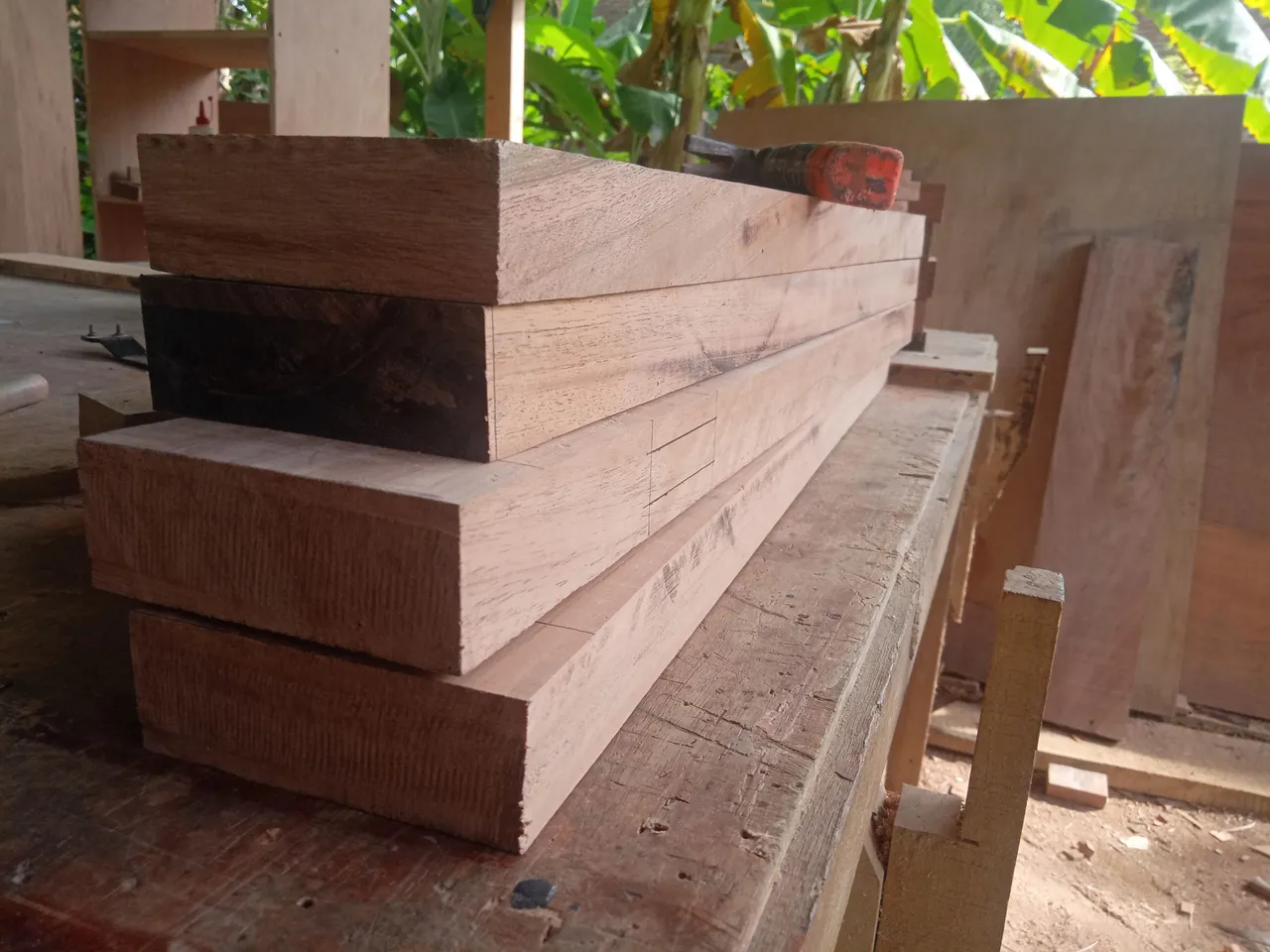

First of all I prepared wood with a size of 10cm x 3cm x 70cm for the table legs as many as 8 pieces each table leg as much as 4 pieces, in this case I needed a table saw machine to split the wood and also a planner to shave the wood so that everything was the same precision .

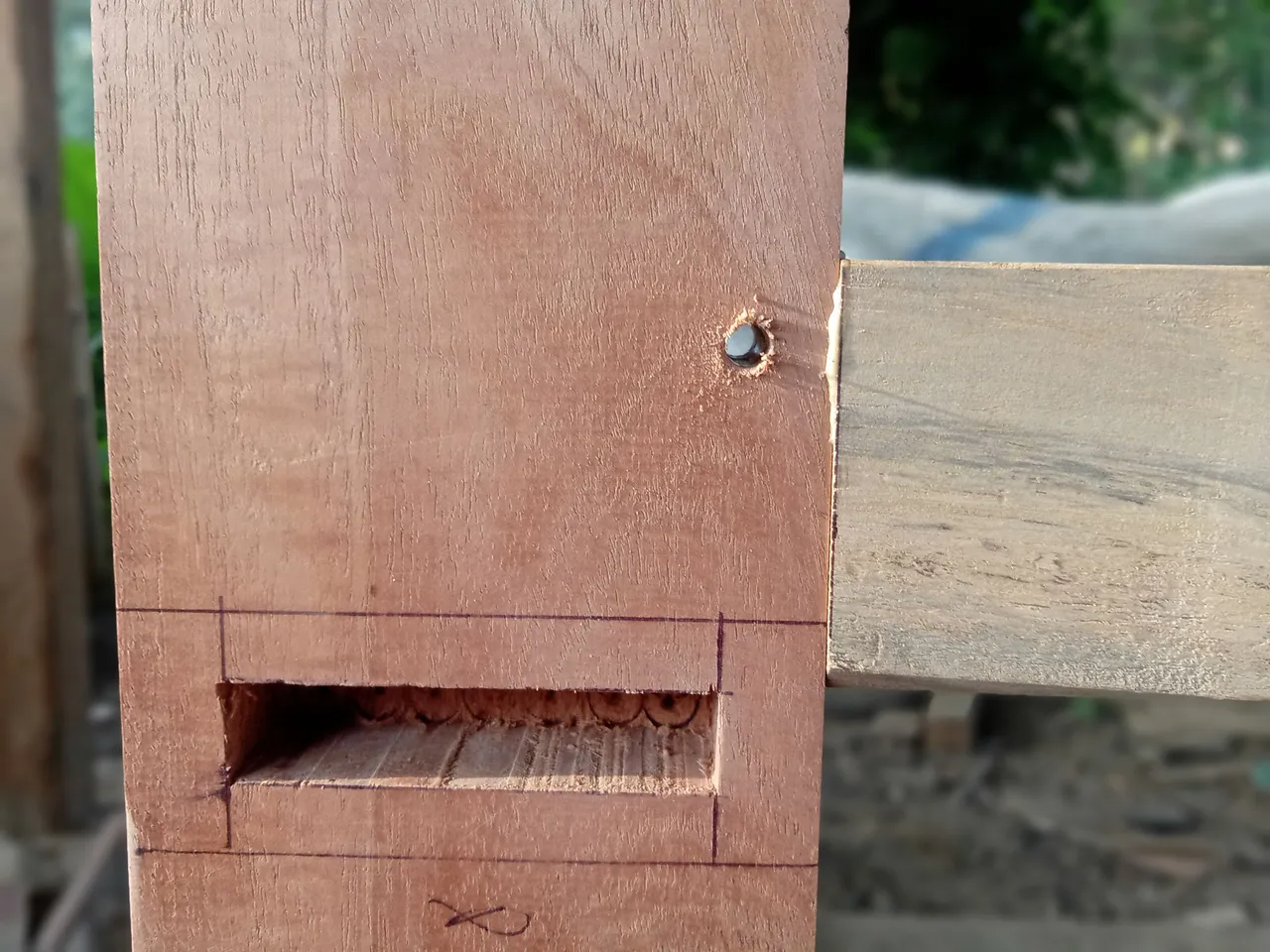

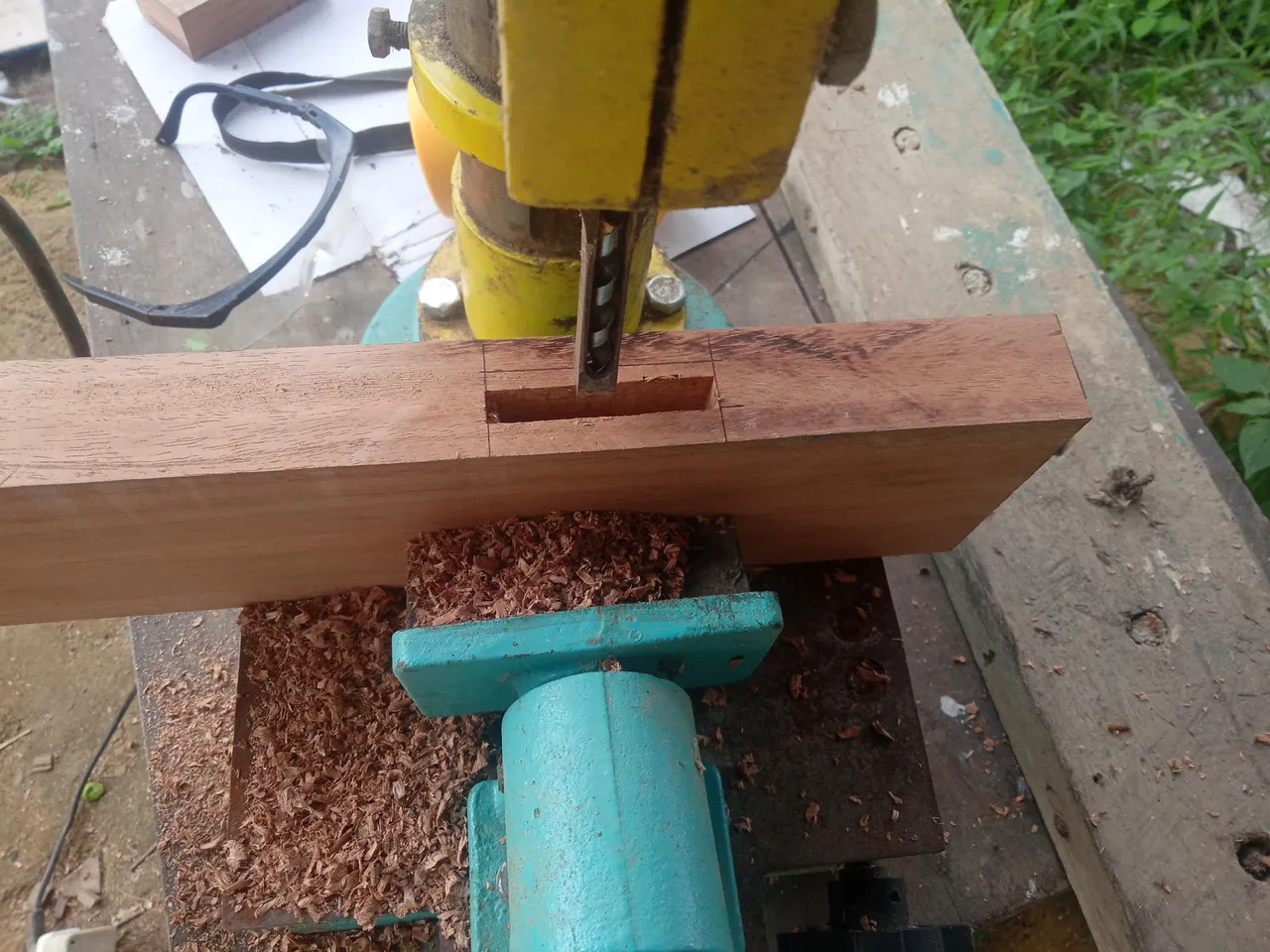

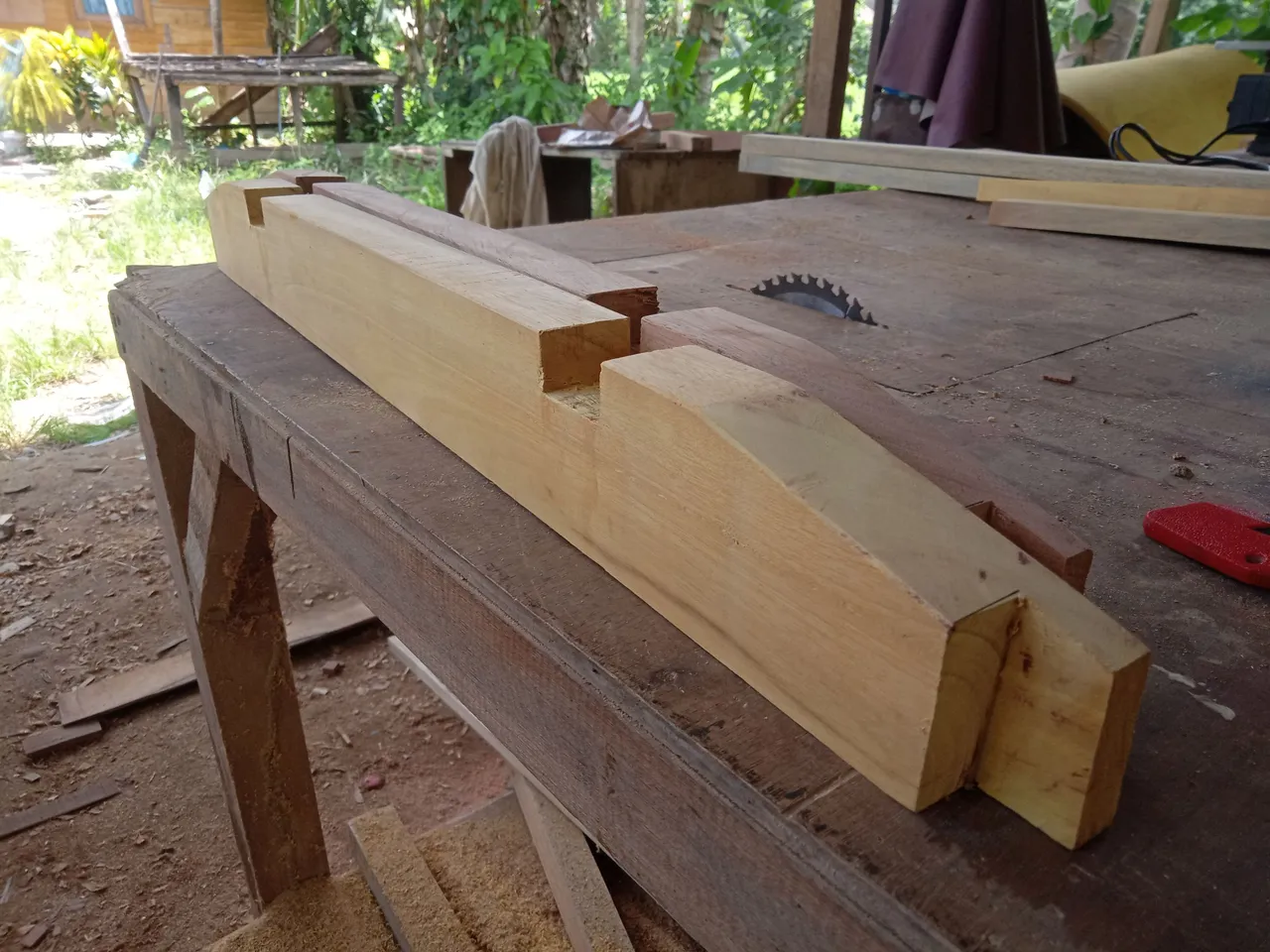

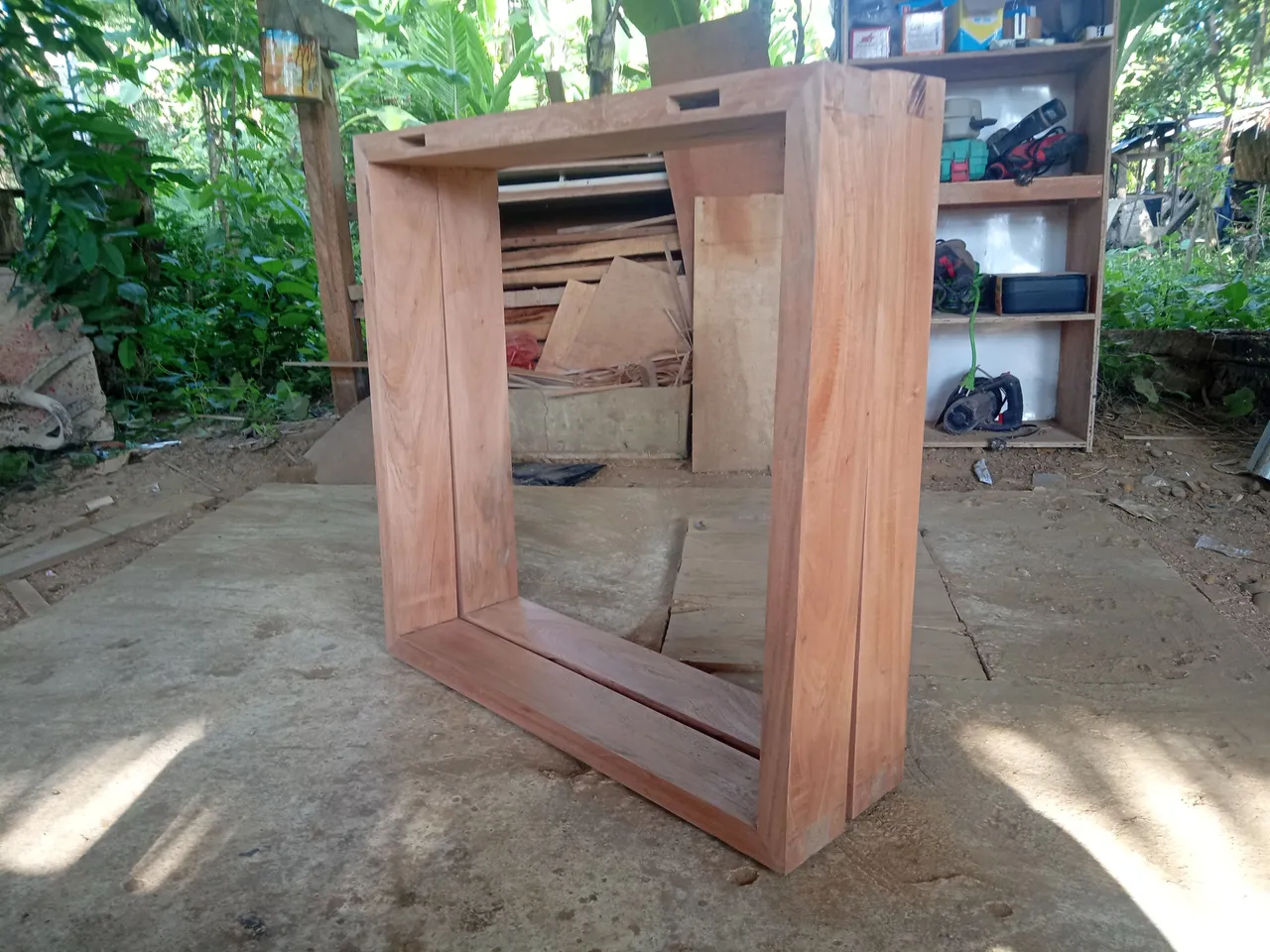

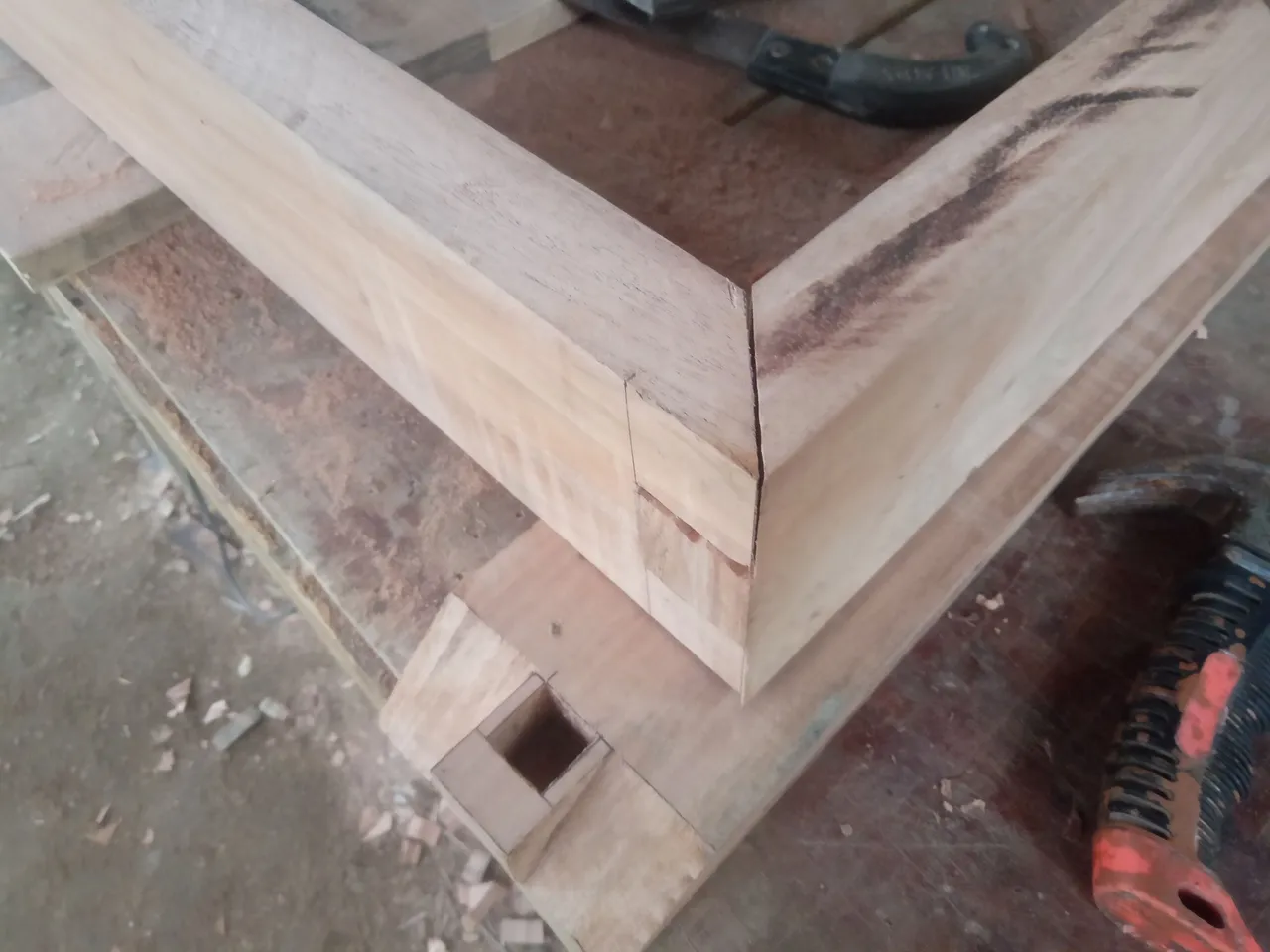

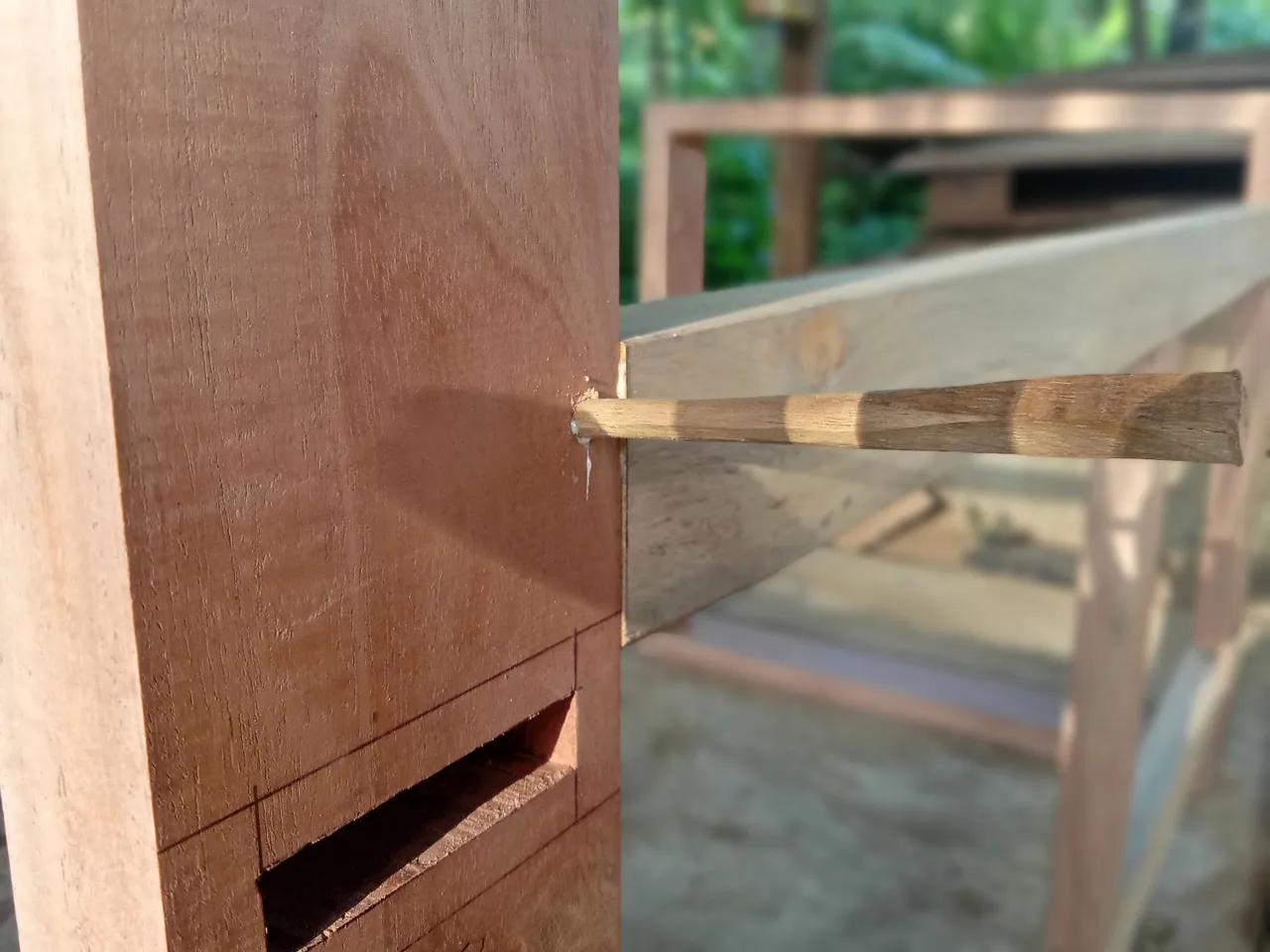

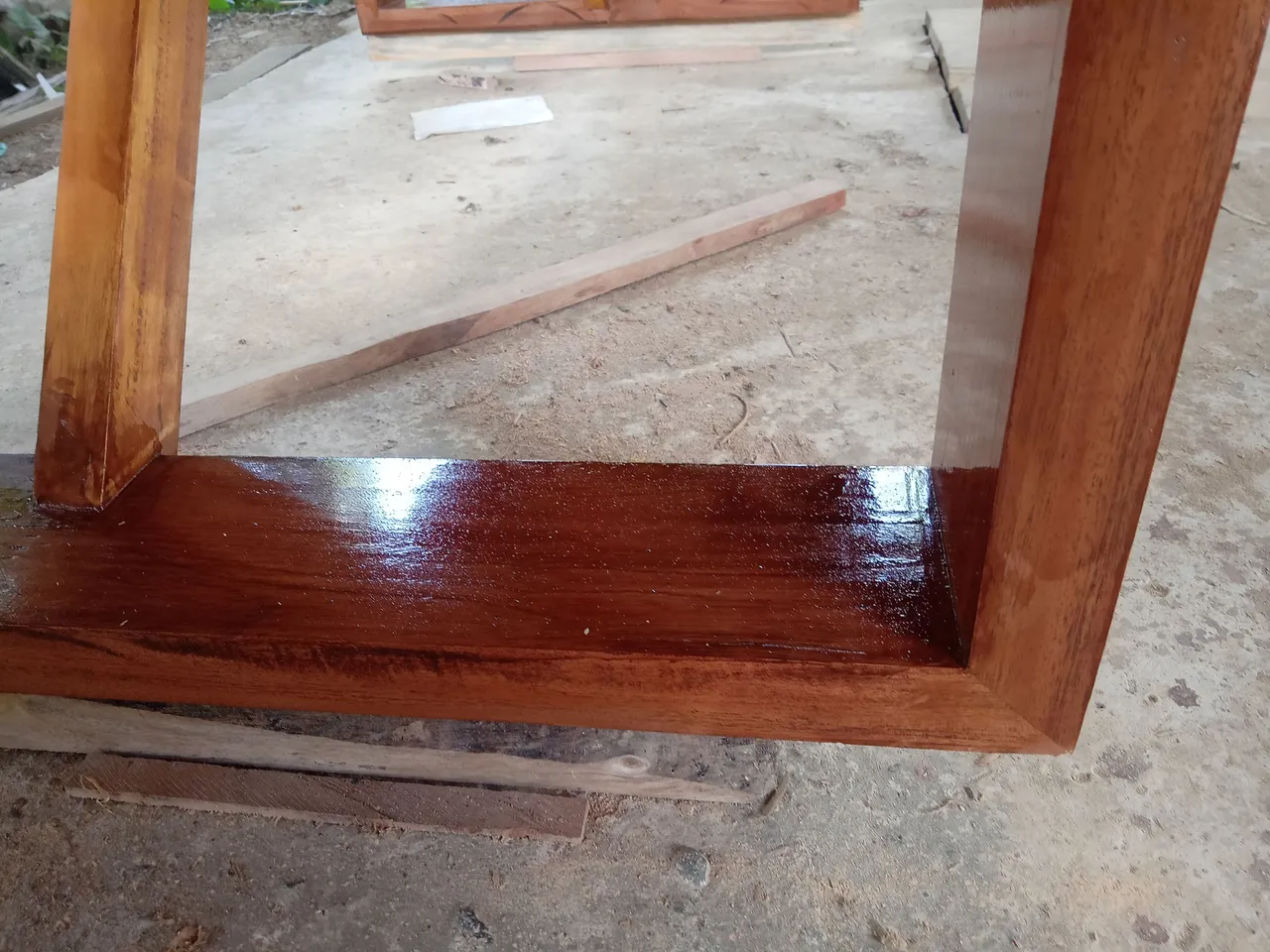

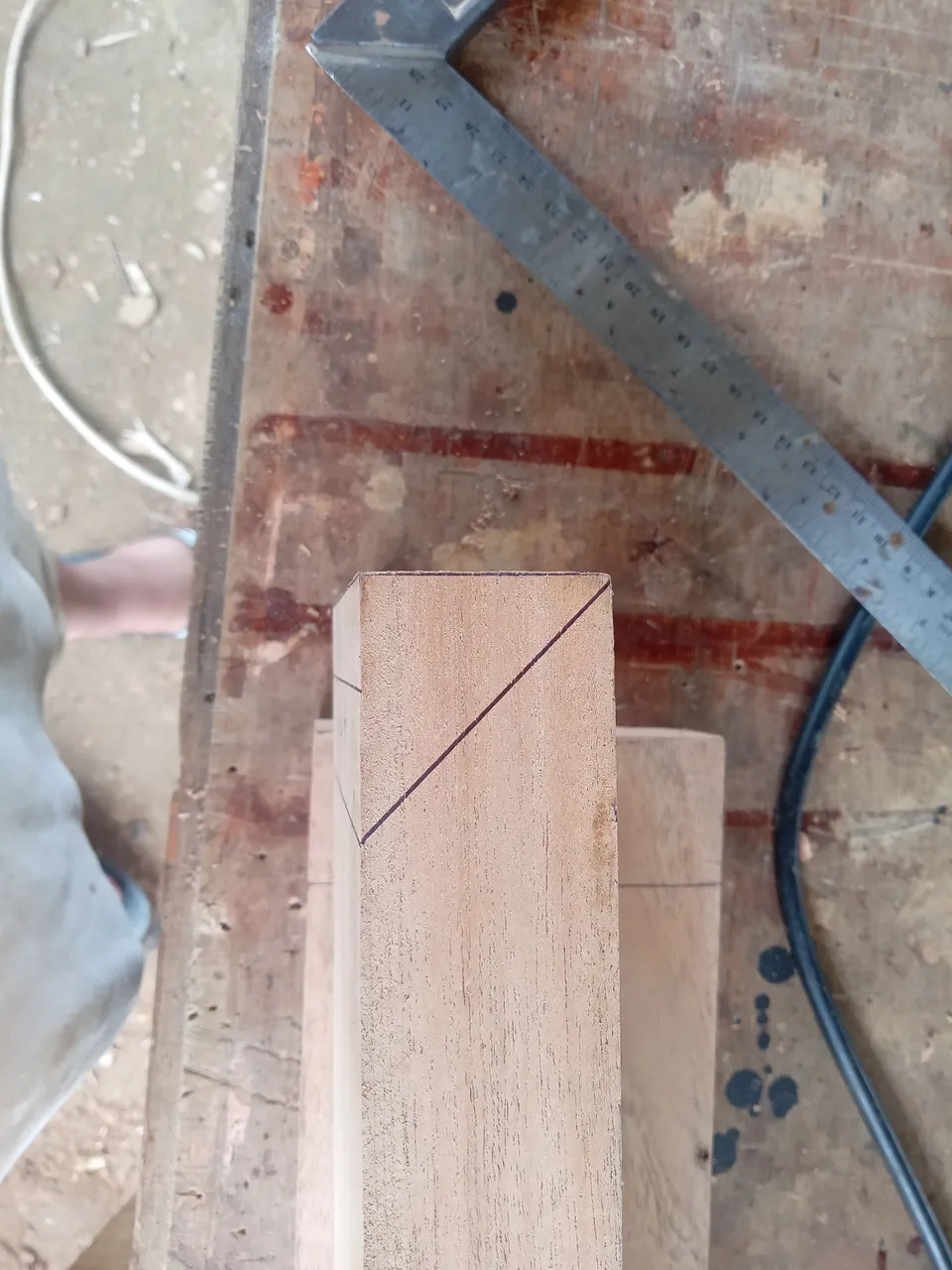

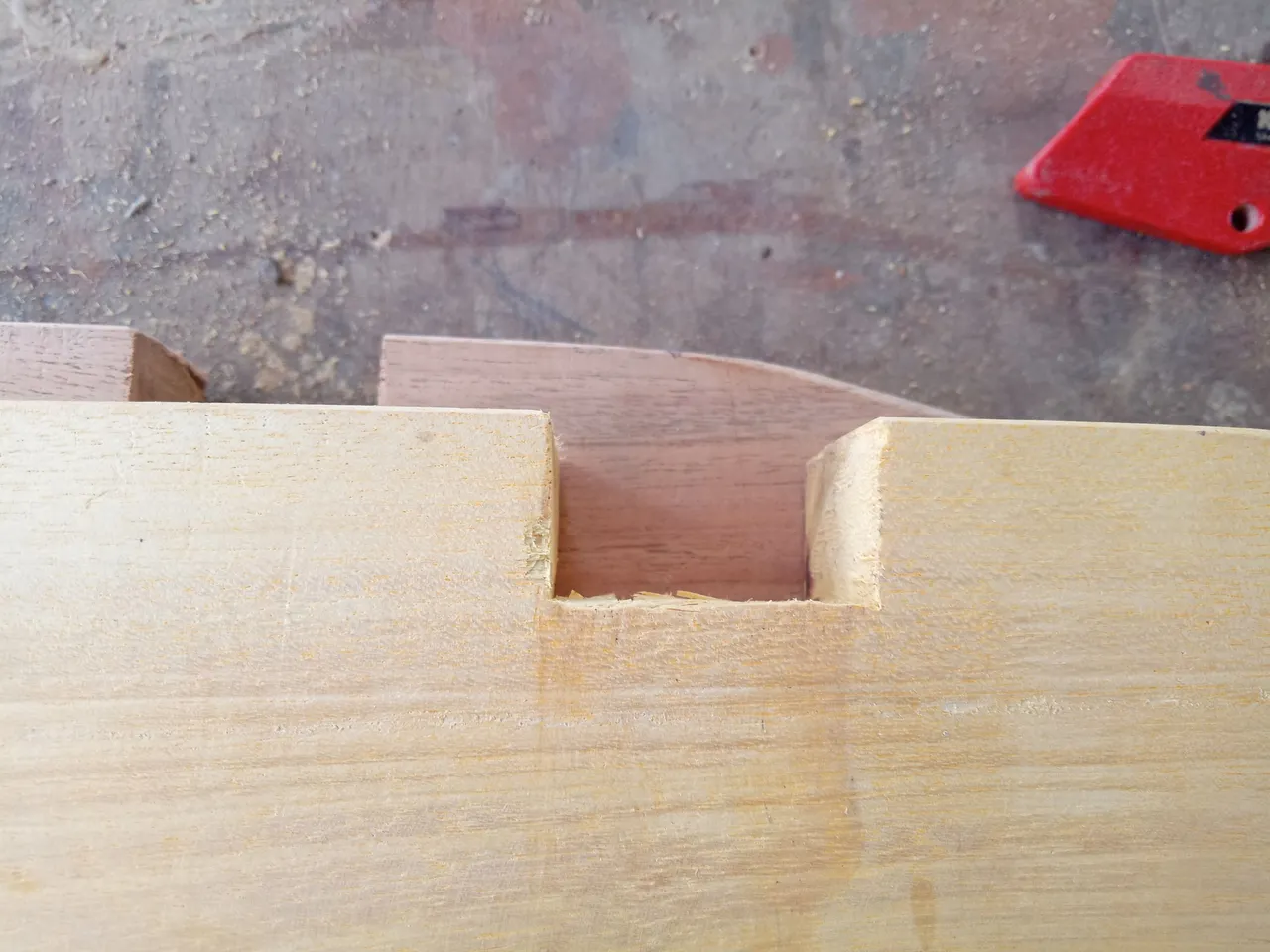

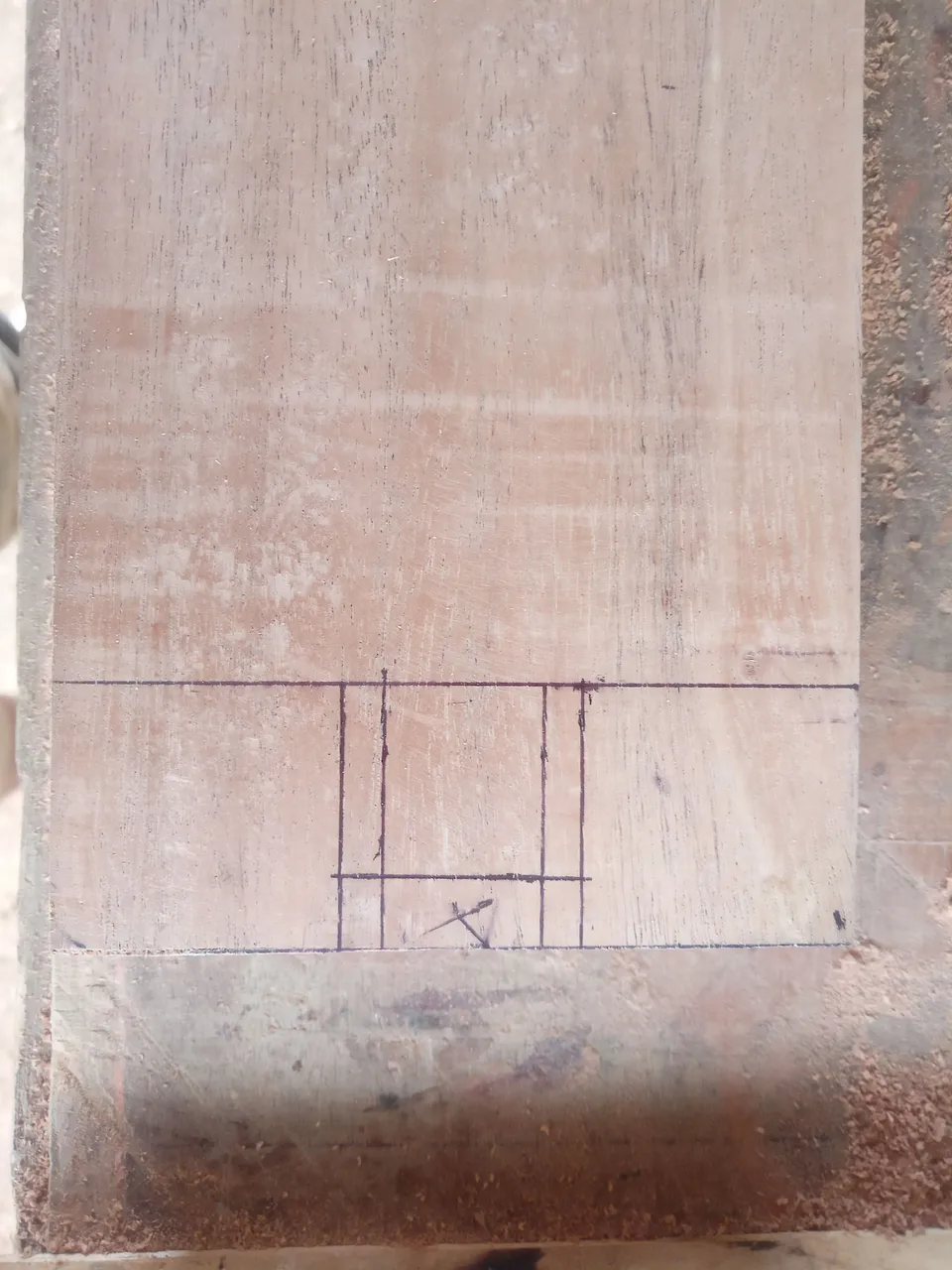

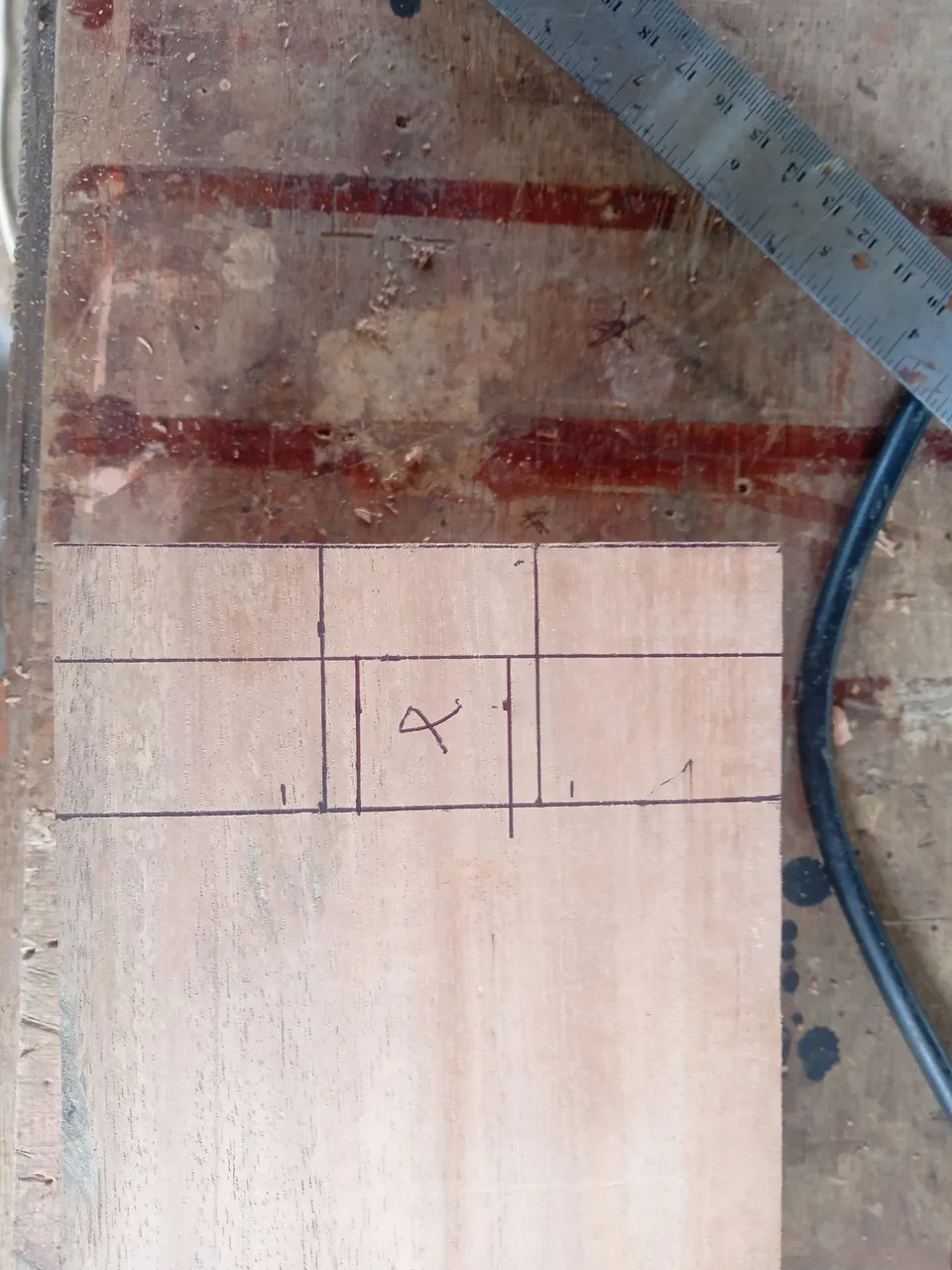

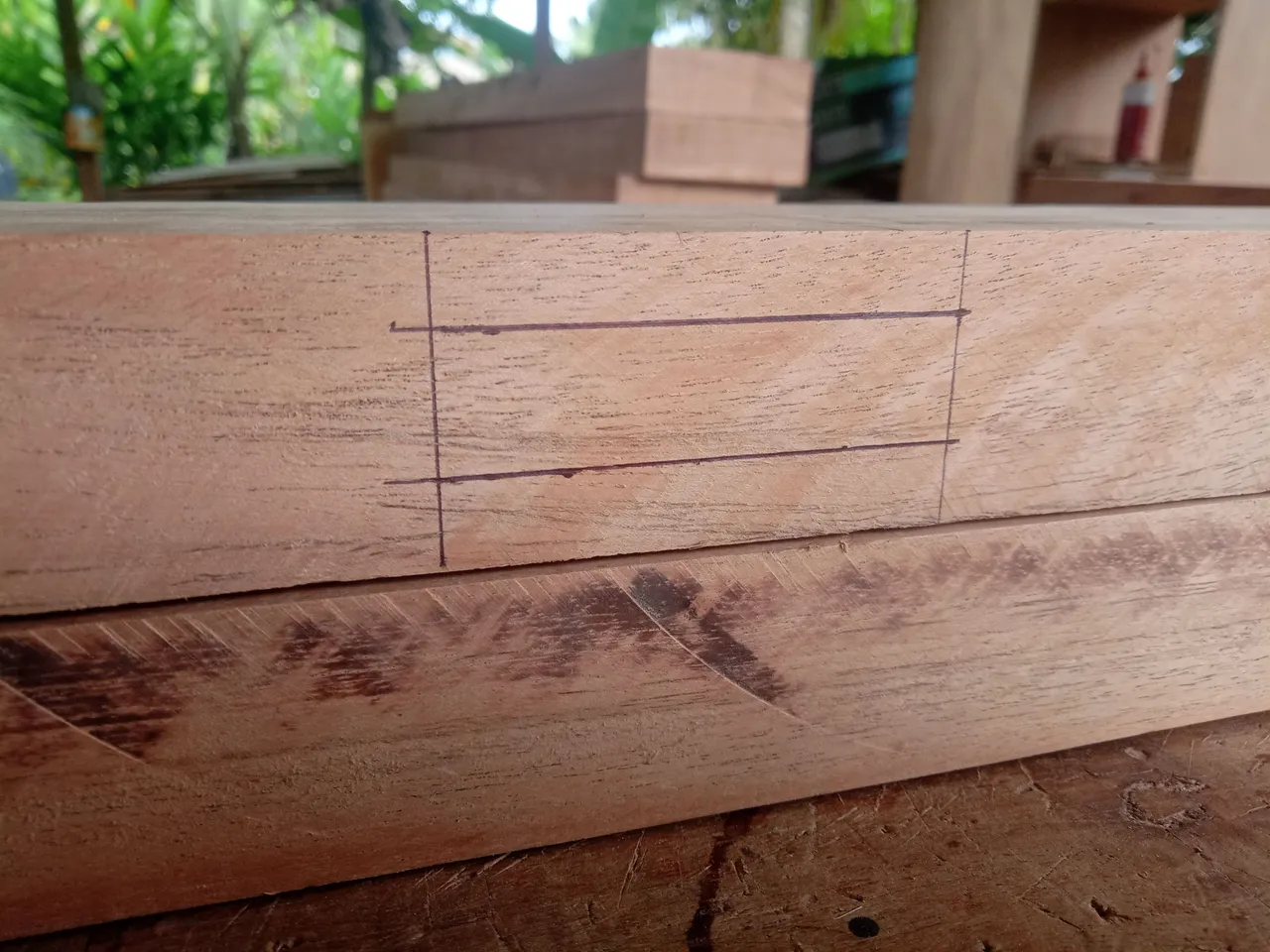

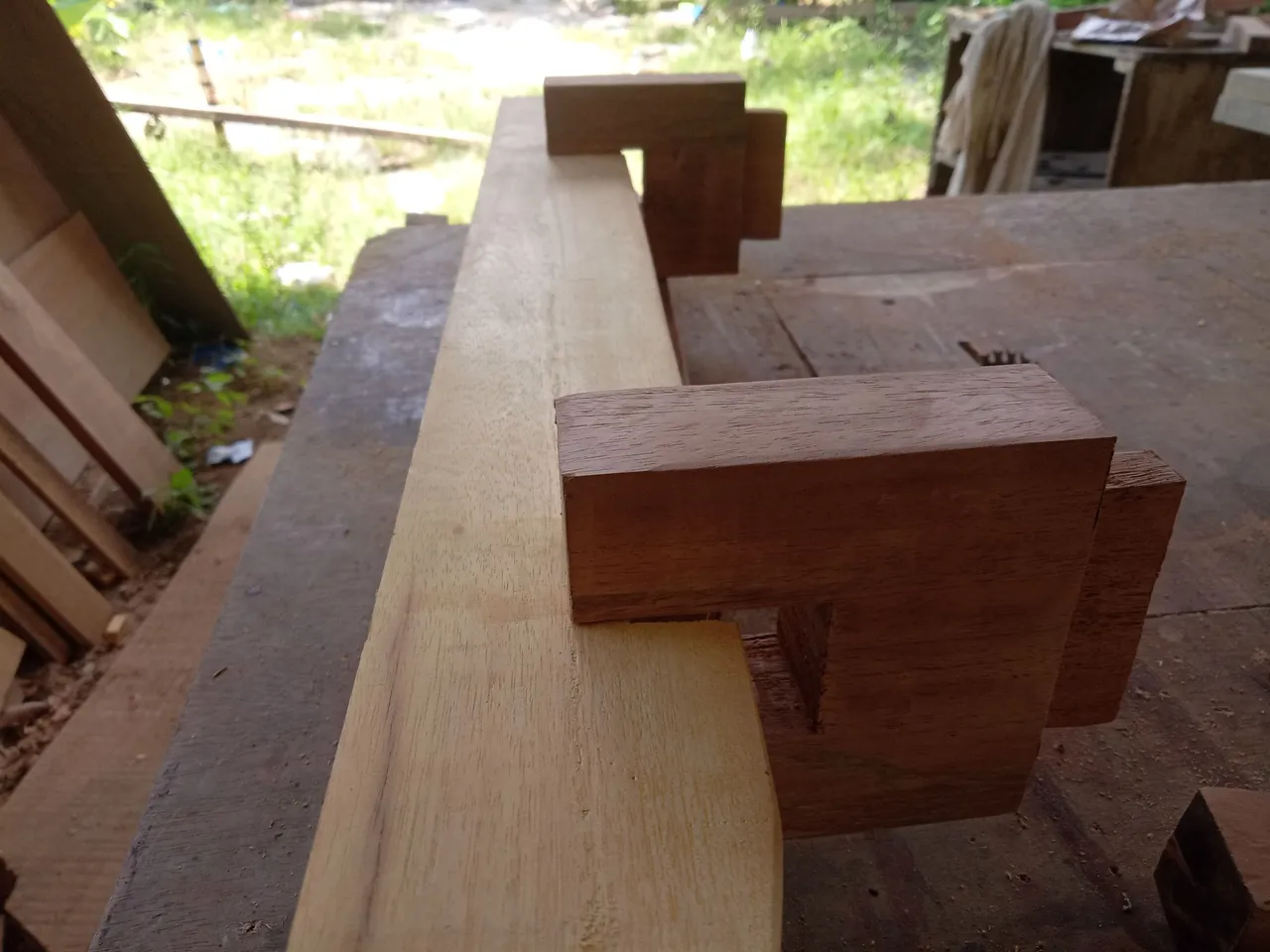

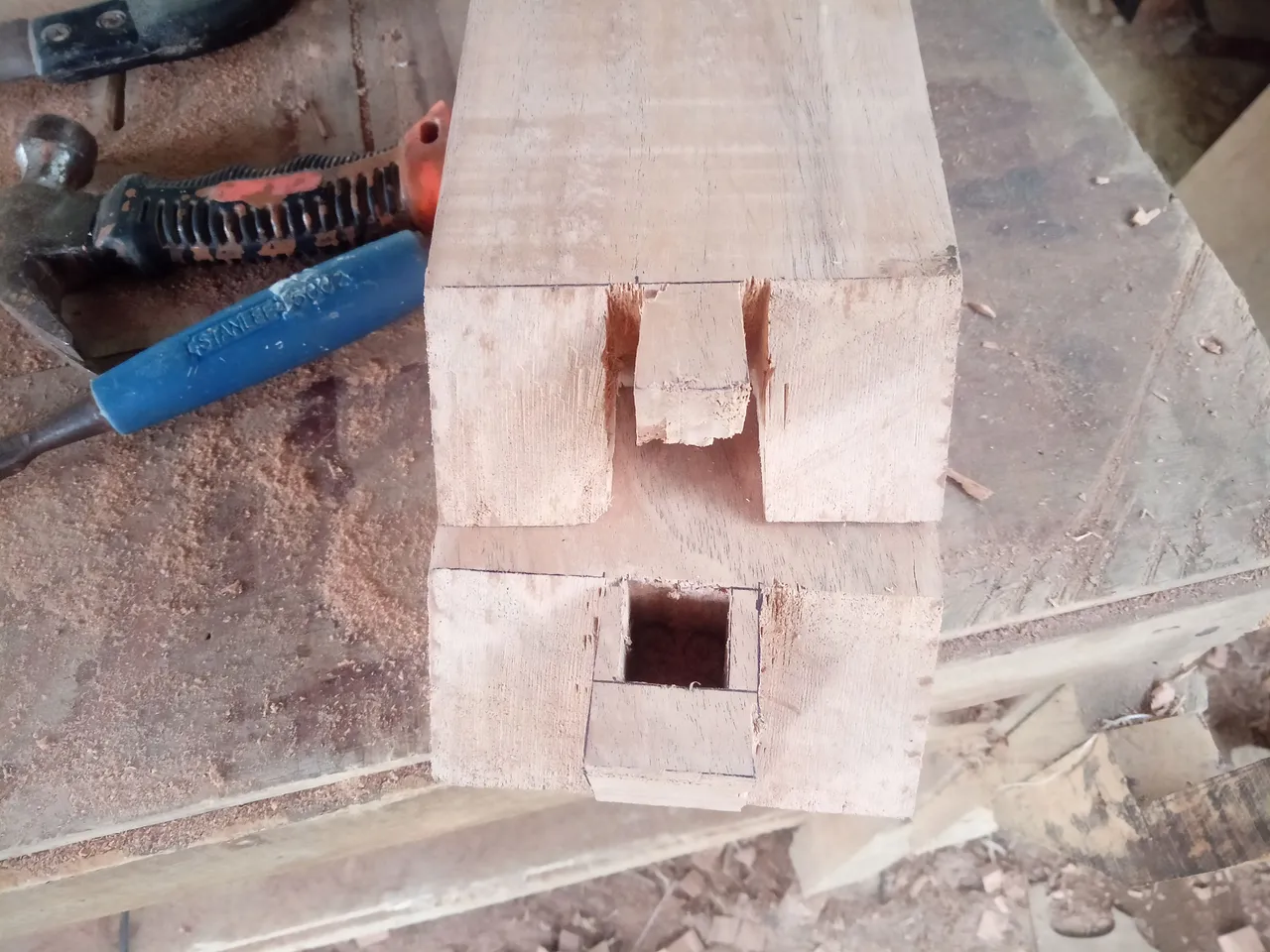

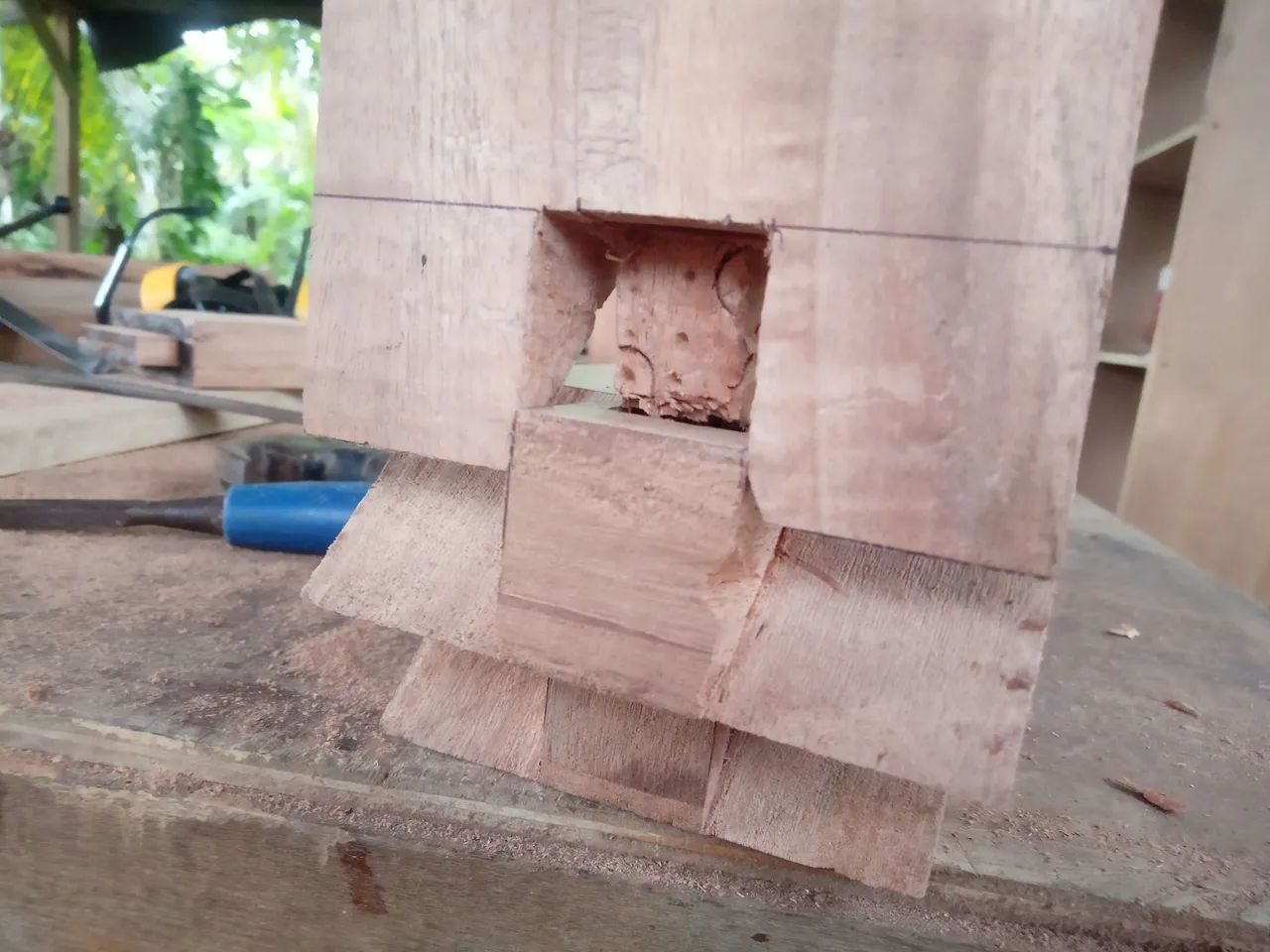

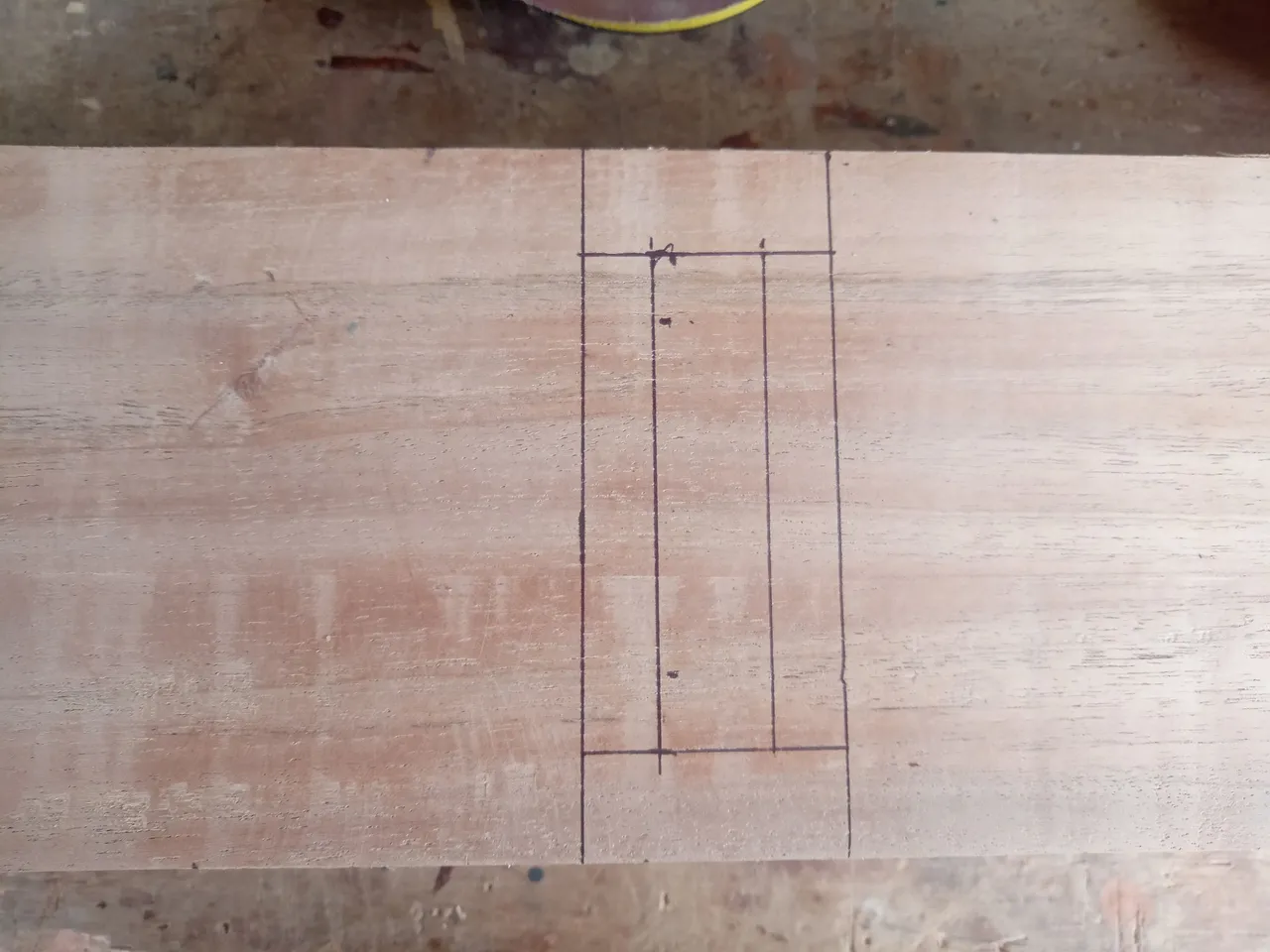

After the wood was ready I made a line for joining the square feet using a hole connection system which I combined with a 90 degree joint to make it more solid and strong, for this process I used a Chisel Mortising machine to make holes.

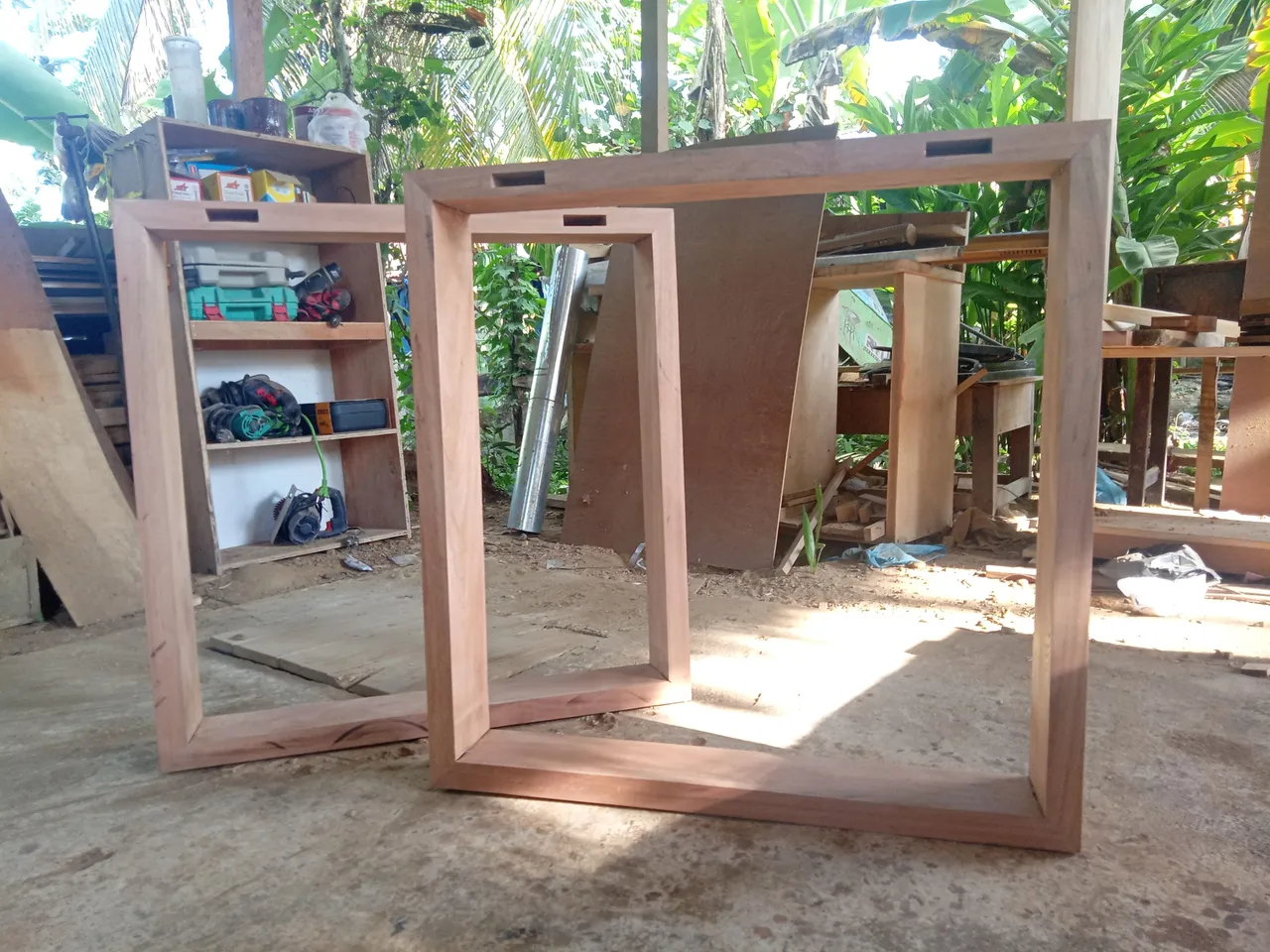

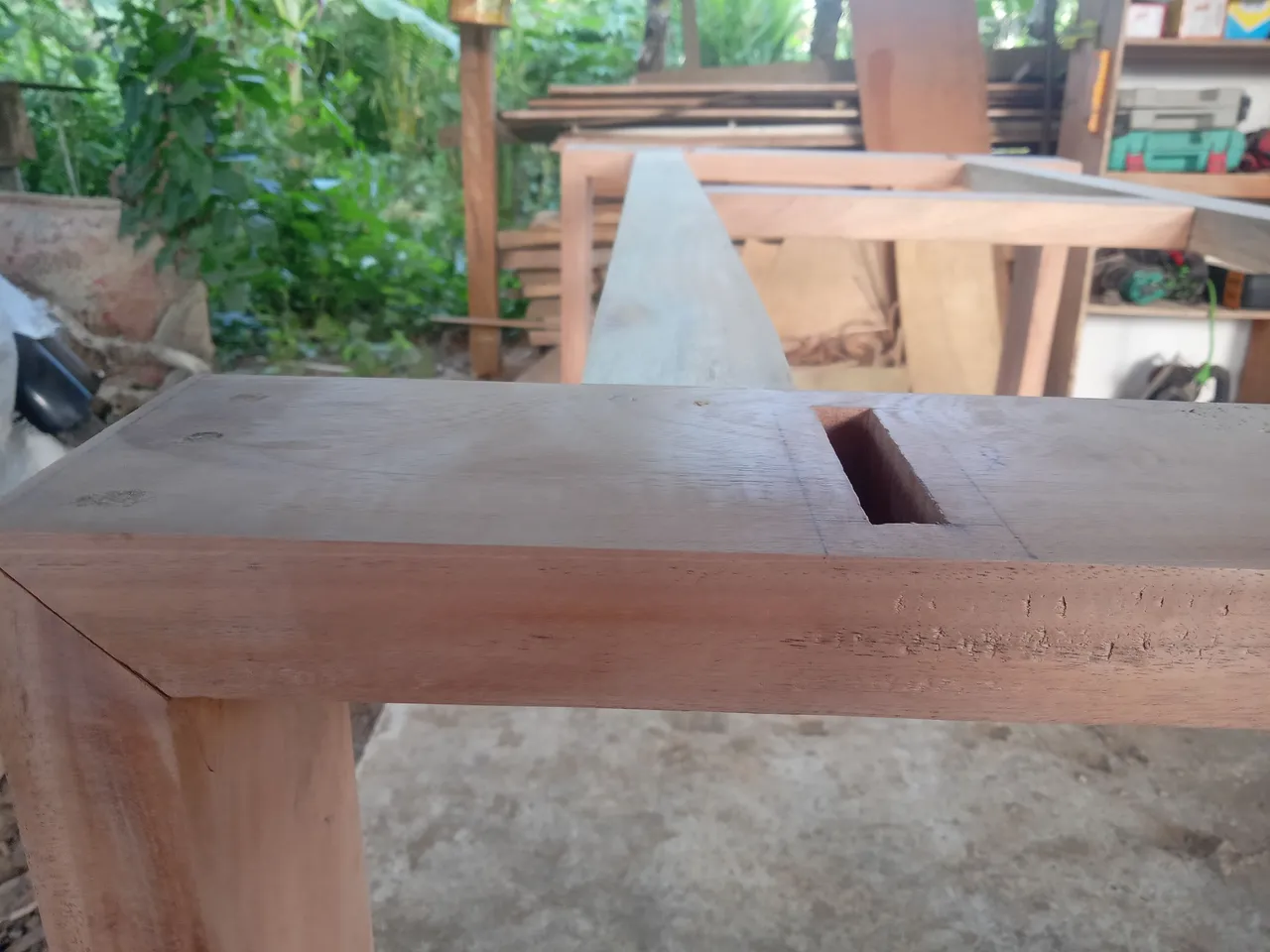

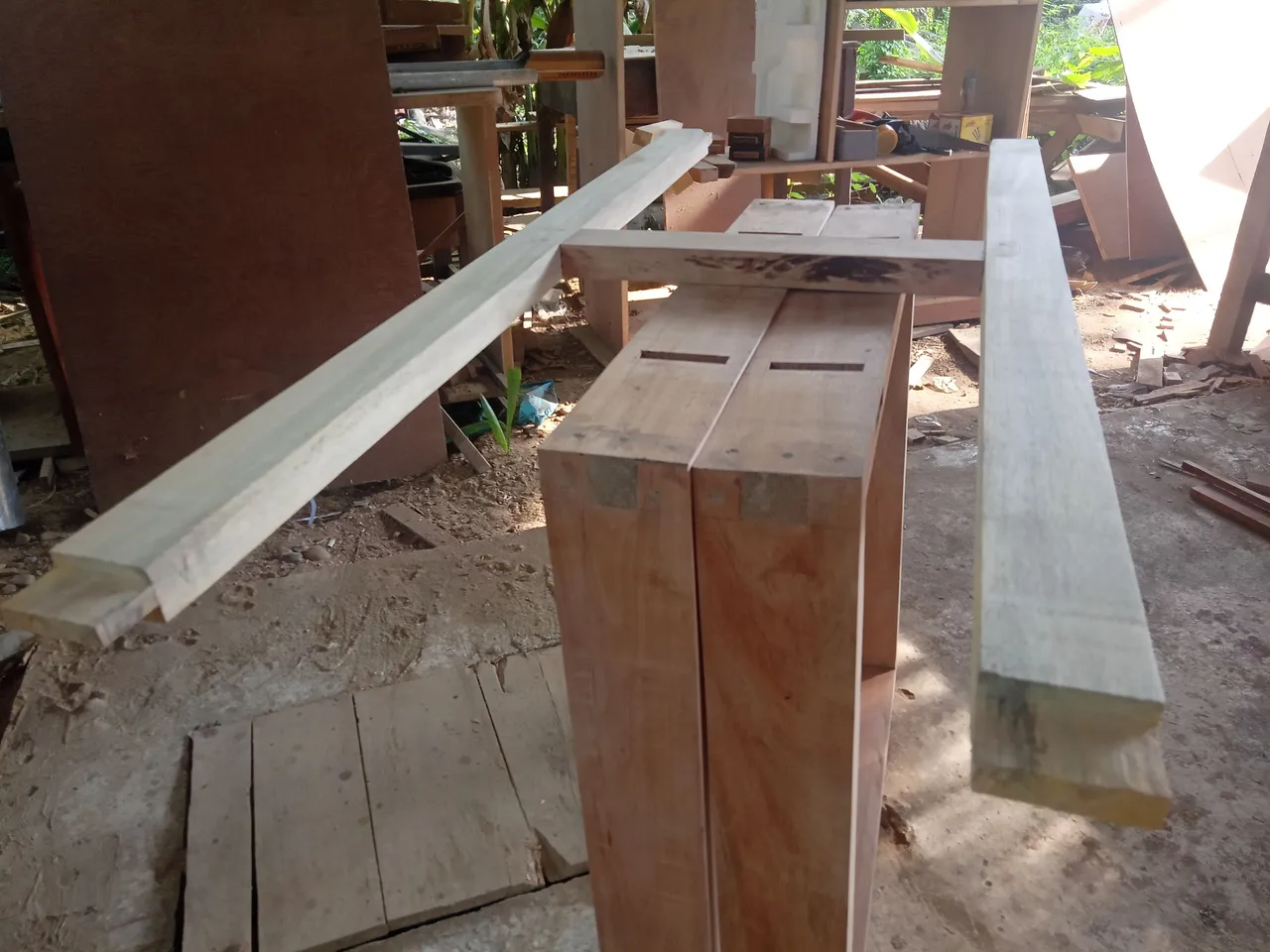

After I made the connection, I didn't assemble it right away because I had to make a hole in the top side of the leg as a connector between the left and right legs and also the top side as a connector between the table leg and the table floor.
And also I prepared wood to connect the 2 legs of the table with a size of 6cm x 3cm x 126cm in this case the additions and subtractions must really fit so that the size results are as expected, the size for the distance between the outside of the right and left legs of the table is 140cm then the wood for the connection must be 126cm long because 3cm from the two ends of the wood is made as a peg which will later enter into the hole that I have made, the remaining 120cm will be added and the size of each leg is 10cm so that the overall result is 140cm.

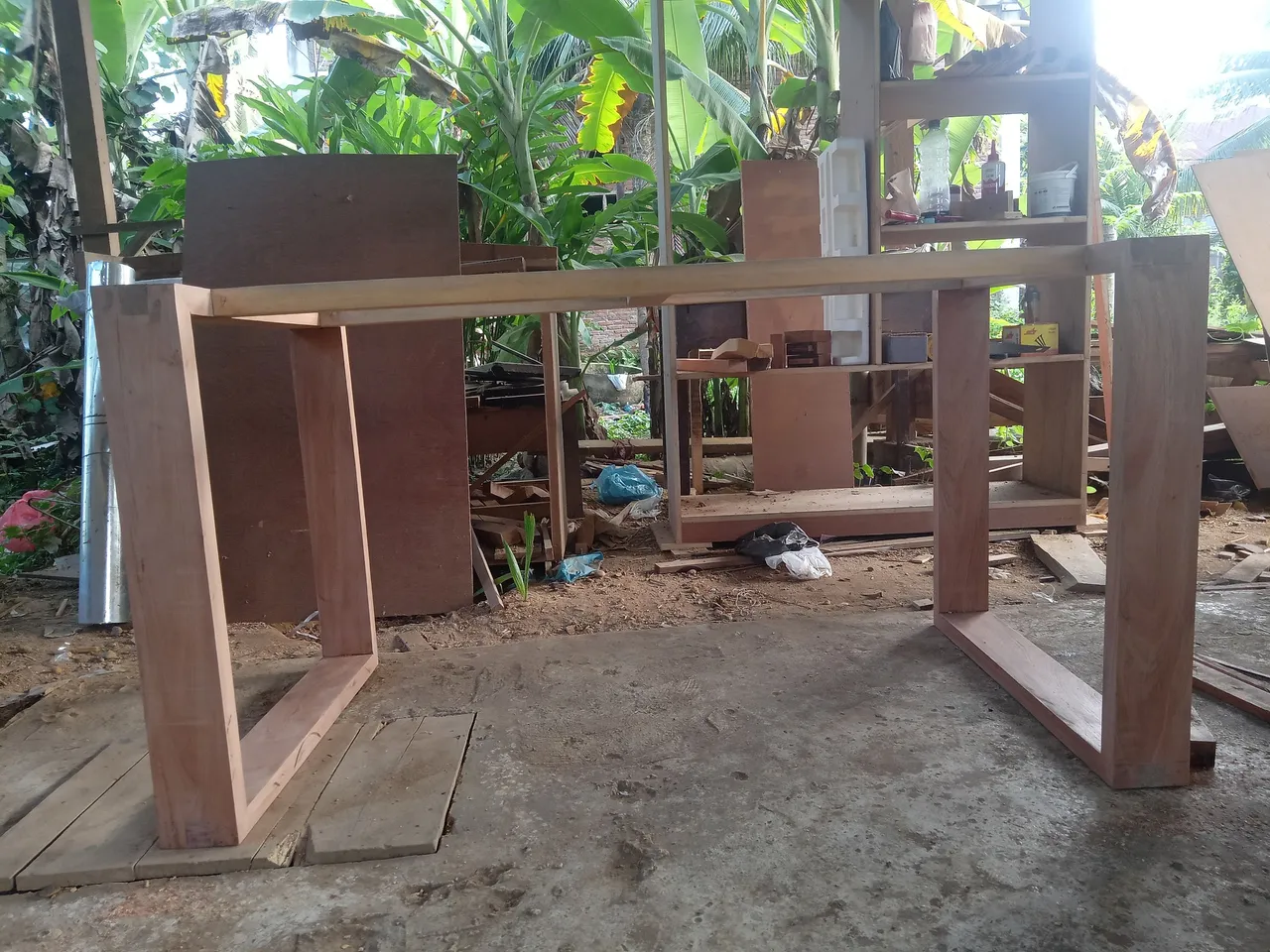

After I have prepared everything, then I assemble and connect the two table legs and don't forget to apply glue on each peg and connection.

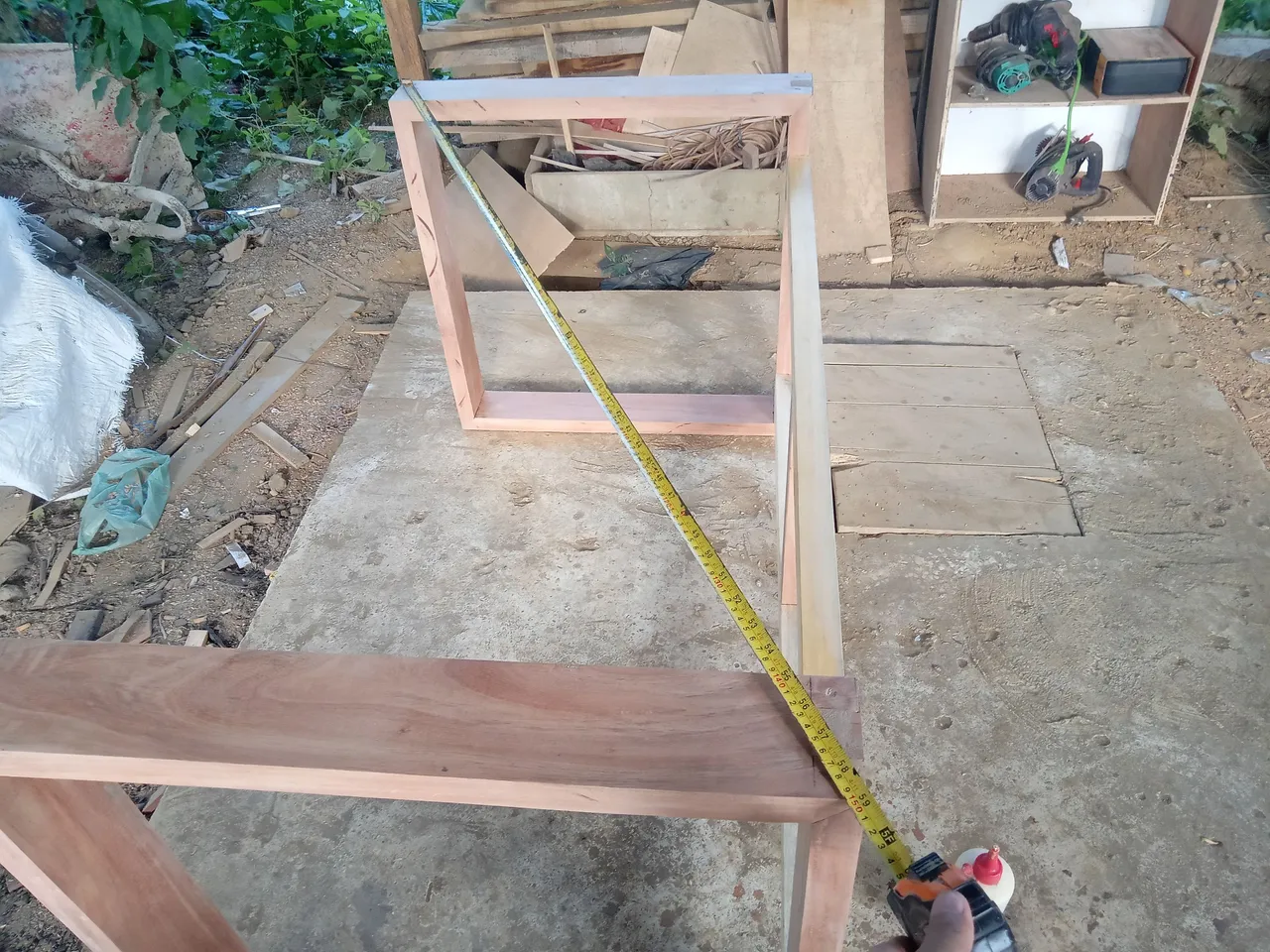

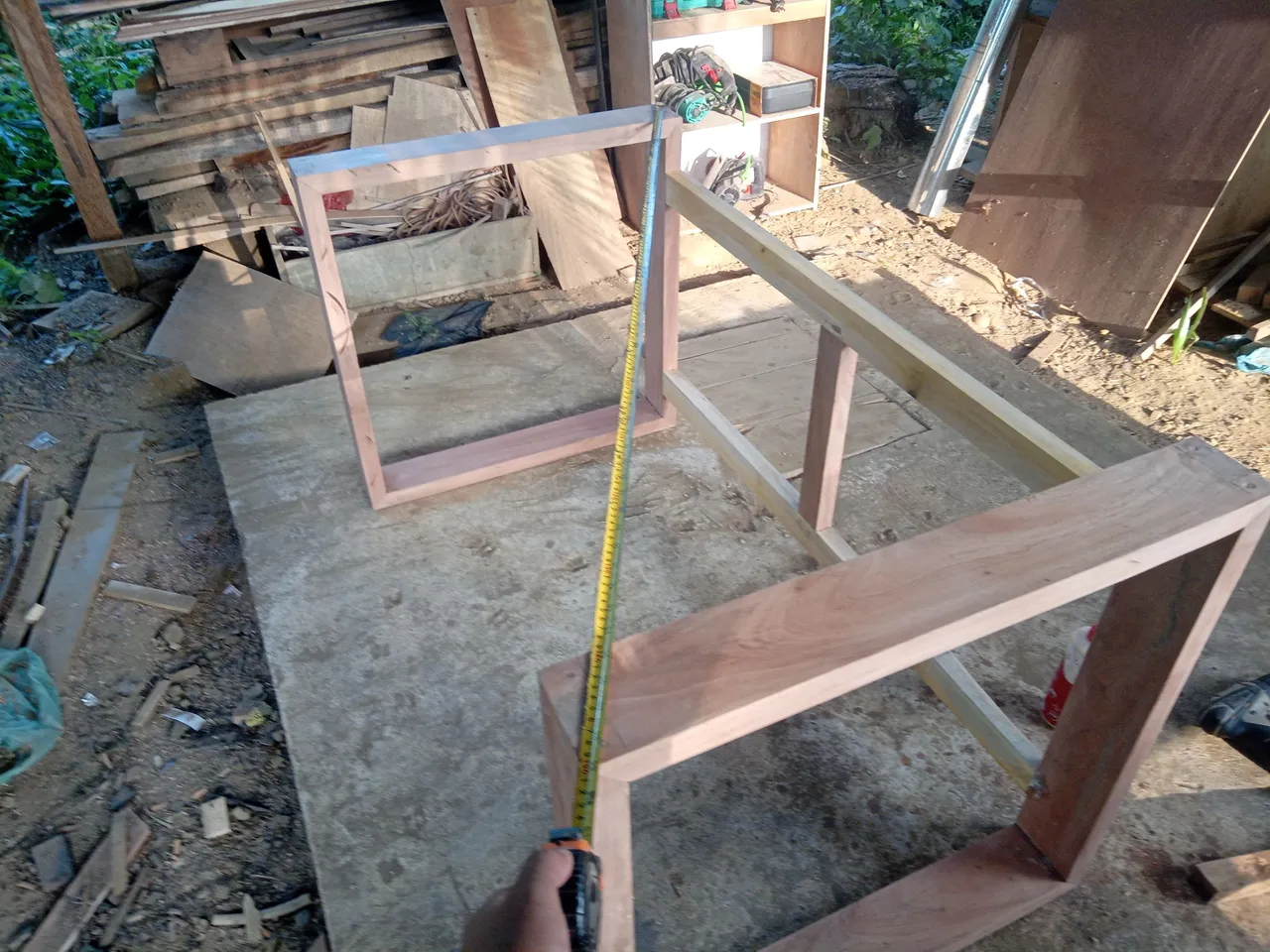

After I assembled the two legs, I made sure whether they were precise or not by measuring with a meter from the top left to the bottom right and vice versa, in the form of an x, if the size was the same, then it was precise, that's how to measure it.

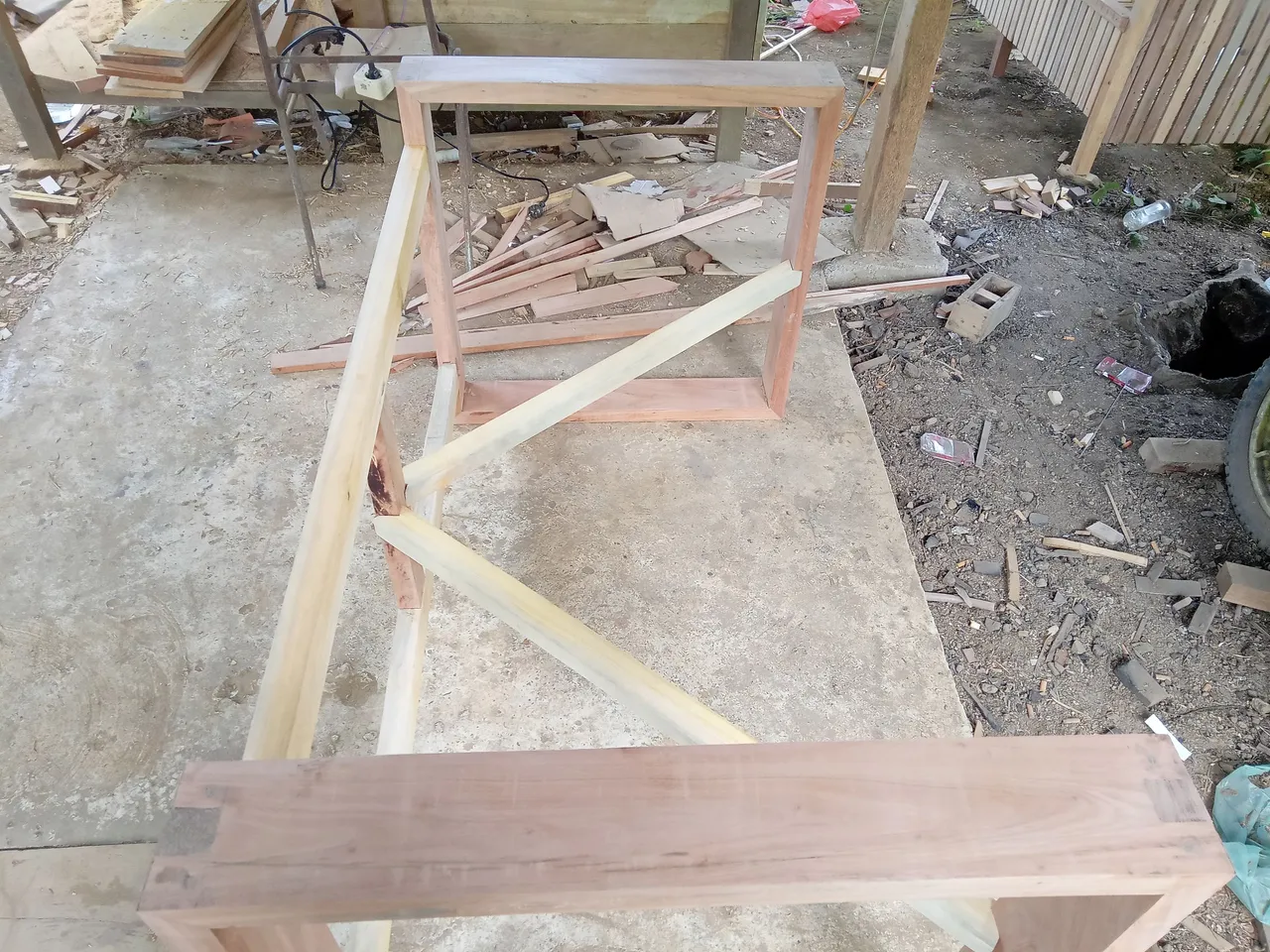

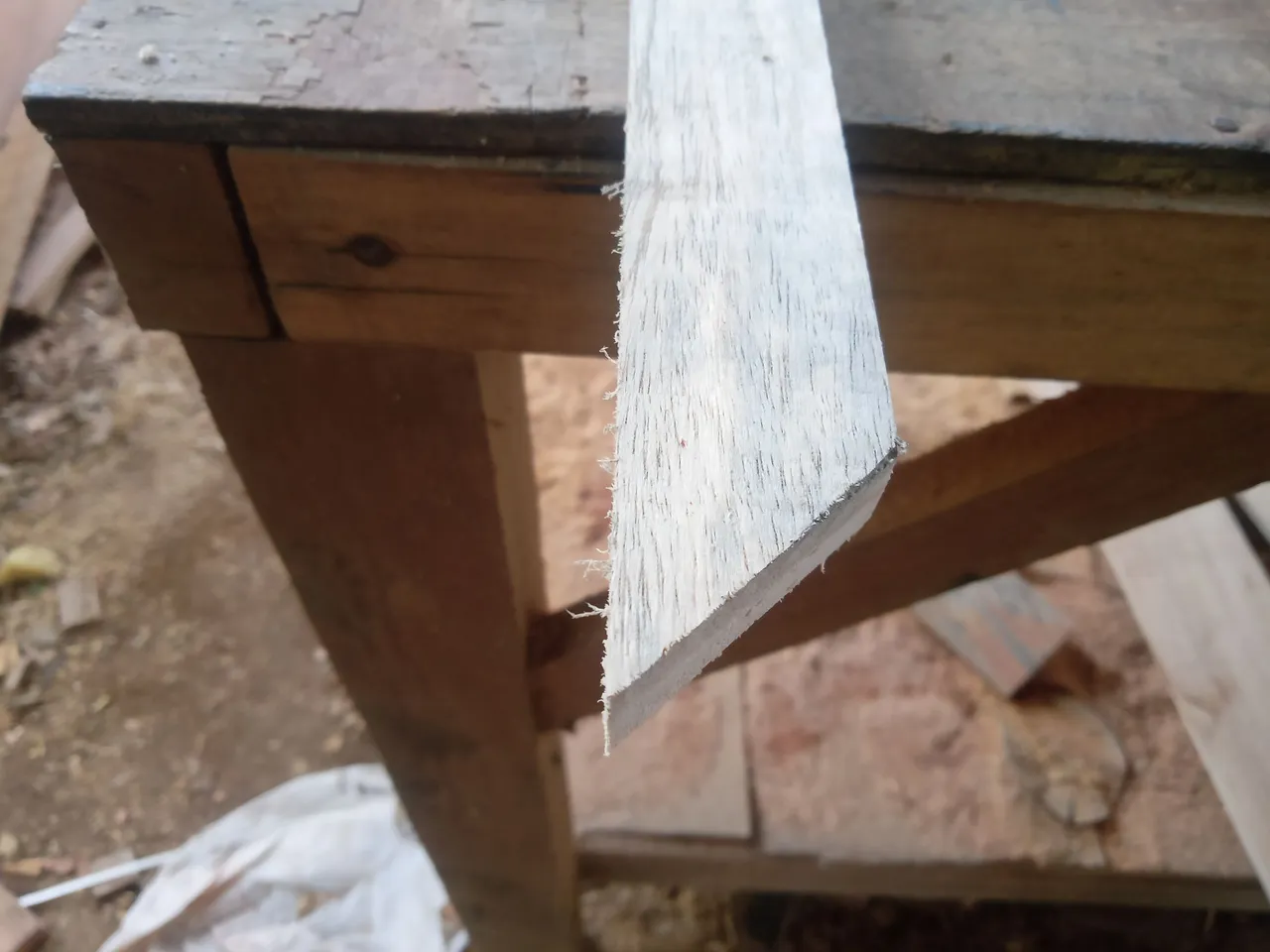

Then I added a support as a holder so that the table is more solid and strong from each table leg connecting to the wood that connects the two legs, shaped like the letter A.

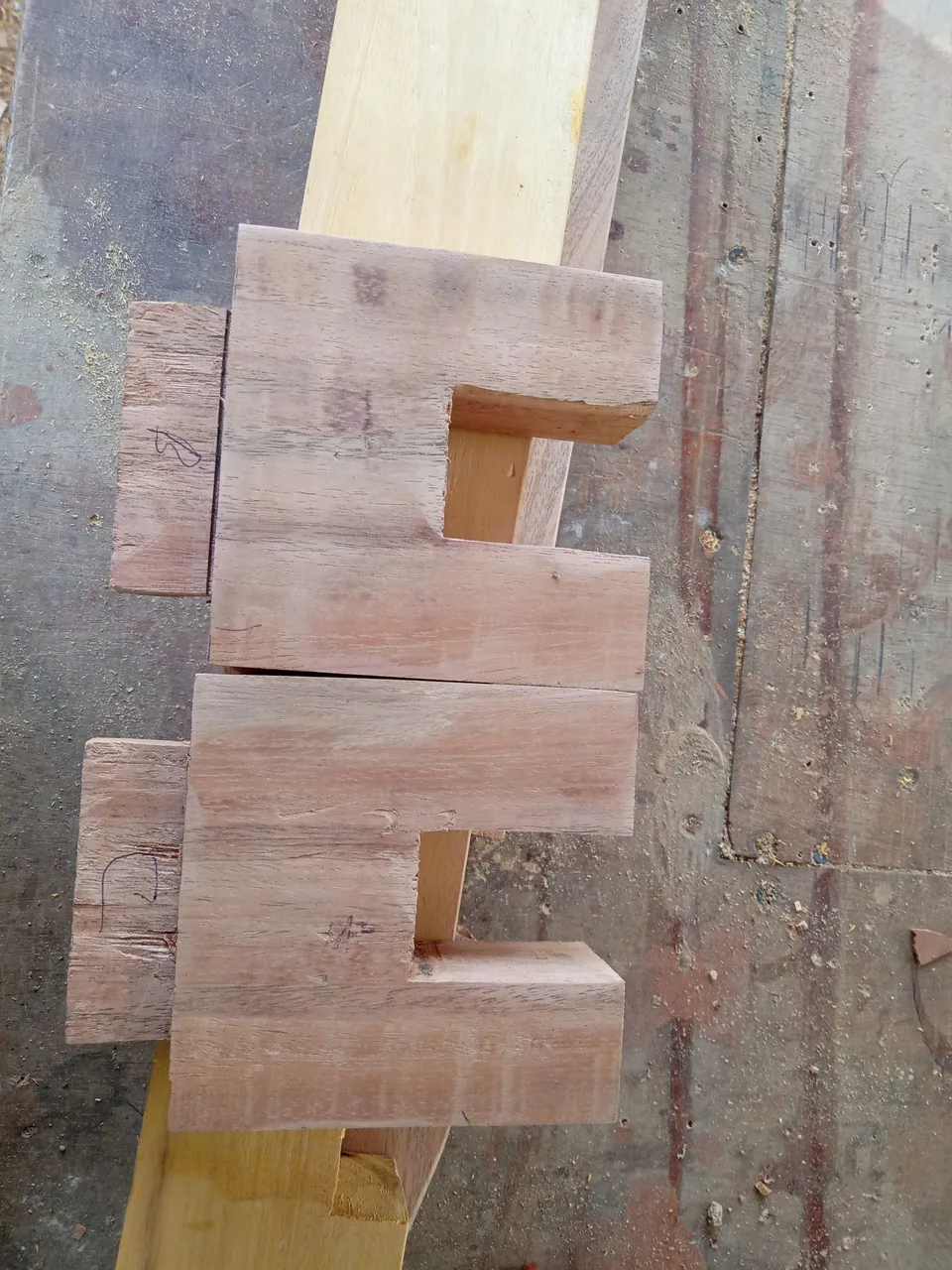

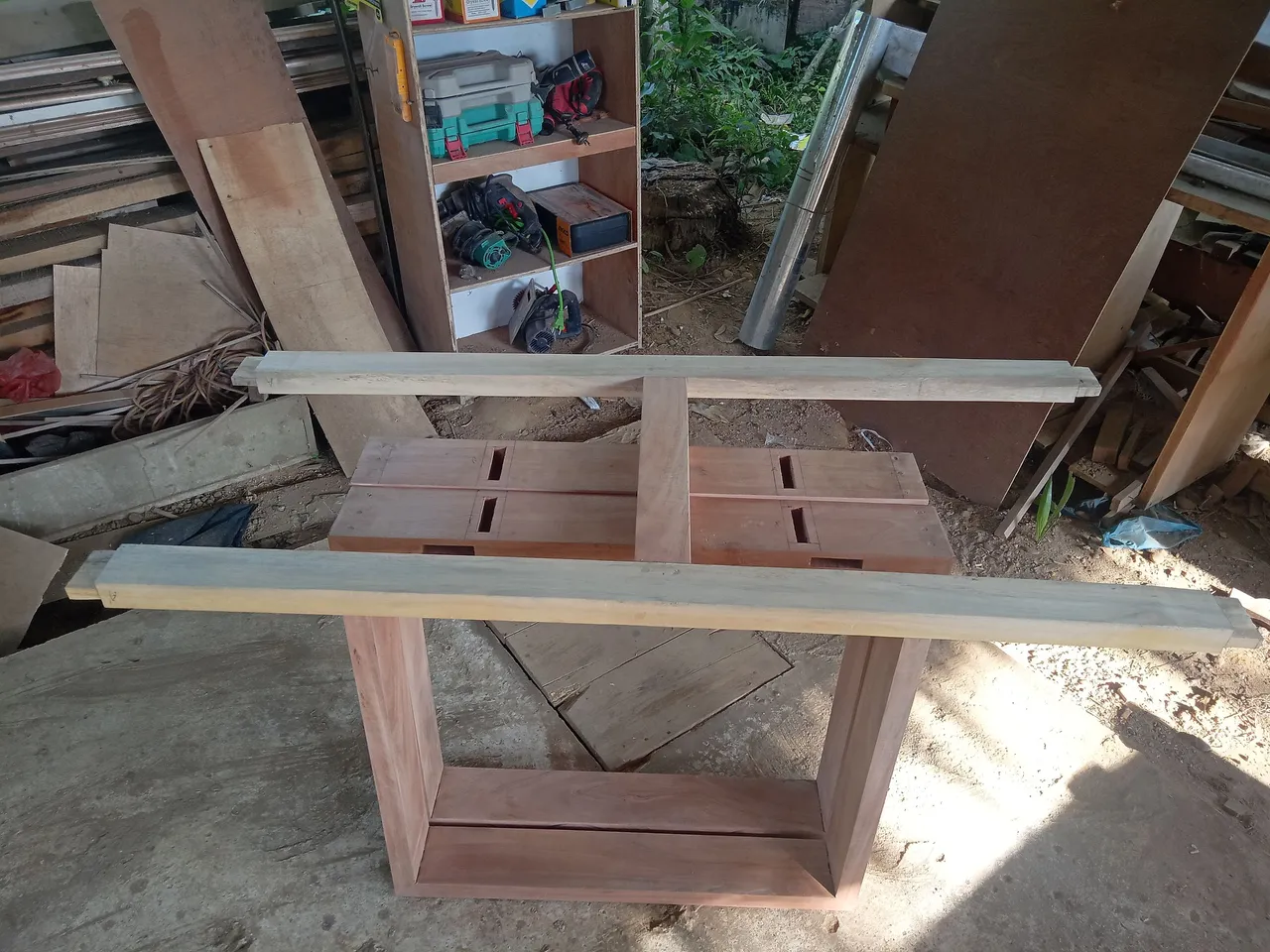

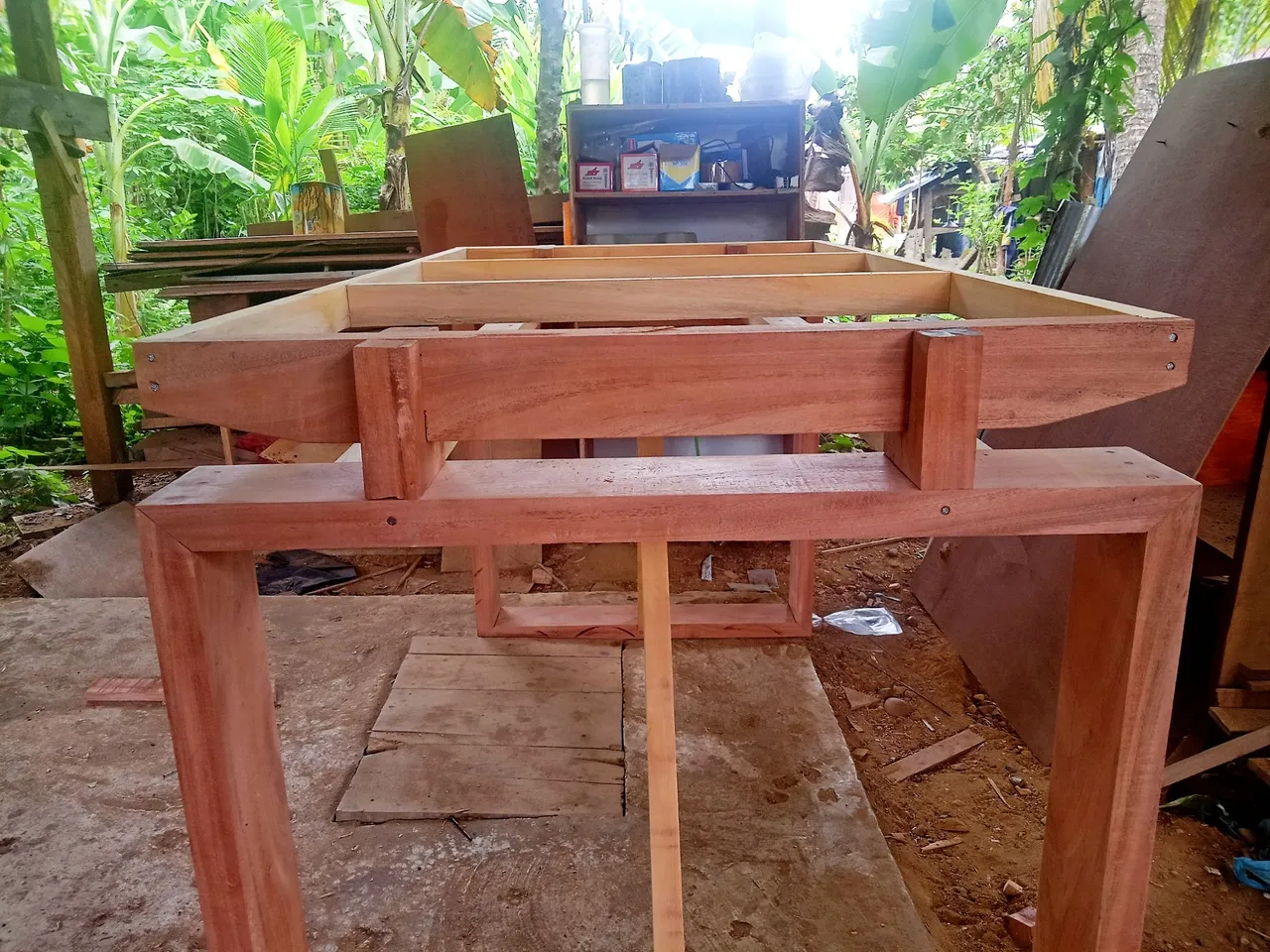

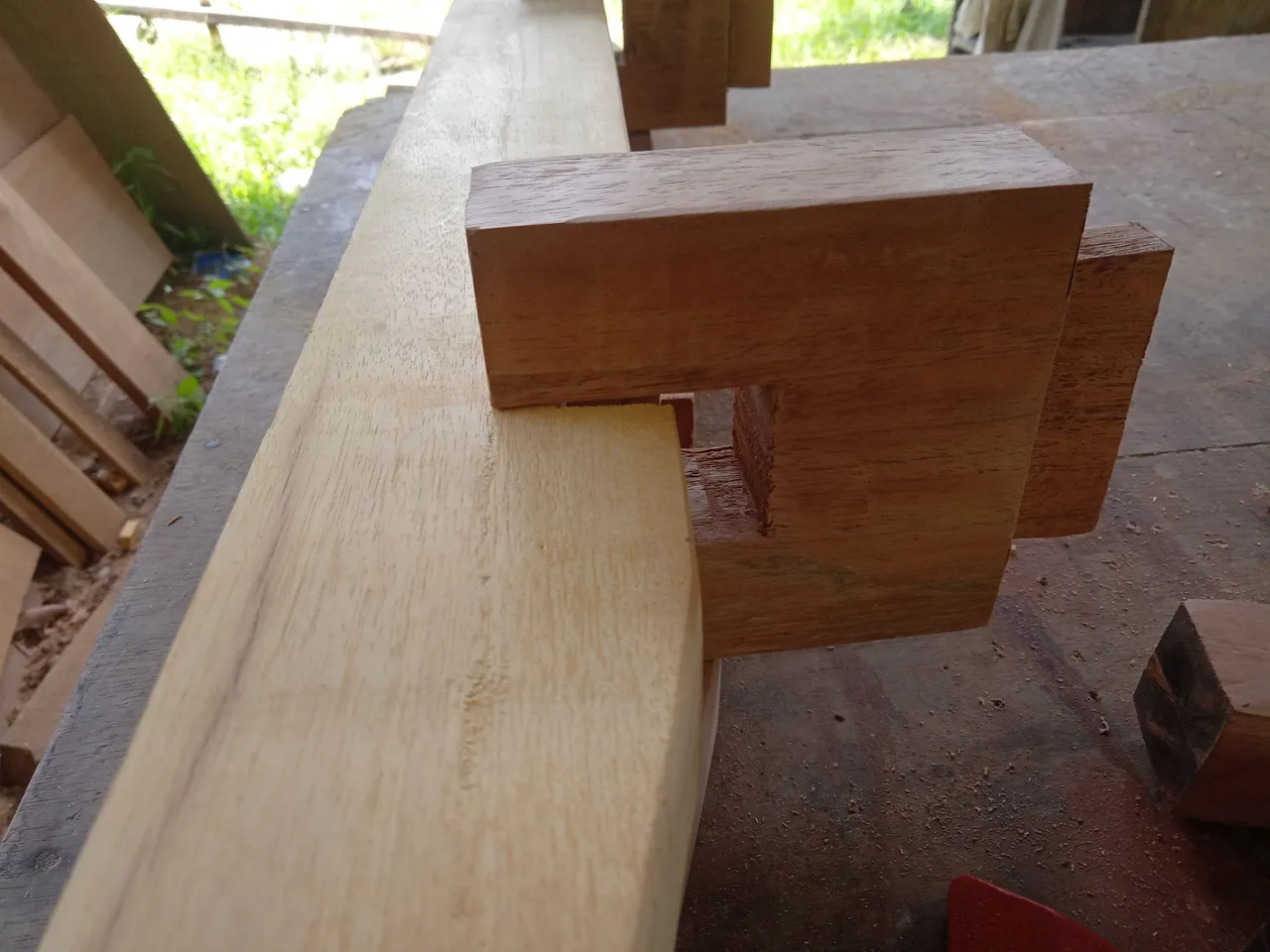

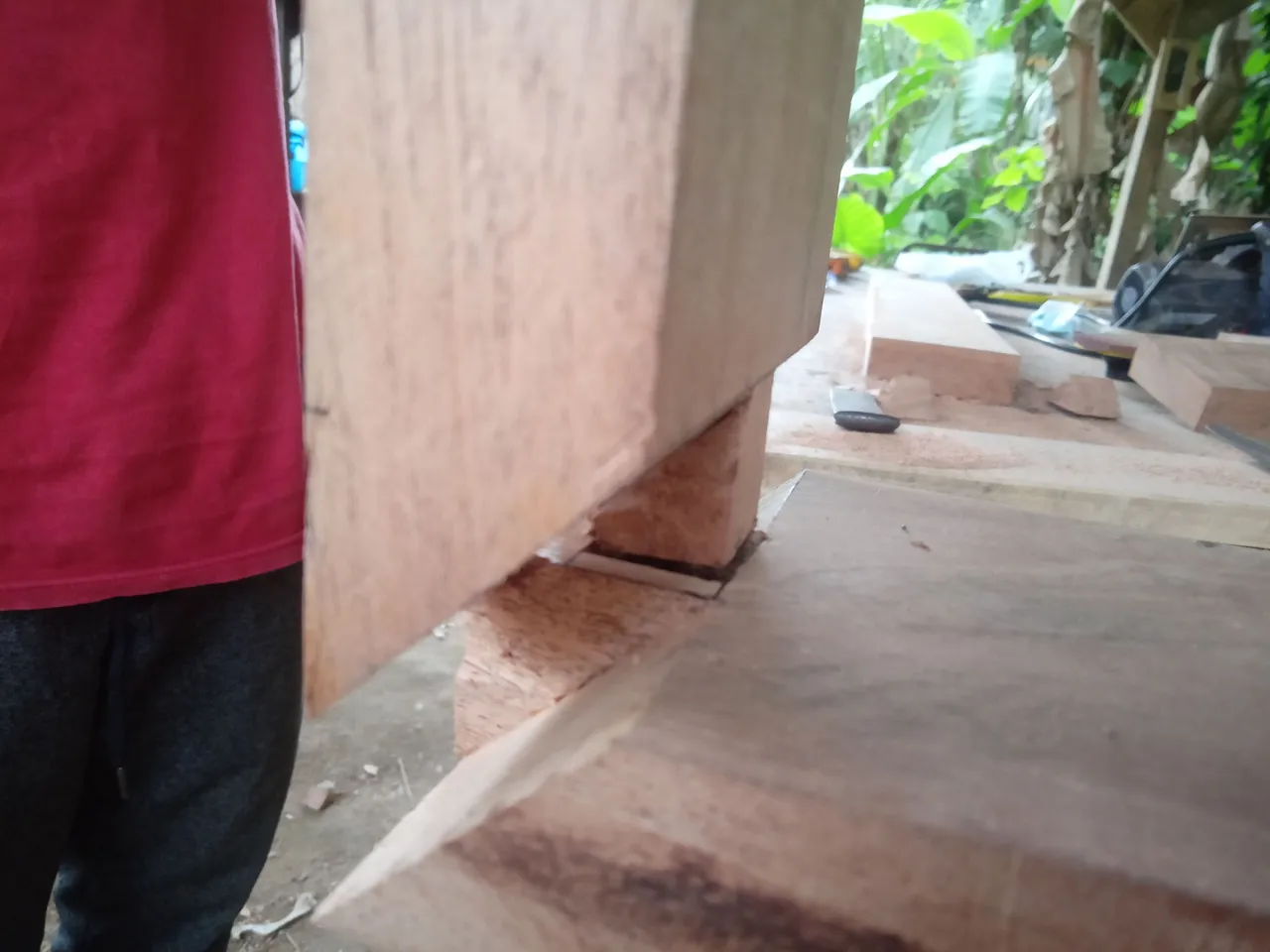

Then I made a connection between the legs and the base for the table floor using wood that is the same size as the legs but only has a length of 12 cm because 2 cm of 12 cm will go into the hole as a peg.
Then I will unite the wood with the base wood for the table floor measuring 7cm x 3cm x 70cm equal to the length of the table legs.

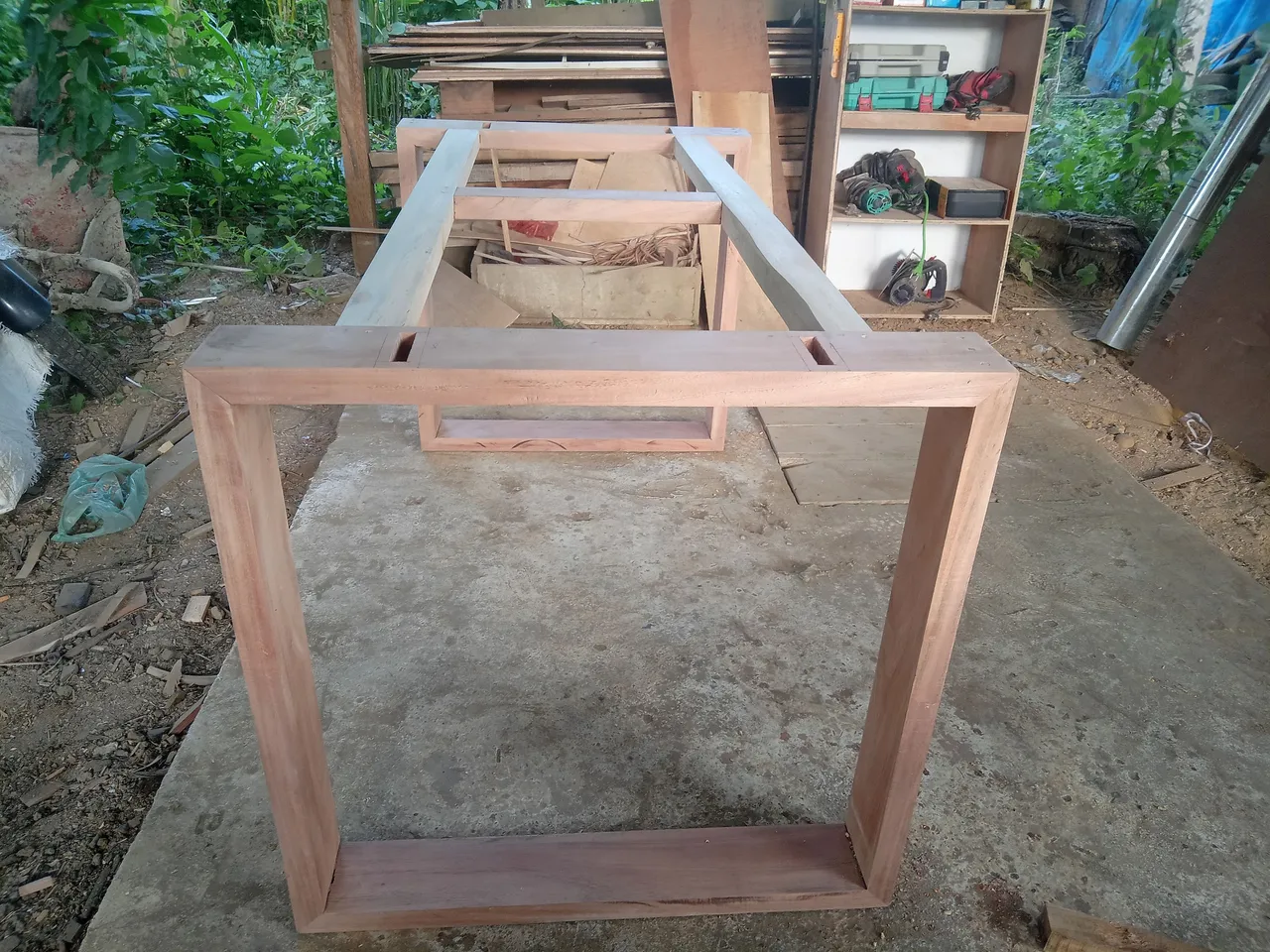

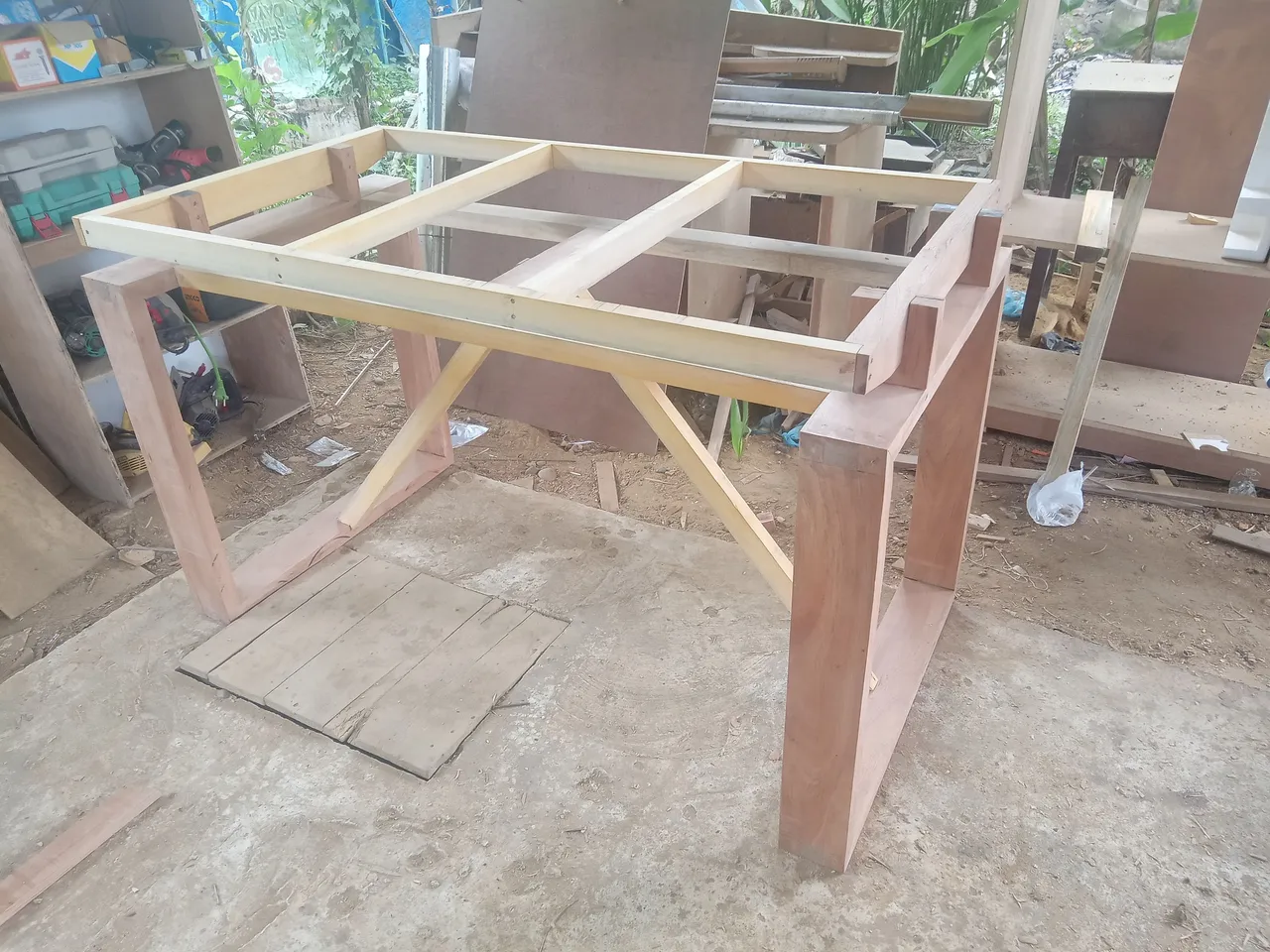

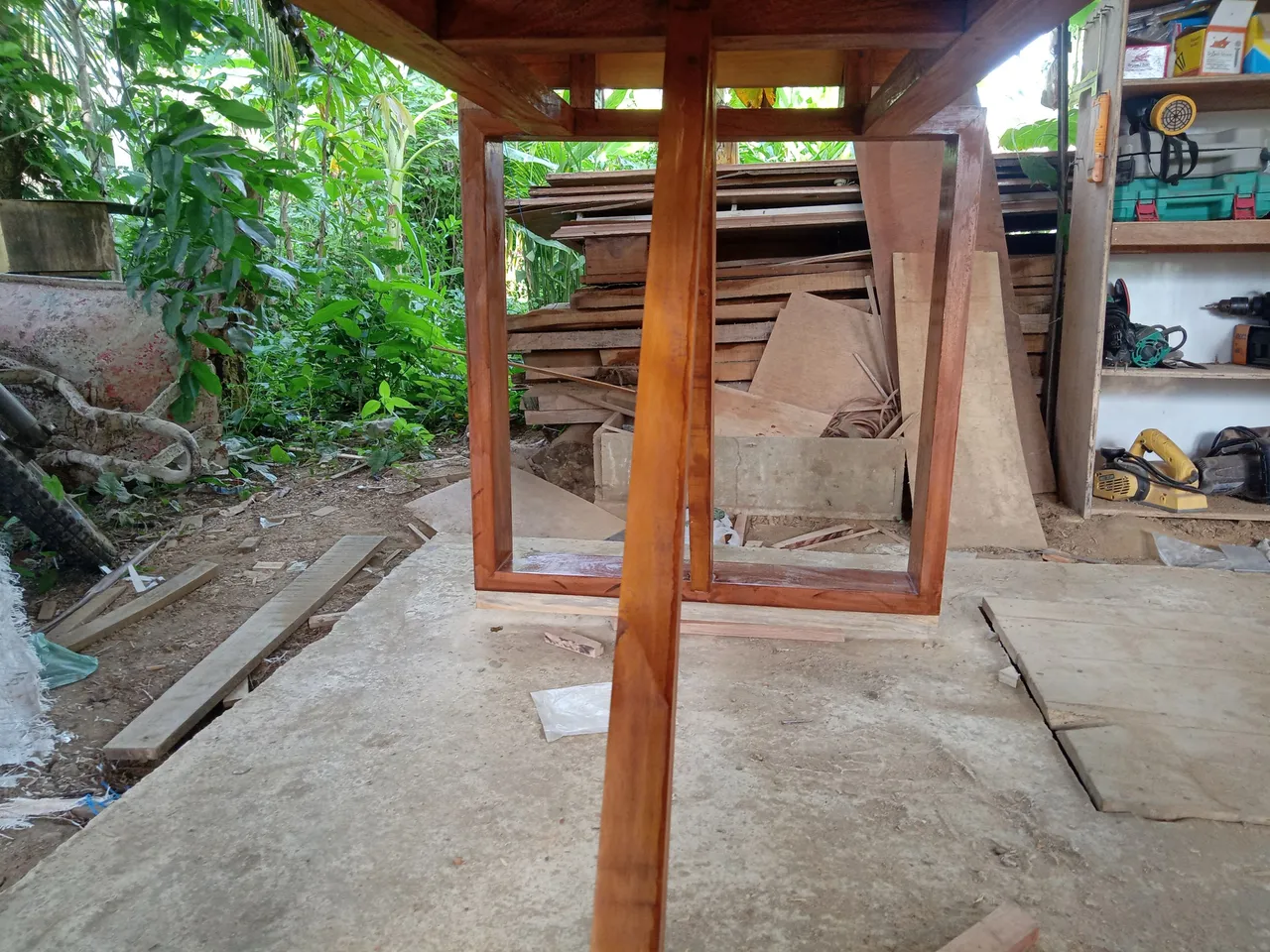

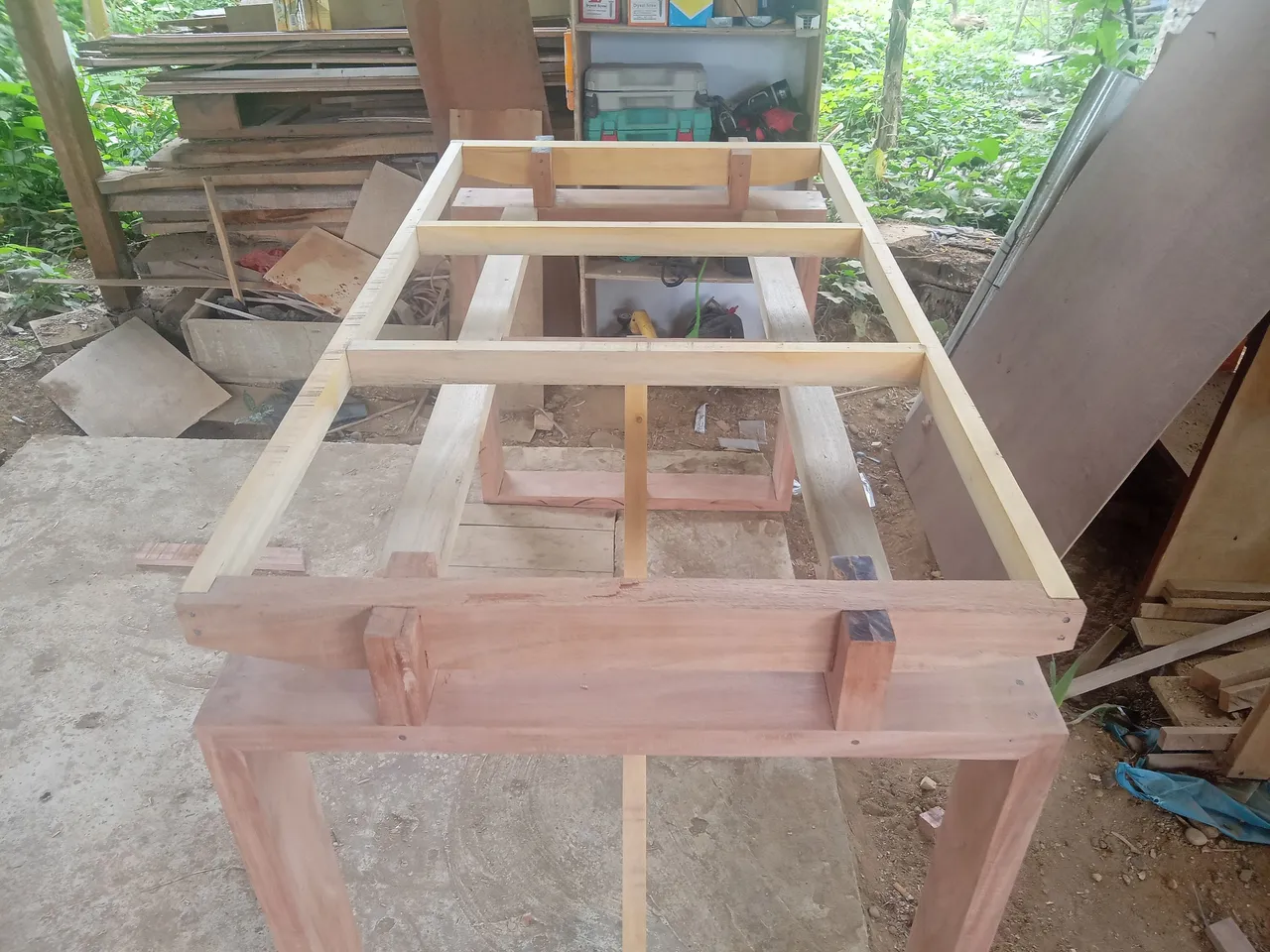

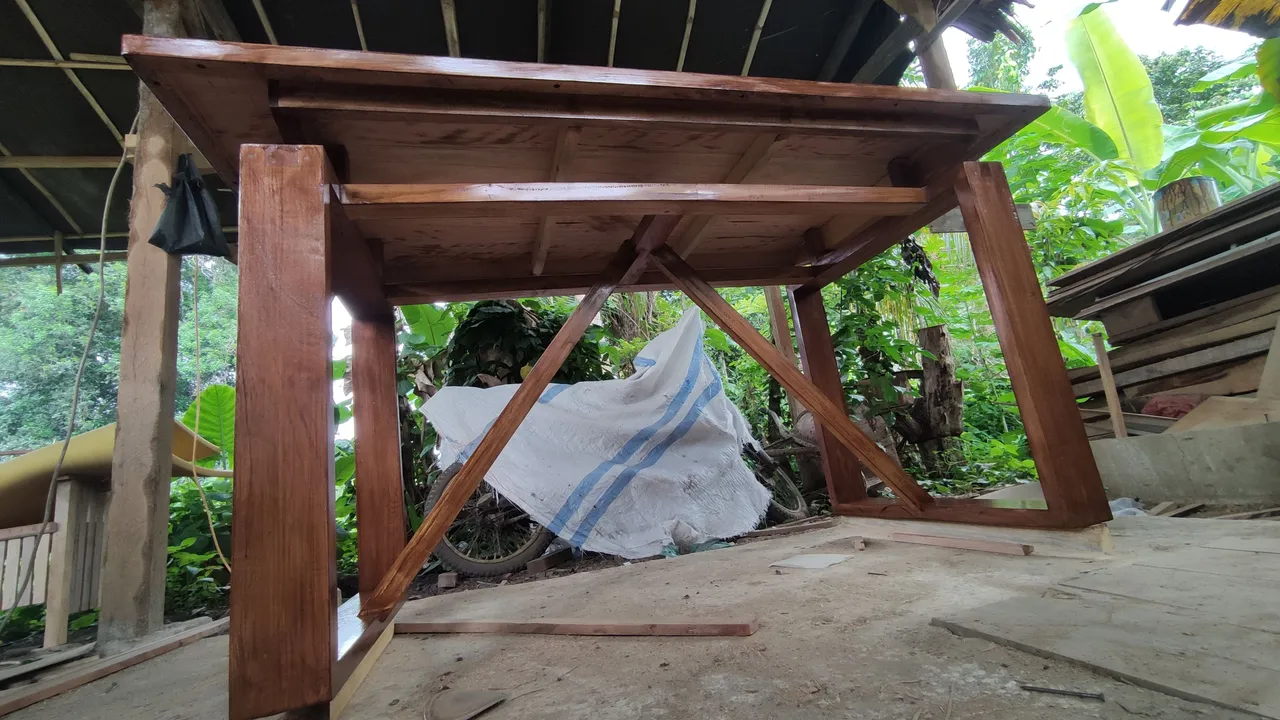

Then I joined the two woods with the left and right table legs and then added wood that connected the left and right pedestals as a support for the table floor.

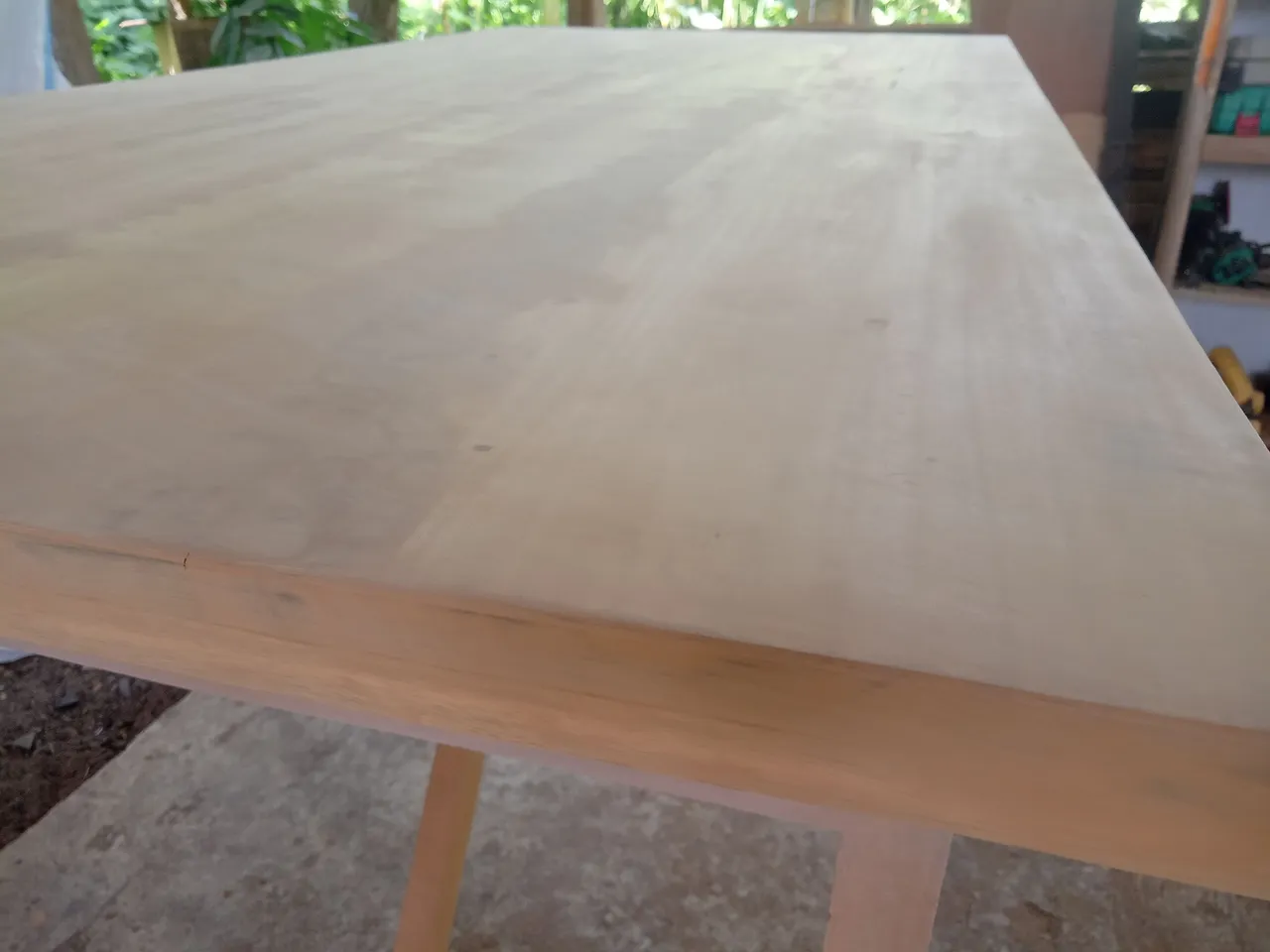

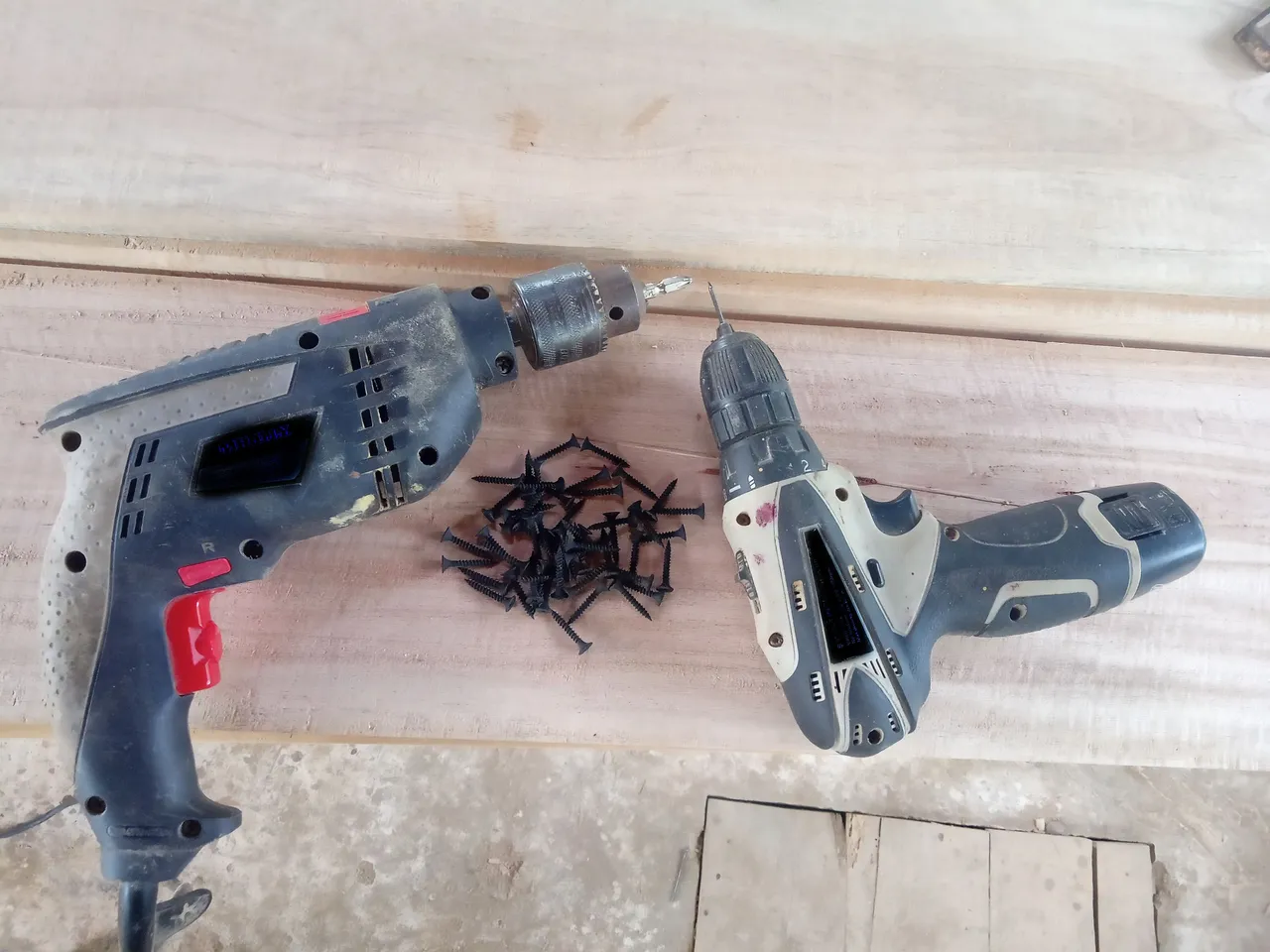

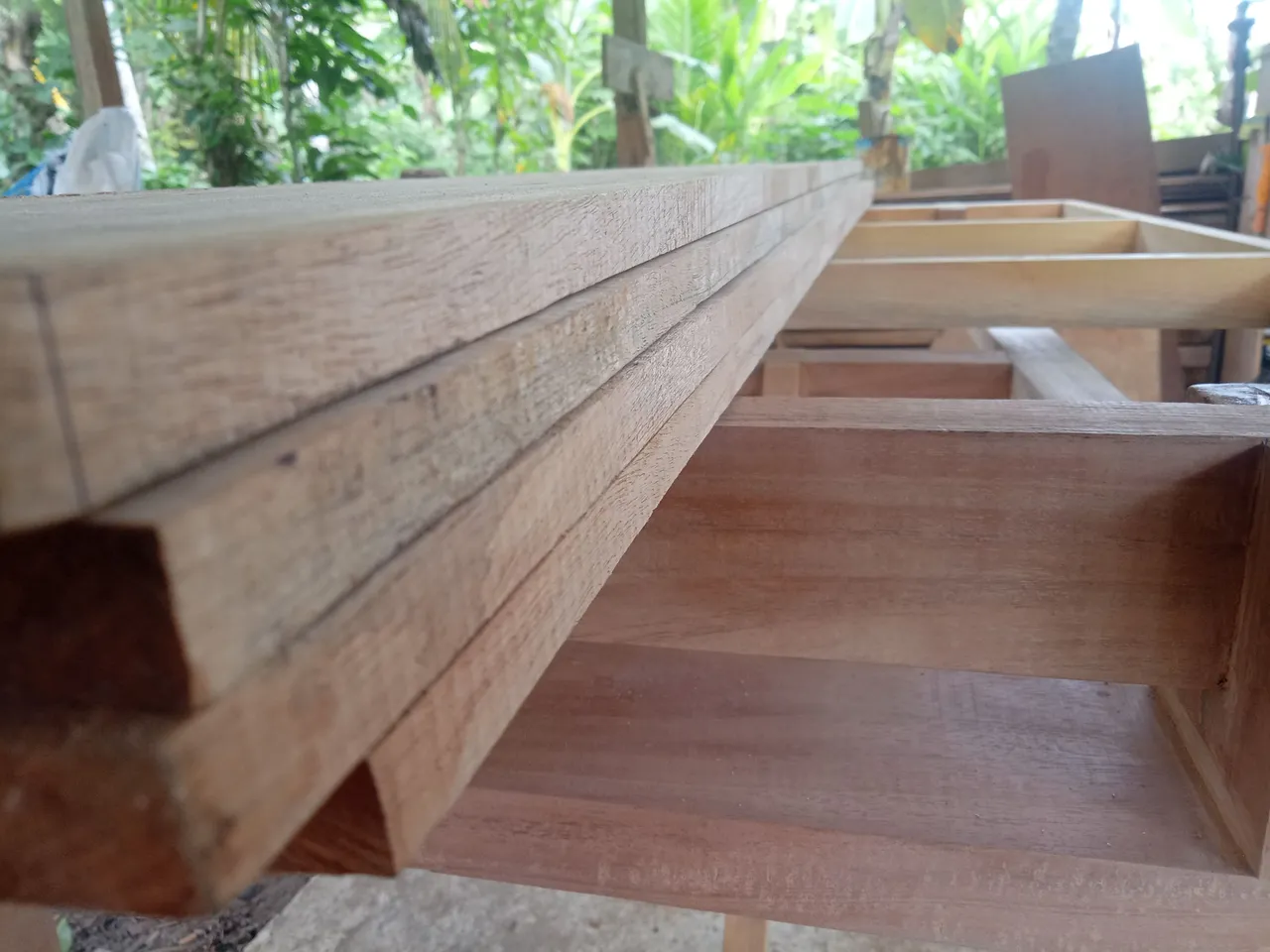

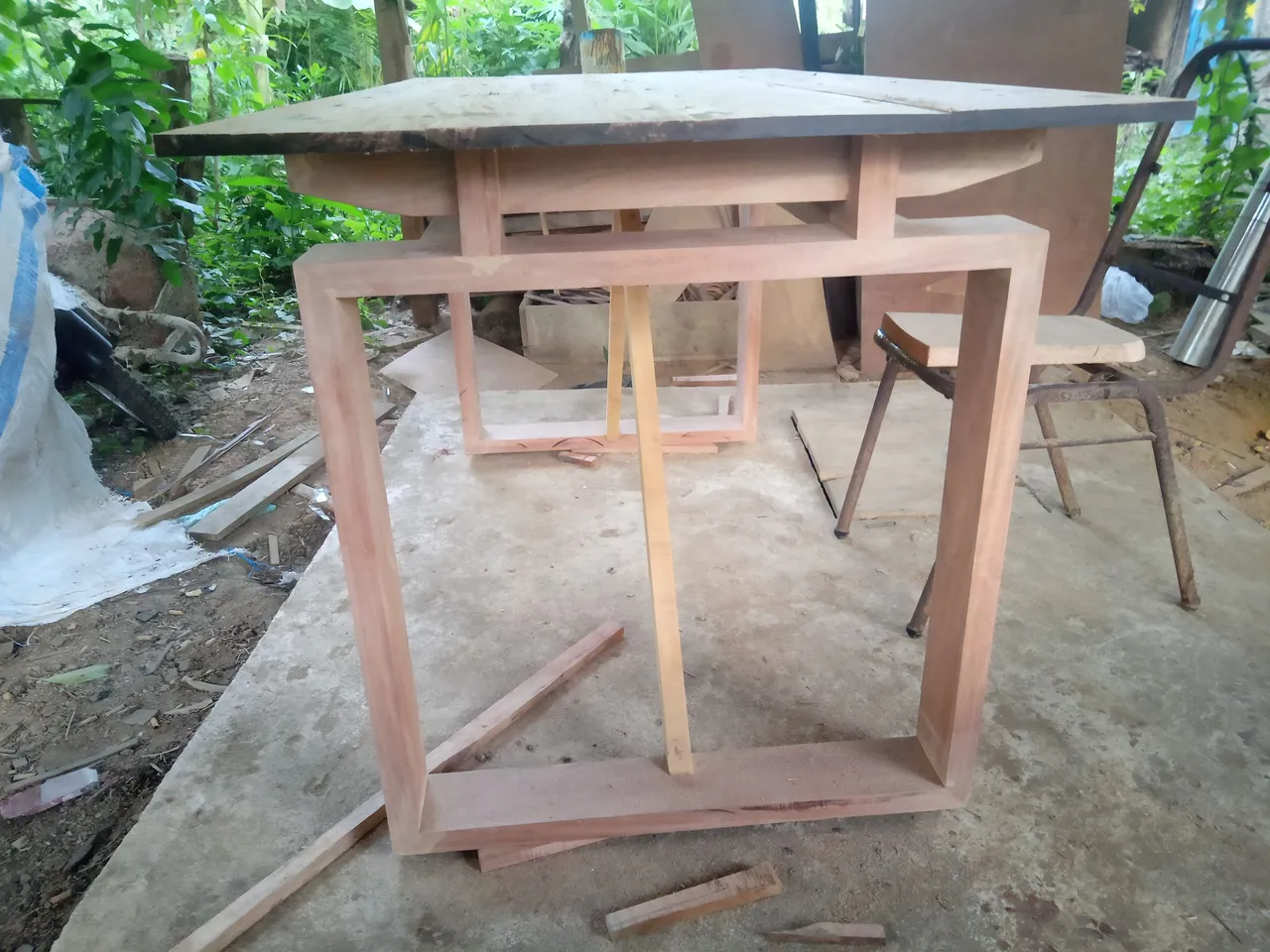

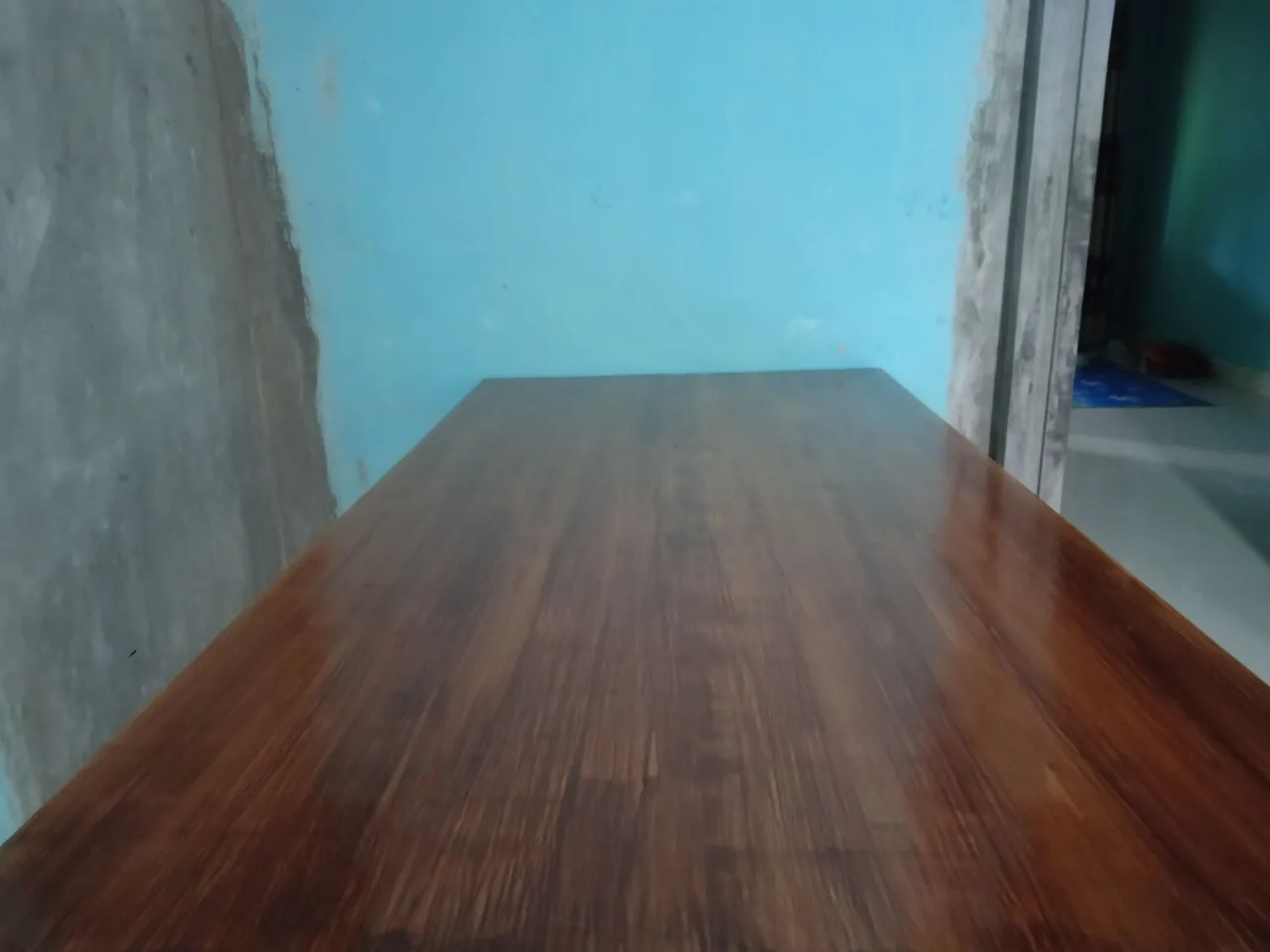

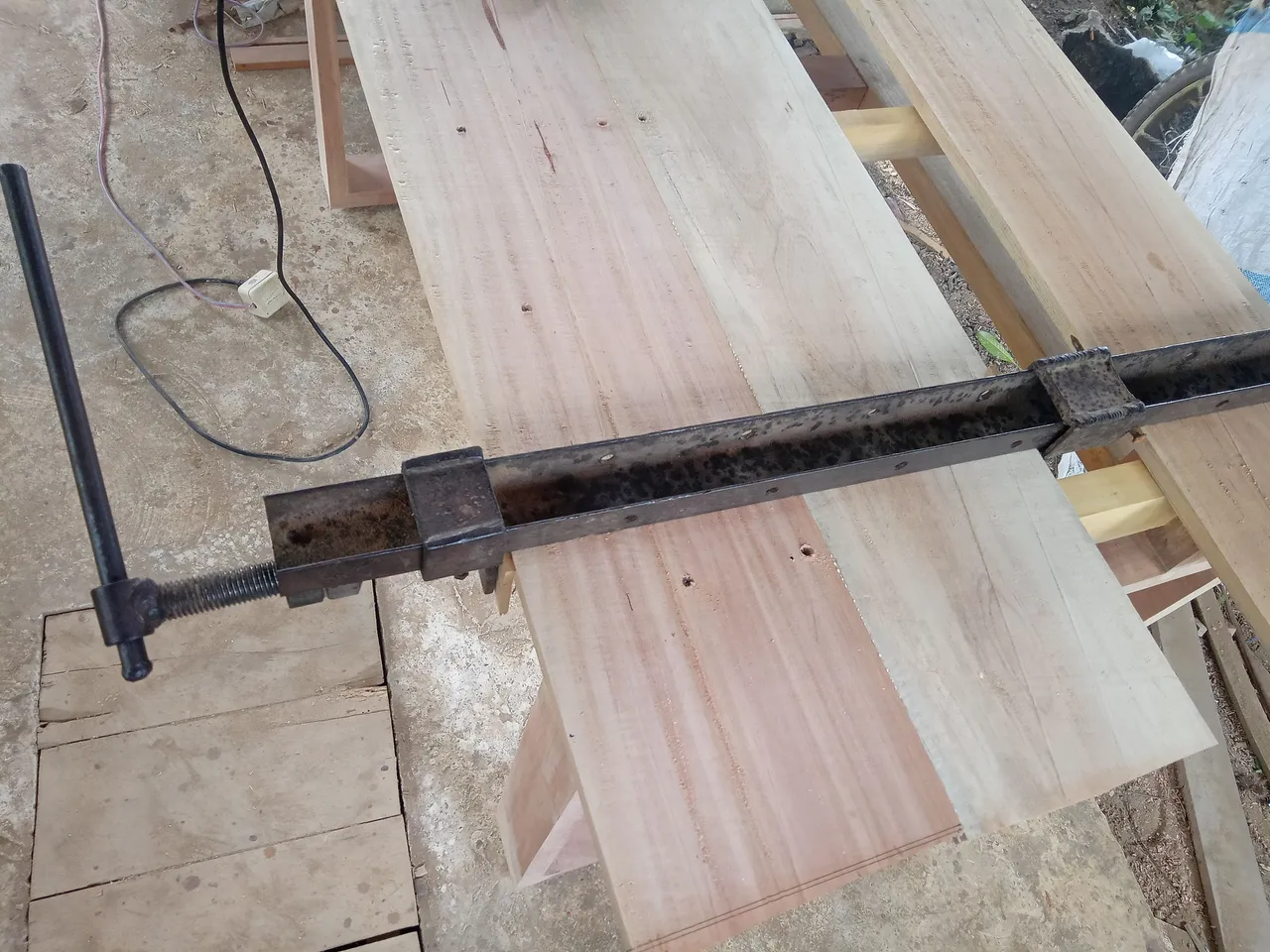

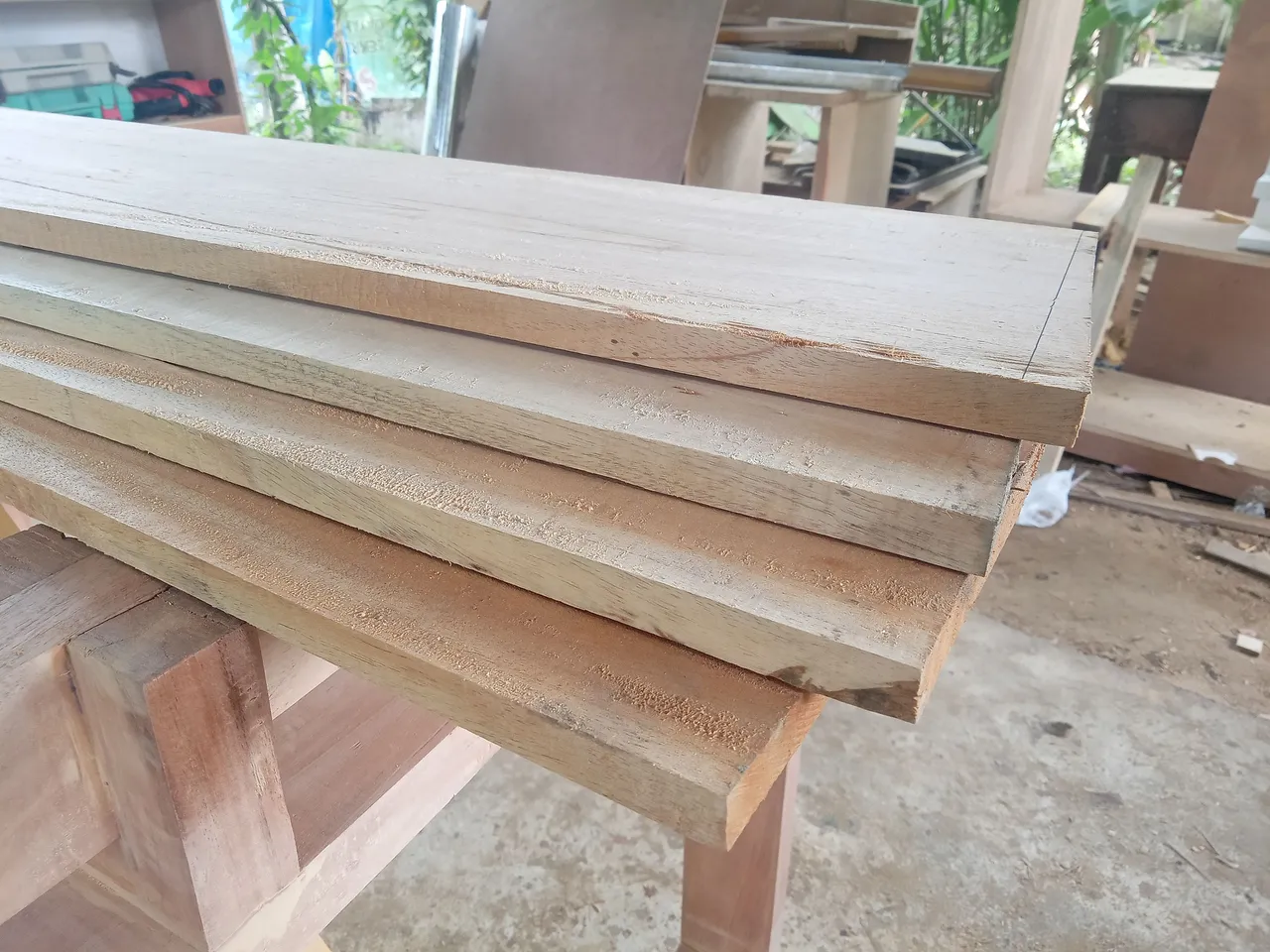

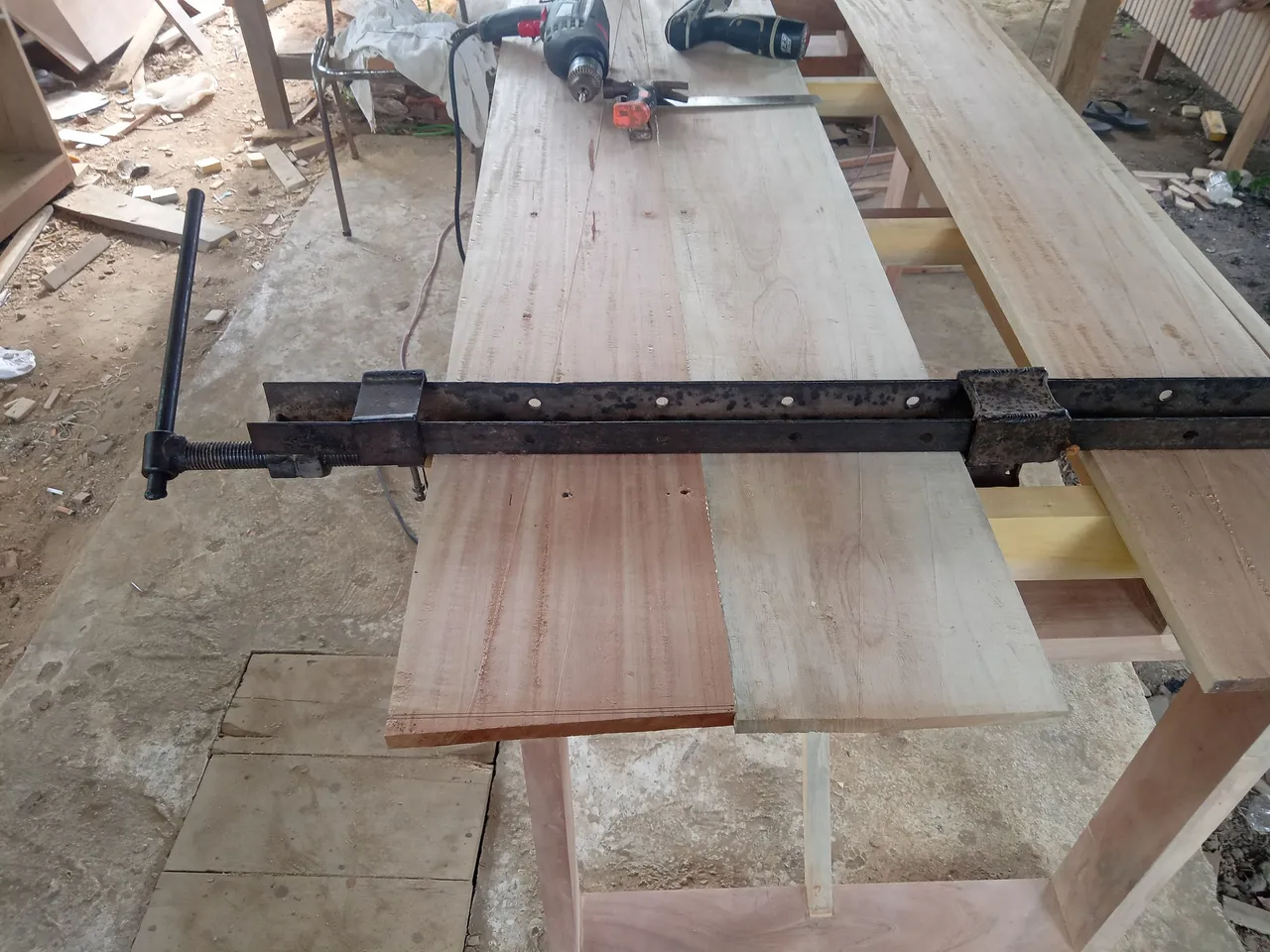

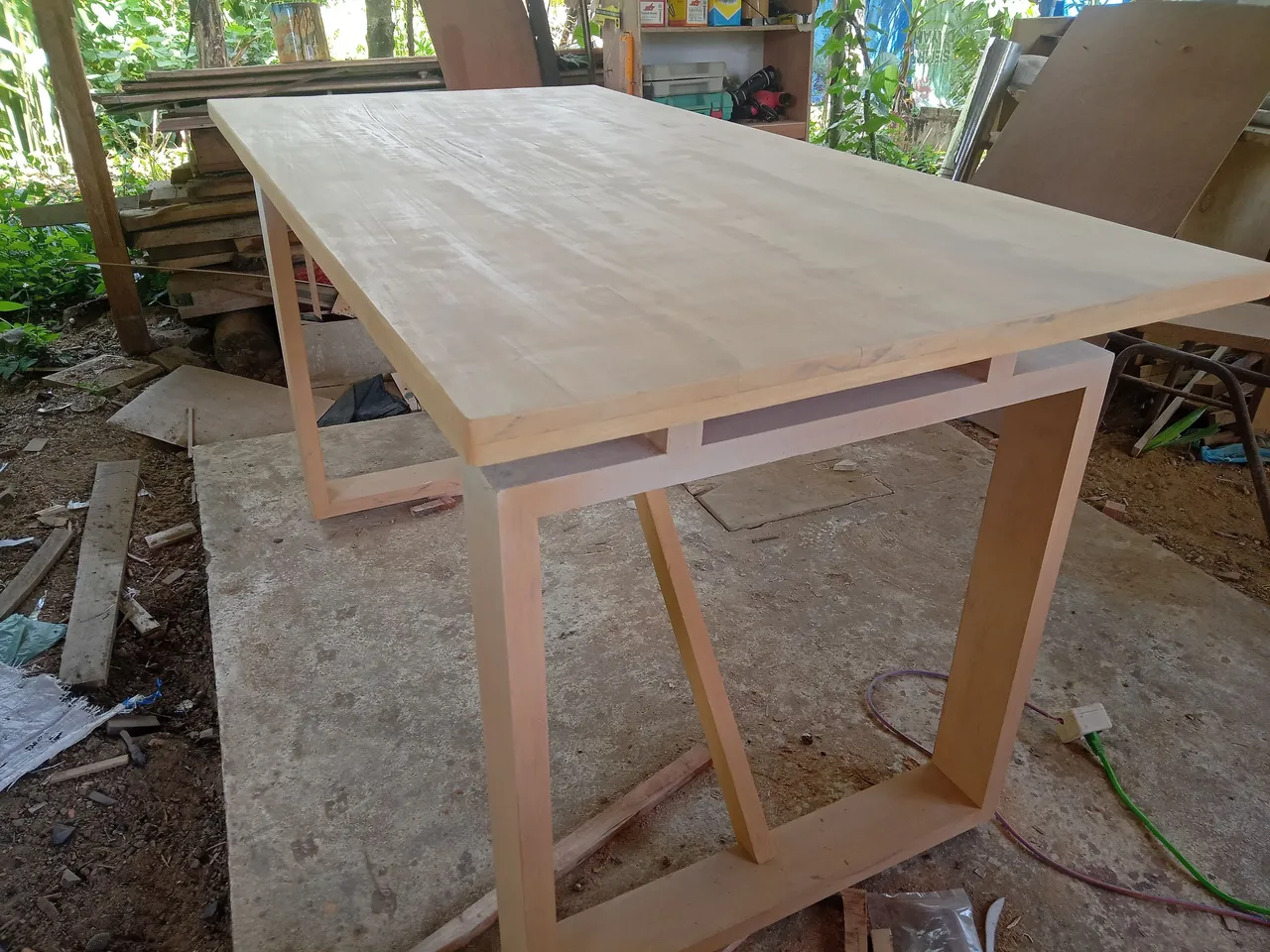

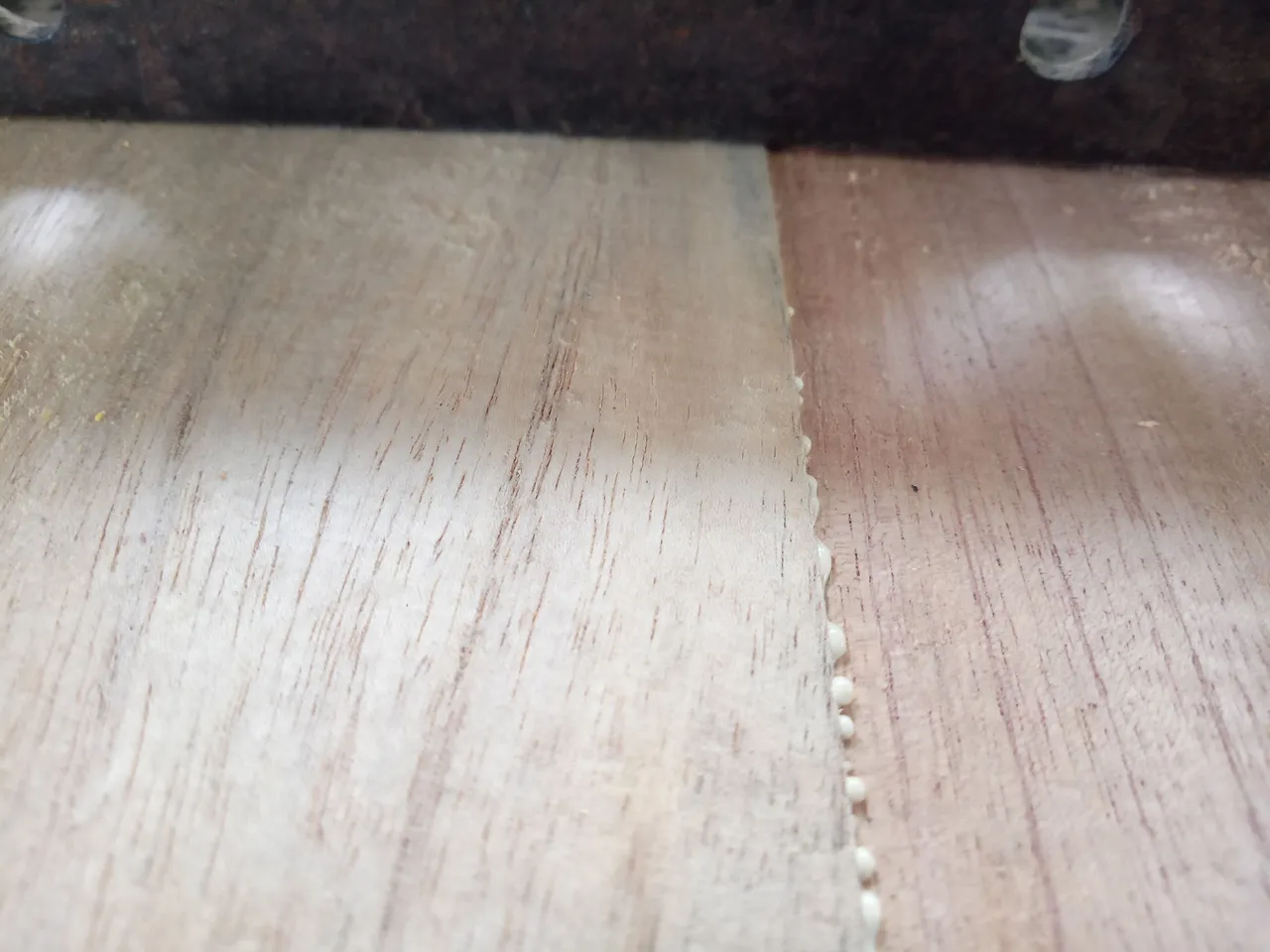

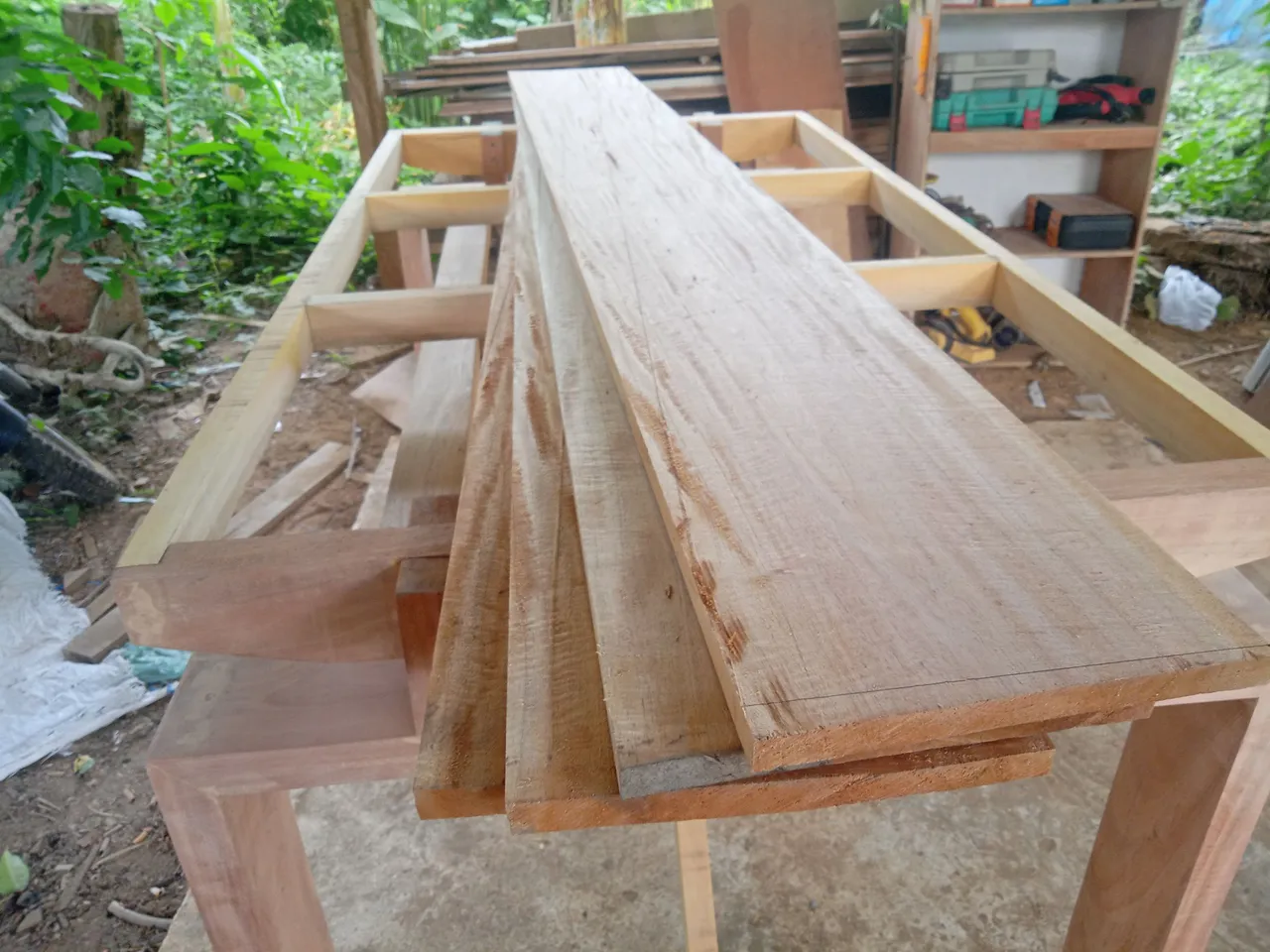

After all that was done I started the process of installing the table floor, I used 4 pieces of wooden boards measuring 20cm x 2cm x 160cm so that the overall result was 80 cm according to my design, for this screwing process I used 2 hand drills the other to make holes first the other to screw and use a press so that the board is tight.
And for the installation of this floor on each right and left side I added 10 cm more than the size of the base below which is 140 cm long while the length of the boards for the floor is 160 cm, and for the width I added 5 cm each side because the overall size of the floor is 80 cm and bottom base size 70cm.

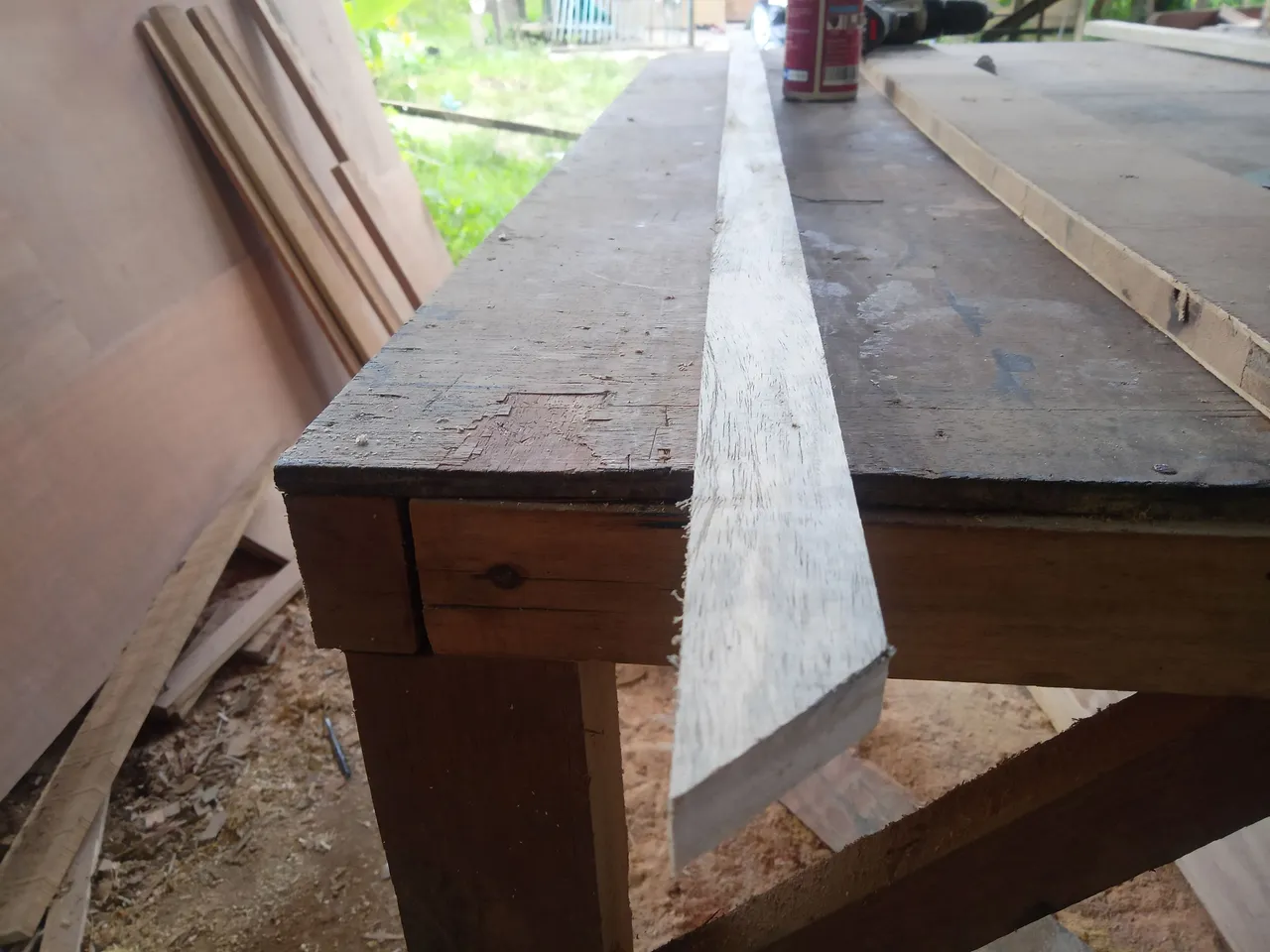

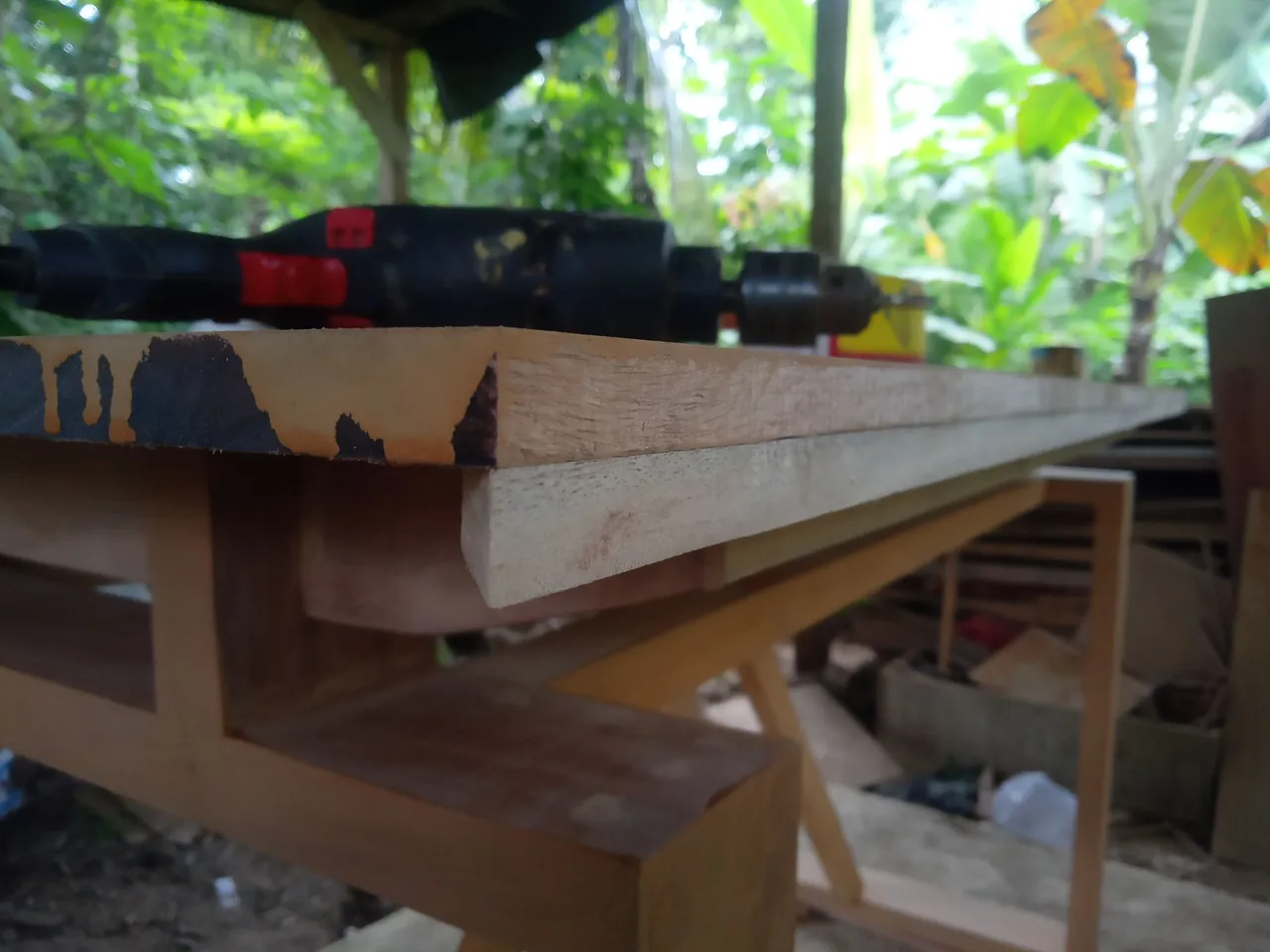

And I added wood under the outer floor as a trim to beautify the table and so that the floor looks thicker, and after the glue dries I shaved the table floor so that all parts are flat.

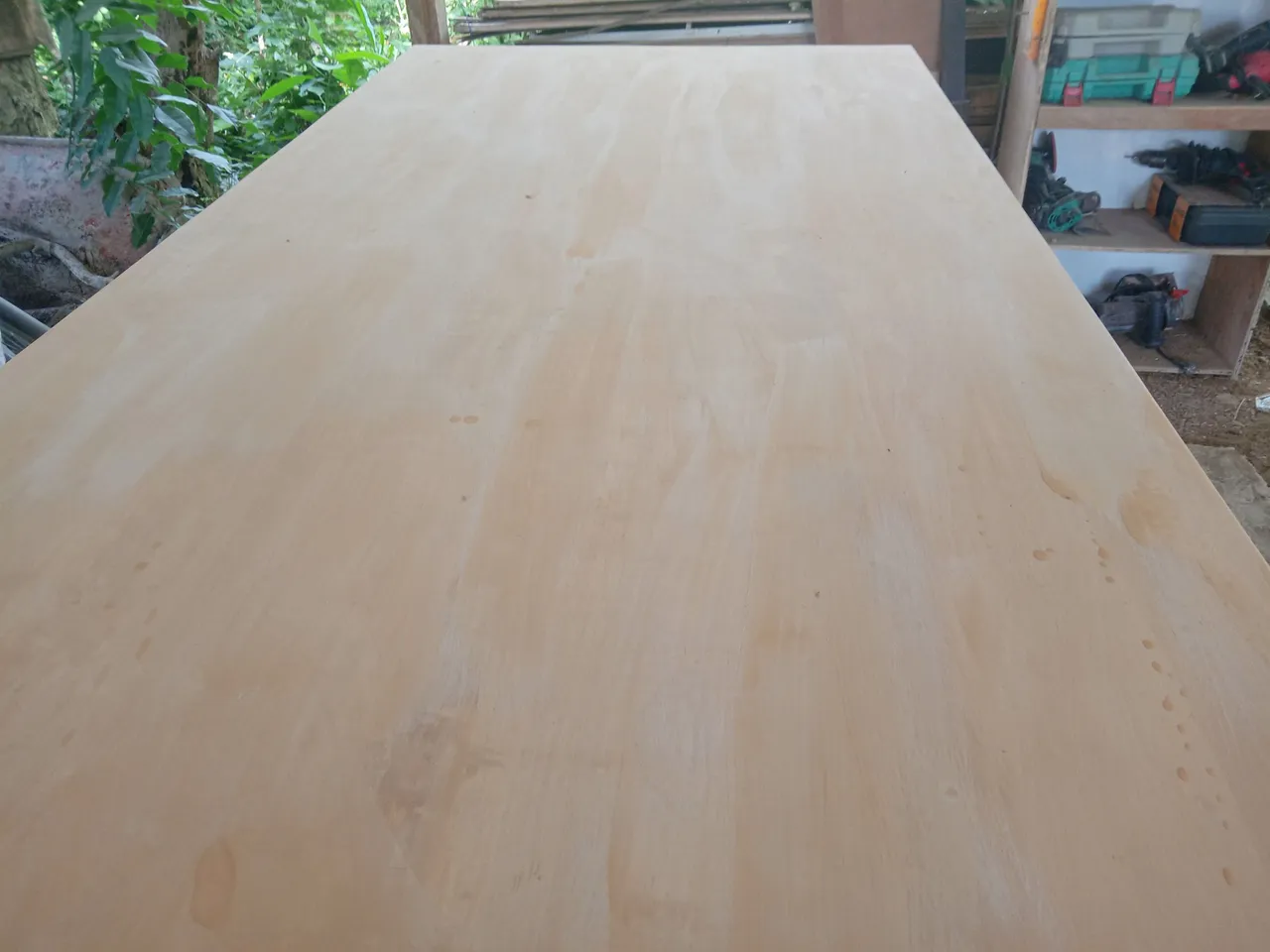

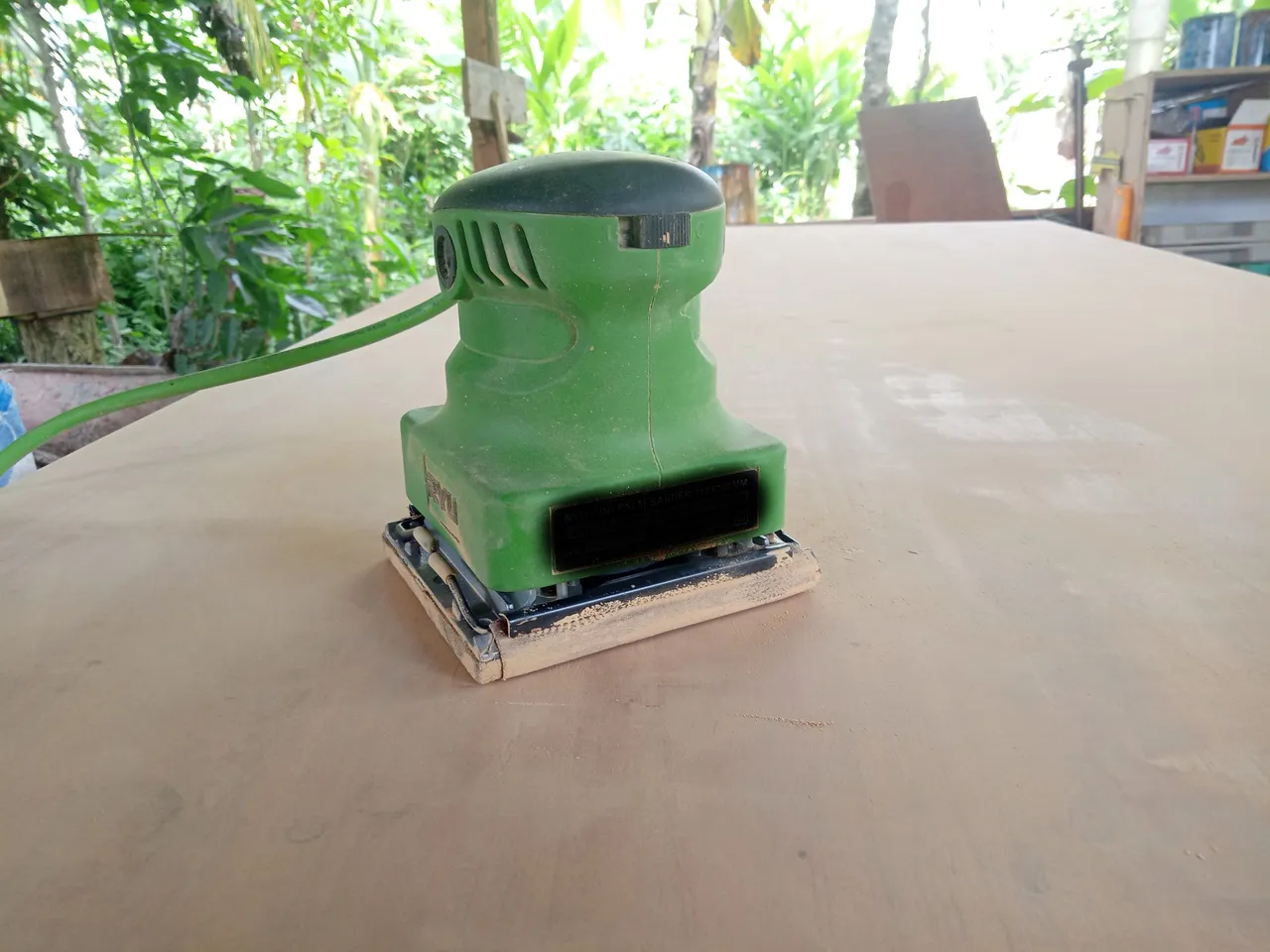

Then the last stage is the finishing process, this process consists of several stages, first sanding all parts of the table to make it smooth and even using sandpaper number 150, then entering the second stage, which is caulking all wood joints that are not too tight and also coating all table surfaces, especially the floor with putty that has been diluted with thinner so that all the wood pores are closed so that when the painting process it will look neat and shiny without having to add clear gloss and will also save a little paint.

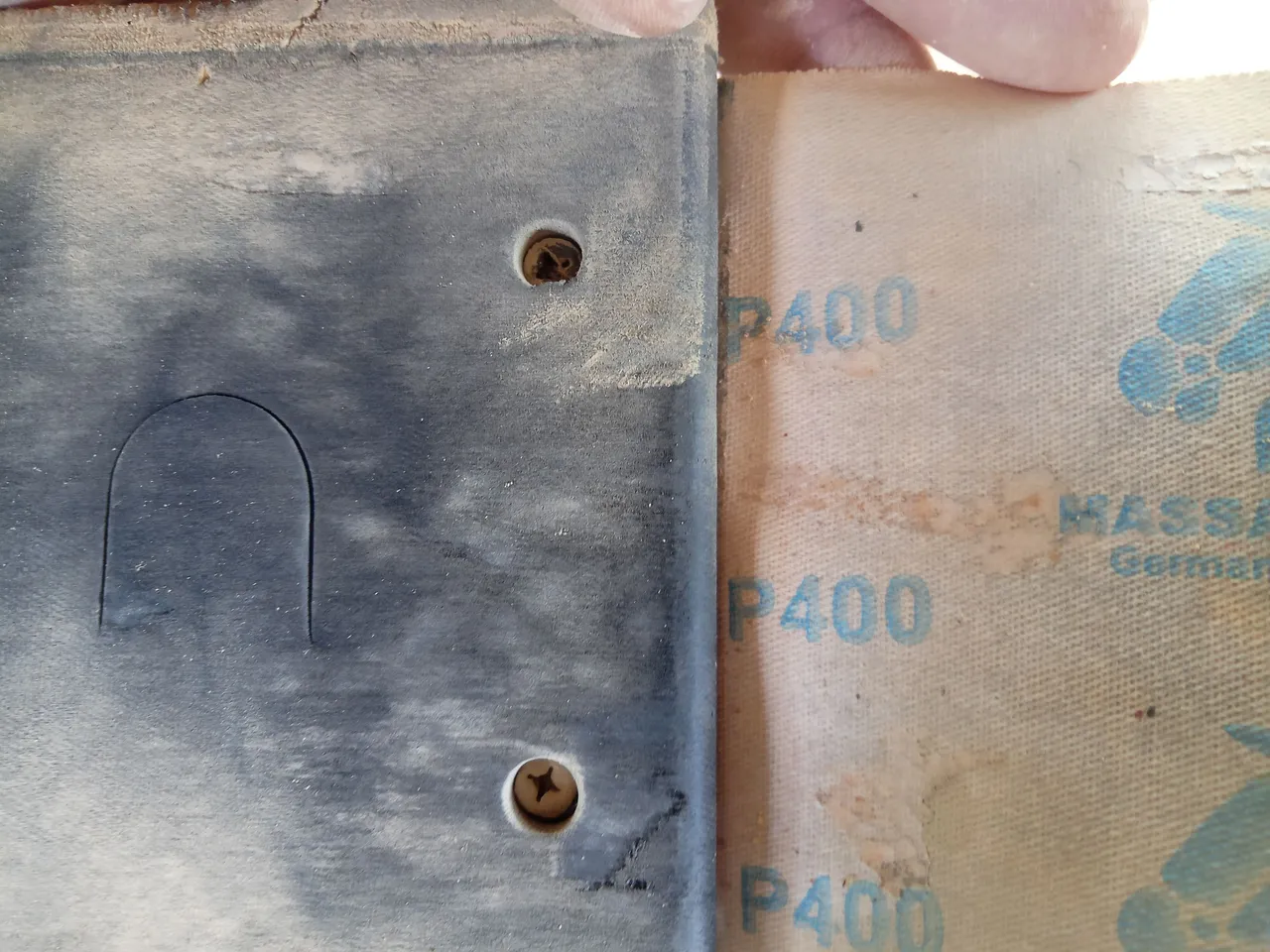

Then go to the third stage, which is sanding all parts of the table that have been coated with putty using sandpaper number 400 to make it smoother and not make the putty peel off.

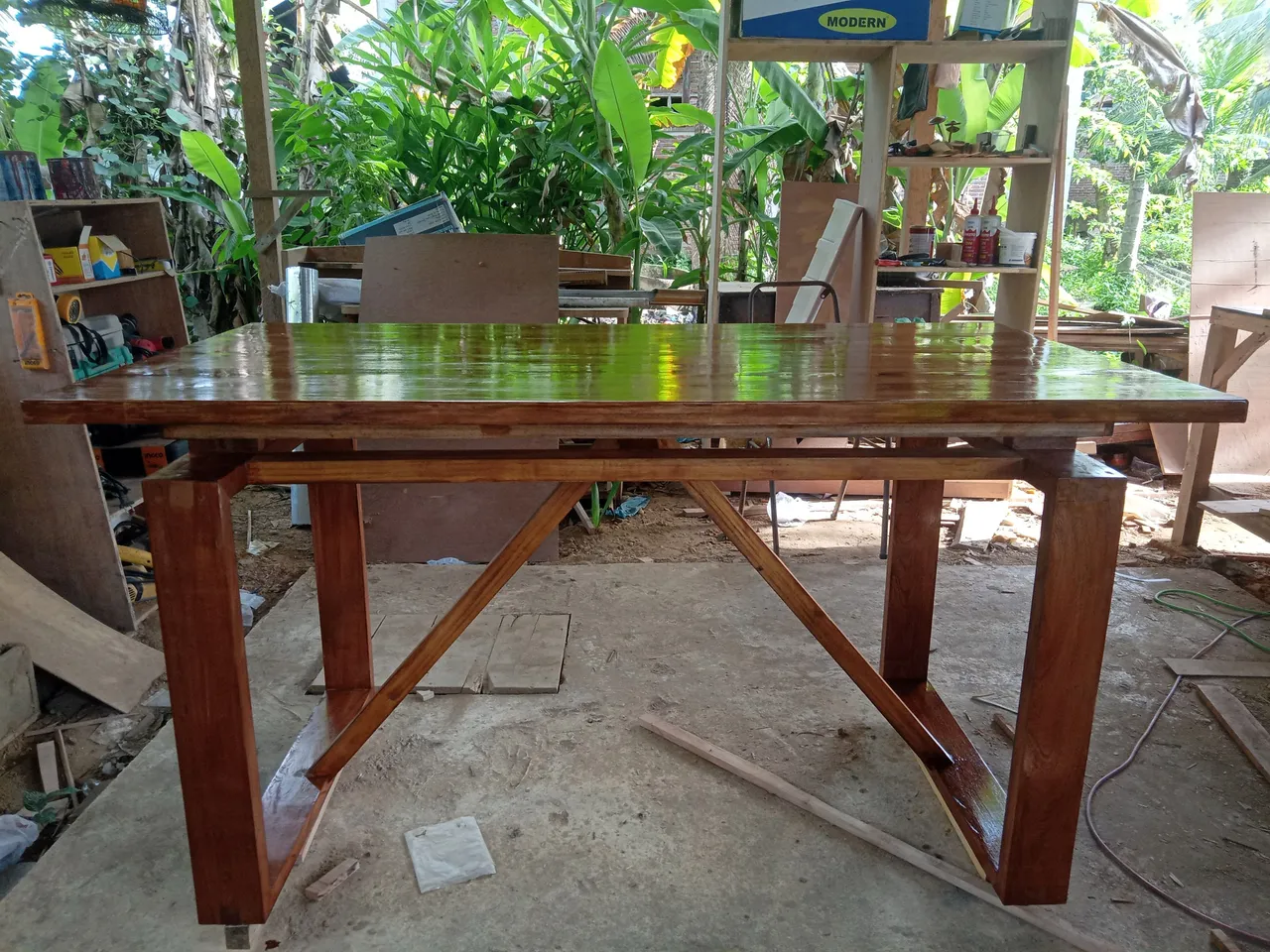

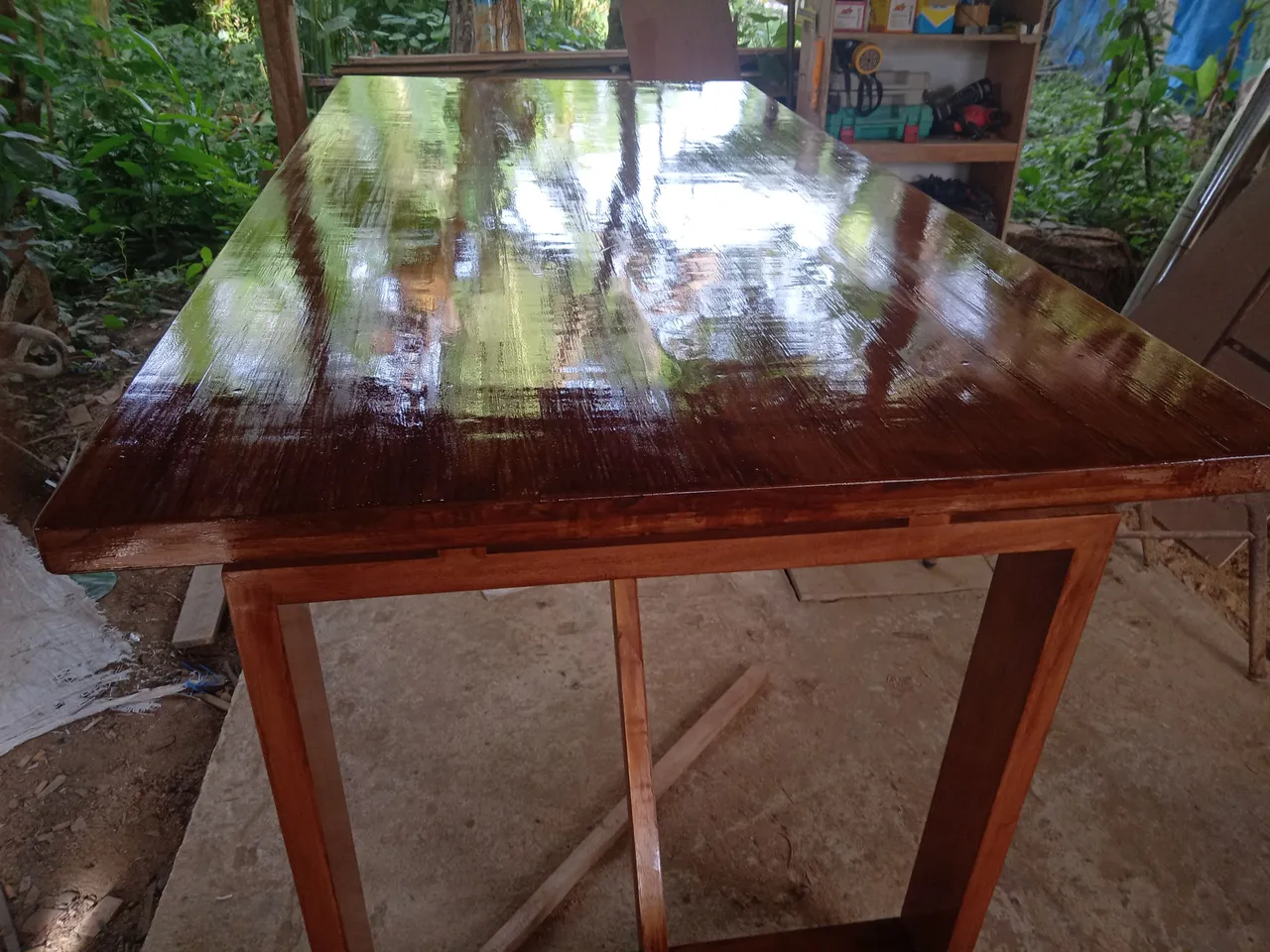

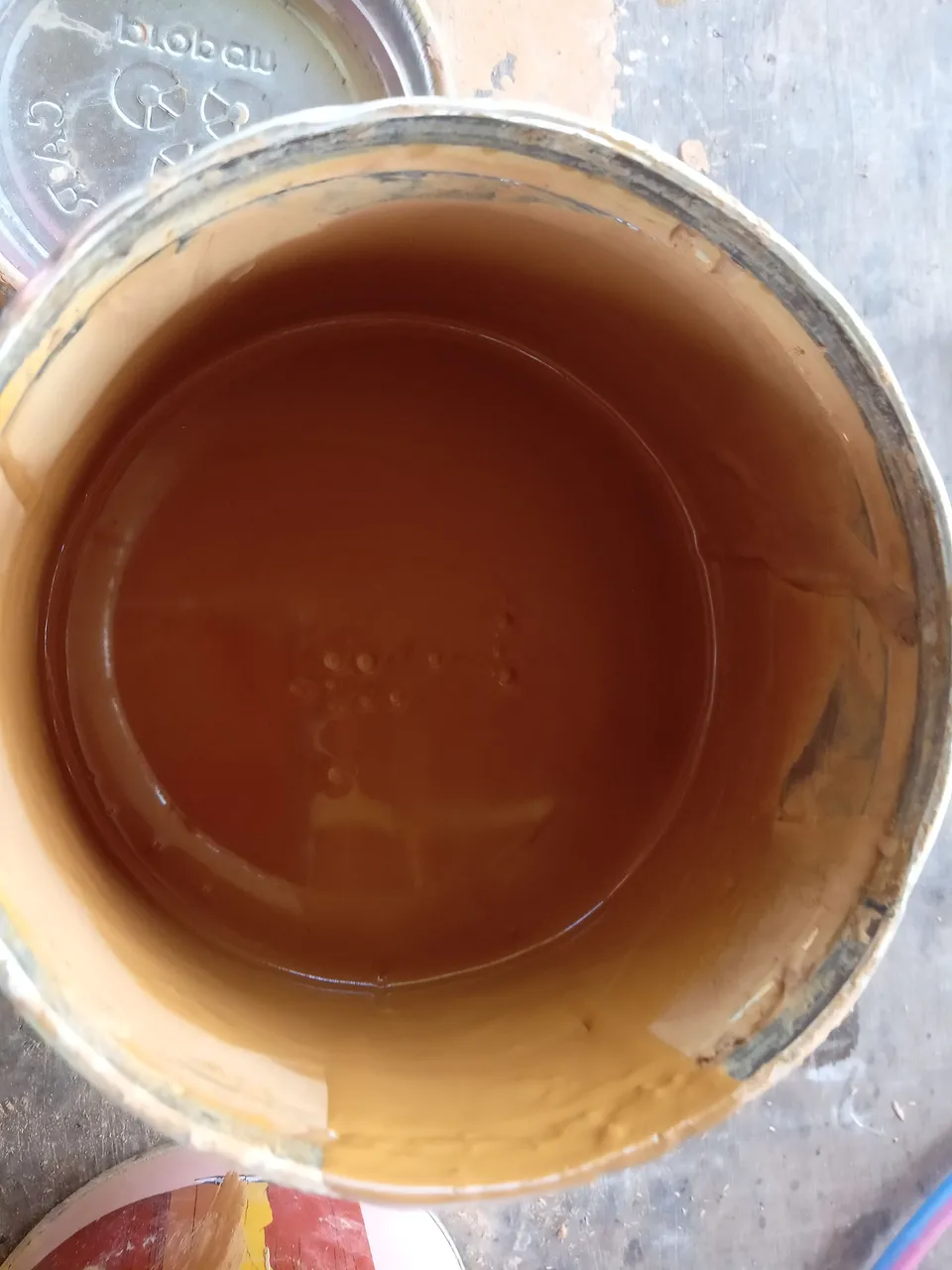

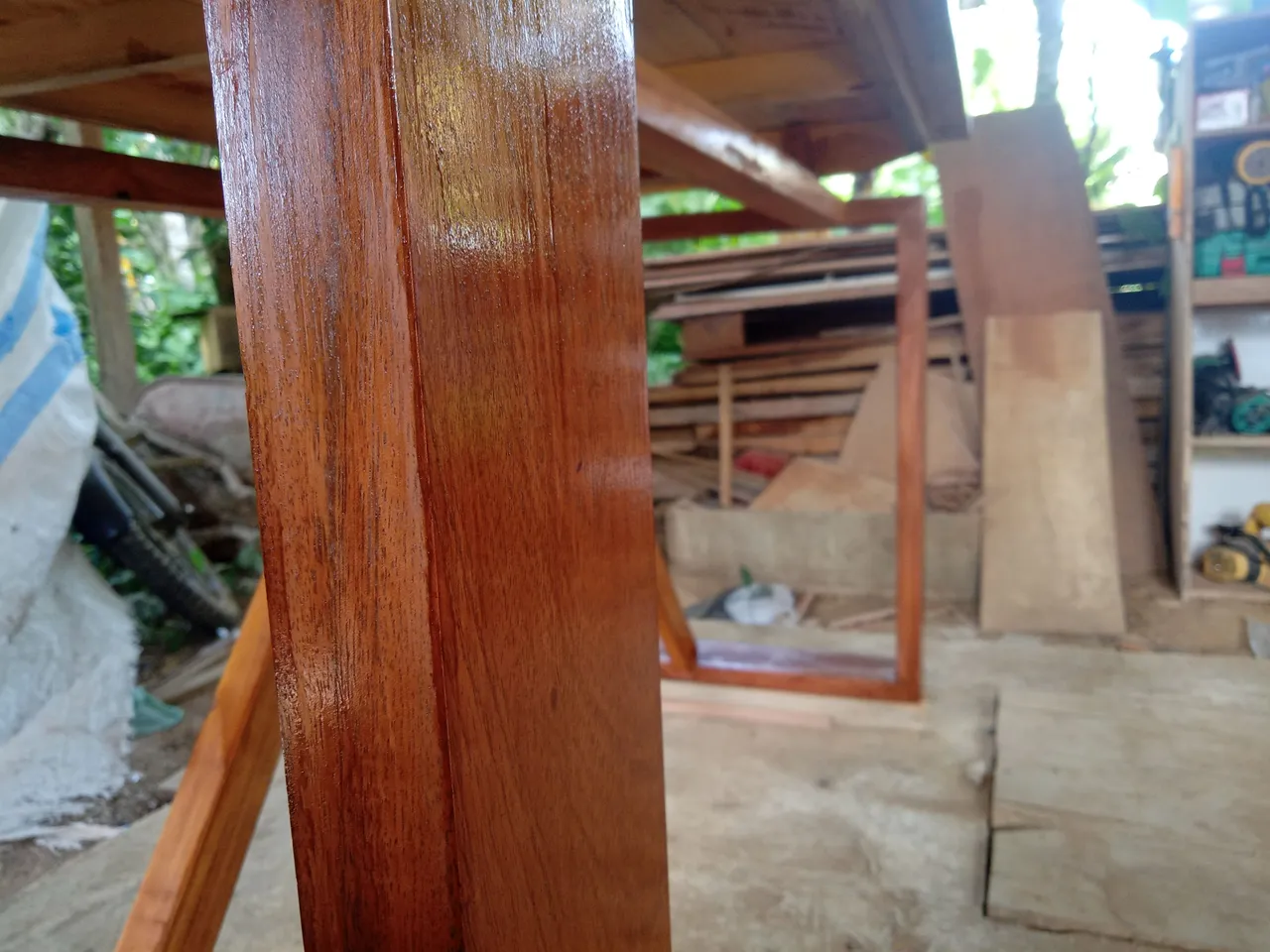

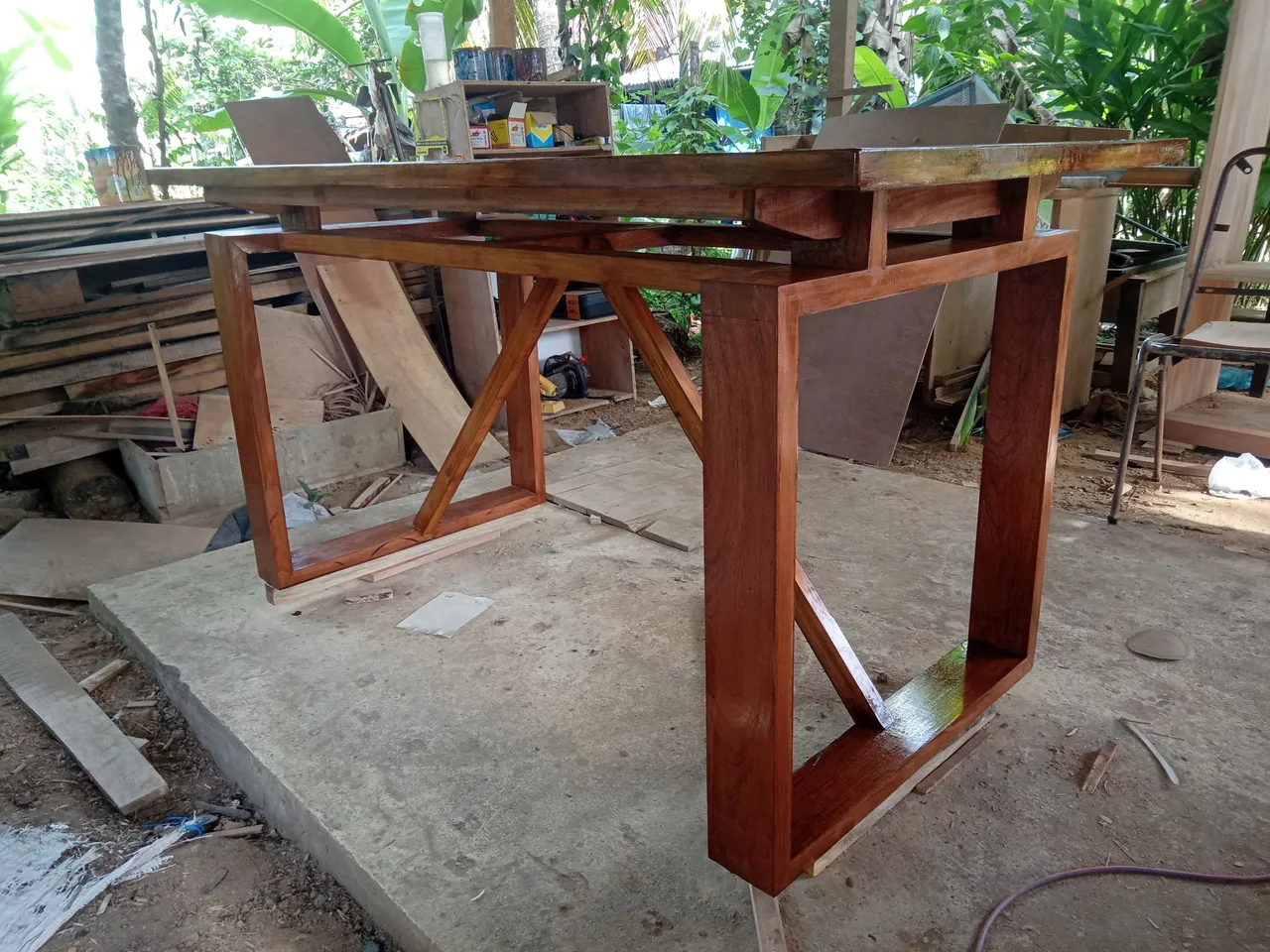

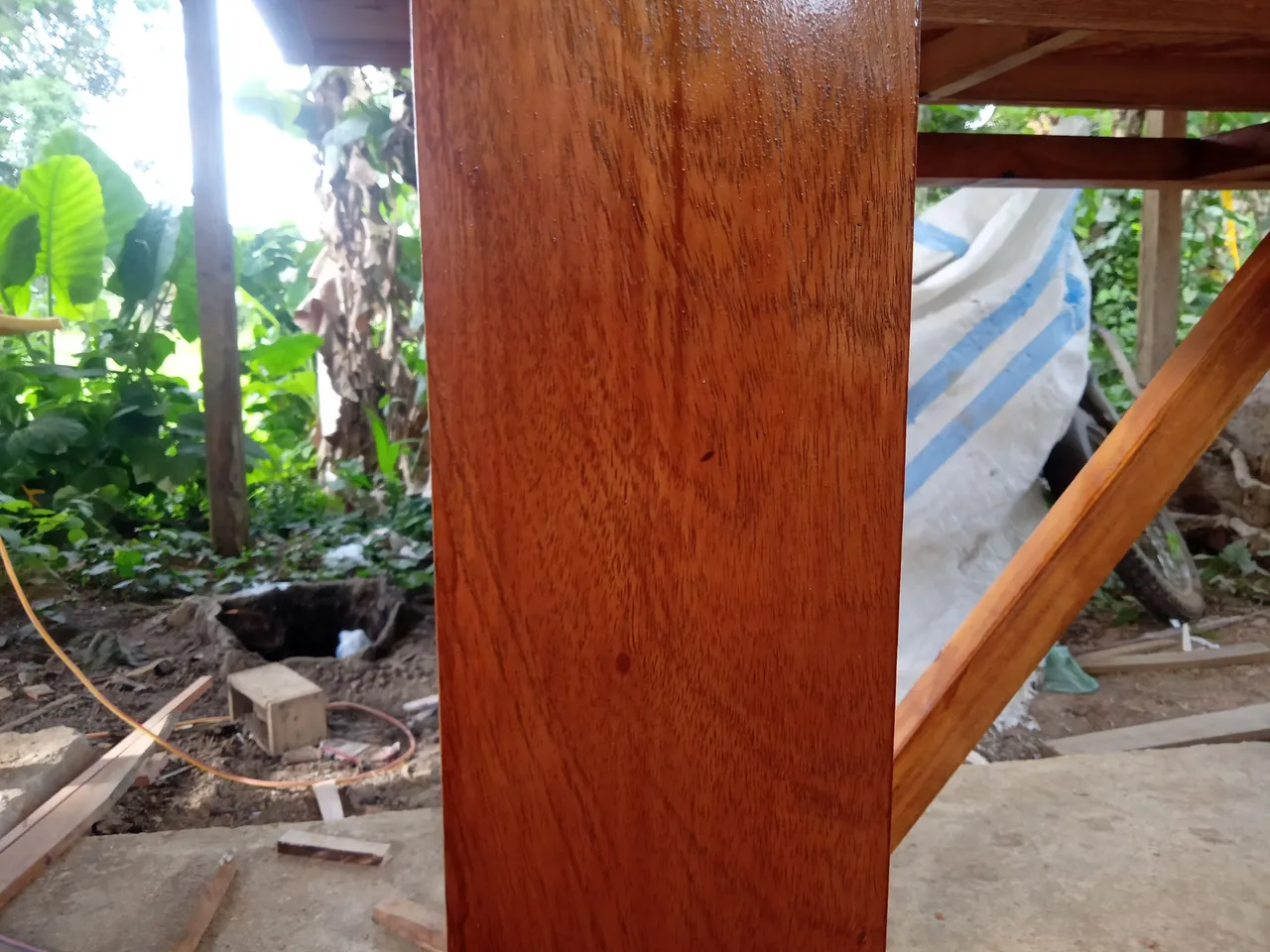

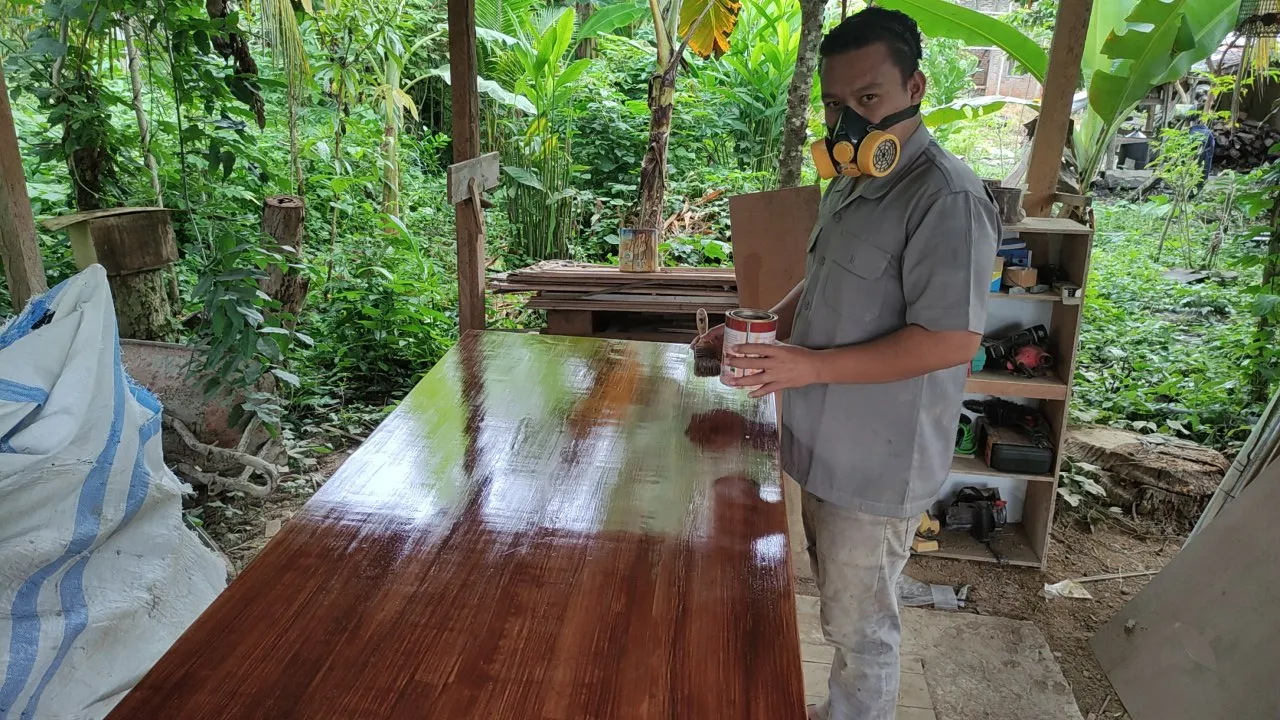

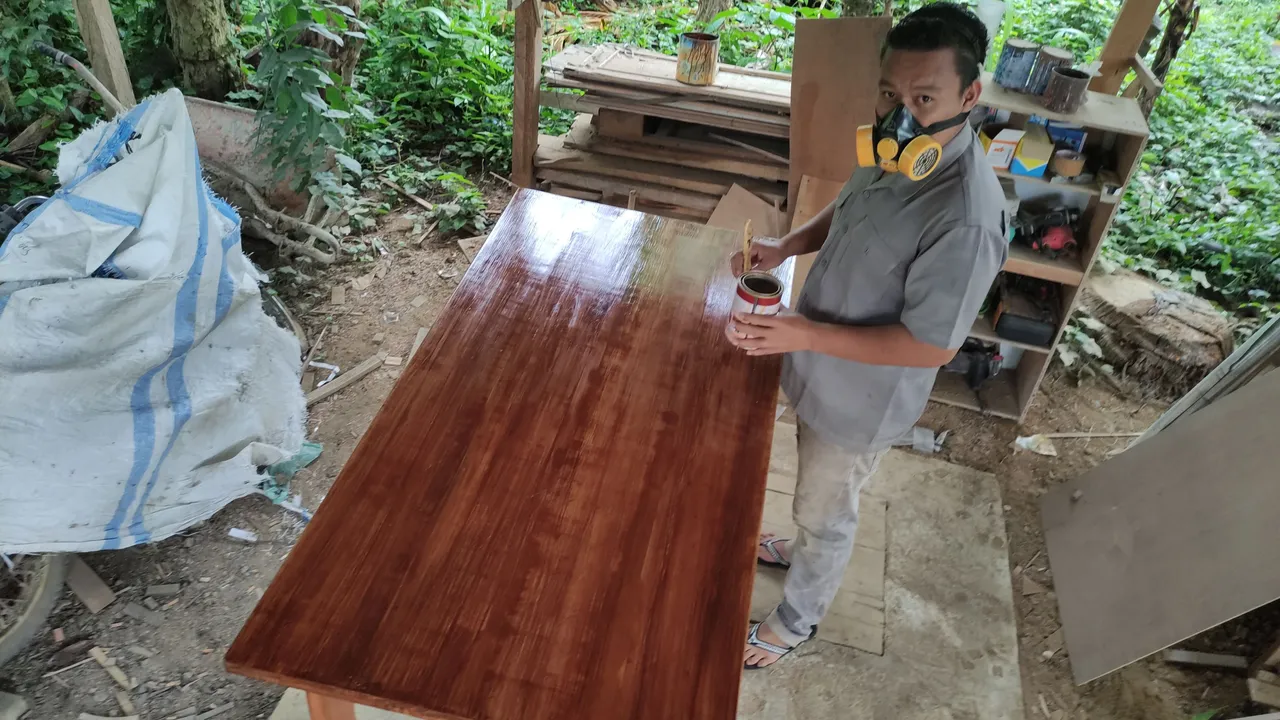

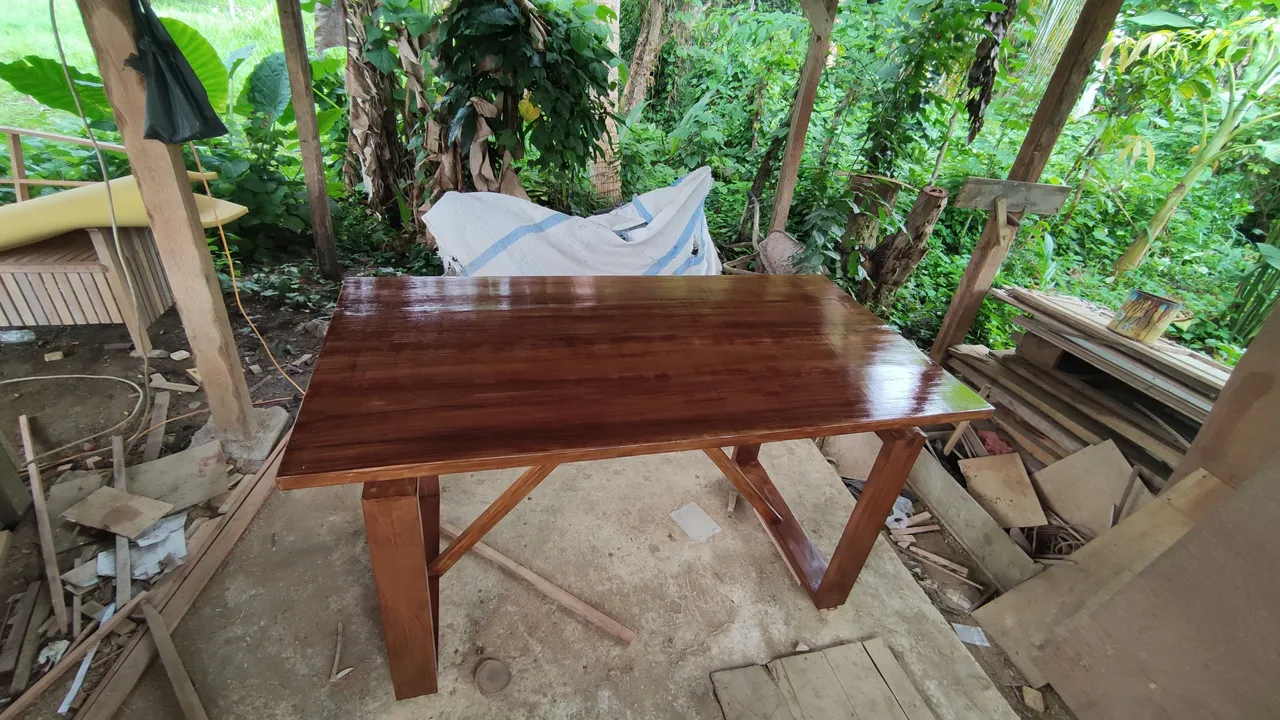

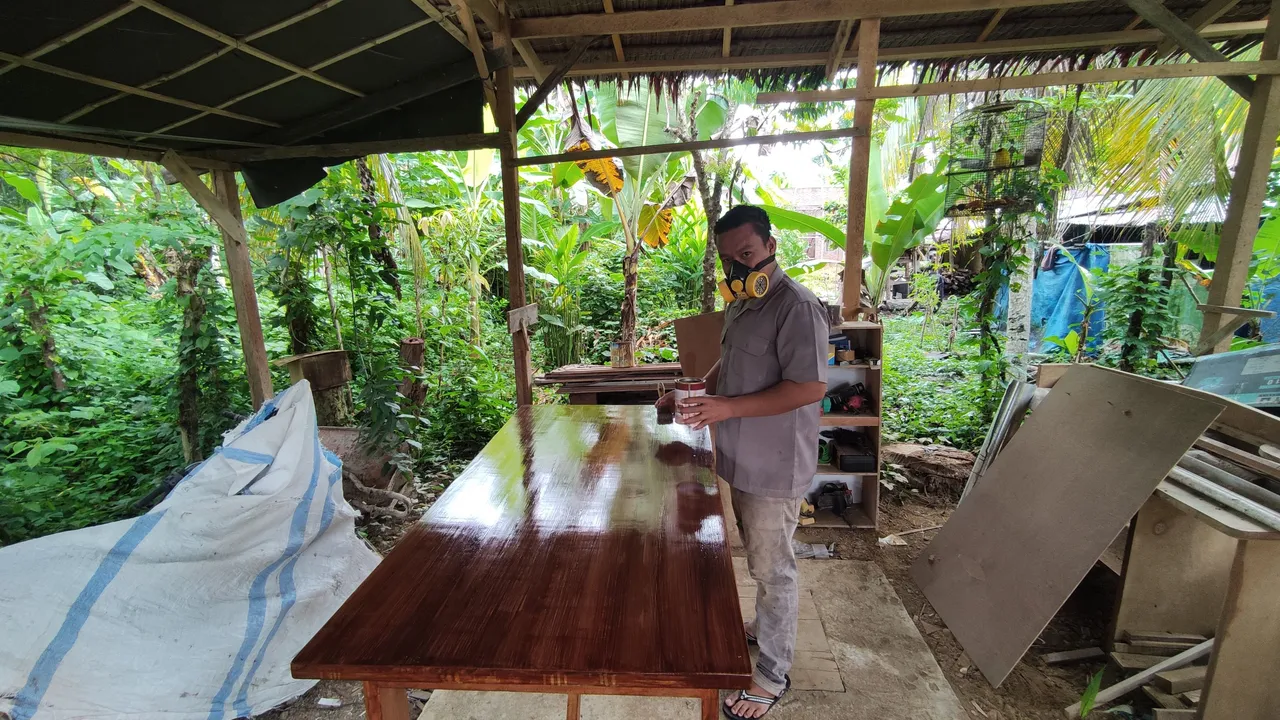

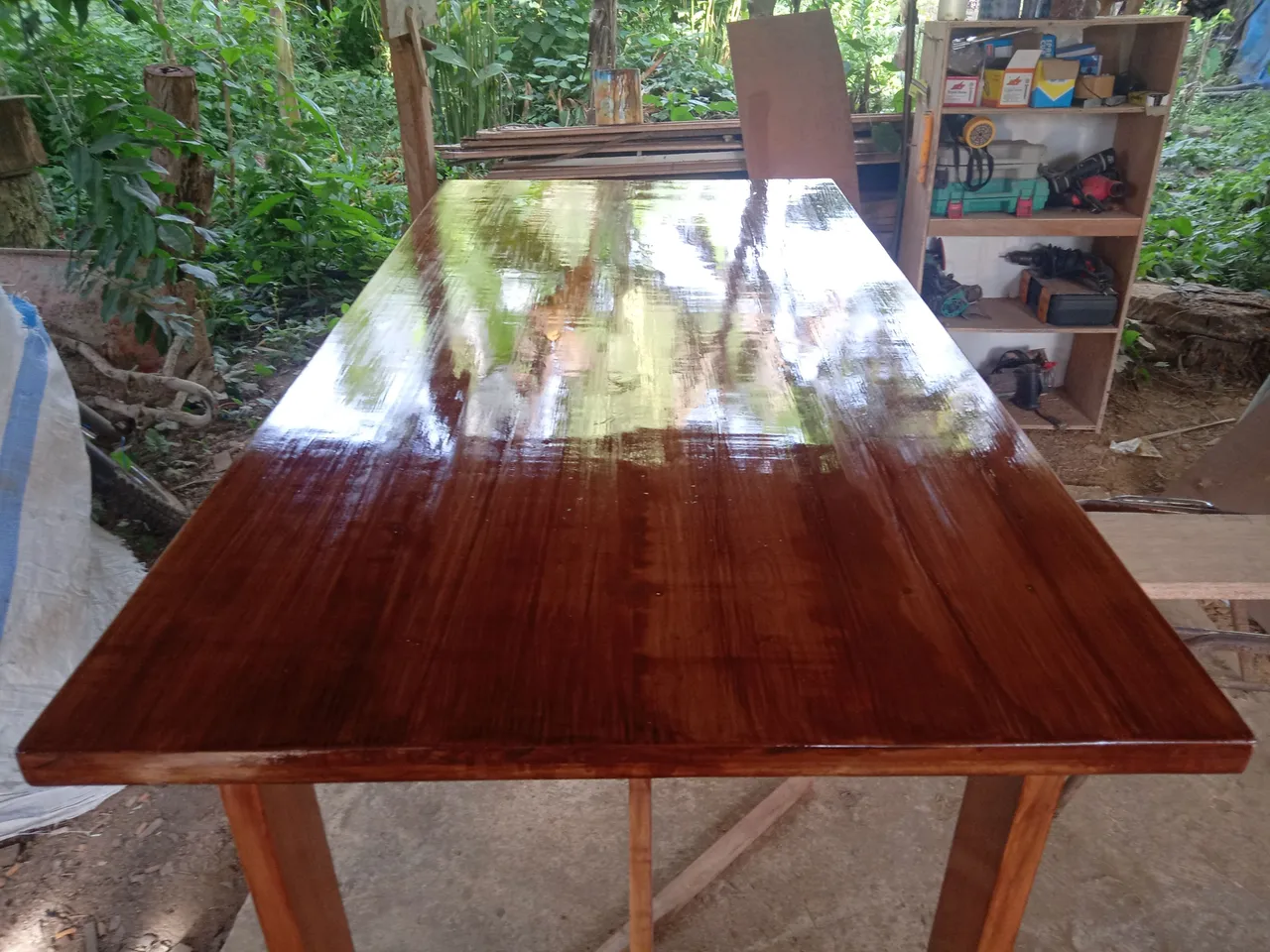

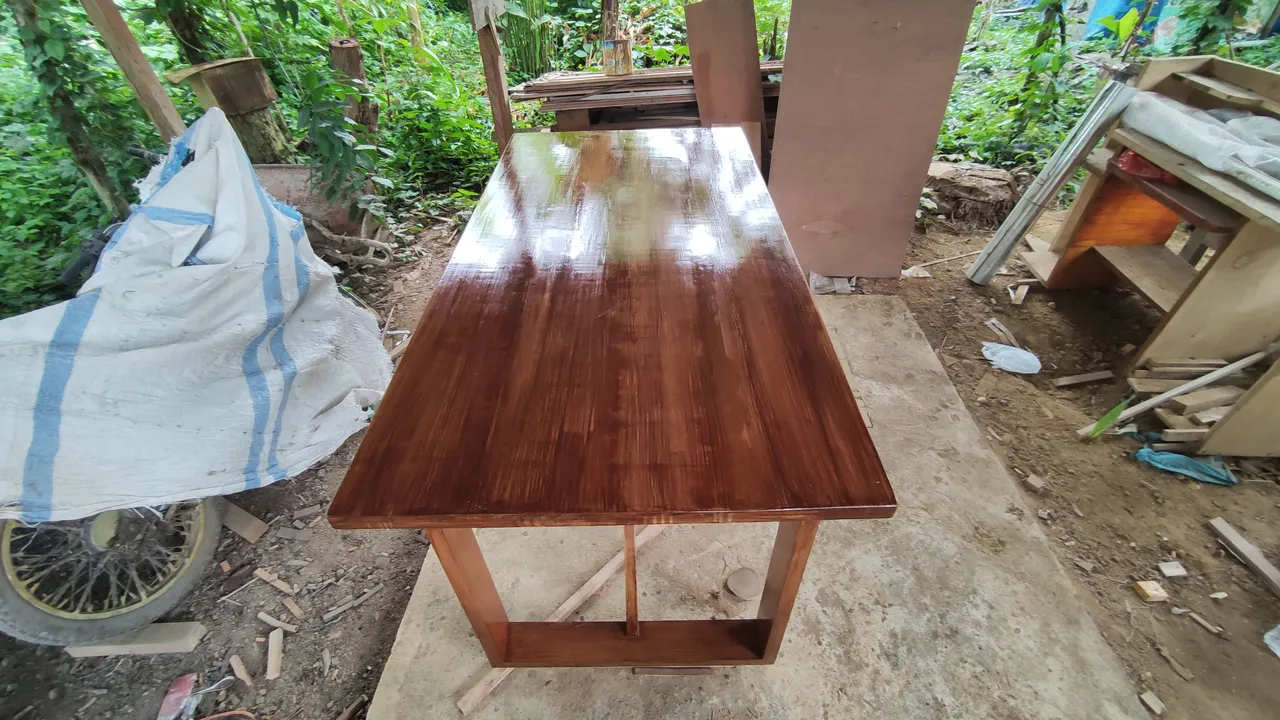

Then to the last stage of finishing, namely painting all table surfaces, for this time I used varnish paint with the color according to the consumer's request, namely the color of tobacco, this process can be repeated several times until I find the results that are in accordance with the wishes and I only repeat it as much as 2 times and the results are shiny and satisfying.
And that's the process that I did to make a dining table at the request of my consumers, hopefully what I explain can be additional knowledge to all of you. And also hopefully this design from me can be used as an example for all of you and see you in the next post.
