Hello, dear readers
It’s woodworking time!
Buen día, estimados lectores.
¡Es hora de trabajar!
If you want to check the previous posts, check them here

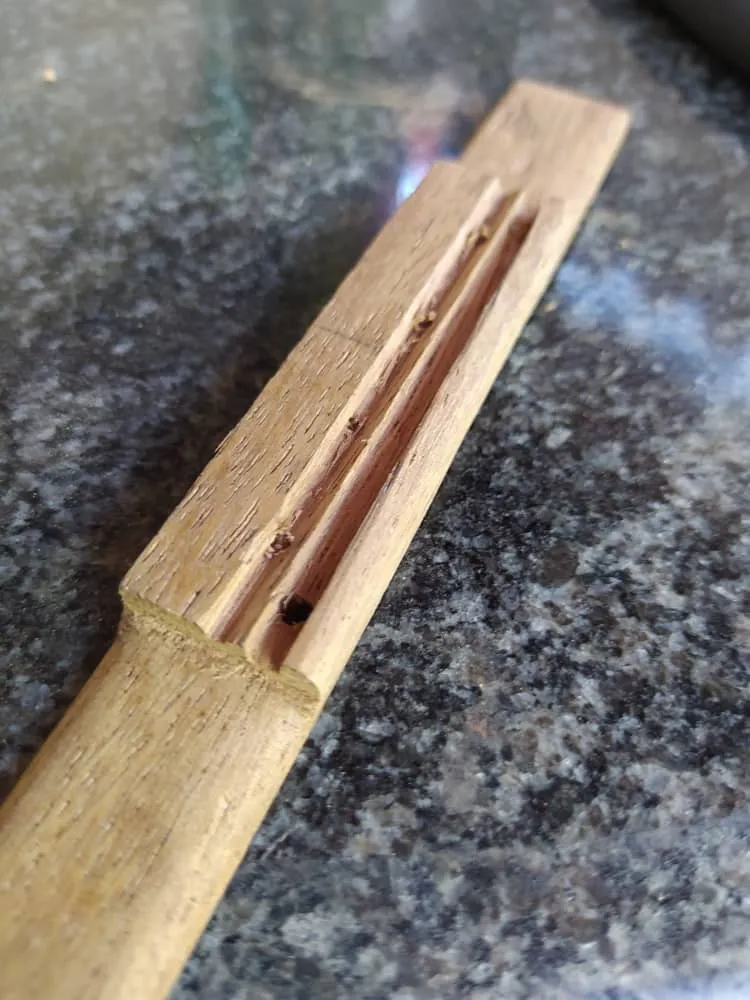

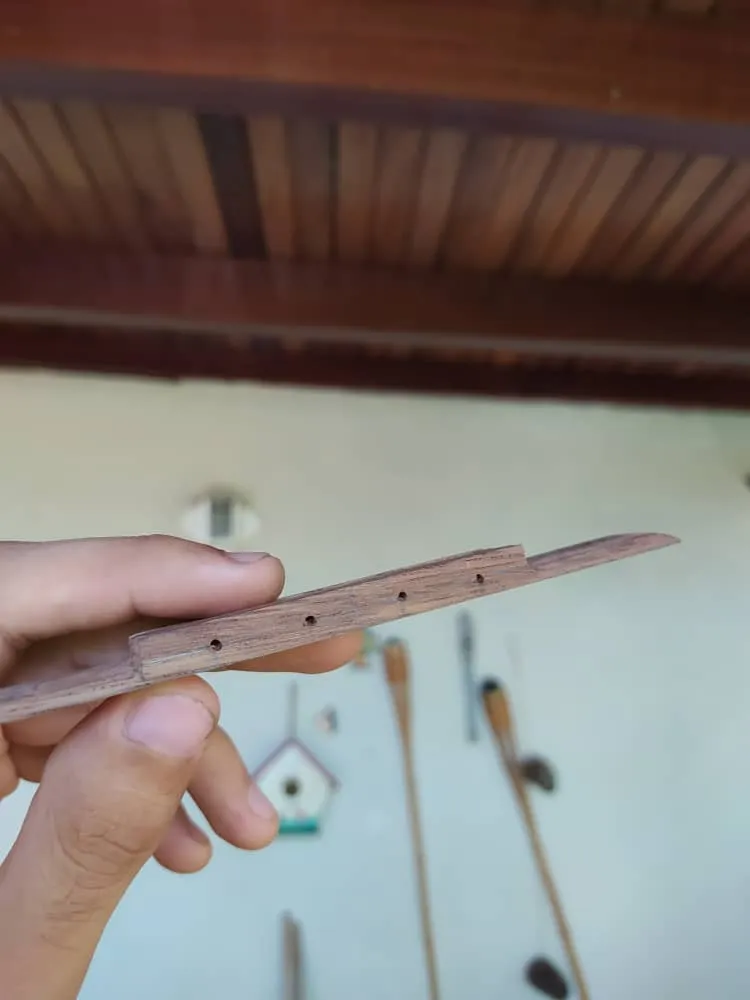

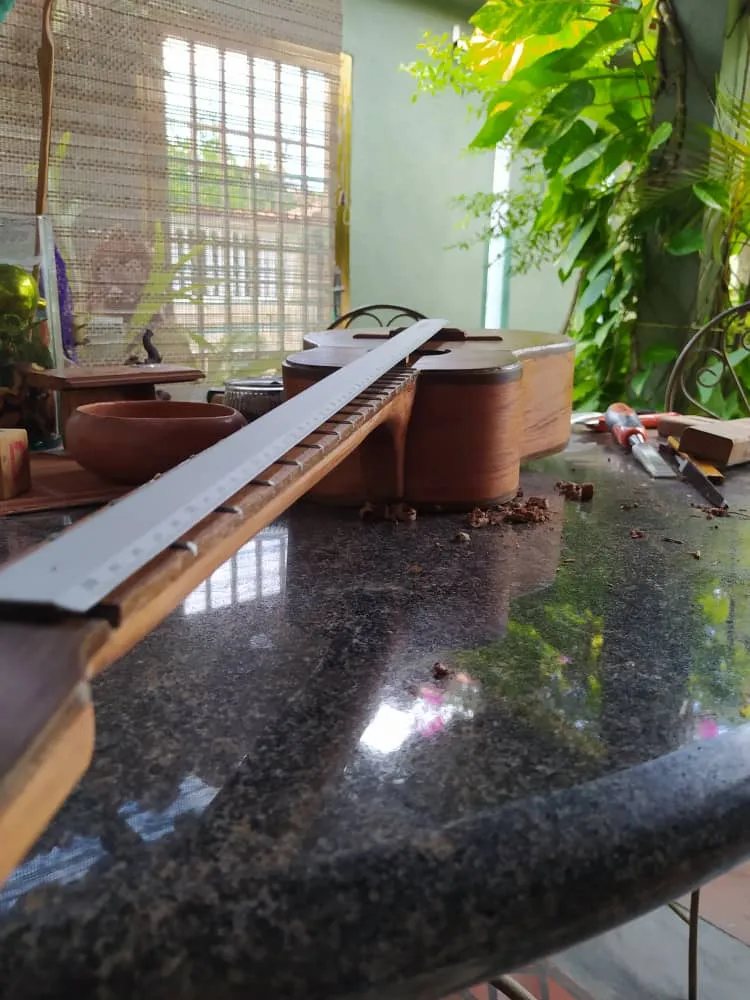

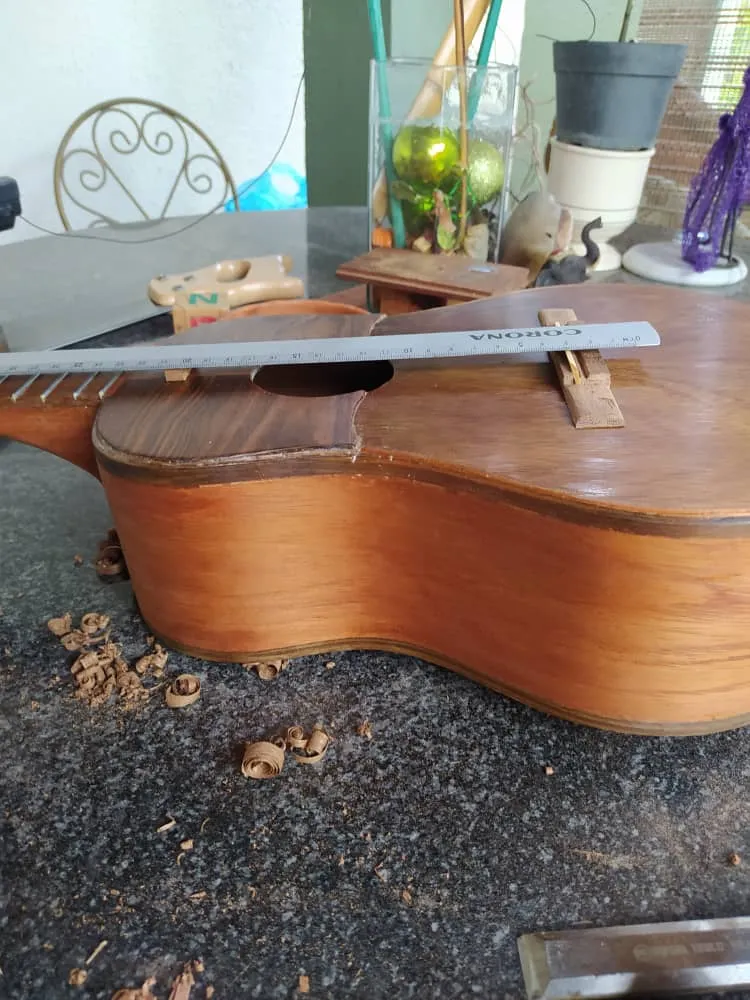

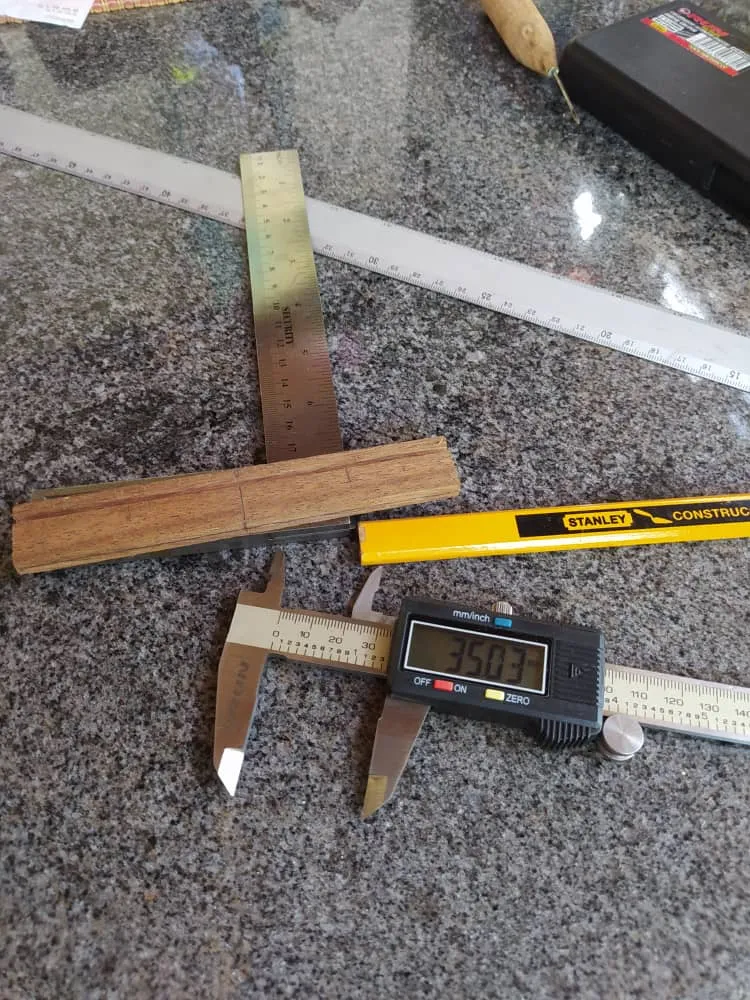

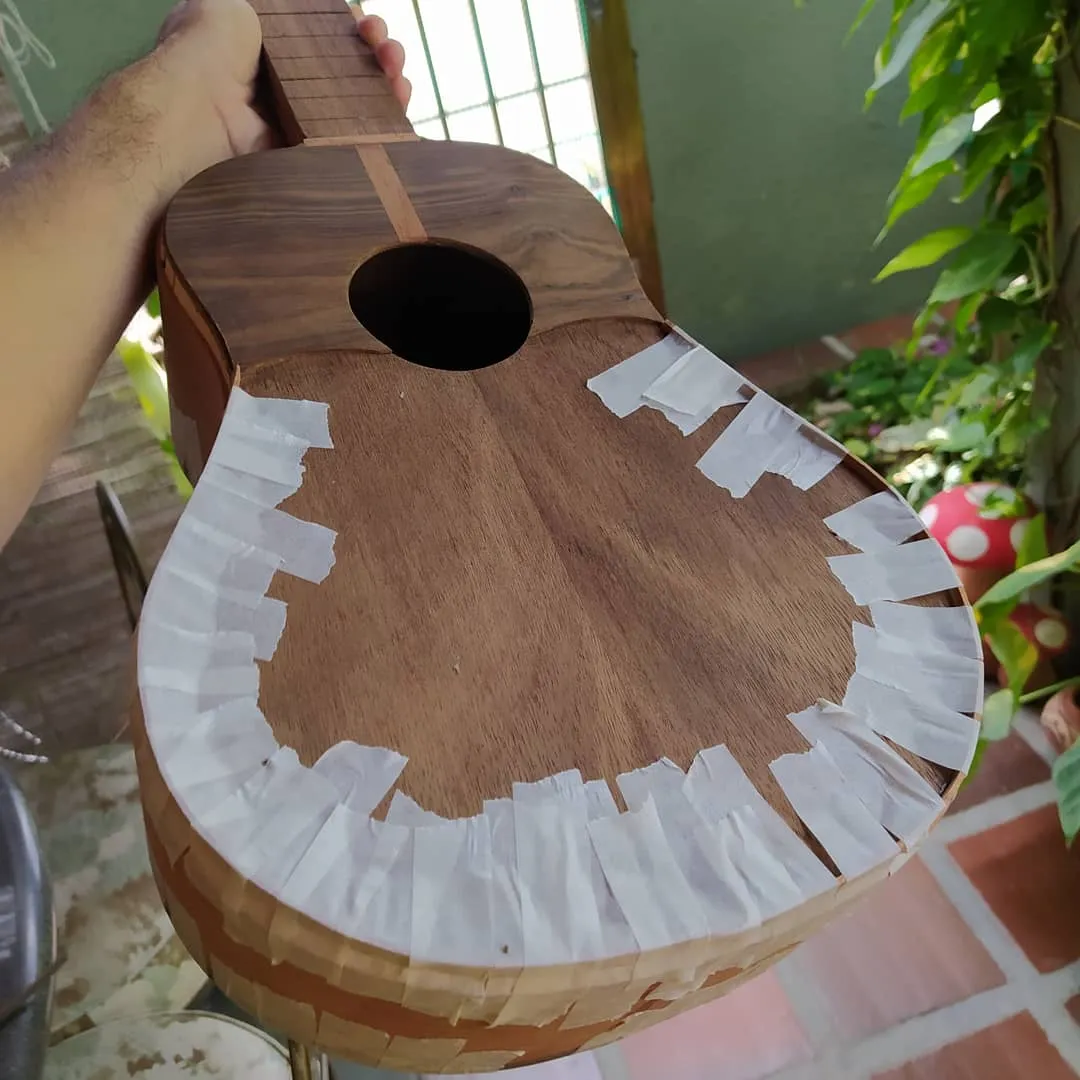

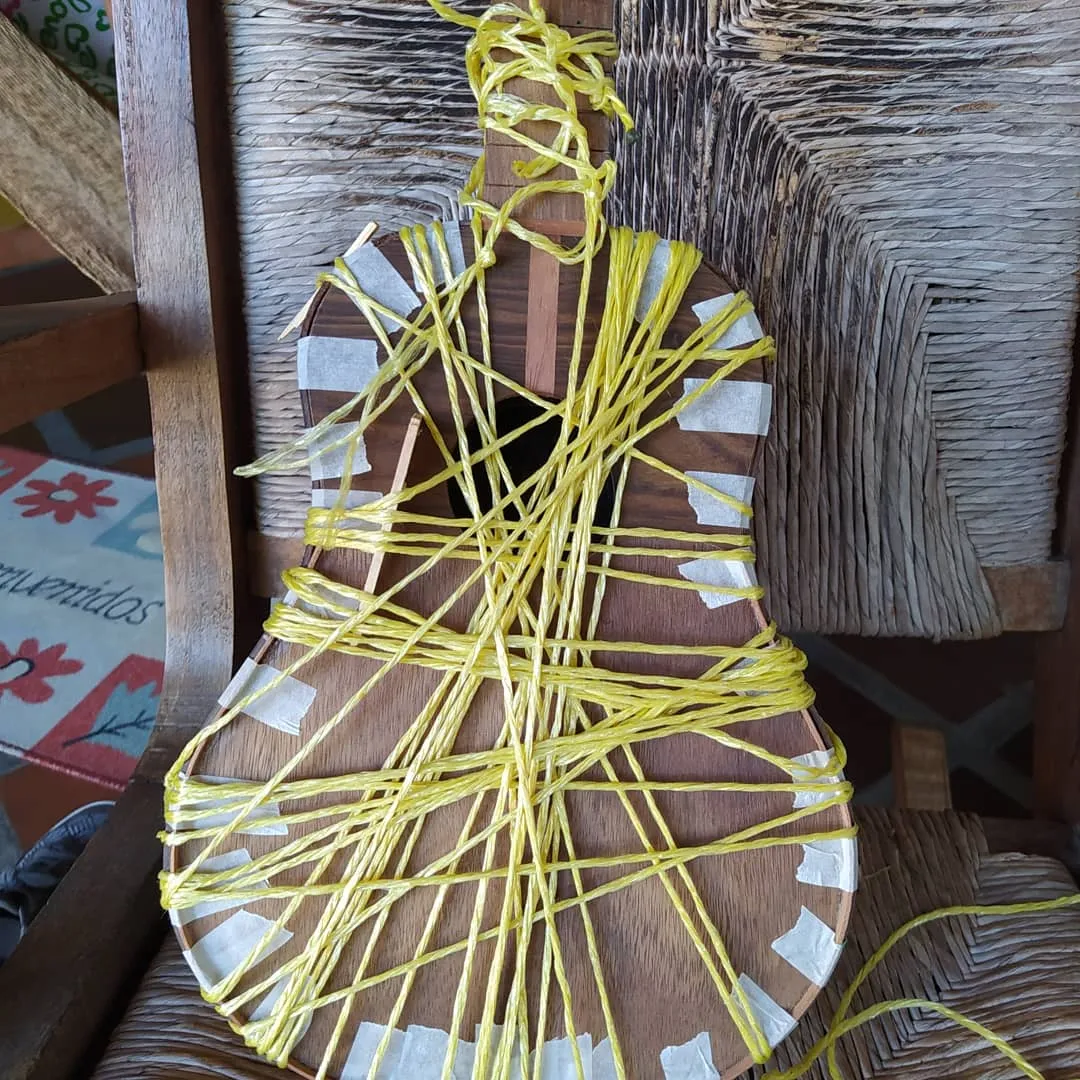

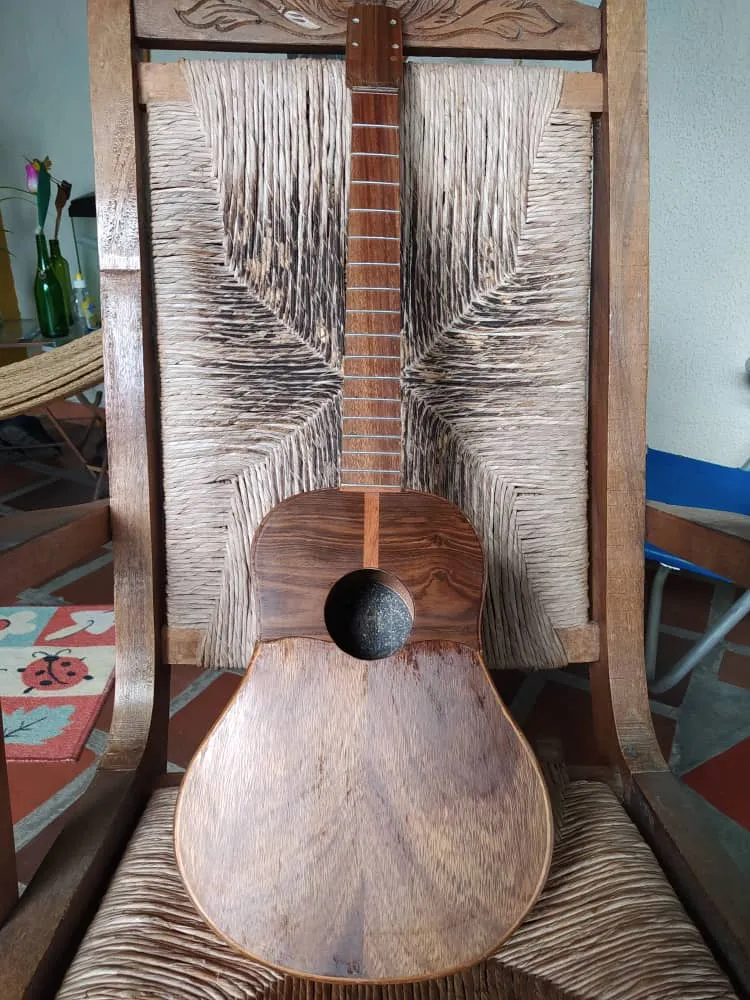

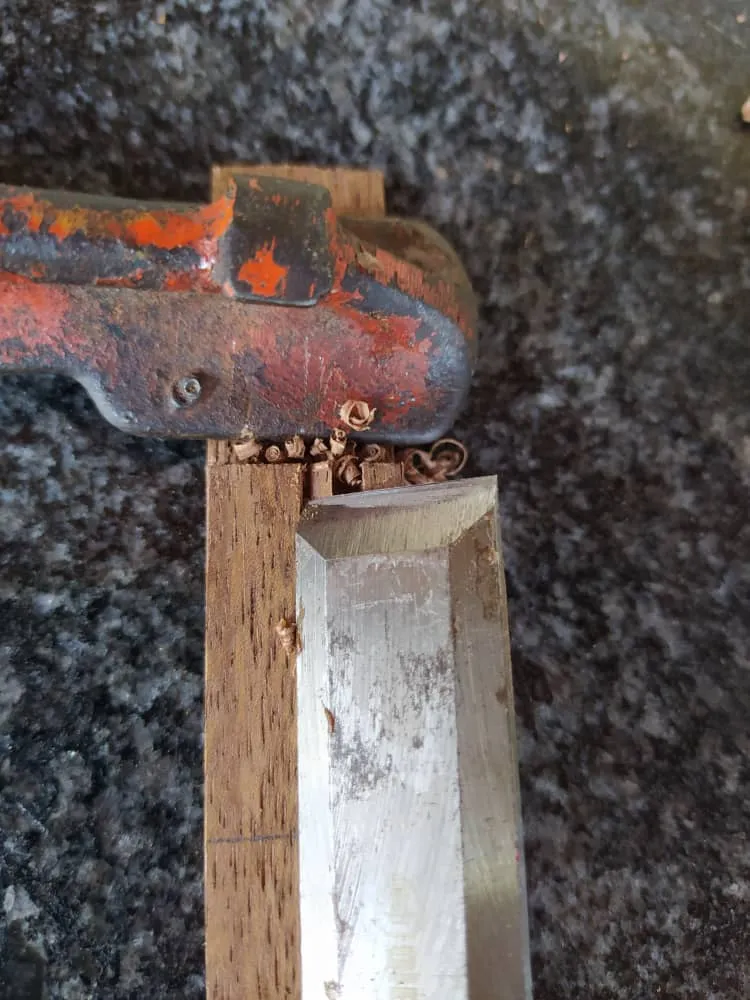

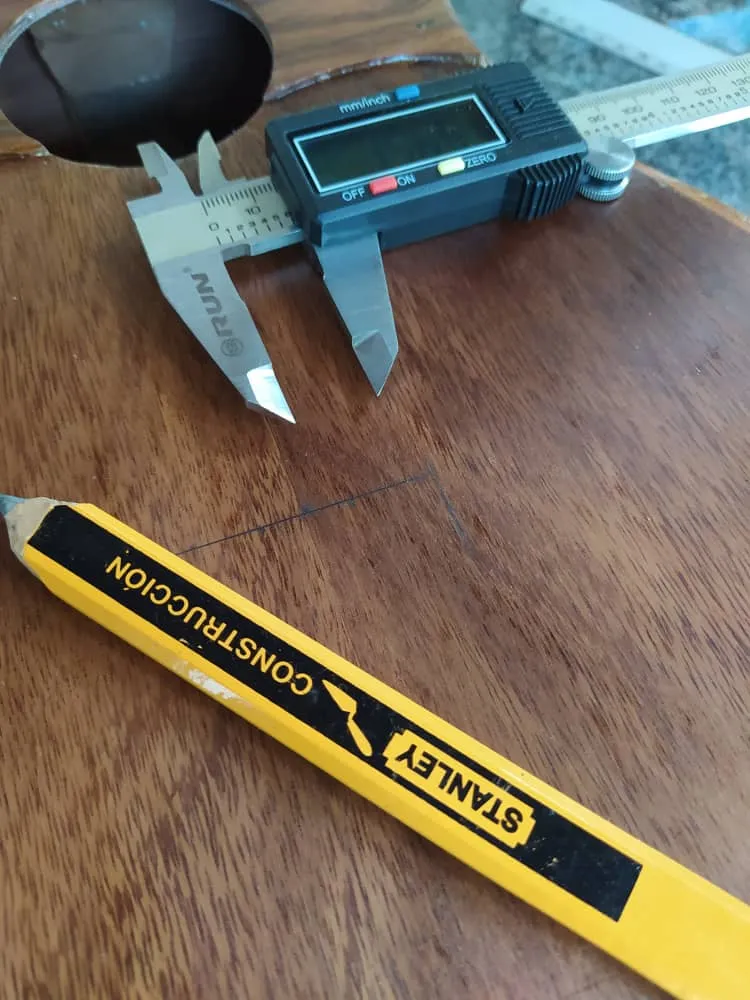

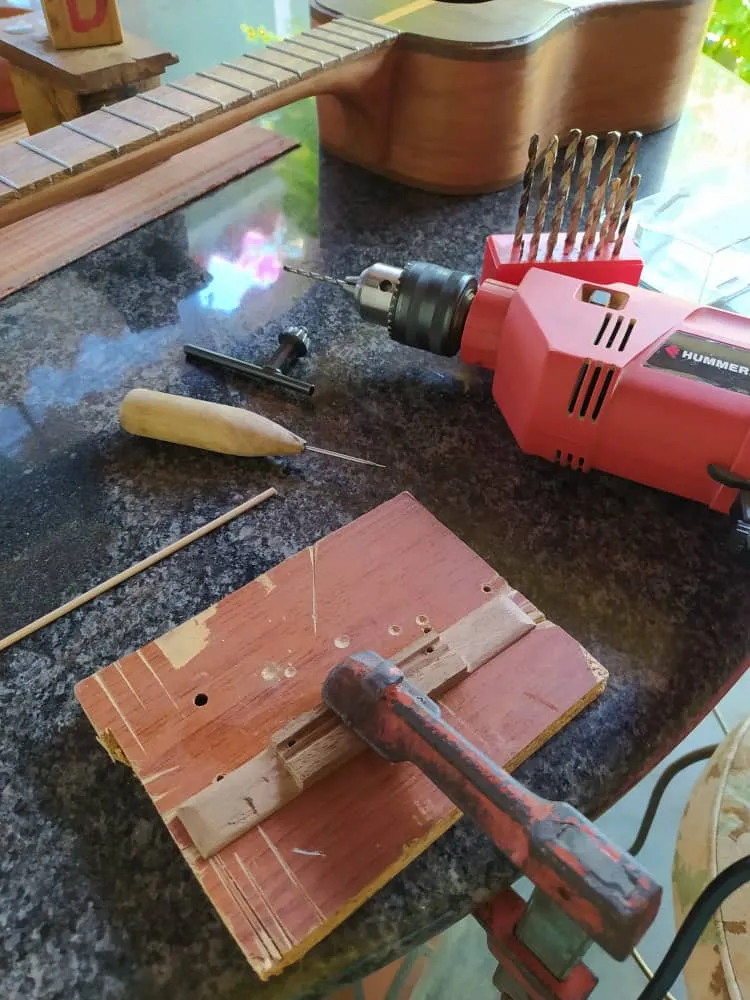

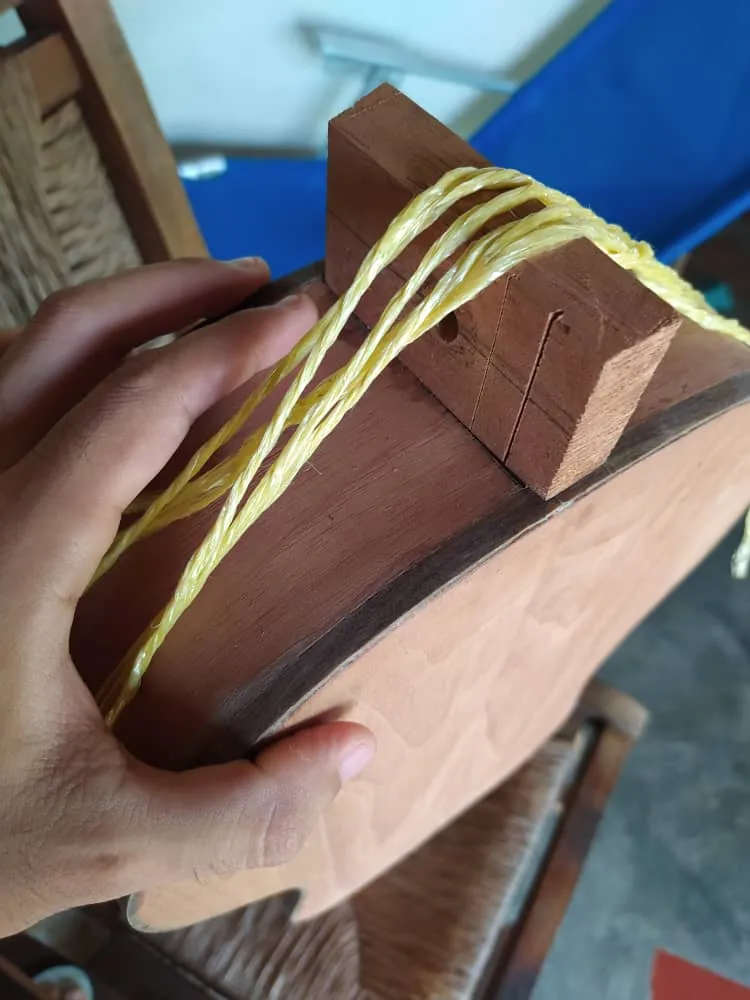

When we last saw this little pretty thing, it was already on shape. Now, comes the job that requires finesse. As you will see, the ornaments were added with care and trying to prevent the mistakes from the previous build. There’s still no rosette, but that will come in no time. For now, profiles and bottom bar are all that complete the cuatro’s features. Also, among the pieces missing, the bridge is carved and I took the time to measure the action of the strings. This one is going to be one sweet instrument.

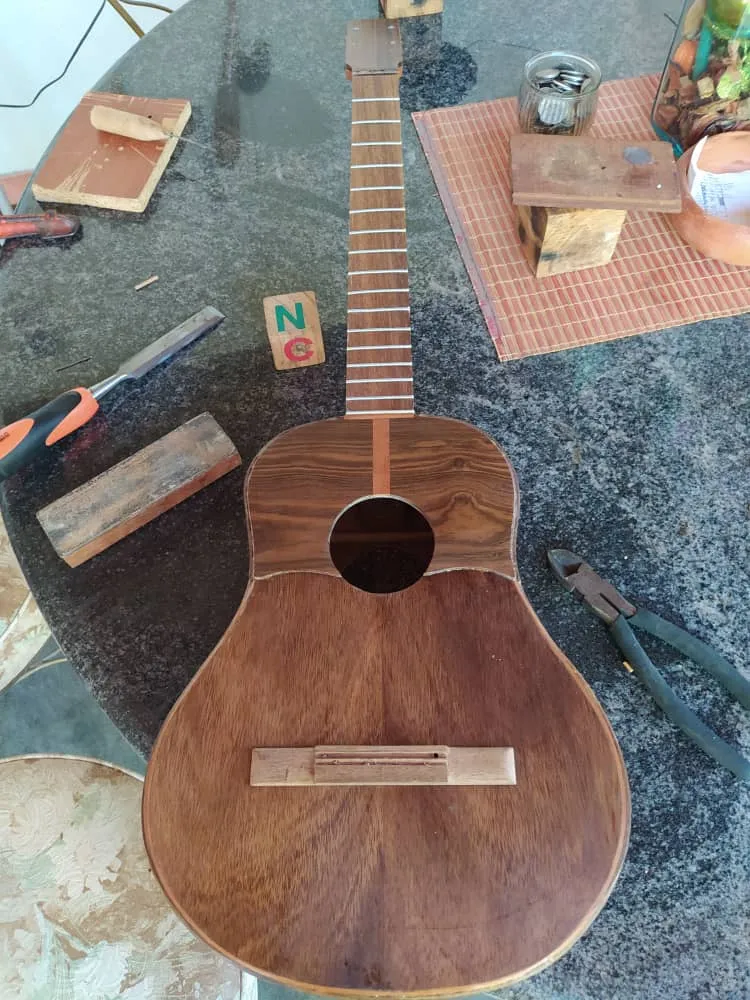

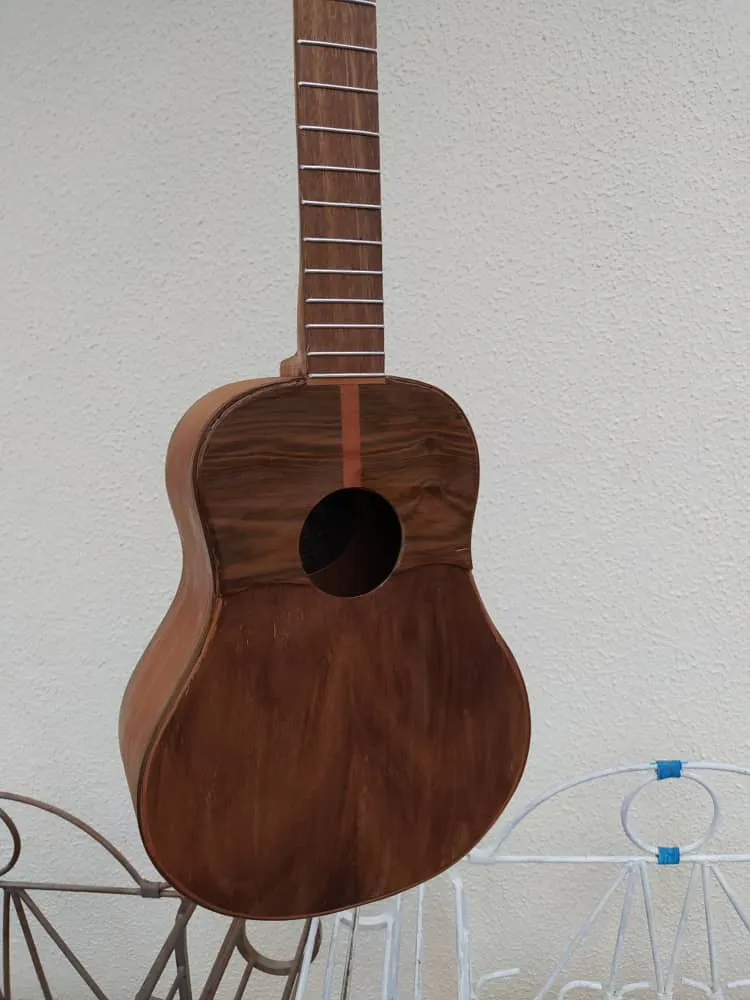

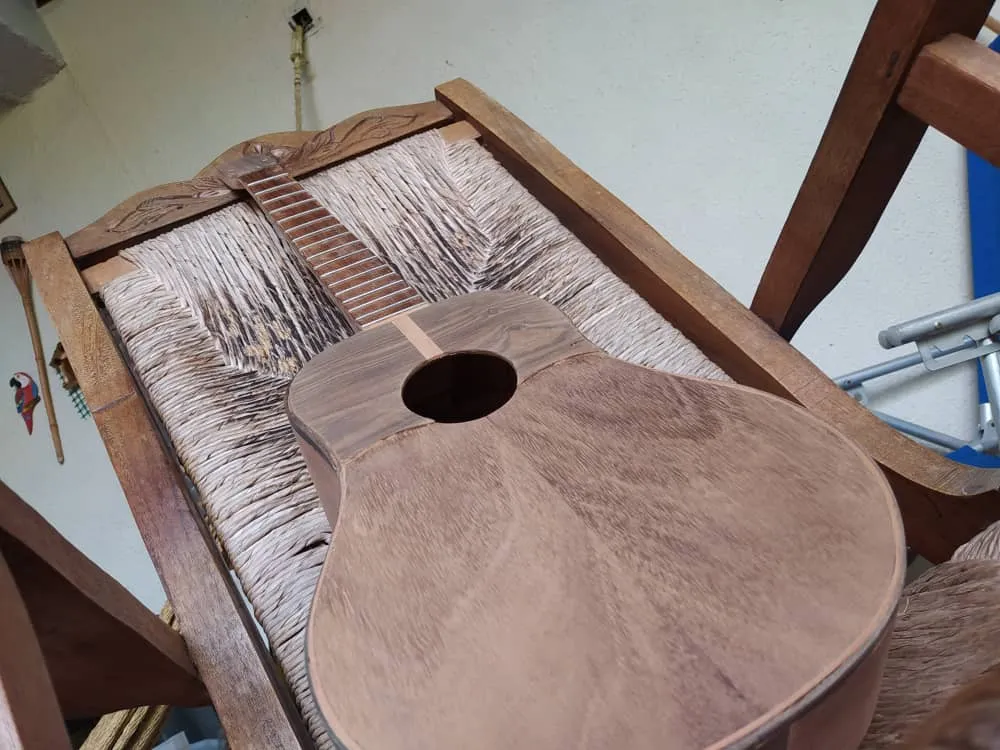

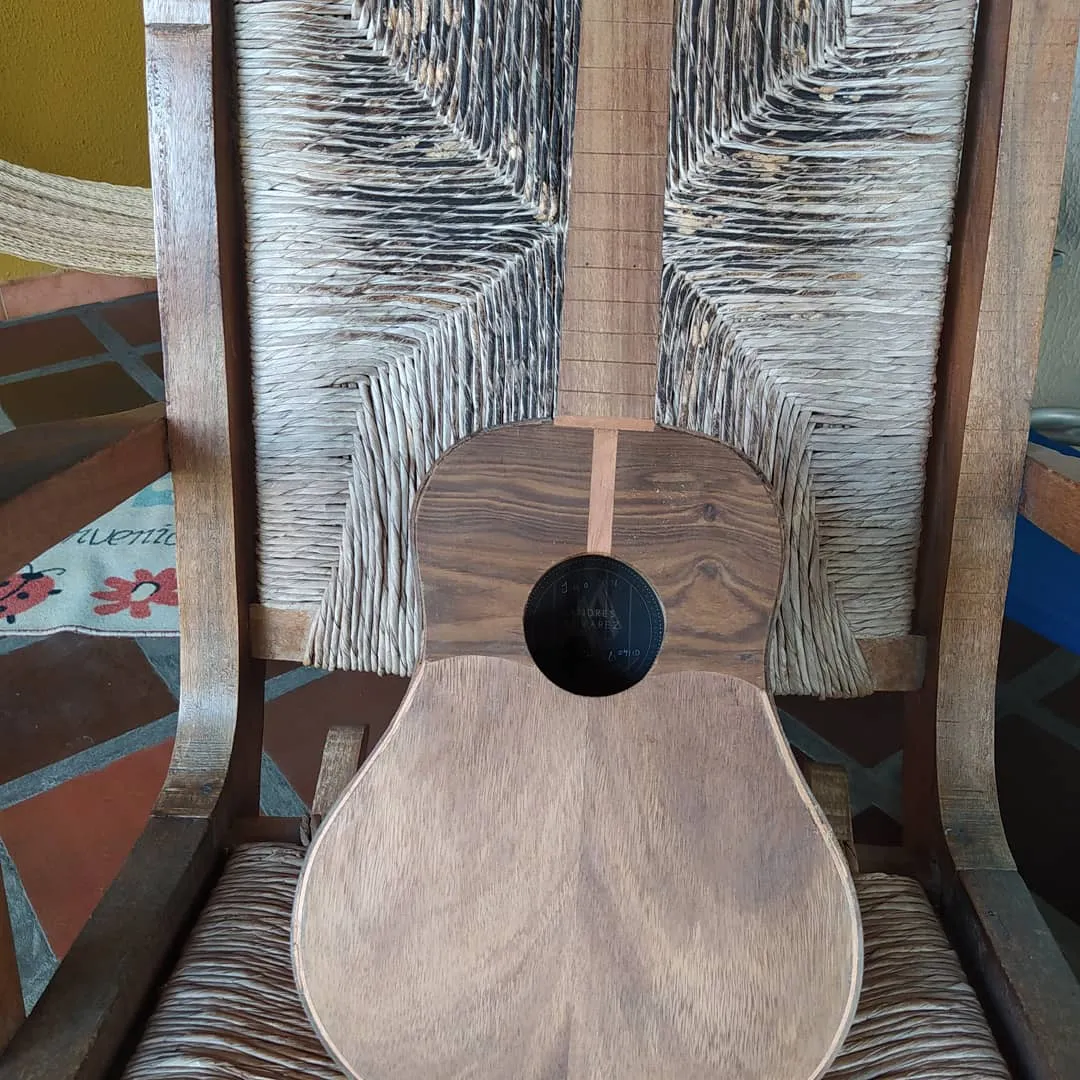

As you can see, a lot has improved. The frets are in place and beveled. I took the time to seal the fretboard with thin layers or sealant and teak oil. Talking about sealant. It took me 7 hands of it to seal the rest of the wood. The pores of rain tree wood are very deep. The cedar was also in this condition. But the job has to be completed and you can’t be cheap on this step. Sanding it was also a long job. However, I’m following this technique: apply as many hands as need until the wood looks fine, i.e., you can’t see the pores of the wood. Once you reach this point, you can sand all the excess material until it is flat. Thus, the instrument is ready for varnish.
The missing things are the nut, which I’ll be making one of these days. Maybe I’ll even make an ornament for the bridge. And this will have some flower drawings on the head stock. Next time you see this bad boy, it will be making music. Until then, enjoy the photo show.
La útlima vez que vimos este cuatro, ya tenía forma. Ahora, viene el trabajo fino. Como pudieron ver, se añadieron los adornos con cuidado de evitar los mimos errores del instrumento anterior. Todavía no hay roseta, pero eso vendrá pronto. Por los momentos, solo tenemos perfiles y un adonor en la culata. Además, de las piezas que faltaban, se labró el puente y me tomé el tiempo para calcular la altura de las cuerdas. Este instrumento será una belleza.
Cómo pudieron observar, mucho ha mejorado. Los trastes están en su lugar y biselados. Me tomé el tiempo de sellar el diapasón con capas finas de sellador y aceite de teca. Sobre lo primero tengo algo que decir. Me tomó 7 manos de sellador llegar al punto exacto para la madera. Los poros del samán son profundos. El cedro estaba en condiciones similares. Pero es un trabajo en que no se puede escatimar material. Lijarlo fue otro proceso. Sin embargo, seguí está técnica: apliqué todas las capas hasta que no se veían los poros. Después de esto, procedí a lijar todo el instrumento. Ahora solo falta el barniz.
Solo falta la cejilla. Esta la haré en estos días. Tal vez incluya un adorno extra en el puente. Incluiré unos dibijos florales para adornar la pala. La próxima vez que veamos este cuatro, está haciendo música. Mientras, espero que hayan disfrutado el show de fotos.
That is all for this entry. Thanks a lot for reading. See you in the next chapter.
Eso es todo por esta ocasión. Gracias por leer. Nos vemos en el próximo post.
All the pictures used in these post were taken with my phone.
Todas las fotos en este post fueron tomadas con mi teléfono.
