Hello friends! I am back with my coarse-grained(CG) molecular dynamics(MD) simulation series. Today we will see how to create a vesicle coordinate file and assign it proper topology and structure information. Those who follow me from our steem days might recall that I have introduced similar concept for all-atom simulations using VMD software. Today I will use:
- MATLAB to code get 3D coordinates for the vesicle and write it to a XYZ format file.
- VMD to convert it to PDB format file
- and finally a VMD plugin called
topotoolsto give it correct structure or topology information

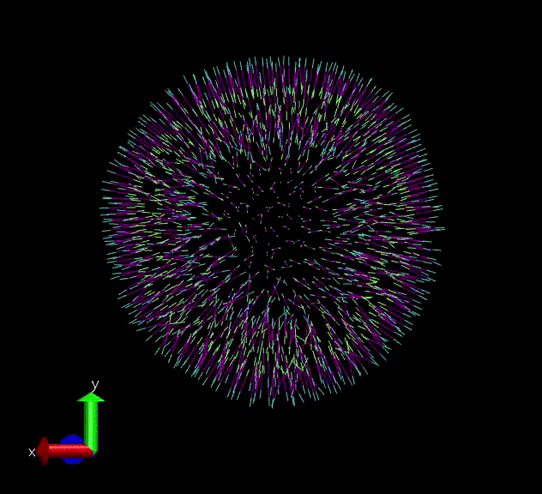

A vesicle created and assigned with appropriate topology information. gif courtesy: @dexterdev
The above vesicle is made of many lipid molecules which look as below:
A single lipid with three type of particles
The first step to create a vesicle is to decide its size. Then the next step is to decide the number of total lipids to be accomodated in the it which can be calculated based on the area per lipid calculations from literature[1]. Once you have these information, it can be written in some easy fileformats. I choose XYZ file format as it is very straight forward. Proper resid should be assigned and for this purpose for convenience I used MATLAB scripting. You can do it in VMD /Python too. (But you know what I am lazy! ;P) As a final step you have to assign proper bond and angle topology information. This can be done via topotools.
Writing Coordinate information to XYZ file
You can place random points on a sphere based on the algorithm mentioned in [2]. I implemented it in MATLAB:
Ap=30^2; % projected area for 500 single leaflet
%lipids in bilayer sheet
r = 10; % radius of the sphere
n=round((500/Ap)*4*pi*r^2);% number of points
u1=rand(1,n);
u2=rand(1,n);
lambda=acos(2.*u1-1)-(pi/2);
phi=2*pi.*u2;
xp1 = r.*cos(lambda).*cos(phi);
yp1 = r.*cos(lambda).*sin(phi);
zp1 = r.*sin(lambda);
The above code snippet places random points on a sphere with radius 10 units. The number of points are calculated according to a parameter Ap from [1]. As we discussed in the previous article, Ap is the projected area for 1000 lipid bilayer sheet(500 on each leaflet). So for a sphere of radius 10, the surface area will be 4 * pi * 10^2 and corresponding number of lipids on a sphere of radius 10 should be n=round((500/Ap)*4*pi*r^2). These points will be the heads of the outer leaflet. Now it is easy to extend tail atoms for respective outerheads. Similarly this procedure is repeated for inner leaflet heads and corresponding tails too. Finally you write the data to a XYZ file. The whole code is available here: https://github.com/dexterdev/Molecular_Dynamics/blob/master/Vesicle_structure_coordinate/vesicle_coord.m
Now we can convert it to a PDB(protein data bank) file for convenience. You can do it as below using tcl scripting in VMD:
mol new vesicle_rad10_apl1.8.xyz
# load xyz file
set sel [atomselect 0 all]
#select all atoms
$sel writepdb vesicle_rad10_apl1.8.pdb
#write pdb file
The below MATLAB script reds the PDB file and renumbers the resid numbers properly. Resid numbers are numbers which specify each individual lipid in this example:
pdb=pdbread('vesicle_rad10_apl1.8.pdb');
len=(length({pdb.Model.Atom.X}))/3;
A=[1:len;1:len;1:len];
A=reshape(A,[len*3 1]);
A = num2cell(A);
[pdb.Model.Atom.resSeq] = A{:};
pdbwrite('vesicle_resid_renumbered_rad10_apl1.8.pdb',pdb);
That was all about coordinate information and saving it properly in a PDB file.
Assigning a proper structure/topology file
The PDB file which we have is just a bunch of points(particles). We haven't specified connections between the particles. That means the bond information is missing and since they are 3 atom lipid molecules and their angle is significant in our experiments, we have to specify angles too. Here is where topotools coming handy. You can code it using the tcl interface in VMD. Below is the script:
mol addfile ./vesicle_resid_renumbered_rad10_apl1.8.pdb
package require topotools
package require pbctools
set sel1 [atomselect 0 "sqrt(x^2+y^2+z^2)>9.9"]
$sel1 set type H
#selecting atoms in the outersphere and naming it H
#outersphere is at a radius of 10
#H for head
set sel2 [atomselect 0 "(sqrt(x^2+y^2+z^2)>5.7) and (sqrt(x^2+y^2+z^2)<5.9)"]
$sel2 set type H
set sel3 [atomselect 0 "(sqrt(x^2+y^2+z^2)>8.9) and (sqrt(x^2+y^2+z^2)<9.1)"]
$sel3 set type T1
set sel4 [atomselect 0 "(sqrt(x^2+y^2+z^2)>6.7) and (sqrt(x^2+y^2+z^2)<6.9)"]
$sel4 set type T1
set sel5 [atomselect 0 "(sqrt(x^2+y^2+z^2)>7.7) and (sqrt(x^2+y^2+z^2)<8.1)"]
$sel5 set type T2
set sel6 [atomselect 0 "(sqrt(x^2+y^2+z^2)>7.9)"]
$sel6 set segname U
set sel7 [atomselect 0 "(sqrt(x^2+y^2+z^2)<7.9)"]
$sel7 set segname L
set blist {}
set natoms [molinfo top get numatoms]
for {set a 0; set b 1} {$b < $natoms} {set a [expr {$a + 3}]; set b [expr {$b + 3}]} {
lappend blist [list $a $b H-T1]
}
set bblist {}
set natoms [molinfo top get numatoms]
for {set c 1; set d 2} {$d < $natoms} {set c [expr {$c + 3}]; set d [expr {$d + 3}]} {
lappend bblist [list $c $d T1-T2]
}
set tlist [concat $blist $bblist]
topo setbondlist type $tlist
#The above loops
#specifying two kinds of bond info H-T1 and H-T2
#and then writes it to bond list
set anglelist {}
set natoms [molinfo top get numatoms]
for {set a 0; set b 1; set c 2} {$c < $natoms} {set a [expr {$a + 3}]; set b [expr {$b + 3}]; set c [expr {$c + 3}]} {
lappend anglelist [list H-T1-T2 $a $b $c]
}
topo setanglelist $anglelist
#The above loop
#specifying H-T1-T2 angle info
#and then writes it to angle list
set sel [atomselect 0 all]
$sel set mass 1
pbc set {25 25 25} -all -molid top
pbc box -center origin
#setting box dimension with pbc tool
topo writelammpsdata vesicle_10radius_apl1.8_topology_corrected.data
# Finally we write the information to a data file
#which has the coordinates and topology/structure information
Coming up in the next articles
Until now we have seen the:
- An example of setting up LAMMPS simulation
- Described the Farago model
- And today, we are ready with the initial vesicle structure
And the next articles will deal with:
- Setting up custom potential via tabulated potential files in LAMMPS
- Running our vesicle using different forcefields and playing with it.
So that's for today.
Link to all codes
All codes available in my github repository here.
References
- [1] "Water-free" computer model for fluid bilayer membranes
- [2] math.stackexchange QA link on how to assign random points of a sphere
- [3] Topotools webpage
