I promised to draw third angle projection. Here it is. Enjoy
Third Angle Projection
Source: www.technologystudent.com
The Front View, Plan and side or end view remains the same. Only their positions will change. The front view will be located in the cosine quadrant (4th quadrant), the plan in the all positive quadrant (1st quadrant), the end or side view in the tangent quadrant (3rd quadrant), while the angle will be in the sine quadrant (2nd quadrant).
Source: Shmoop.com
The Front View
Source: Kenneth56
The Plan
Source: Kenneth56
End or side view
Source: Kenneth56

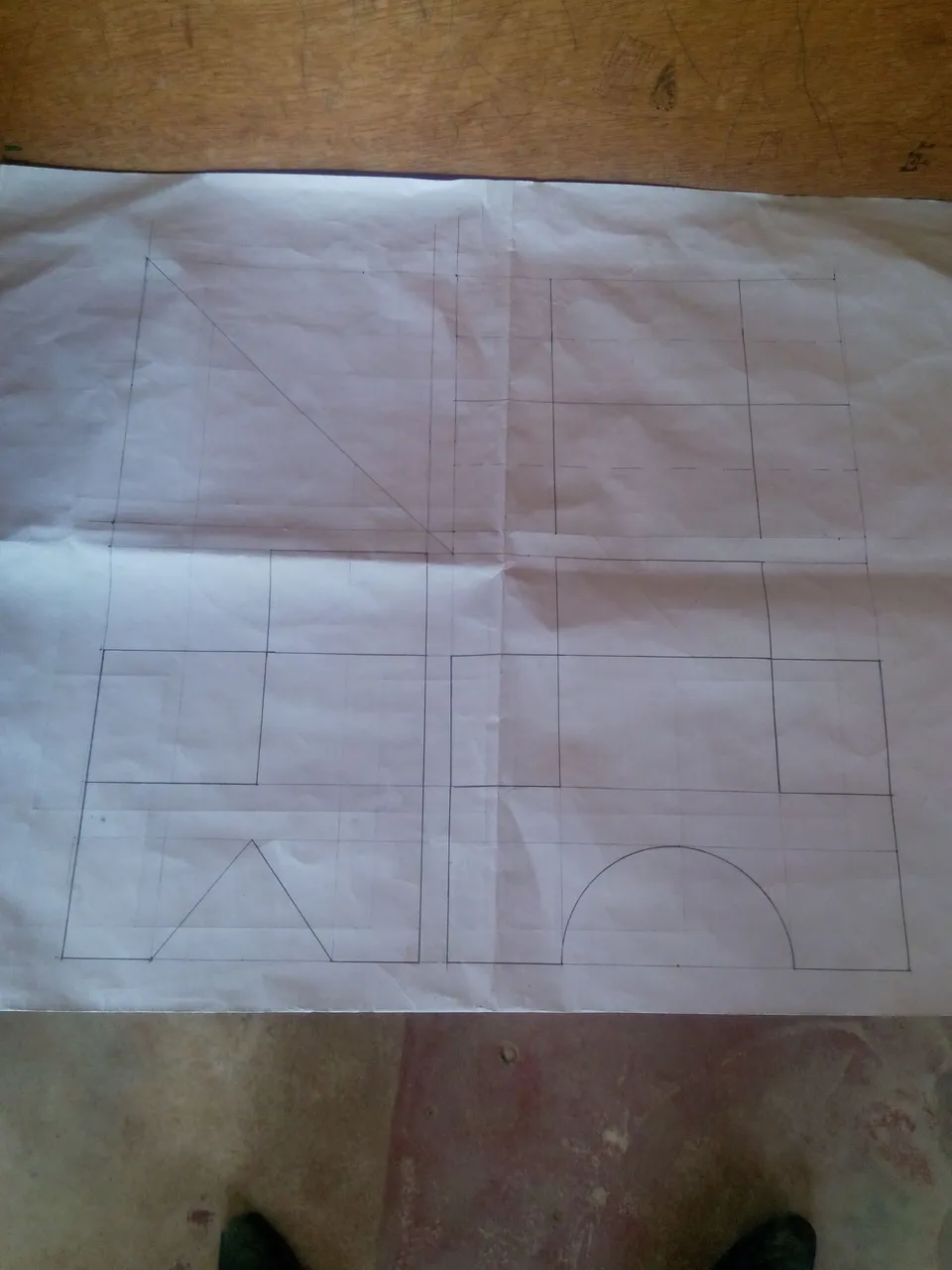

Third angle Projection
Source: Kenneth56
I will be talking about a miracle in my next post. Be expectant.
