BitBlocks - Masternode Setup

 Initial wallet setup

• Download the latest wallet for your operating system which is available in our wallets repository.
• Launch the wallet and allow it to synchronize

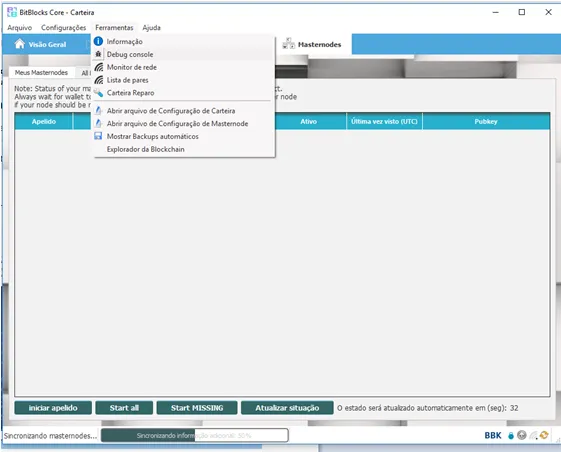

• Click on debug console found in tools

• Type {masternode genkey} — copy the generated key and exit the console
   Save the private key in a text file for future use.

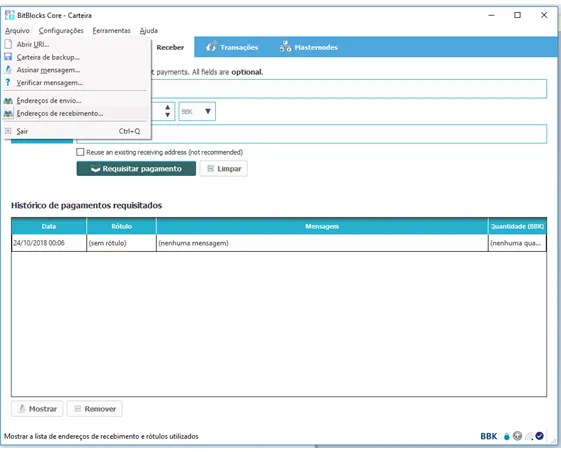

• Go to receiving wallets found in files — create masternode wallet, by creating a new wallet, called masternode1 Copy the address by right-clicking and selecting “Copy Address”

• Send EXACTLY 30.000 coins to masternode1 wallet by pasting the copied address.
  Note that this has to be sent in ONE transaction.
• Wait for 16 confirmations.
• Go back to debug console and type masternode outputs
• Copy the transaction id and output id Save the output in the text file for future use.

Get a VPS ( masternode server )

We recommend renting a VPS with www.vultr.com because they are fast and cheap.

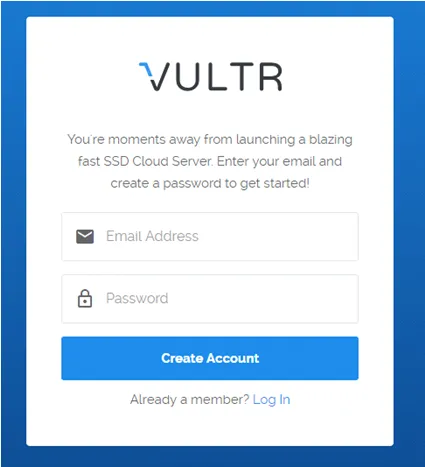

• Create an account:

• Deploy a new server
• Choose a location close to you to have a fast connection

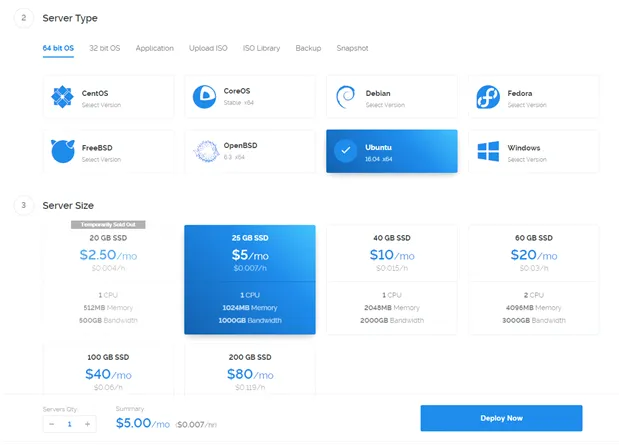

• Choose Ubuntu 16.04 x64 as operating system and take the 5$ server size. This is sufficient.

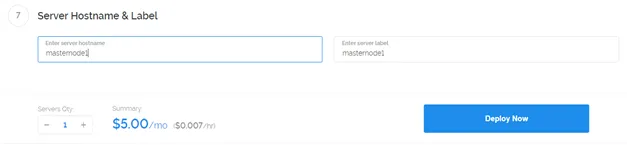

• Move to step 7 and give your masternode VPS a name.

• Click “Deploy now”
   The server is now being started. Please wait until the status is “Available”.

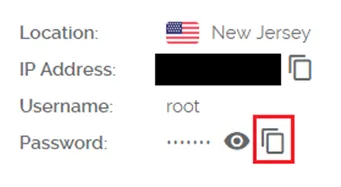

• Click the server name and copy the IP-address and password via the copy button.

Configure your masternode

Depending upon which operating system you are using follow the correct section:

1. Windows — PuTTY

1.1 Install PuTTY and run it.

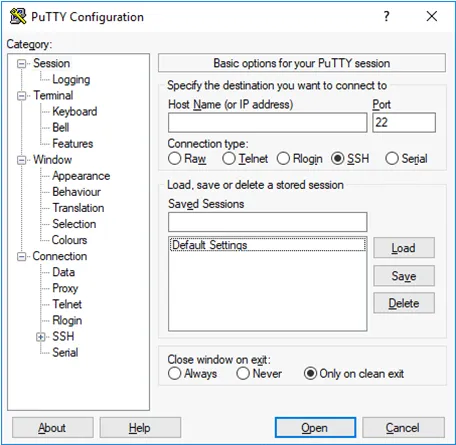

• You will be greeted with the following page

• Fill the Host name field with the IP address you previously copied and click “Open”.

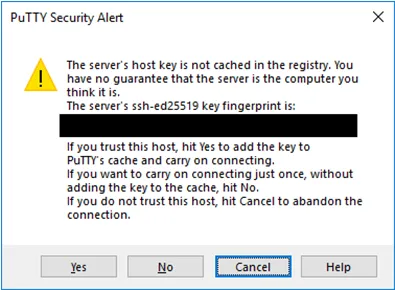

• You will see a popup asking you if you trust this host. Choose Yes! ( this will only be asked once ).

• Login as “root”. Hit ENTER
• Copy the password you saved previously and right click in the putty terminal. ENTER.

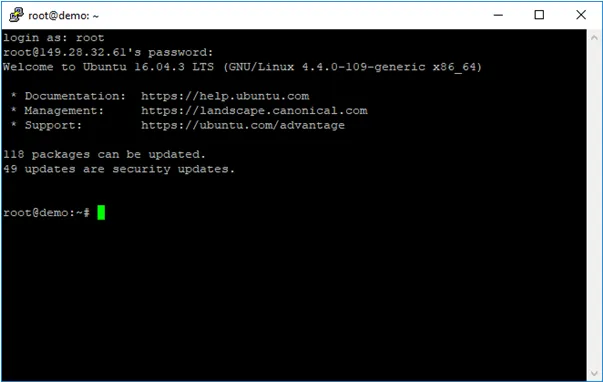

• You are now logged into your server:

 2. Mac/Linux — Terminal (preinstalled)

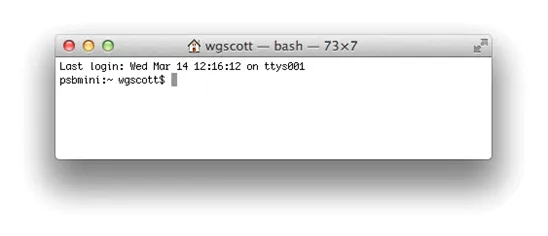

• You can find Terminal by following the steps:
• Go to Finder, Applications then click on utilities, then you’ll find the terminal there.

• Type: ssh root@YourMasternodeIPaddress. ENTER.
• You are now logged into your server.

2.1 General steps

Let’s update our system to the latest version to make sure we are secure.

• Type: ``sudo apt-get update`` ENTER
• Wait until this finishes

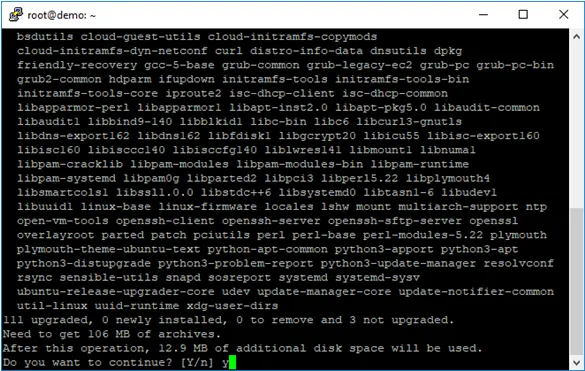

• Type: ``sudo apt-get upgrade`` ENTER

• Type “y” if the system ask for the confirmation of updating the system.

Remember that you can copy the text below and paste it in to the server via RIGHT-MOUSE click for PuTTY, or CMD-V for MACInstall the dependencies.

• Type: `` sudo apt install build-essential libtool autotools-dev automake pkg-config libssl-dev libevent-dev bsdmainutils git libdb4.8-dev libdb4.8++-dev curl`` ENTER
• Type: `` sudo apt install libboost-system-dev libboost-filesystem-dev libboost-chrono-dev libboost-program-options-dev libboost-test-dev libboost-thread-dev libzmq3-dev`` ENTER
• Type: ``sudo apt-get install git`` ENTER
• Type “y” if the system ask for the confirmation of updating the system.

Clone Bitblocks code

• Type ``git clone https://github.com/BitBlocksProject/BitBlocks ``

Now if you Type ``ls`` you can see the BitBlocks folderAdd permissions

• Type ``chmod -R 755 BitBlocks``

Go to BitBlocks folder

• Type ``cd BitBlocks``



Optional: Type ``screen`` ENTER for keep the command working even if you close the putty                 Optional: If your VPS have less them 1gb RAM



Make a swap file



Type `` sudo dd if=/dev/zero of=swapfile bs=1M count=3000``                                               Type `` sudo mkswap swapfile``                                                                             Type `` sudo swapon swapfile``                                                                              More info about swap file: https://digitizor.com/create-swap-file-ubuntu-linux/

 Now let’s compile BitBlocks daemon

• Type ``./autogen.sh``
• Type ``./configure``
• Type ``make``

Now will take some time for your vps compile the BitBlocks walletGo back to your local wallet

2.2 Masternode config file in the wallet

• Go to open masternode configuration file in the wallet — found on the ‘tools’ menu

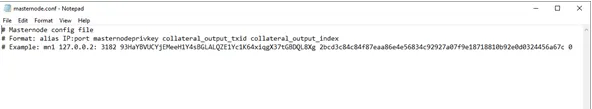

   Here you will see the format and an example ( these three lines are comments so they have no effect )

The format is like this:

• Add your own real working node details under it.
• Put the masternode wallet name, i.e — MN01
• Put the server IP address ( your vultr ip or other vps/vm ip) followed by the port : 58697
• Put the private key generated in step 1.4
• Put the transaction hash and output id from step 1.7

Example below

• Once complete, save the file

The file will look like this:

Configure the .conf file in VPS

Go to putty and login in your VPS like the steps 1.1

• Type: ``cd BitBlocks`` ENTER
• Type: ``cd src`` ENTER
• Type: ``./bitblocksd -daemon`` ENTER

• Type: ``cd ..`` ENTER
• Type: ``cd ..`` ENTER
• Type: ``cd .bitblocks`` ENTER
• Type: ``sudo nano bitblocks.conf``ENTER
• Type:

rpcuser=bitblocksrpc                                                                                                                                                                                     rpcallowip=127.0.0.1                                                                                                                                                                                                               listen=1                                                                                                                                                                                                                                            server=1                                                                                                                                                                                                                                        daemon=1                                                                                                                                                                                                                     logtimestamps=1                                                                                                                                                                                                   maxconnections=256                                                                                                                                                                                                           masternode=1                                                                                                                                                                                          masternodeprivkey=xxxxxxxxxx                                                                                                             rpcpassword=xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

Where masternodeprivkey = your masternode genkey (Check 1.4 steps)
and rpcpassword = random characters

Starting the wallet

• Type: ``cd BitBlocks`` ENTER
• Type: ``cd src`` ENTER
• Type: ``./bitblocksd -daemon`` ENTER

Now your vps wallet needs to sync and it will also take a few minutes

Starting the masternode

When your vps wallet is sync you can start the masternode

• Restart the local wallet
• Go to your wallet and go to the masternode page.

Select the masternode and press: “Start alias”.To verify that the masternode is running on the vps:

• Type : cd ~/bitblocks/src ENTER
• Type: ./bitblocks-cli masternode status ENTER
• If you get this output, you are done:

 Thank you very much for being part of the BBK community.
