Upgrade miner rigs from ubuntu 16.04 to ubuntu 18.04

As everyone knows: never touch a running system or only if you have a enough time to fix the problems that will come up as usual. So, the Christmas time is a good time to do a upgrade of my miner rigs OS system. I was upgrading from ubuntu 16.04 to ubuntu 18.04 Server. Following you find my steps that was necessary to upgrade successful.

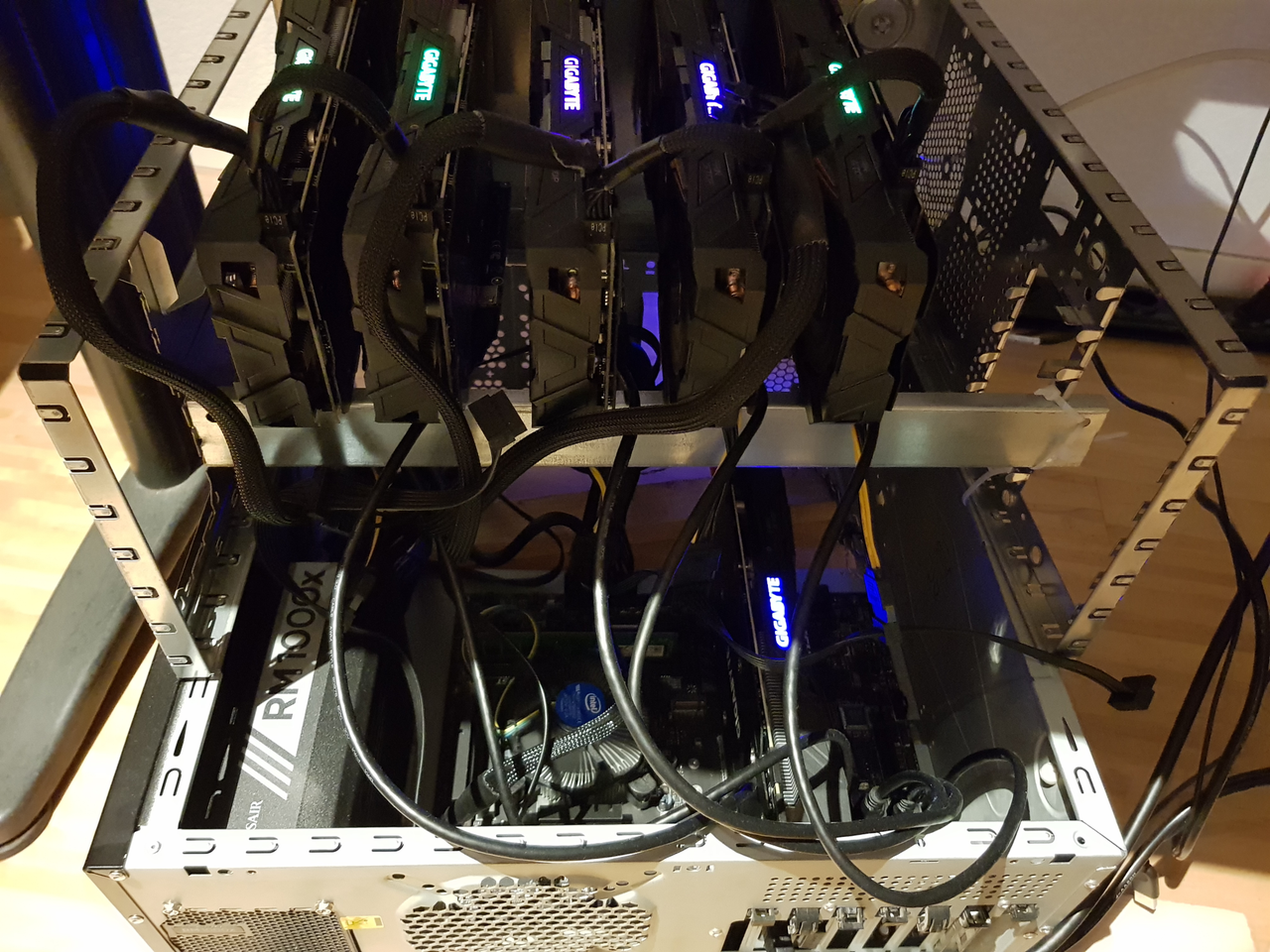

My rigs are based on MSI Z270 motherboard and GeForce GTX 1070 graphic cards.

1. Step make an USB bootable stick to install ubuntu 18.04 Server
   First, I had to download the proper ISO file
   http://releases.ubuntu.com/18.04/

   Second, I had to download a program to make a bootable USB Stick with this ISO file.
   I used the program unetbootin-windows-661.exe.
   I gotten it from: https://unetbootin.github.io/

2. Step install the new OS ubuntu 18.04
   I just had to insert the USB Stick in my mining rig and hit F11 during the boot process and
   to follow the instruction on the screen.

   After this step you should be able to login to your rig.

Now the real work begins. We have to configure everything, so the miner rig works as before with ubuntu 16.04. I logged in the server over ssh client.

1. Step we prevent the system to make system updates automatically
   If the system would do so, we are in danger that the mining process will stop and errors during restart occurs.

   So, I edit the file 20auto-upgrades and set Update-Package-Lists from ‘1’ to ‘0’

   sudo vi /etc/apt/apt.conf.d/20auto-upgrades
   --begin file--
   APT::Periodic::Update-Package-Lists "0";
   APT::Periodic::Unattended-Upgrade "1";
   --end file--


2. Step I changed ssh login in this way that it is not possible to login with username and password

   For that you need a private and public key pair. If you don’t know how to create such a key pair there are a lot of web site which explain how to do that. For Windows with the ssh program PuTTY e.g. https://docs.joyent.com/public-cloud/getting-started/ssh-keys/generating-an-ssh-key-manually/manually-generating-your-ssh-key-in-windows

   At my home directory I created the folder .ssh and created the file authorized_keys to enter my public key. Then I chaned my ssh config file, so it is only possible to login with my key. At the end I restarted the ssh process

   cd .ssh
   vi authorized_keys
     --> copy pub key string to file

   sudo vi /etc/ssh/sshd_config
     --> PasswordAuthentication no

   sudo service ssh restart


3. Step Now I installed the newest CUDA libraries from nvidia.
   First, I had to install the C++ compiler
   sudo apt install gcc

   Second, I did download the CUDA install file and installed the CUDA libraries

   wget https://developer.nvidia.com/compute/cuda/10.0/Prod/local_installers/cuda-repo-ubuntu1804-10-0-local-10.0.130-410.48_1.0-1_amd64
   sudo dpkg -i cuda-repo-ubuntu1804-10-0-local-10.0.130-410.48_1.0-1_amd64.deb
   sudo apt-key add /var/cuda-repo-10-0-local-10.0.130-410.48/7fa2af80.pub
   sudo apt-get update
   sudo apt-get install cuda


   At the end, I did export some paths and reboot my rig

    export PATH=/usr/local/cuda-10.0/bin${PATH:+:${PATH}}
    export LD_LIBRARY_PATH=/usr/local/cuda-10.0/lib64${LD_LIBRARY_PATH:+:${LD_LIBRARY_PATH}}
    sudo reboot


4. Step in this step I installed the lightweight X system lightdm

   sudo apt install --no-install-recommends xorg lightdm lightdm-gtk-greeter
   sudo service lightdm start


5. Step Now I configured the X system
   First, I created the xorg.conf file. Then I edit the file and chaned the screen options

   sudo nvidia-xconfig
   sudo vi /etc/X11/xorg.conf
    --> add Option
    Section "Screen"
        Identifier     "Screen0"
        Device         "Device0"
        Monitor        "Monitor0"
        DefaultDepth    24
        SubSection     "Display"
           Depth       24
        EndSubSection
        Option         "AllowEmptyInitialConfiguration" "True"
        Option         "ConnectedMonitor" "DFP-0"
        Option         "Interactive" "False"
        Option         "Coolbits" "12"
   EndSection
   --end file--


   This is only the configuration for one card.

6. Step I installed the mining software
   Actually, I do mining ravencoin with the t-rex program. So, I did install some additional libraries, download the current program version

   mkdir trex
   cd trex
   sudo apt-get install libcurl3
   wget https://github.com/trexminer/T-Rex/releases/download/0.8.9/t-rex-0.8.9-linux-cuda10.0.tar.gz
   tar -xvf t-rex-0.8.9-linux-cuda10.0.tar.gz


7. Step in the last step I did created a service that will start automatically if I reboot the system

   sudo vi /etc/systemd/system/rvn-miner.service
   sudo systemctl daemon-reload
   sudo systemctl enable rvn-miner


   the rvn-miner.service files entries:

   -->begin file
   [Unit]
   Description=Mine Raven
   After=lightdm
   [Service]
   Environment=GPU_FORCE_64BIT_PTR=0
   Environment=GPU_MAX_HEAP_SIZE=100
   Environment=GPU_USE_SYNC_OBJECTS=1
   Environment=GPU_MAX_ALLOC_PERCENT=100
   Environment=GPU_SINGLE_ALLOC_PERCENT=100
   Environment=DISPLAY=:0
   Environment=XAUTHORITY=/var/run/lightdm/root/:0
   Environment=PATH=/usr/local/cuda/bin
   Environment=LD_LIBRARY_PATH=/usr/local/cuda/lib64
   WorkingDirectory=/home/<user home>/
   ExecStartPre=/usr/bin/nvidia-settings -c :0 -a '[gpu:0]/GPUMemoryTransferRateOffset[3]=1300'
   ExecStartPre=/usr/bin/nvidia-settings -c :0 -a '[gpu:0]/GPUGraphicsClockOffset[3]=100'
   ExecStartPre=/usr/bin/nvidia-smi -pl 100

   ExecStart=/home/matthias/trex/t-rex -a x16r -R 5 -o stratum+tcp://rvn.pickaxe.pro:3636 -u . -p c=RVN
   Restart=always
   [Install]
   WantedBy=multi-user.target
   --> end file
