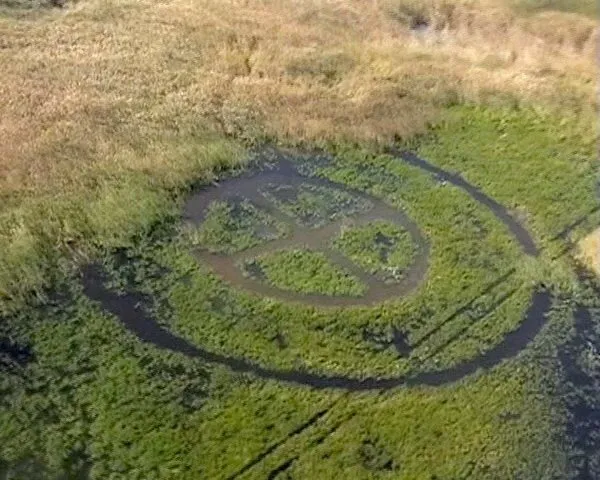

Tamga Levoberezhnaya, the Solar Cross. As soon as they do not call geoglyphs on the marshes of the left bank of Omsk in the alignment of Komkova Street. And what explanations he could not find from the target for bombing to the landing site of a UFO. About this puzzle I wrote last time.
And the answer was banal and not at all mysterious. And so in order.
As an ardent pagan, I certainly took a shovel, scissors and a piece of paper. He drew this tamga on a piece of paper, opened the Vedas and began to ask Perun to open the secret ...
And miraculously on the drawn symbol on the edges of the cross appeared one letter ... D ... P ... R ... M ...
And then it dawned on me ... Of course ... Tamga is nothing but the foundation of the Divine Perunov Roda Mayak ... In the interior of the lighthouse there was a spiral ramp along which horses and mules pulled up wagons with resin and oil, because to maintain a large fire at the top of the lighthouse, it required a lot of fuel .
And focusing on the light of this fire on the wightman's lighthouse, Peruna went in for landing at the Cosmodrome Asgard .
Years passed. Asgard as the cosmodrome has sunk into oblivion. Divine technologies also disappeared. They were replaced by ordinary terrestrial technologies.

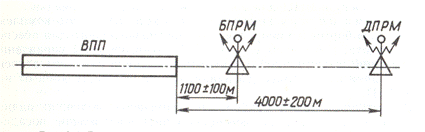

It was 5856 (1948) year from the creation of the world and in the USSR began to introduce OSB (landing system equipment), which included a short-range drive beacon (BPRM) and a long-range drive beacon (DPRM). These lighthouses were located at distances from the runway of approximately 1000 and 4000 meters. These lighthouses allow, if for a simple, to determine the pilot's distance to the runway and take the correct course to land.
And what does Tamga have to do with the left bank? About this in order. Igor omchanin just suggested that this geoglyph has an attitude to the airport: "Is it really the tamga, which guides the glide path to the pilot? Indeed, the tamga can be seen both in winter and in summer; maybe there were even signal lights there "

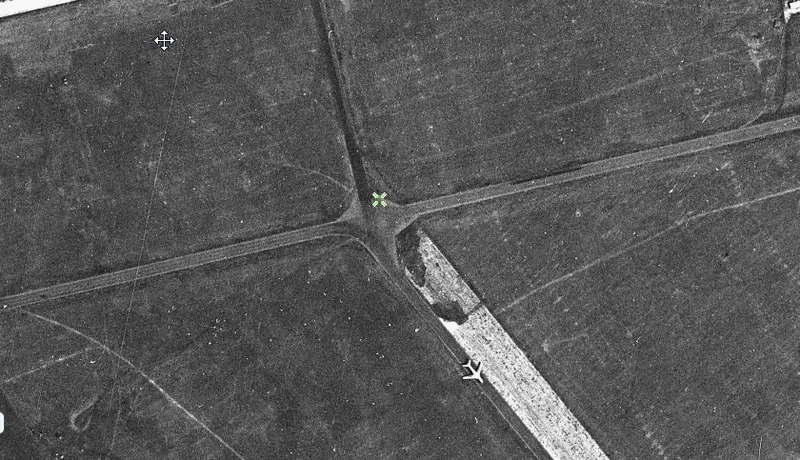

We look at the map shot in 1966. It clearly shows the traces of the old runway at the airport.

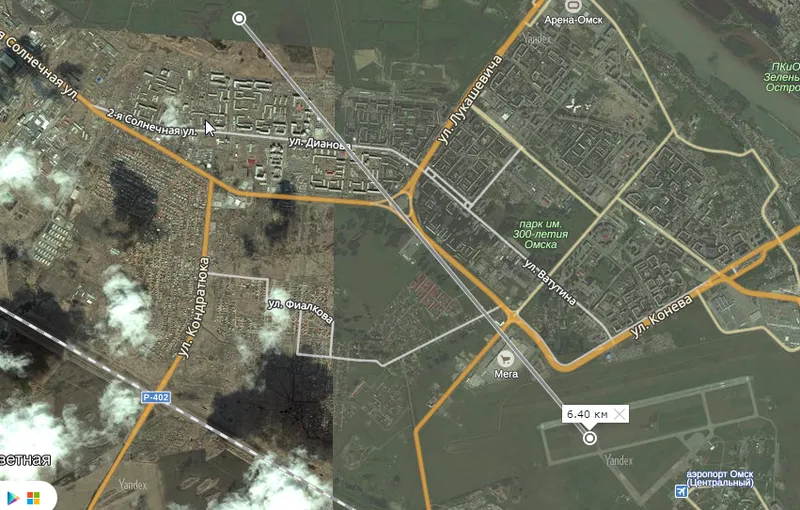

And now draw a line from the tamga to this runway. Surprisingly, the direction of the shoot coincides perfectly with the direction of the tamga.

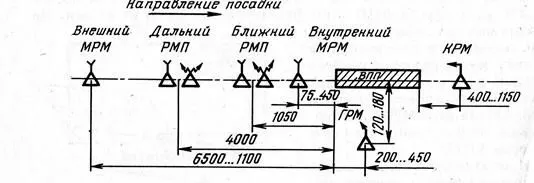

But here the distance does not match instead of 3800-4200 meters, we have about 6400 meters. Of course, we grab the head with both hands and shake this design to the right and left to shout: "Aaaaa, it's all gone ... Aaaaa, we're all ..." Though not so, ~ take scissors and a sheet, I did not get a shovel to study the OSB in more detail. And it turns out that in addition to the BMRM (short-range marker beacon in the BPRM) and the DMRM (respectively all), there are also VNRM, SMRM, WMPM and many more bukavok. But we are only interested in the External Marker RadioMayak. The distance to which is 6500 ± 1100 meters. Which ideally matches our distance.

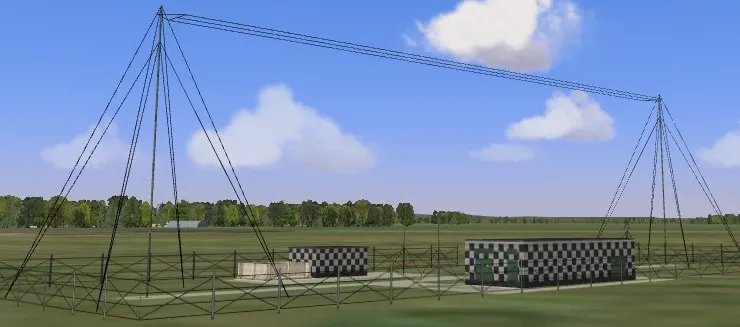

In theory, the mystery is revealed, but why such a strange form of tamga? Let's understand further. The radio beacon is an umbrella type antenna. Here such.

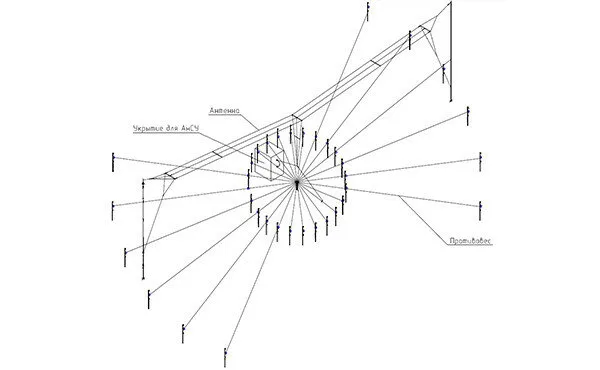

A little distracted by showing one more similar antenna. Just did not find a normal umbrella image, to explain the antenna's counterbalances.
Ground counterweights are part of the antenna, more often buried in the ground, and are necessary for the formation of the antenna pattern. In the figure of this antenna, they can be seen counterbalances stretched between the "pegs". This antenna has an inner circle, and the outer one is made up of two sectors.

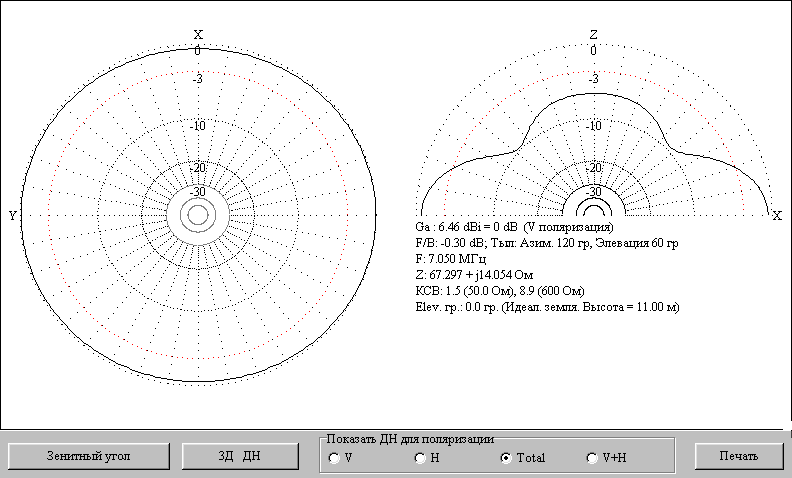

In our case, all the circles are intact. How is this all done in practice. A gravel platform is being prepared, compacted. It contains three bimitallic rings, made of steel-clad copper rods with a diameter of about 5 mm. Diameters of circles ... Small about a meter, average about 20 meters and large about 40 meters. from the central ring to the outer are laid counterbalances with a break in between them about 8 degrees. This forms the necessary directional pattern. (below just for clarity ...)
In the case of a tamga, the place is not very suitable, just to sprinkle the area with soil. so the concrete bases were needed for the rings to avoid deformation in the swampy terrain (the concrete onto the bed bottom of the old man lay quite normal), and for the base of the antenna rack it was necessary to make a concrete base in the form of a cross in the middle ring. And the crosshair itself formed the basis for the smallest ring. In addition, the outer ring serves to fix the "stretch marks" of the support. The most simple and functional design. As a result, this foundation does not allow the marsh to overgrow it. Let me remind you that the diameter of the larger circle is supposedly 48 meters, the smaller diameter is only 26, which corresponds to the dimensions of the counterweights.
That's all the secret secret.
And at the end of the vskidku explanation of the anomalies identified by the expedition in 2010.
"The device of satellite navigation went out of order, some researchers suddenly" hung up "mobile phones"
Although there are no antennas, there are still counterbalances to which are themselves an antenna. Beacons operate in the frequency range from about 150 to 1750 MHz. And it is quite possible that being directly above the counterweights, the power of radiation from the induced EMF is enough to make this lattice work as a local "jammer".
"The water inside these circles is 8-10 degrees warmer than outside both circles"
It is possible that the reinforced concrete foundation, heated for the day, gives an increase in the temperature of the water above it. Plus, the foundation is small enough only 20 cm and such a layer of standing water itself warms up better than in deeper sections.
"The soil became denser.If on the way here the soft silt sucked in, the bottom is hard enough in the anomalous zone.In any case, the stepladder, stowed straight into the water, does not think about sinking by the operator.The impression is as if something was lying under the silt concrete or iron. "
Well, I understand it so I do not need to explain. Concrete rings plus a bulk foundation between them is clearly denser than silt.
"If you listen to your feelings, you can feel the vibration under your feet. "Within one Hertz" "
Sitting on the couch, if you listen to your feelings, you can feel under the booty vibration (just sitting not a sofa) due to heartbeats and pulsations of blood. Especially anxious members of the expedition after physical loading in wet sticking clothes will feel it perfectly.
"At the moment his arrow seems to have gone wild. "Deviation by 25 degrees" "
We look at the first point. Lattice and counterweights can easily create an electromagnetic anomaly.
That's all. Omsk has become a little less mysterious, and it's a pity ...
