Repositories

SteemRubyTutorial

All examples from this tutorial can be found as fully functional scripts on GitHub:

SteemRubyTutorial
radiator sample code: Steem-Print-Balances.rb.

radiator

Project Name: Radiator
Repository: https://github.com/inertia186/radiator
Official Documentation: https://www.rubydoc.info/gems/radiator
Official Tutorial: https://developers.steem.io/tutorials-ruby/getting_started

Steem Engine

Project Name: Steem Engine
Home Page: https://steem-engine.com
Repository: https://github.com/harpagon210/steem-engine
Official Documentation: https://github.com/harpagon210/sscjs (JavaScript only)
Official Tutorial: N/A

What Will I Learn?

This tutorial shows how to interact with the Steem blockchain, Steem database and Steem Engine using Ruby. When accessing Steem Engine using Ruby their only the radiator APIs available.

In this particular chapter you learn how extend Steem-Print-Balances.rb from the Print Account Balances improved tutorial so it prints the steem engine token as well.

Requirements

Basic knowledge of Ruby programming is needed. It is necessary to install at least Ruby 2.5 as well as the following ruby gems:

gem install bundler
gem install colorize
gem install contracts
gem install radiator

The tutorial build on top of the following previous chapters:

Difficulty

For reader with programming experience this tutorial is basic level.

Tutorial Contents

The stacked tokens are stored alongside the non stacked token inside the balances table. Of course not all token are staked so you should check if the token is stakingEnabled.

Implementation using radiator

SCC::Balance

Take the staked token into account when calculating steem value of the account's balance.

         Contract None => Radiator::Type::Amount
         def to_steem
            _steem = if @symbol == "STEEMP" then
               @balance
            elsif token.staking_enabled then
               (@balance + @stake) * metric.last_price
            else
               @balance * metric.last_price
            end

            return Radiator::Type::Amount.to_amount(
               _steem,
               Radiator::Type::Amount::STEEM)
         end

Add the staked token to the formatted printout.

         Contract None => String
         def to_ansi_s
            _na = "N/A"

            begin
               _steem  = self.to_steem
               _sbd    = self.to_sbd
               _staked = self.token.staking_enabled

               _retval = if _staked then
                  ("%1$15.3f %2$s".white +
                     " %3$15.3f %4$s".white +
                     " %5$18.5f %7$-12s".blue +
                     " %6$18.6f %7$-12s".blue) % [
                     _sbd.to_f,
                     _sbd.asset,
                     _steem.to_f,
                     _steem.asset,
                     @balance,
                     @stake,
                     @symbol]
               else
                  ("%1$15.3f %2$s".white +
                     " %3$15.3f %4$s".white +
                     " %5$18.5f %7$-12s".blue +
                     " %6$18s".white) % [
                     _sbd.to_f,
                     _sbd.asset,
                     _steem.to_f,
                     _steem.asset,
                     @balance,
                     _na,
                     @symbol]
               end
            rescue KeyError
               _retval = (
               "%1$15s %2$s".white +
                  " %3$15s %4$5s".white +
                  " %5$18.5f %7$-12s".blue +
                  " %6$18.6f %7$-12s".blue) % [
                  _na,
                  _na,
                  _na,
                  _na,
                  @balance,
                  @stake,
                  @symbol]
            end

            return _retval
         end

SCC::Token

Add additional attributes describing staked token.

      attr_reader :key, :value,
                  :symbol,
                  :issuer,
                  :name,
                  :metadata,
                  :precision,
                  :max_supply,
                  :supply,
                  :circulating_supply,
                  :staking_enabled,
                  :unstaking_cooldown,
                  :delegation_enabled,
                  :undelegation_cooldown,
                  :loki

         Contract Any => nil
         def initialize(token)
            super(:symbol, token.symbol)

            @symbol               = token.symbol
            @issuer               = token.issuer
            @name                 = token.name
            @metadata             = JSON.parse(token.metadata)
            @precision            = token.precision
            @max_supply           = token.maxSupply
            @supply               = token.supply
            @circulating_supply   = token.circulatingSupply
            @stakingEnabled       = token.staking_enabled
            @total_staked          = token.total_staked
            @unstakingCooldown    = token.unstaking_cooldown
            @delegationEnabled    = token.delegation_enabled
            @undelegationCooldown = token.undelegation_cooldown
            @loki                 = token["$loki"]

            return
         end # initialize

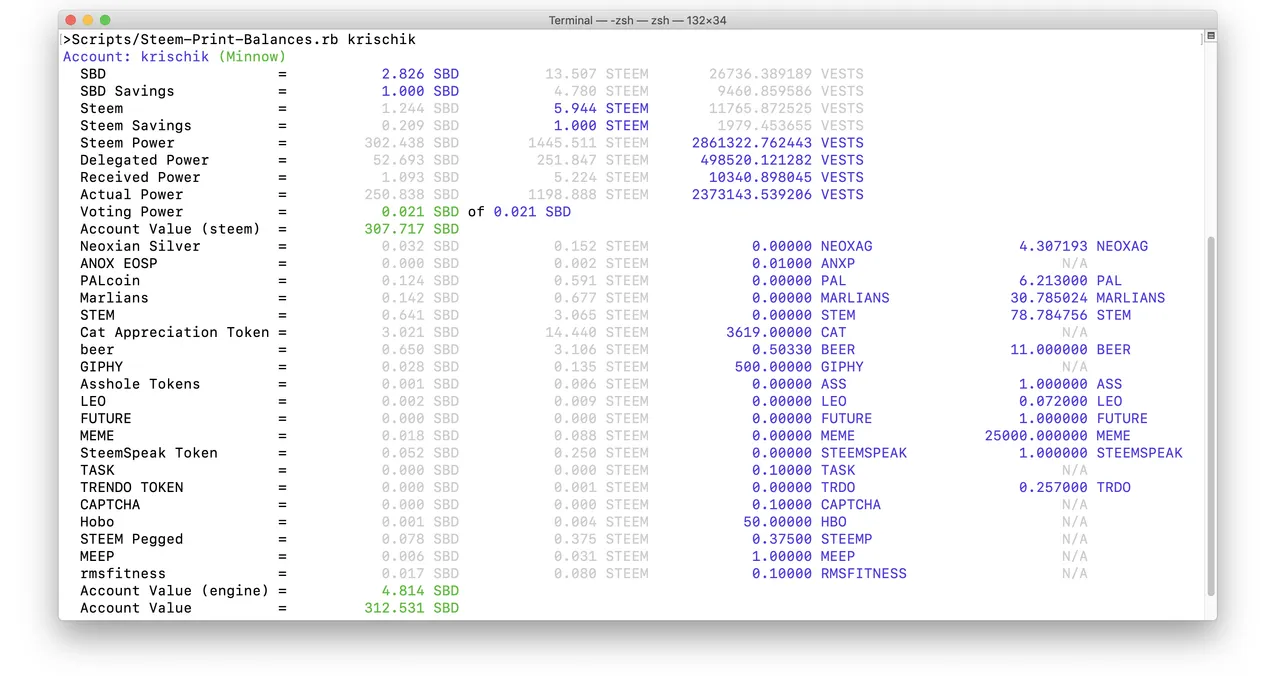

Steem-Print-Balances.rb

Update printout and add calculation of accounts steem engine token values.

      _scc_balances = SCC::Balance.account account.name
      _scc_value    = Radiator::Type::Amount.new("0.0 SBD")
      _scc_balances.each do |_scc_balance|
         token = _scc_balance.token

         puts("  %1$-22.22s = %2$s" % [token.name, _scc_balance.to_ansi_s])

         # Add token value (in SDB to the account value.
         begin
            _sbd           = _scc_balance.to_sbd
            _scc_value     = _scc_value + _sbd
            _account_value = _account_value + _sbd
         rescue KeyError
            # do nothing.
         end
      end

      puts(("  Account Value (engine) = " + "%1$15.3f %2$s".green) % [
         _scc_value.to_f,
         _scc_value.asset])
      puts(("  Account Value          = " + "%1$15.3f %2$s".green) % [
         _account_value.to_f,
         _account_value.asset])
