Intro
In this post, I will describe how to quickly set up a private 3-node regtest environment for the Qtum blockchain on a single machine (e.g. on your laptop) using Docker.
This type of environment is useful for people who want to experiment (e.g. with staking) and/or develop Ethereum smart contracts on the Qtum blockchain.
The reason I chose to use Docker is to (later) simplify the installation of development tools such as solc and ethabi on different OSs (e.g. Windows, macOS/OSX, Linux, etc.)
I will be making follow-up posts aimed at prospective Qtum blockchain software developers which will require that you have this environment in place.
Assumptions
I will be making the following assumptions:
- You are a software developer (or, you at least know how to edit files, run commands in a shell/Terminal, have or can get
gitinstalled, etc.) - You know that if I say "CTRL-D", that I mean pressing the Control key and the 'd' key at the same time, one after the other.
- My commands and output will be shown from a macOS/OSX environment, but you can translate the command/output to your own OS (e.g. Windows, Linux, etc.)
- You have approx. 200MB of free disk space to host the data for the 3 nodes.
I will be using the $ character as a prompt for the commands given below. Your OS may have a different prompt (e.g. >). You will need to enter these commands in a shell/Terminal session (e.g. "Command Prompt" in Windows, etc.)
Step 1 - Installing Docker
There are many guides for installing Docker Community Edition (CE) on the web. For most people, the documentation at https://docs.docker.com/engine/installation/ should be sufficient.

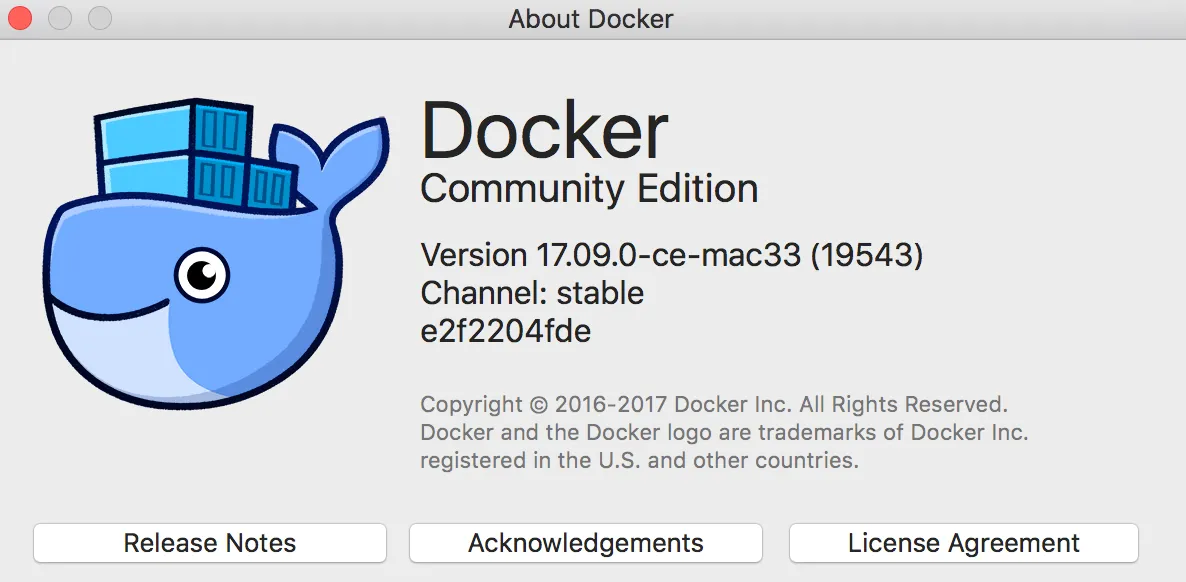

I have the following Docker (CE) version installed and running on my laptop running macOS Sierra 10.12.6:
Running the following Docker command:
$ docker version
I get:
Client:
Version: 17.09.0-ce
API version: 1.32
Go version: go1.8.3
Git commit: afdb6d4
Built: Tue Sep 26 22:40:09 2017
OS/Arch: darwin/amd64
Server:
Version: 17.09.0-ce
API version: 1.32 (minimum version 1.12)
Go version: go1.8.3
Git commit: afdb6d4
Built: Tue Sep 26 22:45:38 2017
OS/Arch: linux/amd64
Experimental: true
To ensure that you have Docker installed and running properly, run the following command:
$ docker run hello-world
You should see the following output:
Unable to find image 'hello-world:latest' locally
latest: Pulling from library/hello-world
5b0f327be733: Pull complete
Digest: sha256:b2ba691d8aac9e5ac3644c0788e3d3823f9e97f757f01d2ddc6eb5458df9d801
Status: Downloaded newer image for hello-world:latest
Hello from Docker!
This message shows that your installation appears to be working correctly.
To generate this message, Docker took the following steps:
1. The Docker client contacted the Docker daemon.
2. The Docker daemon pulled the "hello-world" image from the Docker Hub.
3. The Docker daemon created a new container from that image which runs the
executable that produces the output you are currently reading.
4. The Docker daemon streamed that output to the Docker client, which sent it
to your terminal.
To try something more ambitious, you can run an Ubuntu container with:
$ docker run -it ubuntu bash
Share images, automate workflows, and more with a free Docker ID:
https://cloud.docker.com/
For more examples and ideas, visit:
https://docs.docker.com/engine/userguide/
If you received an error, then ask the community for help.
Step 2 - Create a Qtum Docker Bridge Network
To allow the qtumd nodes (running in separate Docker containers) to communicate with each other, we'll create a Docker bridge network for them:
$ docker network create --driver bridge qtum_network
You'll be able to see this Docker network was properly created by running:
$ docker network ls
The output will look something like this:
NETWORK ID NAME DRIVER SCOPE
6ed968118fba bridge bridge local
07f2b230641a host host local
4275590e2165 none null local
056c85d3e4a3 qtum_network bridge local
We'll reference the qtum_network network in commands used further below.
Step 3 - Pull the Qtum Docker Image
I created the following Qtum Docker Image: https://hub.docker.com/r/cryptominder/qtum/ . It uses the latest (as of Oct. 6th, 2017) Qtum Ignition (mainnet) v1.0.2 node/wallet binary.
Pull this image onto your machine:
$ docker pull cryptominder/qtum
After a few moments, you should see that it has downloaded the image, and its dependencies onto your machine. You can run:
$ docker images
to verify that the image (i.e. cryptominder/qtum) is indeed available locally.
Qtum Daemon Datadir as a Docker Volume
The cryptominder/qtum Docker image has a volume exposed at /data. We'll use a local directory (one for each node) to contain the Qtum datadir (e.g. where the blockchain data, the wallet file, the debug log, etc. is stored). This will allow you to stop and restart the Docker container without losing any data.
We'll also map a local qtumd config file to /home/qtum/qtum.conf(as a read-only file).
The above is achieved by using the following 2 command-line arguments to the docker run command (used in sections further below):
-v ${PWD}/node1_qtumd.conf:/home/qtum/qtum.conf:ro
-v ${PWD}/node1_data:/data
The ${PWD}environment variable contains the current directory under Linux and macOS/OSX -- feel free to substitute this for your actual directory path. On Windows, this is typically equivalent to %cd%.
Step 4 - Obtaining Qtum Daemon Config Files
Before starting the Qtum regtest environment, let's first get some qtumd config files -- one for each of the 3 nodes.
I've made the 3 configuration files available at https://github.com/crypt0m1nd3r/docker-qtum-config . You can either manually download the 3 files from Git, or you can simply clone the repository:
$ git clone https://github.com/crypt0m1nd3r/docker-qtum-config.git
You should now have 3 files:
- node1_qtumd.conf
- node2_qtumd.conf
- node3_qtumd.conf
The files are nearly identical, except for how they get each node to connect to another one (i.e. node1 connects to node2, node2 connects to node3, and node3 connects to node1).
You should take a moment to inspect these files. In particular, the regtest=1 option activates the regtest blockchain mode.
Feel free to modify the config files if you prefer different settings.
Step 5 - Starting up
Now we're ready to start the 3 nodes to form a Qtum blockchain regtest network.
Start node #1 (all on 1 line):
$ docker run -d --rm --name qtumd_node1 --network=qtum_network -v ${PWD}/node1_qtumd.conf:/home/qtum/qtum.conf:ro -v ${PWD}/node1_data:/data cryptominder/qtum:latest qtumd
It is very important that the paths in the -v parameters are absolute paths. Again, on Windows you can replace ${PWD} with %cd%.
You can check that node #1 is running:
$ docker ps
it should output (you can scroll this output to the left):
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
e1dd22bdf9c9 cryptominder/qtum:latest "/entrypoint.sh qtumd" 2 seconds ago Up 1 second 3888-3889/tcp, 13888-13889/tcp, 23888/tcp qtumd_node1
You'll notice (in the last column above, at the very far right) that we named the Docker container for qtumd node #1:qtumd_node1.
qtumd_node1 is using the config file node1_qtumd.conf(make sure that the file is present in the path provided), and it will use the datadir at node1_data in the current directory.
Check that the ${PWD}/node1_data directory contains a sub-directory called regtest -- and that below the regtest sub-directory you find wallet.dat, debug.log, etc. Running:
$ ls -1FA node1_data/regtest
should output:
.cookie
.lock
banlist.dat
blocks/
chainstate/
database/
db.log
debug.log
peers.dat
qtumd.pid
stateQtum/
vm.log
wallet.dat
Perform the same steps as above (including the checks) for nodes #2 and #3, i.e.:
Start node #2 (all on 1 line):
$ docker run -d --rm --name qtumd_node2 --network=qtum_network -v ${PWD}/node2_qtumd.conf:/home/qtum/qtum.conf:ro -v ${PWD}/node2_data:/data cryptominder/qtum:latest qtumd
and
Start node #3 (all on 1 line):
$ docker run -d --rm --name qtumd_node3 --network=qtum_network -v ${PWD}/node3_qtumd.conf:/home/qtum/qtum.conf:ro -v ${PWD}/node3_data:/data cryptominder/qtum:latest qtumd
If you run:
$ docker ps
again, you should see (NOTE: the output below can be scrolled to the left):
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
6a9cf2ea8a6c cryptominder/qtum:latest "/entrypoint.sh qtumd" 1 second ago Up 1 second 3888-3889/tcp, 13888-13889/tcp, 23888/tcp qtumd_node3
7bc649de7649 cryptominder/qtum:latest "/entrypoint.sh qtumd" 10 seconds ago Up 9 seconds 3888-3889/tcp, 13888-13889/tcp, 23888/tcp qtumd_node2
e1dd22bdf9c9 cryptominder/qtum:latest "/entrypoint.sh qtumd" 3 minutes ago Up 3 minutes 3888-3889/tcp, 13888-13889/tcp, 23888/tcp qtumd_node1
Congratulations! -- you've just created a 3-node regtest Qtum blockchain environment.
Feel free to create a shell/batch script to automate this process.
Step 6 - Verification
To further verify that your regtest network is set up properly, use the qtum-cli command to invoke the RPC interface of qtumd on one or more of the nodes.
To use qtum-cli to call the RPC interface on qtum_node1, run:
$ docker run -i --network container:qtumd_node1 -v ${PWD}/node1_qtumd.conf:/home/qtum/qtum.conf:ro -v ${PWD}/node1_data:/data cryptominder/qtum:latest qtum-cli getinfo
You should see output similar to:
{
"version": 140301,
"protocolversion": 70016,
"walletversion": 130000,
"balance": 0.00000000,
"stake": 0.00000000,
"blocks": 0,
"timeoffset": 0,
"connections": 0,
"proxy": "",
"difficulty": {
"proof-of-work": 4.656542373906925e-10,
"proof-of-stake": 4.656542373906925e-10
},
"testnet": false,
"moneysupply": 0,
"keypoololdest": 1507353938,
"keypoolsize": 100,
"paytxfee": 0.00000000,
"relayfee": 0.00400000,
"errors": ""
}
There are 2 things to note about the command above:
- The
-iparameter is used. It is sometimes preferable to use the-stdincommand-line argument toqtum-clito input certain values (e.g. an account name that has a space, or a passphrase with spaces). The-iparameter todocker runmakes it possible to accept this input. - The
--network container:qtumd_node1parameter. This tells Docker to use the network associated with the runningqtumd_node1container.
Here are other qtum-cli commands that you can run:
help:
$ docker run -i --network container:qtumd_node1 -v ${PWD}/node1_qtumd.conf:/home/qtum/qtum.conf:ro -v ${PWD}/node1_data:/data cryptominder/qtum:latest qtum-cli help
The above will show all available RPC commands.
getconnectioncount:
$ docker run -i --network container:qtumd_node1 -v ${PWD}/node1_qtumd.conf:/home/qtum/qtum.conf:ro -v ${PWD}/node1_data:/data cryptominder/qtum:latest qtum-cli getconnectioncount
The above should output 2 (assuming the nodes have been up for a few minutes so they have a chance to connect to each other).
getaccountaddress:
$ docker run -i --network container:qtumd_node1 -v ${PWD}/node1_qtumd.conf:/home/qtum/qtum.conf:ro -v ${PWD}/node1_data:/data cryptominder/qtum:latest qtum-cli -stdin getaccountaddress
After running the command above, hit enter (to get the default/empty "" account address of this node's wallet) followed by CTRL-D. This is an example of using the -stdin option to specify more advanced command-line parameters (one per line, until you press CTRL-D).
There are of course many other commands (you can see them when running help, see above).
The commands above used qtumd_node1. You can run these on the other nodes by changing the relevant parameter options on the command-line (i.e. turn the 1's into 2s, etc.) You can check that each node are giving identical results for things like the block height (i.e. "blocks": 0 from the getinfo command).
Again, feel free to create a shell/batch script (or alias) to simplify calling these commands.
Step 7 - Advancing to Proof-of-Stake (POS) Blocks
You may have noticed that the getinfo command in the previous step output: "blocks": 0. This means there are no blocks created yet on the our Qtum regtest blockchain.
In a regtest blockchain, you'll need to manually generate blocks. You can do this with the generate RPC command. Run help generate to see how it works:
$ docker run -i --network container:qtumd_node1 -v ${PWD}/node1_qtumd.conf:/home/qtum/qtum.conf:ro -v ${PWD}/node1_data:/data cryptominder/qtum:latest qtum-cli help generate
TIP: You can use help <command> for other RPC commands too.
Now, let's generate 1 block:
$ docker run -i --network container:qtumd_node1 -v ${PWD}/node1_qtumd.conf:/home/qtum/qtum.conf:ro -v ${PWD}/node1_data:/data cryptominder/qtum:latest qtum-cli generate 1
Now, run the getinfo command again:
$ docker run -i --network container:qtumd_node1 -v ${PWD}/node1_qtumd.conf:/home/qtum/qtum.conf:ro -v ${PWD}/node1_data:/data cryptominder/qtum:latest qtum-cli getinfo
You should see that it outputs:
"blocks": 1,
In Qtum, the first 5000 blocks are Proof-of-Work (POW) blocks. I recommend that you advance the block height to (at least) 5000 so that you enter into the Proof-of-Stake (POS) blocks. If you generated 1 block above, you'll need to now generate 4999 more blocks:
$ docker run -i --network container:qtumd_node1 -v ${PWD}/node1_qtumd.conf:/home/qtum/qtum.conf:ro -v ${PWD}/node1_data:/data cryptominder/qtum:latest qtum-cli generate 4999
Running the command above will take 2 or 3 minutes to complete. When it's done, you'll see a lengthy output (i.e. a JSON document containing one line for each of the 4999 generated block hashes).
UPDATE: Jordan Earls, the leader developer for Qtum informed me of the following: "This is actually not quite true. PoS and PoW blocks are mixed below block 5000, and after block 5000 PoW is banned. However, in regtest mode, there is no PoW or PoS limit. So, as long as you generate at least 500 blocks (because coins can’t be used for staking until 500 blocks of maturity), then you can generate pretty much any amount. I usually use 600. Also, at very large block generations like 5000 sometimes you can have trouble getting PoS to start for a couple of hours due to some technicalities related to timestamp enforcement."
If we again run the getinfo command:
$ docker run -i --network container:qtumd_node1 -v ${PWD}/node1_qtumd.conf:/home/qtum/qtum.conf:ro -v ${PWD}/node1_data:/data cryptominder/qtum:latest qtum-cli getinfo
You should see that it now outputs:
"blocks": 5000,
We're now in Proof-of-Stake (POS) territory.
IMPORTANT NOTE: In the Qtum regtest environment, the POS blocks will automatically generate themselves. It takes a little while (e.g. about 10 minutes) to generate the 5001st block -- but afterwards the blocks will be created fairly quickly. You can still manually generate POS blocks if you want.
After you generated blocks, you'll also notice that your wallet balance has increased (use getbalance to check).
Step 8 - Stopping and Resetting
To stop a node, simply run:
$ docker stop qtumd_node1
(obviously change qtumd_node1 to match the node you want to stop)
If you wish to completely reset the blockchain, you can simply delete each of the 3 data directories (e.g. node1_data/regtest, etc.) after you have stopped the nodes.
Troubleshooting
In case you want to "login" to a running container, the following command is helpful:
$ docker exec -it <CONTAINER ID> /bin/sh
The <CONTAINER ID> part can be the container id (as shown with docker ps) or the name we've given our containers (e.g. qtumd_node1).
When you're done looking around, just type:
# exit
to leave the container (it will still keep running).
What's Next?
This is just the beginning. I will be writing follow-up guides for developing Ethereum (EVM) smart contracts over Qtum using this 3 node regtest environment. Docker will also be used for compling Solidity code using solc. I'm also looking at creating a Docker image for ethabi.
The qtum-cli tool (as we used in this guide) will also be used for creating and invoking smart contracts.
I may also add (in Github) shell/batch scripts to help simplify calling the commands above, as well as providing instructions for using Docker Compose to bring up the 3 node Qtum regtest environment.
I hope this guide was helpful to you. If you need help, please use the comment section below, or look for me on the Qtum subreddit. I'm also active on Qtum's Slack (although Slack invitations are closed as the Qtum team prepares to move to another collaboration/messaging platform).
If you found this guide useful, and you are so inclined, my Qtum tip wallet address (running on my Raspberry Pi 3) is: QUa3yA8ALfQyM5eEb9sDPRWkX6sSurMs6D . I appreciate your support!
