Solos Solar Array production stats

In the last few days, Array-C has been brought online and is now producing power for the farm. It does not have any loads on it just yet, but it is up and running and fully charged its battery in half a day. So should soon show some good stats to join these posts.

In the month of June we produced 1622 kWh (1.62 Mwh) on the farm.

Array A production stats:

Load: 1210.3 kWh
PV: 395 kWh
Grid Import: 1713.1 kWh
Battery Charge: 243.9 kWh
Battery Discharge: 103.7 kWh

Array A build:

System Size = 5.5 kWp DC
Panels = Sungoldpower Monocryalline 60 cell (12 Panels, 450 Watts each)

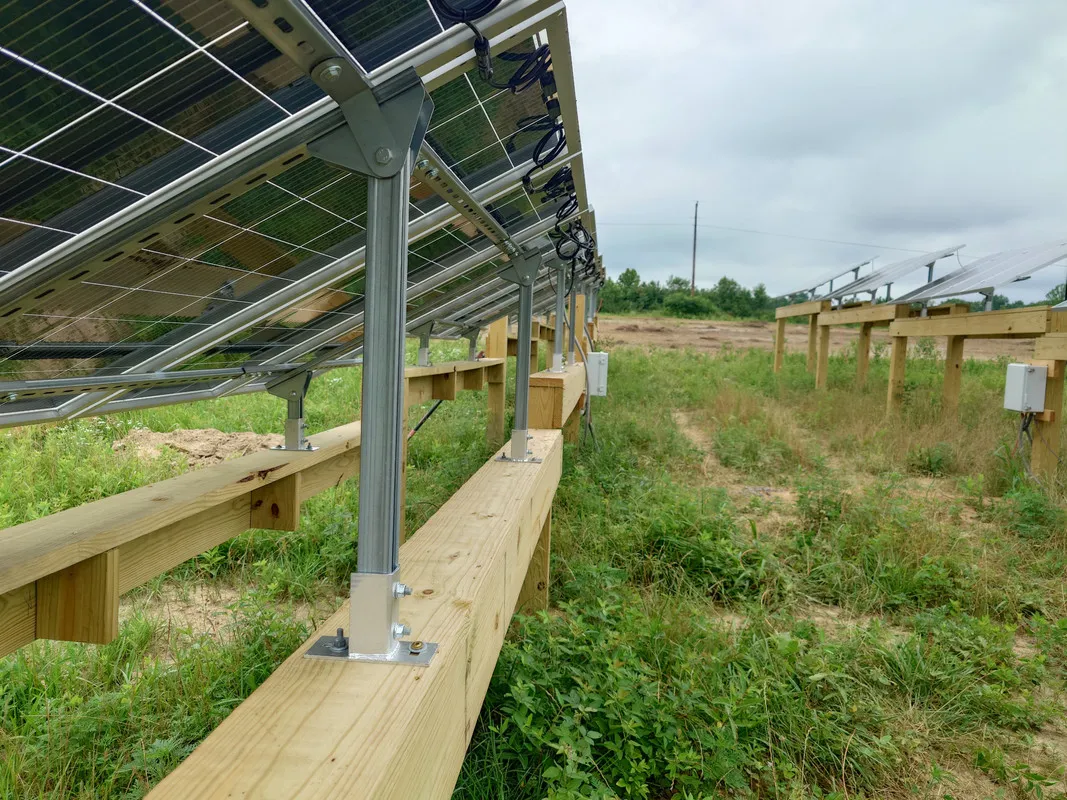

Mounting System = Brightmount EG4 screwed into 6x6 timbers
Wiring: 1x 8 AWG 19 strand PV direct bury wire pair
Inverters = 2x Sol-Ark 15k all-in-ones (240V)

Battery Backup = 48 3.2v EVE LF280 LiFePO4 280AH batteries
Battery Management system = Daly Smart BMS 16S 48V 500A
Battery Capacity = 45.696 kWh (840AH)

Propane Generator = Briggs and Stratton Power Protect 26kw

Array B production stats:

Load: 2778.3 kWh
PV: 1227 kWh
Grid Import: 1651.5 kWh
Battery Charge: 313.1 kWh
Battery Discharge: 284.3 kWh

Array B build:

System Size = 9 kWp DC
Panels = Sungoldpower Monocrystalline 60 cell (20 Panels, 450 Watts each)
Mounting System = Brightmount EG4 screwed into 6x6 timbers
Wiring: 2x 8 AWG 19 strand PV direct bury wire pair
Inverters = Sol-Ark 15k all-in-one (240V)

Battery Backup = 48 3.2v LiFePO4 290AH batteries (unknown brand)
Battery Management system = Daly Smart BMS 16S 48V 250A
Battery Capacity = 47.328 kWh (870AH)

Propane Generator = Briggs and Stratton Power Protect 22kw
Totals combined for all arrays:
1344.4 kWh (1.34 MWh) produced for the month of May
Previous posts on my solar stats

Array C production stats:

TBA next month

Array C build:

System Size = 9 kWp DC
Panels = Eco-worthy Monocrystalline 190W (2 strings of 48 panels running at 275v each)
Mounting System = 12 Eco-worthy Multi-panels mount holds four panels each.
Wiring: 2x 8 AWG 19 strand PV direct bury wire pair
Inverters = Sol-Ark 15k all-in-one (240V)

Battery Backup = 3x Pytes V5 batteries
Battery Management system = Built in Pytes BMS
Battery Capacity = 15 kWh (272AH)

Solos Solar Array production stats – June 2025
