I2C Encoder V2

Is a tiny smart board for connecting multiple rotary encoder

Screenshots

View Image	View Image	View Image	View Image

Hunter's comment

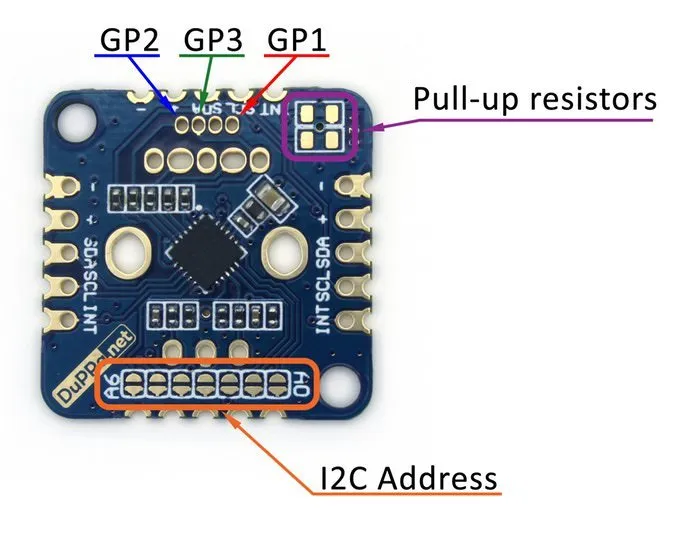

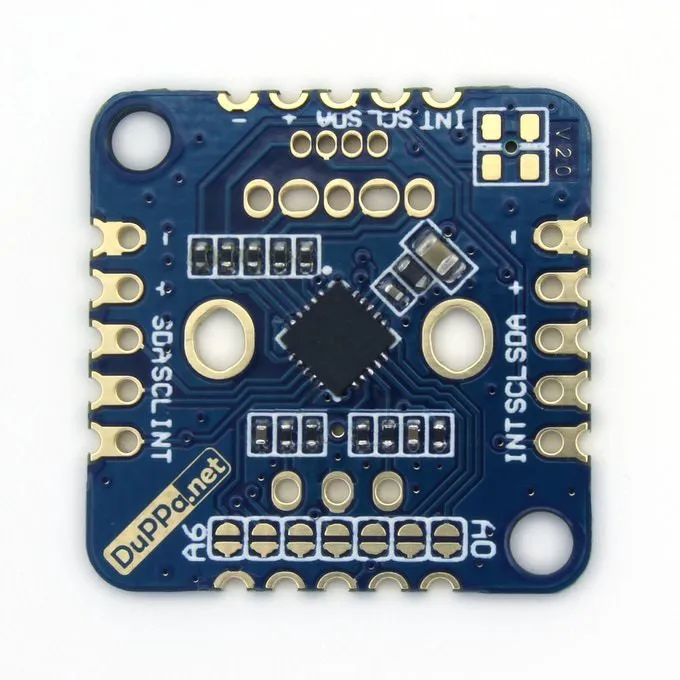

When it comes to computer technology there are many that we can apply and there are more and more facilities to repower them, so I present the new I2C Encoder which is a small plate to read a mechanical rotary encoder on the I2C bus, supports several Rotary compiler types with only one footprint; there are also 3 configurable GPIOs that are constituted with the same RGB LED track and finally, we have 256 bytes of EEPROM. This I2C Encoder encoder can control as many encoders as you require, even with a small microcontroller; it works like all other I2C devices; it has 5 pin pins in its most outstanding features, where it has to relate the power supply, which works from 3 V to 5 V.
