A direct intensifier like an operation amp has a wide range of utilizations. It has a high open circle increase, high info impedance and low yield impedance. It has high normal mode dismissal proportion. Because of these great qualities, it is utilized for various application. In this article, we are talking about the absolute most conspicuous employments of an Operation amp. This isn't a thorough rundown yet covers the imperative utilizations of operation amp inside the extent of our exchange.
Operation Amp applications as Upsetting Intensifiers
Operation Amp can be utilized as an altering enhancer.
Image Credit: @helen001
The altering circuits, actualized with an Operation Amp, are more steady, contortion is relatively lower, give a superior transient reaction.
At the point when Operation Amp is connected in a shut circle, there is a direct connection amongst info and yield.

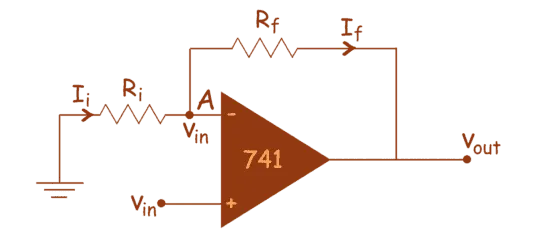

The reversing enhancer can be connected for solidarity pick up if Rf = Ri (where, Rf is the criticism resistor and Ri is input resistor)
Operation Amp Applications as Non Transforming Intensifiers
The information flag when connected to the non-upsetting information (+), the yield is connected back to the info by means of the criticism circuit made by Rf and Ri (where, Rf is the input resistor and Ri is input resistance).
Image Credit: @helen001
Voltage pick up with no sort of stage reversal. In transistor proportional, there are least 2 transistor stages expected.
High information impedance contrasted with Altering input.
Effortlessly versatile voltage pick up.
The aggregate remoteness of the flag supply from the yield.
Operation Amp application as a Stage Shifter
Operation Amp is utilized for coordinate coupling system thus DC voltage level at the producer terminal increments from stage to stage. This quickly expanding DC level is probably going to move the working purpose of the up and coming stages. In this way to move down the expanding voltage swing, this stage shifter is applied.The stage shifter performs by adding a DC voltage level to the yield of fall stage to pass the yield to a ground level.
Image Credit: @helen001
Operation Amp as Scale Changer
Operation Amp works as a scale changer through little flags with steady pick up in both altering and non-rearranging enhancers.
Image Credit: @helen001

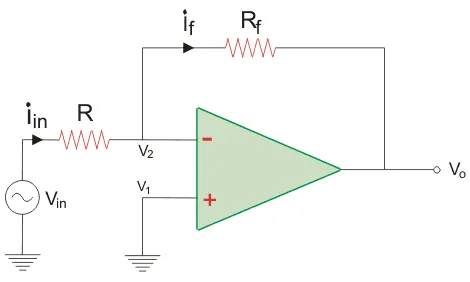

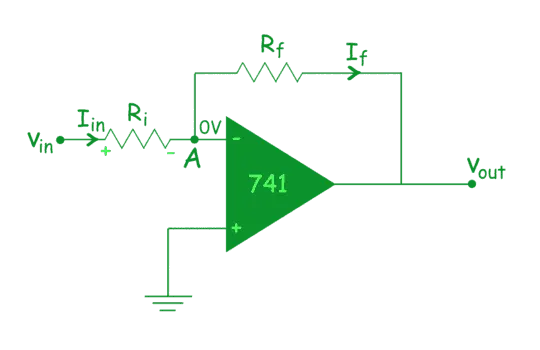

Non-inverting terminal is grounded whereas R1 links the input signal v1 to the inverting input. A feedback resistor Rf is then connected from output to the inverting input. The closed loop gain of the inverting amplifier works based on the ratio of the two external resistors R1 and Rf and Op-Amp acts as a negative scaler when it multiplies the input by a negative constant factor.
While in need for an output that is equal to input for getting multiplied by a positive constant the positive scaler circuit is used by applying negative feedback.
Operation Amp Applications as Snake or Summing Intensifier

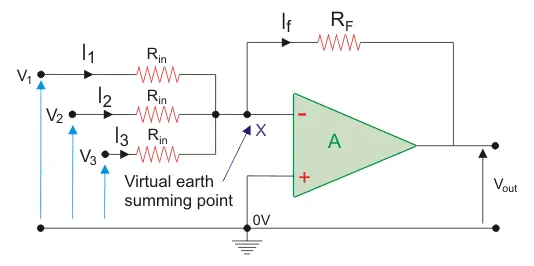

Operation amp can be utilized to aggregate the information voltage of at least two sources into a solitary yield voltage. The following is a circuit chart delineating the utilization of an operation amp as a viper or summing enhancer. The information voltages are connected to the rearranging terminal of the operation amp. The modifying terminal is grounded. The yield voltage is relative to the entirety of the info voltages.
Image Credit: @helen001
Operation Amp Applications as a Differential Intensifier

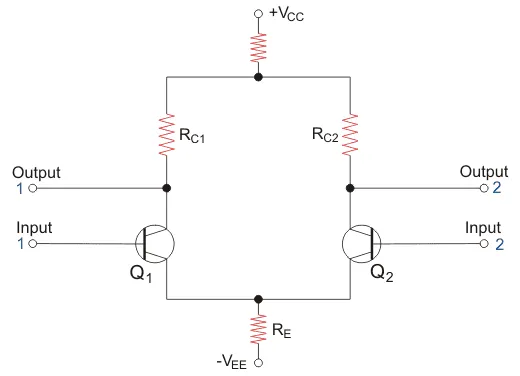

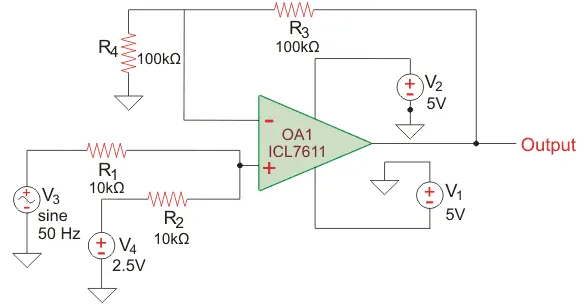

Differential Intensifier is a valuable mix of both the reversing enhancer and non-rearranging speaker. It is for the most part used to intensify the decent variety in the midst of two information signals.
Image Credit: @helen001
Real utilizations of Differential Intensifiers are
Flag Intensification
Info organize producer coupled rationale
Switch
Controlling of Engines and Servo Engines
Case: it is helpful while disposing of the commotion in mood as through differential enhancer, you can wipe out the associated secured link or wound combine link generally used to kill the passing clamor.
Operation Amp application as a Differentiator
Imagr Credit: @helen001
Operation amp can be utilized as a differentiator where the yield is the main subsidiary of the info flag. The accompanying condition gives the connection between the information flag and the yield flag.
As should be obvious the yield voltage is a first subsidiary of the information voltage. We are not going into how the condition is determined but rather just finding out about the utilization of an [operation amp as a differentiato(https://www.electrical4u.com/differentiator/).
Operation Amp Applications as Integrator

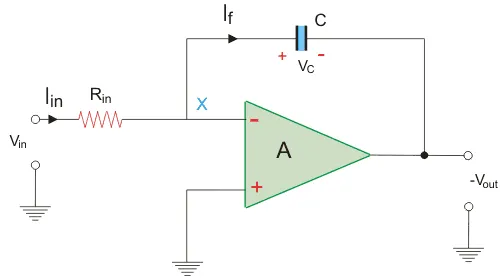

Operation amp is utilized as an integrator moreover. The integrator operation amp creates a yield that is corresponding to the sufficiency of the info motion and in addition the span of the information flag. Rather than a resistor in the criticism circle, we have a capacitor. It can play out the scientific activity of coordination as the yield fluctuates with the information and span of the flag.
Image Credit: @helen001
Operation Amp Applications as Voltage to Current Converter

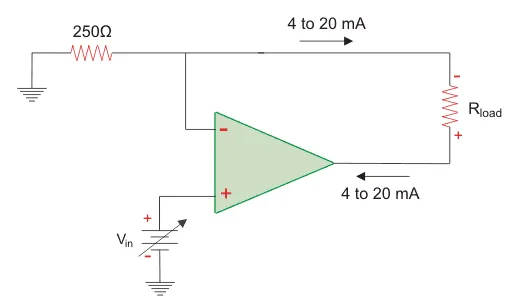

An operation amp with a negative criticism is by and large utilized for voltage to current transformations. Underneath you can see the circuit chart. We are not delving into the subtle elements here, just we will talk about the circuit given beneath. The voltage is connected to the non-altering terminal and the yield is criticism to the rearranging terminal. It is additionally grounded utilizing a resistor.
Image Credit: @helen001
Operation Amp Applications as Present to Voltage Converter
Image Credit: @helen001

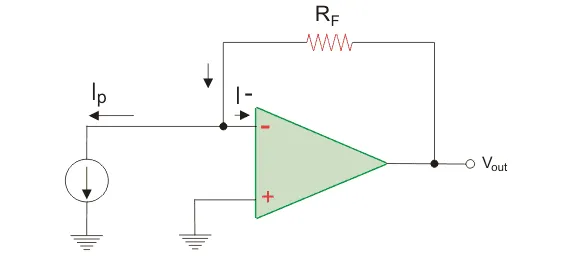

Operation amp can be utilized as a current to voltage converter utilizing an extremely basic circuit as appeared previously. All we require is a criticism obstruction associated with the yield of the operation amp. The present source is bolstered into the rearranging terminal and the non-modifying terminal is grounded. Here the yield voltage is relative to the input current. As a perfect operation amp has vast opposition, the current can't move through the operation amp. The present moves through the criticism opposition and the voltage crosswise over it relies upon the present source.
Operation Amp Applications as Logarithmic Enhancer
Inmage Credit: @helen001

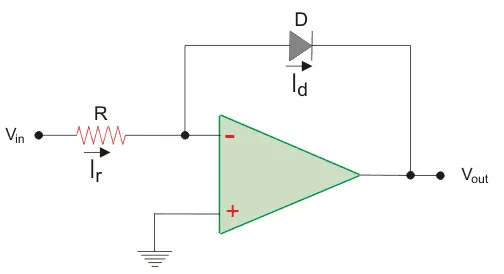

The logarithmic intensifier utilizing operation amp is made by utilizing a diode rather than an resistance in the criticism circle. The non-transforming terminal is grounded and the information voltage is encouraged to the reversing terminal. The yield voltage is relative to the logarithm of the information voltage and henceforth can be utilized as a logarithmic speaker.
Op Amp Applications as Half Wave Rectifier
Image Credit: @helen001

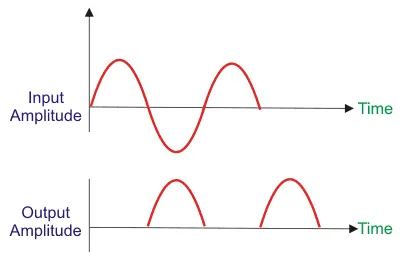

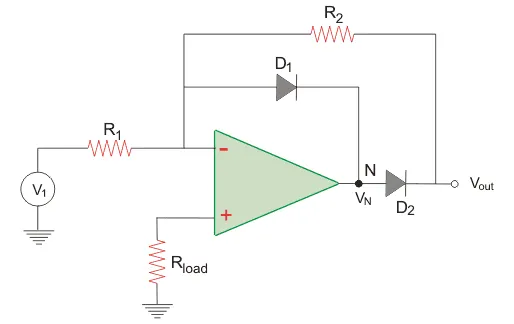

The circuit diagram above signifies the usage of an op-amp as a half wave rectifier. While in the positive cycle of voltage, diode D2 is reversed biased as the positive signal is inverted by the op-amp. So there will be no output. However, during the negative cycle of the input voltage, the diode D2 is forward biased and conducts. Therefore the above circuit works as a half wave rectifier.
Image Credit: @helen001
Op Amp Applications as Peak Detector
Image Credit: @helen001

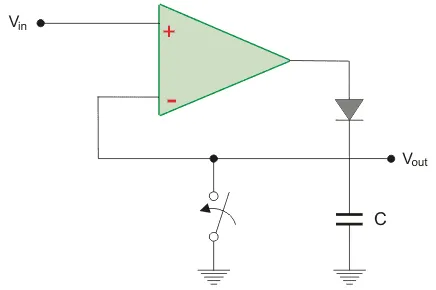

The circuit above shows the use of op-amp as a peak detector. The circuit uses a diode and a capacitor. When Vout is more than Vin, the output is positive and the diode conducts. Whereas when Vout is less than Vin, the diode is reversed biased and does not conduct. The capacitor charges to the most positive value.
Op Amp Applications as Voltage Comparator
Image Credit: @helen001

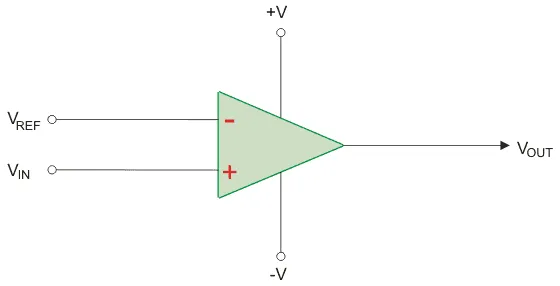

This is perhaps more easier to comprehend. Two voltage sources are applied to the two terminals of the op-amp. Let the reference voltage be applied to the inverting terminal and the voltage to be measured is applied to the non-inverting terminal. If the voltage applied is greater than the reference voltage, we will get a positive output, else we will get a negative output.
