Using an automobile vehicle, a lot of things are put in consideration. Speed, engine performance, emission, life span, aesthetics, and comfort amongst other things.
One of the crucial desires a car owner expects from his vehicle is comfort. While taking a ride in your vehicle, you would definitely want it to be as comfortable as possible. Of what use is the speed or power delivery of the engine if the ride in it is uncomfortable. For me, I would choose a slow car that gives maximum comfort because I wouldn’t want to use pain killers every time I ride in the vehicle.
For a while now, I have talked about some stuff that are not directly related to the automobile but are relevant to the production of automobile parts and the likes. These processes are the ways that the automobile engine and parts came to be and cannot be eliminated. If you are wondering what I am talking about please check them out here and here.
Away from that, today we are back to the mechanic workshop!
Talking about comfort while driving, the system responsible for ensuring passenger comfort while driving is the suspension and that is what we will be discussing today with special reference to the shock absorber.
image source: pixabay under cc0 license
Hey you! You are under suspension
Contrary to the basic English meaning of the word suspension as a temporary loss of right to something for period of time, the suspension in the automobile holds more water
Lets assume you are cruising on a smooth road at a reasonable speed and you are enjoying the ride, then you encounter a big bump or pot hole and it is too late to do anything about it so, thud! You hit the bump but all you feel is a small bounce compared to the impact of the vehicle. Naturally, you would not be amazed, well why should you be? But have you tried to consider what made it possible for you not to feel the effect of that impact?
According to the third law of motion, encountering such a situation should have the whole vehicle bouncing off because the impact will give the tyre some vertical acceleration and have the vehicle literarily flying for some seconds before slamming back on the road but no, that didn’t happen all thanks to the suspension system.
Removing the body frame of the automobile, the engine and all its interiors, you will be left with the lower frame, the wheels with the shock absorbers hanging out, the steering system and a few other wires here and there just like in the picture beside. This is called the chassis and it comprises of all other components that are beneath the body of the automobile.
A few (or most) components out, and you are left with the suspension system which comprise of the tyre, springs, the dampers and anti-sway bars (looking for the shock absorber? Wait a while)
The suspension system is the system in the automobile that supports and connects the upper weight to the lower part.
The suspension system of the automobile is saddled with the function of ensuring the vehicle has a smooth ride and it can safely accelerate, brake and corner. It also functions to keep the tyres in contact with the road (i.e. preventing cars from flying anyhow)
Simply put, the suspension is the system in the automobile that ensures comfort.
The major components of the suspension include the Springs, the dampers and anti-sway bars.
Let’s take them one by one.
SPRINGS
Springs used in an automobile are usually of four distinct designs but they do the same job – they absorb energy and dissipate it accordingly. I wouldn’t be assuming if the first type of spring that comes to your mind is the coil spring, well there are three others. These springs however do the same job and are used depending on the type of vehicle. Let’s take a look at the types of springs a suspension system uses.
- THE COIL SPRINGS

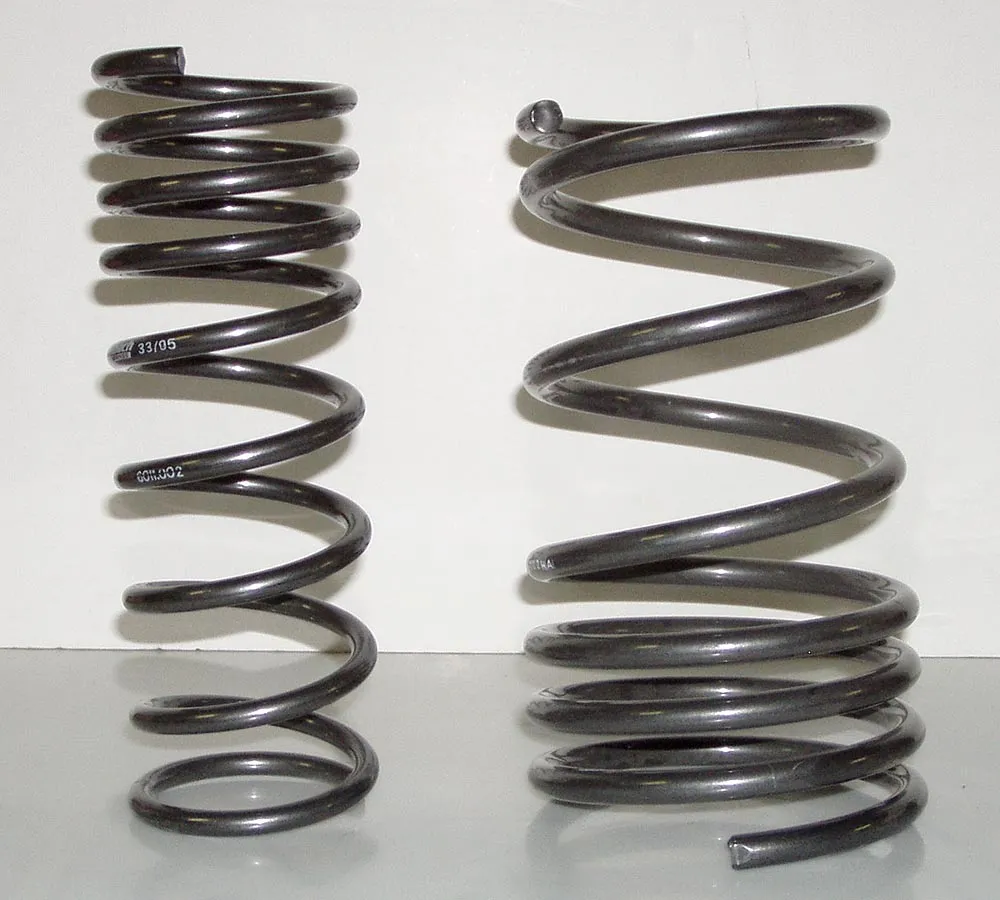

These type of springs are the most common in the automobiles of today. I am sure it is the type of spring you were thinking about. Well, the coil spring is simply “a heavy duty torsion bar wrapped around an axis”. The coil spring absorbs the energy from the motion of the wheels by compressing and expanding.

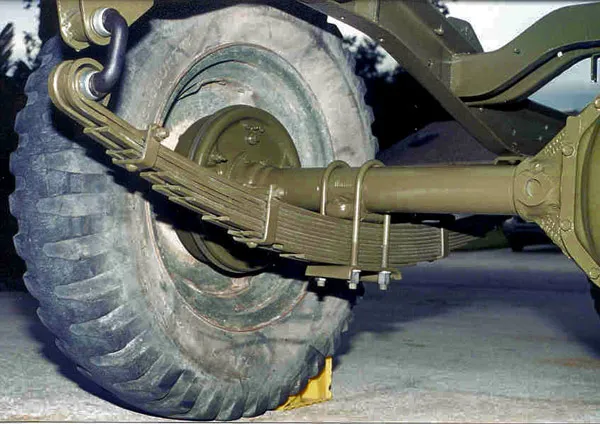

- LEAF SPRINGS which is simply metal bars bound together in layers such that they act together but they have the function of any spring and as a matter of fact, they were the first types of spring used in a suspension going as far back as the time when horse drawn carriages were in use and they still find application in the heavy duty trucks of today.
- TORSION SPRINGS
The torsion springs are more of like the coil springs stretched out and as required, they also perform the same function as a coil spring but in this case, it is attached to the vehicle frame at one end and the wishbone at the other end. The torsion springs absorb the energy of the movement of the wheels through torsion in the material.
- AIR SPRINGS
As the name implies, these are springs that are made of a chamber filled with air. The air springs act on the advantage of the compressive properties of air to absorb the energy from the tyre. The air springs have also been around for a while dating as far back as the 1930’s where the use of leather diaphragms and air springs made of molded rubber were used.
WHAT DOES THE SPRING REALLY DO.
In order to explain how the springs in a suspension system works, we would need to do a little physics. (who is excited?)
Lets first do an experiment.
Get yourself a small coil spring (I believe that shouldn’t be hard to get), place it on a flat surface and compress it with your hand. As expected, the spring will “jump” when you release your hand and depending on the type of spring, the jump might be very high. The reason for this jump is that the spring stored the energy you exerted by compressing it and then when you released it, the energy was dissipated (simple right?). this energy dissipation is in the form of oscillation (to and fro movement). The force of a spring is described by Hooke’s law and is given by this equation.
Where F is the force produced by the spring, K is a constant known as the spring rate and x is the distance at which it was compressed.
So basically, the springs perform the function of storing and dissipation the energy derived when the tyres encounter a bump or obstruction on the road
I would also like to say a few things about how the weight in an automobile is distributed. The weight of the vehicle with respect to the springs is divided into two namely; the sprung and the unsprung weight. The sprung weight is the mass of the upper part of the vehicle on the spring while the unsprung weight is the opposite i.e. the parts that are between the spring and the road. The spring however affects the sprung weight as that is the part that would feel the effect of its oscillation.
One property of springs that is not so favorable to the vehicles is that they do not dissipate the energy all at once i.e. if you find a way to hold the spring in my example down to the surface, after releasing it, it would oscillate several times before finally coming to rest. If this is installed in a vehicle alone, it would only result in a more bumpy ride as the spring will be happy to dissipate the energy it stored (at an uncontrollable rate) and the occupants of a vehicle would be seen dangling up and down in the vehicle several meters after they encountered the bump or pot hole.
How then do we solve this issue of dangling?
image source: wikimedia commons under the Creative Commons Attribution-Share Alike 4.0 International license.
THE DAMPERS
In order to control the rate at which the springs dissipate the energy they initially absorb, the dampers are installed alongside the springs. And yes, that’s where the name shock absorber comes to play. It is quite self-explanatory, the dampeners absorb the shock!
If the springs are not dampened, the ride cannot be smooth as required and the bouncing would simply occur at an uncontrollable rate.
A simple definition of a damper is a device that prevents free motion. The type of damper employed in a suspension system is the dashpot type which is a damper that performs the motion-resistance function via viscous motion i.e. motion in a fluid.
The shock absorber is also known as the “snubber” or simply “shocks” and is usually of two types – the hydraulic and the pneumatic types. However, the hydraulic type will be used to describe the shock absorber. Basically, the shock absorber converts the kinetic energy gotten as a result of the movement of the suspension (the spring in action) into heat. The shock absorber simply prevents the sprung weight from bouncing as a result of the spring action while keeping the unsprung weight on the ground
The hydraulic shock absorber comes in the form of an oil pump which contains a piston in a tube that contains viscous fluid such as oil. The piston is connected directly to the upper mount of the device which is connected to the vehicle frame (sprung weight) while the lower mount is attached to the axle (unsprung weight).

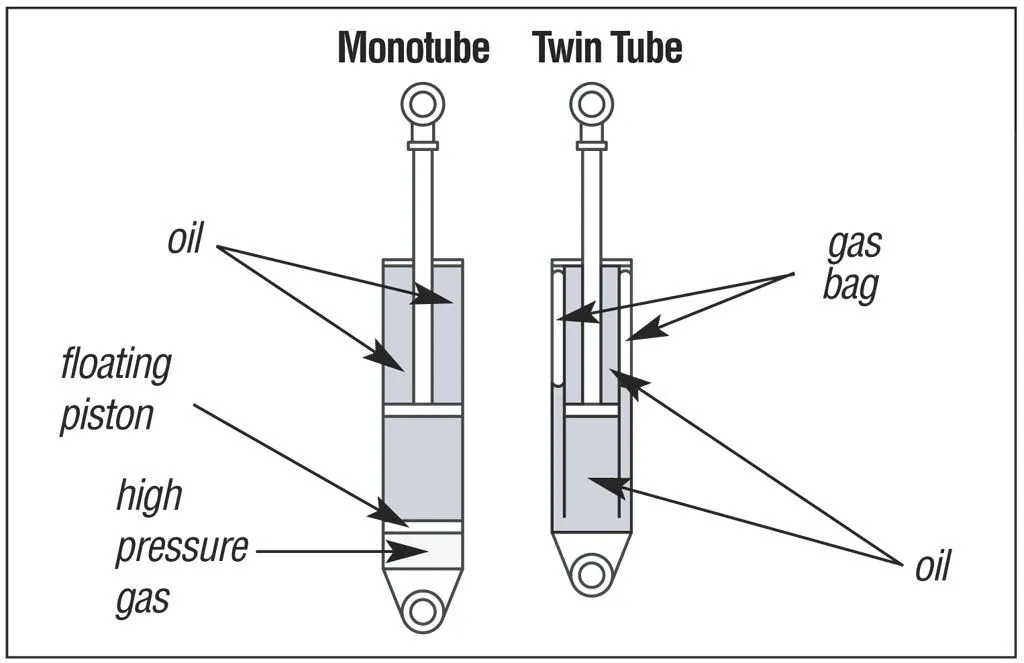

The shock absorbers come in two distinct designs – the mono and the twin tube designs. As the names imply, the difference is basically the number of tubes in the shock absorber. The mono tube design has just one single tube with two pistons. One is the working piston and the other is the “dividing” piston which simply functions to prevent the gas content of the device from flowing into the liquid chamber. While the twin tube is made of two tubes (one inside the other) to eliminate the need for a longer chamber to accommodate the fluids. The twin tube type is shorter than the mono tube but cannot be installed either way like the mono tube type can.
How then does the absorber perform its function
Recall that when a bump or obstruction is encountered by the tyre, the spring compresses and absorbs the energy, when it uncoils, the energy is transferred to the shock absorber. The piston moves downward in what is called the COMPRESSION CYCLE. the downward movement of the piston compresses the fluid and causes the fluid to be forced through small orifices in the piston. Because these orifices are very small, the rate at which the fluid flows through is very small and thus, the spring does not oscillate rapidly as it would if it was alone therefore slowing down the spring action. As the spring expand, the EXTENSION CYCLE of the shock absorber is live. The piston moves upwards and compresses the fluid there and in the same vein, slowing down the spring motion.
This operation of the shock absorber results in the conversion of the kinetic energy into heat energy which is eventually dissipated to the atmosphere.

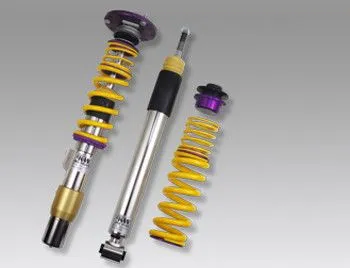

In some vehicles, the spring and the shock absorber are installed separately while in some others, the spring and damper are one unit. When the two (spring and damper) are one unit, it is known as a strut. The strut performs the same function as the shock absorber and even more – it provides support for the suspension but either ways, any of the type of spring and damper devices fitted are sure to do the job.
NO, I DIDN’T FORGET THE SWAY BARS

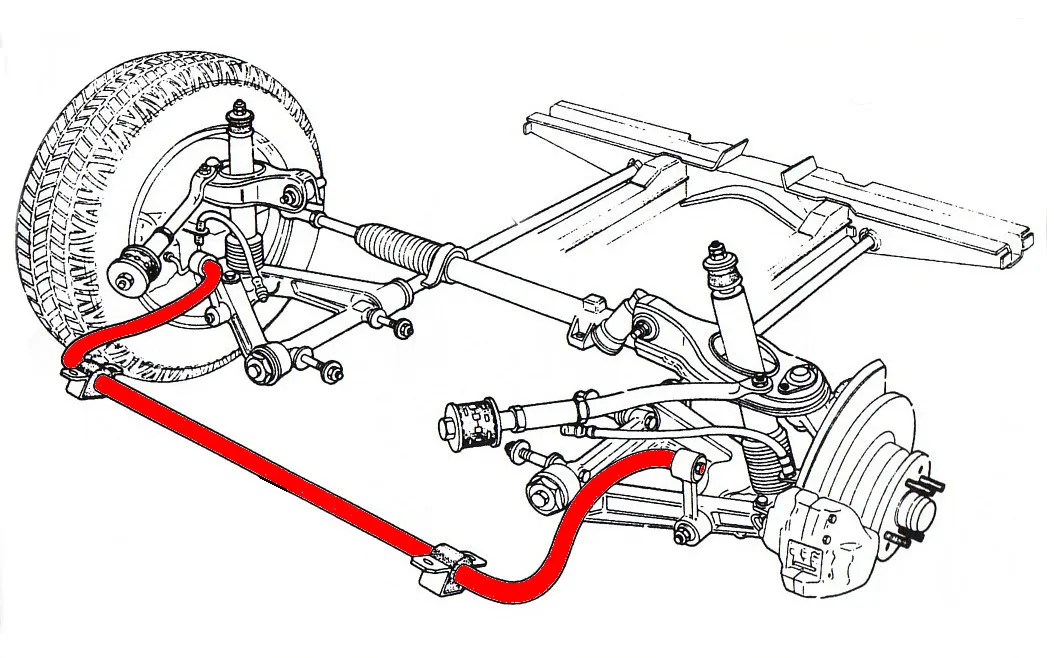

The third but not the least part of the suspension is the anti-sway bars. As the name implies, these bars function to prevent the vehicle from swaying i.e. to ensure stability. The anti-sway bars usually run from one wheel to the other on each axle and they help to ensure even “up and down” movement of the two sides of the vehicle.
Take for instance the right side of a vehicle hits a bump and the suspension on that side absorbs the shock. The anti-sway bar ensures the left side does not sway to the side in response to that effect therefore causing additional stability.
A FEW POINTS TO NOTE
- When there is an issue with the suspension (most times, the shock absorber) the symptoms such as; vibrations, swerving, nose dives when braking, rocking or rattling sound, uneven wear of the tyre, longer stopping distance and a few others.
- If you notice any of these symptoms, do not hesitate to take the vehicle to a trusted and experienced automobile engineer to get it fixed.
- If a shock absorber is faulty, one of the physical signs is a leak from the casing which would require a change. In the case of changing the shock absorber, the two sides are always recommended to be changed to ensure even performance (a new shock absorber will perform better than an old one)
- changing the shock absorber in a strut does not necessarily require changing the coil spring as the coil springs can be re-used.
CONCLUSION
The suspension is one very important system of the automobile and although it is “out of sight” it is definitely not “out of mind”.
The suspension system help to prevent the occupants of the vehicle from feeling the direct effect of the shocks encountered by the lower part of the vehicle and also enhances the vehicle’s mobility. Apart from absorbing effects of vibration when an obstacle is encountered, it also cushions the effect of braking, accelerating and steering.
Learn once in a while to say thank you to the suspension for “taking the bullet” for you.
Your feedback on my posts are amazing and I look forward to seeing more. A big thank you to the #steemstem family for making science writing fun!
