Over the course of this article, I will try and explain to you the physics behind medical imaging using X-ray radiography.
What is medical imaging
Medical imaging is the process and method used when there is need to view human body systems in a way the ordinary eye can not so as to be able to diagnose and track medical conditions. Let's just say medical imaging shows you what you can't see with the naked eyes, like a torn muscle, a cracked bone and so on. There are lots of technologies used in imaging of the human body. The most popular of all I guess is the X-ray radiography, others include thermography, ultrasonography, tomography just to mention a few.
Not all medical imaging technologies actually produce images, some appear in form of electrical signals or graphs, a popular example is the electrocardiography.
I will attempt to walk you through how this technology work. So, grab a chair, sit down, relax and learn.
X-ray Radiography
When I gained admission into the University, the school agreed I was academically fit but to complete my acceptance I had to take a medical examination to determine if I was medically fit for the rigors of what laid ahead. Mere looking at me, you can conclude I'm hale and hearty. I underwent series of tests but one particularly caught my eye, I was to take an image of my chest using X-ray photography. I was confounded by the way the X-ray worked, well not anymore.
If you check the electromagnetic spectrum, you would find X-rays in between gamma rays and ultraviolet light, X-rays have short wavelengths ( 10-8 m to 10-13 m) and high frequency. They are almost the same with gamma rays, the only difference between them is how they are produced.
Gamma rays are produced when radioactive decay happens, when a nucleus decays, it produces alpha (α) , beta (β) emissions and gamma rays while X-rays are produced when a fast-moving electron is rapidly slowed down. The kinetic energy of this electron as it slows down is transformed into photons of electromagnetic radiation ( X-rays).
X-ray tube
To take the X-ray of my chest, I was asked to stand in between a black sheet placed on the wall and a giant piece of equipment ( I would later find out its called an X-ray tube). Being that I was getting my picture taken I was expecting a flash and I even said cheese. But, I didn't see anything and the woman told me to step out, that we are done here. I almost complained about me not even trying out different poses that I'd learnt in preparation for the photoshoot but the look on her face changed my mind. A few minutes later, she came with my chest in her hand. Not the pretty picture I was expecting, just a white paint brushing on a black sheet. How this had happened I had no idea, I wish I knew then what I know now.
As said earlier, the kinetic energy from rapidly slowed down electrons produce X-rays. A voltage is generated between the anode and cathode by a power source. The voltage injects a stream of electrons across the space between the electrodes. When the accelerated electrons hit the anode, some of its kinetic energy is lost in the form of X-ray particles and scatters in all directions (a basic feature of light waves). X-rays are produced with just about 1% of the kinetic energy of the electrons, the rest is transferred to the anode (which is usually made of hard metal) which explains why the anode is always hot. These X-rays used in medical imaging are called soft X-rays since they have low energy.
Improving on Radiographic imaging
After getting the result of the X-ray of my chest, I took it to school where a doctor examined it and told me it wasn't clear enough, that the person who took the shot clearly doesn't know what she was doing. I went back there series of times, same result until the doctor said I shouldn't go for another month or two. I asked if the result with him was ok, he said no but that I have been exposed to too much of radioactive matter over the past weeks. I had no idea what he was saying but I was happy I didn't have to go to take X-ray pictures for a month.
As a radiographer (someone who takes these shots) you should be concerned with majorly two things, one of which is a radiographer should always strive to improve the sharpness of the images. Lastly, the contrast of the image should be as optimum as possible in order to properly show the tissues and bones.
Improving sharpness
The width of an X-ray beam determines the sharpness with which the image come out. There are factors that determines the width of an X-ray too, the size of the anode for example is one factor as the larger the anode the wider the beam. Another factor that affects sharpness is the size of the aperture at the exit window, the smaller the aperture, the narrower the X-ray beam.
Collimation of X-ray beam is the last factor that affects the sharpness, if some uncollimated beam of X-ray passes through the body and reaches the detector ( the photographic film), they will cause fogginess of the image and reduce it's sharpness. An anti-scatter screen can be used to absorb these uncollimated beam of X-ray, this screen can be made of materials such as lead that are opaque to X-rays, the lead absorb the uncollimated beam of X-ray.
Improving the contrast
To say a contrast is good is to say there is a very clear distinction between the blackening of the photographic film as the X-ray passes through separate bones and tissues. What really determines the contrast of an X-ray is its hardness.
If you break a bone and you want to find out to what extent the bone broke, you will have to take an X-ray. We all know this right, but what you don't know is the type of X-ray that will be used. Since the bone is an excellent absorber of radiation, hard X-rays are used in the imaging process.
But if it were say a person has breast cancer and is to take an X-ray, soft X-rays are used because unlike bones, tissue (the breast is made up of entirely tissues) are very poor absorbers of radiation. Using soft X-rays also equals longer exposure time.

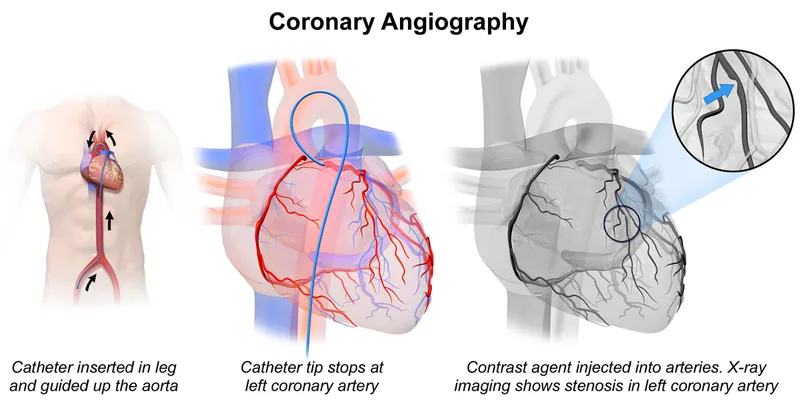

As stated earlier, longer exposure time is hazardous to the health. So how then do we take images of tissues without having to be exposed for so long. This is where contrast media come in play. Contrast media are substances which are good absorbers of X-rays examples include iodine and barium. A person requiring a X-ray scan of his or her tissues will have to ingest a barium or iodine filled meal or have it injected to the area(tissues) to be scanned. The tissues then becomes a good absorber of X-ray for which hard X-rays can now be used.
Risks associated with X-ray
Ionising radiations can destroy living tissues, this destruction leads to mutation which in turn can lead to the growth of cancerous tissues. It is of prime importance to keep the degree of exposure to a minimum.
Although to record X-ray images, it can be done using photographic film or digitally. It has been said that photographic film are weak absorbers of X-rays so you have to be exposed for longer time with increasing intensity. To avoid exposing people to too much of radiation, intensifier screens are used. This is like using the microphone in which you feed in little sound and it magnifies it. Well for intensifier screens, you feed in a X-ray and it magnifies it without increasing the intensity of the radiation.

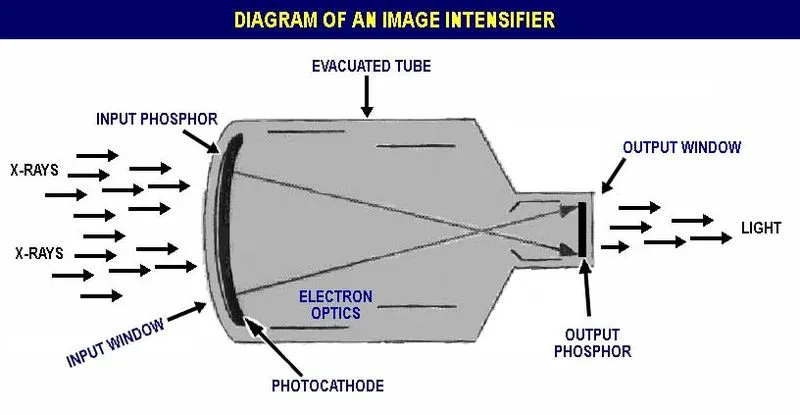

Image intensifiers are used in digital systems, a visible light is produced when X-rays strike a phosphor screen. Unlike in photographic film where electrons hit the anode to produce X-rays. In digital systems, when electrons are accelerated between the positively charged anode so they can strike a screen, visible light photons are produced. The images on the screen is viewed on a television and can as well be stored electronically. An advantage digital systems have over photographic films is that it can be easily stored and shared.
Limitations of X-ray radiography
The major limitation the X-ray radiography has is that it is a 2-D imaging system. What do I mean by 2-D? When you take an X-ray of a body most of the body parts are superimposed on each other. It won't be easy for one to know what bone is what since they are overlapping. However this problem can be solved using a CAT(not that one) scanner, wherein you take pictures at varying angles and can now see everything that's happening with the body, the bones are not overlapping no more cause you have the knowledge of the bones from different angles now.
Conclusion
Imagine everytime you broke a bone, your skin has to be torn to see the extent of the damage. I can’t even imagine the pain even if painkillers were administered. X-ray radiography helps you in that regard as you won't have to undergo the gruesome process of cutting your skin. X-rays are definitely live savers.
Although they save lives, too much of their radiation can also cut a life short. They also increase one’s chances of developing cancer. Women are more susceptible to developing cancer even when they receive same amount of radiation with men. I even read some doctors because of financial gains subject patients to repeated radiation exposure.
In an attempt to reduce the amount of radiation we are exposed to, doctors have been urged to only recommend X-ray examinations only when the are absolutely sure it is needed and when it is sure it will help in the diagnosing and treating of a medical condition.
Should you have to take an X-ray, there are standard questions the doctor should ask you before issuing an X-ray examination for you. The first question should be about the last time you had one, another (if you are a woman) should be if you are pregnant. Also in an attempt to make sure your doctor knows what he/she is doing you too can ask him questions like how the result will be used in evaluating your present predicament.
