Do you like AI? Then this is for you. Check out this CRAZY HUGE ASIC! The biggest I know off... I have also posted this via SteemHunt. But here you will find some additional content/comments.

(source)

To start with, the case is amazingly beautiful.

(source)

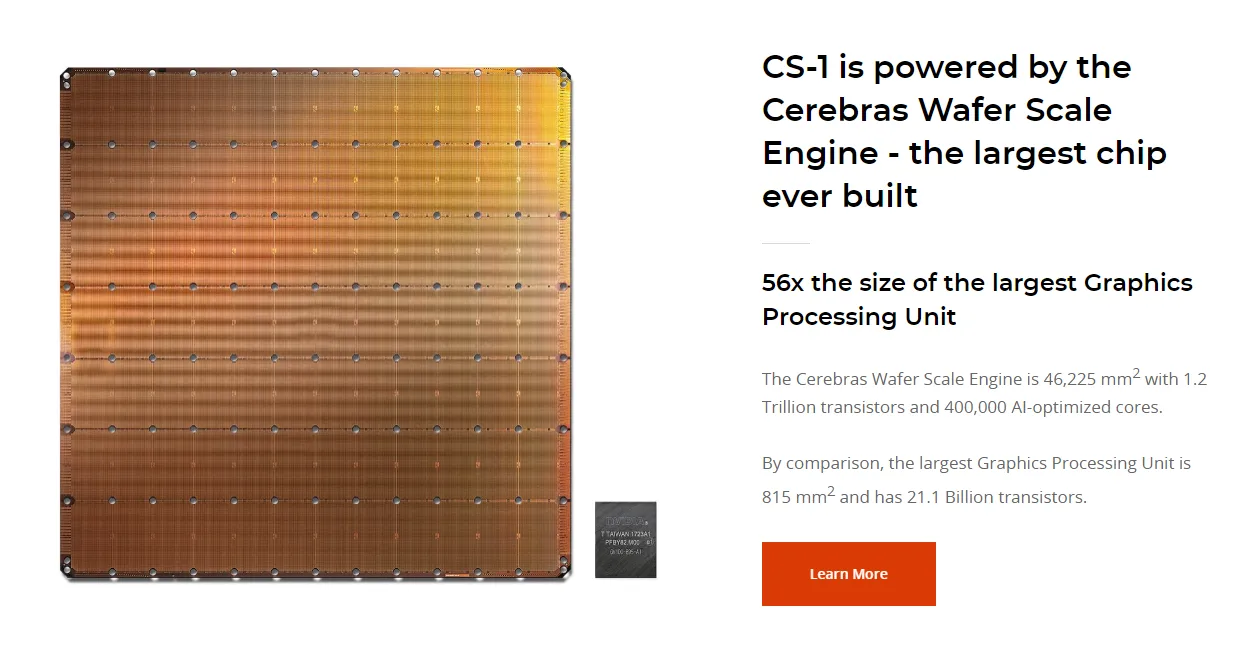

The wafer is not just big, but also the fastest inter-communication chip I ever heard of... with JUST 400000 cores! 😱 That's right, not a mistake, 400K cores! If you look at the comparison with one of the largest GPUs chips. It's simply impressive...

(source)

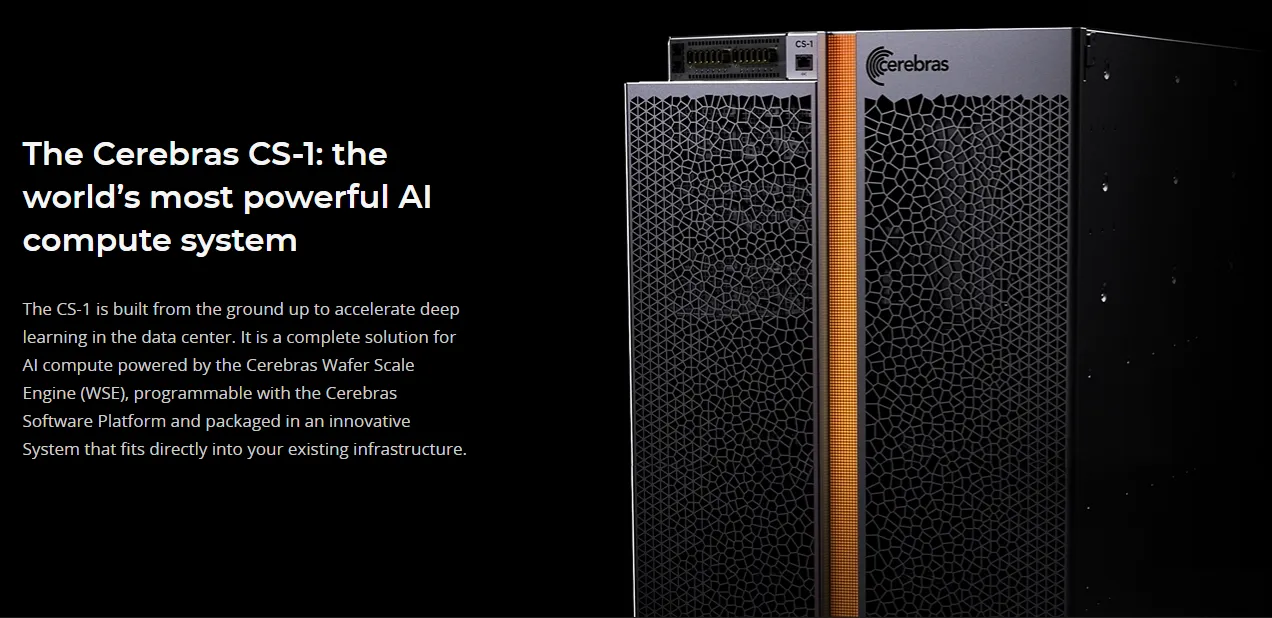

This is a product from cerebras, and it aims to compete with the most powerful supercomputers in the world.

The package!

(source)

Super attractive right (check at the end of the post)? Even looks like a miner 🤑 if you know what I mean. Can it mine? LOL Probably no... until someone codes an AI-based blockchain algorithm where you are able to mine with AI ASICs (probably will happen).

Comparisons...

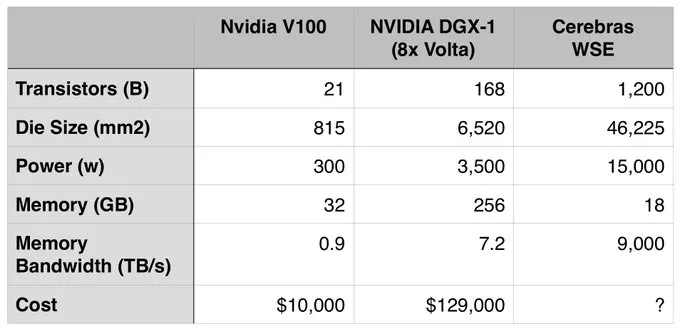

Just to blow your mind! Look at the differences when compared with some of the Enterprise AI driven GPUs. Crazy right? Remember that this is a super specific AI Chip.

([source](

You will have to use dedicated software in order to use their hardware. Some support for TensorFlow and others, but be prepared to be stuck with their "speed" of support. That's not necessesarily bad, but not the same thing as popular open source stuff.

Memory wise it's not a good fit, in case your application requires it. But if what you are looking is just speed of iterations and/or near real time performance for AI decisions, then this is massive! Not sure how many will understand how much bandwidth this puppy is able to do.

On top of all of this, the power this baby needs is super interesting. Above you see 15KW, but on the website you see up to 20KW. Which makes me believe that this thing can somehow "auto-overclock" depending on the work being done.

I mean its a very large chip, so potential for that is a must in my view. Why? In ASICs (especially large ones) if you are not using all the ASIC to compute, it means not all the ASIC its at it's maximum temperature, meaning you can overclock it to juice in some more power of computation.

That's valid for any recent ASIC nowadays.

+9 PBytes/s of Memory Bandwidth!!!

Which from the company advertised 100 Pbits/s of interconnect... you have a raw 12.5 PBytes/s. The 9 PBytes/s is really a great value and utilization efficiency I would say (because you never get the theoretical value, due overheads and other control communication) of the available interconnect capacity.

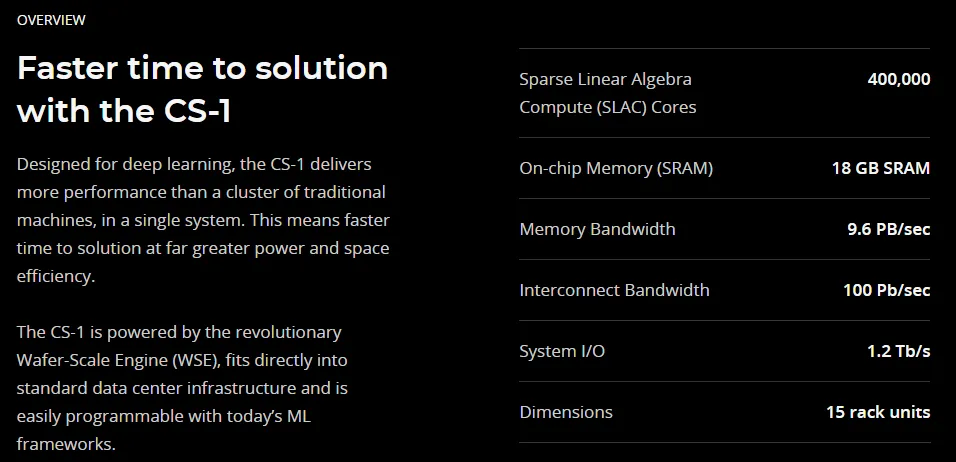

I have did more investigation into the website and this is what gets official:

(source)

Server measurements

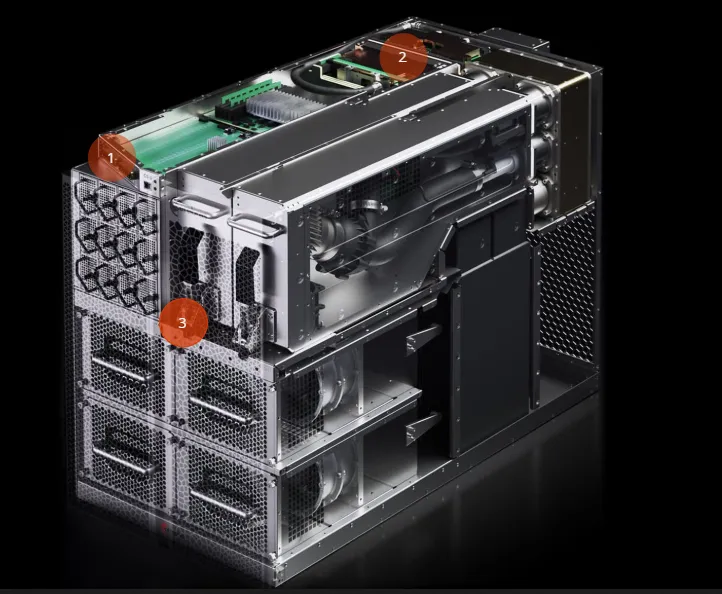

As you see above, its about 15U size. So not huge, but a big machine. The IBM Blade Chassis I was used to work with, were 7U, 9U and 12U with the most recent models. So 15U its not super exagerated. Big yes! But for 400000 cores... tiny!

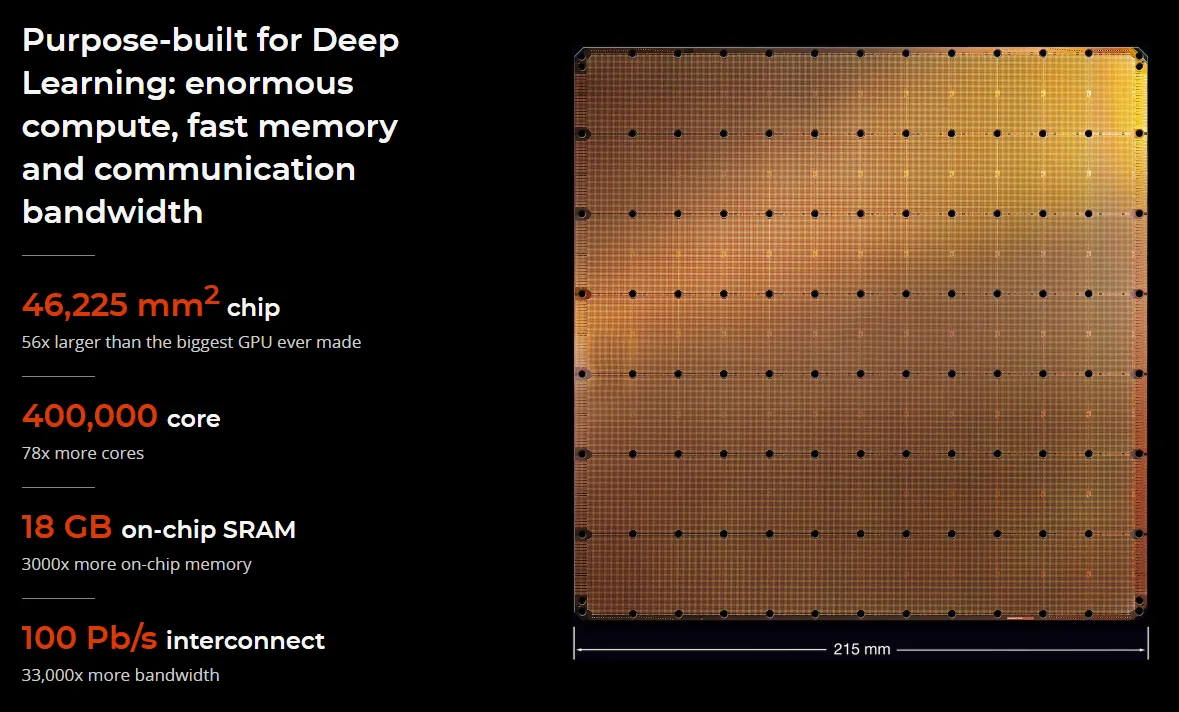

The DIE size

If you look closer, you can even see holes all across the chip. This baby needs to bolted in MANY places to make contact with the WHATEVER board it is designed to work in.
