Below is a post from my Satoshi Village Blog on March 08, 2017. The original post is titled "The most interesting case of scientific irreproducibility?" and is released under a CC BY 4.0 License. Since I only recently joined Steemit, I'm just reposting it now.
Since the post, there have been a couple updates. First, based on this post, the journal F1000Research posted the following editorial note on March 31, 2017:
Due to concerns raised about the methods and scientific validity of this paper, as well as the completeness of the peer review process (see reader comments on this article), advice from an additional independent peer reviewer with expertise in blockchain technology and cryptography is being sought. We will update this note in due course.
Second, as of May 8, 2017, the 40 millibit bounty is now worth $65! So if you're interested in scientific reproducibility, academic research, blockchain investigations, or an interesting technical story, read on.
On February 26, 2016, the first version of an article titled "How blockchain-timestamped protocols could improve the trustworthiness of medical science" was posted to F1000Research. The paper had two authors: Greg Irving of the University of Cambridge and John Holden of Garswood Surgery. The article describes a method for timestamping clinical trials, so the retrospective existence of a trial can be verified at a later date. The technique uses the Bitcoin blockchain as an immutable and timestamped data store.
Despite the paper's reliance on cryptography, both of the initial two reviews — by Amy Price and Luís Pinho-Costa — lacked any interrogation of the method's cryptography and approved the manuscript. Upon the second approval on May 11, 2016, the paper was deemed "peer reviewed" and press released. The study has since been covered by FierceBiotech, the Economist, and the Huffington Post.
However, it quickly became apparent that the paper plagiarized a 2014 blog post by Benjamin Carlisle titled "Proof of prespecified endpoints in medical research with the bitcoin blockchain." Carlisle is a PhD candidate at McGill University in the Biomedical Ethics Unit.
Version 2 of Irving & Holden's study was posted on May 25, 2016, which attributes Carlisle's blog post and claims only to demonstrate the method. As noted by the F1000Research editors, the Committee on Publication Ethics decided a correction was sufficient to rectify the plagiarism. Hence, to this date, Irving & Holden's study has not been retracted.
This post will demonstrate that Irving & Holden's problems aren't limited to plagiarism. In addition, their implementation of Carlisle's method is insecure and broken. Three aspects make Irving & Holden's study a strong candidate for the most interesting case of scientific irreproducibility ever:
Unless the study is 100% reproducible, the proposed implementation for timestamping clinical trials is wholly bankrupt. Unlike most scientific protocols which are not required to operate perfectly 100% of the time, timestamping assumes complete reproducibility and is worthless without it.
Irving & Holden claim a "second researcher" replicated their address generation. If so, the second researcher should be able to demonstrate the replication, which is subject to the laws of mathematics and therefore cannot be forged. Thus, Irving & Holden are now in a position to cryptographically prove the reproducibility of their analysis, thereby exonerating their study from any claim of scientific misconduct.
Irving & Holden have left, presumably unwittingly, a 40 millibit bounty (worth approximately $50 US) to reproduce their analysis. The longer this bounty remains unclaimed, the greater the evidence of the study's irreproducibility.
Proof of existence
Here we'll use the terms proof of existence or timestamping to refer to irrefutable evidence that digital content (e.g. a document) existed at a certain point in time. Proof of existence alone cannot:
- prove that content did not exist prior to its timestamp.
- prove who authored content.
- prove that alternative versions of content did not exist and were not also timestamped.
So proof of existence can attest that a clinical trial protocol existed at a certain past date. However, it falls short of the application proposed by Irving & Holden to "provide proof of pre-specified endpoints in clinical trial protocols." This is because their approach fails to prove clinical trial authorship and that multiple "pre-specified endpoints" did not exist.
Since the Bitcoin blockchain is the most immutable database in existence, it is the natural choice for indefinitely and publicly storing data. Using bitcoin, you can make your data impervious to tampering, censorship, or deletion. However, you can only directly store very small amounts of data using Bitcoin. Therefore, proof of existence relies on encoding a file's hash into the blockchain rather than the entire file itself. A hash is a compact fixed-length sequence of characters that provides a unique fingerprint for a piece of content. Carlisle and Irving & Holden use the SHA-256 hash, which is considered a secure hash and checksum, since it's physically impossible with current technology to generate two pieces of content that produce the same SHA-256 hash.
Existing Implementations
At the time of Irving & Holden's study there were dozens of existing tools to create Bitcoin-verifiable timestamps. For example, in March 2015 a Reddit user compiled a table of 15 timestamping services. There are two primary methods for encoding hashes in the blockchain:
- Use the hash to generate a bitcoin address. Send a miniscule amount of bitcoin to the minted address to prove the address (and hence the hash that generated it) existed at a certain point in time.
- Create a bitcoin transaction that encodes the hash using
OP_RETURN— a field for attaching arbitrary data to a bitcoin transaction.
Carlisle's blog post uses the first method, address generation. Personally, I've timestamped scientific outputs using two existing OP_RETURN solutions. On August 14, 2015, I used proofofexistence.com to timestamp a pre-release version of Hetionet (reference, transaction). And on March 3, 2017, I added OpenTimestamps integration to the Deep Review, a collaborative review article. Every time the Deep Review manuscript is changed, it's automatically timestamped. OpenTimestamps, along with other newer methods like OriginStamp, combines multiple input hashes before writing to the blockchain. This innovation makes timestamping with bitcoin more economical and scalable.
Irving & Holden seem unaware of these existing implementations and the larger study of cryptocurrency. They fail to cite prior work, such as digital timestamping, Bitcoin's white paper, and OriginStamp. Most fatally however, they created their own manual implementation of address generation, rather than relying on existing single-step solutions.
The Carlisle Method
Benjamin Gregory Carlisle's blog post from August 25, 2014 suggests using an address generation method to timestamp clinical trial protocols. This method can be decomposed into three steps:
- Generate a SHA-256 hash of a document.
- Use the hash as a bitcoin private key and generate the corresponding bitcoin address.
- Send bitcoin to the address. The confirmed transaction proves the document's existence.
Carlisle's post is thoughtful and presents its limitations fairly. However, a reference implementation is not provided. At the present time, cryptocurrency is confusing. I encourage everyone to play with it, at their own risk. But I do not encourage novices to implement security critical applications and advertise those applications without extensive review from seasoned computer scientists.
Irving & Holden created a Microsoft Word document (supplement, download) which they erroneously refer to as an "unformatted text file." Applying Carlisle's method to this document (see this Jupyter notebook for a Python implementation), we get the following SHA-256 hash (private key): 8da3088936035521f9e9b57963679d89e306a06c6aebd1167b4d198e79562326. There are two methods to go from a hex encoded private key to a bitcoin address. Neither Carlisle nor Irving & Holden specify which method they use. If we use an uncompressed public key, we get the bitcoin address of 1P6cxmuSsjDqUGCsyaEzgcj7iTEPsMAjhU. If we instead use a compressed public key, we get 17pJjJGJJTzVsJx9JSfbx6vp1sGkPNoDoA. Neither of these addresses have been used, indicating that Irving & Holden did not properly timestamp their Word document according to Carlisle's method.
Irving & Holden's Intended Implementation
Irving & Holden describe their implementation of Carlisle's method as follows:
- Use the Xorbin website to compute the SHA-256 hash of the clinical trial protocol. Irving & Holden do not disclose this hash.
- Use the StrongCoin online bitcoin wallet to generate an address using the Xorbin-generated hash as a private key. Irving & Holden specify this address to be
1AHjCz2oEUTH8js4S8vViC8NKph4zCACXH. - Send bitcoin to the the address. Currently, the disclosed address has a single transaction that deposited 40 millibits on February 11, 2016. At that time, 40 millibits was worth approximately $15 US. These funds were never withdrawn and are now worth close to $50.
Were this approach to properly implement Carlisle's method, it would be riddled with vulnerabilities. It requires trusting Xorbin and an insecure (HTTP) internet connection to Xorbin. It requires trusting StrongCoin. If either service has a bug, it requires confidence that these services will continue to be available in the future without fixing the bug. Neither Xorbin nor StrongCoin are open source projects and are thus difficult to preserve and lack community code review.
There's ample room for malicious attacks. Xorbin or a man-in-the-middle could record private keys and monitor the blockchain for transactions to the corresponding addresses. Funds could then be withdrawn by the attacker before the user got around to transferring them to a secure address. When using address generation for timestamping, users should send only a miniscule amount of bitcoin to the address. So a more devastating attack would produce an incorrect hash, depriving users from subsequently proving their document's existence. In the high-stakes pharmaceutical industry, billions of dollars could ride on whether a timestamp verifies. Furthermore, an attacker could timestamp a modified protocol and, at a later date, frame the original author for unethical changes to the clinical trial.
However, we know that Irving & Holden did not properly execute Carlisle's method. So let's not dwell on the vulnerabilities of their intended implementation.
Irving & Holden's Broken Implementation
Irving & Holden's implementation of Carlisle's method appears broken for both steps 1 & 2.
Step 1. Xorbin only accepts plain text input for computing SHA-256 hashes. Xorbin does not allow users to upload a file indicating that Irving & Holden pasted formatted text from a Word documented into Xorbin's plain text field.
The conversion from formatted to plain text is nondeterministic and depends on the specific system environment and text selection method. Did Irving & Holden select all (⎈/⌘ + A) or drag the cursor when copying the text? How did the table get downgraded to plain text? How were newlines represented?
Pasting formatted text into a plain text field is a terrible design decision. Nonetheless, under the same conditions, one could replicate the pasting behavior and hence the hash generation of Irving & Holden.

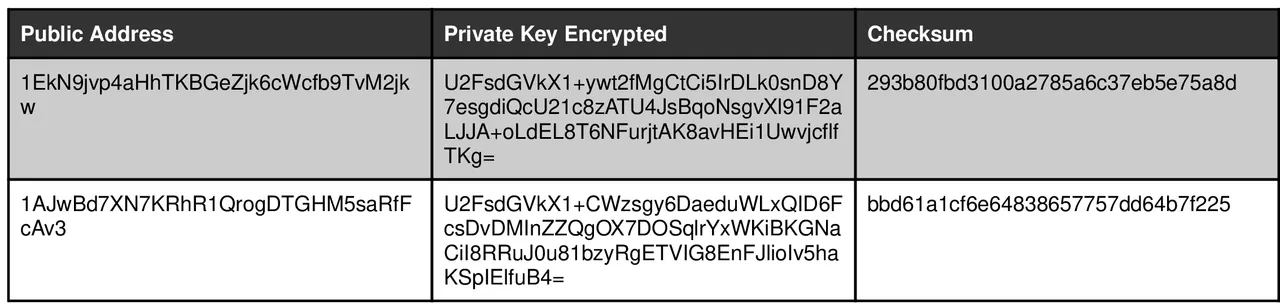

Step 2. Irving & Holden erroneously assume that "account password" in the StrongCoin wallet is equivalent to "private key". Instead as far as I can tell, each account on StrongCoin is a bitcoin address with a randomly generated private key. The account password is used for client-side encryption of the private key, but is not itself a private key. To demonstrate that the account password is not a private key, I generated two accounts that both use the same SHA-256 hash for their password:
As you can see, the two accounts have different addresses. Therefore, the private key → address conversion of Irving & Holden is irreparably broken. Since nothing that must derive from the account password ever gets incorporated into the blockchain, there is no proof that Irving & Holden's protocol ever existed.
In summary, Irving & Holden's timestamp is irreproducible. There is no way to prove the past existence of their clinical trial protocol from publicly available information.
Conclusion
Despite the evidence herein that their address generation cannot be reproduced, Irving & Holden make the following claim:
To verify the existence of the document a second researcher was sent the originally prepared unformatted document. An SHA256 digest was created as previously described and a corresponding private key, public key and bitcoin address generated. The exact replication of the bitcoin address (
1AHjCz2oEUTH8js4S8vViC8NKph4zCACXH) was then used to prove the documents existence in the blockchain using blockchain.info©.
I do not think a second researcher could have reproduced the address generation, since StrongCoin generates a random private key, in lieu of using the protocol hash as the private key.
The beauty of cryptography is that it doesn't matter what I think. If Irving & Holden's statement is true, they or the "second researcher" will be able to provide the exact chain of operations to go from clinical trial protocol to public key. And anyone will be able to independently verify their proof.
Furthermore, there is currently a bounty to reproduce Irving & Holden's address generation. This bounty was publicly disclosed over a year ago with the initial posting of their study and remains unclaimed. Note that Irving/Holden and StrongCoin should both possess enough information to move the funds from 1AHjCz2oEUTH8js4S8vViC8NKph4zCACXH. Therefore, withdrawal is insufficient to prove the protocol's existence. But the continued lack of withdrawal is evidence that no third party can reproduce their analysis.
Past attempts to reproduce scientific studies have been notoriously inconclusive. Irving & Holden's timestamp is notedly different in that its replicability is unambiguous. It will or will not provably replicate. There is no in between. So in a perverse way, this incident gives us a glimpse into a more reproducible future.
The analyses for this blog post are posted to GitHub at dhimmel/irreproducible-timestamps and archived on Zenodo. For those looking to claim the bounty, you can open the address generation notebook in Binder.
Update on March 30, 2017
Today, Irving & Holden posted version 3 of their study to F1000Research. The updated study now claims have verified the clinical trial protocol timestamp by:
- logging into the same StrongCoin account that generated the bitcoin address
1AHjCz2oEUTH8js4S8vViC8NKph4zCACXH. - decrypting the corresponding private key using the protocol's hash as the account password.
So Irving & Holden have conceded that their protocol's hash was used as an account password. Wallet passwords are entirely off-chain; they are never written to the Bitcoin blockchain. In other words, there is no timestamp of Irving & Holden's protocol. Game over.
On the other hand, I'm tempted to ask Irving & Holden for their StrongCoin login (email & password), so I can "verify" that their protocol's hash decrypts their address's private key — also known as claiming my damn bounty!
Thanks Benjamin Carlisle for contributing diffs showing the revisions between versions 2–3 and 1–2. Note that version 3 also switches to using a text file rather than a Word Document to store the protocol. I generated addresses using Carlisle's method for the new SHA-256 hash. However, reproducing Irving & Holden's hash is irrelevant (unless you have access to their StrongCoin account).
