Hello steemians, I would like to share our project together with @ejnavares during our second year as a Mechanical Engineering student.

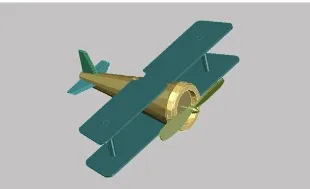

During that semester, our instructor gave us a project to make an output that applies our all our learnings as a mechanical engineering student. All learning that includes operating a lathe machine, grinding, using the drilling machine and using the hacksaw. He also told us to used AutoCAD in making our design. The picture above is what our group designed.

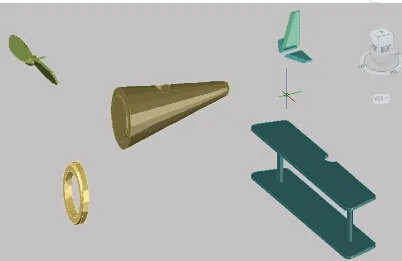

In this picture, we separated each parts of the design so that we can assign it to each member of the group. We were all having a hard time because of the limited machines in the machine shop. But still, we all had fund doing the project.
After months of taking our time in the machine shop doing the project, our project is almost done. The picture above is the project that is almost done. After seeing this, we were very happy to see that our output is almost the same to what we have designed.

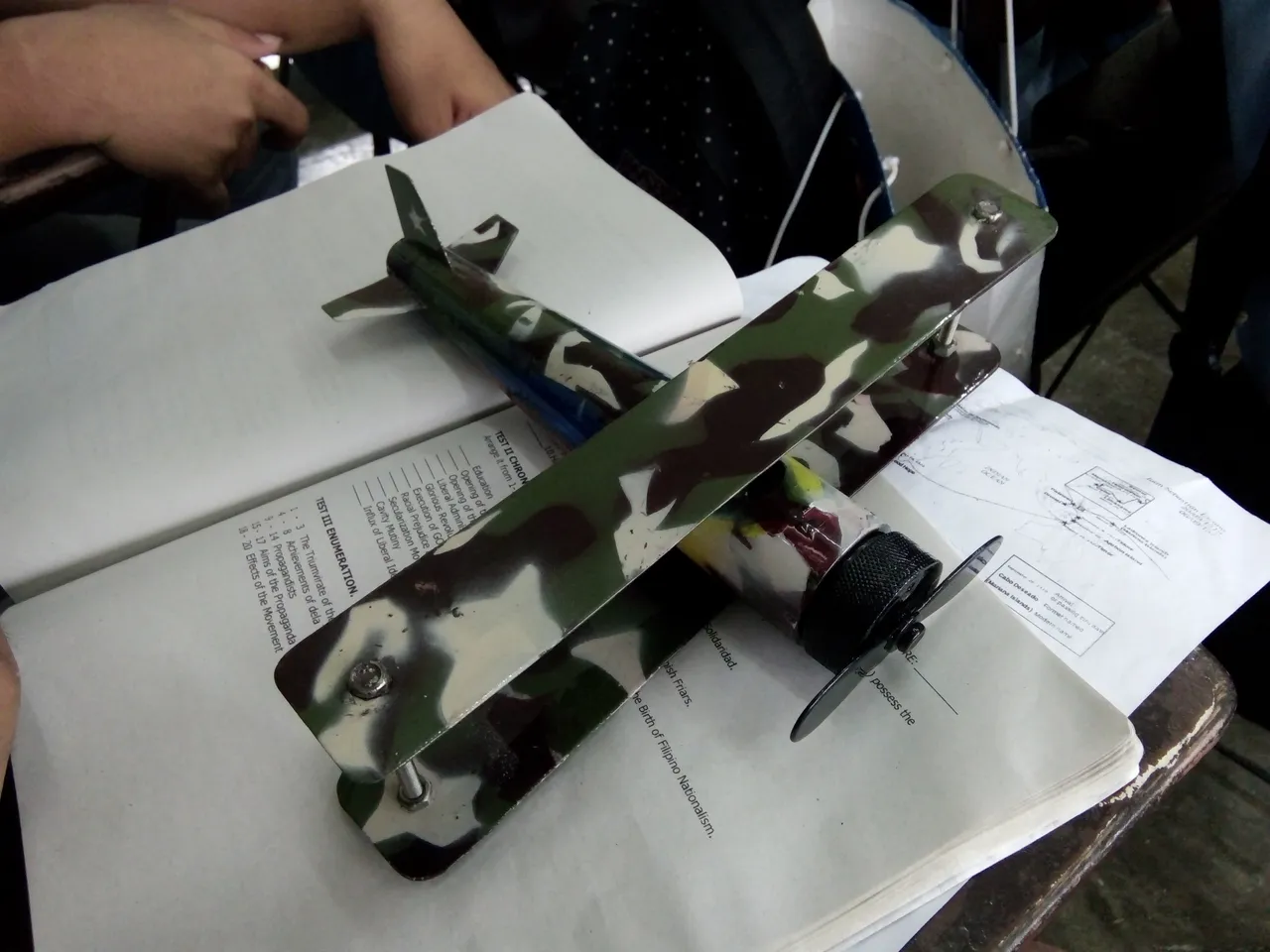

The day has finally come to pass our projects. This picture is the finished output of our project. We painted our plane model as if it is a plane of the army.
When we passed our project, we were relieved because we were be able apply our learnings in real life.
I hope you like it my fellow steemians. Thank you
