An Electrical pole stay is a piece of support which keeps the pole erect to prevent it from falling of tilting towards a certain direction

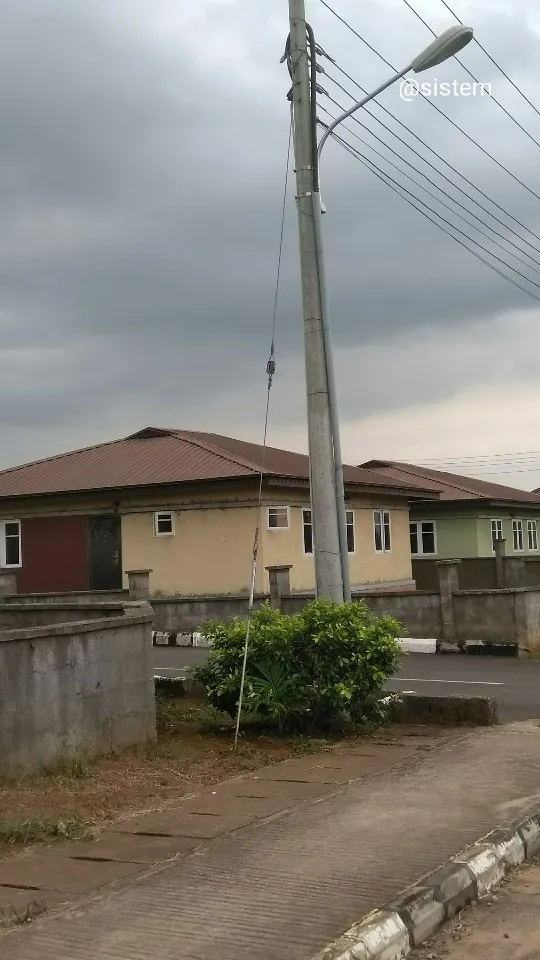

Here we can see the electric pole stay in place
The stay isn’t used on every single electric pole. It is used on poles which are placed in strategic positions like on the corners of a road or an electric pole having multiple electric poles carrying wires and connected to it. We could also find a stay on a pole carrying wire conductors in a T-Shaped form. These poles are likely to fall at any point in time due to tension and stress, so to avoid that occurrence, a stay is placed on them as a support to keep them from falling.

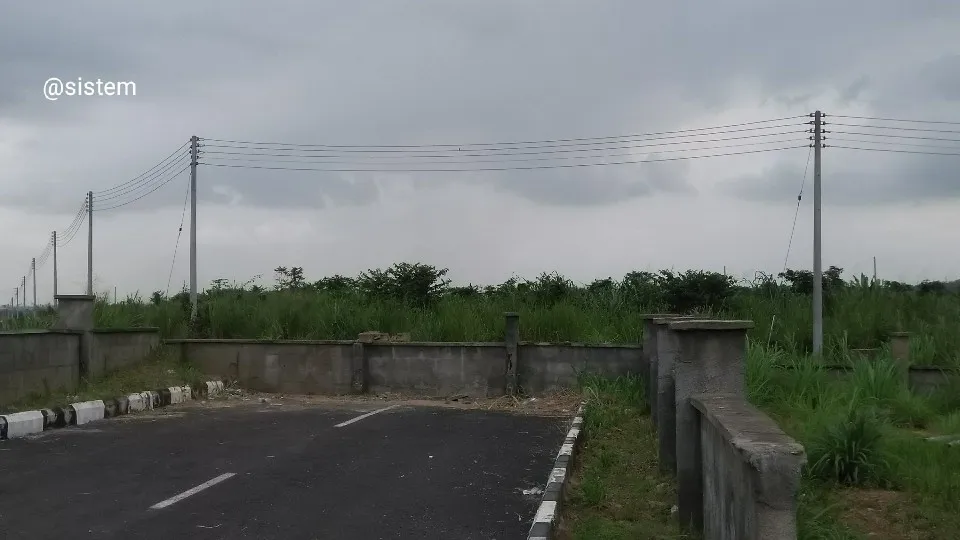

Here we can see how the stay is being positioned to support the electric poles and keep them from falling or bending
Today I will be showing you the components of an electric pole stay and will also be showing you how they are placed on the electric poles hoping that after reading this, you will feel a little bit like an Electrical Engineer and be able to make use of some of the Electrical terms used to describe low voltage power transmission.
Components of an Electric Pole stay…
- Stay pit
- Stay plate
- Stay rod
- Stay bolt and nut
- Stay insulator
- Stay wire
- Stay anchor
Describing the process…
First of all, the stay pit is dug a little distance away from the pole. The pit is dug to a depth of 1 meter and a width of 300mm by 300mm, that’s 1 foot square.

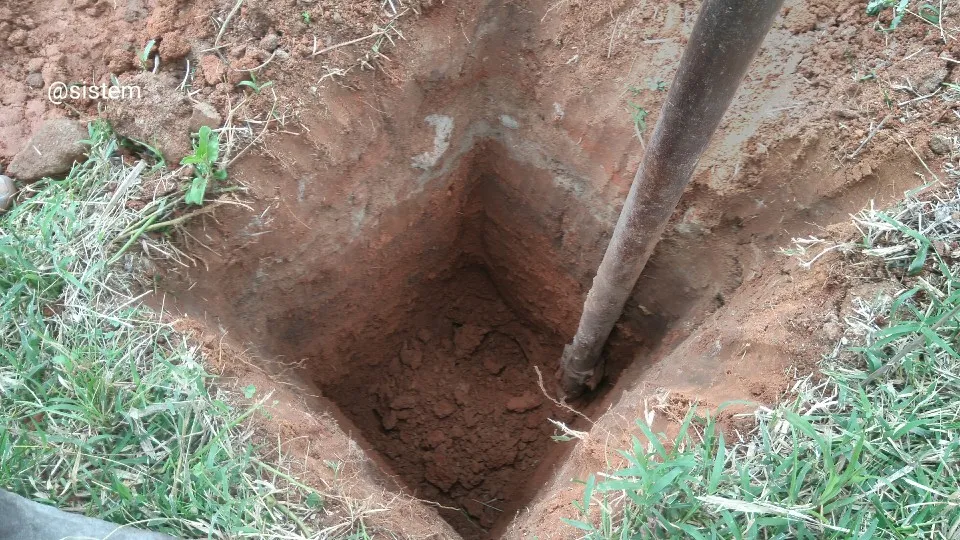

The stay pit

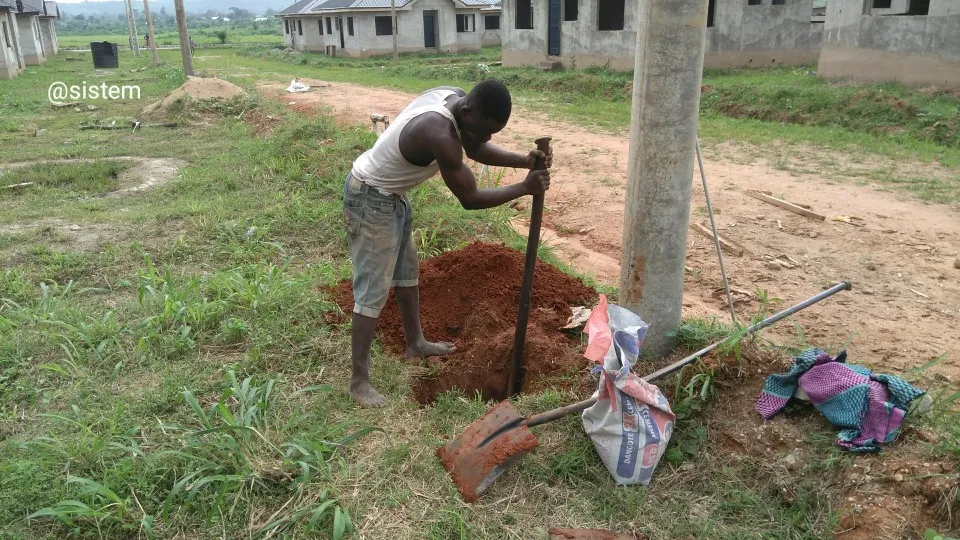

One of the men digging the stay pit
After the pit is dug, the stay plate is put in place with the Stay rod in the pit and concrete (A mixture of sand, stone and water) is poured into the pit and then covered with soil.

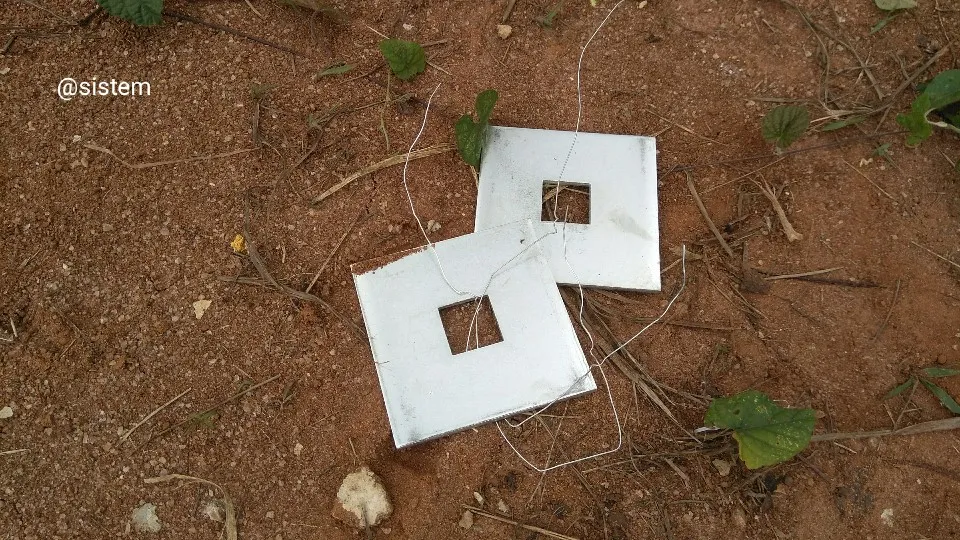

Stay plates

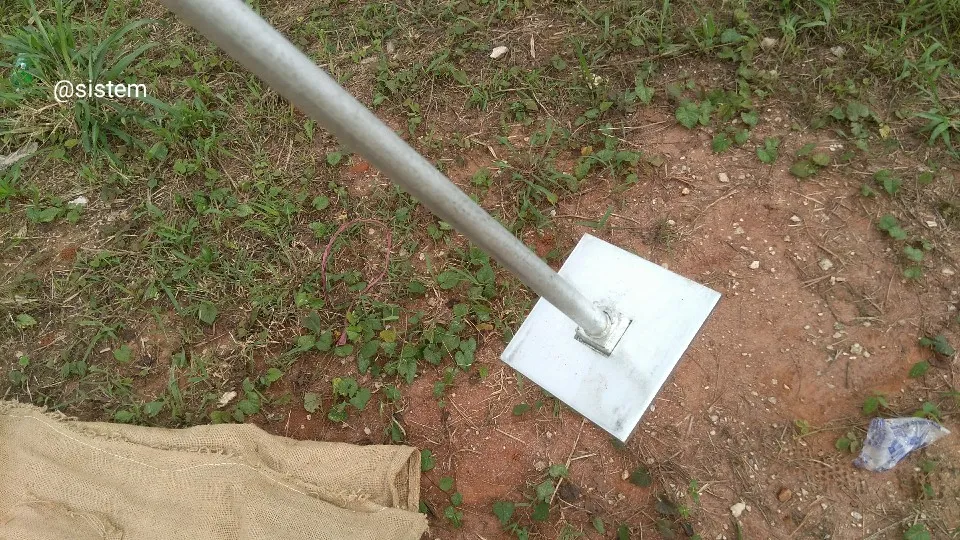

Stay plate secured in stay rod
The next step would be to secure the Stay insulator properly with the stay bolt. The stay insulator isolates the stay wire from the stay rod in other to prevent the advent of electric voltage flowing through the stay probably during thunder storms which would be dangerous to humans and animals alike.

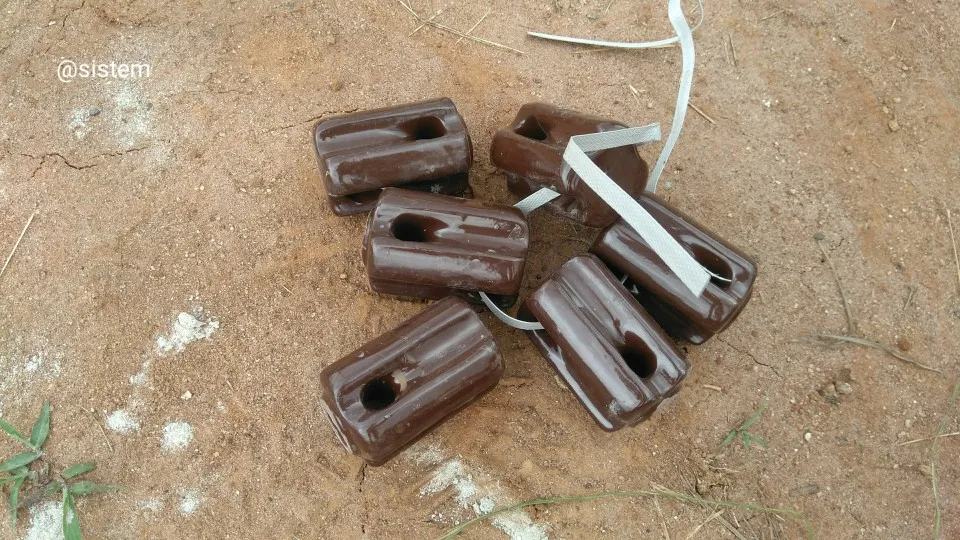

Stay insulators

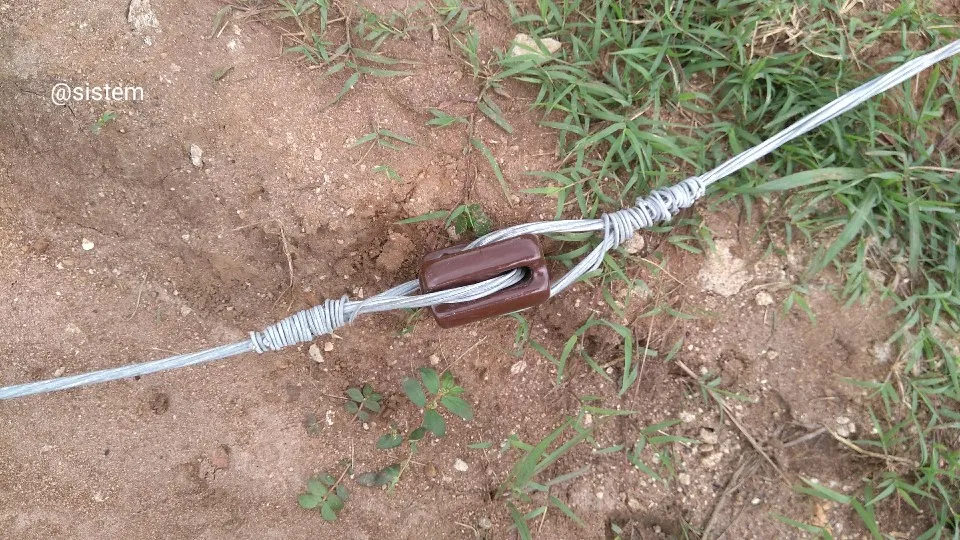

Stay insulator secured in stay wire

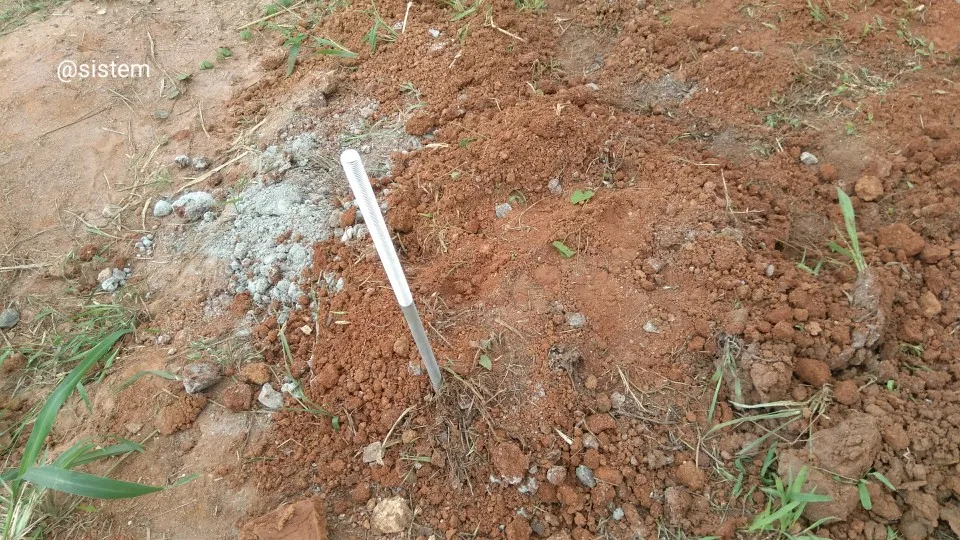

Stay rod fixed firmly to the ground and covered with earth

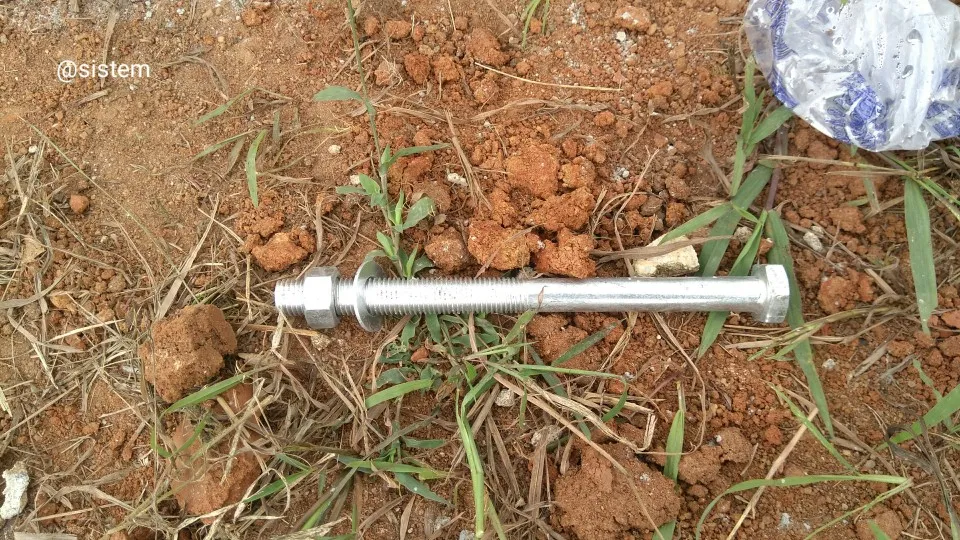

Stay bolt
The stay wire is then tied around the neck of the poll at the top and properly bolted to the stay rod.

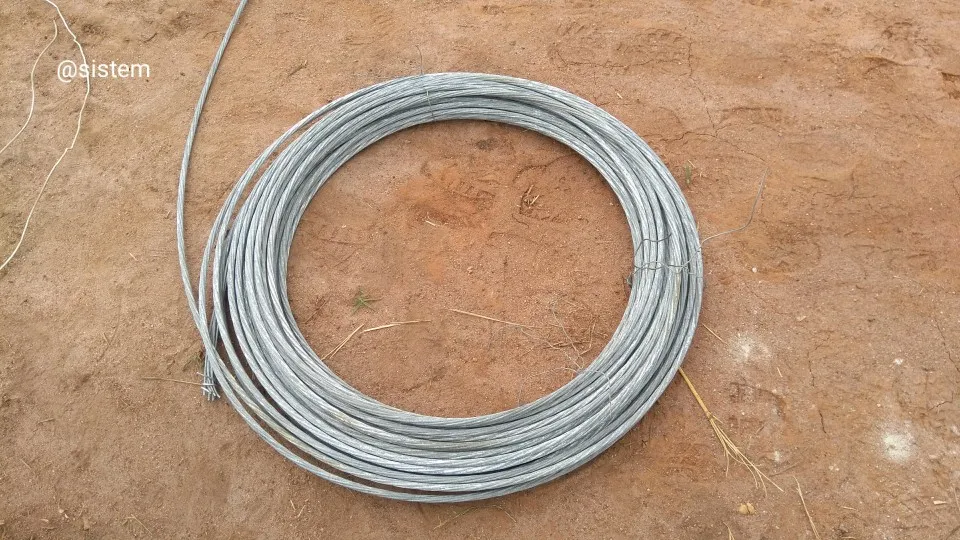

Stay wire made of aluminum

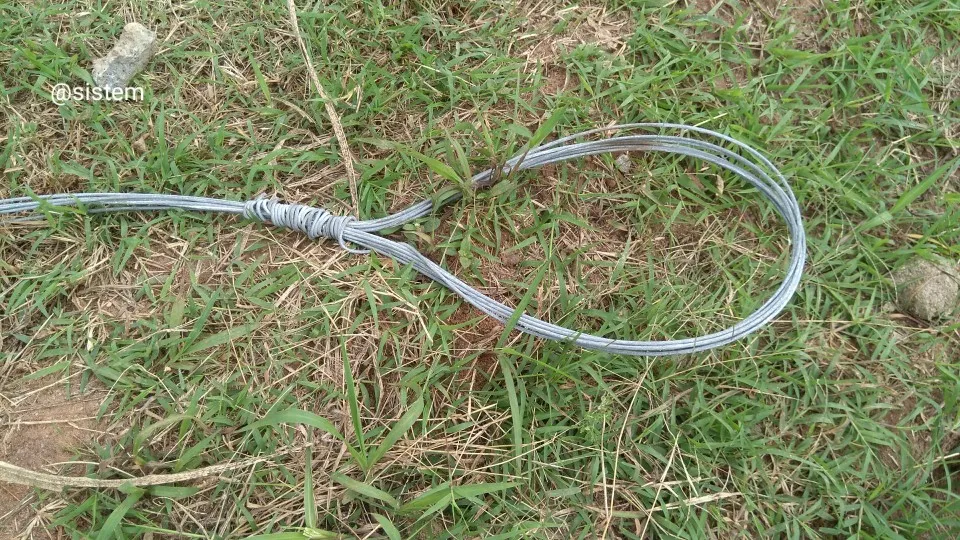

Stay wire ready to be tied around the pole
The Stay anchor supports the entire stay at the top of the pole and used when the distance between the pole and the stay pit isn’t long enough to cause the efficient support if the pole but the stay alone.

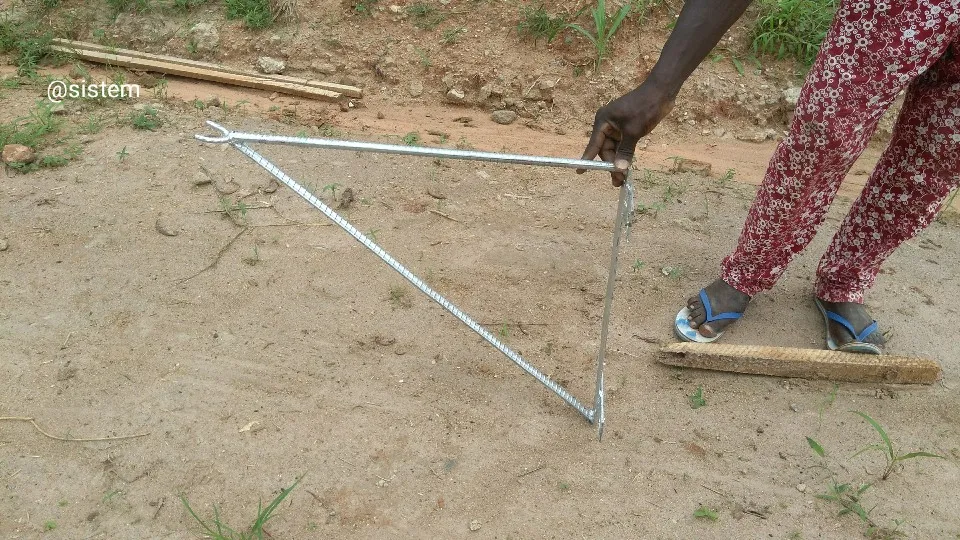

Stay anchor

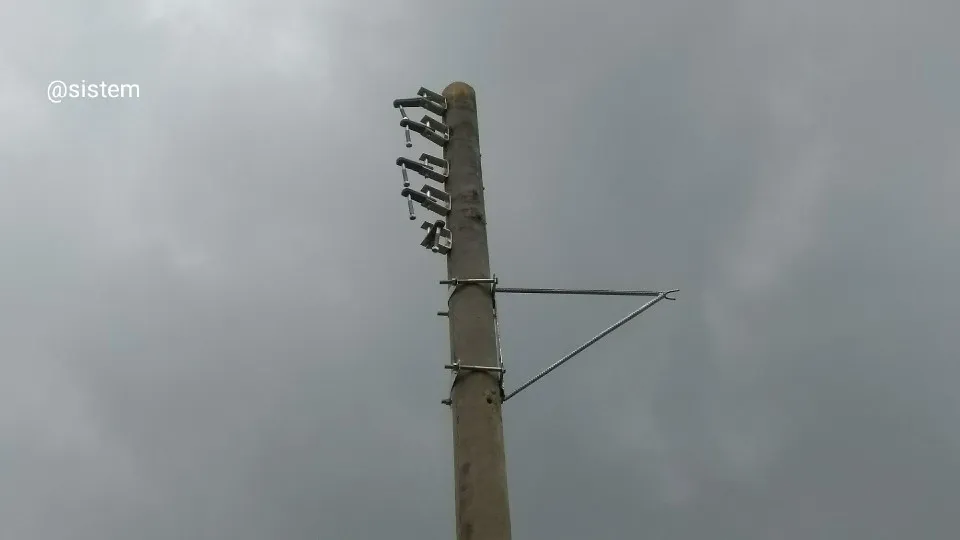

Stay anchor mounted on pole

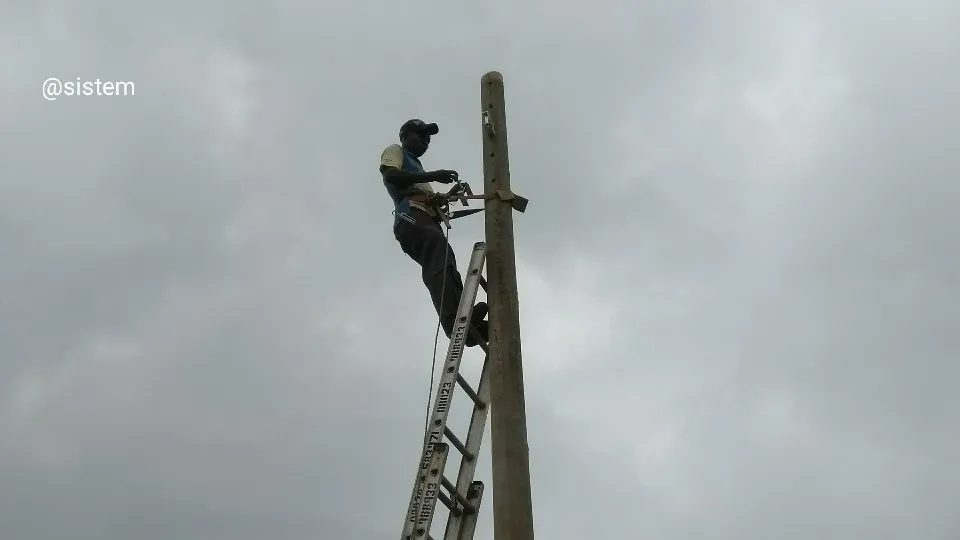

From the images below, you will be able to see the Electrical technician who will be installing the stay on the electric pole getting the pole prepared for the installation.
