Summary:

In this tutorial, I will show you how to create scene, camera, renderer, axis, cube, plane, grid and light. Let's start...

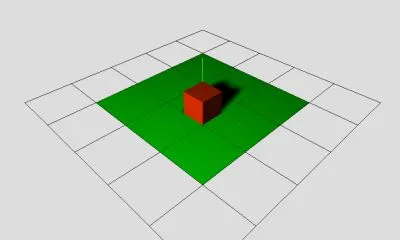

Result


What Will I Learn?

html, css and javascript code structure
how to set canvas with css
how to rerfer to three.js library
how to create scene
how to create camera
how to create renderer
how to create axis
how to create color
how to create grid
how to create cube
how to create plane
how to create spot light
how to append renderer on canvas
how to render scene with camera

Requirements

source code editor, for example: vim, notepad++ etc.
A browser that support webgl, for example: Google Chrome 9+, Firefox 4+, Opera 15+, Safari 5.1+, Internet Explorer 11 and Microsoft Edge etc.
three.js library

Difficulty

Intermediate

Tutorial Contents

html, css and javascript code structure

<html>
    <head>
        <title>Three js Line</title>
        <style>
            body { margin: 0; }
            canvas { width: 100%; height: 100% }
        </style>
        <script src="../js/three.min.js"></script>
    </head>
    <body>
<script>
</script>
</body>
</html>

how to set canvas with css

canvas { width: 100%; height: 100% }

how to rerfer to three.js library

<script src="../js/three.min.js"></script>

how to create scene

var scene = new THREE.Scene();

how to create camera

var camera = new THREE.PerspectiveCamera(45, window.innerWidth/window.innerHeight, .1, 500)
camera.position.set(40,40,40);
camera.lookAt(scene.position);

how to create renderer

var renderer = new THREE.WebGLRenderer();
renderer.setClearColor(0xdddddd);
renderer.setSize(window.innerWidth, window.innerHeight);
renderer.shadowMap.enabled = true;
renderer.shadowMap.type = THREE.PCFSoftShadowMap;

how to create axis

var axis = new THREE.AxisHelper(10);
scene.add(axis);

how to create color

var color = new THREE.Color("rgb(255, 0, 0)");

how to create grid

var grid = new THREE.GridHelper(50,5,color,0x000000);
scene.add(grid);

how to create cube

var cubeGeo = new THREE.BoxGeometry(5,5,5);
var cubeMaterial = new THREE.MeshLambertMaterial({color:0xff3300});
var cube = new THREE.Mesh(cubeGeo,cubeMaterial);
cube.position.set(2.5,2.5,2.5);
cube.castShadow = true;
cube.receiveShadow = false;
scene.add(cube);

how to create plane

var planeGeo = new THREE.PlaneGeometry(30,30,30);
var planeMaterial = new THREE.MeshLambertMaterial({color:0x00ff00});
var plane = new THREE.Mesh(planeGeo,planeMaterial);
plane.rotation.x = -.5*Math.PI;
plane.receiveShadow = true;
scene.add(plane);

how to create spot light

var spotLight = new THREE.SpotLight(0xffffff);
spotLight.position.set(15,30,50);
spotLight.castShadow = true;
scene.add(spotLight);

how to append renderer on canvas

document.body.appendChild( renderer.domElement );

how to render scene with camera

renderer.render(scene,camera);

full source code

<html>
    <head>
        <title>Three js Line</title>
        <style>
            body { margin: 0; }
            canvas { width: 100%; height: 100% }
        </style>
        <script src="../js/three.min.js"></script>
    </head>
    <body>
<script>

threejs_axis_plane();
function threejs_axis_plane()
{
    // step1: how to create scene
    var scene = new THREE.Scene();

    // step2: how to create camera
    var camera = new THREE.PerspectiveCamera(45, window.innerWidth/window.innerHeight, .1, 500)
    camera.position.set(40,40,40);
    camera.lookAt(scene.position);

    // step3: how to create renderer
    var renderer = new THREE.WebGLRenderer();
    renderer.setClearColor(0xdddddd);
    renderer.setSize(window.innerWidth, window.innerHeight);
    renderer.shadowMap.enabled = true;
    renderer.shadowMap.type = THREE.PCFSoftShadowMap;

    // step4: how to create axis
    var axis = new THREE.AxisHelper(10);
    scene.add(axis);

    // step5: how to create color
    var color = new THREE.Color("rgb(255, 0, 0)");

    // step6: how to create grid
    var grid = new THREE.GridHelper(50,5,color,0x000000);
    scene.add(grid);

    // step7: how to create cube
    var cubeGeo = new THREE.BoxGeometry(5,5,5);
    var cubeMaterial = new THREE.MeshLambertMaterial({color:0xff3300});
    var cube = new THREE.Mesh(cubeGeo,cubeMaterial);
    cube.position.set(2.5,2.5,2.5);
    cube.castShadow = true;
    cube.receiveShadow = false;
    scene.add(cube);

    // step8: how to create plane
    var planeGeo = new THREE.PlaneGeometry(30,30,30);
    var planeMaterial = new THREE.MeshLambertMaterial({color:0x00ff00});
    var plane = new THREE.Mesh(planeGeo,planeMaterial);
    plane.rotation.x = -.5*Math.PI;
    plane.receiveShadow = true;
    scene.add(plane);

    // step9: how to create spot light
    var spotLight = new THREE.SpotLight(0xffffff);
    spotLight.position.set(15,30,50);
    spotLight.castShadow = true;
    scene.add(spotLight);

    // step10: how to append renderer on canvas
    document.body.appendChild( renderer.domElement );

    // step11: how to render scene with camera
    renderer.render(scene,camera);
}
</script>
</body>
</html>

verify: http://azcax.org/threejs/threejs_axis_plane.html

The Chinese Version

可以学到什么?

html,css javascript代码整体结构
怎么设置画布大小
怎么引用three.js
怎么创建场景
怎么创建相机
怎么创建渲染器
怎么创建座标轴
怎么创建颜色
怎么创建网格
怎么创建方块
怎么创建平面
怎么创建点光源
怎么将渲染器添加到画布上
怎么渲染场景

需要的准备条件

代码编辑器，比如vim，notepad++等
支持webgl的浏览器，比如Google Chrome 9+, Firefox 4+, Opera 15+, Safari 5.1+, Internet Explorer 11 and Microsoft Edge等
three.js库

难易程度

中等

教程内容

html,css javascript代码整体结构

用于创建3D场景的代码是javascript语句，放在<script>里面。下面将详细讲解关键代码。

<html>
    <head>
        <title>Three js Line</title>
        <style>
            body { margin: 0; }
            canvas { width: 100%; height: 100% }
        </style>
        <script src="../js/three.min.js"></script>
    </head>
    <body>
<script>
</script>
</body>
</html>

怎么设置画布大小

canvas { width: 100%; height: 100% }

怎么引用three.js

<script src="../js/three.min.js"></script>

怎么创建场景

var scene = new THREE.Scene();

怎么创建相机

var camera = new THREE.PerspectiveCamera(45, window.innerWidth/window.innerHeight, .1, 500)
camera.position.set(40,40,40);
camera.lookAt(scene.position);

怎么创建渲染器

var renderer = new THREE.WebGLRenderer();
renderer.setClearColor(0xdddddd);
renderer.setSize(window.innerWidth, window.innerHeight);
renderer.shadowMap.enabled = true;
renderer.shadowMap.type = THREE.PCFSoftShadowMap;

怎么创建座标轴

var axis = new THREE.AxisHelper(10);
scene.add(axis);

怎么创建颜色

var color = new THREE.Color("rgb(255, 0, 0)");

怎么创建网格

var grid = new THREE.GridHelper(50,5,color,0x000000);
scene.add(grid);

怎么创建方块

var cubeGeo = new THREE.BoxGeometry(5,5,5);
var cubeMaterial = new THREE.MeshLambertMaterial({color:0xff3300});
var cube = new THREE.Mesh(cubeGeo,cubeMaterial);
cube.position.set(2.5,2.5,2.5);
cube.castShadow = true;
cube.receiveShadow = false;
scene.add(cube);

怎么创建平面

var planeGeo = new THREE.PlaneGeometry(30,30,30);
var planeMaterial = new THREE.MeshLambertMaterial({color:0x00ff00});
var plane = new THREE.Mesh(planeGeo,planeMaterial);
plane.rotation.x = -.5*Math.PI;
plane.receiveShadow = true;
scene.add(plane);

怎么创建点光源

var spotLight = new THREE.SpotLight(0xffffff);
spotLight.position.set(15,30,50);
spotLight.castShadow = true;
scene.add(spotLight);

怎么将渲染器添加到画布上

document.body.appendChild( renderer.domElement );

怎么渲染场景

renderer.render(scene,camera);

完整的代码

<html>
    <head>
        <title>Three js Line</title>
        <style>
            body { margin: 0; }
            canvas { width: 100%; height: 100% }
        </style>
        <script src="../js/three.min.js"></script>
    </head>
    <body>
<script>

threejs_axis_plane();
function threejs_axis_plane()
{
    // step1: how to create scene
    var scene = new THREE.Scene();

    // step2: how to create camera
    var camera = new THREE.PerspectiveCamera(45, window.innerWidth/window.innerHeight, .1, 500)
    camera.position.set(40,40,40);
    camera.lookAt(scene.position);

    // step3: how to create renderer
    var renderer = new THREE.WebGLRenderer();
    renderer.setClearColor(0xdddddd);
    renderer.setSize(window.innerWidth, window.innerHeight);
    renderer.shadowMap.enabled = true;
    renderer.shadowMap.type = THREE.PCFSoftShadowMap;

    // step4: how to create axis
    var axis = new THREE.AxisHelper(10);
    scene.add(axis);

    // step5: how to create color
    var color = new THREE.Color("rgb(255, 0, 0)");

    // step6: how to create grid
    var grid = new THREE.GridHelper(50,5,color,0x000000);
    scene.add(grid);

    // step7: how to create cube
    var cubeGeo = new THREE.BoxGeometry(5,5,5);
    var cubeMaterial = new THREE.MeshLambertMaterial({color:0xff3300});
    var cube = new THREE.Mesh(cubeGeo,cubeMaterial);
    cube.position.set(2.5,2.5,2.5);
    cube.castShadow = true;
    cube.receiveShadow = false;
    scene.add(cube);

    // step8: how to create plane
    var planeGeo = new THREE.PlaneGeometry(30,30,30);
    var planeMaterial = new THREE.MeshLambertMaterial({color:0x00ff00});
    var plane = new THREE.Mesh(planeGeo,planeMaterial);
    plane.rotation.x = -.5*Math.PI;
    plane.receiveShadow = true;
    scene.add(plane);

    // step9: how to create spot light
    var spotLight = new THREE.SpotLight(0xffffff);
    spotLight.position.set(15,30,50);
    spotLight.castShadow = true;
    scene.add(spotLight);

    // step10: how to append renderer on canvas
    document.body.appendChild( renderer.domElement );

    // step11: how to render scene with camera
    renderer.render(scene,camera);
}
</script>
</body>
</html>

验证: http://azcax.org/threejs/threejs_axis_plane.html
