Summary: OpenSCAD (version 2015.03-2) is the open source software for creating solid 3D CAD models. It is available for Linux/UNIX, Windows and Mac OS X, and it is a programming Solid 3D CAD Modeller. In this tutorial I will show you how to create a batman. Let's start...
Result:

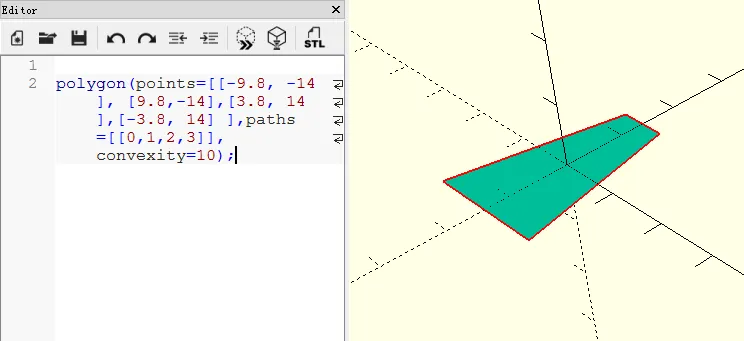

步骤1：创建一个梯形：

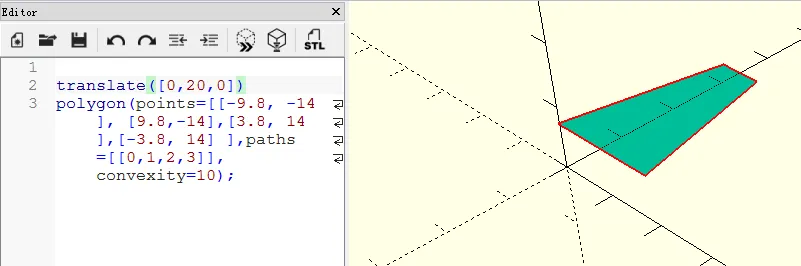

步骤2：将其沿y轴方向移动20

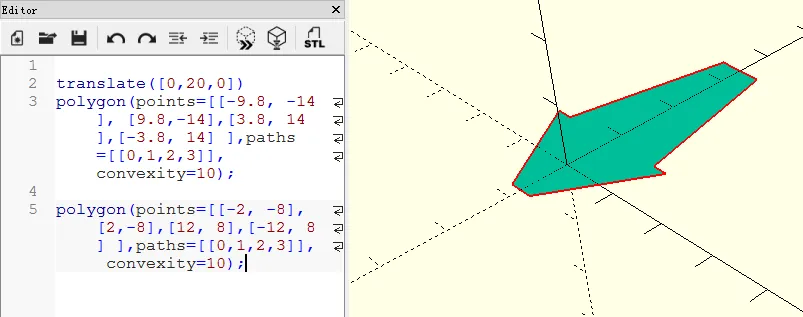

步骤3：再创建一个梯形：

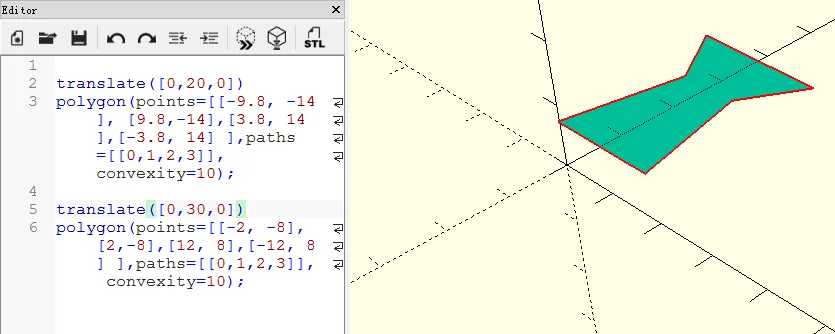

步骤4：将其沿Y轴方向移动30

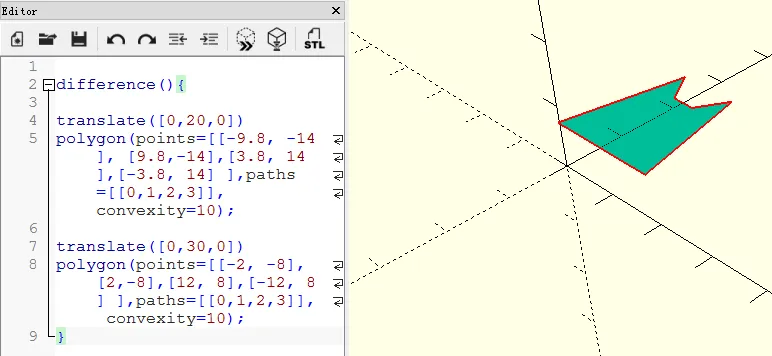

步骤5：对2个梯形求布尔差，形成Bitman的头部：

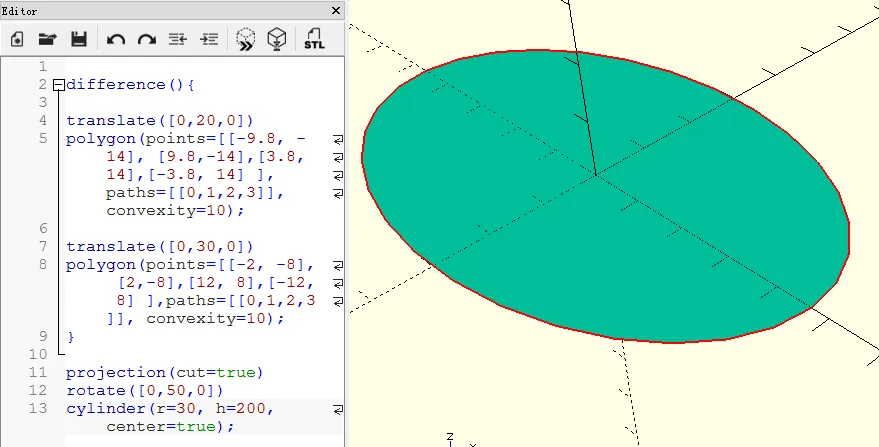

步骤6：做一个椭圆，作为Bitman身体的主体：

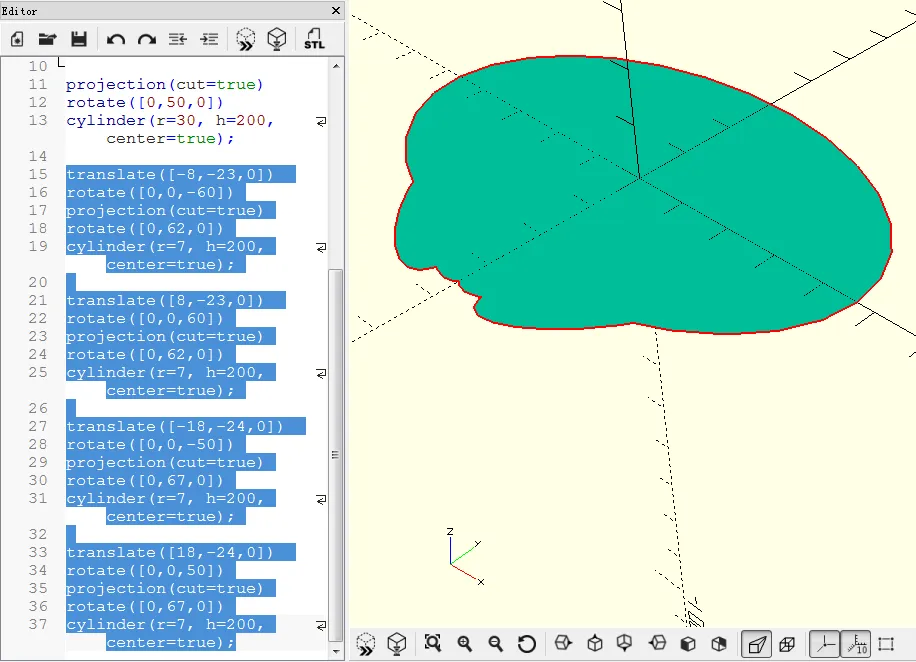

步骤7：再做4个小椭圆，作为Bitman的尾部：

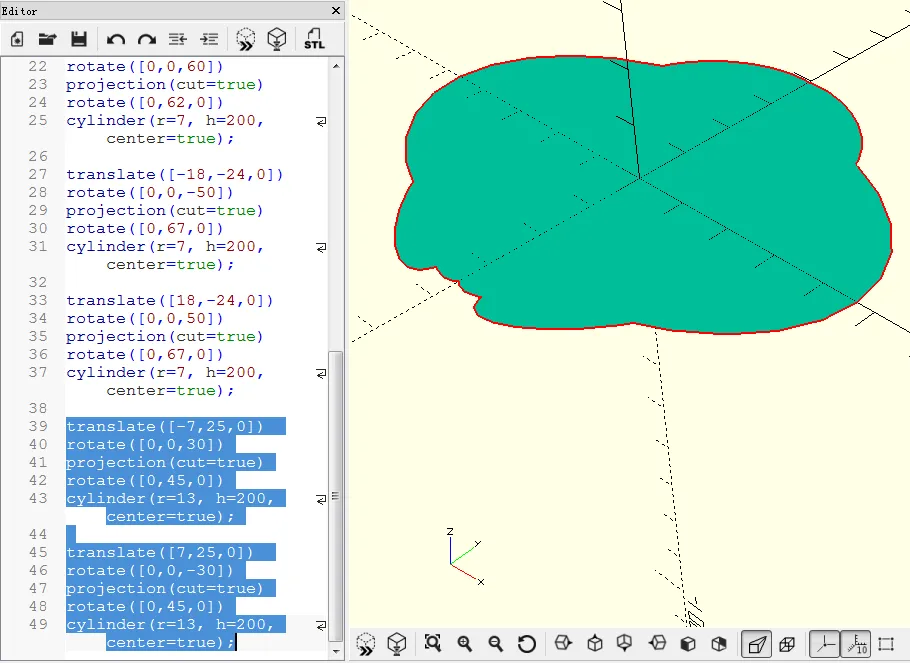

步骤8：再做2个椭圆，作为Bitman的肩部：

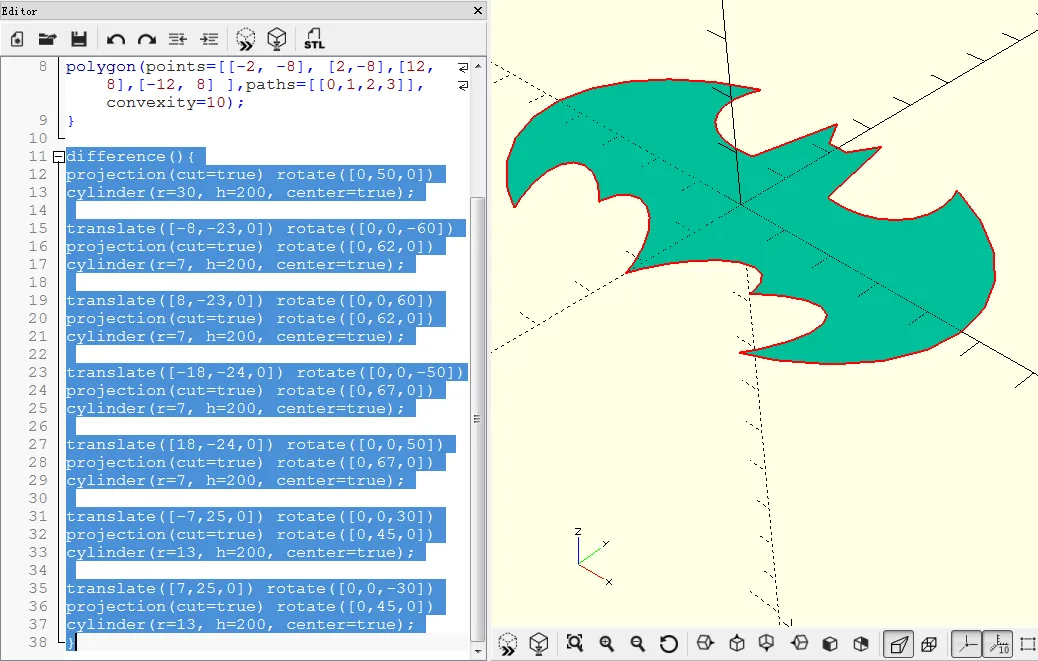

步骤9：用主体椭圆布尔减去尾部和肩部椭圆：
步骤10：将平面的Bitman拉升为3D：

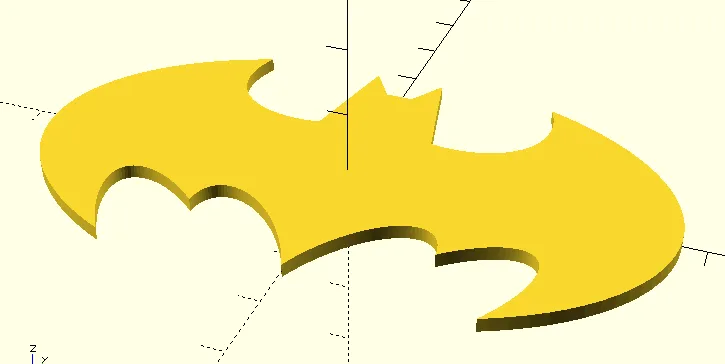

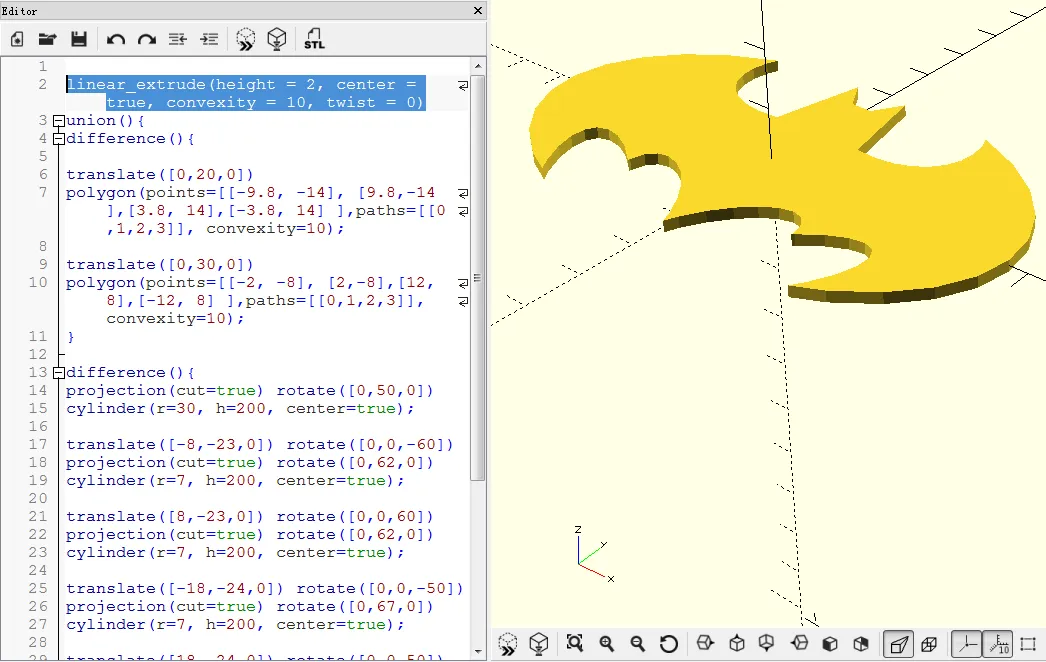

得到最终的3D Bitman：
OpenSCAD代码如下：
linear_extrude(height = 2, center = true, convexity = 10, twist = 0)
union(){
difference(){
translate([0,20,0])
polygon(points=[[-9.8, -14], [9.8,-14],[3.8, 14],[-3.8, 14] ],paths=[[0,1,2,3]], convexity=10);
translate([0,30,0])
polygon(points=[[-2, -8], [2,-8],[12, 8],[-12, 8] ],paths=[[0,1,2,3]], convexity=10);
}
difference(){
projection(cut=true) rotate([0,50,0])
cylinder(r=30, h=200, center=true);
translate([-8,-23,0]) rotate([0,0,-60])
projection(cut=true) rotate([0,62,0])
cylinder(r=7, h=200, center=true);
translate([8,-23,0]) rotate([0,0,60])
projection(cut=true) rotate([0,62,0])
cylinder(r=7, h=200, center=true);
translate([-18,-24,0]) rotate([0,0,-50])
projection(cut=true) rotate([0,67,0])
cylinder(r=7, h=200, center=true);
translate([18,-24,0]) rotate([0,0,50])
projection(cut=true) rotate([0,67,0])
cylinder(r=7, h=200, center=true);
translate([-7,25,0]) rotate([0,0,30])
projection(cut=true) rotate([0,45,0])
cylinder(r=13, h=200, center=true);
translate([7,25,0]) rotate([0,0,-30])
projection(cut=true) rotate([0,45,0])
cylinder(r=13, h=200, center=true);
}
}
