OpenSCAD教程之"创建标签" | OpenSCAD tutorial -- Create Name tag

Summary:

OpenSCAD (version 2015.03-2) is the open source software for creating solid 3D CAD models. It is available for Linux/UNIX, Windows and Mac OS X, and it is a programming Solid 3D CAD Modeller. In this tutorial I will show you how to create a name tag. Let's start...

Result:

Step 1

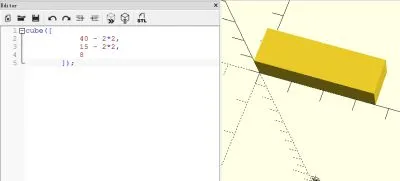

创建方块

Step 2

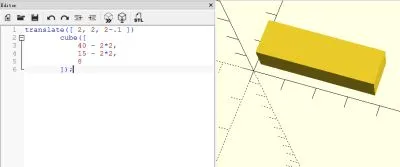

将方块移动到2, 2, 1.9位置

Step 3

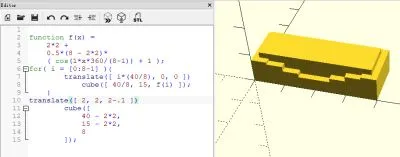

创建一个台阶式的方块

Step 4

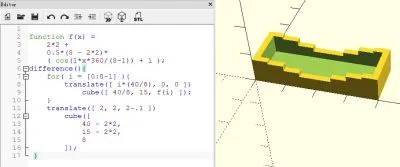

用Step3中的方块布尔减去Step1中的方块

Step 5

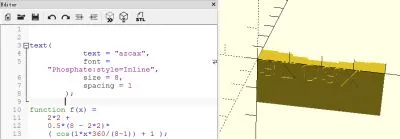

创建文字azcax

Step 6

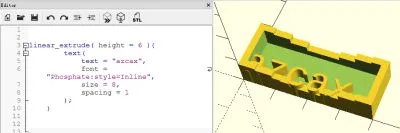

拉伸文字

Step 7

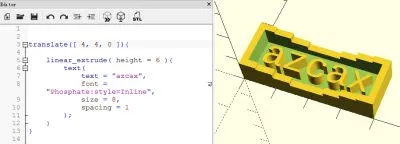

将文字移动到4，4，0位置

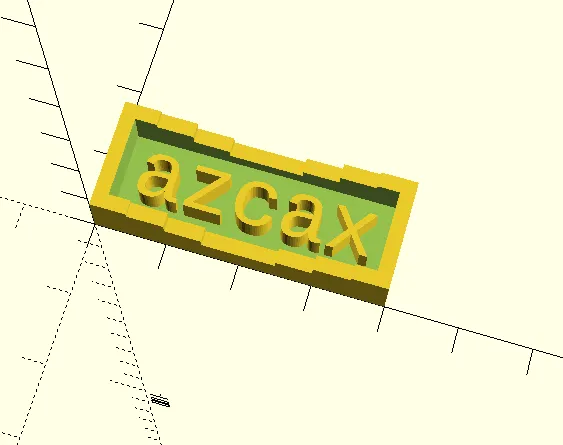

得到最终结果：

OpenSCAD code:

translate([ 2 + 2, 2 + 2, 0 ]){
    linear_extrude( height = 6 ){
        text(
            text = "azcax",
            font = "Phosphate:style=Inline",
            size = 8,
            spacing = 1
        );
    }
}
function f(x) =
    2*2 +
    0.5*(8 - 2*2)*
    ( cos(1*x*360/(8-1)) + 1 );
difference(){
    for( i = [0:8-1] ){
        translate([ i*(40/8), 0, 0 ])
            cube([ 40/8, 15, f(i) ]);
    }
    translate([ 2, 2, 2-.1 ])
        cube([
            40 - 2*2,
            15 - 2*2,
            8
        ]);
 }

---
