Estos programas ya existen pero separados son muy buenos, pero el que yo diseñe se adaptan mejor a las necesidades del ingeniero de fluidos en el taladro.
Esta es la versión 1.1 pero seguiré trabajando para agregarle mejoras y añadirle nuevas opciones al ingeniero.
“The Mud engineer performs a series of chemical and physical tests to the drilling fluids, at least a series of tests every 8 hours, in the physical tests are made some calculations to perform operations such as raising or lowering the density of mud, Plastic Viscosity and Yield Point, which can be done in a calculator but there is the possible risk of error. Of course this can also be done on the computer but sometimes, we are not near at the moment because obviously we need that information quickly and without errors, for that reason as I am a Mud engineer and to facilitate the work fast and safe and increase my efficiency in the Rig, I think to take those calculations to mobile devices such as cell phones or tablets with Android operating system, it´s devices are more common and accessible to people worldwide.
These programs already exist but separate are very good, but my design is better adapted to the needs of the Mud Engineer in the Rig.
This is version 1.1 but I will continue working to add improvements and add new options to the mud engineer.”

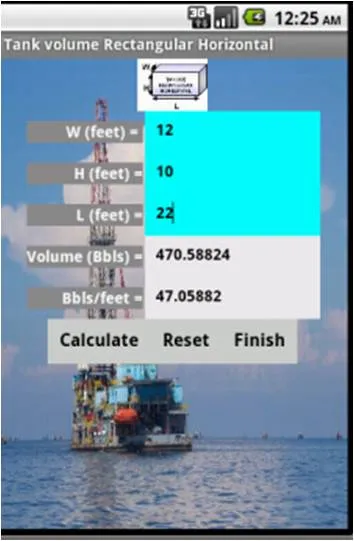

En esta primera opción es para calcular de volumen de un tanque rectangular en barriles.
“In this first choice it´s to calculate the volume of a rectangular tank barrels”

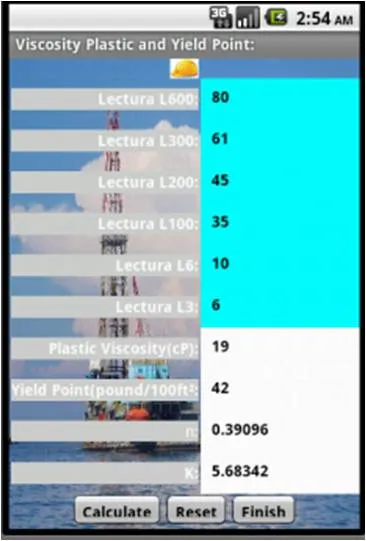

En esta segunda opción es para calcular Viscosidad Plástica y Punto cedente además de los valores de n y K con la tasa de corte entre 300 RPM y 600 RPM, el factor K es similar a la viscosidad plástica, porque su aumento indica generalmente un aumento de la concentración de sólidos o una disminución en el tamaño de partículas de los sólidos.
“In this second option is to calculate Plastic Viscosity and Yield Point also the values of n and K with the cutting rate between 300 RPM and 600 RPM, the K factor is similar to the plastic viscosity, because the increase generally indicates an increasing solids concentration or a decrease in the particle size of the solids.”

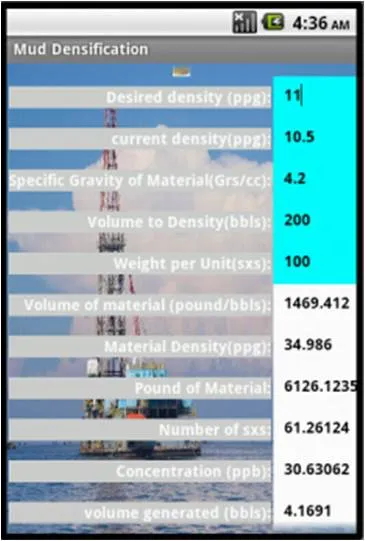

En esta tercera opción es para calcular el volumen de material densificante y incrementar el peso del lodo.
“In this third choice is to calculate the volume of material to densify and increase the weight mud.”

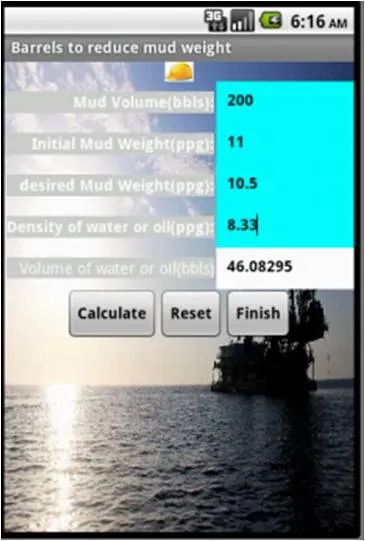

En esta cuarta opción es para calcular el volumen de agua o aceite y para reducir el peso del lodo.
“In this fourth choice it`s to calculate the volume of water or oil and to reduce the mud weight.”

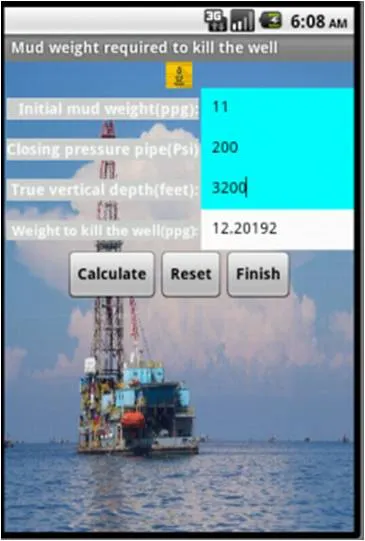

En esta quinta opción es para calcular el peso del lodo requerido para matar el pozo. Esto para tratar de controlar un reventón en el pozo.
“In this fifth choice is to calculate the weight of the mud required to kill the well. This to try to control blowout in the well”

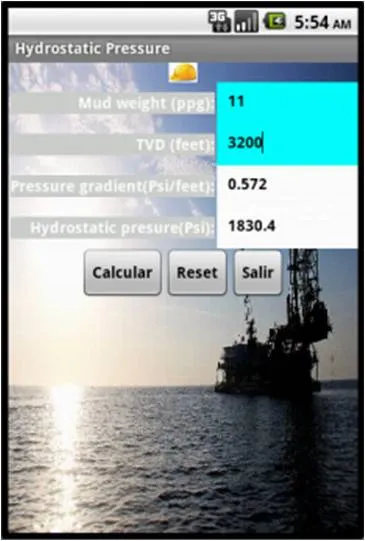

En esta sexta opción es para calcular el gradiente de presión y la presión hidrostática del pozo.
“In this sixth choice is to calculate the pressure gradient and the hydrostatic pressure of the well.”

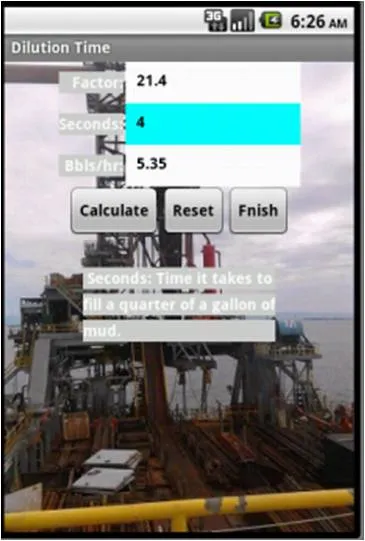

En esta séptima opción es para calcular el tiempo de dilución en bbls/hr, esto se utiliza para determinar volumen de lodo que hay que completar por hora en el hoyo mientras se perfora, ya que a medida que se perfora se necesita más volumen de fluido por el aumento de la profundidad del hoyo, por pérdida de fluido por filtración a través de las paredes del hoyo y la evaporación de la fase continua del lodo.
“In this seventh choice is to calculate the dilution time in bbls/hr, this is used to determine the volume of mud that must be completed per hour in the hole while drilling, since it is perforated as is needed volume of fluid by the increase of the depth of the hole, loss of fluid by filtration through the walls of the hole and the evaporation of the continuous phase of the mud”
Fuentes: Fotos de mi software con el emulador para android del APP INVENTOR 2
