beem is a python library for steem. It has now 316 unit tests and the current version is 0.19.17. You can find beem on github. It can be installed by:

pip install -U beem

or

conda install beem

Whenever a transaction should be broadcasted to the steem blockchain, the content has to be signed with the private key of the sender. It has to assure that the public key can be extracted from the signature.

The public key can than be used to verify the signed transaction. This is performed by extracting the public key from the signature and comparing it with the provided one.

An Elliptic Curve Digital Signature Algorithm (ECDSA) set to secp256k1 is used for both. There is a pure python implementation python-ecdsa which is used by python-steem and beem.

secp256k1

In order to accelerate this, secp256k1 might be installed by:

pip install secp256k1

secp256k1 has the problem that it uses a depreated way to access ffi. Without update it might stop working (last update for secp256k1 was 2016):

UserWarning: implicit cast from 'char *' to a different pointer type: will be forbidden in the future (check that the types are as you expect; use an explicit ffi.cast() if they are correct)

secp256k1 cannot be installed on windows.

cryptography

Then I found cryptography which uses also openssl and was easily installable by:

pip install cryptography

or

conda install cryptography

So I decided to speed up signing and verification for all user who are not able to install secp256k1.

Speed improvements by cryptography

The following is the mean times from 50 times signing and verifying a Transfer operation.

library	beem/steem	sign duration [s]	verify duration [s]
python-ecdsa	beem	0.37	0.58
python-ecdsa	steem	0.37	0.60
secp256k1	beem	0.16	0.16
secp256k1	steem	0.16	0.16
cryptography	beem	0.23	0.26

beem is 166.98 % (sign) and 229.39 % (verify) faster than steem, when secp256k1 is not installed!
Sending out 10 transfers can than be reduced from 9.7 seconds to 4.9 seconds.

Using cryptography to speed up sign and verify operation

I was then trying to replace python-ecdsa by cryptography, but it was not possible, as some functions are not implemented in cryptography. I was then replacing some parts with algorithms from cryptography and could speed up sign/verify.

I'm using the following functions from cryptography:

from cryptography.hazmat.backends import default_backend
from cryptography.hazmat.primitives import hashes
from cryptography.hazmat.primitives.asymmetric import ec
from cryptography.hazmat.primitives.asymmetric.utils \
            import decode_dss_signature, encode_dss_signature

sign_message

I'm using the derive_private_key function from cryptography to derive a private_key from the wif string. It has to converted into an integer first.

        private_key = ec.derive_private_key(int(repr(priv_key), 16), ec.SECP256K1(), default_backend())
        public_key = private_key.public_key()

Then I'm looping and creating new signatures until ones fits:

        while True:
            cnt += 1
            if not cnt % 20:
                log.info("Still searching for a canonical signature. Tried %d times already!" % cnt)
            order = ecdsa.SECP256k1.order
            signer = private_key.signer(ec.ECDSA(hashes.SHA256()))
            signer.update(message)
            sigder = signer.finalize()
            r, s = decode_dss_signature(sigder)
            signature = ecdsa.util.sigencode_string(r, s, order)
            # Make sure signature is canonical!
            #
            sigder = bytearray(sigder)
            lenR = sigder[3]
            lenS = sigder[5 + lenR]
            if lenR is 32 and lenS is 32:
                # Derive the recovery parameter
                #
                i = recoverPubkeyParameter(
                    message, digest, signature, public_key)
                i += 4   # compressed
                i += 27  # compact
                break

I'm using the signer private_key.signer(ec.ECDSA(hashes.SHA256())) from cryptography.

recover_public_key

Is called by recoverPubkeyParameter until the recovered pubkey is correct, if not the index i is increased by one.
This function assures that the public key can be guessed from the signature.
I replaced:

        if not ecdsa.VerifyingKey.from_public_point(Q, curve=ecdsa.SECP256k1).verify_digest(signature, digest, sigdecode=ecdsa.util.sigdecode_string):
            return None
        return ecdsa.VerifyingKey.from_public_point(Q, curve=ecdsa.SECP256k1)

by

        sigder = encode_dss_signature(r, s)
        public_key = ec.EllipticCurvePublicNumbers(Q._Point__x, Q._Point__y, ec.SECP256K1()).public_key(default_backend())
        public_key.verify(sigder, message, ec.ECDSA(hashes.SHA256()))
        return public_key

where message is the orignal message which has to be signed as bytes representation. The rest of the function remains the same.

Golos network

beem can now be used with the golos network:

from beem import Steem
gls = Steem(
            node=["wss://ws.golos.io"],
        )
gls.prefix
'GLS'

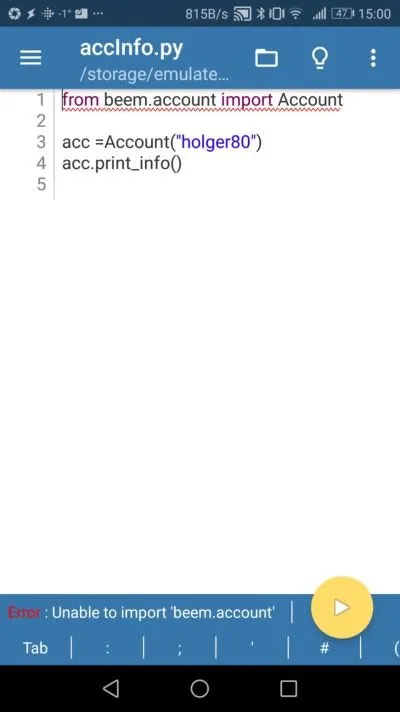

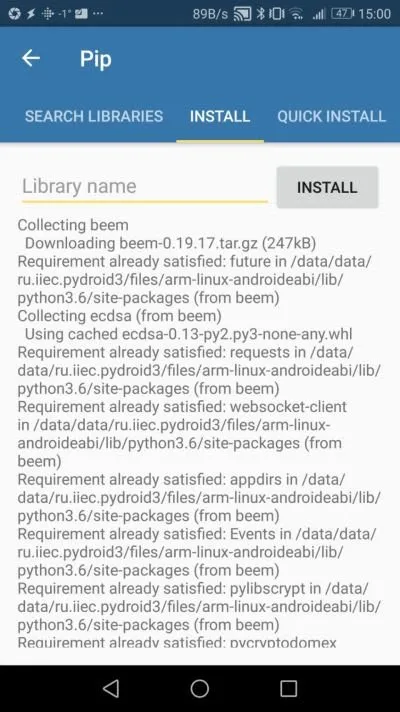

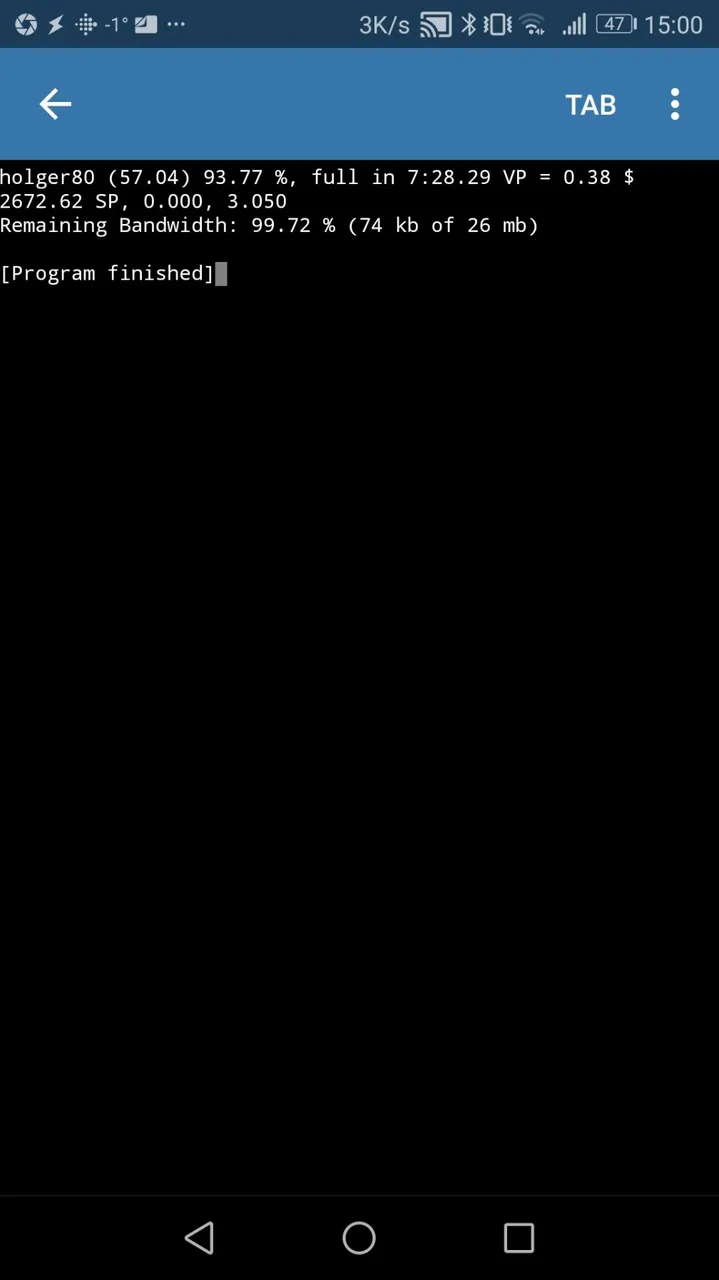

beem can be used in Pydroid 3

You can find Pydroid 3 on the Play store

Changes

ecdsa improved with cryptography

• https://github.com/holgern/beem/commit/ea5f3cad6f85229ec0d57475e40e3005cb60e5fa

Account

• Improved some function, so that account works limited on GOLOS

Blockchain

• sync changes from python-bitshares

Instance

• sync changes from python-bitshares

Steem

• Improved some functions so that steem works on GOLOS

Chains

• Added GOLOS

graphenebase/Account

• derive256address_with_version added

ecsdasig

• Huge speed improvement (200%) by using cryptography

benchmark added

• benchmark for beemgraphenebase/account funcions
• benchmark for ecdsa
• benchmark for sign/verification of all transaction

Examples

• compare sign/verificaiton speed with steem

Unit tests

• use memo unittests from steem-js
• add key_format unittests from steem-js
• Improved the ecdsa tests

add test_golos

• https://github.com/holgern/beem/commit/0d61daab346dd79e0196988df4ef4968ff658781

Fix bug in transactionbuilder

• https://github.com/holgern/beem/commit/96634446b68e7e1fb8440e45b4da1186a22141f7
• secp256k1 is faster than cryptography and put first

Improve module loading

• https://github.com/holgern/beem/commit/f7d5a13f65276e32eb8497f6ad75717cdf30ad1a
• fix unit tests

Fix unit tests by cleaning Wallet.keys

• https://github.com/holgern/beem/commit/fd63004044266f05d0ce1e1ddde54532a1eab0d2

Clear Wallet.keys when setting new ones

• https://github.com/holgern/beem/commit/f6305b88fdcbf134f237f7ce1ca8849f595539d8
• Fix unit tests for python 2.7
• Account votes improved for appbase

Fix small bug in ecdsasig

• https://github.com/holgern/beem/commit/ad5bef2c17481c6302a360100d0c40ecfb9eac33

---

Posted on Utopian.io - Rewarding Open Source Contributors

---
