Components

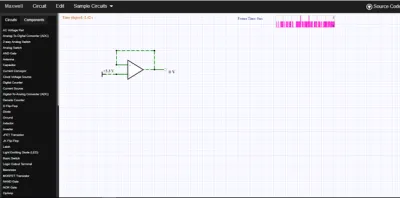

Currently in Maxwell circuit simulator the components have no schematic symbol as you can see in the figure below.
My suggestion is about adding the schematic symbol or figure of each component so that the user can simply identify what component he/she needs for the circuit.
Proposal
Add this schematic symbol for the resistor , capacitor and to all components that have schematic symbol.
Mockups / Examples

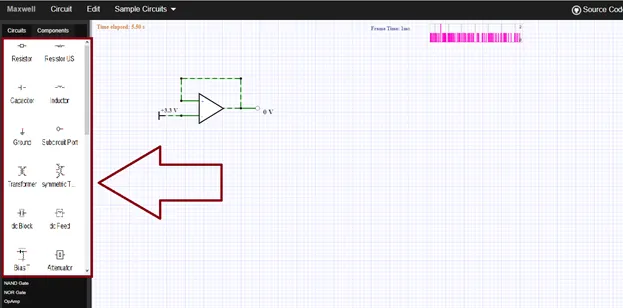

Upon adding this suggestion the Maxwell circuit simulator will now look like this.
Here is the Zoom in view of the suggested feature.
Benefits
♦ The user can identify directly the components in the circuit because of the suggested schematic symbol
♦ Less hassle in selecting the components if the user does not know the name of the components but only the symbol
♦ Create a better and efficient electronic projects
