Good afternoon steemit friends
This time I share my knowledge with my steemit friends especially in the field of civil engineering. It turns out AutoCAD working images can be saved in jpg or pdf format. Well on my post this time want to take steps to save image autocad into jpg format.
Immediately I explain its stages ..

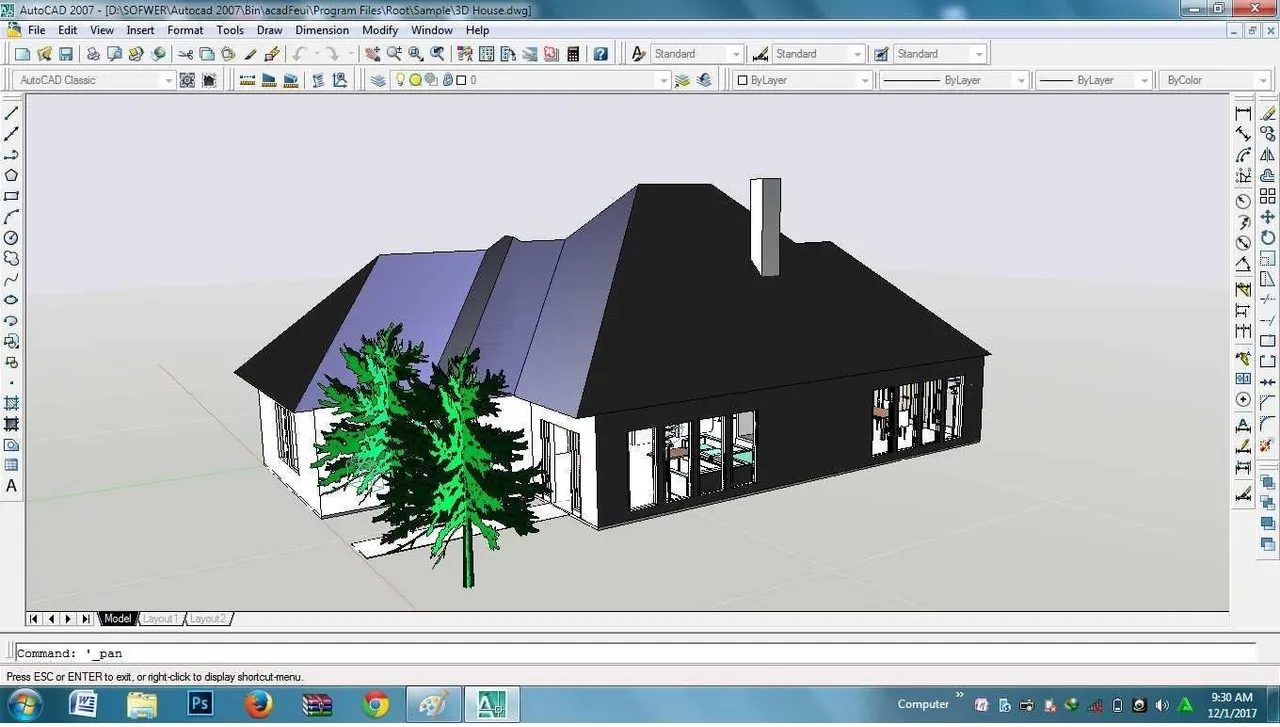

- Open AutoCAD life you want to make Photo with AutoCad application in PC.

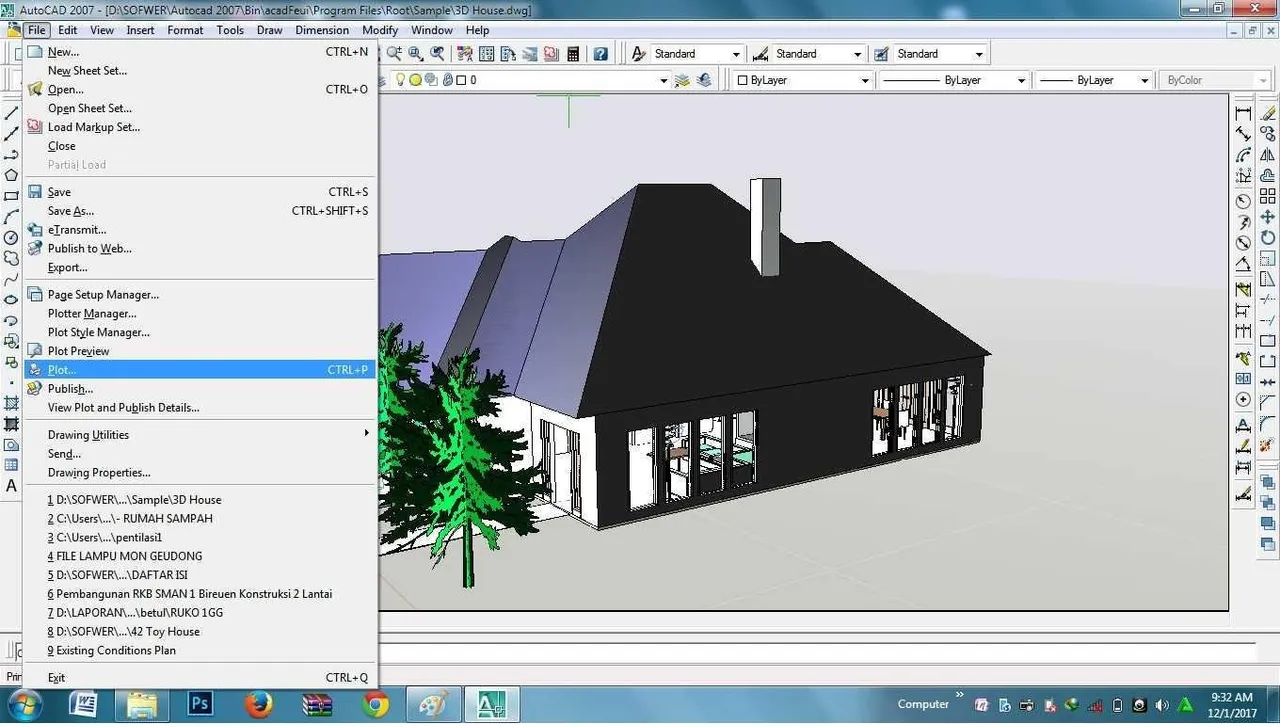

- Select the File toolbar and click on the plot or just click Ctrl + P

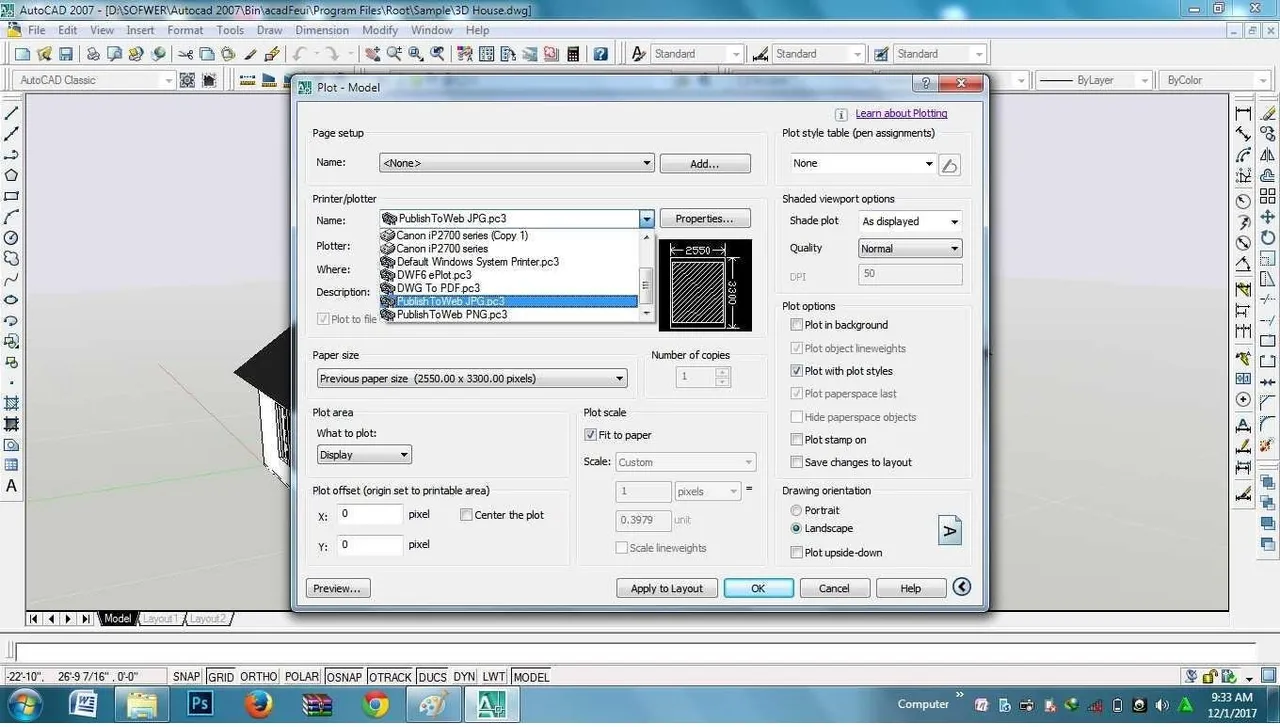

- Select "Publish ToWeb JPG.pc3" in the Printer / plotter name.

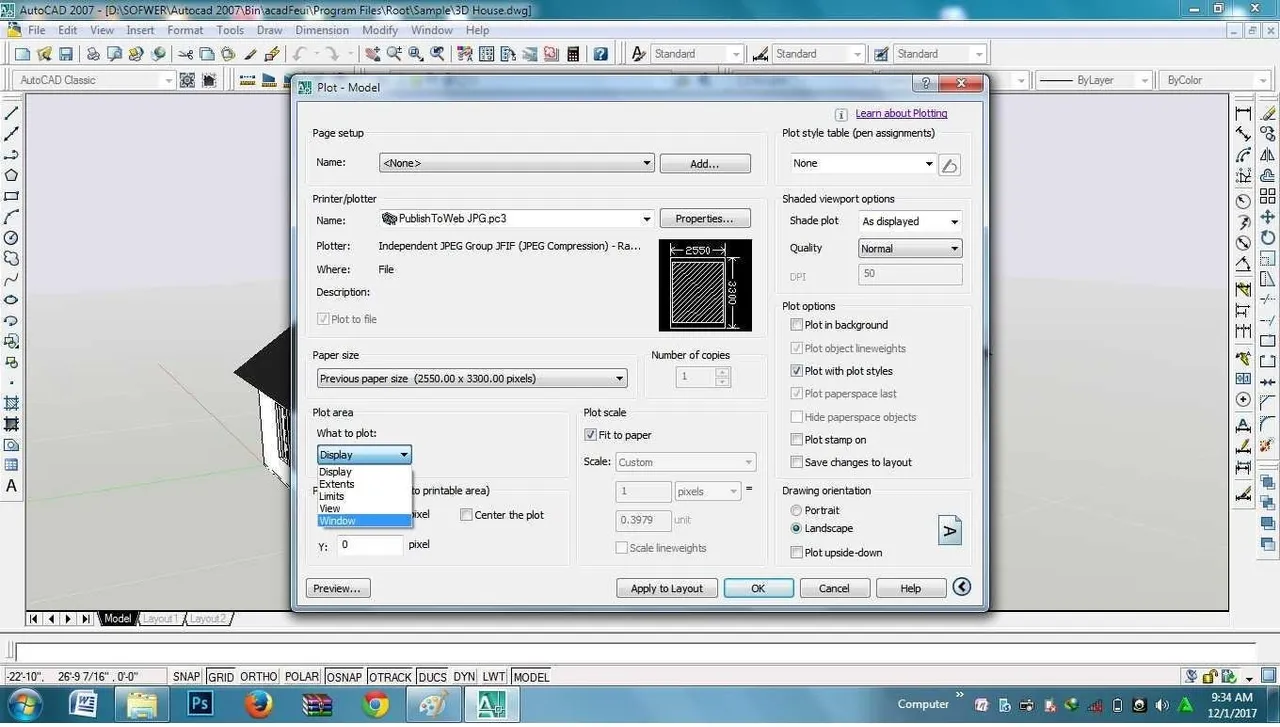

- In the plot area we select "window"

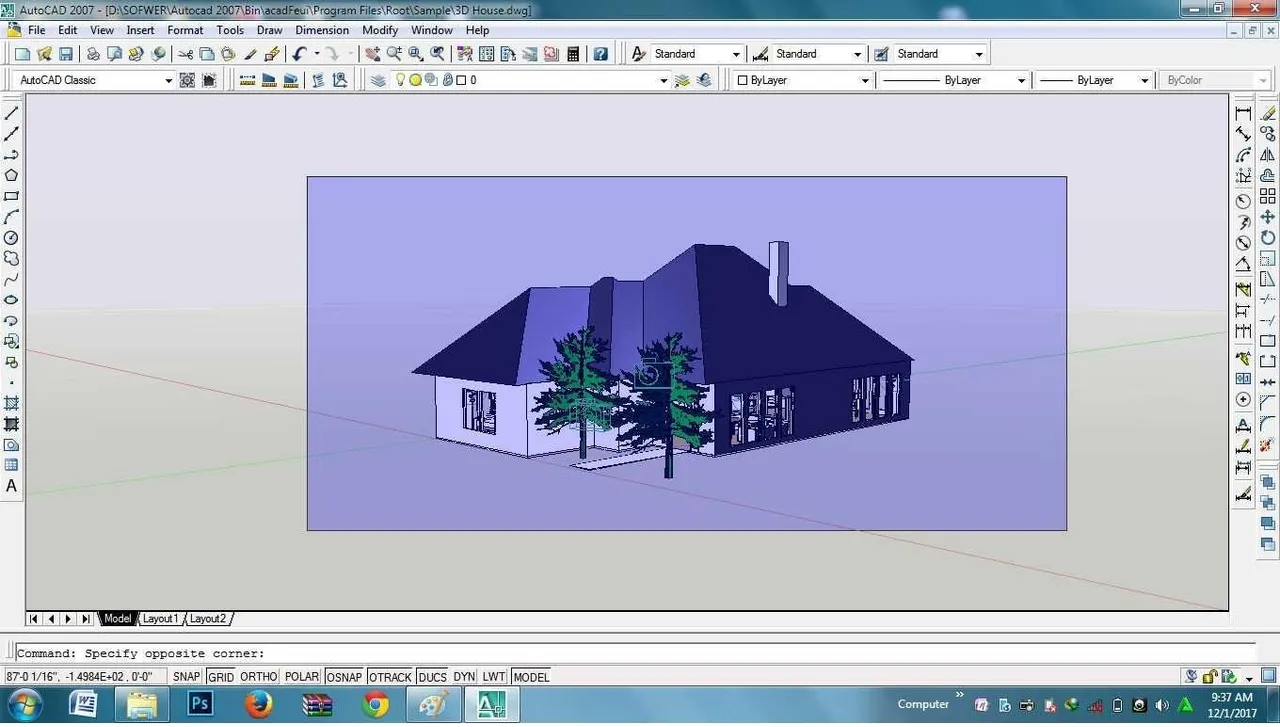

Then in the upper left corner and lower right corner until the work image is blocked.

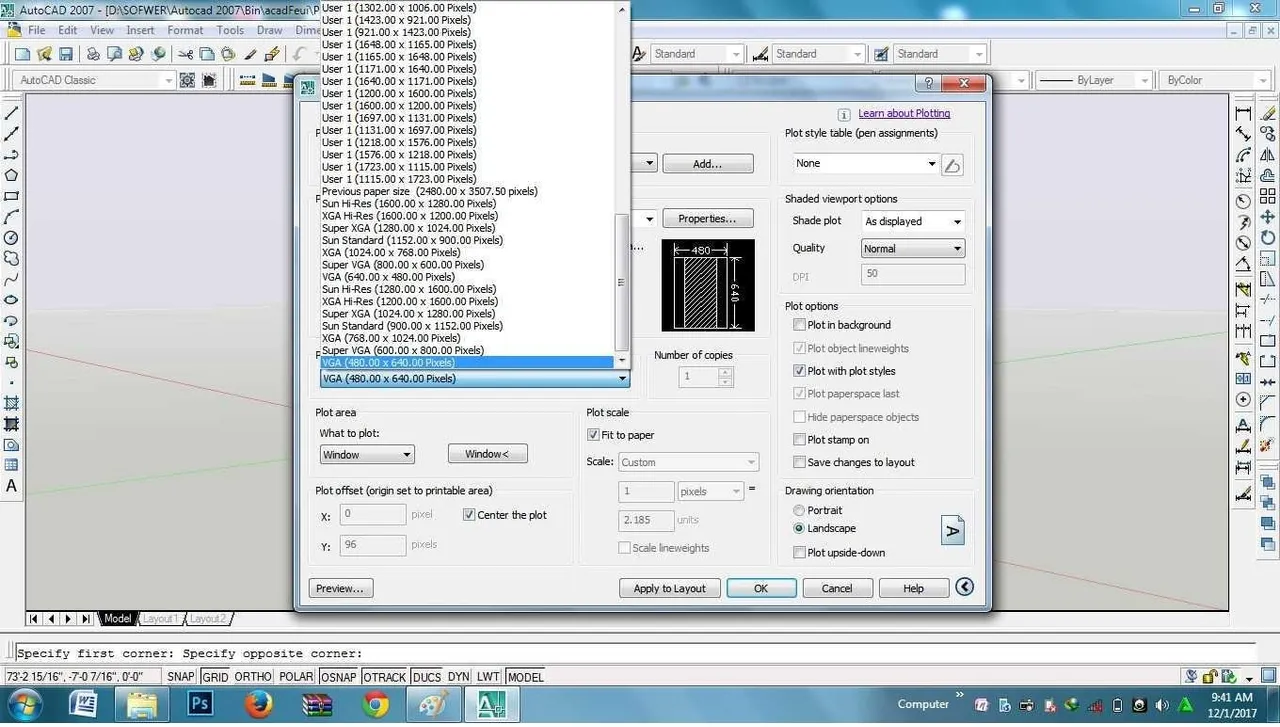

Select the size of the image you want in paper size

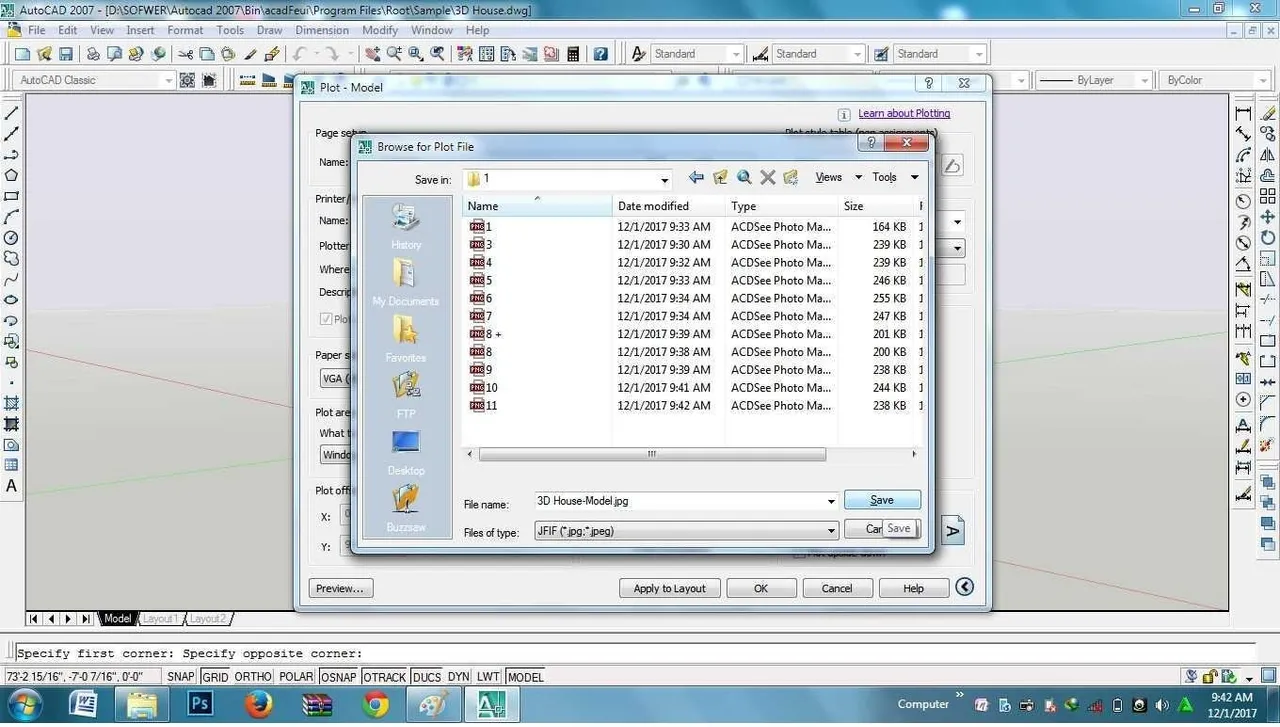

- Click OK and select the place where you will save the file format jpg.

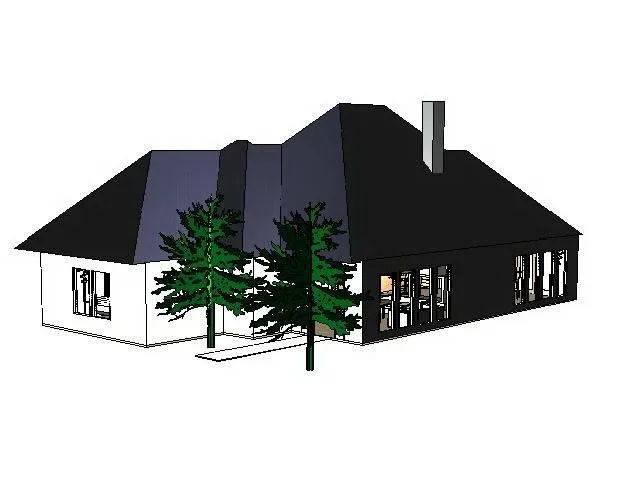

Done, below is the result of working drawings that I save with jpg format. Hopefully my post this time can be useful for all friends.
