Repository: Ionic Github Repository
Software Requirements:
Visual Studio Code(Or any preferred code editor),
npm, ionic.
What you will learn:
In this tutorial you would learn about how to manage your ionic app on whatever platform you choose to target covering these major concepts
- How to startup up an ionic-electron project
- Understanding Renderer and Main processes while in use with ionic
- How to make electron native API calls based on function
Tutorial
Javacript is bigger and better and ever, you can use it to build almost anything across almost any platform. But what if you could you a single code base for every platform on every device. Yes it is possible and you can use ionic for you and logic across all your platforms.
What is electron?
Electron is a framework for building desktop applications. It is build based on chromium and gives a variety of native api's that help you do alot of relevant native stuff. To read more about it, you could simply follow this link as it is already well documented.
On the other hand, i would be showing you how to combine ionic with electron. These are two independent platforms but can be used together to prevent having to build the same app from the start all over again.
How to start up an ionic-electron application
Getting started can be quite confusing and as more releases become available the simple google search doesn't give you the right way to go about it. Electron has a basic project structure, which only needs three essential files.
your-app/
├── package.json
├── main.js
└── index.html
But ionic has a rather different file structure.
├── <PROJECT_ROOT>
└── /src
└── /app - App Module
├── app.component.ts
├── app.html
├── app.module.ts
├── app.scss
├── main.ts
└── /core - Core Feature Module (e.g., Singleton Services/Providers)
├── core.module.ts
├── module-import-guard.ts
└── /logger
├── console-logger.service.ts
├── logger.service.ts
└── /pages - Page (Component) Modules
└── /home
├── home.page.html
├── home.page.module.ts
├── home.page.scss
├── home.page.spec.ts
├── home.page.ts
└── /shared - Shared Feature Module (shared Components, Directives and Pipes)
├── shared.module.ts
└── /assets
└── /environments - Environment specific configuration
├── environment.dev.ts
├── environment.ts
└── /theme
├── facebook-messenger-theme.scss
├── gradient-mixins.scss
├── gradient.scss
├── green-and-blue-theme.scss
├── variables.scss
├── index.html
├── manifest.json
├── service-worker.js
└── /config - Webpack Configuration
├── webpack.config.json
└── /e2e - E2E Test Configuration
├── app.e2e-spec.ts
├── app.po.ts
├── tsconfig.e2e.json
└── /resources - Default Resources (e.g., Icon and Splash)
└── /www - Ionics 'dist' directory
└── /assets
└── /build
├── index.html
├── manifest.json
├── service-worker.js
├── .editorconfig
├── .gitignore
├── config.xml
├── ionic.config.json
├── karma.conf.json
├── package.json
├── protractor.conf.json
├── README.md
├── tsconfig.json
├── tsconfig.ng-cli.json
├── tslint.json
This is the structure of a typical ionic 4 application. Note however that this will work for an ionic 3 project. If you have any problems however you can leave a comment below.
How do they work together
When you build an ionic app it compiles your code into a www folder which i like to call the main soup. All we have to do when using it with electron is open a browser window with the native electron api and load the www folder into this window. Easy as pie.
So lets get started
//Start a new ionic project --type=ionic-angular
ionic start newproject Blank
//install electron as a development dependency
npm install electron --save-dev
//Yarn should have the same command
Next thing would be simply to create a main.js file like the one shown in our electron directory and help make it identifiable from our package.json. Add this to your package.json after making the main.js file.
.......
"main": "main.js"
.....
In our main.js file just as stated earlier we would have to make a new browser window and inject the www files into it. Simply do this
const electron = require('electron')
const app = electron.app
const BrowserWindow = electron.BrowserWindow
const path = require('path')
const url = require('url')
let win, serve
const args = process.argv.slice(1)
serve = args.some(val => val === '--serve')
function createWindow () {
win = new BrowserWindow({
width: 1800,
height: 1200,
center: true,
icon: path.join(__dirname, './resources/electron/icons/64x64.png')
})
if (serve) {
require('electron-reload')(__dirname, {
electron: require(`${__dirname}/node_modules/electron`)
})
win.loadURL('http://localhost:4200')
} else {
win.loadURL(url.format({
pathname: path.join(__dirname, 'www/index.html'),
protocol: 'file:',
slashes: true
}))
}
win.webContents.openDevTools()
// Emitted when the window is closed.
win.on('closed', () => {
// Dereference the window object, usually you would store window
// in an array if your app supports multi windows, this is the time
// when you should delete the corresponding element.
win = null
})
}
try {
// This method will be called when Electron has finished
// initialization and is ready to create browser windows.
// Some APIs can only be used after this event occurs.
app.on('ready', createWindow)
// Quit when all windows are closed.
app.on('window-all-closed', () => {
// On OS X it is common for applications and their menu bar
// to stay active until the user quits explicitly with Cmd + Q
if (process.platform !== 'darwin') {
app.quit()
}
})
app.on('activate', () => {
// On OS X it's common to re-create a window in the app when the
// dock icon is clicked and there are no other windows open.
if (win === null) {
createWindow()
}
})
} catch (e) {
// Catch Error
// throw e;
}
And then we can run this application by building from ionic and then running electron. Add this to your scripts so you can do this from your command-line.
..Package.json
....Other code here
//Your scripts should be exactly this
"scripts": {
"debug-main": "electron --inspect-brk=5858 .",
"build": "ionic-app-scripts build",
"clean": "ionic-app-scripts clean",
"dev": "gulp dev",
"lint": "ionic-app-scripts lint",
"ionic:build": "ionic-app-scripts build",
"ionic:serve": "ionic-app-scripts serve",
"ionic:watch": "ionic-app-scripts watch",
"start": "npm run build && electron .",
},
We can begin by running
npm start

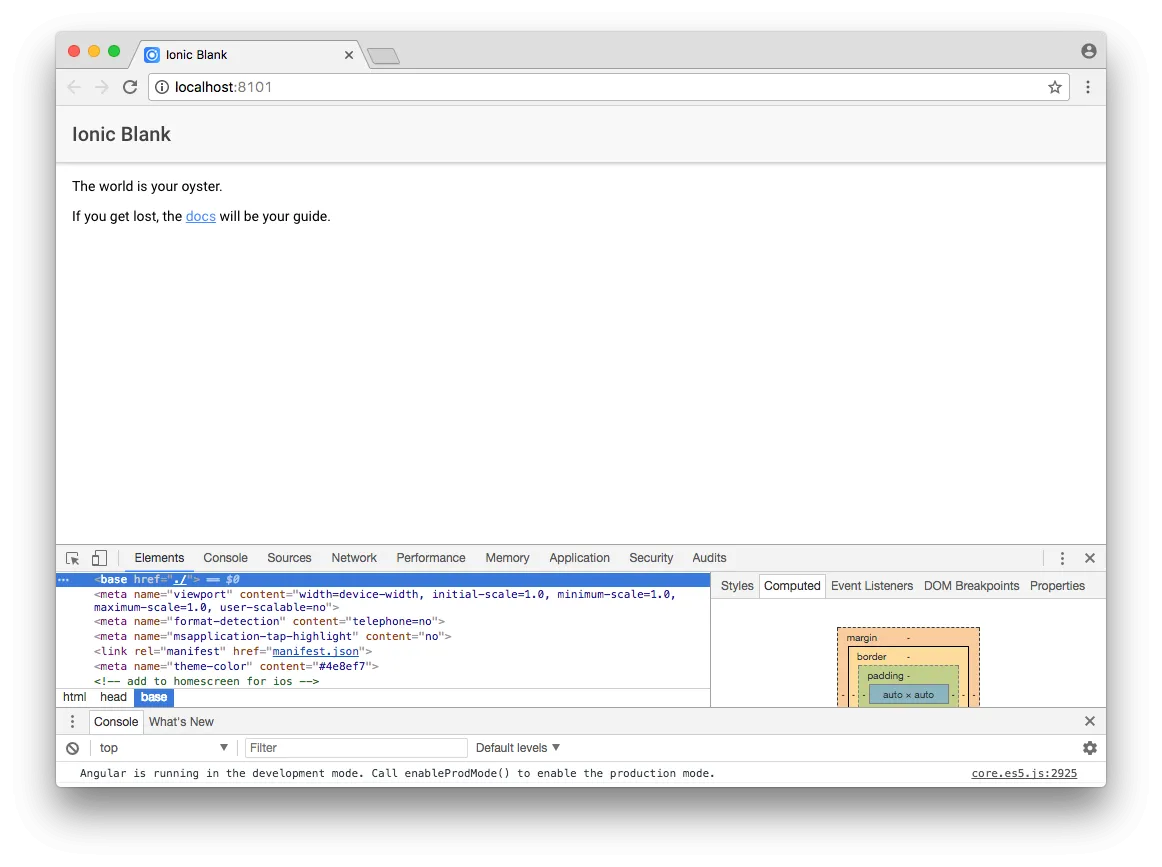

And this should be the result
Understanding the main and renderer processes
This is one of the major concepts you need to understand to successfully build an electron application.
The application runs with multiple processes based on function. Chromium is built this way so that if one window of an application crashes, it does not destroy the whole application. Some apis can be called from the main process, while others can be called from renderer processes. For a full list click Here.
Ionic runs in a renderer process. Meaning that you cannot make main process calls through ionic. You would need to use ipc to send a message to the main process to make that call. To send this messages appriopriately, there is an awesome angular module called Ngx-Electron-Module.
This is what we would use to make the api calls.
Making API calls
First thing you need to do is install the ngx-electron module and add it to your imports
npm install ngx-electron --save-dev
Then
...
\\...Other code here
mport { NgxElectronModule } from 'ngx-electron'
@NgModule({
declarations: [AppComponent],
entryComponents: [],
imports: [BrowserModule, IonicModule.forRoot(), AppRoutingModule, NgxElectronModule],
providers: [
StatusBar,
SplashScreen,
{ provide: RouteReuseStrategy, useClass: IonicRouteStrategy }
],
bootstrap: [AppComponent]
})
export class AppModule {}
We can now proceed to making api calls like this
import { ElectronService } from 'ngx-electron'
import { Platform, Events } from '@ionic/angular'
...
constructor(public electron: ElectronService, private platform: Platform, private events: Events) {}
...
public setup() {
const ctx = this
console.log('Setting up the application database')
ctx.electron.ipcRenderer.sent('asyncronous-message','ping')//Make the api call
}
And we receive it from main.js like
ipcMain.on('asynchronous-message', (event, arg) => {
console.log(arg) // prints "ping"
event.sender.send('asynchronous-reply', 'pong')
})
Thanks for reading, Hope you found it helpful.
Find the code in Github
