So I decided to try out motion graphics, It was fun doing this.
At first I thought I wouldn't be able to write down the tutorial. But when I started, ideas keep coming, and boom💥 I finished it.
This tutorial is divided into two parts; the first part will explain how I created the composition with Adobe After Effects, while the second part will explain how to render your project and convert it to a gif image with Adobe Photoshop.
This tutorial is original, it's is borne out my strong desire to bless others with my ability. I pray and hope you learn one or two tricks from this.
Note:
This tutorial is for both beginners and professionals, but you must have a little knowledge of graphics to be able to dilute this.
Tools used: Adobe Illustrator, Adobe After Effects.
STEP 1 PART A
Open AFTER EFFECTS (AE) in your PC, if you don't have, you can buy it at any computer shop outlet near you, or you acn download it online at here.

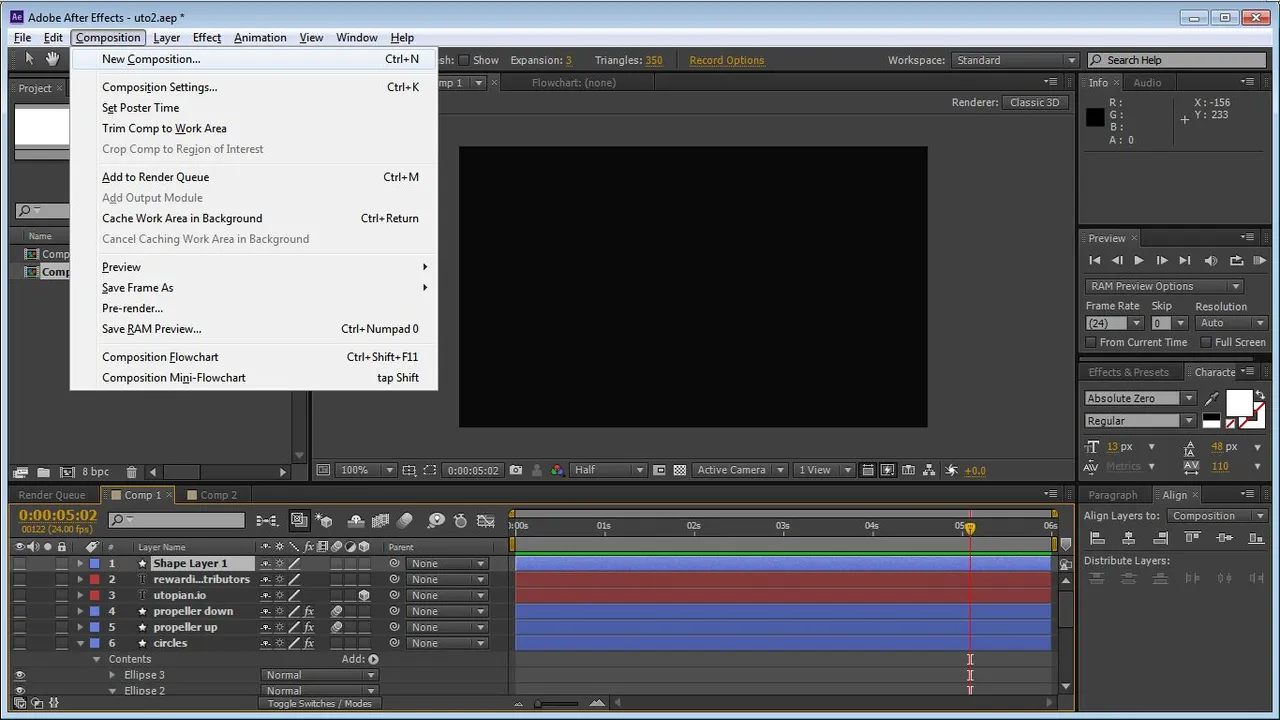

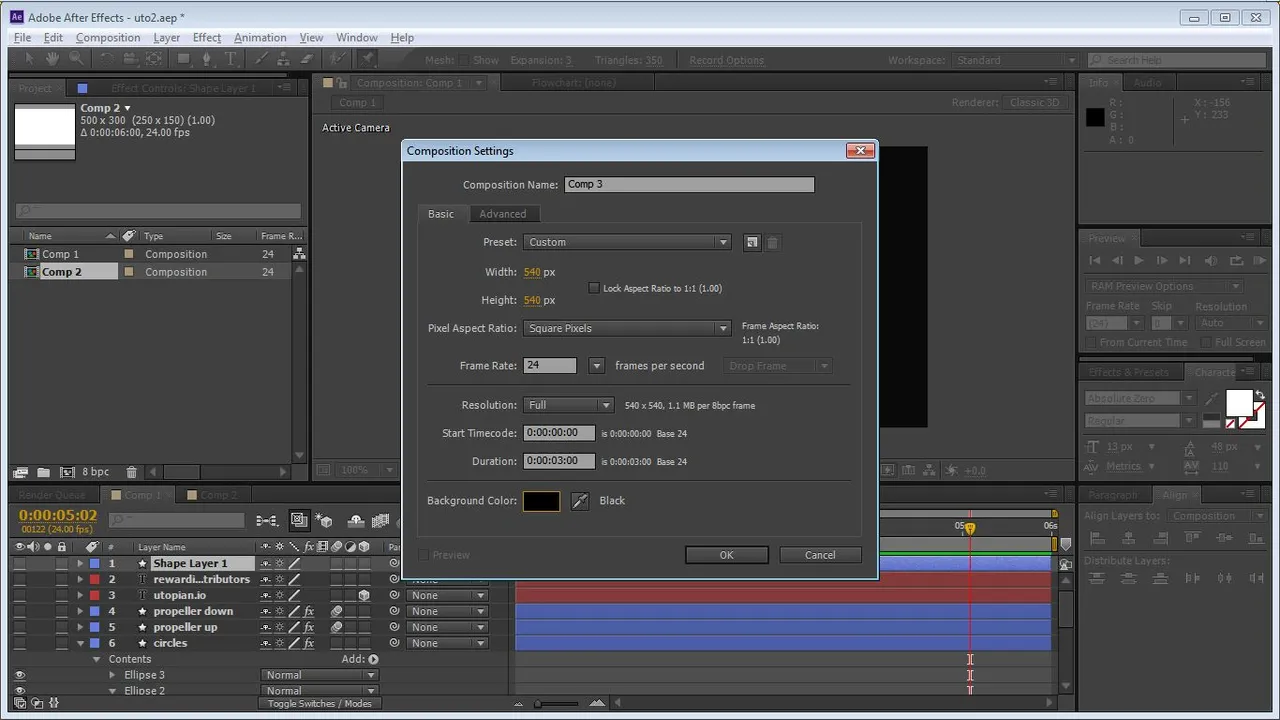

Click on COMPOSITION>COMPOSTION SETTING
or you can click Ctrl+N on your keyboard.
A dialog box will pop up,
Fill in as follows
Width-540px, Height-540px
Frame rate-24
Duration -3s
Background color -black (You can use any color you want).
STEP 2

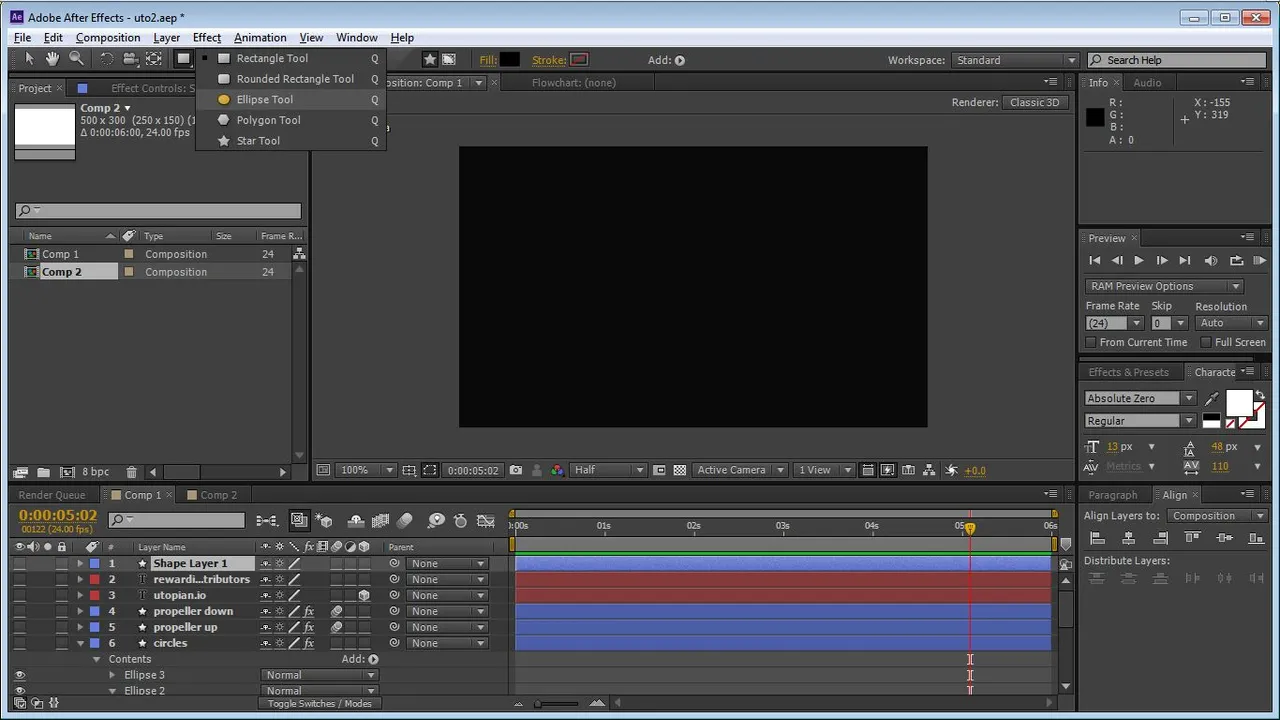

Click and hold the Rectangular Tool, select the Ellipse Tool.
Draw a perfect circle by holding the Shift key on your keyboard while dragging it now.
Use #FF00DE for the fill

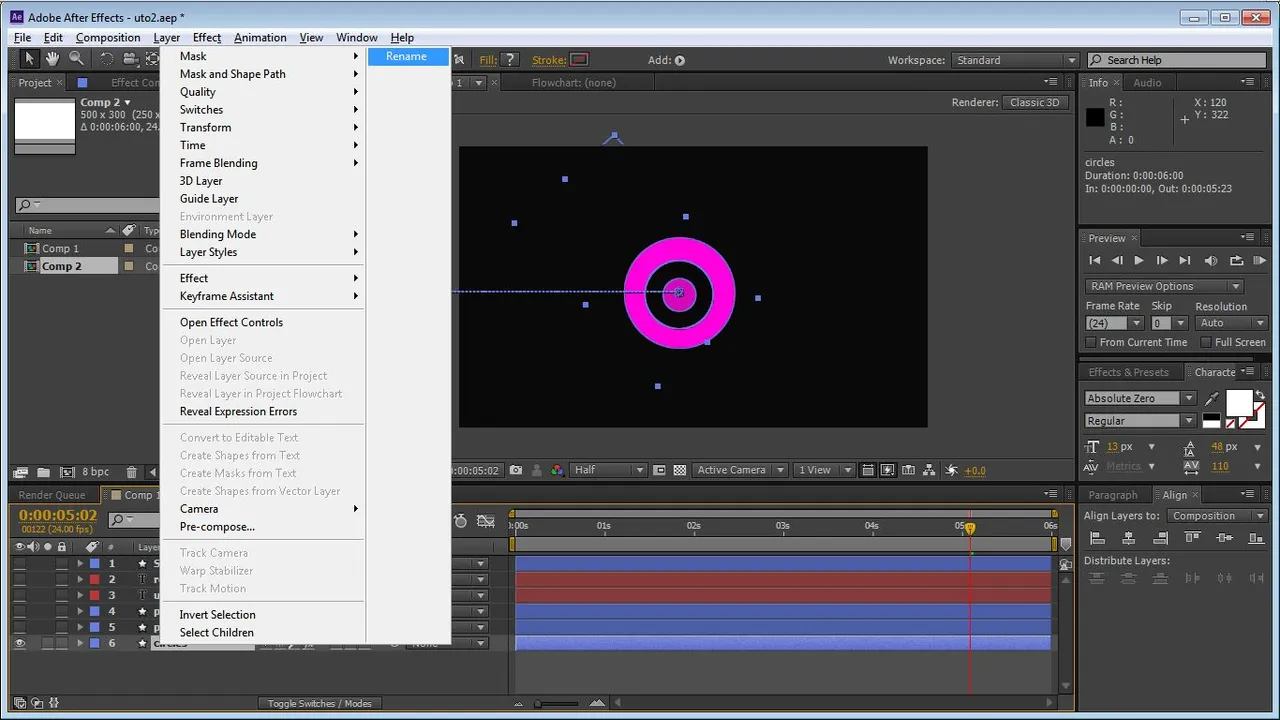

Rename that layer to "Circles" layer
Right click on the shape layer>Rename>Circles
Click on the Renamed layer, draw
another circle.
Use #080808 as the fill
Draw another circle, still in that "Circle" layer.
Use #FF00DE as the fill
STEP 2B
POSITION

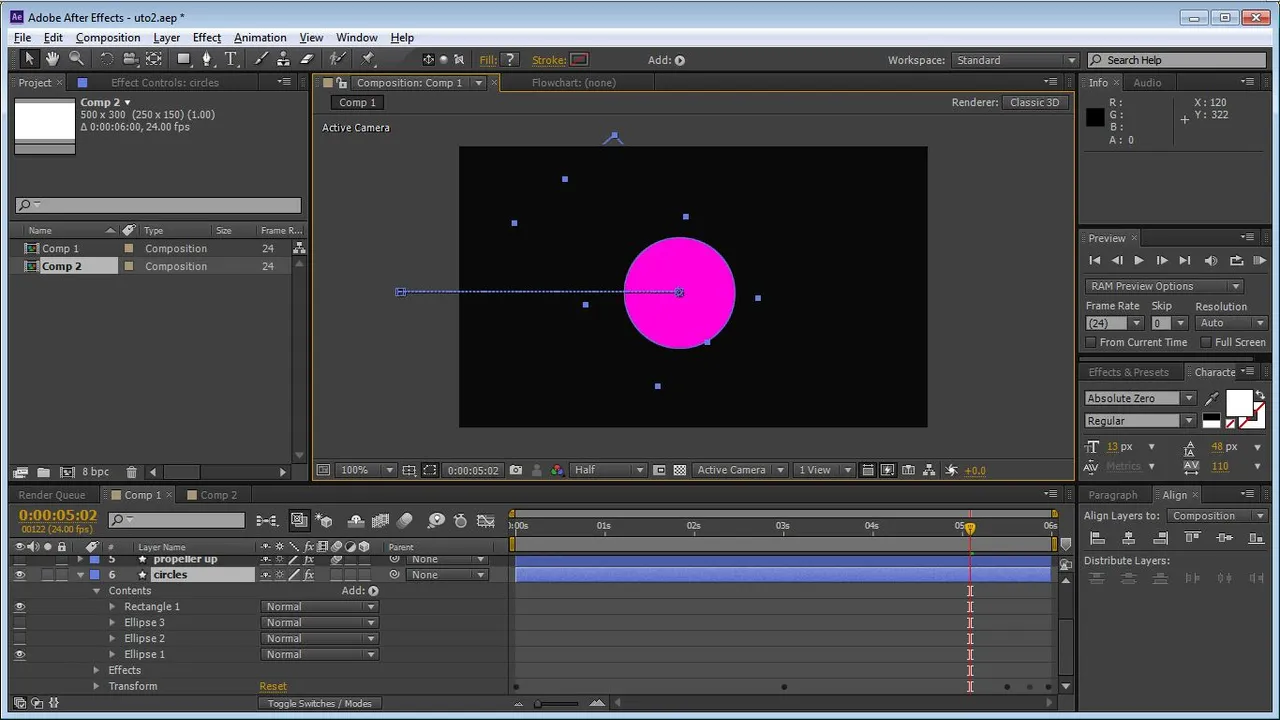

Move the "current time indicator" to 3s
Click Content(under the shape layer)>Transform
click on the "stopwatch" behind "position" and set a keyframe at 3s.
Move the " time indicator" back to 0 seconds.
Drag the CIRCLES to your left till they are out of the composition
Or you set the position at Osec to -62.0, 155.0.
For the going back, set the keyframe at 5.12secs (234.0, 155.0 for postion.)
Take the time indicator to 6s, and set the position at -64.0, 155.0, or you can drag it out to your left.

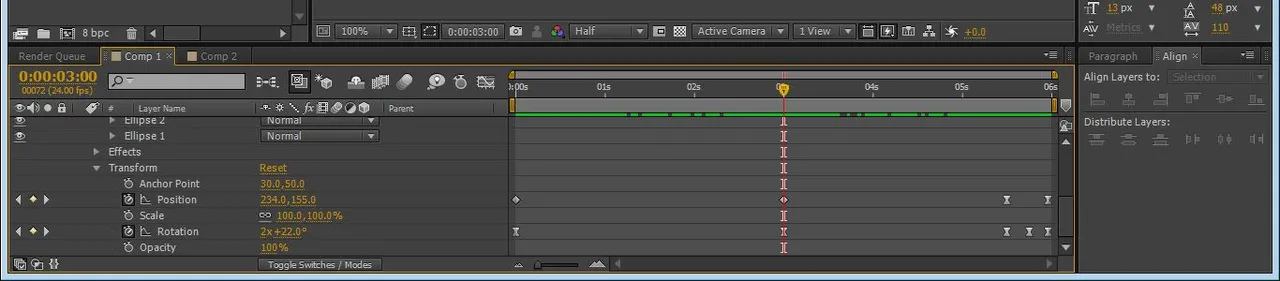

ROTATION
For the rotation, at O sec set a keyframe and set the rotation at 0x +341.0°.
At 3s, set a keyframe, and set the rotation to 2x +22.0°
At 5.12s set a keyframe, set the rotation at 0x +0.0°
Set a keyframe at 6s, then set the rotation to 0x -90.0°.
STEP 3A

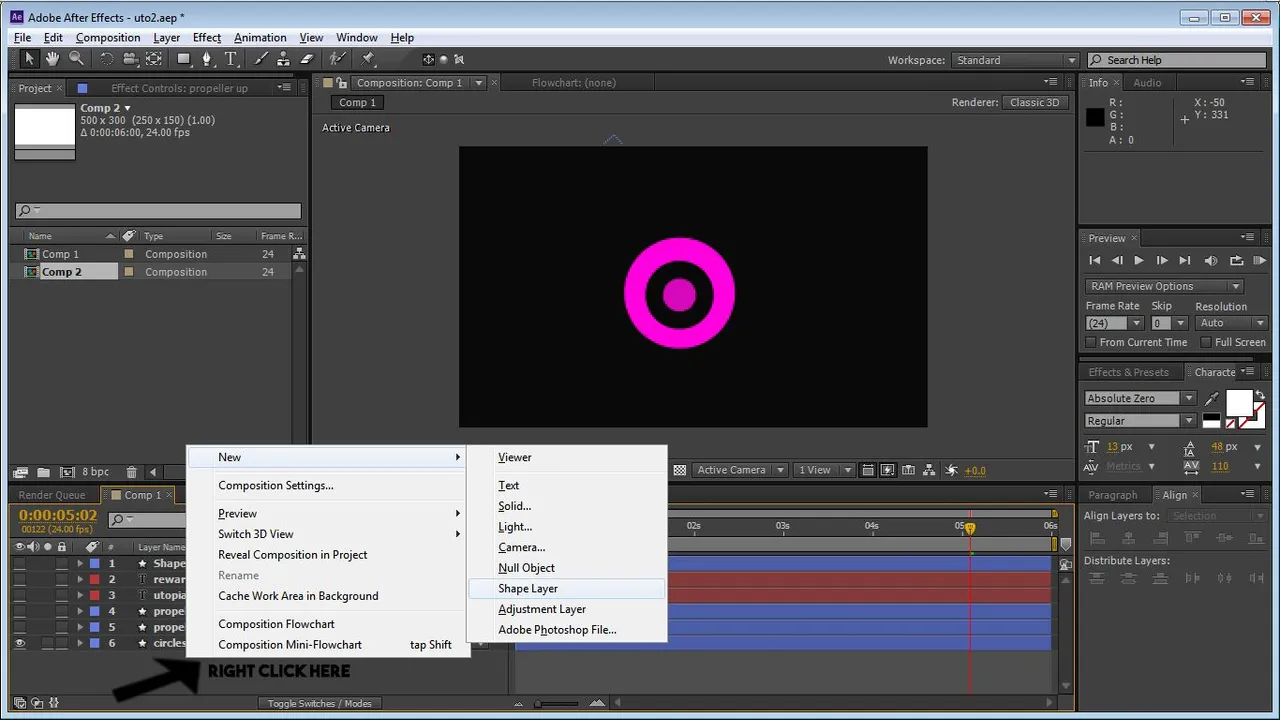

Right click on the composition>New>Shape layer

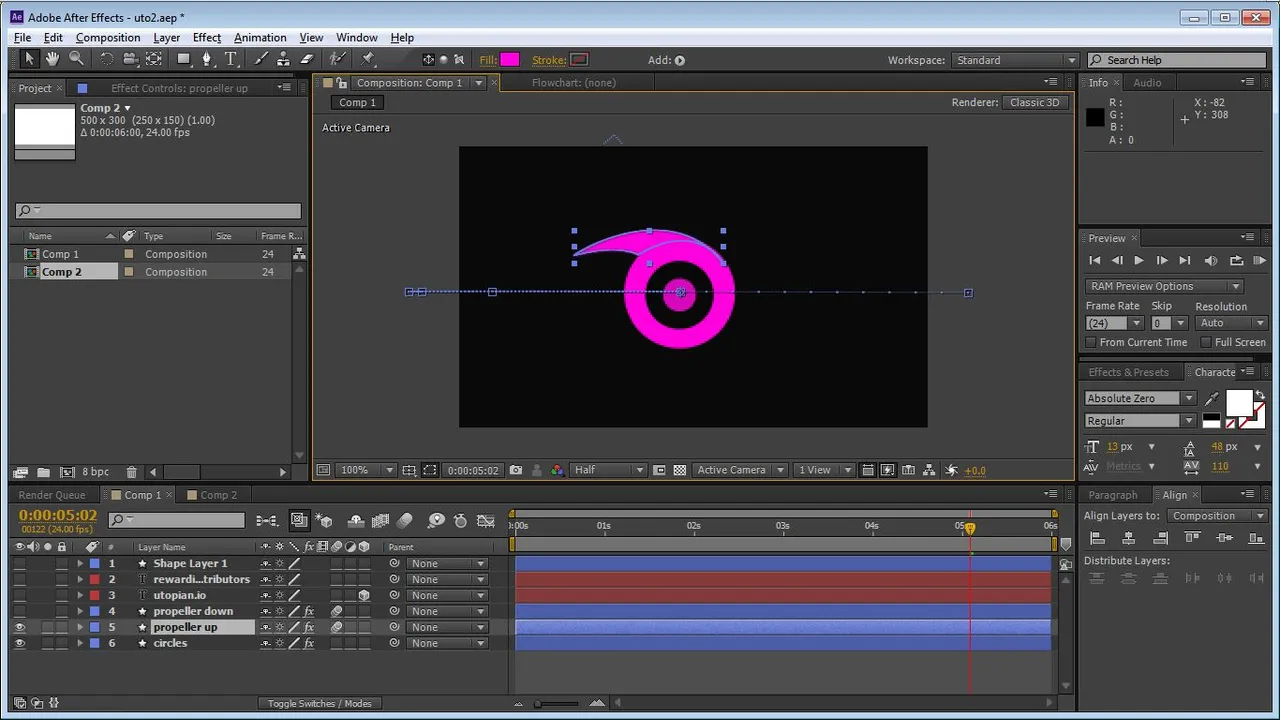

With the help of the PEN TOOL draw the wing
Make sure it's comes out this way
STEP 3B

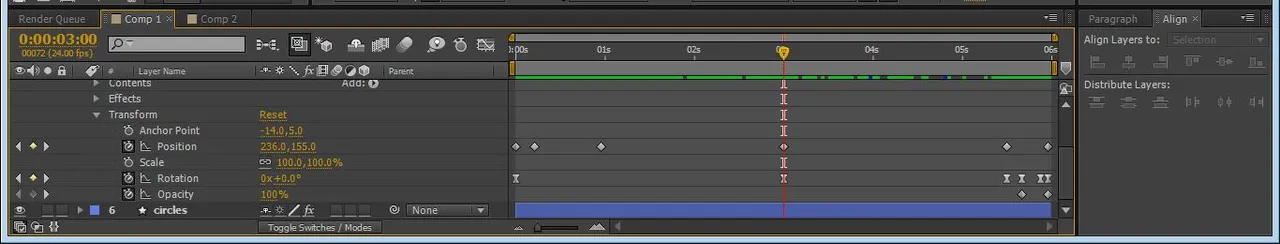

Position
Set a keyframes at 0s, 1s, 3s, 5.12s, and 6s.
At 0s set the position at -54.0,155.0
1s-35.4,154.8
3s-236.0,155.0
5.12s-236.0,155.0
6s-543.0, 156.0
Rotation
Set the keyframes at 0s, 3s, 5.12s, 5.52s, 5.59s, 6s
At Os set the rotation at 4x +32.0°
3s-0x +0.0°
5.12s-0x +0.0°
5.52s-0x +61.0°
5.59s-0x -27.0°
6s- 0x +64.0°
OPACITY
Set the keyframes at 5.52s and 6s
and opacity at 100% and 0%. respectively.
STEP 4
Right click on the composition>New>shape layer
Or click on the pen tool and start to draw the second wing.
STEP 4b

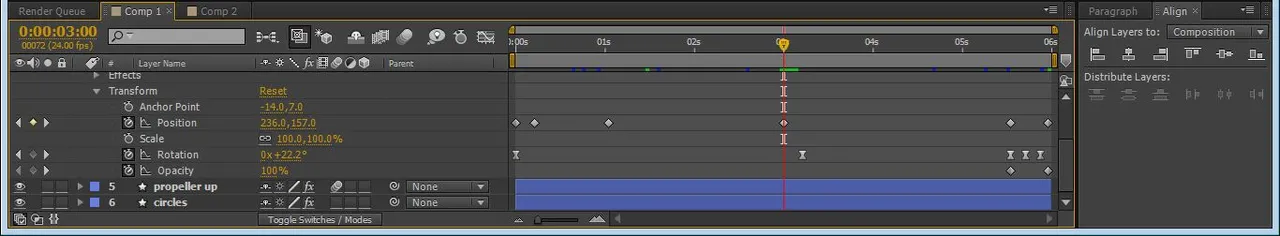

POSITION
Set the keyframes at 0s, 1s, 3s, 5.12s, and 6s
At 0s set position at -61.0,157.0
1s-41.0,157.0
3s-236.0,157.0
5.12s-236.0,157.0
6s-33.0,157.0
Rotation
Set the keyframes at 0s, 3.5s, 5.12s, 5.5s, 6s
At the 0s keyframe set the rotation at 5x +32.0°
I actually set this keyframe at 3.5s against 3s, to create that late stopping effect. At this keyframe, set rotation at 0x +0.0°
At 5.12s-0x +0.0°
5.5s-0x -62.0°
6s-0x +72.0°
OPACITY
Set the keyframes at 5.12s and 6s and set the opacity at 100% and 0% respectively.
STEP 5A

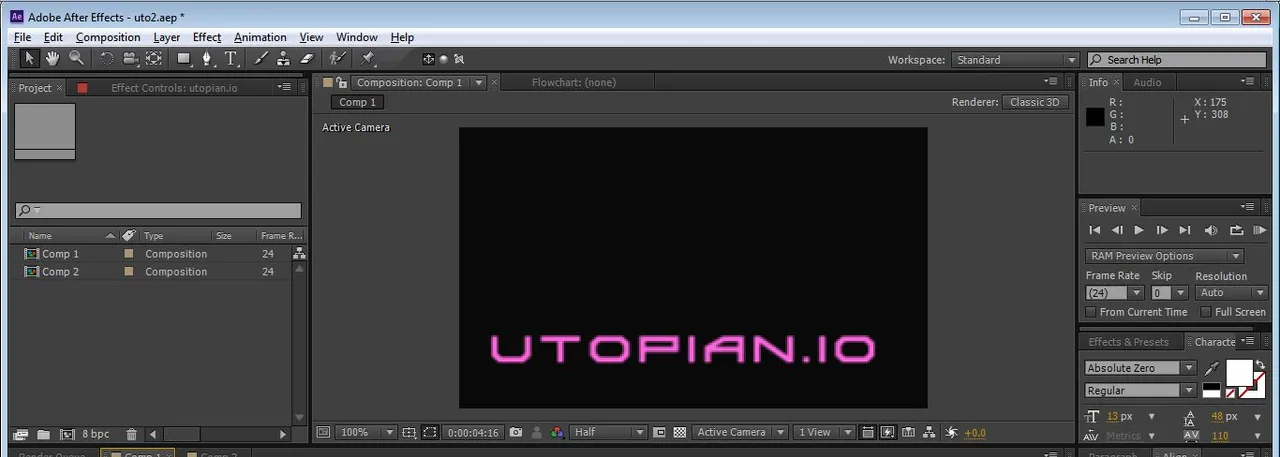

Right click on the composition>New>Text
Or select the type tool, click on the composition and start typing.
I used the font "Absolute Zero" and 47px

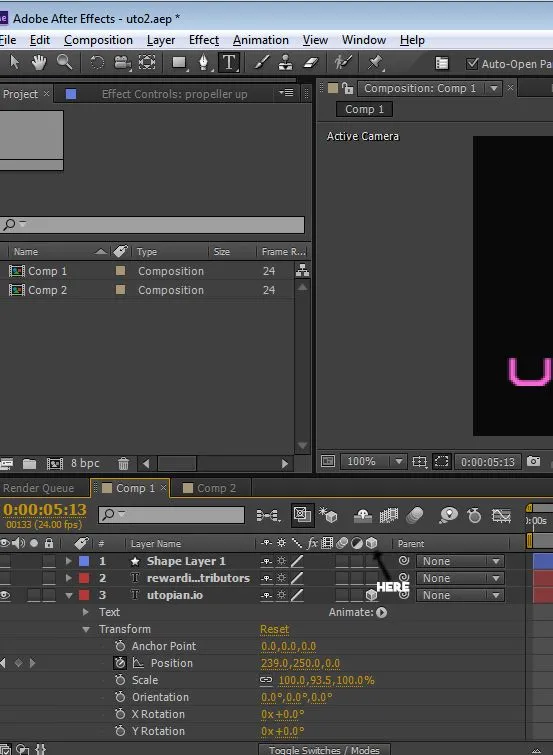

Change this to 3D layer
It's allows the layer to be manipulated in 3 dimensions.
STEP 5B

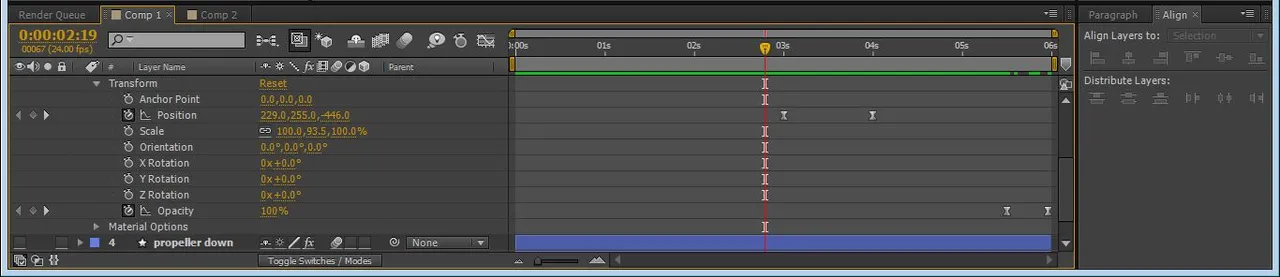

POSITION
Set the keyframes at 3s and 4s,
and set the positions at 3s-229.0, 255.0, -446.0
4s-239.0,250.0,-5.6

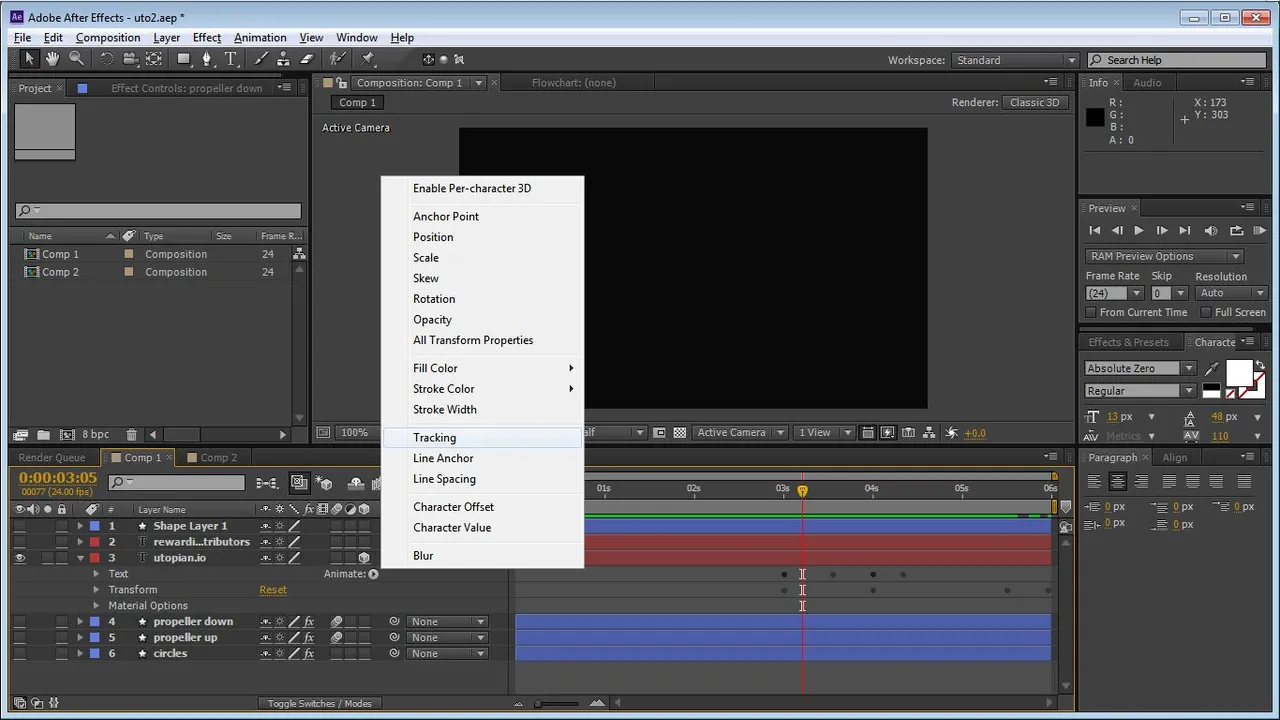

Click on animate, and select tracking.

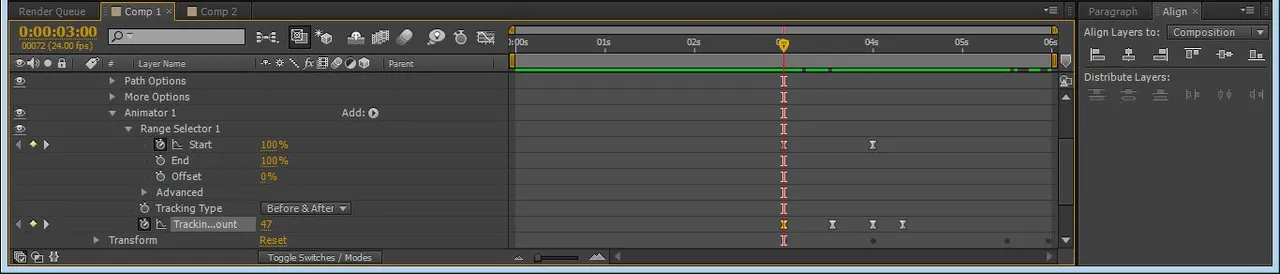

Click on Text>Animator 1
Set keyframes at 3s, 3.5s, 4s and 4.3s
At 3s set the tracking amount at 47
3.5s-40
4s--73
4.3s-0
STEP 6A

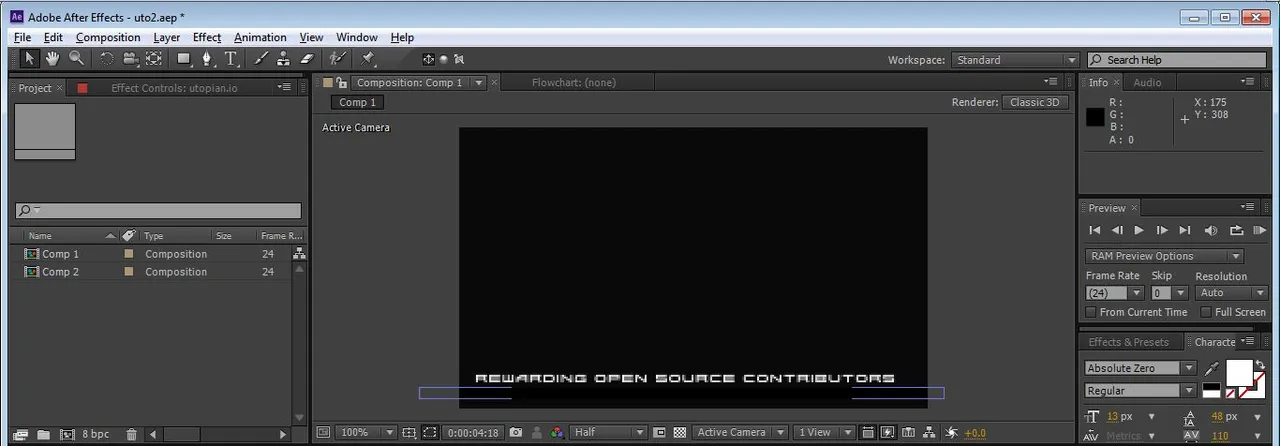

Right click on composition>New>Text
I used the font "Absolute zero" at 13px.
Make sure the text is centralized.
STEP 6B
OPACITY
Create keyframes at 5.12s and 6s, and set opacity at 100% and 0% respectively.
To create the popping up effect of the text
Create a new shape layer
Set the keyframes at 3.59s, 4s, 5.4s, and 5.5s
Set the position at 250.0,150.0 for the keyframe at 3.59s
4s-250.0,164.0
5.4s-250.0,165.0
5.5s-250.0,151.0
PART B
STEP 1

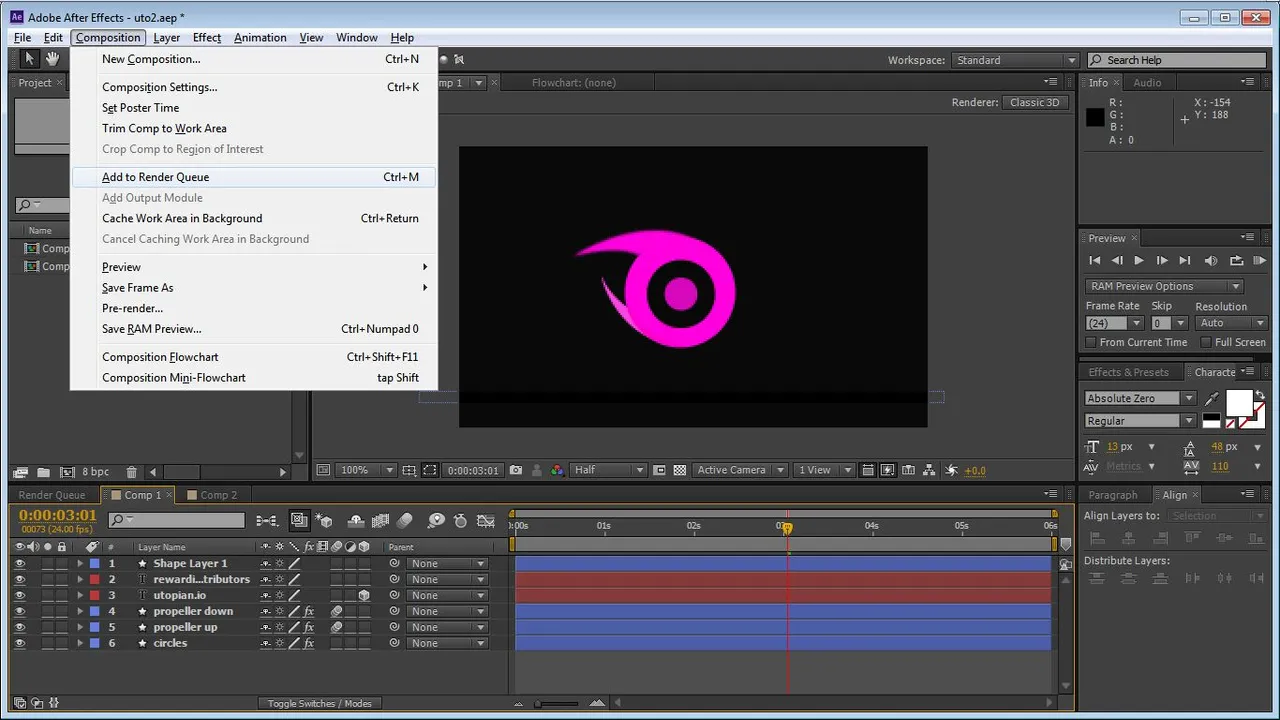

Click on composition>Add to Render Queue

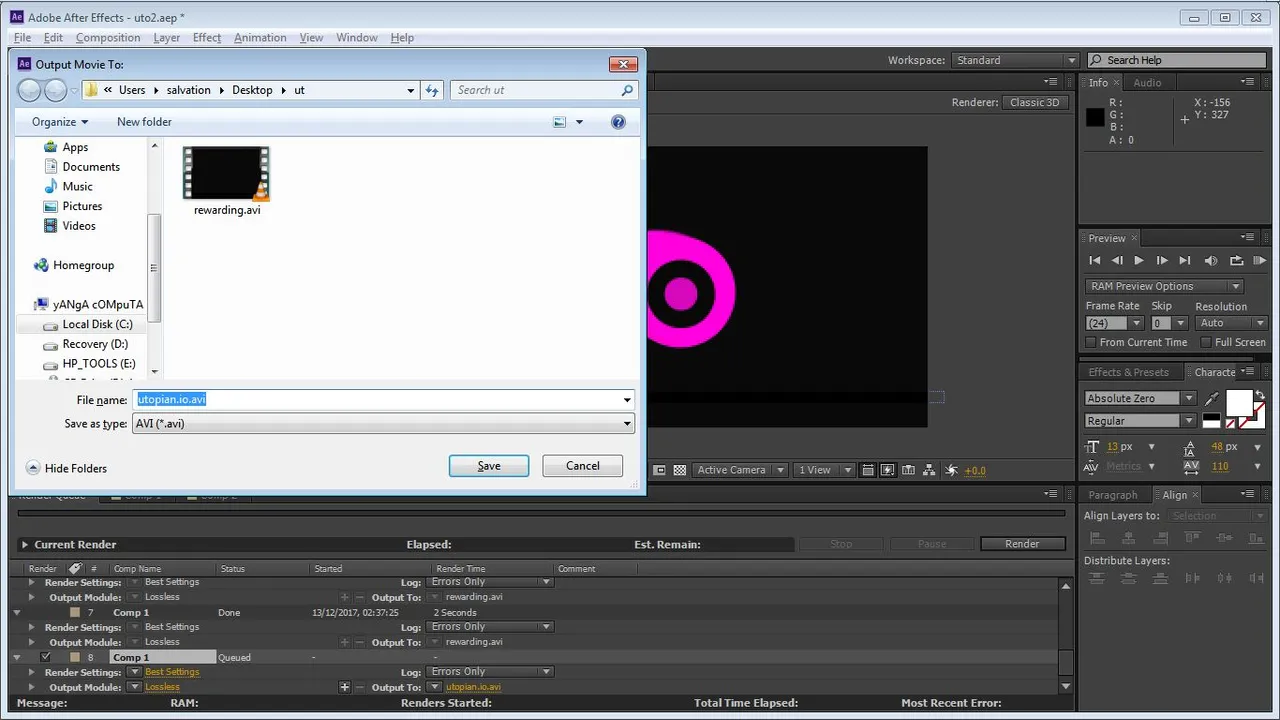

Click on the "output to", rename the file and save it where you want it to be saved.

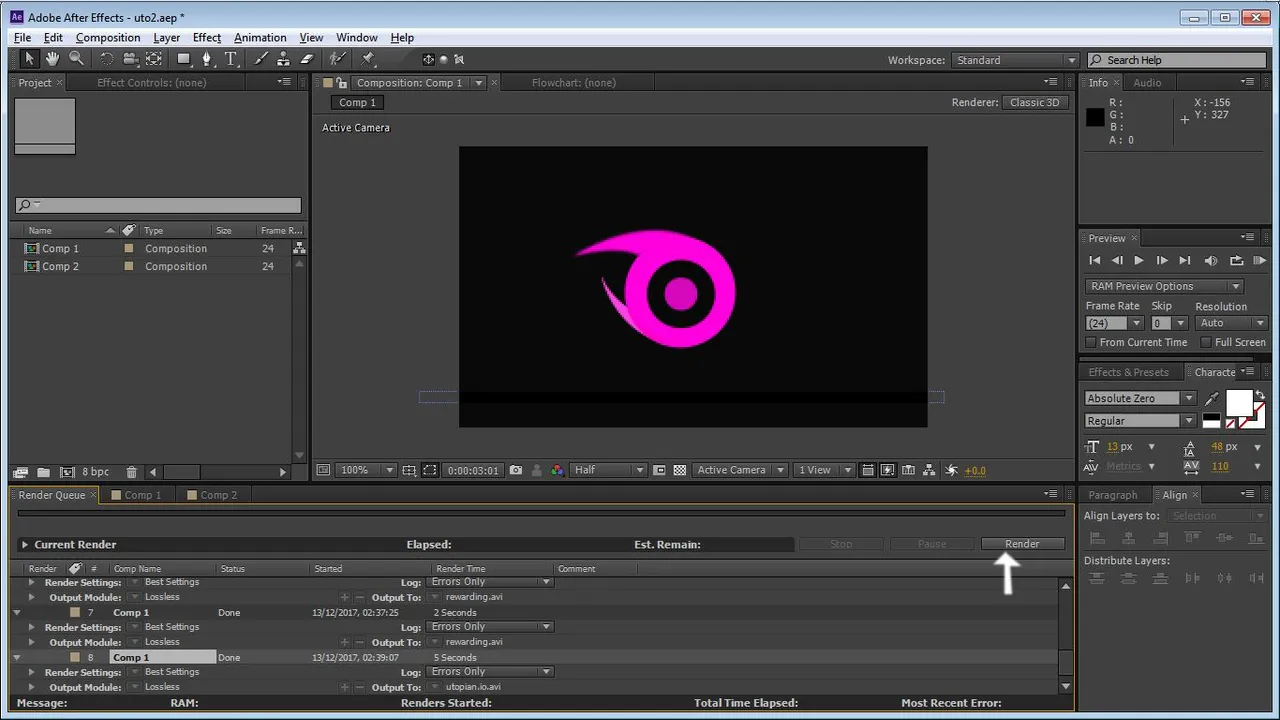

Click on RENDER
Minimize After Effect, Open Photoshop

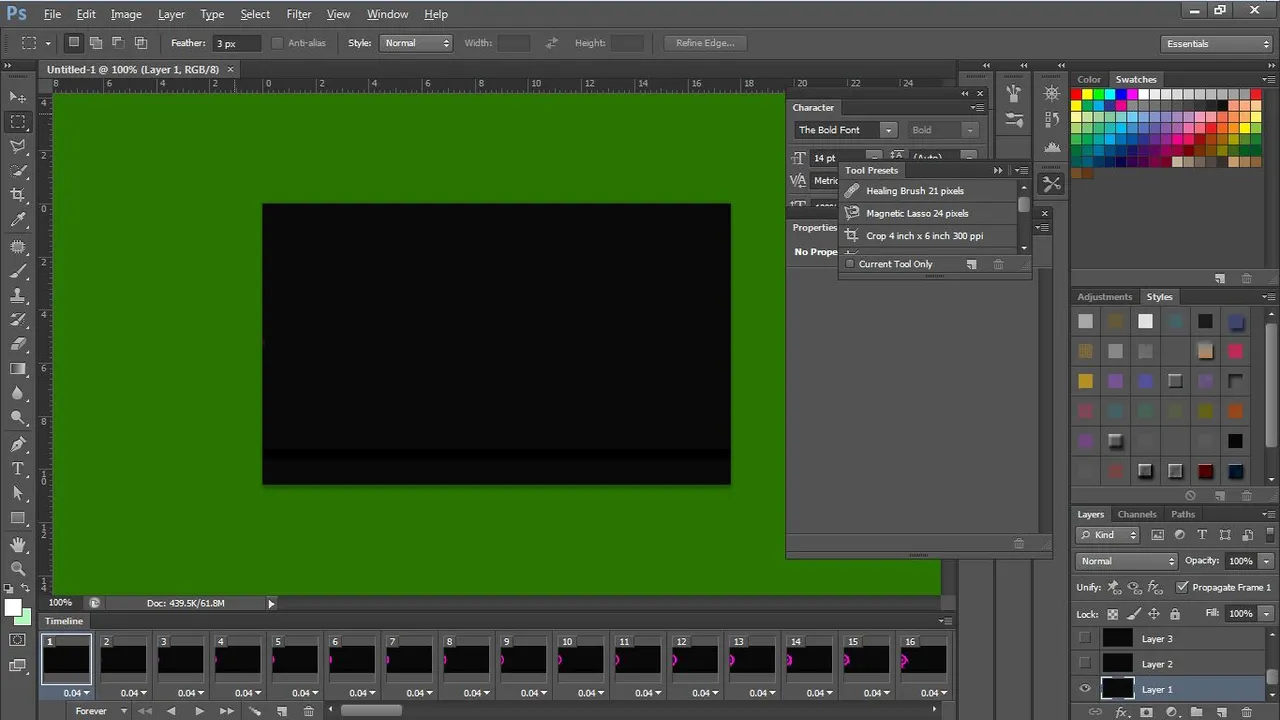

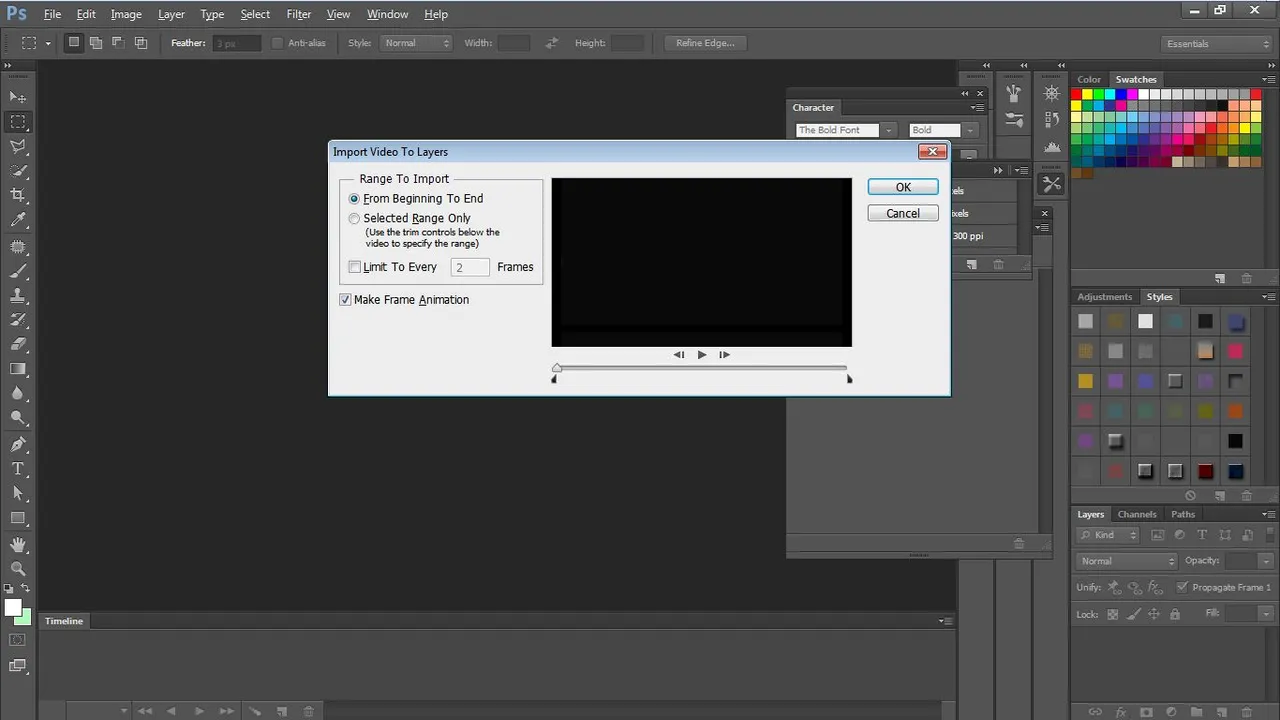

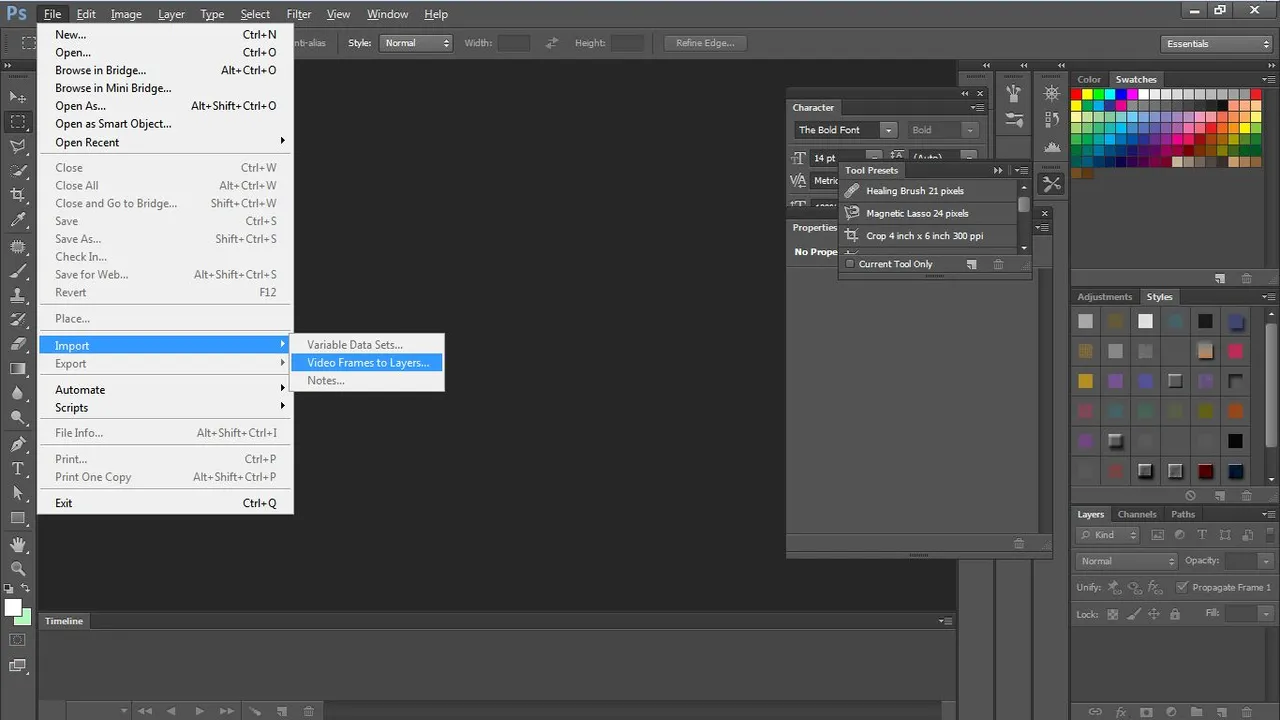

Click on File>Import>Video Frames to Layers
Select the rendered video, and click open
Select "From beginning to End, and click OK

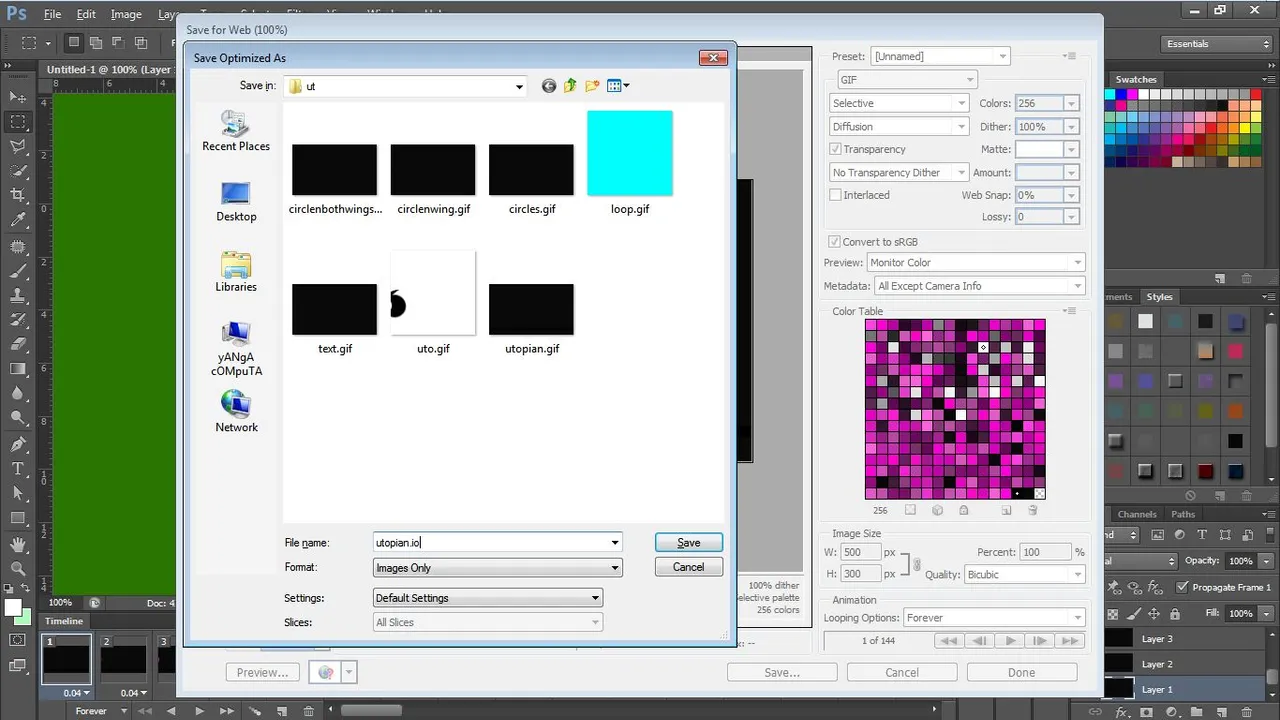

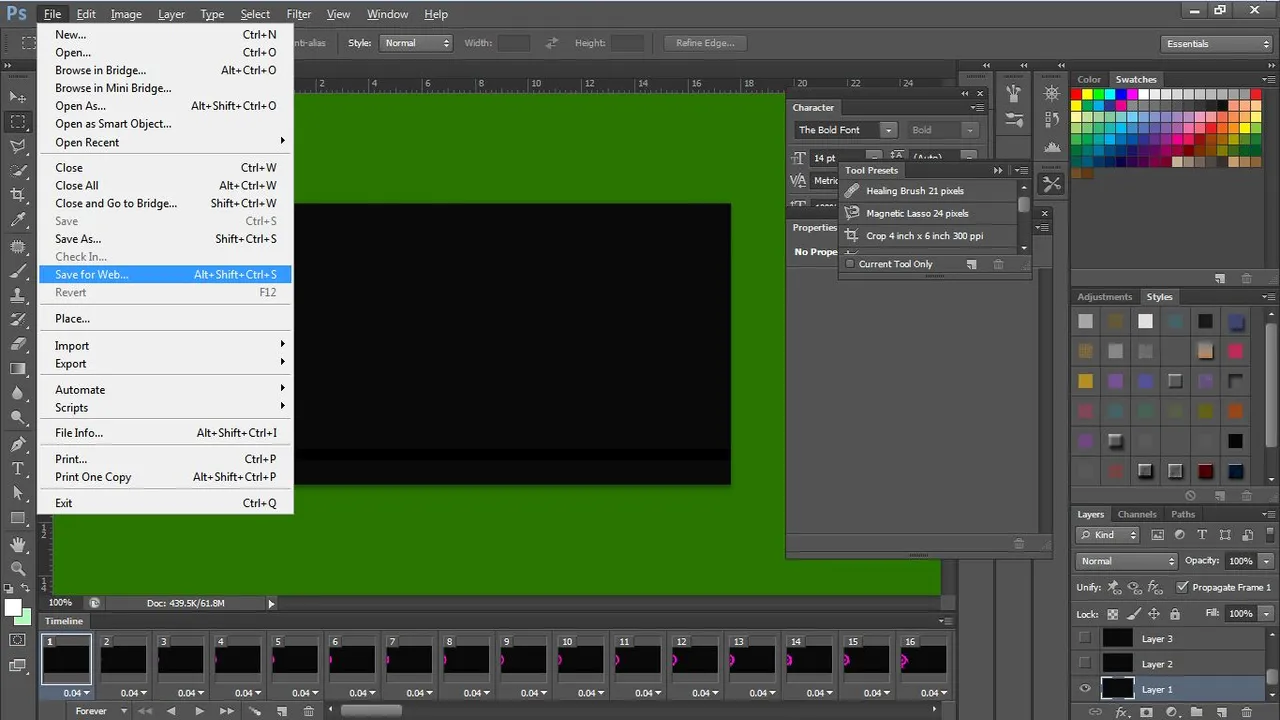

Click on File>Save for web

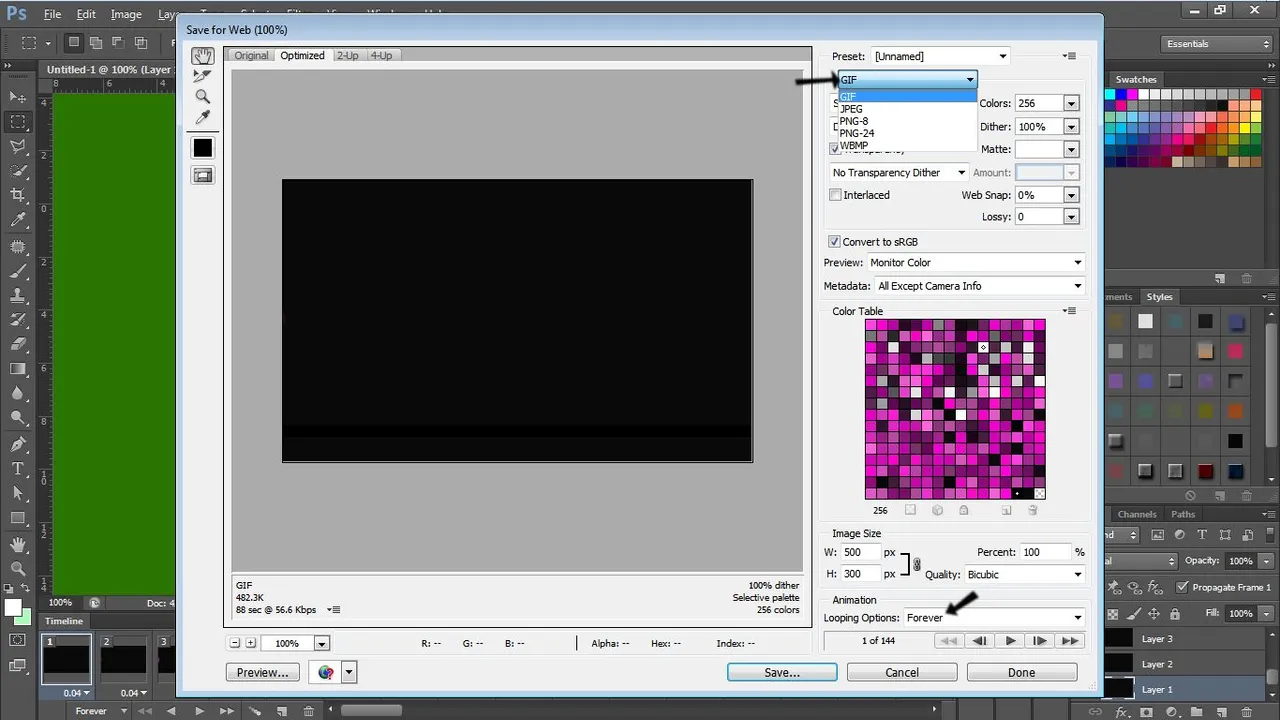

Set the optimized file format at GIF,
and the looping options at Forever
Then save
Your gif is ready.
