There are many cases in which visualizing the data in a certain way helps in making different considerations. For example, you have a population of individuals and you want to divide them per age groups of ten years 21-30 years old, 31-40 years old and so on and so forth.
There are also males and females in your population so you have to keep separate the two categories. The plot we make with R is called age pyramid plot and is used to visualize how the number of individuals is distributed per each age group
The R code in the snippet below explains this in just a few lines where each step is well commented. However, the steps are
a) loading the data and
b) visualizing it
In this example, you can even copy paste the code in Rstudio as there are no particular libraries to import. However, try to understand the code (by going through the lines and comments) before you run it

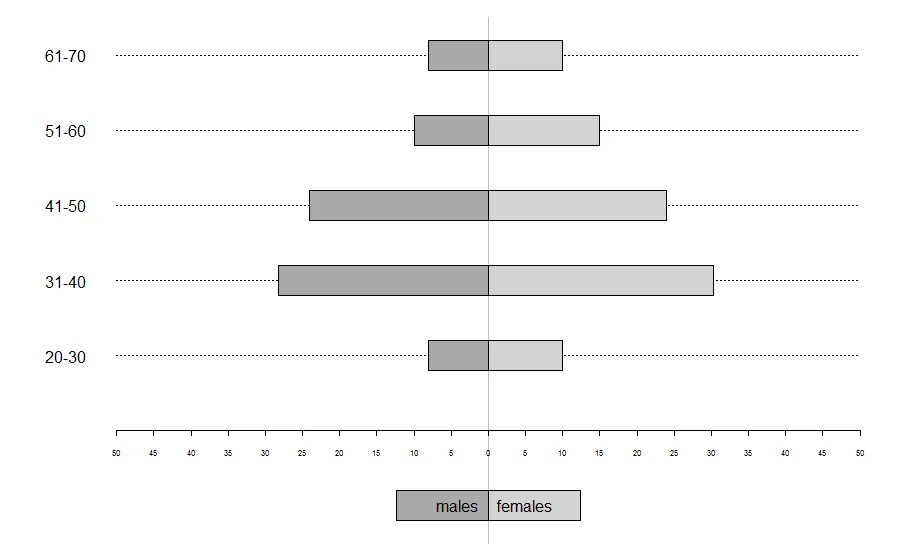

// the following code creates the groups // create the plot with the right parameters //add the legend at the end And this is how the result looks Enjoy :-)
groups = c("20-30", "31-40", "41-50", "51-60", "61-70")
// there are 8 males in the first group, 28 in the second and so on
males = c(8,28.27,24,10)
females = c(10,30.25,24,15)
par(mar=c(0.5, 5, 0.5, 1))
plot.new()
plot.window(xlim=c(-50, 50), ylim=c(-1.5, 5.5))
ticks = seq(-50, 50, 5)
y = 1:5
h = 0.2
// set the axes
lines(rep(0, 2), c(-1.5, 5.5), col="grey")
segments(-50, y, 50, y, lty="dotted")
rect(-males, y-h, 0, y+h, col="dark grey")
rect(0, y-h, females, y+h, col="light grey")
mtext(groups, at=y, adj=1, side=2, las=2)
par(cex.axis=0.5, mex=0.5)
axis(1, at=ticks, labels=abs(ticks), pos=0)
tw = 1.5*strwidth("females")
rect(-tw, -1-h, 0, -1+h, col="dark grey")
rect(0, -1-h, tw, -1+h, col="light grey")
text(0, -1, "males", pos=2)
text(0, -1, "females", pos=4)
