SHM and Smooth Circular Motion

A Smooth Harmonic Motion model can also be constructed from Uniform Circular Motion, as the mathematical equations that describe SHM relate to the concepts of circular motion.

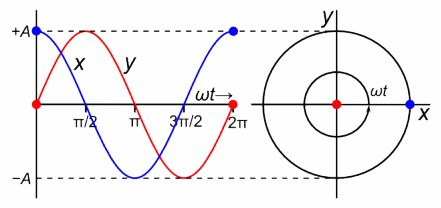

Starting off from a circular motion with a radius A (amplitude) and angular frequency ω, the corresponding SHM is the projection of the so called rotating phase vector on the horizontal axis (or diameter). The projection is thus equal to the cosinus of each individual angle (or phase) φ, times the amplitude A, as shown below.

If at t = 0, the angular position is φ, as it rotates this angle (or phase) changes by ωt, meaning that the angular position at any t is equal to φ + ωt. The projection to the horizontal axis is then equal to:

which is the SHM equation for displacement that we proved last time!

Reference Circle

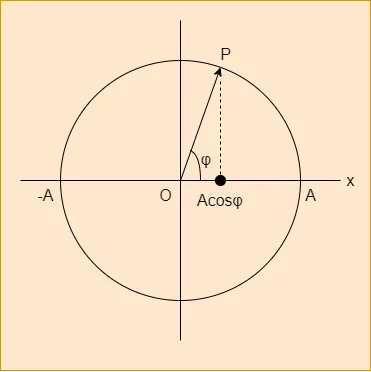

The diagram shown in the previous section is the so called Reference Circle. As the point P moves anti-clockwise with an angular frequency of ω, the vector from the center O to this point forms an angle of φ to the horizontal axis. Projecting this rotating phase vector to the horizontal axis yields the position of the corresponding SHM.

Additionally, the horizontal components of the velocity and acceleration of this circular motion give us the velocity and acceleration fo the corresponding SHM. The velocity of point P is equal to ωΑ, whilst its acceleration is ωA², giving us the equations:

that where proven last time.

Some key phase angles and the corresponding displacements are:

Phase (φ)	Displacement (x)
0	A
π / 6 (30°)	~ 0.86A
π / 4 (45°)	~ 0.7A
π / 3 (60°)	0.5A
π / 2 (90°)	0
π (180°)	-A
3π / 2 (270°)	0

Now we are ready for full-on examples, which will come next time!
